WK06-50C3A-MRQ Automatic Vacuum Feed Banding Machine
Inquiry Now →

Product Description

Automatic Vacuum Feed Banding Machine

1. Schneider touch screen +PLC

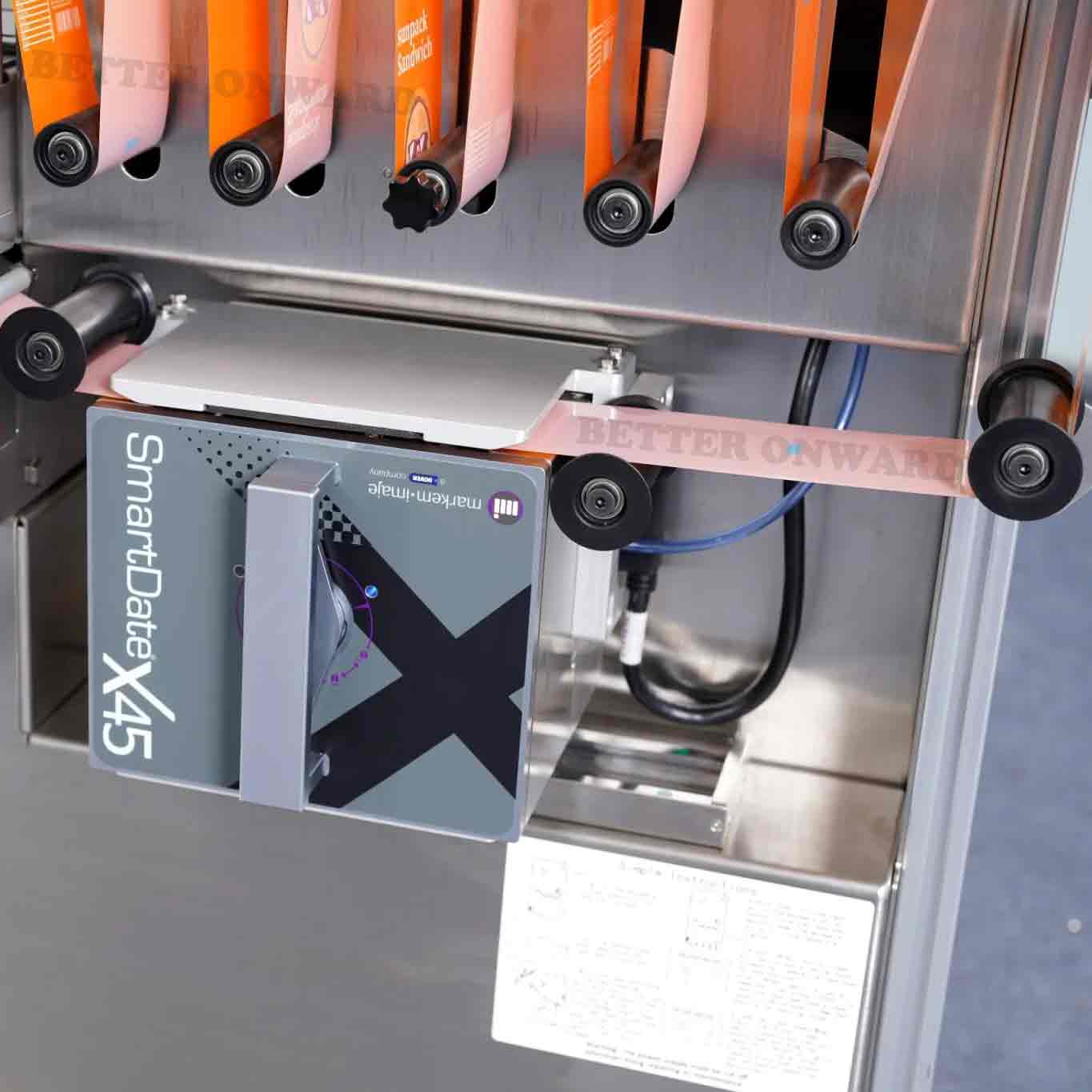

2. With Markem SmartDate X45 Thermal transfer printer
3. Belt power table
4. Side dispenser for easy band loading
5. 304 stainless steel machine body
6. 30mm/40mm/50mm/75mm/100mm/125mm/150mm wide band

7. Min. 40mic OPP film

8. 60 seconds for Pre-Heating time

9. Heat Sealing
10. With counter
11. Applicable for both paper band and OPP film
12. Jumbo roller dispenser to load 500-1200 meters roll
13. Schneider Servo motor
14. Easy maintenance
15. Customize arch size

Application Industry: Food industry, Bakery Industry, Confectionery Industry, Textile industry
Specification


Model

WK06-30C3A-MRQ

WK06-40C3A-MRQ

WK06-50C3A-MRQ

Applicable Material

OPP film or Kraft Paper band

OPP film or Kraft Paper band

OPP film or Kraft Paper band

Material Specification

Width: 30mm

Width: 40mm

Width: 50mm

Thickness: 40-130 mic,

Thickness: 40-130 mic,

Thickness: 40-130 mic,

Length: 500-1200meters

Length: 500-1200meters

Length: 500-1200meters

Core: 76mm

Core: 76mm

Core: 76mm

Arch Size

370*200 mm

370*200 mm

370*200 mm

Banding Size

Min:50*10mm

Min:50*10mm

Min:50*10mm


Max: 360*200mm

Max: 360*200mm

Max: 360*200mm

Table Height

980mm

980mm

980mm

Power Supply

220V 50Hz 1phase or
110V 60Hz 1phase

220V 50Hz 1phase or
110V 60Hz 1phase

220V 50Hz 1phase or
110V 60Hz 1phase

Power Rate

1250W

1250W

1250W

Control System

PLC+Schneider touch screen

PLC+Schneider touch screen

PLC+Schneider touch screen

Banding Speed

27 bands/Minute

27 bands/Minute

27 bands/Minute

Banding Tension

5-40N

5-40N

5-40N

Welding Method

Heat Sealing

Heat Sealing

Heat Sealing

Net Weight

145KG

145KG

145KG

Machine Dimension

L1253xW502xH1205mm

L1253xW502xH1205mm

L1253xW502xH1205mm

Model

WK06-75C3A-MRQ

WK06-100C3A-MRQ

WK06-150C3A-MRQ

Applicable Material

OPP film or Kraft Paper band

OPP film or Kraft Paper band

OPP film or Kraft Paper band

Material Specification

Width: 75mm

Width: 100mm

Width: 150mm

Thickness: 40-130 mic,

Thickness: 40-130 mic,

Thickness: 40-130 mic,

Length: 500-1200meters

Length: 500-1200meters

Length: 500-1200meters

Core: 76mm

Core: 76mm

Core: 76mm

Arch Size

370*200 mm

370*200 mm

370*200 mm

Banding Size

Min:50*10mm

Min:50*10mm

Min:50*10mm

Max: 360*200mm

Max: 360*200mm

Max: 360*200mm

Table Height

980mm

980mm

980mm

Power Supply

220V 50Hz 1phase or
110V 60Hz 1phase

220V 50Hz 1phase or
110V 60Hz 1phase

220V 50Hz 1phase or
110V 60Hz 1phase

Power Rate

1250W

1250W

1250W

Control System

PLC+ Schneider touch screen

PLC+ Schneider touch screen

PLC+ Schneider touch screen

Banding Speed

27 bands/Minute

27 bands/Minute

27 bands/Minute

Banding Tension

5-40N

5-40N

5-40N

Welding Method

Heat Sealing

Heat Sealing

Heat Sealing

Net Weight

145KG

145KG

145KG

Machine Dimension

L1253xW502xH1205mm

L1253xW502xH1205mm

L1253xW502xH1205mm

With Printer

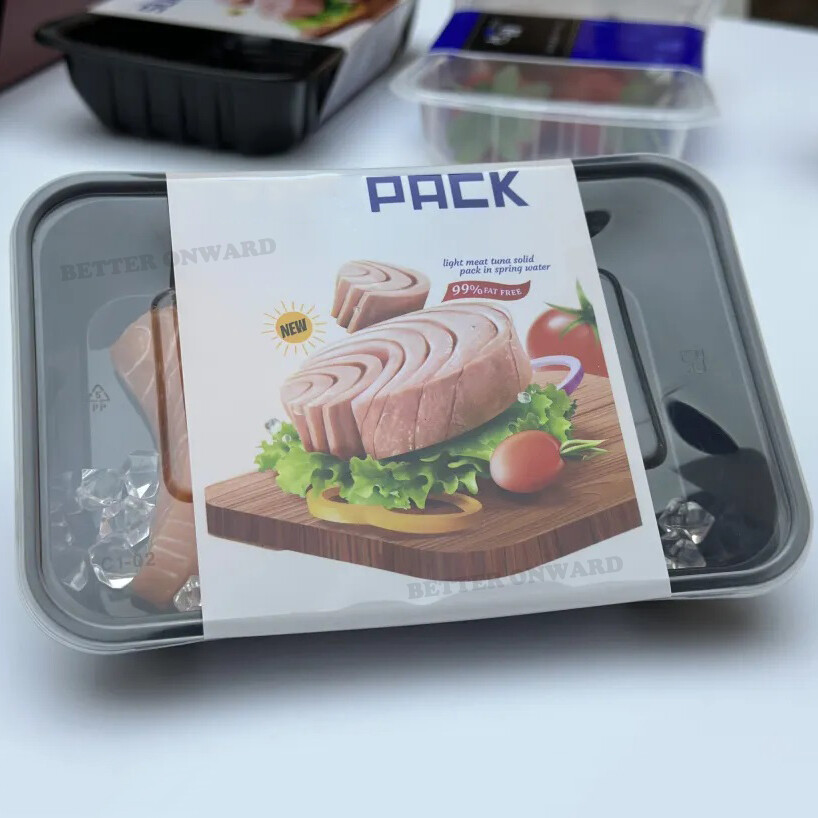

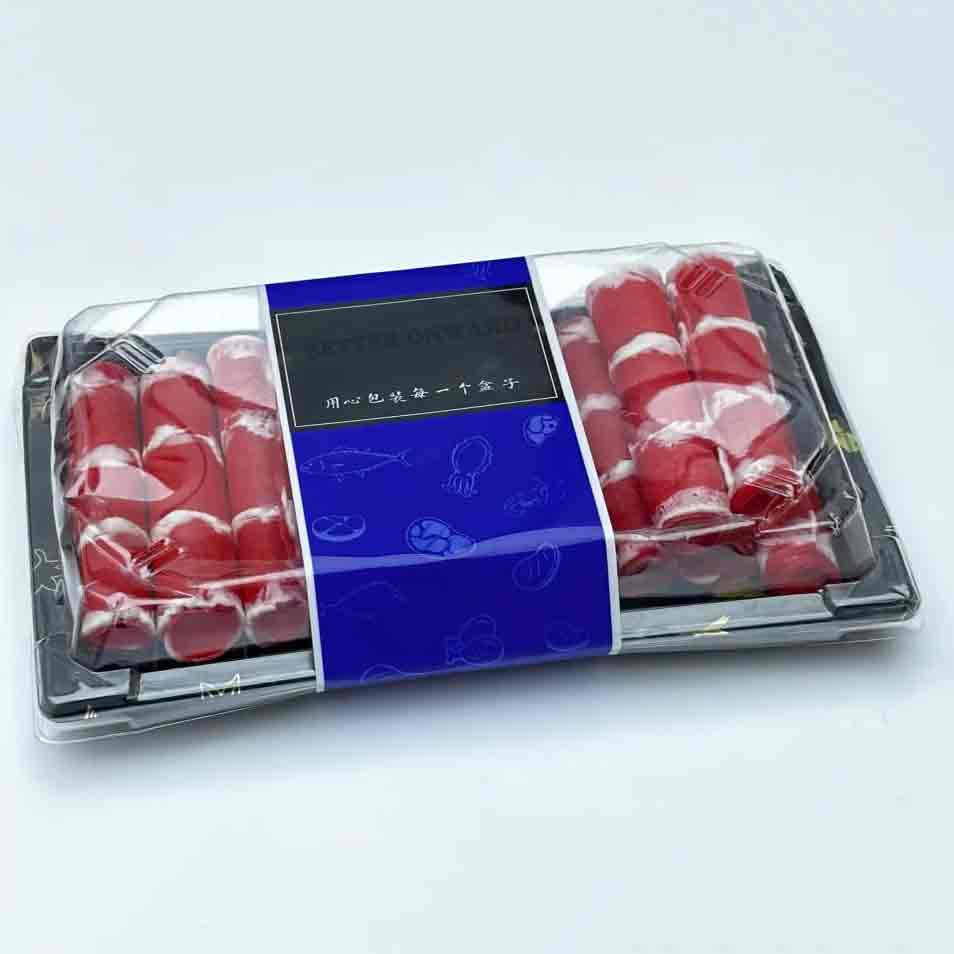

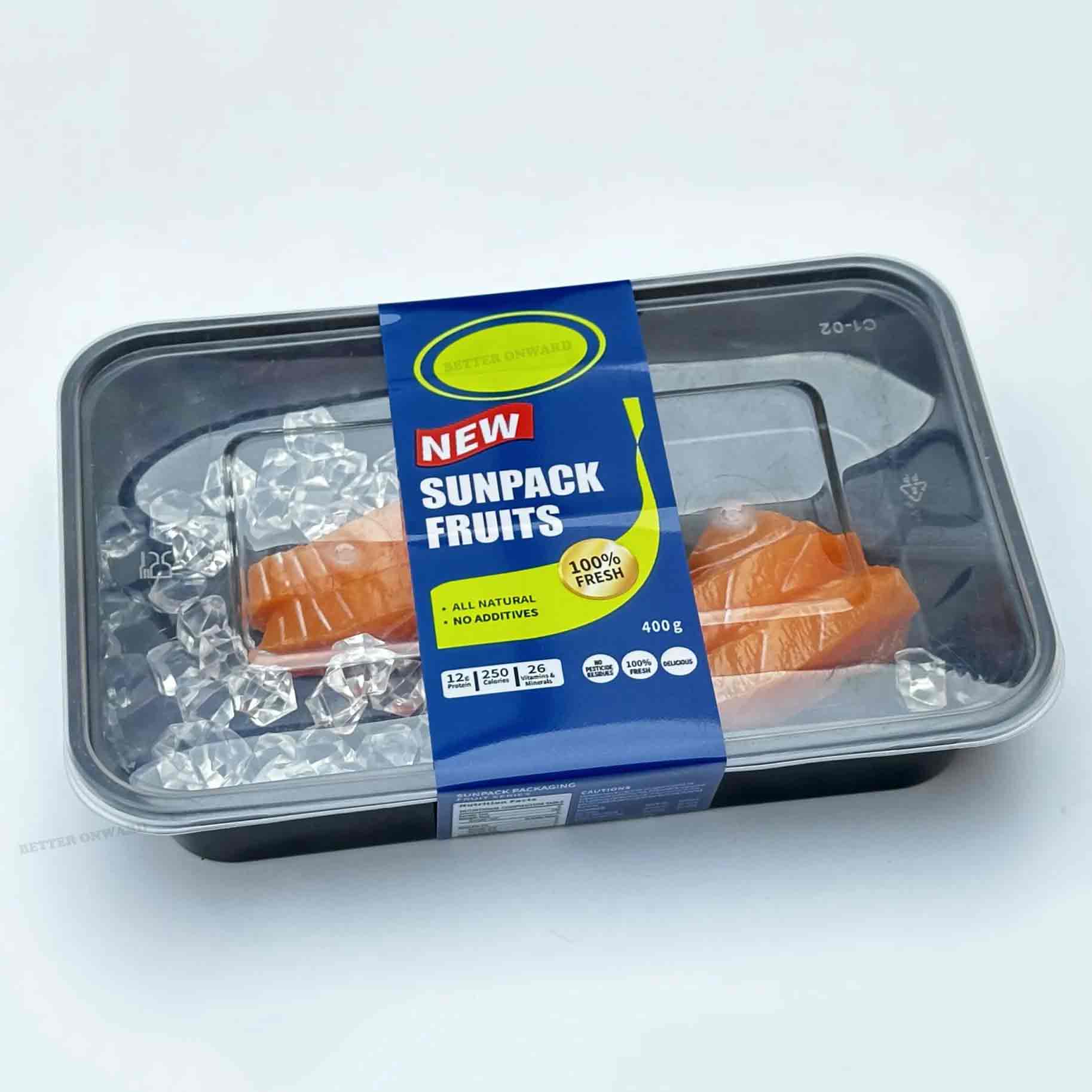

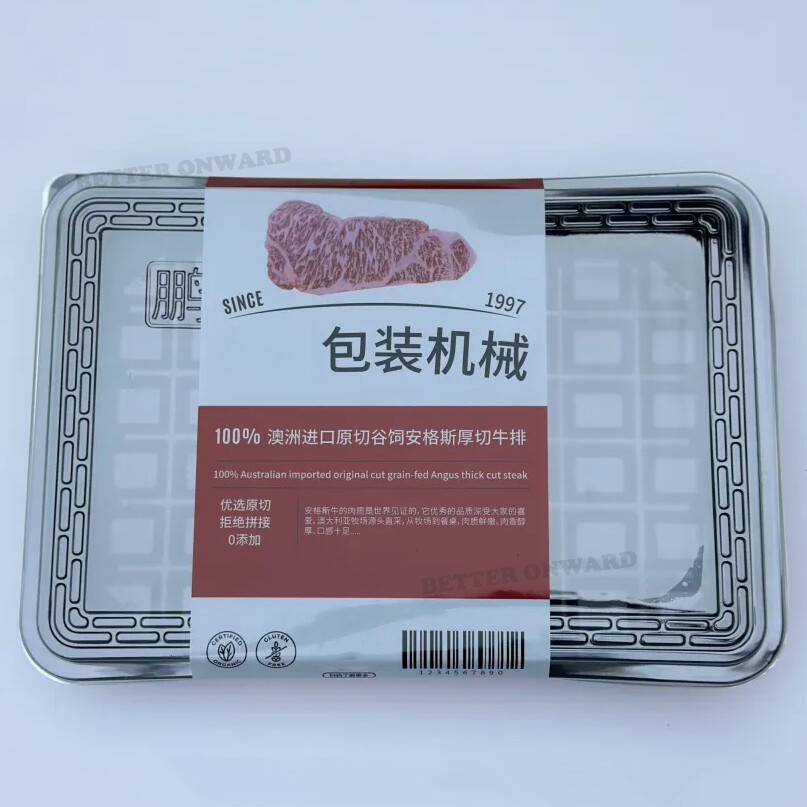

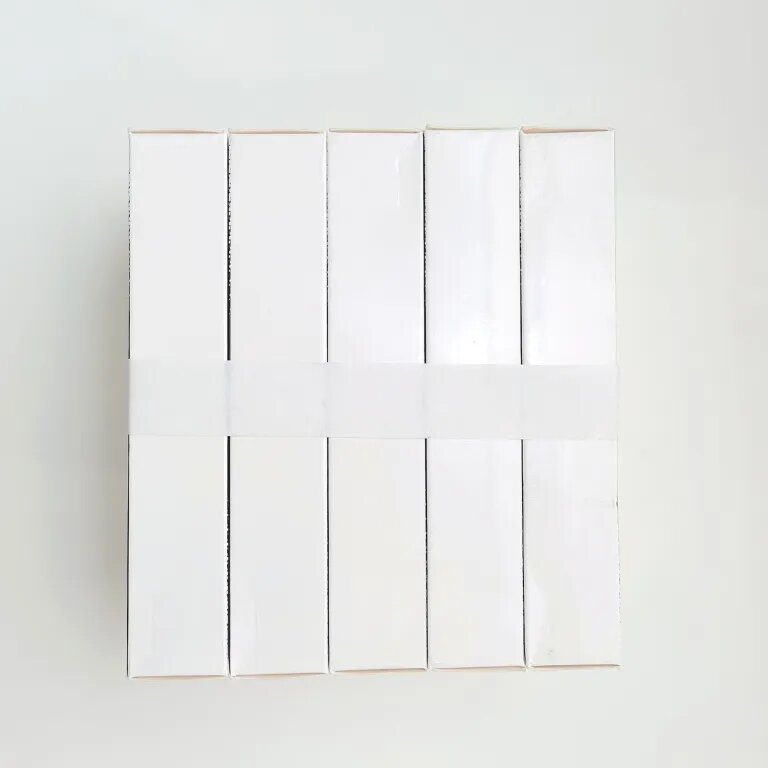

Banding Effect
