Product Description

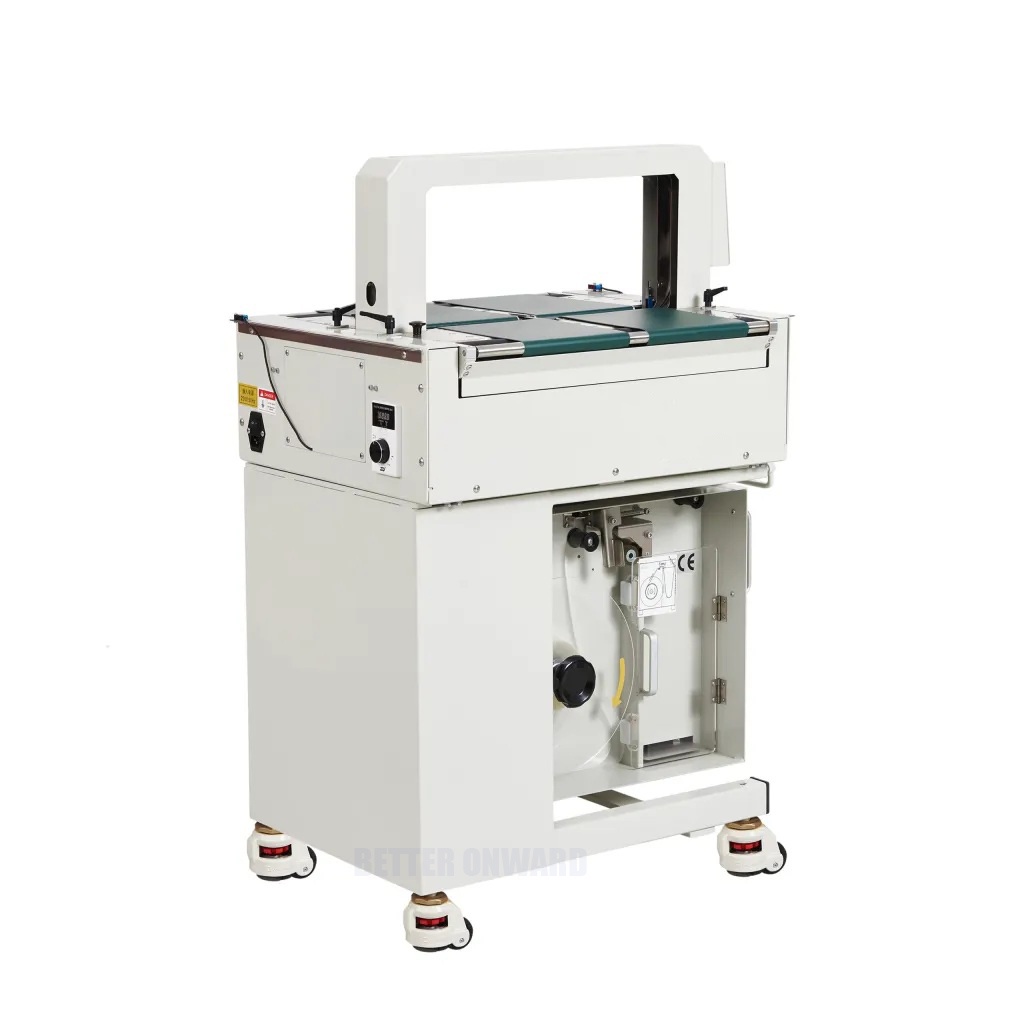

WK02-30CA1 Automatic 2 Belts Paper Band OPP Film Banding Machine with DC Motor
2 Belts table for infeeding product automatically
Side band inserting
LCD screen
Heater temperature display
Tension force display
With counter
PCB Control
Instant Heating
Heat Sealing Available for 0 or 1 or 2 bands selection
Applicable for both paper band and OPP film
Jumbo roller dispenser to load 500-800 meters roll
DC motor

WK02-30CA1 Automatic 2 Belts Paper Band OPP Film Banding Machine

Specification

Model	WK02-20CA1-2718	WK02-30CA1-4720	WK02-30CA1-6032
Applicable Material	OPP film or Paper band	OPP film or Paper band	OPP film or Paper band
Material Specification	Width: 19.2-19.6mm Thickness: 120mic Length: 500meters Core: 40mm	Width: 29.2-29.6mm Thickness: 120mic Length: 500meters Core: 40mm	Width: 29.2-29.6mm Thickness: 120mic Length: 500meters Core: 40mm
Arch Size	270 x 180mm	470*200mm	670 x 320mm
Banding Size	Min: 3010mm Max: 270160mm	Min: 3010mm Max: 460200mm	Min: 3010mm Max: 630200mm
Table Height	980mm	980mm	980mm
Power Supply	220V 50hz 1phase 110V 60hz 1phase	220V 50hz 1phase 110V 60hz 1phase	220V 50hz 1phase 110V 60hz 1phase
Power Rate	850W	850W	850W
Control System	PCB+LCD screen	PCB+LCD screen	PCB+LCD screen
Band QTY	0 or 1 or 2 bands	0 or 1 or 2 or 3 bands	0 or 1 or 2 or 3 bands
Banding Speed	20 bands/Minute	20 bands/Minute	20 bands/Minute
Banding Tension	5-40N	5-40N	5-40N
Welding Method	Heat Sealing	Heat Sealing	Heat Sealing
NW	105kg	135kg	155kg
Machine Dimension	L 411 x W 464 x H 1275mm	L 611 x W 464 x H 1275mm	L 750 x W 464 x H 1275mm

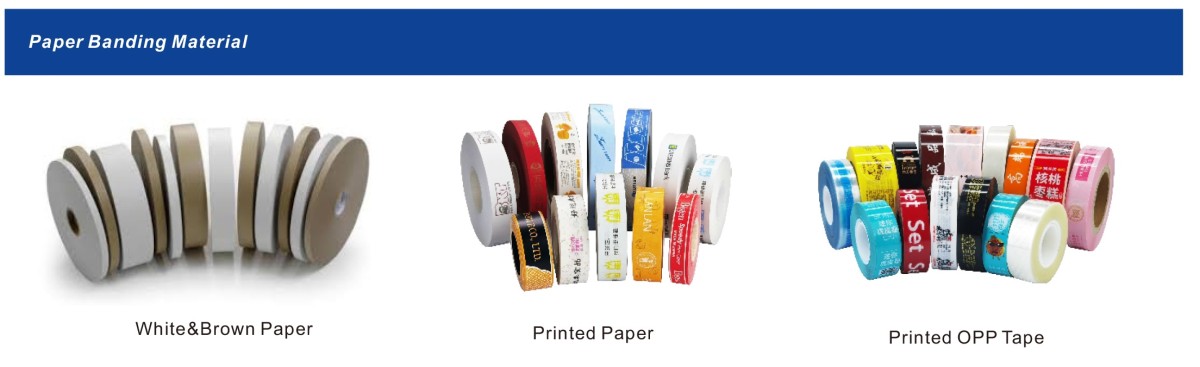

Applicable material

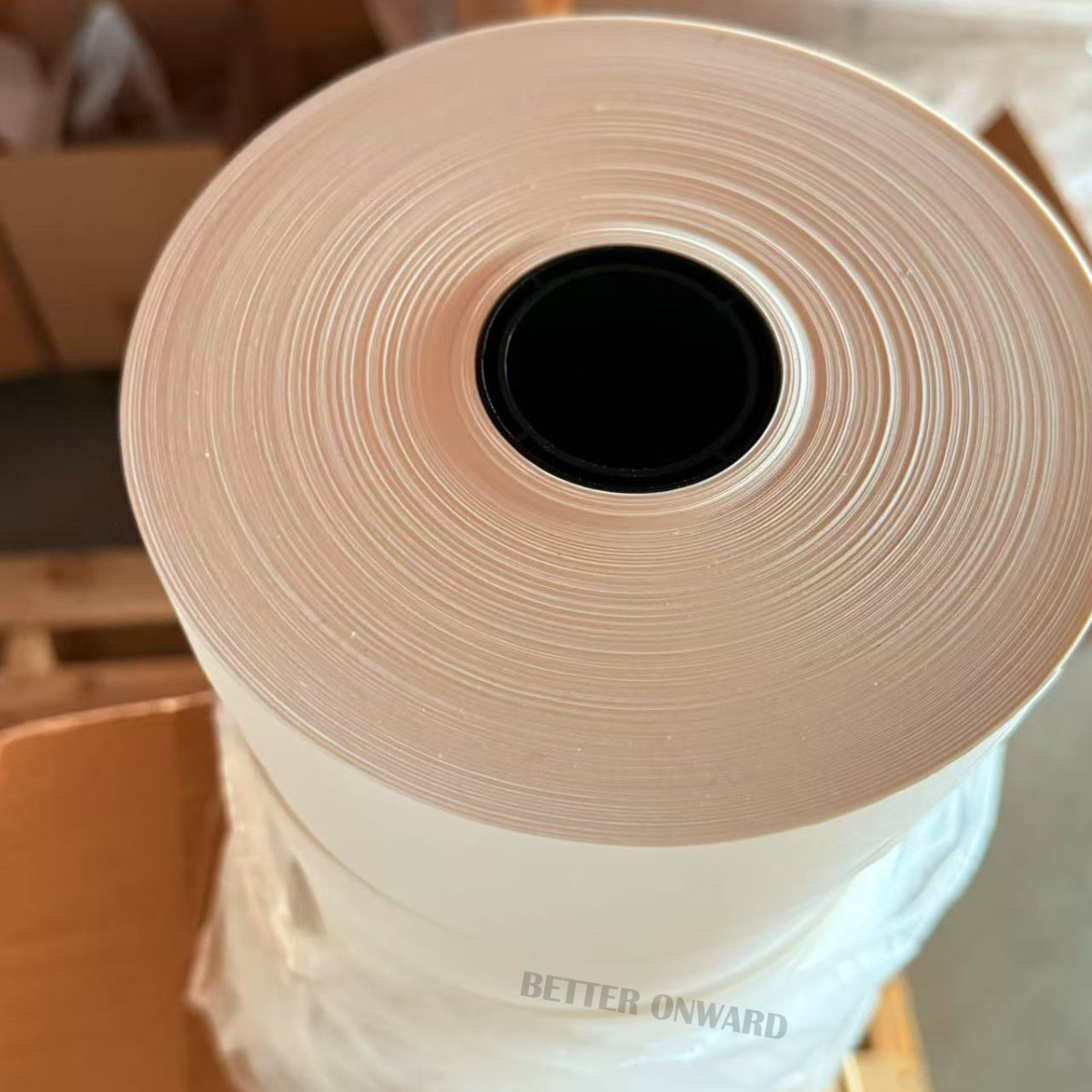

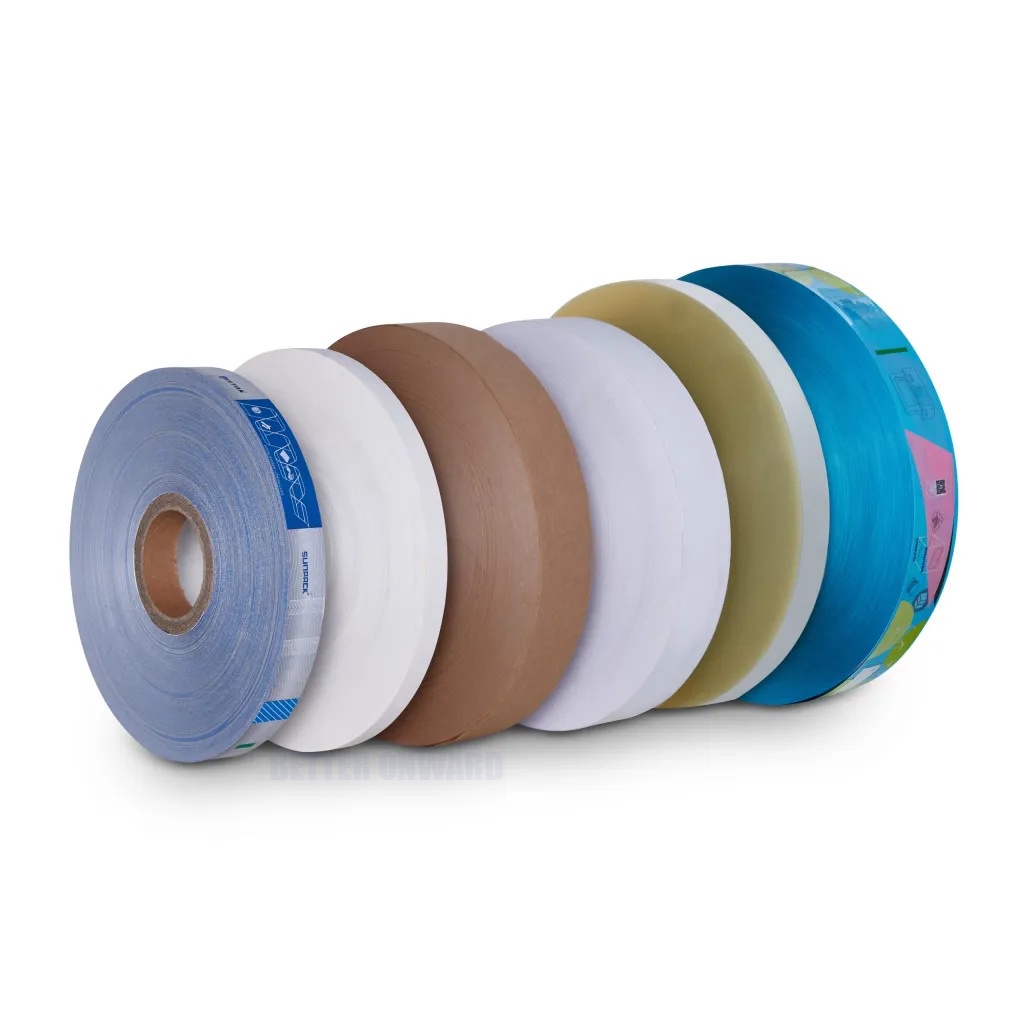

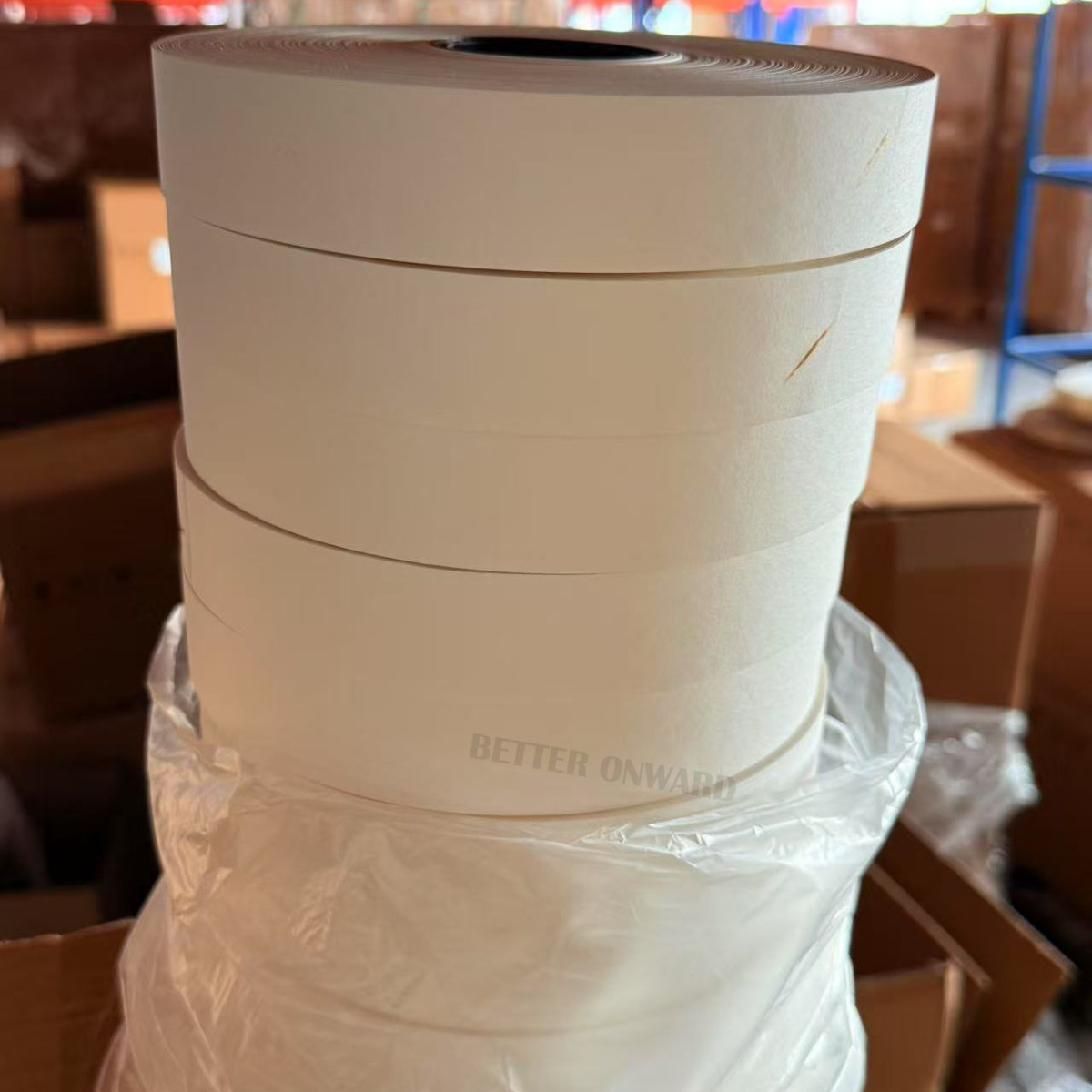

Paper Band

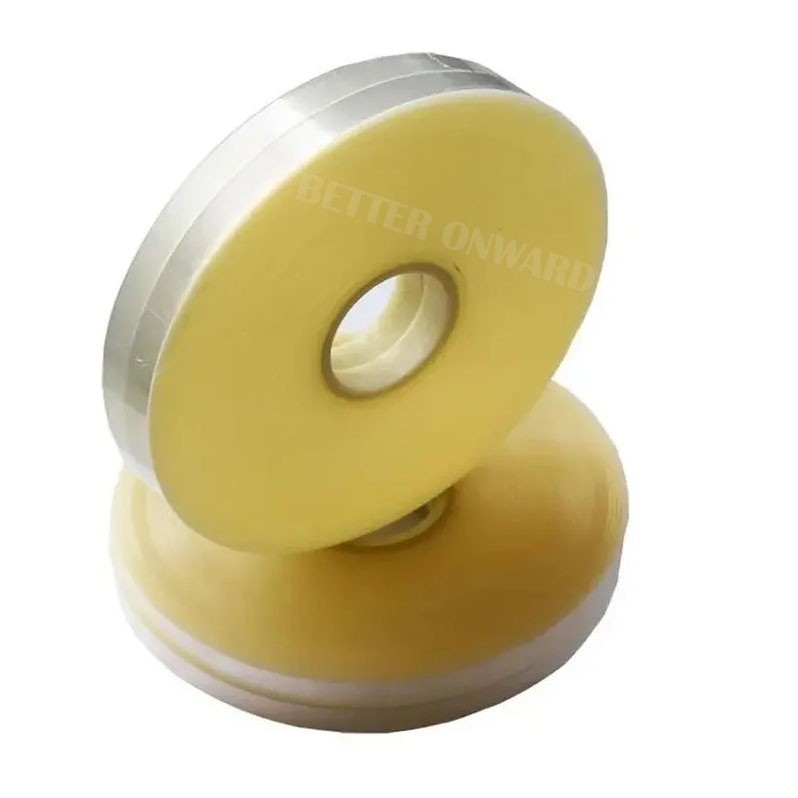

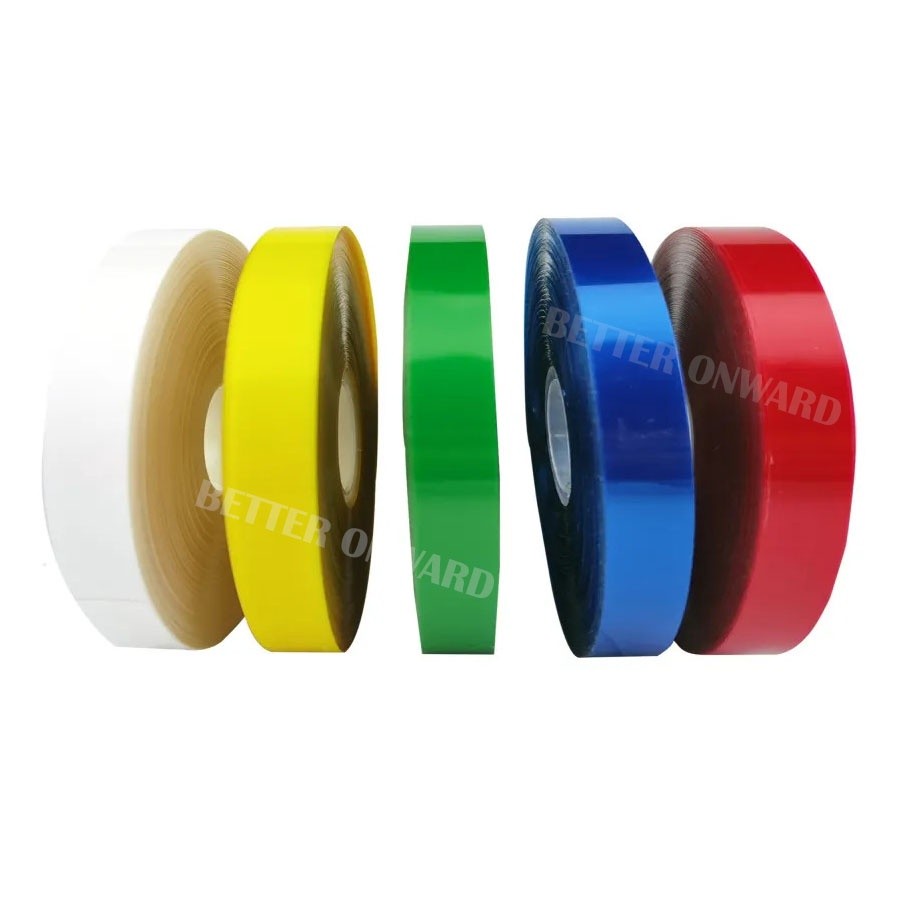

OPP Film

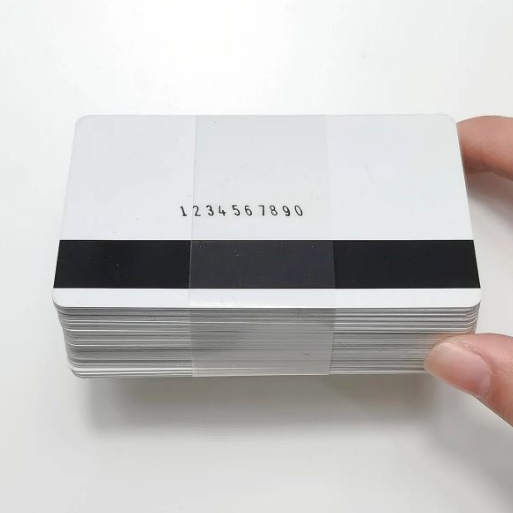

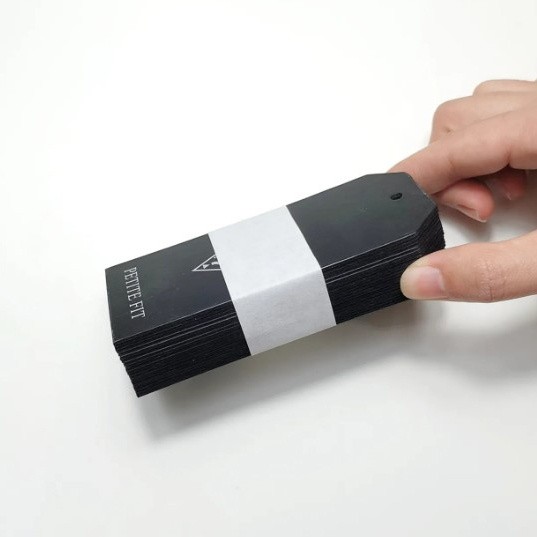

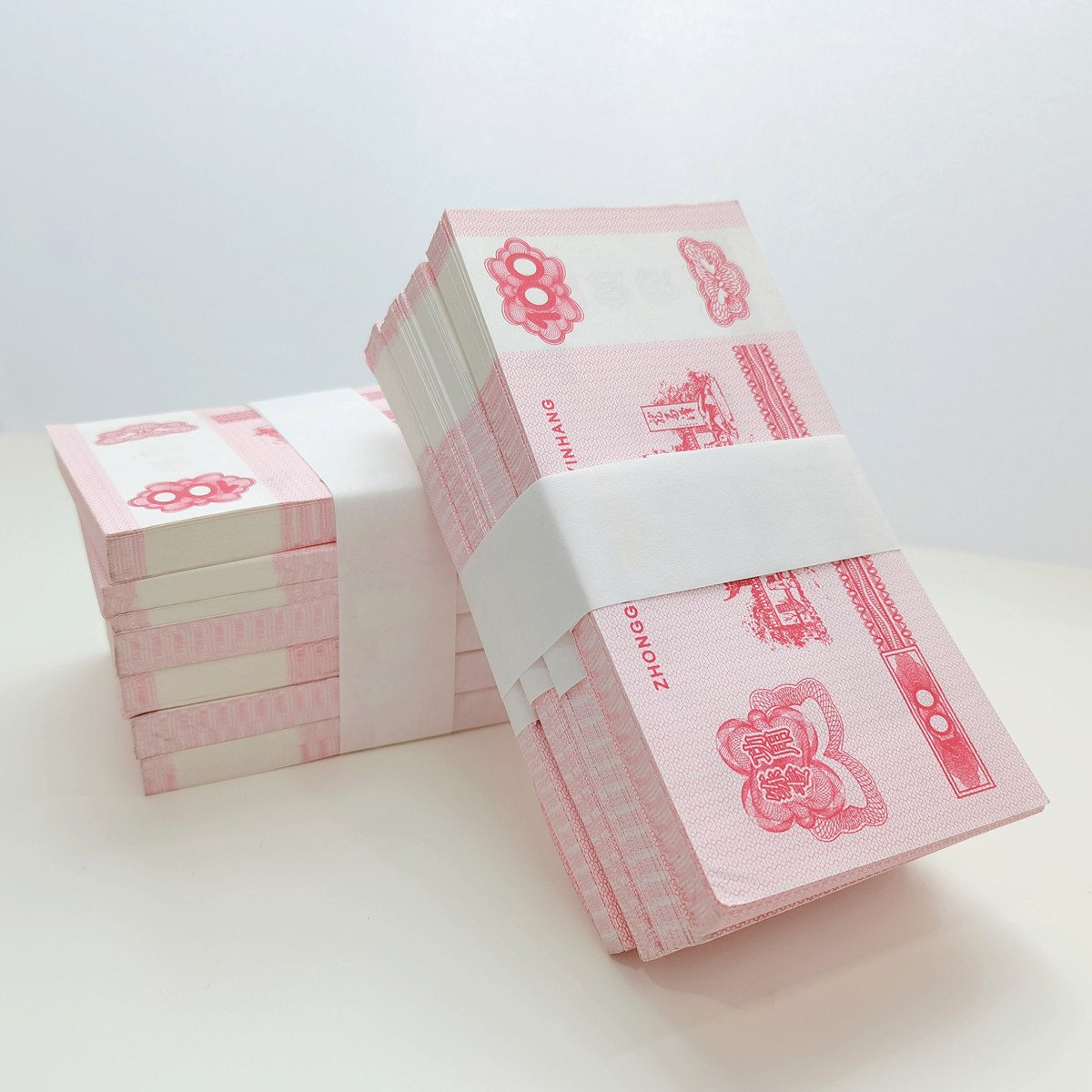

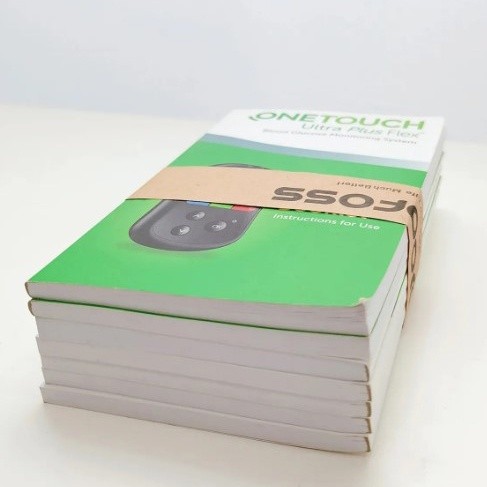

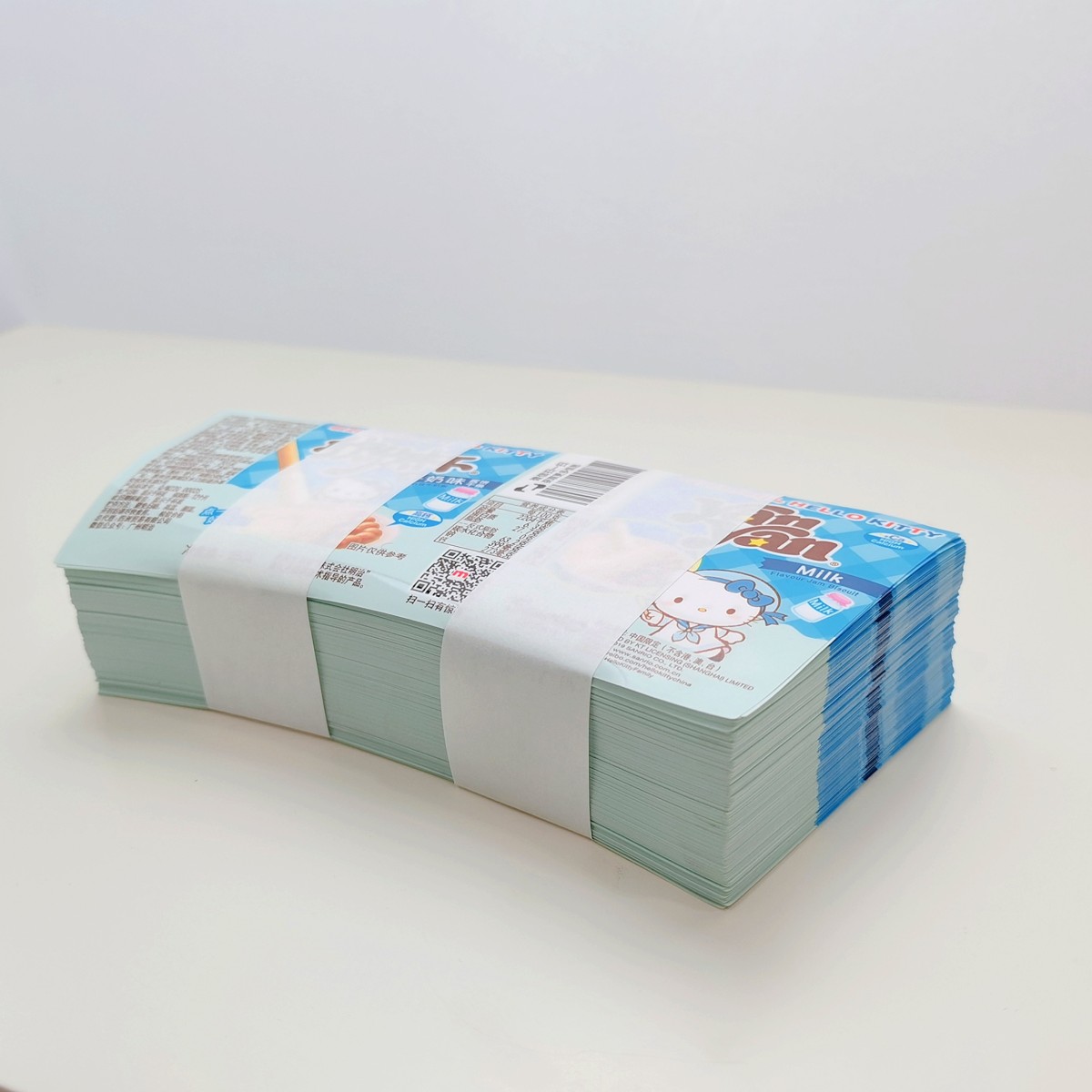

Application

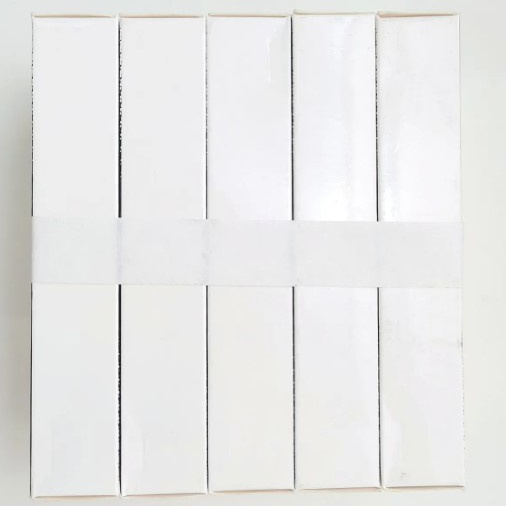

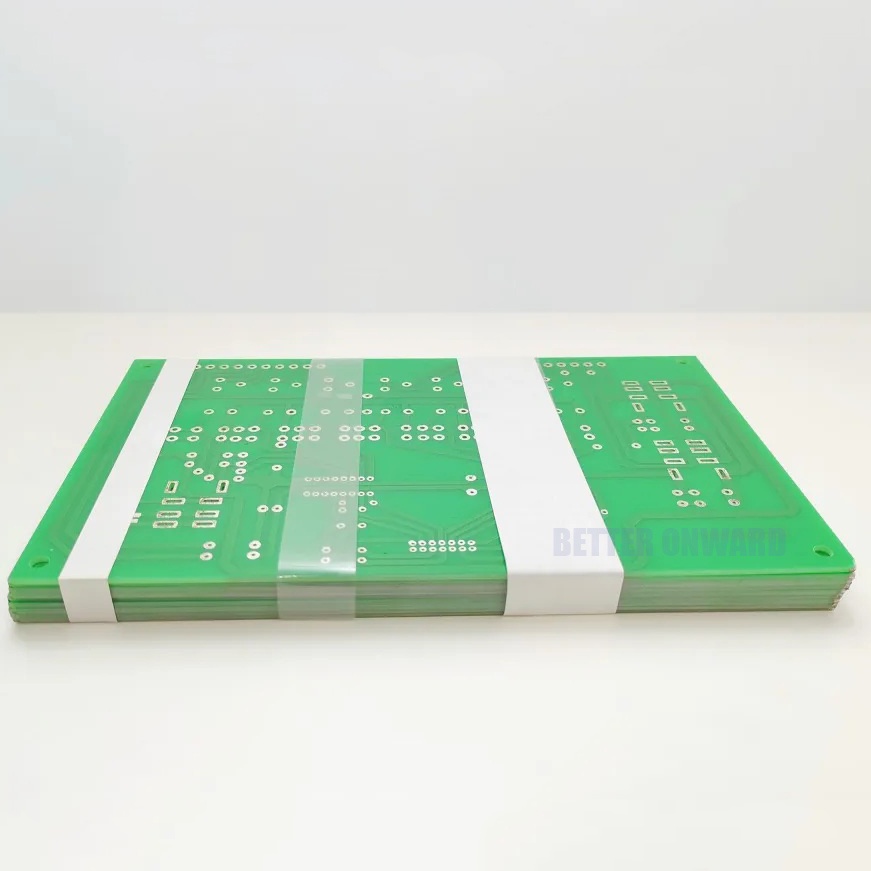

Product packaging
