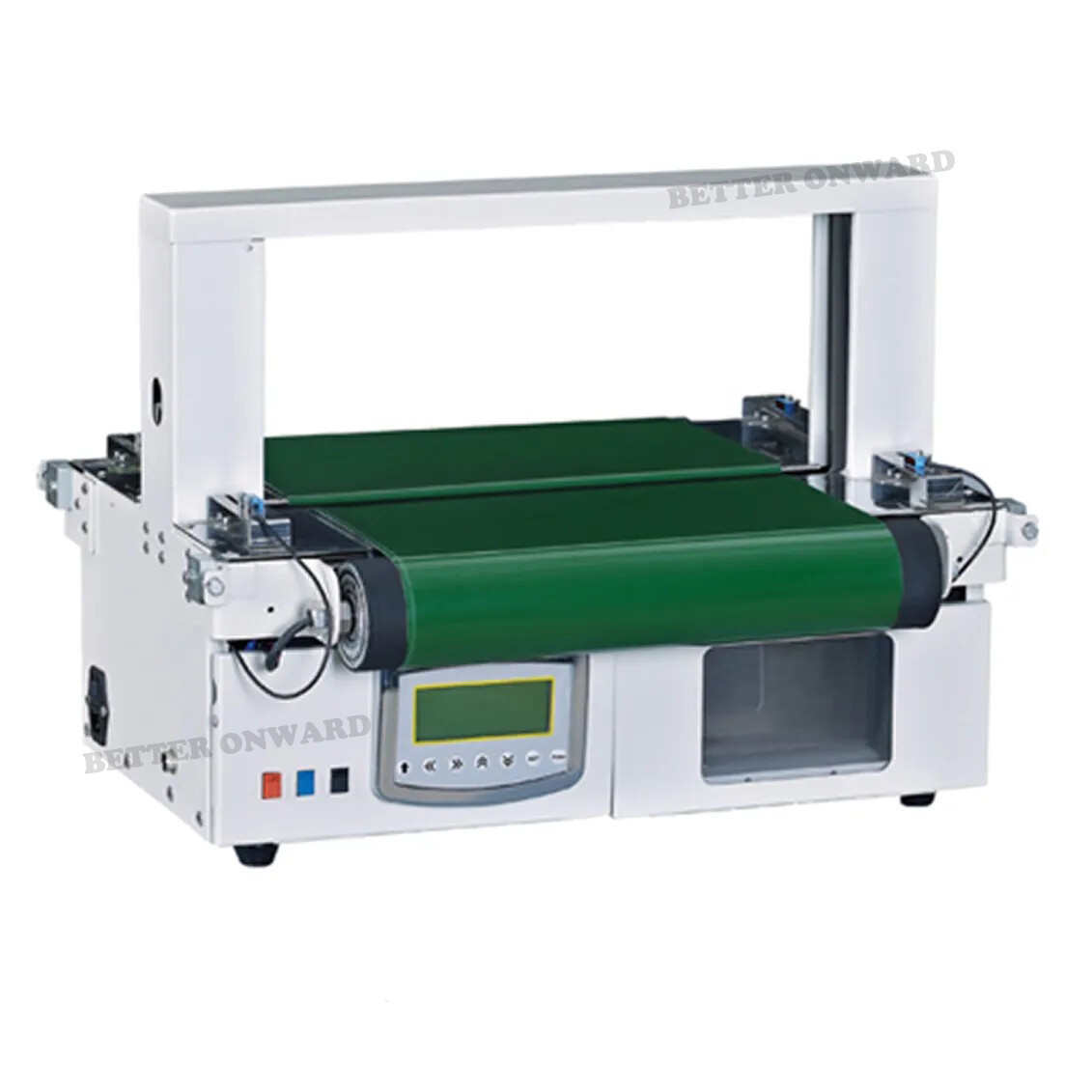

WK02-30A Belt Conveying Table Automatic Banding Machine
Inquiry Now →

Product Description

WK02-30A Belt Table Automatic Banding Machine
1. Belt table for infeed and outfeed product automatically
2. 60 Seconds Pre-Heating time
3. Heat Sealing
4. Applicable for both paper band and OPP film
5. AC motor Power
Specification
Model
WK02-30A
Applicable Material
OPP film or Kraft Paper band
Material Specification
Width: 29.2-29.6mm,
Thickness: 120mic,
Length: 150meters,
Core: 40mm
Arch Size
470*200mm
Banding Size
Min.: 30*10mm Max.: 460*200mm
Power Supply
220V 50Hz 1phase or 110V 60Hz 1phase
Power Rate
450W
Control System
PCB+Key board control panel
Banding Speed
25 bands/Minute
Banding Tension
5-40N
Welding Method
Heat Sealing
Net Weight
45kg
Machine Dimension
L 611 x W 464 x H 475mm
Banding Effect
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
