Product Description

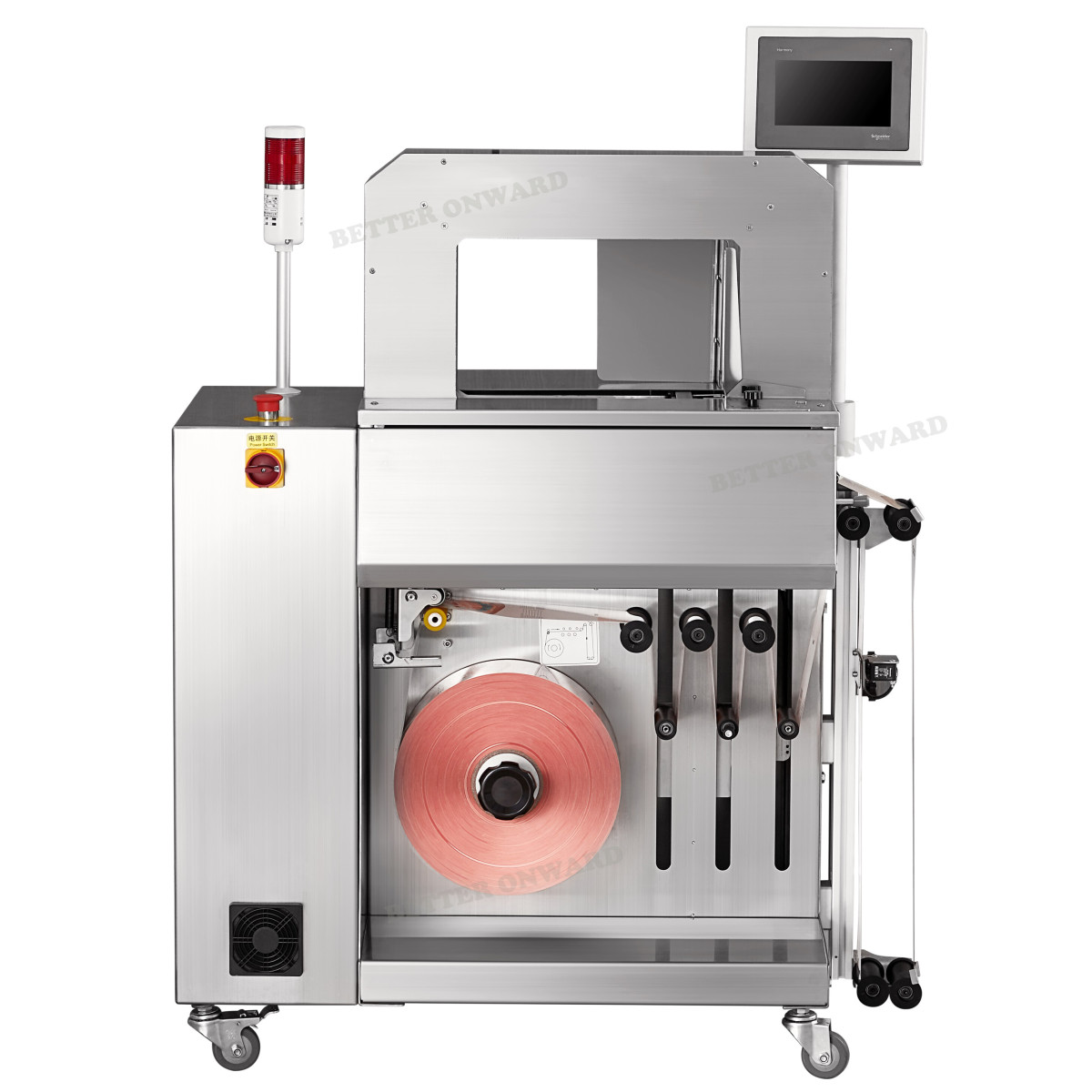

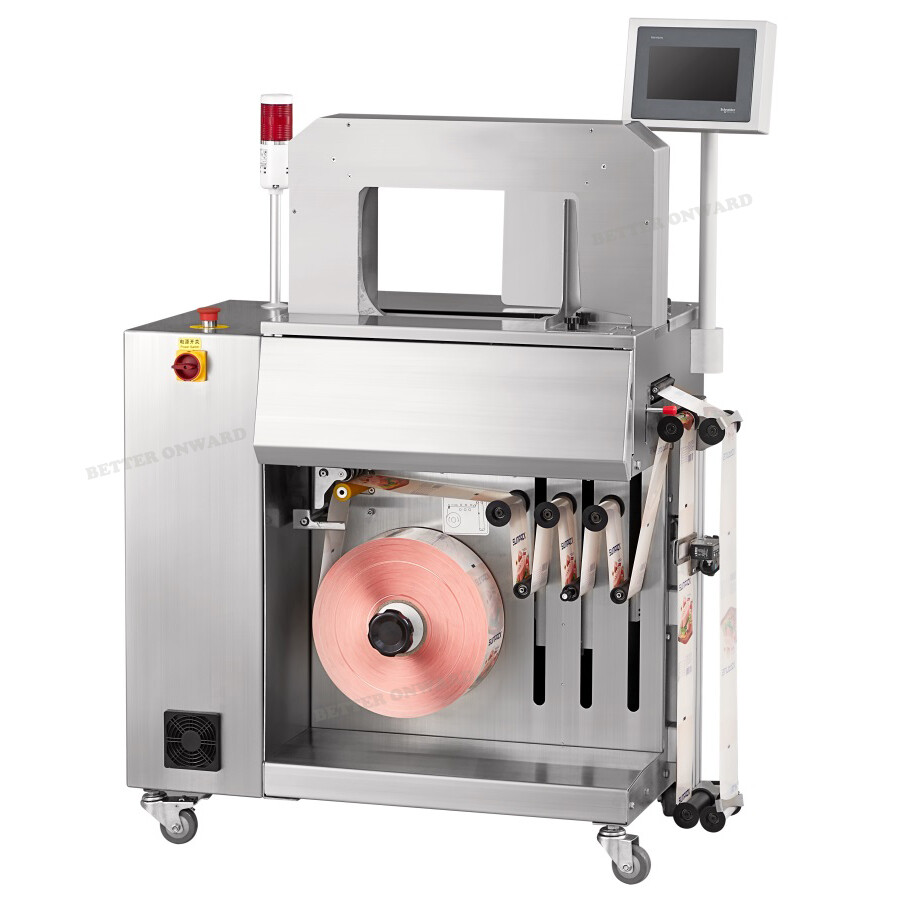

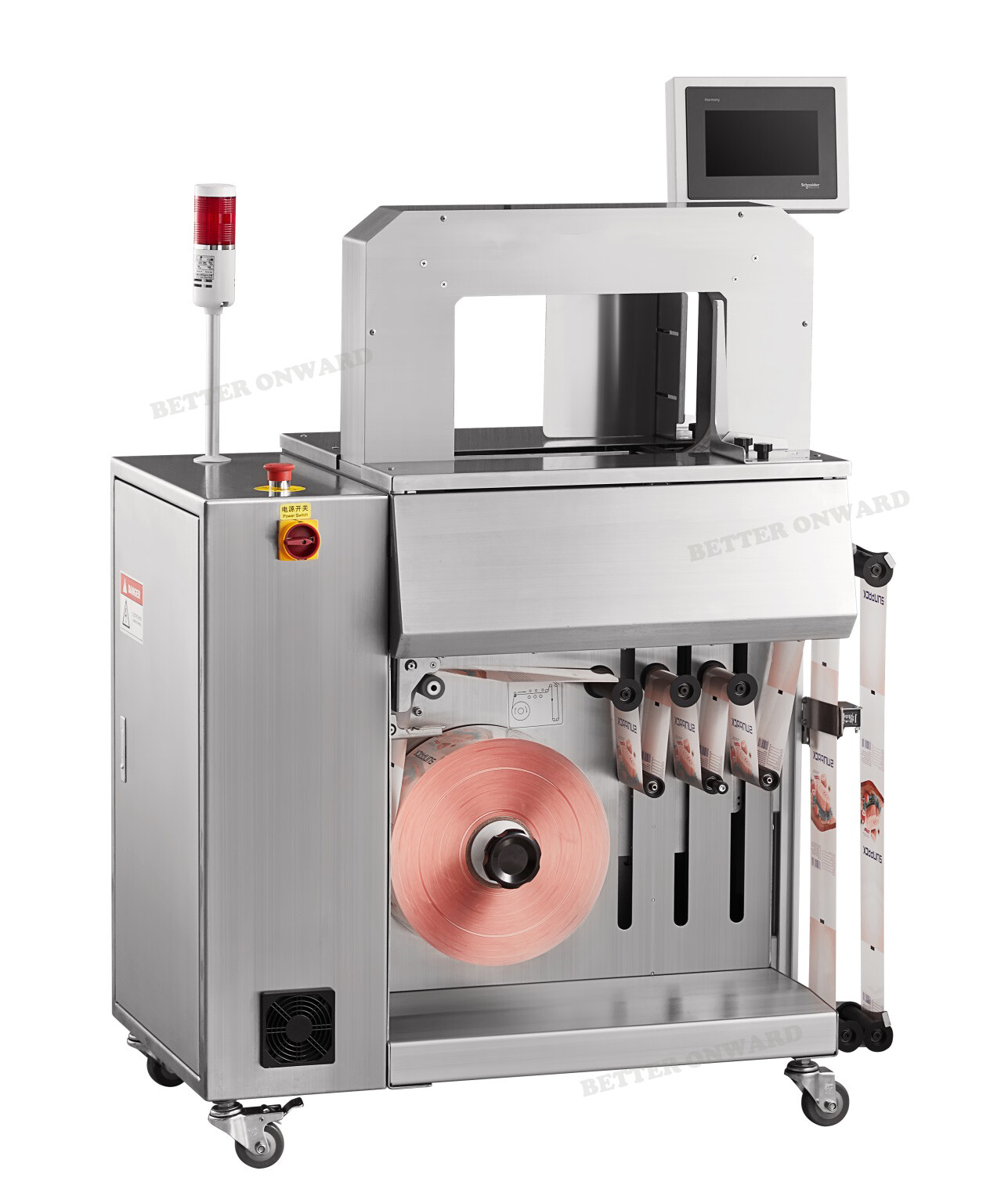

WK06-100C-MQ Automatic Vacuum Feed Banding Machine with Eye Mark

1. Schneider PLC+ touch screen
2. 30mm/40mm/50mm/75mm/100mm/125mm/150mm wide band
3. Min. 40mic OPP film
4. With Eye mark sensor
5. 60 seconds Pre-Heating time
6. Heat Sealing
7. With counter
8. Applicable for both paper band and OPP film
9. Jumbo roller dispenser to load 500-1200 meters roll
10. Schneider Servo motor
11. Persisting heater temperature

Application Industry: Food industry, Bakery Industry, Confectionery Industry, Textile industry, etc.

Specification

Model	WK06-30C-MQ	WK06-40C-MQ	WK06-50C-MQ	WK06-75C-MQ
Applicable Material	OPP film or Kraft Paper Band	OPP film or Kraft Paper Band	OPP film or Kraft Paper Band	OPP film or Kraft Paper Band
Material	Width: 30mm Thickness: 40-130mic, Length: 500-1200m Core: 76mm	Width: 40mm Thickness: 40-130mic, Length: 500-1200m Core: 76mm	Width: 50mm Thickness: 40-130mic, Length: 500-1200m Core: 76mm	Width: 75mm Thickness: 40-130mic, Length: 500-1200m Core: 76mm
Arch Size	370*200 mm	370*200 mm	370*200 mm	370*200 mm
Banding Size	Min.:5010mm Max.: 360200mm	Min.:5010mm Max.: 360200mm	Min.:5010mm Max.: 360200mm	Min.:5010mm Max.: 360200mm
Eye Mark Sensor	Yes	Yes	Yes	Yes
Table Height	980mm	980mm	980mm	980mm
Power Supply	220V 50Hz 1phase or 110V 60Hz 1phase	220V 50Hz 1phase or 110V 60Hz 1phase	220V 50Hz 1phase or 110V 60Hz 1phase	220V 50Hz 1phase or 110V 60Hz 1phase
Power Rate	1250W	1250W	1250W	1250W
Control System	Schneider PLC+touch screen	Schneider PLC+touch screen	Schneider PLC+touch screen	Schneider PLC+touch screen
Banding Speed	27 bands/Minute	27 bands/Minute	27 bands/Minute	27 bands/Minute
Banding Tension	5-40N	5-40N	5-40N	5-40N
Welding Method	Heat Sealing	Heat Sealing	Heat Sealing	Heat Sealing
Net Weight	145KG	145KG	145KG	145KG
Machine Dimension	L 1253 x W 502 x H 1205mm	L 1253 x W 502 x H 1205mm	L 1253 x W 502 x H 1205mm	L 1253 x W 502 x H 1205mm

Model	WK06-100C-MQ	WK06-125C-MQ	WK06-150C-MQ
Applicable Material	OPP film or Paper band	OPP film or Paper band	OPP film or Paper band
Material	Width: 100mm Thickness: 40-130 mic, Length: 500-1200meters Core: 76mm	Width: 125mm Thickness: 40-130 mic, Length: 500-1200meters Core: 76mm	Width: 150mm Thickness: 40-130 mic, Length: 500-1200meters Core: 76mm
Arch Size	370*200 mm	370*200 mm	370*200 mm
Banding Size	Min.:5010mm Max.: 360200mm	Min.:5010mm Max.: 360200mm	Min.:5010mm Max.: 360200mm
Eye Mark Sensor	Yes	Yes	Yes
Table Height	980mm	980mm	980mm
Power Supply	220V 50Hz 1phase or 110V 60Hz 1phase	220V 50Hz 1phase or 110V 60Hz 1phase	220V 50Hz 1phase or 110V 60Hz 1phase
Power	1250W	1250W	1250W
Control System	Schneider PLC+touch screen	Schneider PLC+touch screen	Schneider PLC+touch screen
Banding Speed	27 bands/Minute	27 bands/Minute	27 bands/Minute
Banding Tension	5-40N	5-40N	5-40N
Welding Method	Heat Sealing	Heat Sealing	Heat Sealing
Net Weight	145KG	145KG	145KG
Machine Dimension	L 1253 x W 502 x H 1205mm	L 1253 x W 502 x H 1205mm	L 1253 x W 502 x H 1205mm

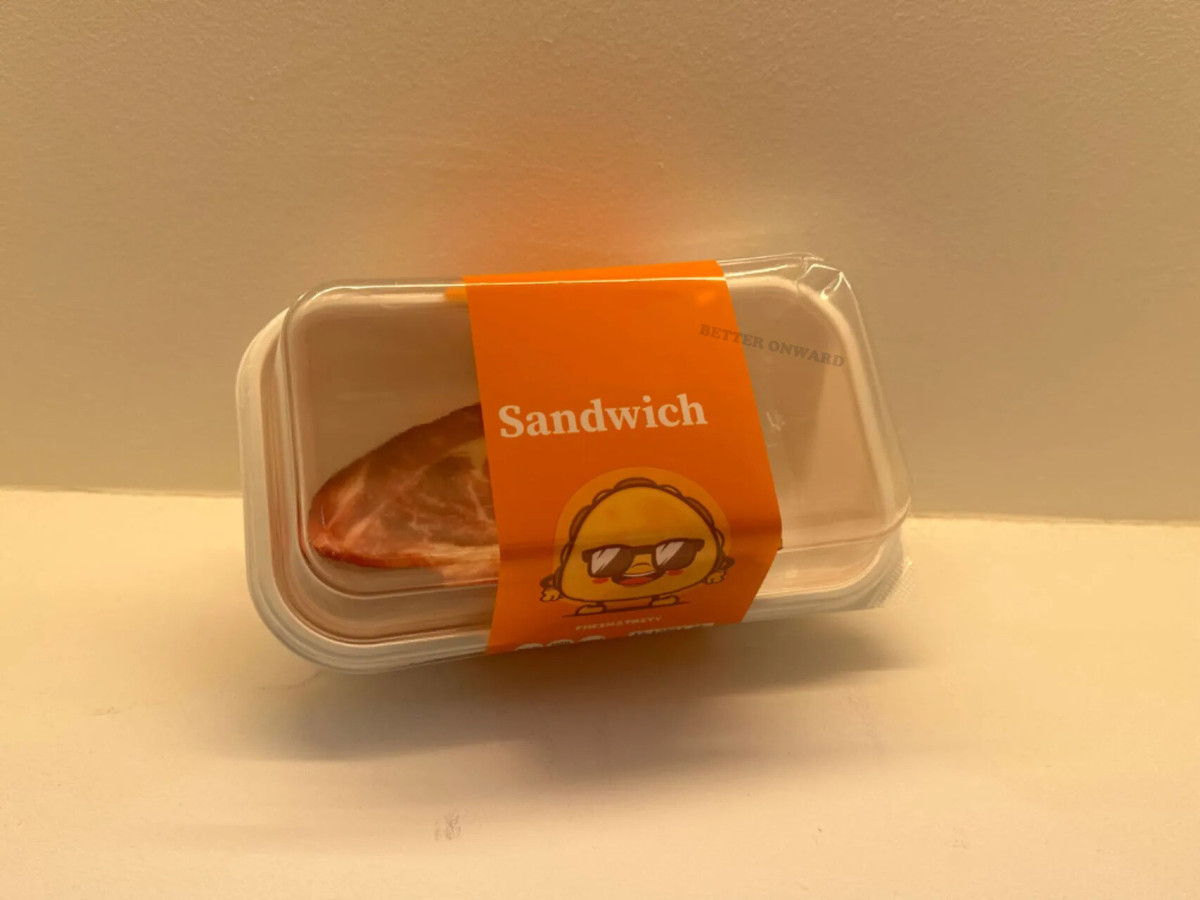

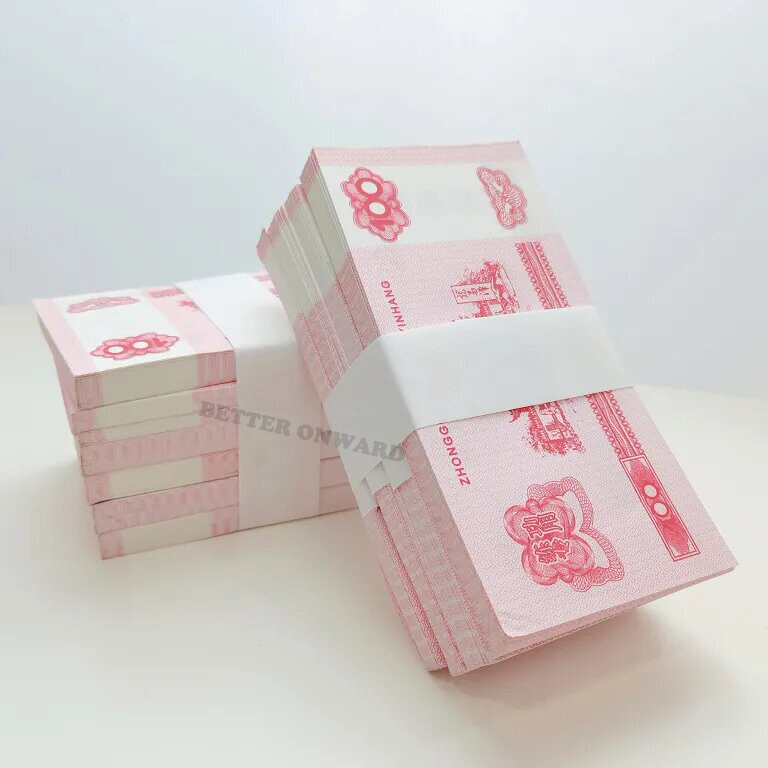

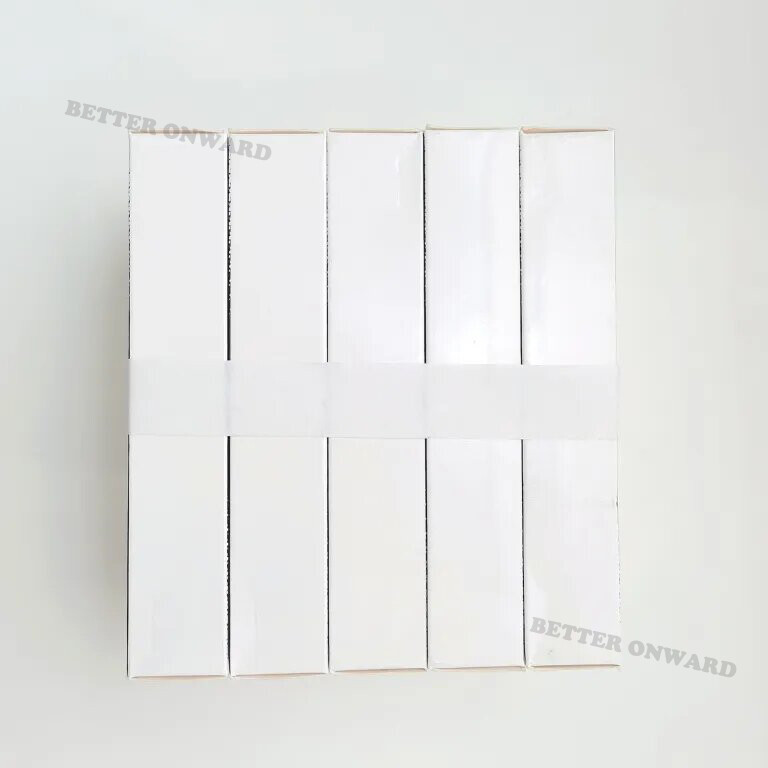

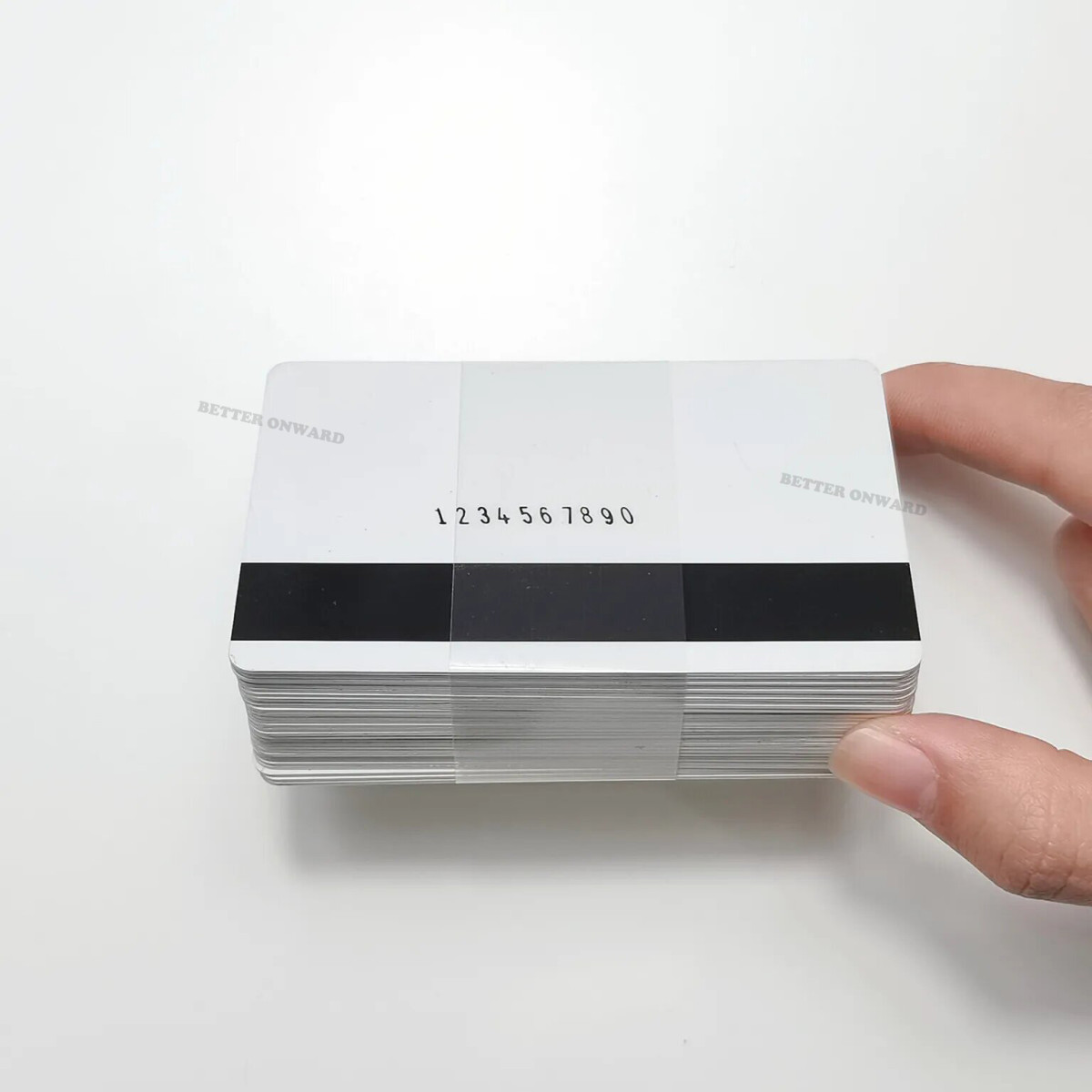

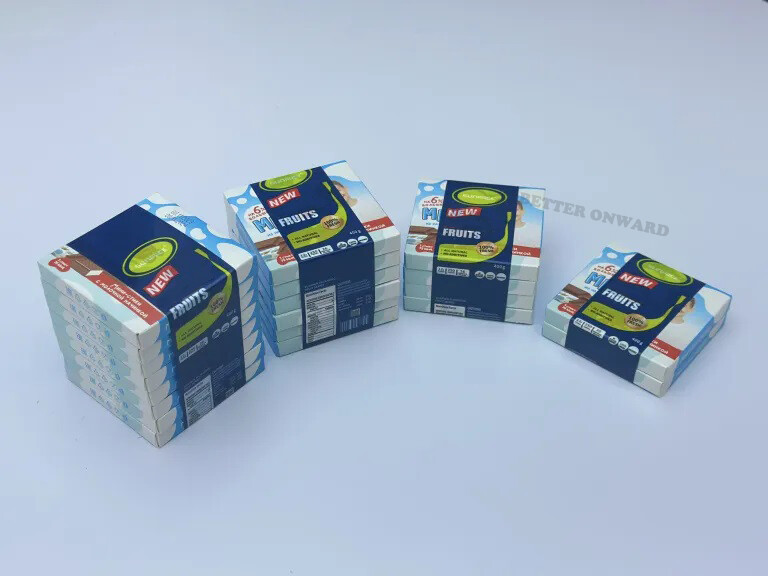

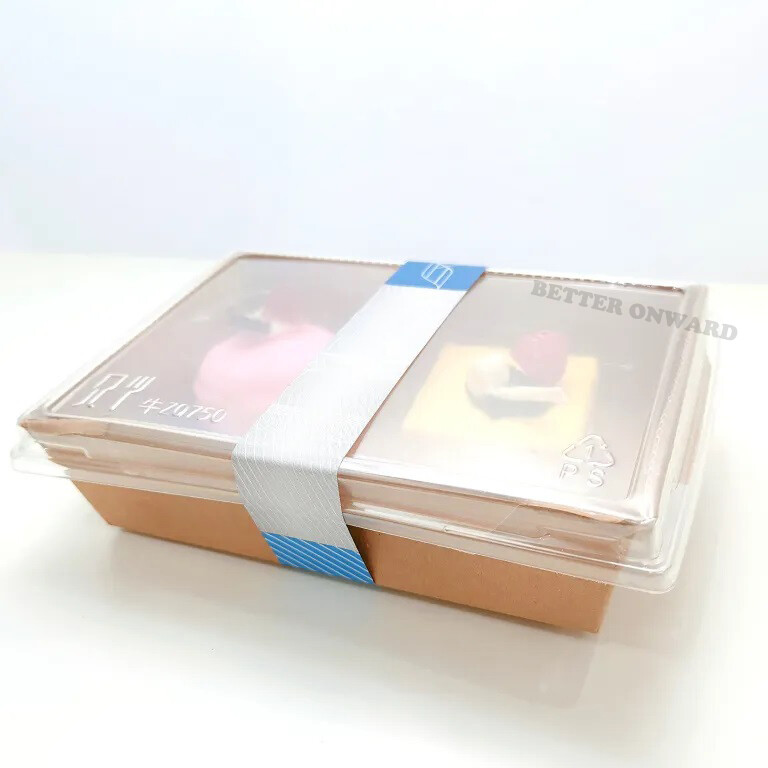

Banding Effect
