Product Description

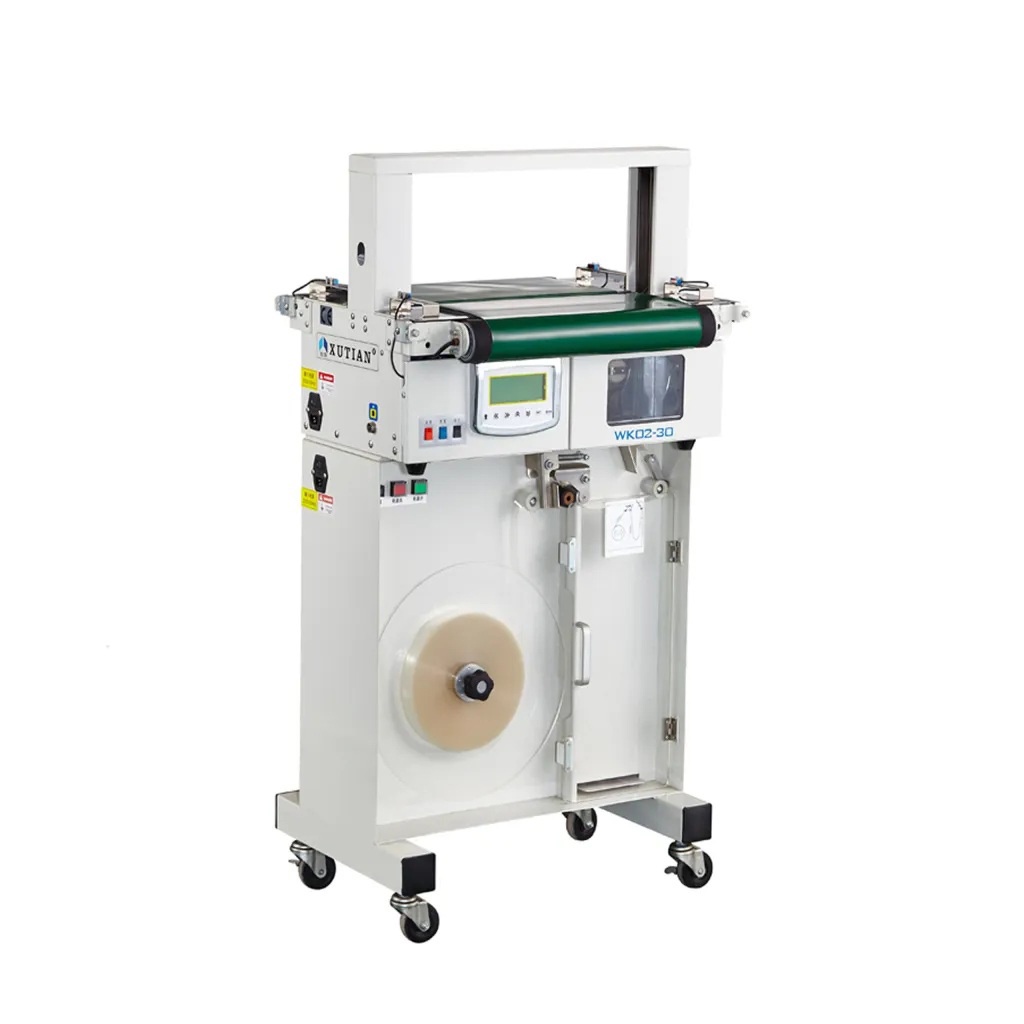

WK02-30AB Automatic Belt Table Automatic Banding Machine
1. Belt table for infeed and outfeed product automatically
2. 60 Seconds Pre-Heating time
3. Heat Sealing
4. Applicable for both paper band and OPP film
5. Jumbo roller dispenser to load 500-800 meters roll
6. AC motor Power
Specification
Model
WK02-30AB
Applicable Material
OPP film or PP band
Material Specification
Width: 29.2-29.6mm,
Thickness: 120mic,
Length: 500meters,
Core: 40mm
Arch Size
470*200mm
Banding Size
Min: 30*10mm Max: 460*200mm
Table Height
980mm
Power Supply
220V 50hz 1phase or 110V 60hz 1phase
Power Rate
450W
Control System
PLC+Key board control panel
Band QTY
1 or 2 or 3 bands
Banding Speed
25 bands/Minute
Banding Tension
5-40N
Welding Method
Heat Sealing
NW
95kg
Machine Dimension
L 611 x W 464 x H 1275mm

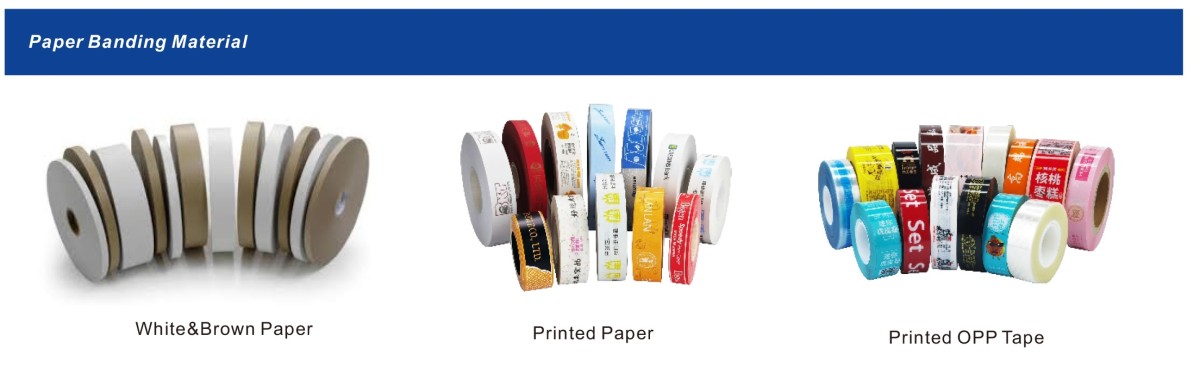

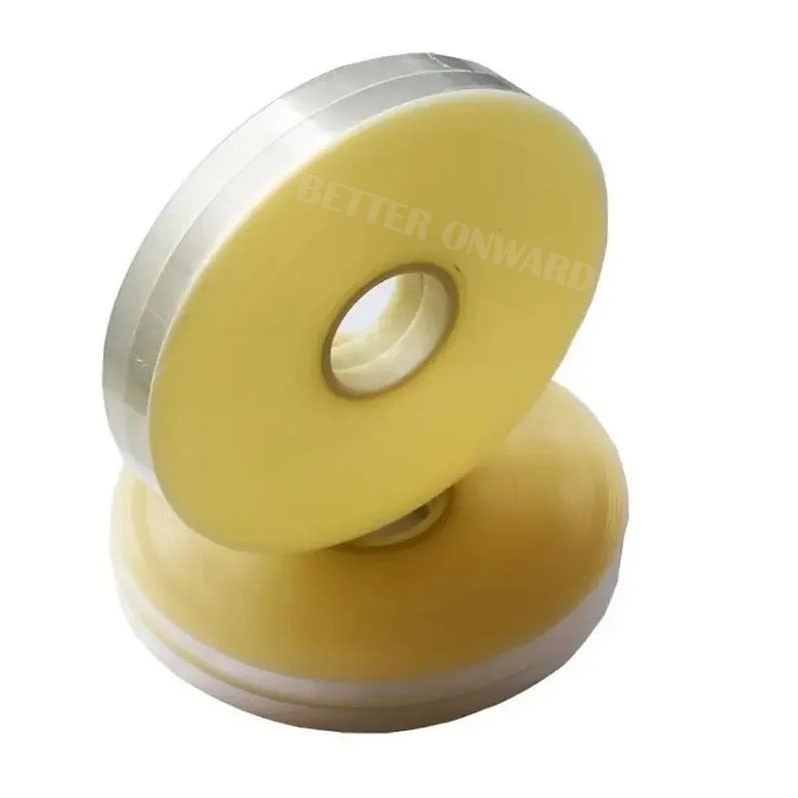

Applicable Material

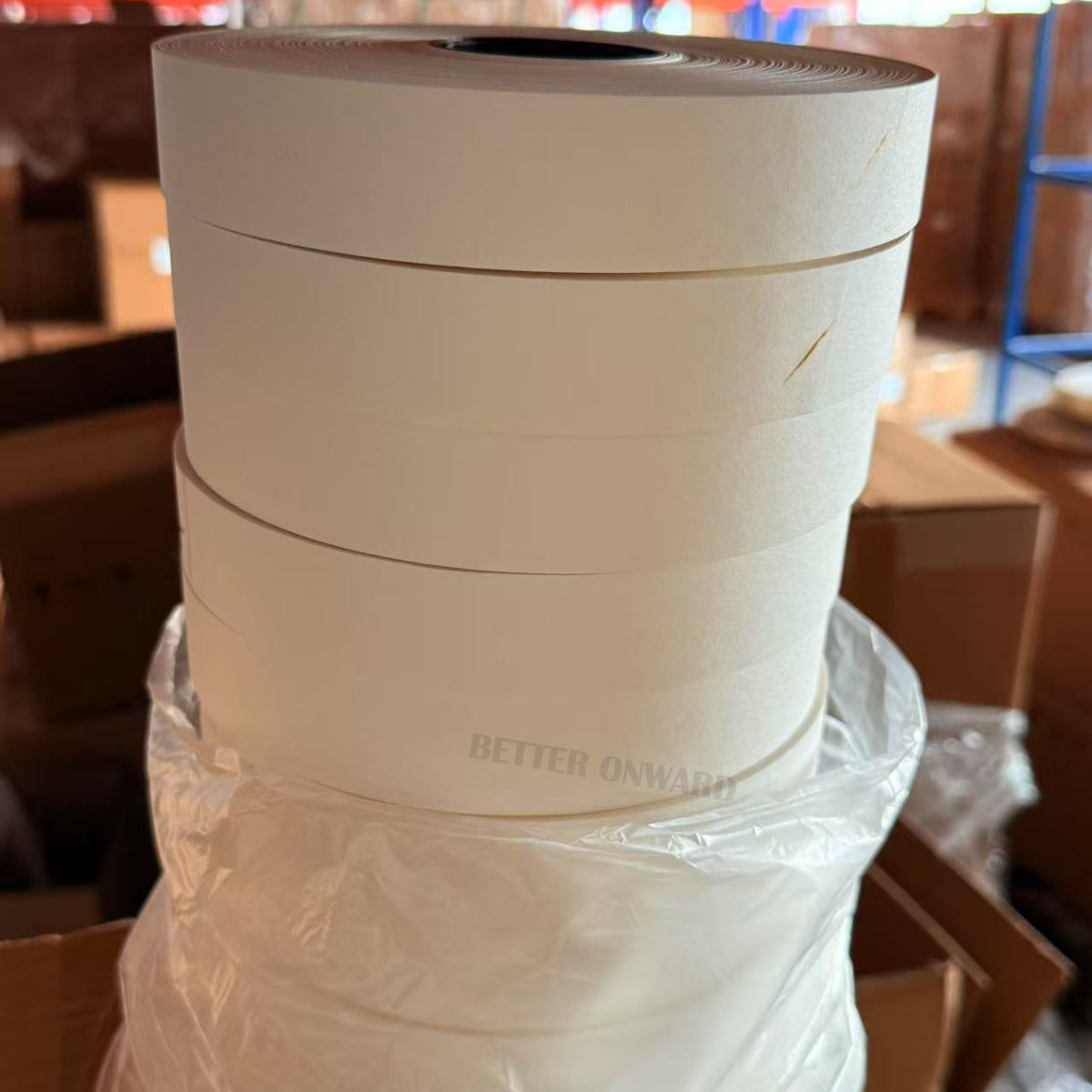

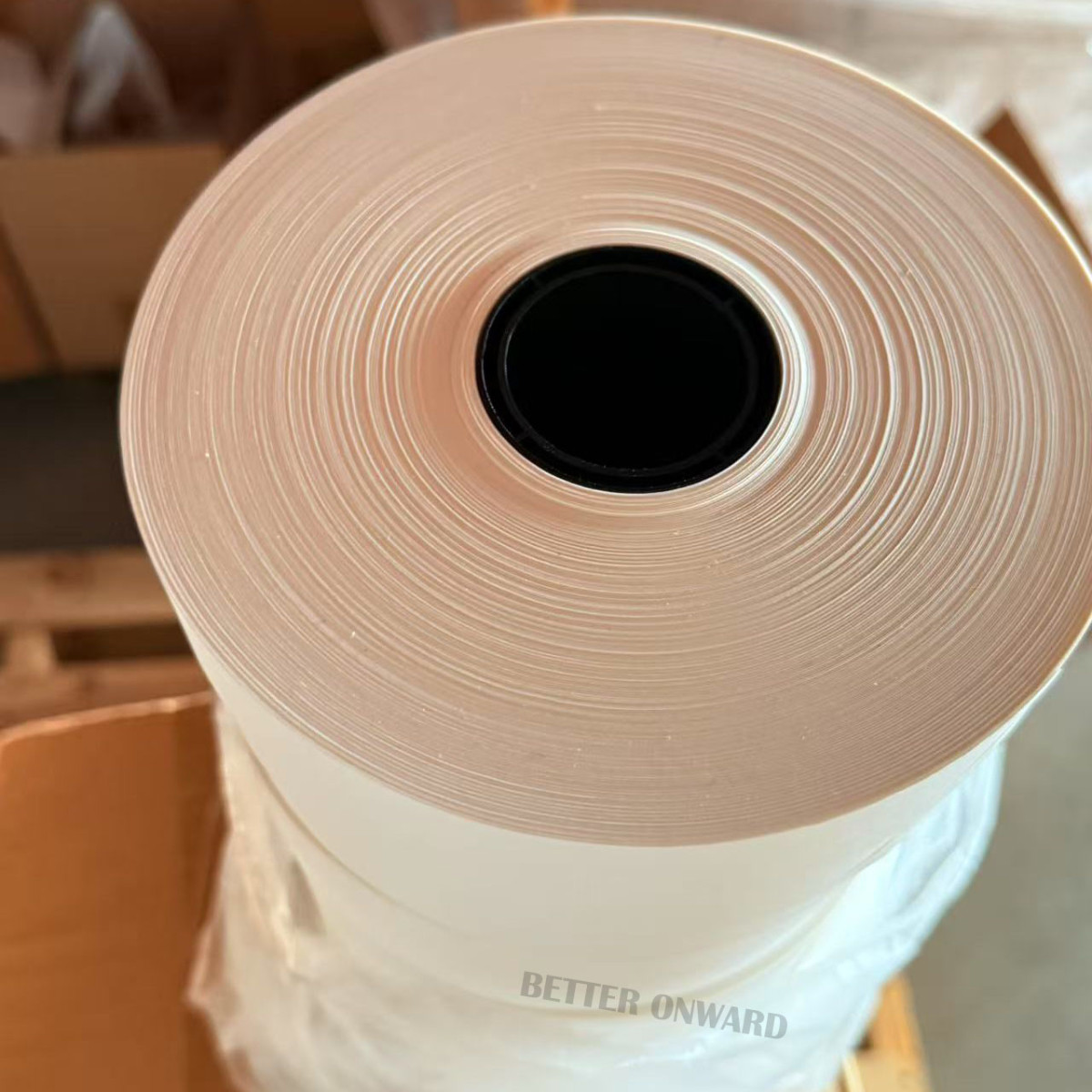

Paper Band

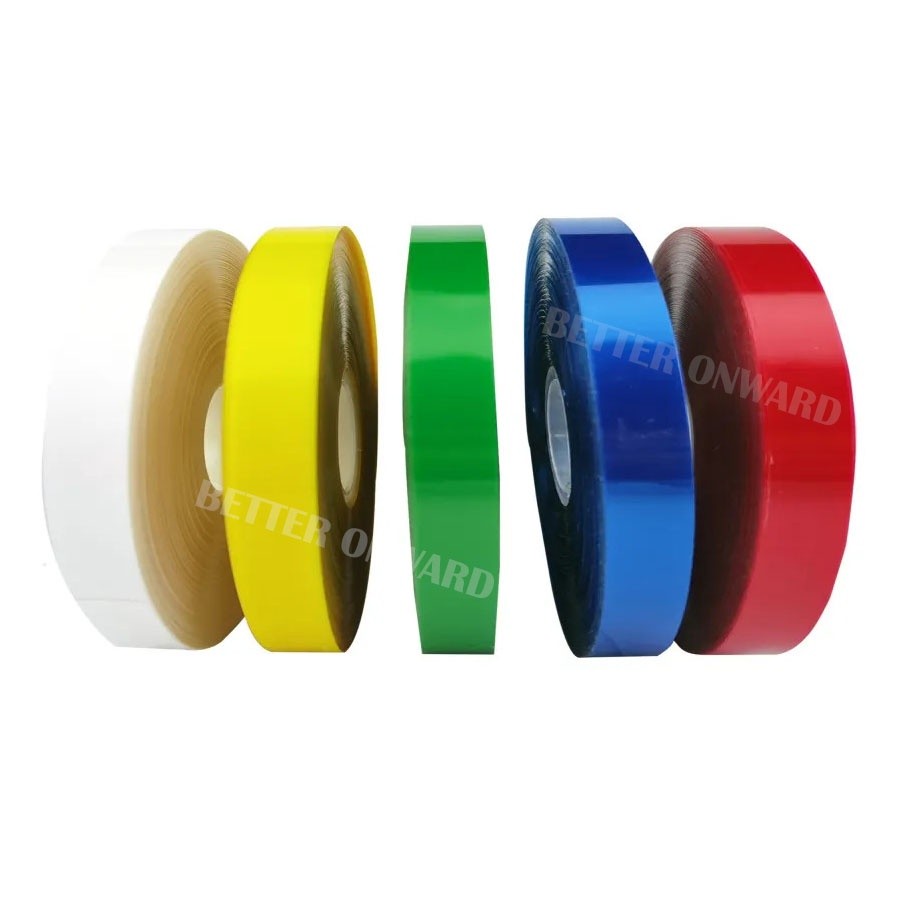

OPP Film

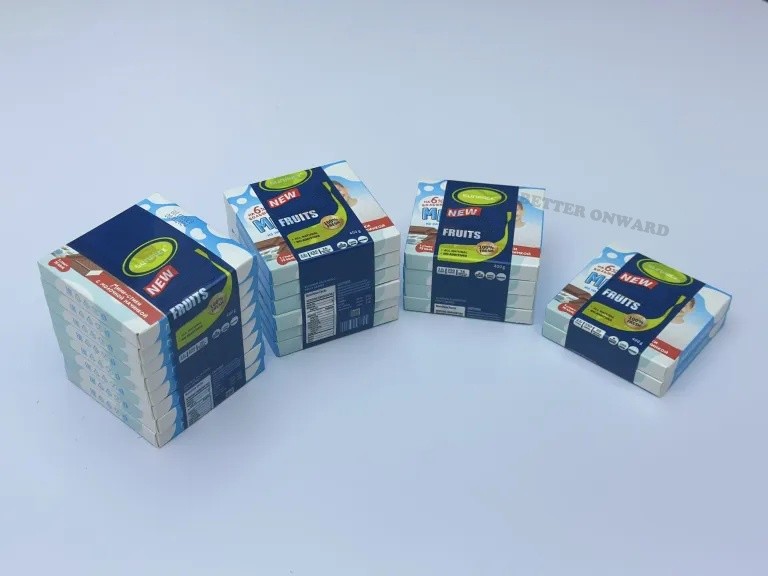

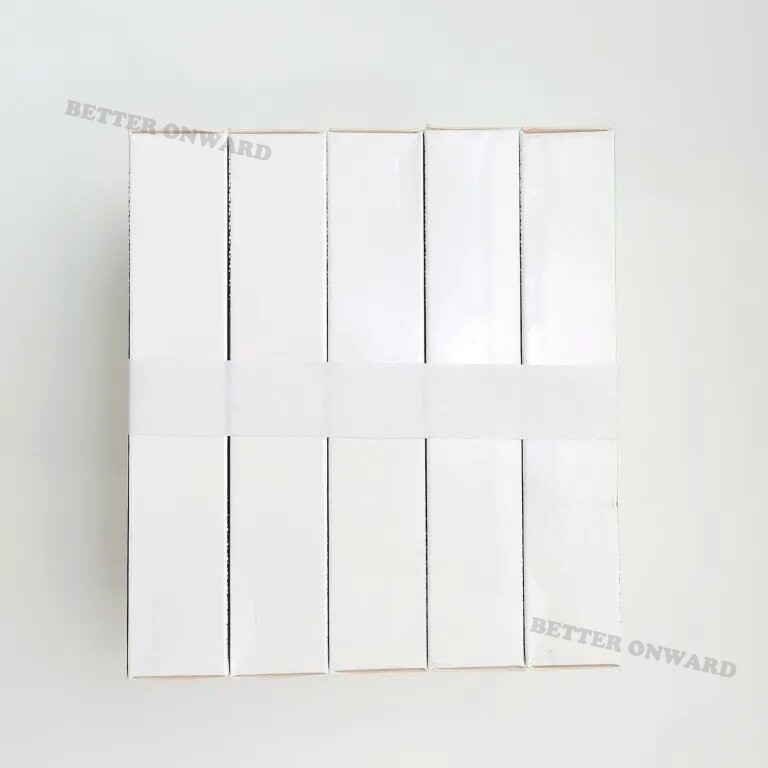

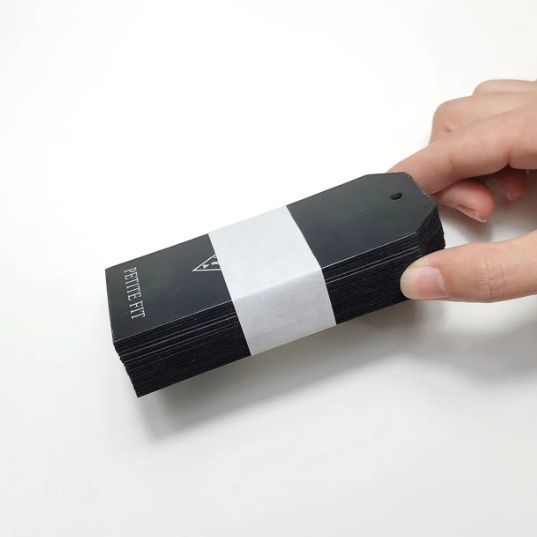

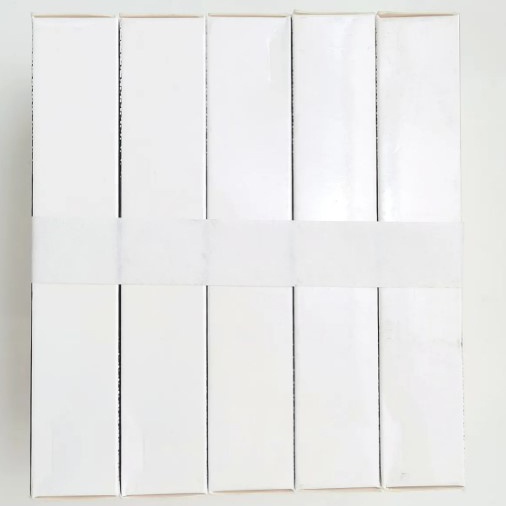

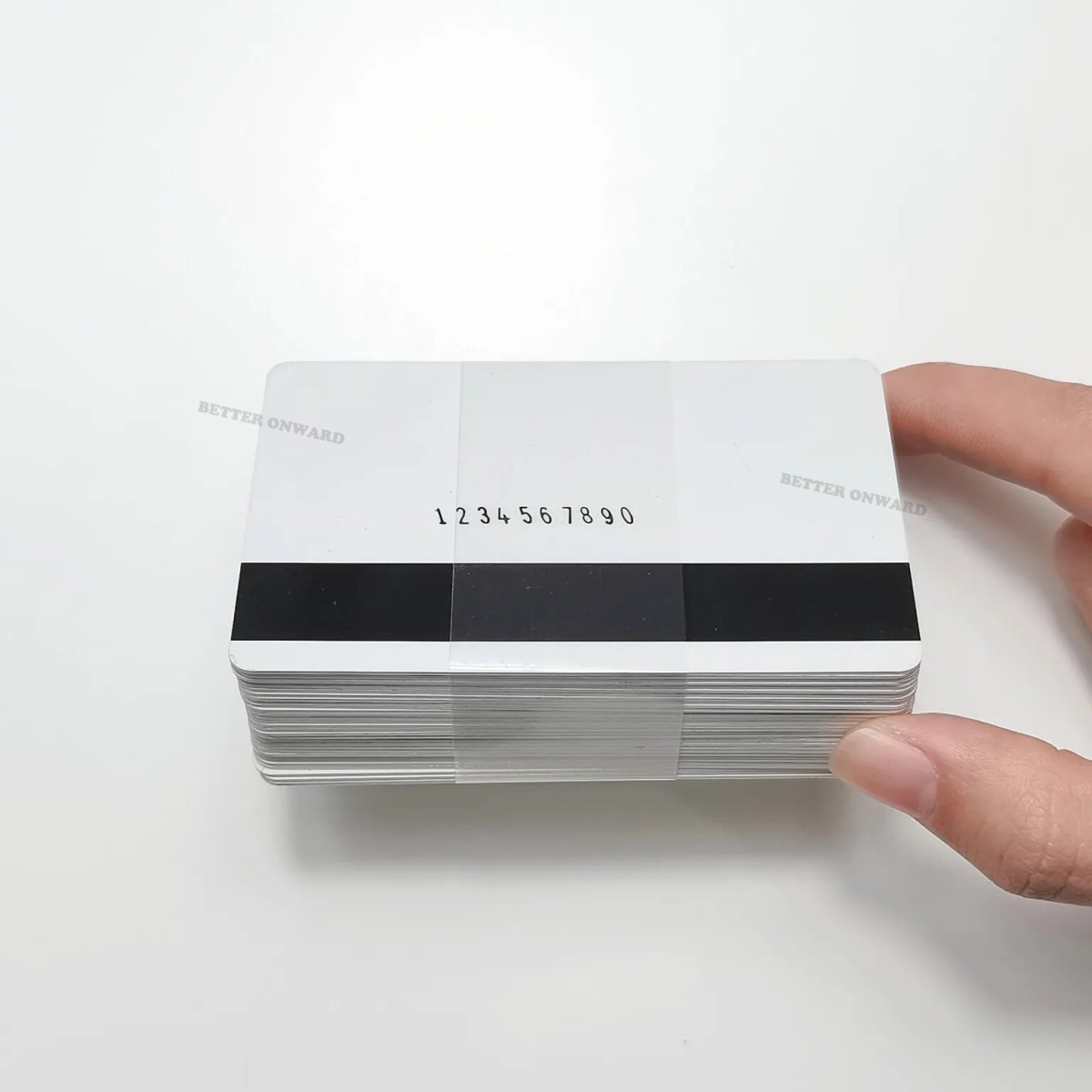

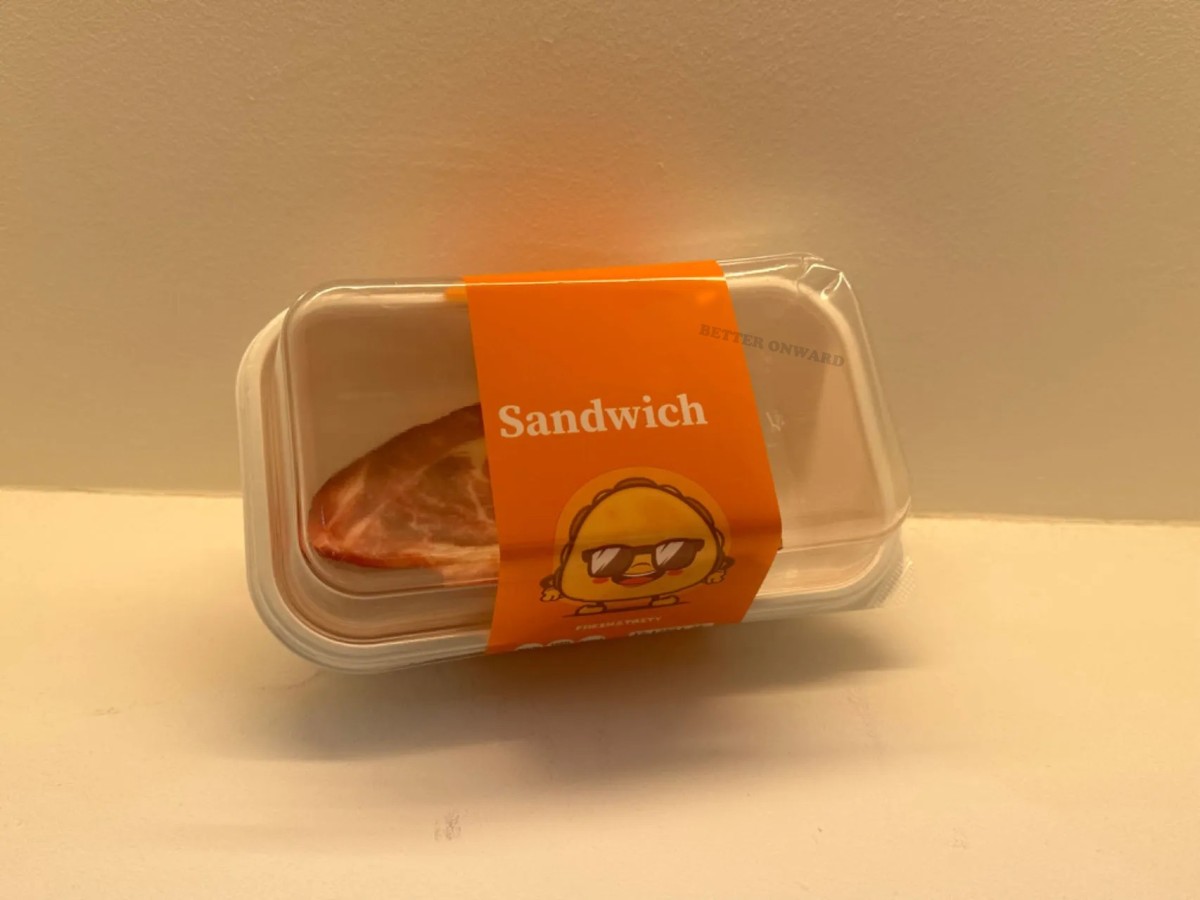

Banding Effect

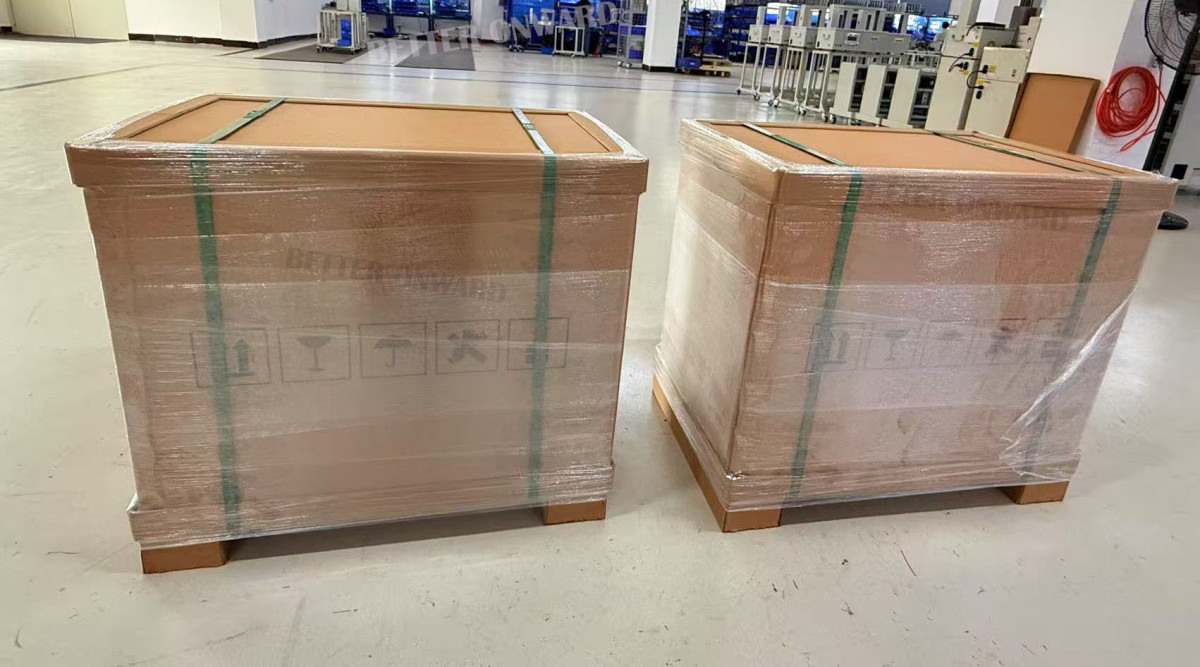

Packing & Delivery
