Product Description

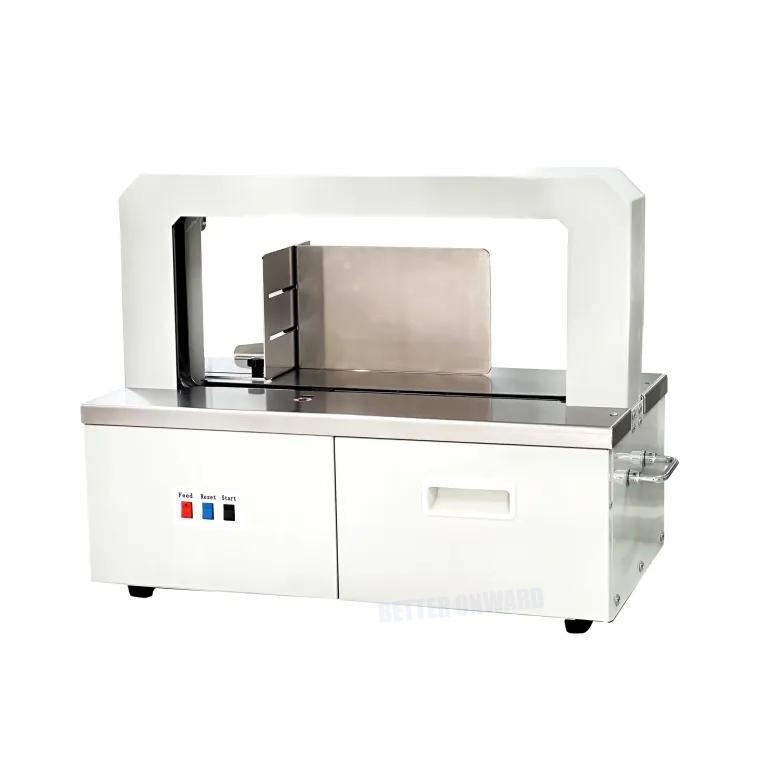

WK02-30G Table type Paper Band OPP Film Banding Machine with DC Motor
NO Pre-Heating time
DC motor more safe
Easy maintenance structure
Heat Sealing
Applicable for both paper band and OPP film

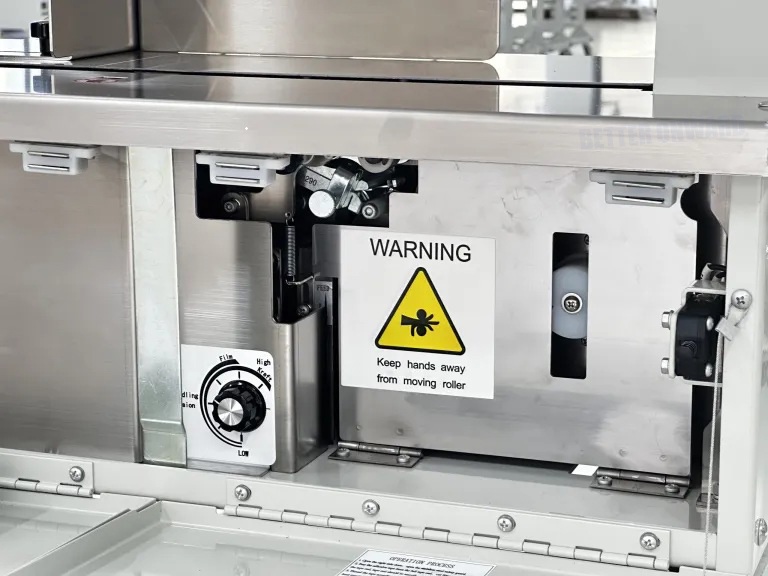

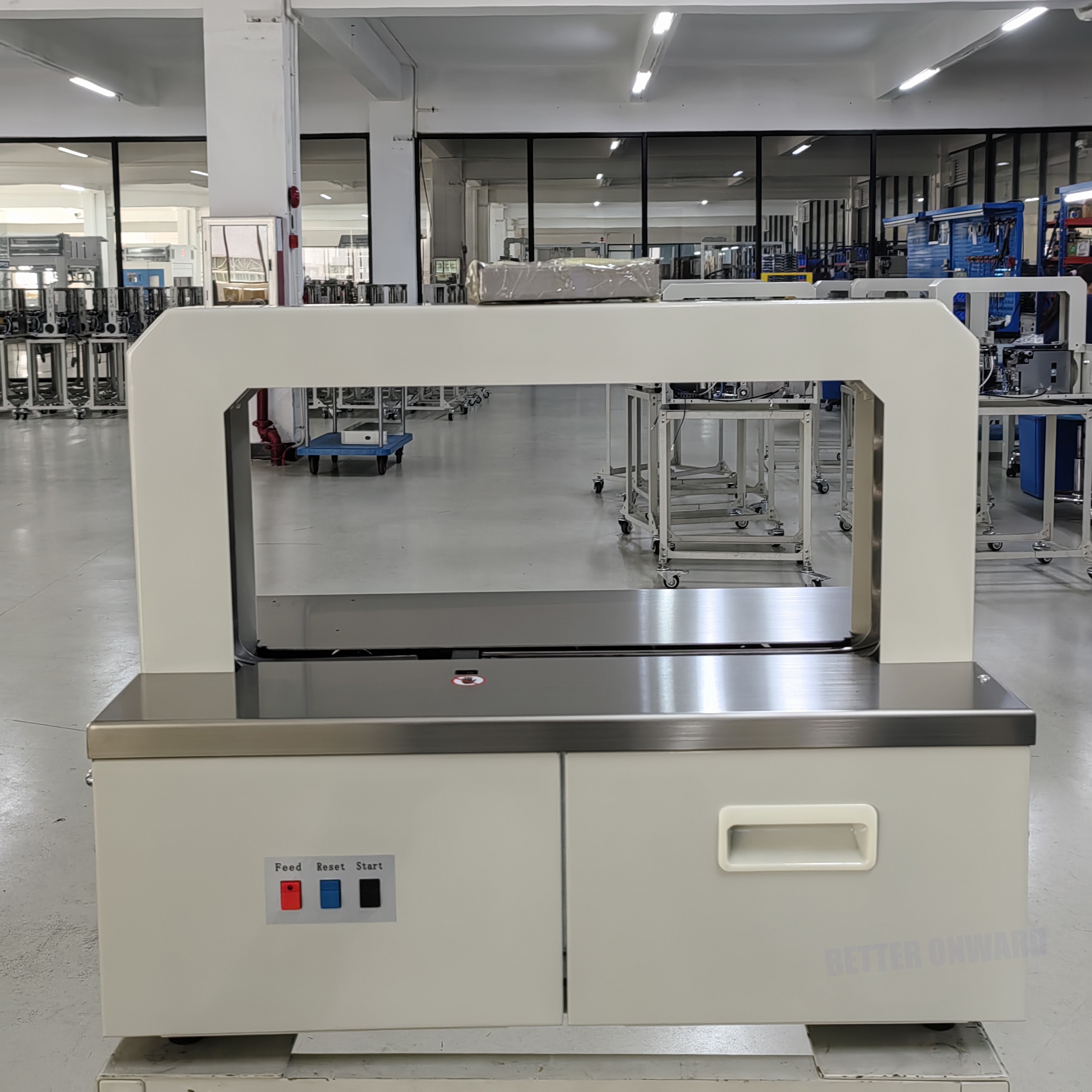

WK02-30G Table Type Paper Tape OPP Film Banding Machine with DC Motor

Specification

Model	WK02-20G	WK02-30G
Applicable Material	OPP film or Paper band	OPP film or Paper band
Material Specification	Width: 19.2-19.6mm Thickness: 120mic Length: 150meters Core: 40mm	Width: 29.2-29.6mm Thickness: 120mic Length: 150meters Core: 40mm
Arch Size	470*200mm	470*200mm
Banding Size	Min: 3010mm Max: 460180mm	Min: 3010mm Max: 460180mm
Table Height	240mm	240mm
Power Supply	220V 50Hz 1phase 110V 60Hz 1phase DC motor	220V 50Hz 1phase 110V 60Hz 1phase DC motor
Power Rate	160W	160W
Control System	PCB+LCD control panel	PCB+LCD control panel
Banding Speed	25 bands/Minute	25 bands/Minute
Banding Tension	5-40N	5-40N
Welding Method	Heat Sealing	Heat Sealing
NW	72kg	72kg
Machine Dimension	L 611 x W 364 x H 600mm	L 611 x W 364 x H 600mm

Model	WK02-40G	WK02-50G
Applicable Material	OPP film or Paper band	OPP film or Paper band
Material Specification	Width: 39.2-39.6mm Thickness: 120mic Length: 150meters Core: 40mm	Width: 49.2-49.6mm Thickness: 120mic Length: 150meters Core: 40mm
Arch Size	470*200mm	470*200mm
Banding Size	Min: 3010mm Max: 460180mm	Min: 3010mm Max: 460180mm
Table Height	240mm	240mm
Power Supply	220V 50hz 1phase 110V 60hz 1phase DC motor	220V 50hz 1phase 110V 60hz 1phase DC motor
Power Rate	160W	160W
Control System	PCB+LCD control panel	PCB+LCD control panel
Banding Speed	25 bands/Minute	25 bands/Minute
Banding Tension	5-40N	5-40N
Welding Method	Heat Sealing	Heat Sealing
NW	72kg	72kg
Machine Dimension	L 611 x W 364 x H 600mm	L 611 x W 364 x H 600mm

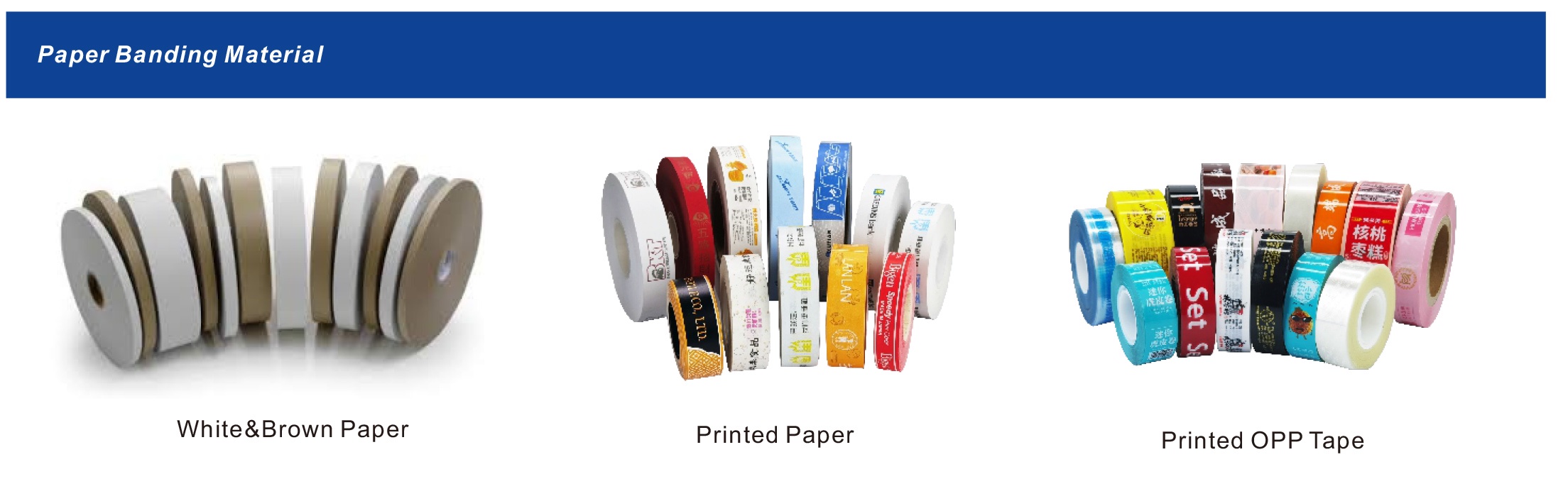

Applicable material

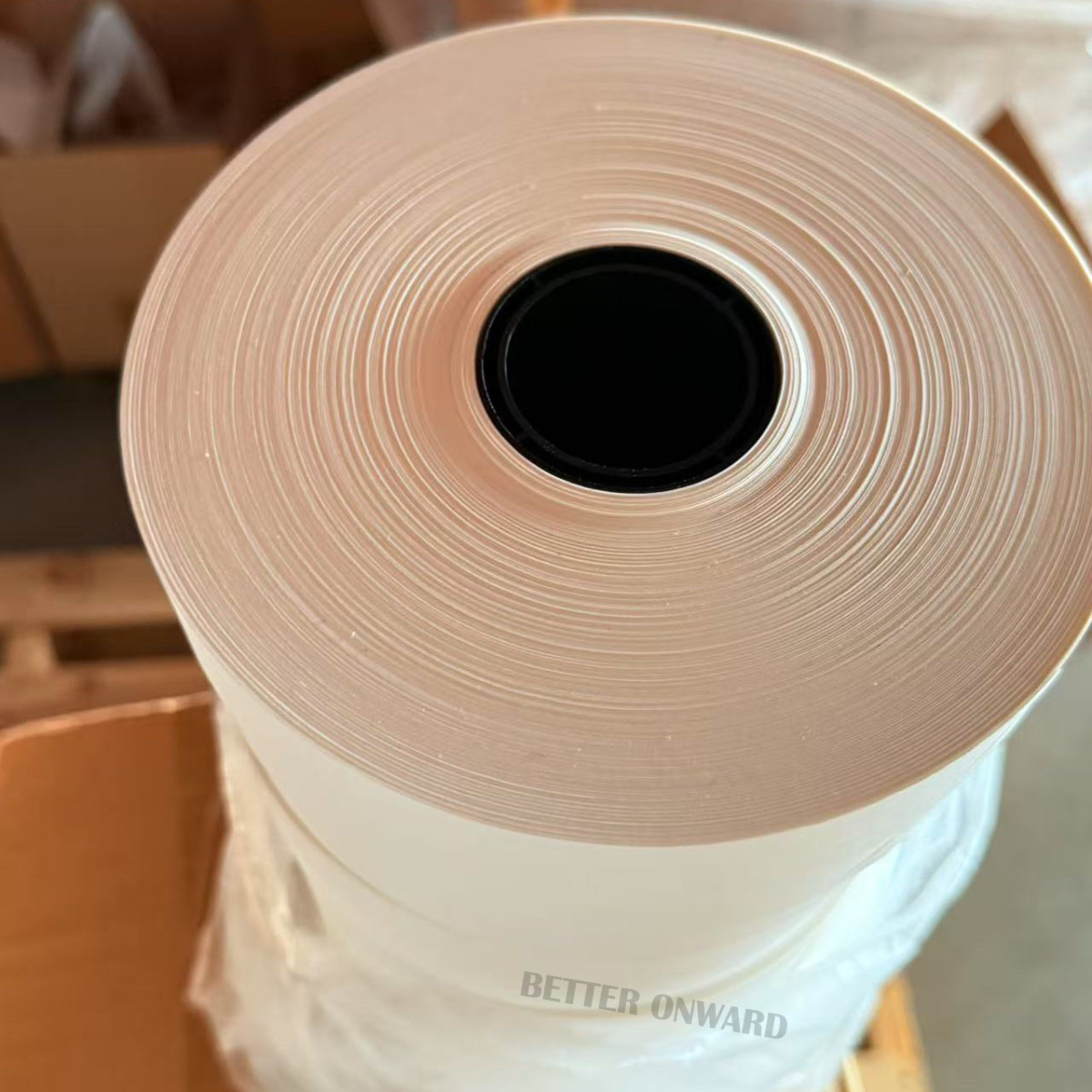

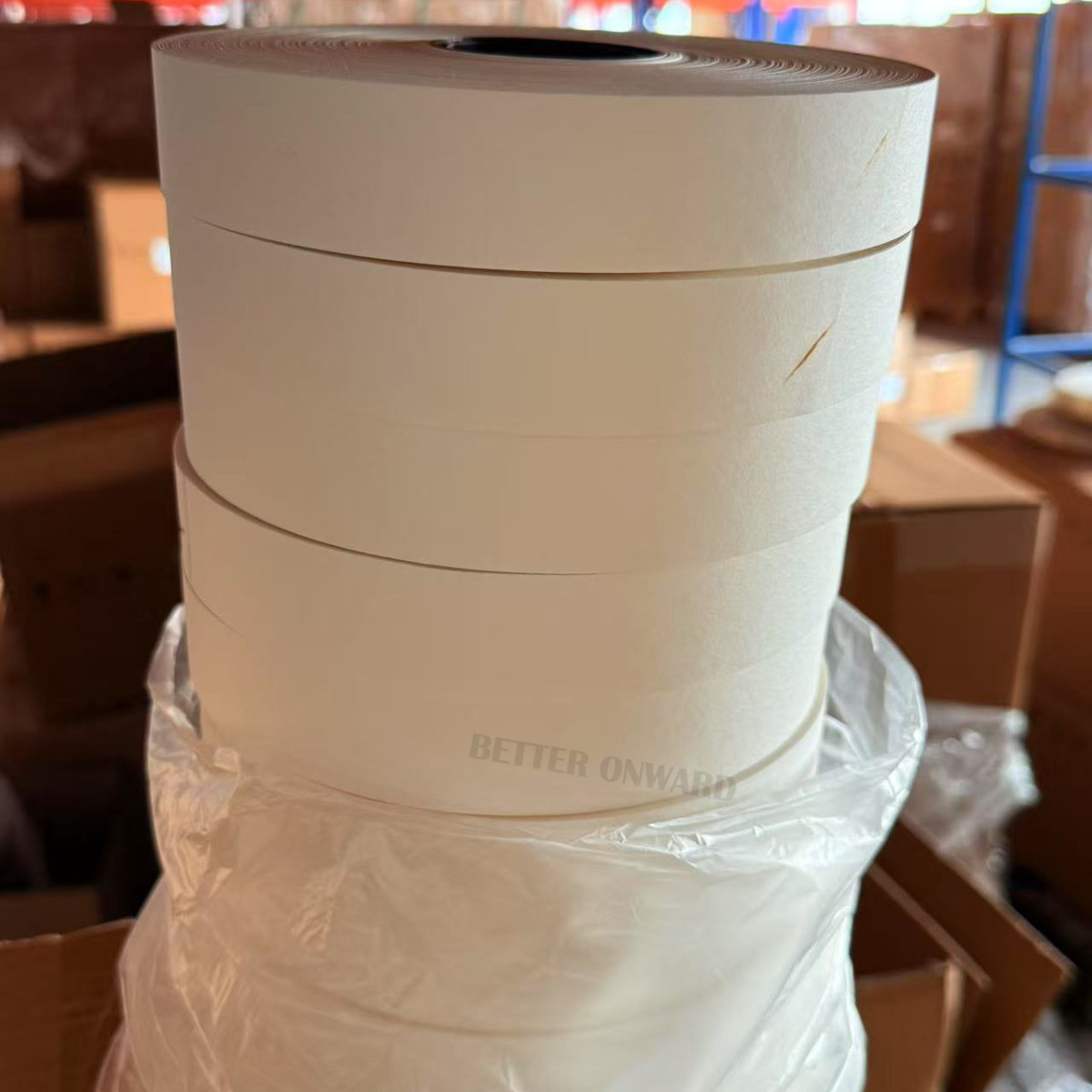

Paper Band

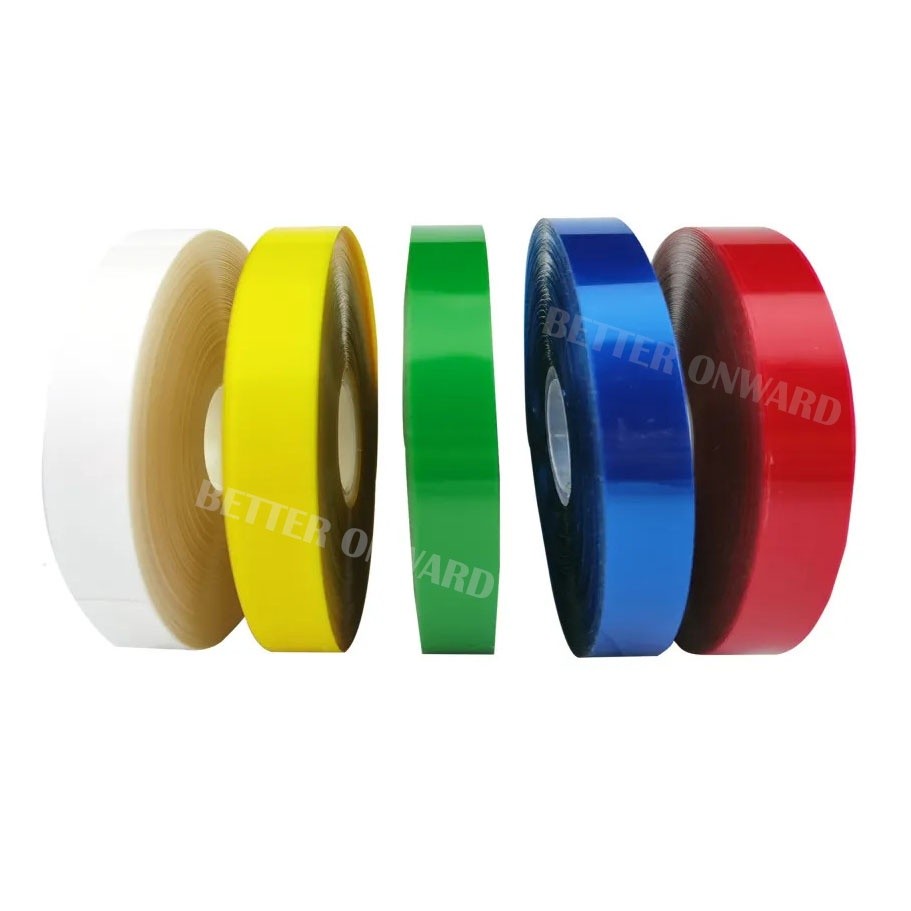

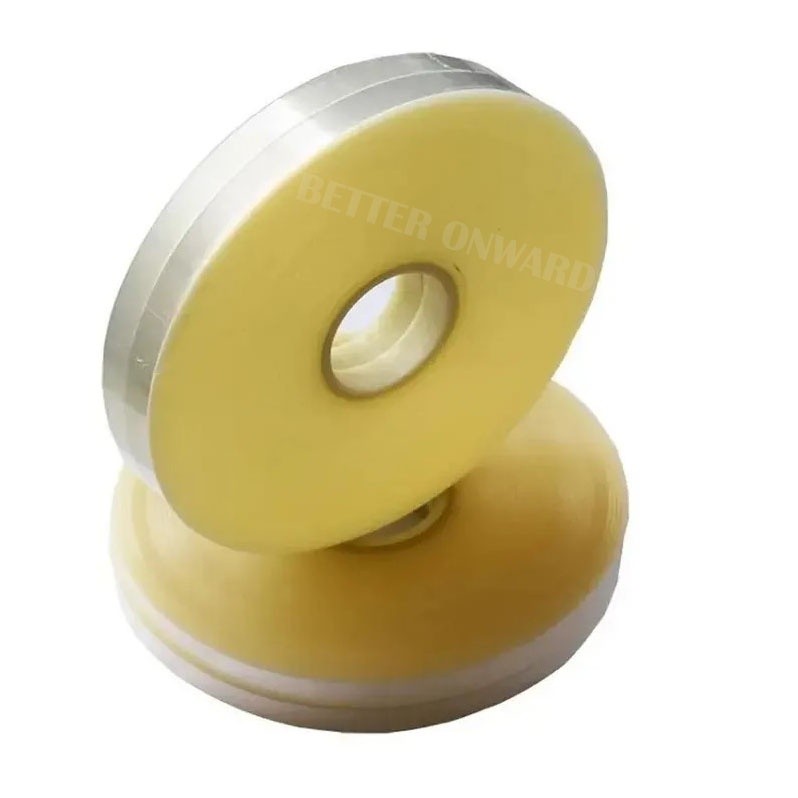

OPP Film

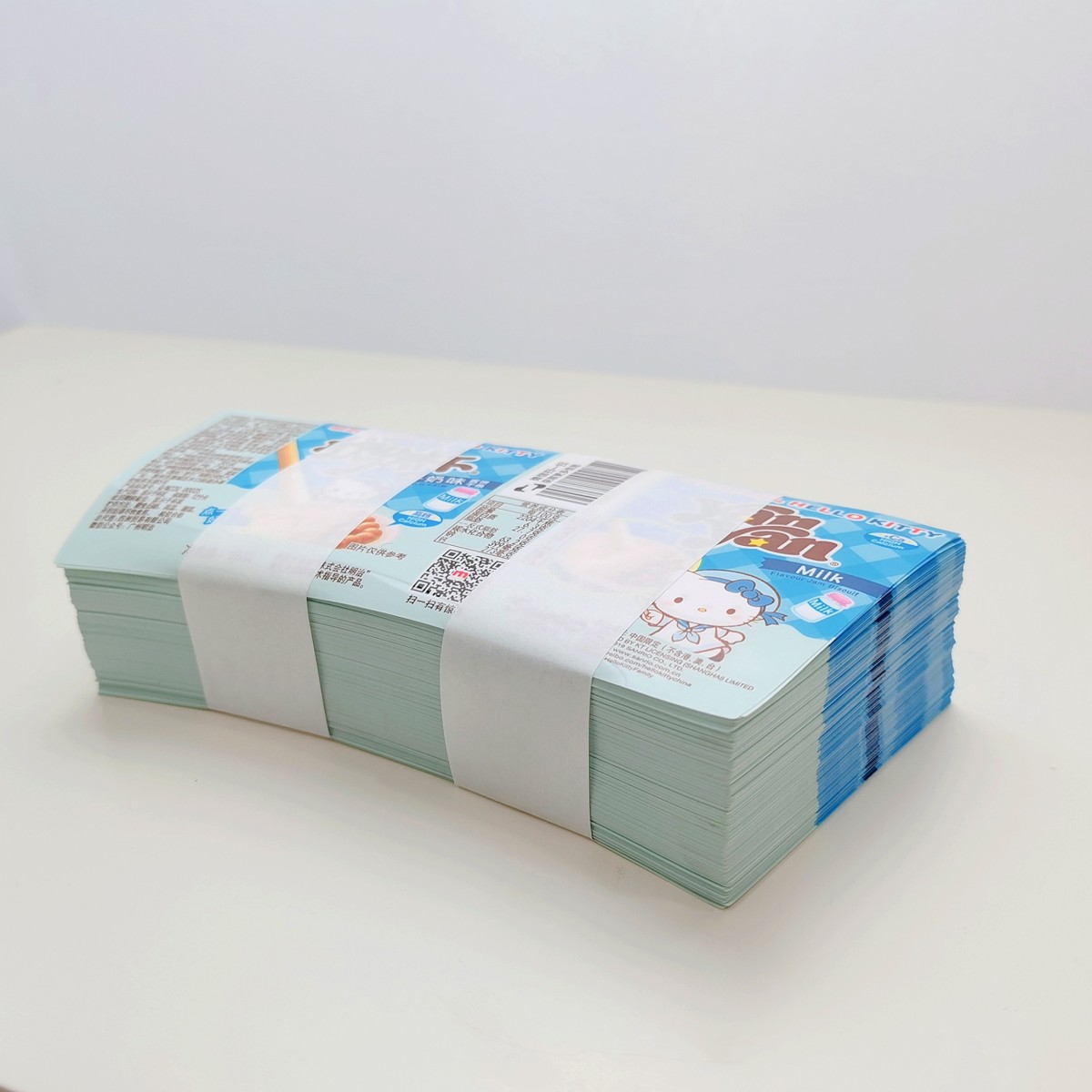

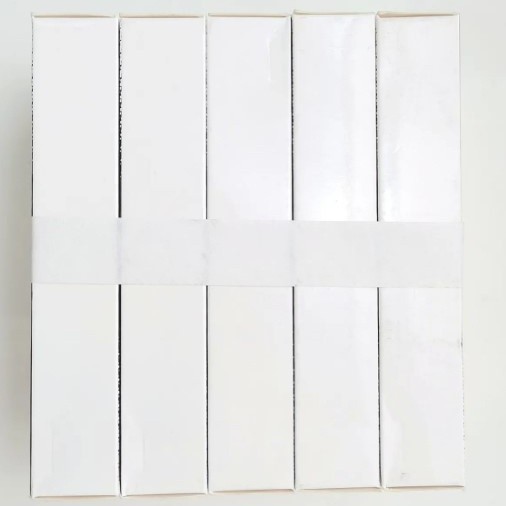

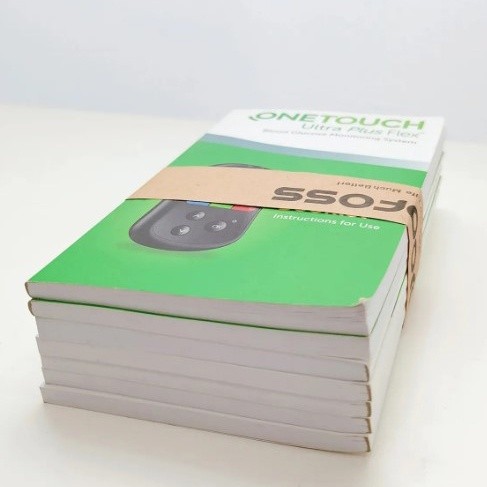

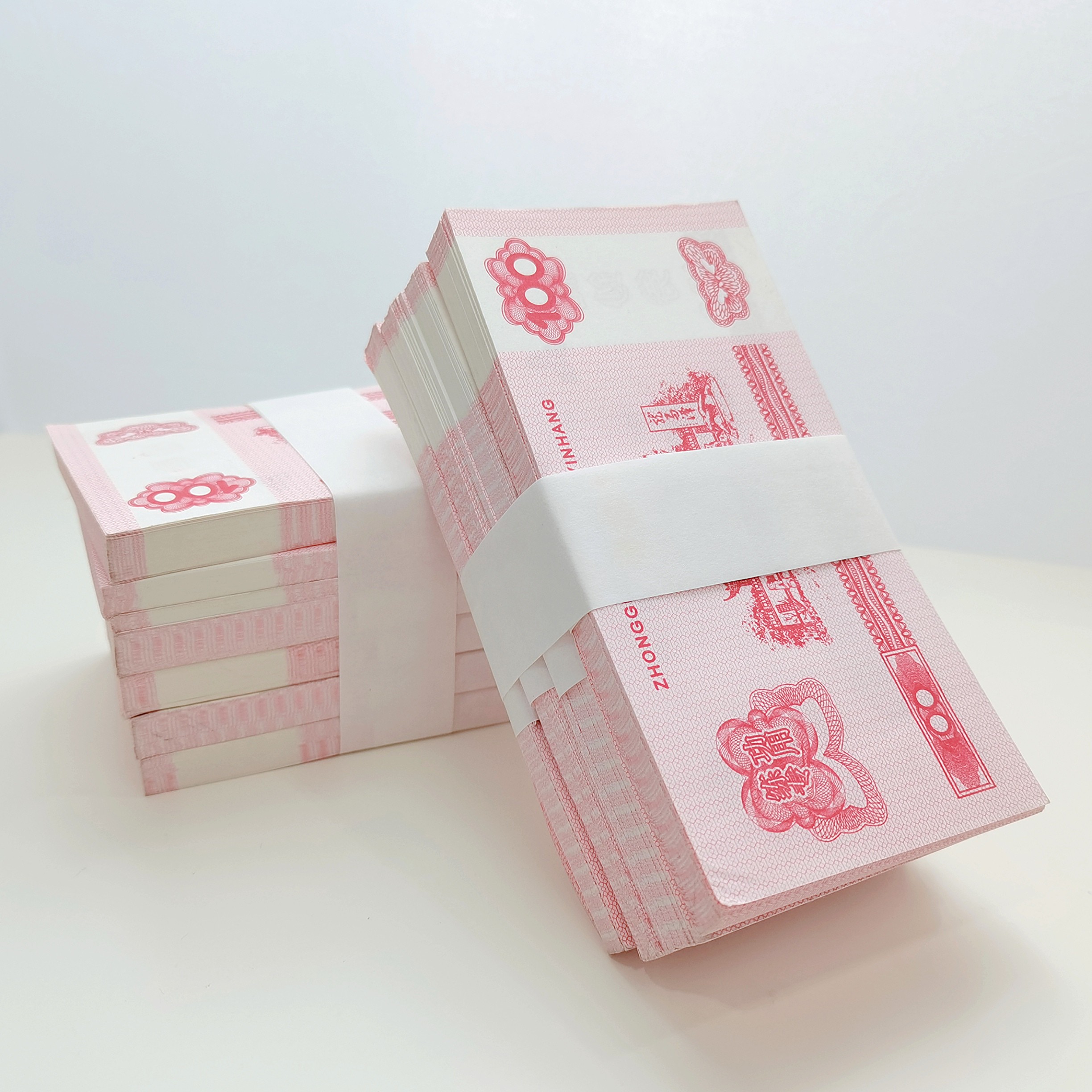

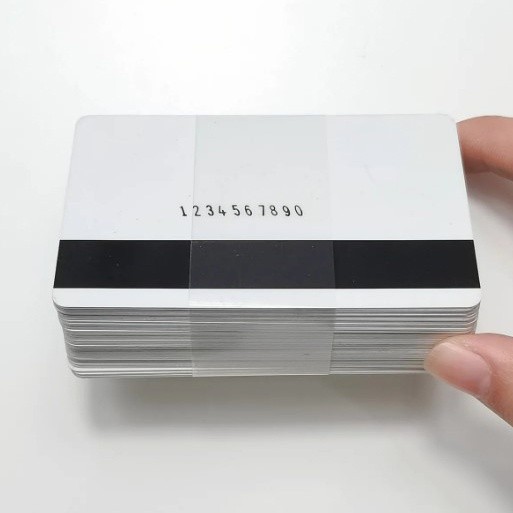

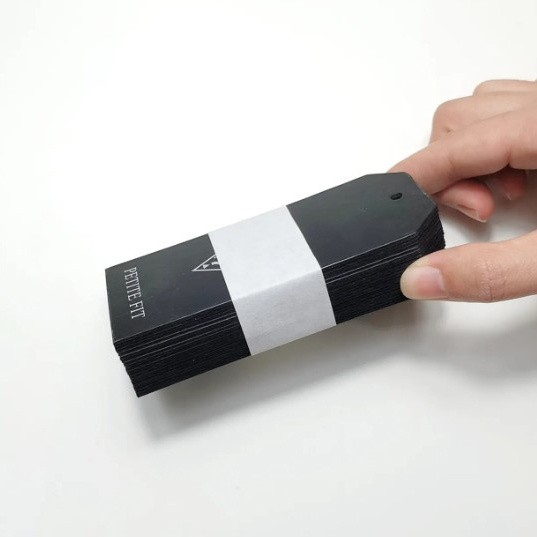

Banding Effect

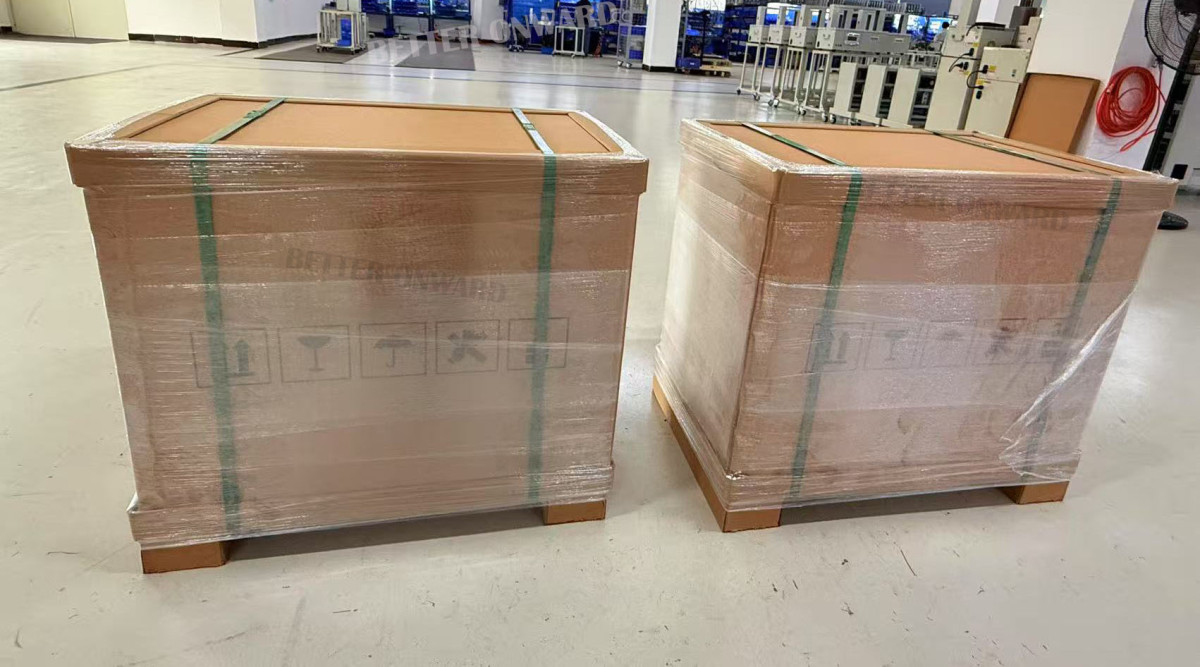

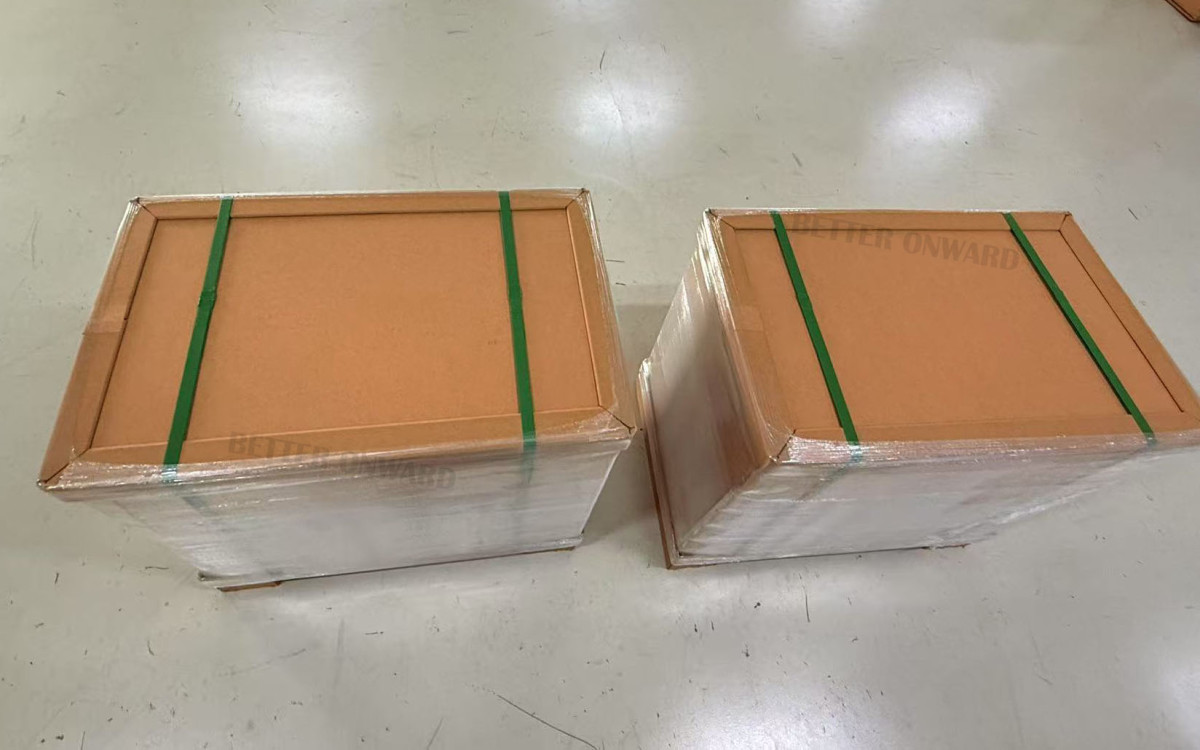

Product packaging
