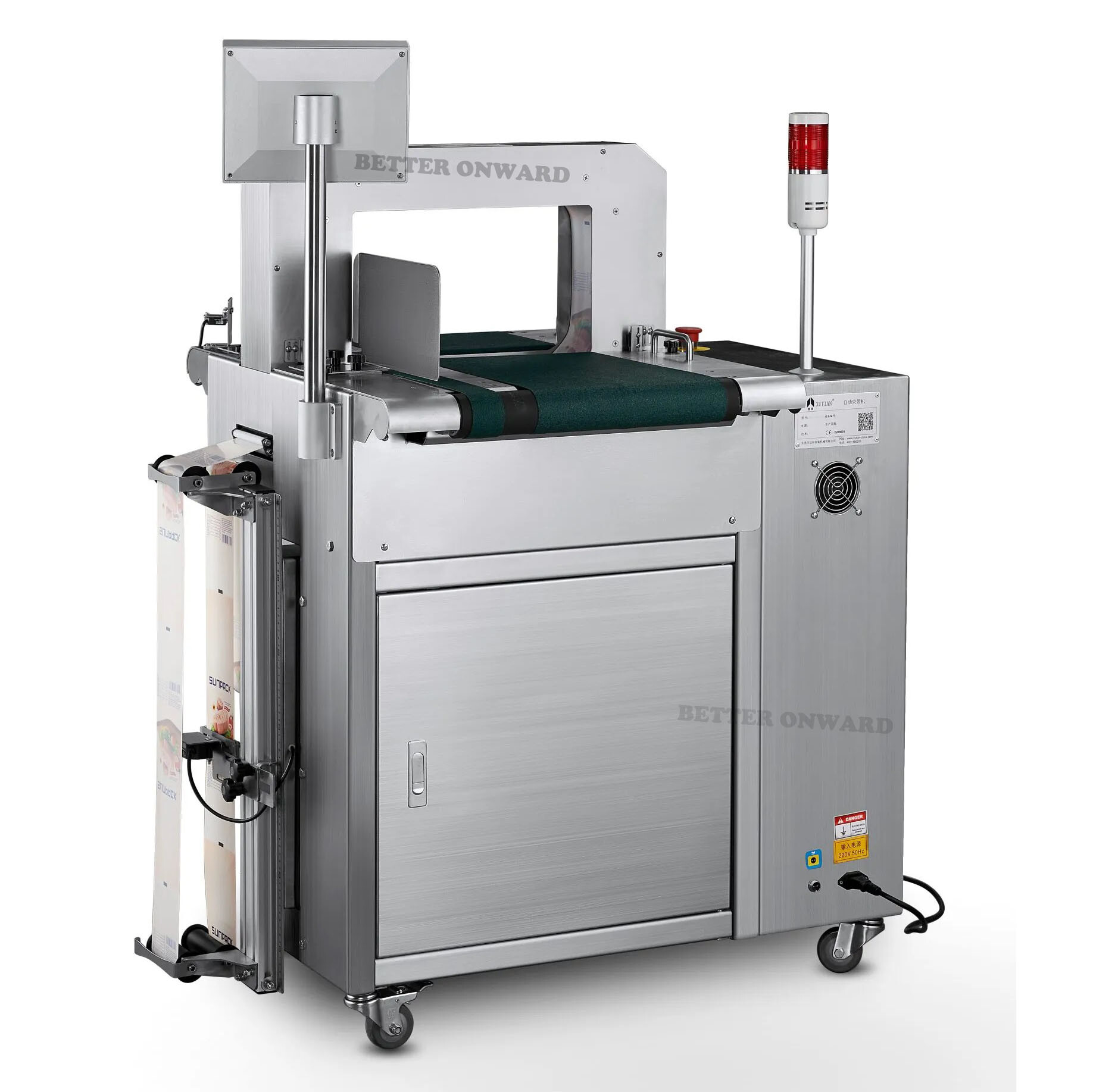

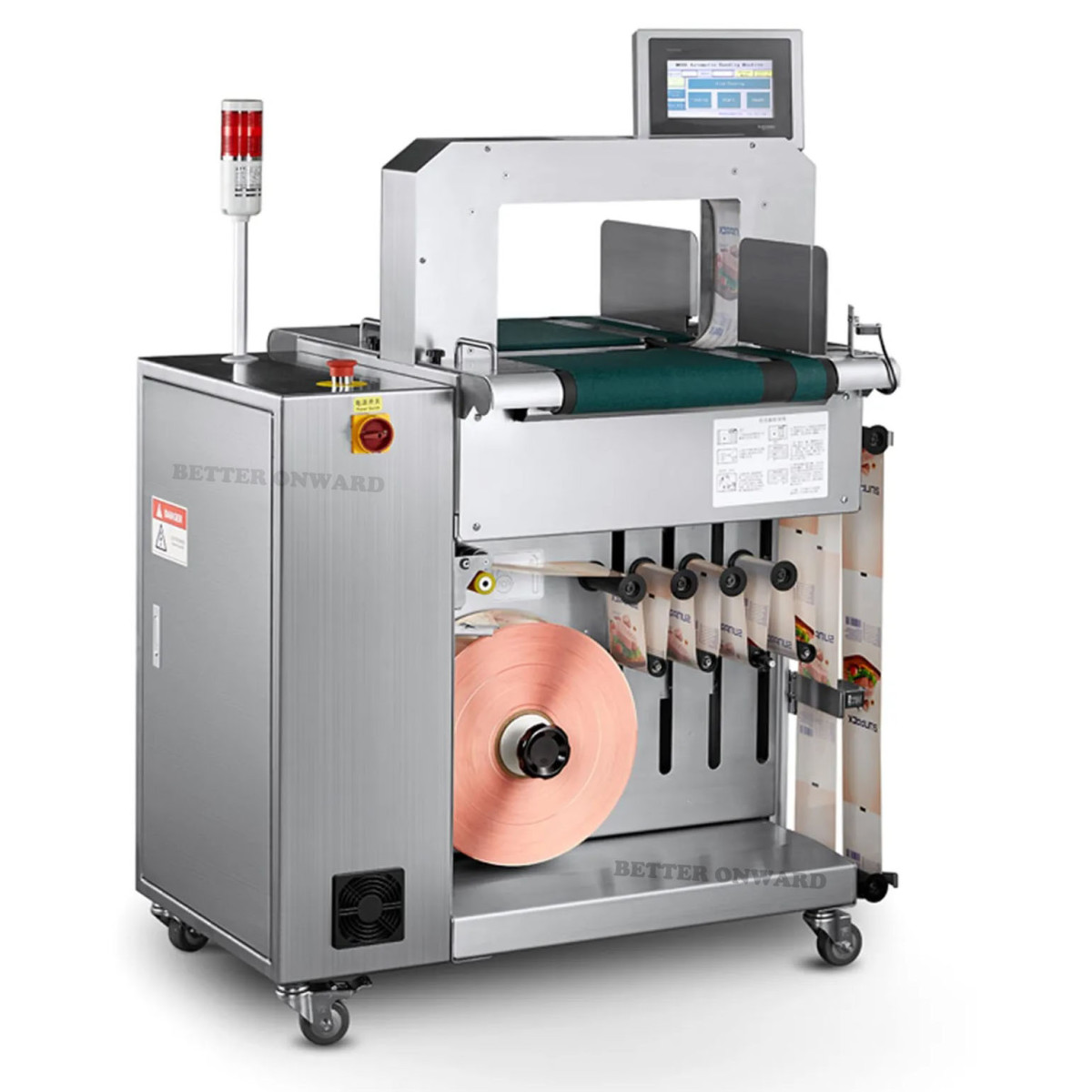

WK06-50CA-MQ Belt Table Vacuum Feed Banding Machine
Inquiry Now →

Product Description

Belt Table Vacuum Feed Banding Machine
1. Schneider touch screen

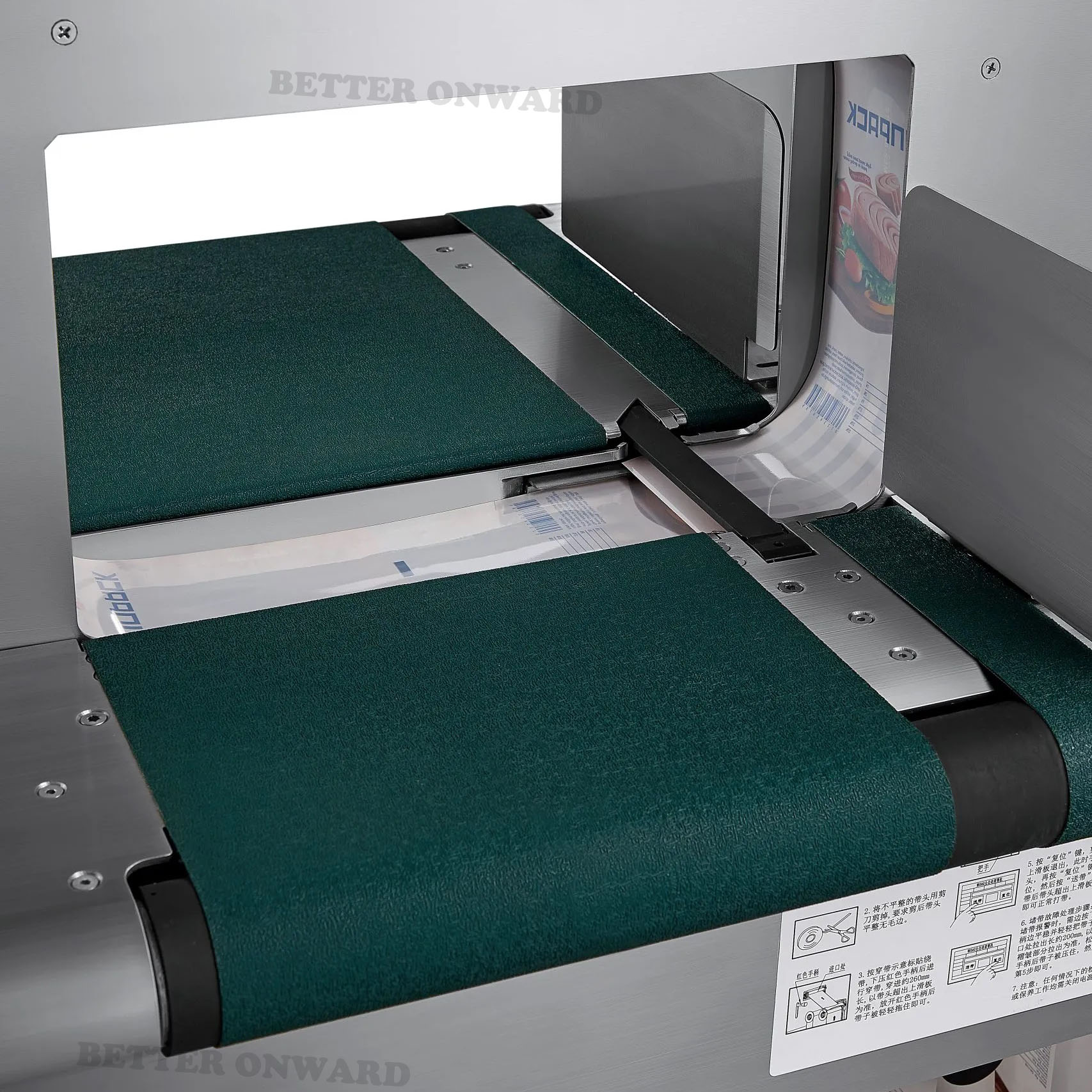

2. Belt power table
3. 304 stainless steel machine body
4. 30mm/40mm/50mm/75mm/100mm/125mm/150mm wide band
5. Min. 40mic OPP film
6. Heat Sealing
7. With counter
8. Applicable for both paper band and OPP film

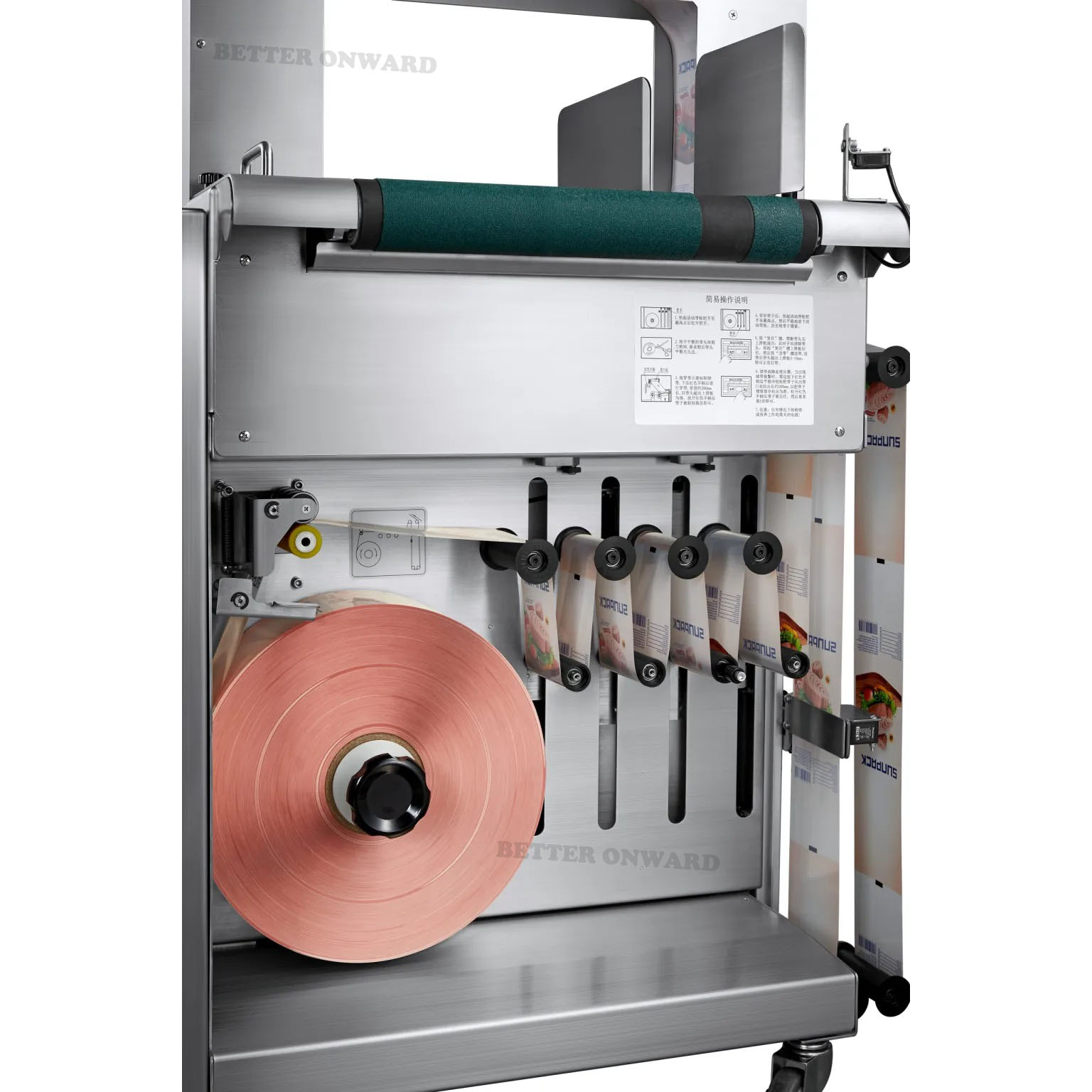

9. Jumbo roller dispenser to load 500-1200 meters roll
10. Servo motor
11. Application Industry: Food industry, Bakery Industry, Confectionery Industry, Textile industry
Specification
Model
WK06-30CA-MQ
WK06-40CA-MQ
WK06-50CA-MQ
Applicable Material
OPP film or Kraft Paper Band
OPP film or Kraft Paper band
OPP film or Kraft Paper Band
Material Specification
Width: 30mm
Width: 40mm
Width: 50mm
Thickness: 40-130mic,
Thickness: 40-130mic,
Thickness: 40-130mic,
Length: 500-1200m
Length: 500-1200m
Length: 500-1200m
Core: 76mm
Core: 76mm
Core: 76mm
Arch Size
370*200 mm
370*200 mm
370*200 mm
Banding Size
Min:50*10mm
Min:50*10mm
Min:50*10mm
Max: 360*200mm
Max: 360*200mm
Max: 360*200mm
Table Height
980mm
980mm
980mm
Power Supply
220V 50Hz 1phase or
110V 60Hz 1phase
220V 50Hz 1phase or
110V 60Hz 1phase
220V 50Hz 1phase or
110V 60Hz 1phase
Power
1250W
1250W
1250W
Control System
PLC+ Schneider touch screen
PLC+ Schneider touch screen
PLC+ Schneider touch screen
Banding Speed
27 bands/Minute
27 bands/Minute
27 bands/Minute
Banding Tension
5-40N
5-40N
5-40N
Welding Method
Heat Sealing
Heat Sealing
Heat Sealing
Net Weight
145KG
145KG
145KG
Machine Dimension (mm)
L1253xW502xH1205
L1253xW502xH1205
L1253xW502xH1205

Model
WK06-75CA-MQ
WK06-100CA-MQ
WK06-150CA-MQ
Applicable Material
OPP film or Paper Band
OPP film or Paper Band
OPP film or Paper Band
Material Specification
Width: 75mm
Width: 100mm
Width: 150mm
Thickness: 40-130 mic,
Thickness: 40-130 mic,
Thickness: 40-130 mic,
Length: 500-1200m
Length: 500-1200m
Length: 500-1200m
Core: 76mm
Core: 76mm
Core: 76mm
Arch Size
370*200 mm
370*200 mm
370*200 mm
Banding Size
Min.:50*10mm
Min.:50*10mm
Min.:50*10mm
Max.: 360*200mm
Max.: 360*200mm
Max.: 360*200mm
Table Height
980mm
980mm
980mm
Power Supply
220V 50Hz 1phase or
110V 60Hz 1phase
220V 50Hz 1phase or
110V 60Hz 1phase
220V 50Hz 1phase or
110V 60Hz 1phase
Power
1250W
1250W
1250W
Control System
PLC+ Schneider touch screen
PLC+ Schneider touch screen
PLC+ Schneider touch screen
Banding Speed
27 bands/Minute
27 bands/Minute
27 bands/Minute
Banding Tension
5-40N
5-40N
5-40N
Welding Method
Heat Sealing
Heat Sealing
Heat Sealing
Net Weight
145KG
145KG
145KG
Machine Dimension (mm)
L1253xW502xH1205
L1253xW502xH1205
L1253xW502xH1205
Banding Effect

banding-machine-6

banding-machine-5
