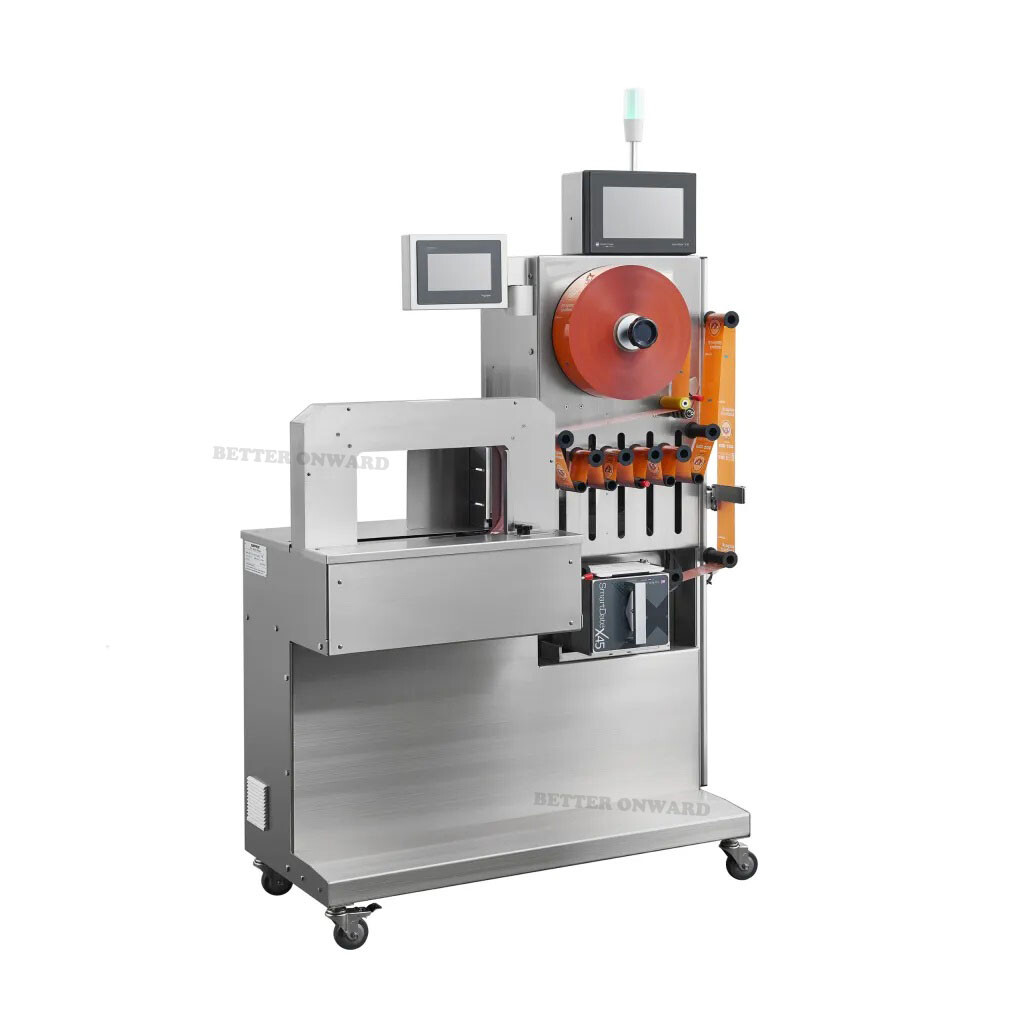

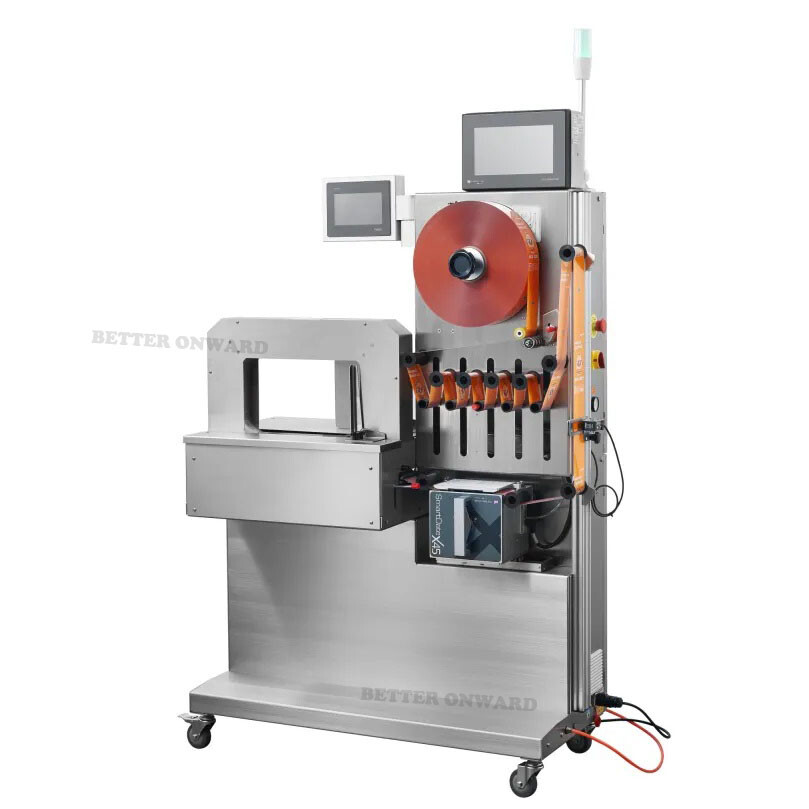

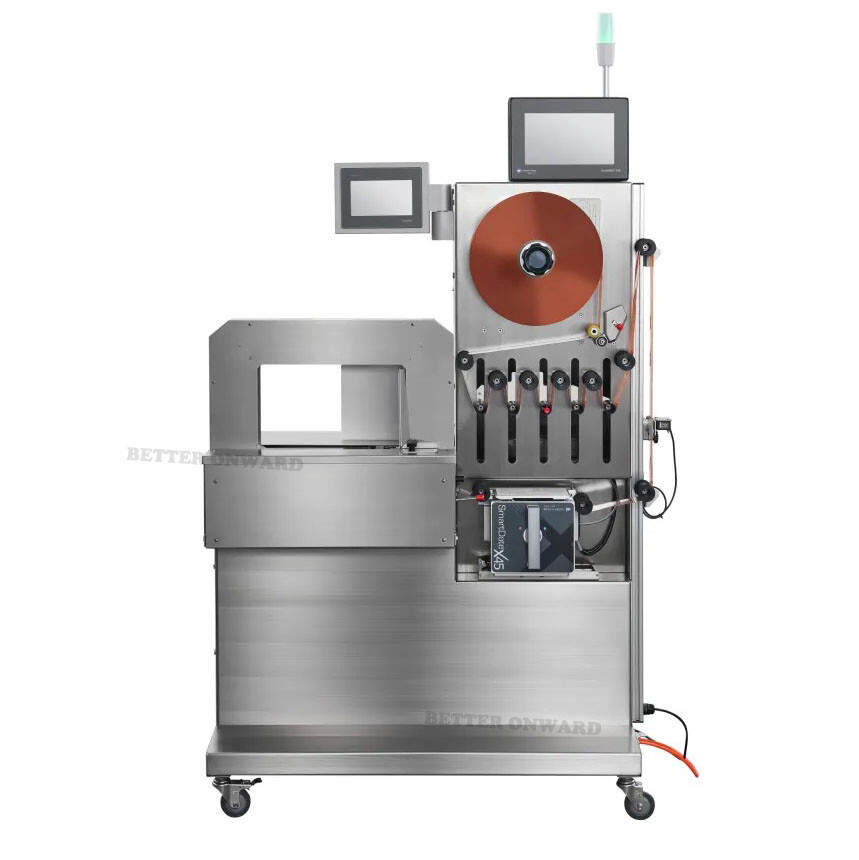

WK06-50C3-MRQ Vacuum Feed OPP Film Kraft Paper Band Banding Machine
nina@betteronwardmachinery.com
+86 18553788237
Inquiry Now →

Product Description

Vacuum Feed Banding Machine

1. Schneider touch screen +PLC 2. With Markem SmartDate X45 Thermal transfer printer 3. Side dispenser for easy band loading 4. 30mm/40mm/50mm/75mm/100mm/125mm/150mm wide band 5. Min. 40mic OPP film 6. 60 seconds for Pre-Heating time 7. Heat Sealing 8. With counter 9. Applicable for both paper band and OPP film 10. Jumbo roller dispenser to load 500-1200 meters roll 11. Schneider Servo motor 12. Easy maintenance 13. Customize arch size
14. 304 stainless steel machine body
Application Industry: Food industry, Bakery Industry, Confectionery Industry, Textile industry.
Specification
Model
WK06-30C3-MRQ
WK06-40C3-MRQ
WK06-50C3-MRQ
Applicable Material
OPP film or Kraft Paper band
OPP film or Kraft Paper band
OPP film or Kraft Paper band


Material Specification
Width: 30mm
Width: 40mm
Width: 50mm
Thickness: 40-130 mic,
Thickness: 40-130 mic,
Thickness: 40-130 mic,
Length: 500-1200m
Length: 500-1200m
Length: 500-1200m
Core: 76mm
Core: 76mm
Core: 76mm
Arch Size
370*200 mm
370*200 mm
370*200 mm
Banding Size
Min.:50*10mm
Min.:50*10mm
Min.:50*10mm
Max.: 360*200mm
Max.: 360*200mm
Max.: 360*200mm
Table Height
980mm
980mm
980mm
Power Supply
220V 50Hz 1phase or 110V 60Hz 1phase
220V 50Hz 1phase or 110V 60Hz 1phase
220V 50Hz 1phase or 110V 60Hz 1phase
Power
1250W
1250W
1250W
Control System
PLC+ Schneider touch screen
PLC+ Schneider touch screen
PLC+ Schneider touch screen
Banding Speed
30 bands/Minute
30 bands/Minute
30 bands/Minute
Banding Tension
5-40N
5-40N
5-40N
Welding Method
Heat Sealing
Heat Sealing
Heat Sealing
Net Weight
145KG
145KG
145KG
Machine Dimension (mm)
L1253xW502xH1205
L1253xW502xH1205
L1253xW502xH1205
Model
WK06-75C3-MRQ
WK06-100C3-MRQ
WK06-150C3-MRQ
Applicable Material
OPP film or Kraft Paper band
OPP film or Kraft Paper band
OPP film or Kraft Paper band


Material Specification
Width: 75mm
Width: 100mm
Width: 150mm
Thickness: 40-130 mic,
Thickness: 40-130 mic,
Thickness: 40-130 mic,
Length: 500-1200me
Length: 500-1200m
Length: 500-1200m
Core: 76mm
Core: 76mm
Core: 76mm
Arch Size
370*200 mm
370*200 mm
370*200 mm
Banding Size
Min.:50*10mm
Min.:50*10mm
Min.:50*10mm
Max.: 360*200mm
Max.: 360*200mm
Max.: 360*200mm
Table Height
980mm
980mm
980mm
Power Supply
220V 50Hz 1phase or 110V 60Hz 1phase
220V 50Hz 1phase or 110V 60Hz 1phase
220V 50Hz 1phase or 110V 60Hz 1phase
Power
1250W
1250W
1250W
Control System
PLC+ Schneider touch screen
PLC+ Schneider touch screen
PLC+ Schneider touch screen
Banding Speed
30 bands/Minute
30 bands/Minute
30 bands/Minute
Banding Tension
5-40N
5-40N
5-40N
Welding Method
Heat Sealing
Heat Sealing
Heat Sealing
Net Weight
145KG
145KG
145KG
Machine Dimension (mm)
L1253xW502xH1205
L1253xW502xH1205
L1253xW502xH1205

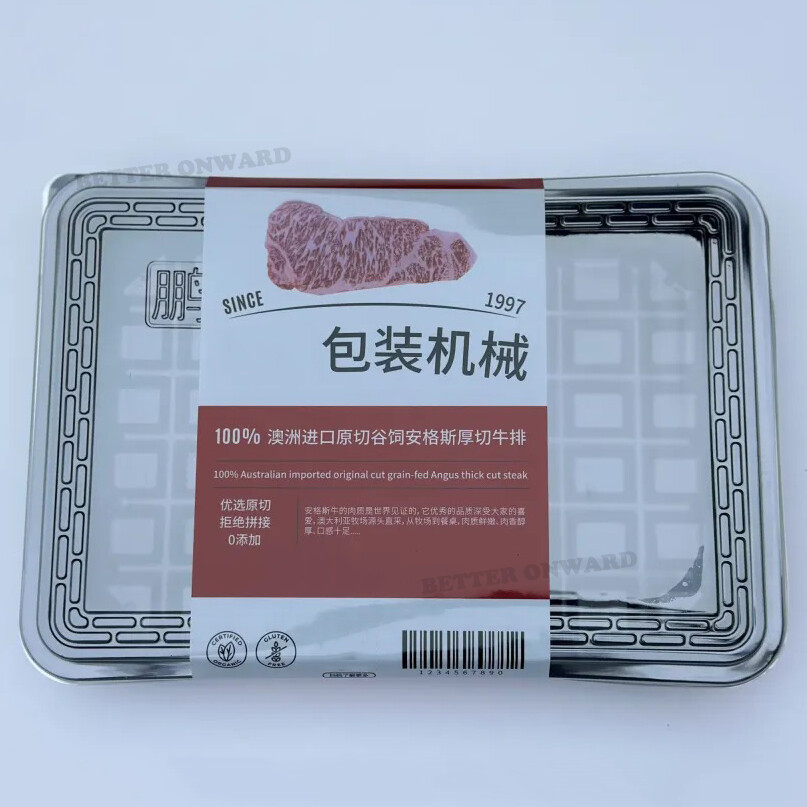

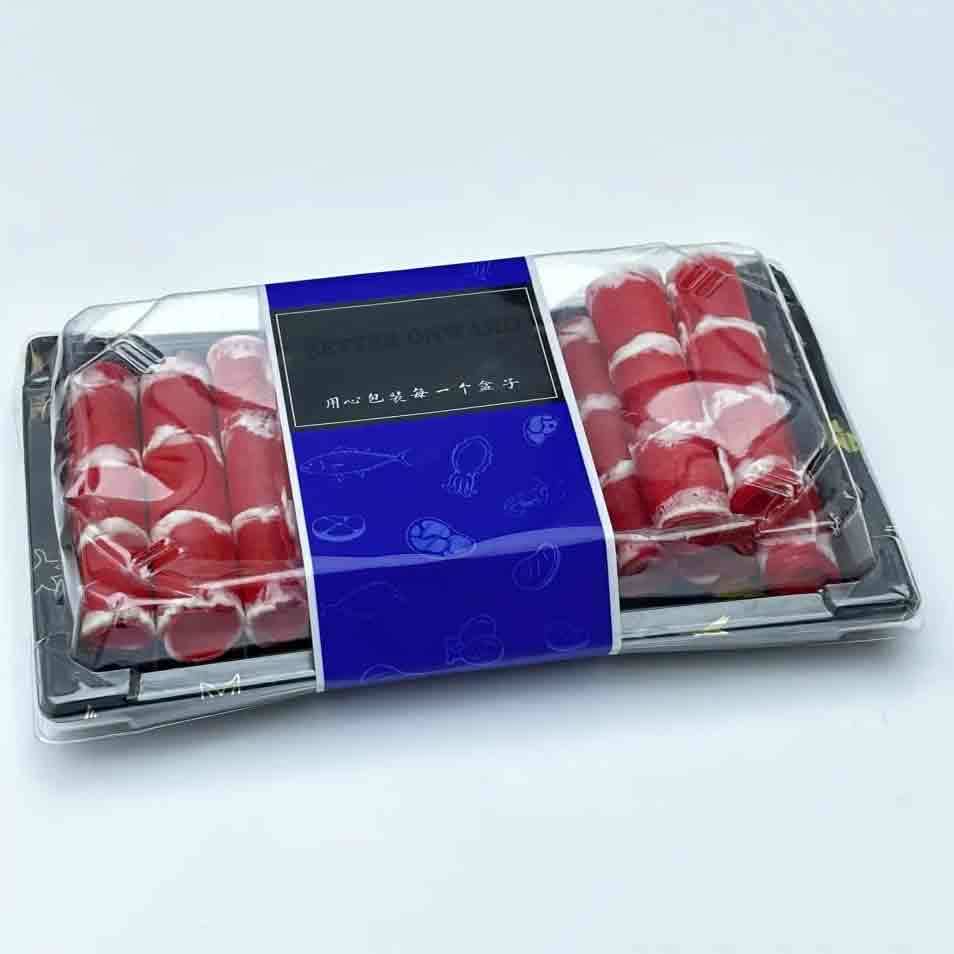

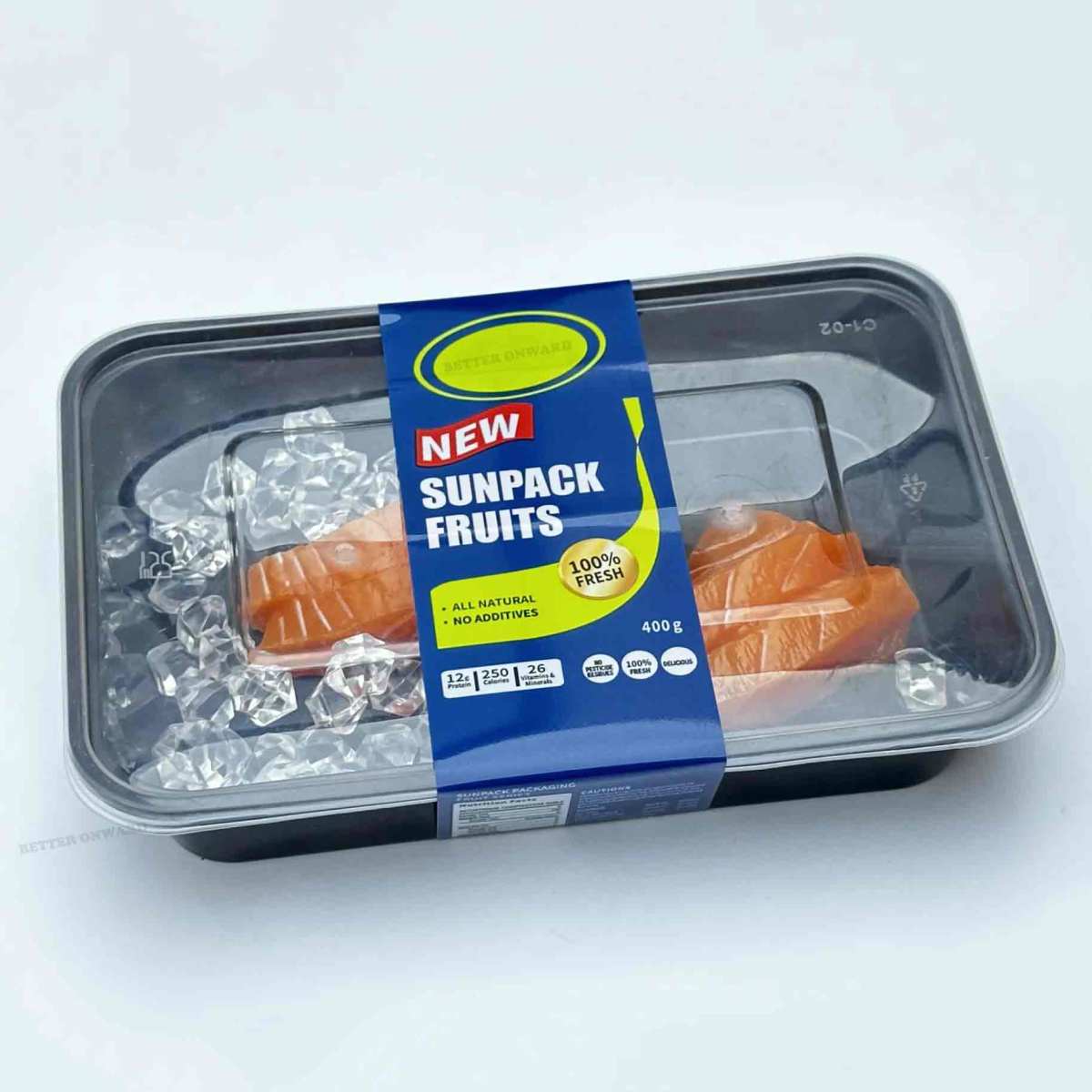

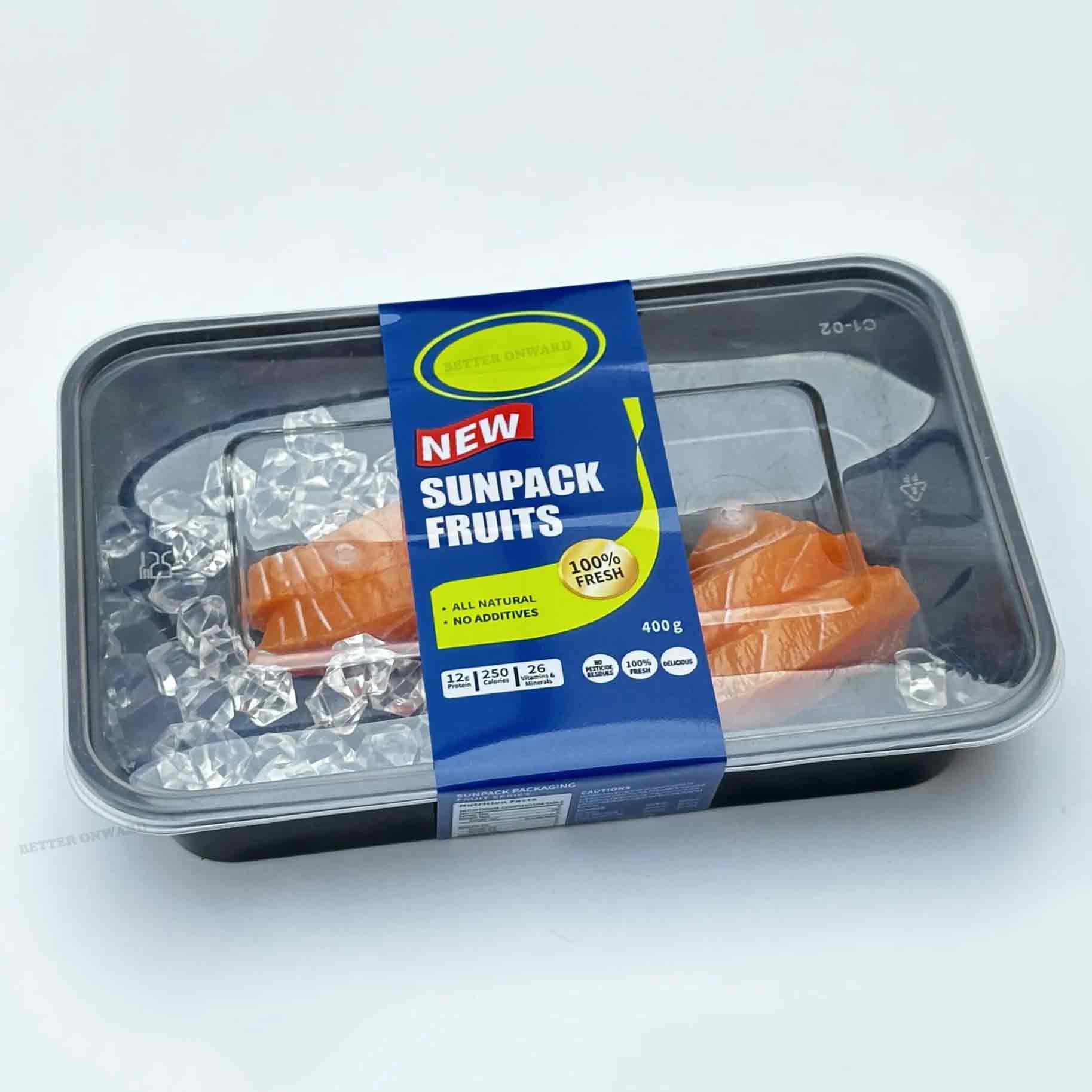

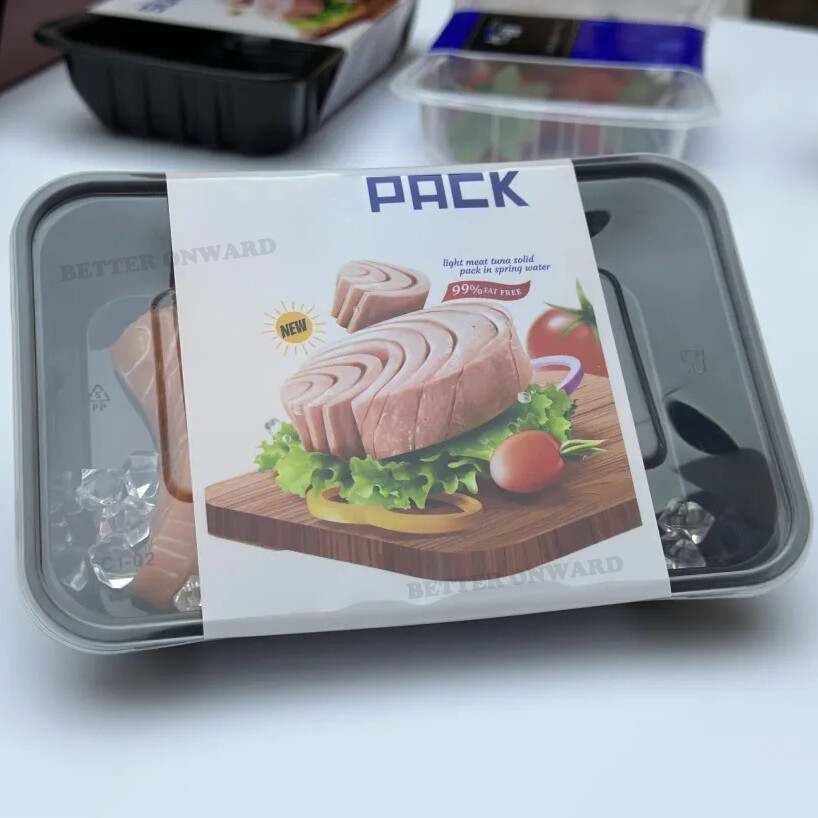

Banding Effect
