WK06-100CA-MRQ Belt Conveying Table Automatic Vacuum Feed Banding Machine
nina@betteronwardmachinery.com
+86 18553788237
Inquiry Now →

Product Description

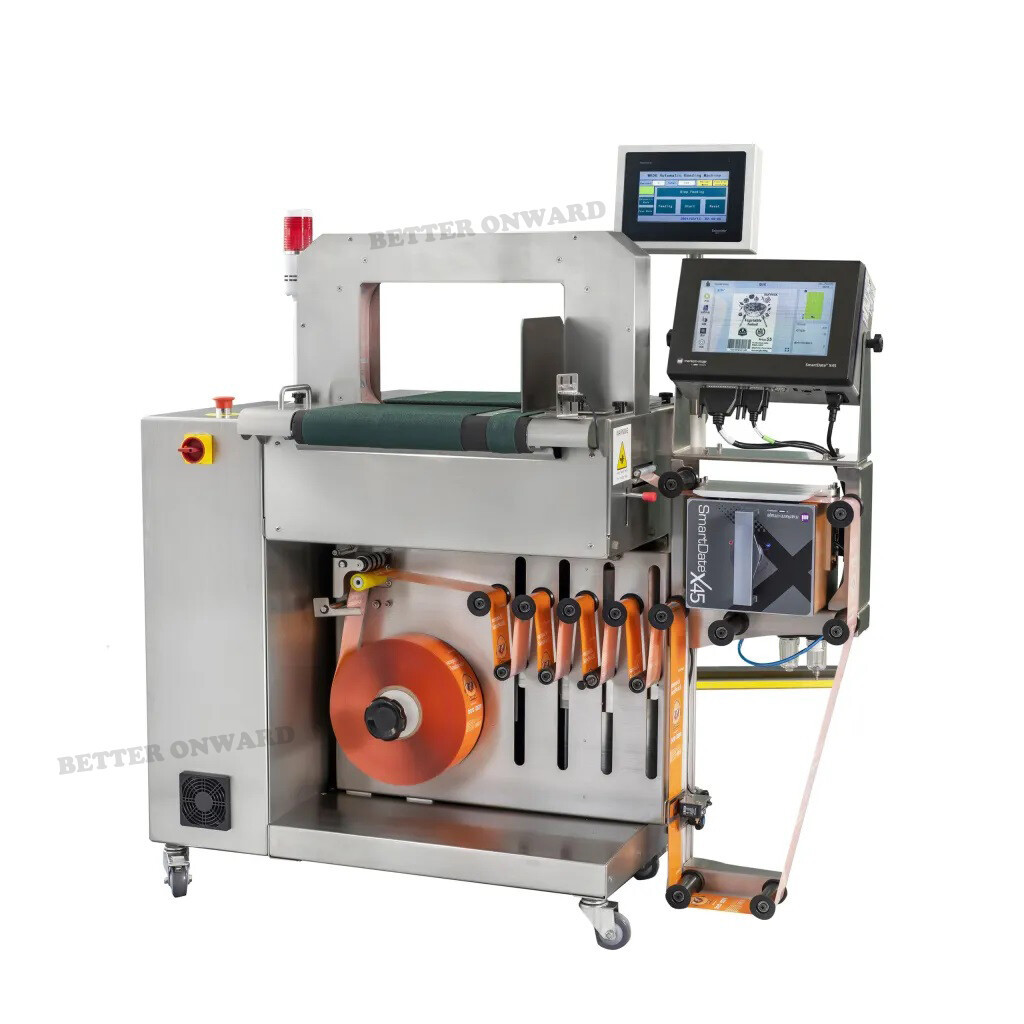

WK06-100CA-MRQ Belt Table Automatic Vacuum Feed Banding Machine

1. Schneider PLC +Touch screen

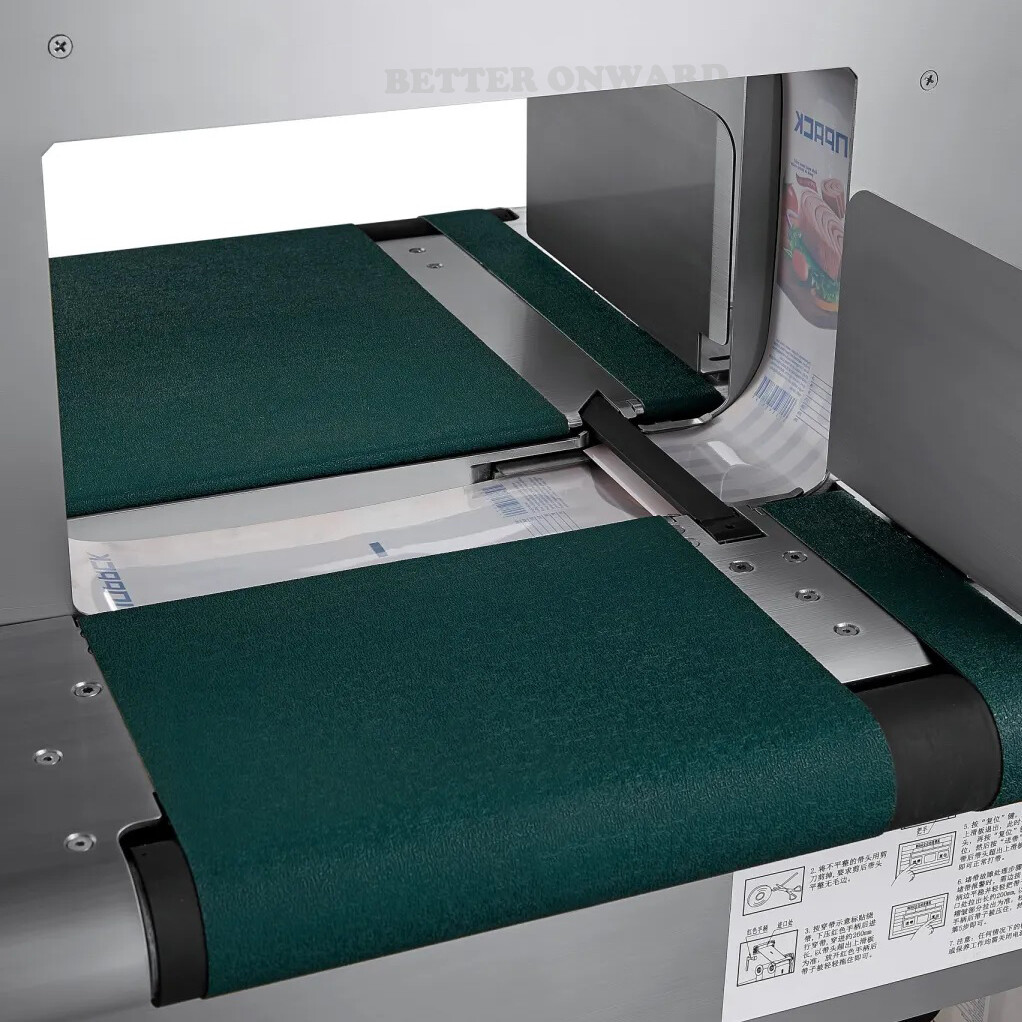

2. Belt power table
3. 304 Stainless Steel machine body
4. With Markem SmartDate X45 thermal transfer printer
5. 30mm/40mm/50mm/75mm/100mm/125mm/150mm wide band
6. Min. 40mic OPP film
7. 60 seconds Pre-Heating time
8. Heat Sealing
9. With counter
10. Applicable for both paper band and OPP film

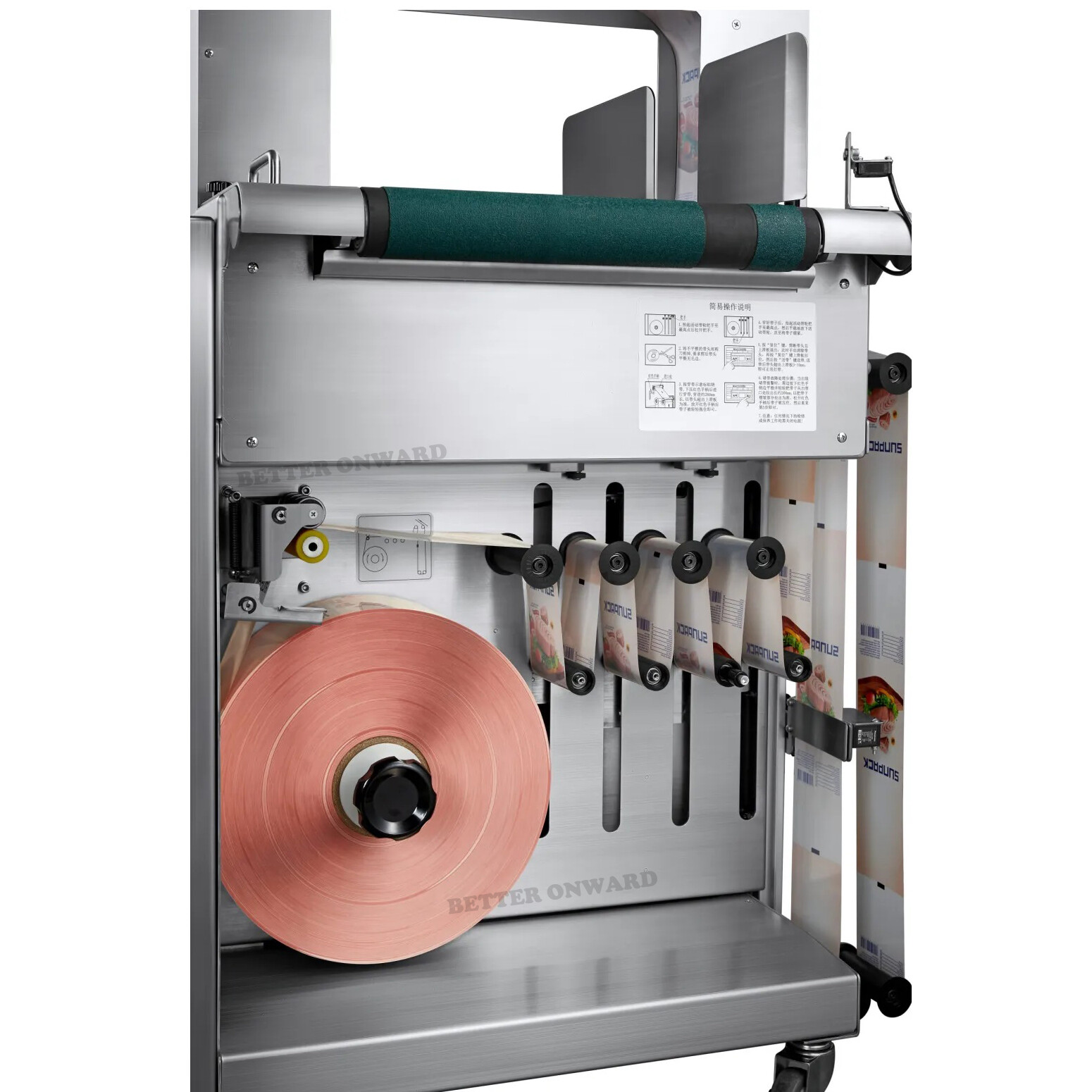

12. Jumbo roller dispenser to load 500-1200 meters roll
13. Schneider Servo Motor
14. Easy maintenance
15. Customize arch size

Application Industry: Food, Bakery, Confectionery, Textile, etc.
Specification
Model
WK06-30CA-MRQ
WK06-40CA-MRQ
WK06-50CA-MRQ
Applicable Material
OPP film or
Kraft Paper band
OPP film or
Kraft Paper band
OPP film or
Kraft Paper band
Material Specification
Width: 30mm
Thickness: 40-130mic,
Length: 500-1200m
Core: 76mm
Width: 40mm
Thickness: 40-130mic,
Length: 500-1200m
Core: 76mm
Width: 50mm
Thickness: 40-130mic,
Length: 500-1200m
Core: 76mm
Arch Size
370*200 mm
370*200 mm
370*200 mm
Banding Size
Min.:50*10mm
Max.: 360*200mm
Min.:50*10mm
Max.: 360*200mm
Min.:50*10mm
Max.: 360*200mm
Table Height
980mm
980mm
980mm
Power Supply
220V 50Hz 1phase
or 110V 60Hz 1phase
220V 50Hz 1phase
or 110V 60Hz 1phase
220V 50Hz 1phase
or 110V 60Hz 1phase
Power Rate
1250W
1250W
1250W
Control System
PLC+ Schneider touch screen
PLC+ Schneider touch screen
PLC+ Schneider touch screen
Banding Speed
27 bands/Minute
27 bands/Minute
27 bands/Minute
Banding Tension
5-40N
5-40N
5-40N
Welding Method
Heat Sealing
Heat Sealing
Heat Sealing
Net Weight
145KG
145KG
145KG
Machine Size (mm)
L1253xW502xH1205
L1253xW502xH1205
L1253xW502xH1205
Model
WK06-75CA-MRQ
WK06-100CA-MRQ
WK06-150CA-MRQ
Applicable Material
OPP film or Kraft Paper band
OPP film or Kraft Paper band
OPP film or Kraft Paper band
Material Specification
Width: 75mm
Thickness: 40-130 mic,
Length: 500-1200m
Core: 76mm
Width: 100mm
Thickness: 40-130 mic,
Length: 500-1200m
Core: 76mm
Width: 150mm
Thickness: 40-130 mic,
Length: 500-1200m
Core: 76mm
Arch Size
370*200 mm
370*200 mm
370*200 mm
Banding Size
Min.:50*10mm
Max.: 360*200mm
Min.:50*10mm
Max.: 360*200mm
Min.:50*10mm
Max.: 360*200mm
Table Height
980mm
980mm
980mm
Power Supply
220V 50Hz 1phase
or 110V 60Hz 1phase
220V 50Hz 1phase
or 110V 60Hz 1phase
220V 50Hz 1phase
or 110V 60Hz 1phase
Power Rate
1250W
1250W
1250W
Control System
PLC+ Schneider touch screen
PLC+ Schneider touch screen
PLC+ Schneider touch screen
Banding Speed
27 bands/Minute
27 bands/Minute
27 bands/Minute
Banding Tension
5-40N
5-40N
5-40N
Welding Method
Heat Sealing
Heat Sealing
Heat Sealing
NW
145KG
145KG
145KG
Machine Size (mm)
L1253xW502xH1205
L1253xW502xH1205
L1253xW502xH1205

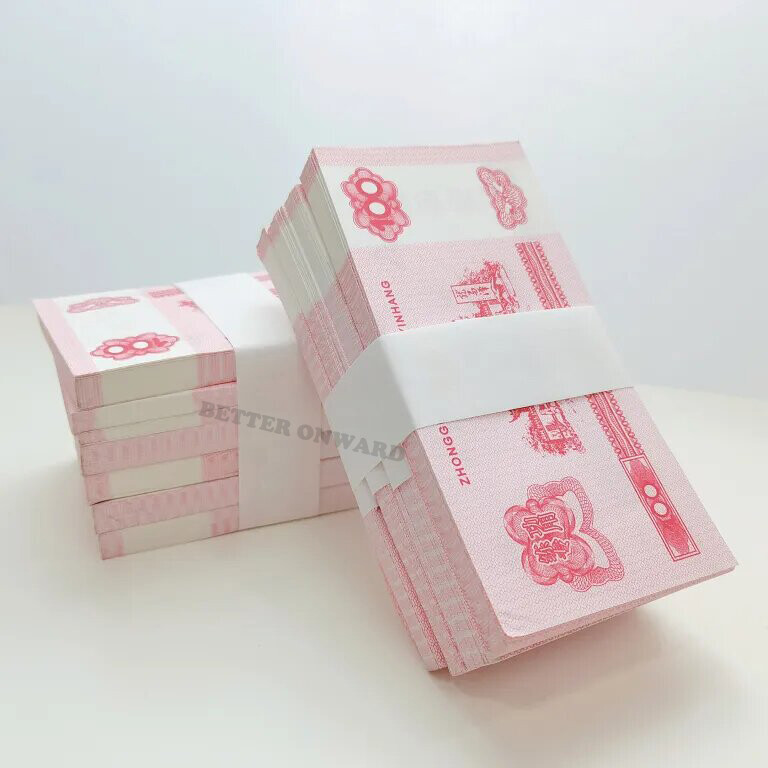

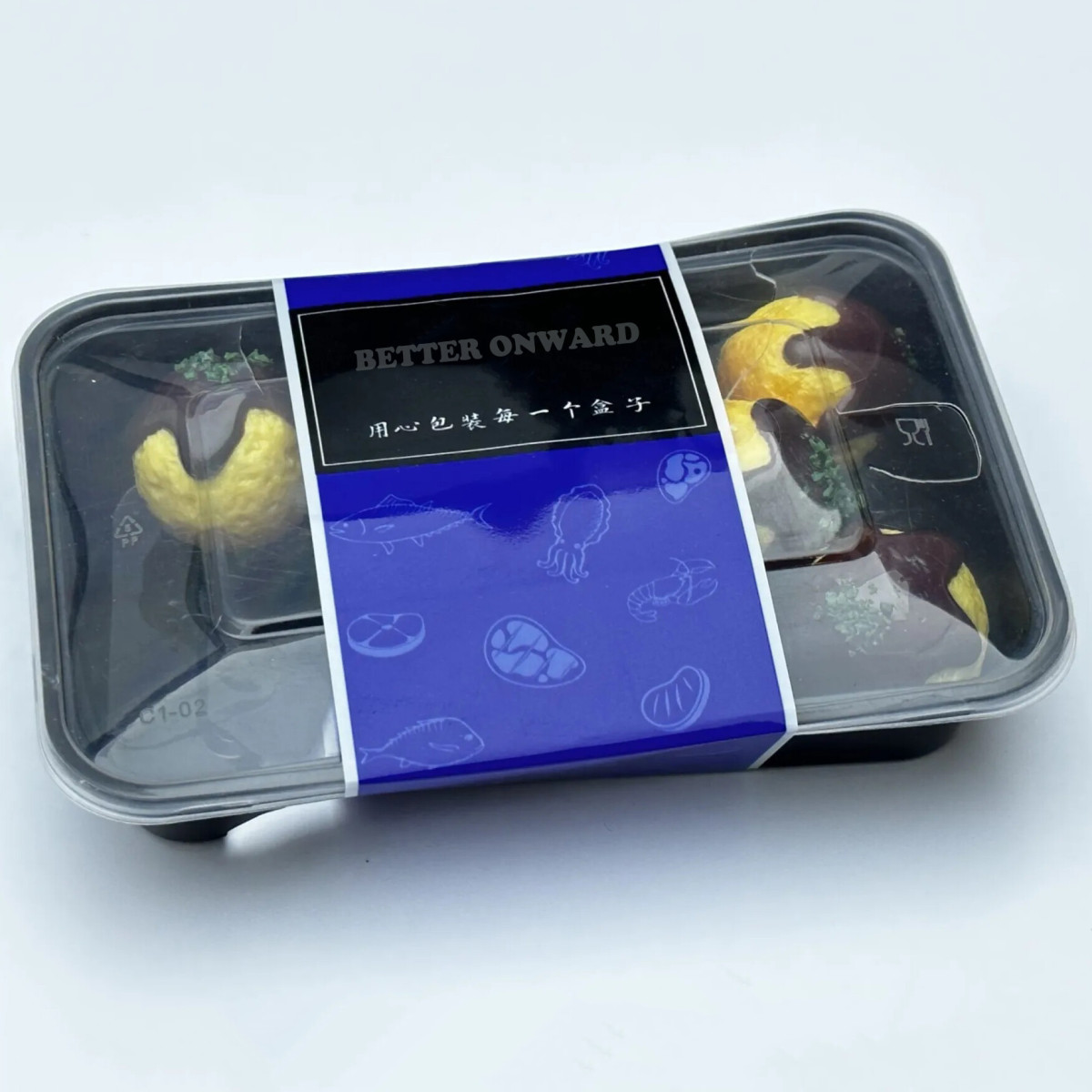

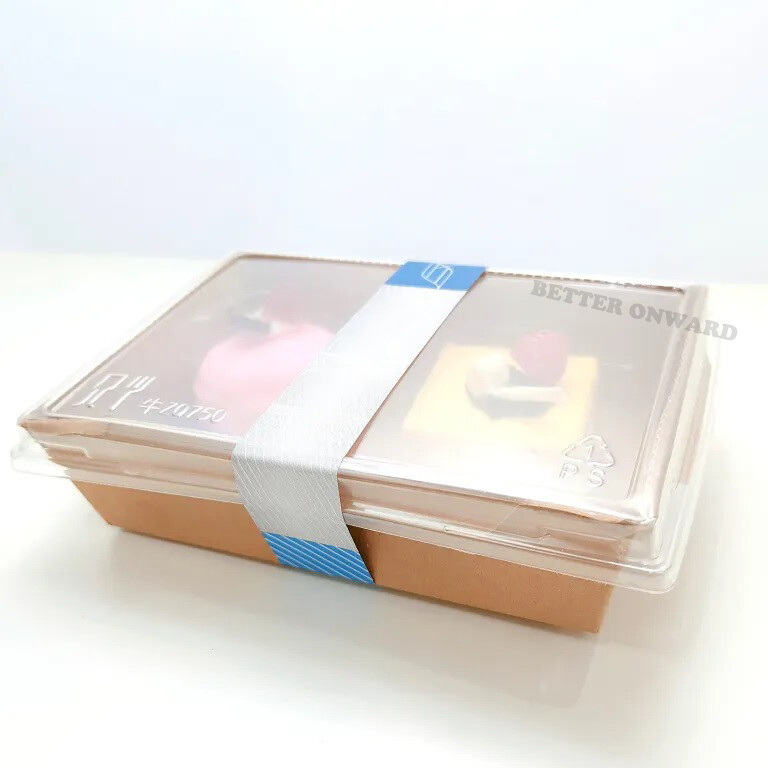

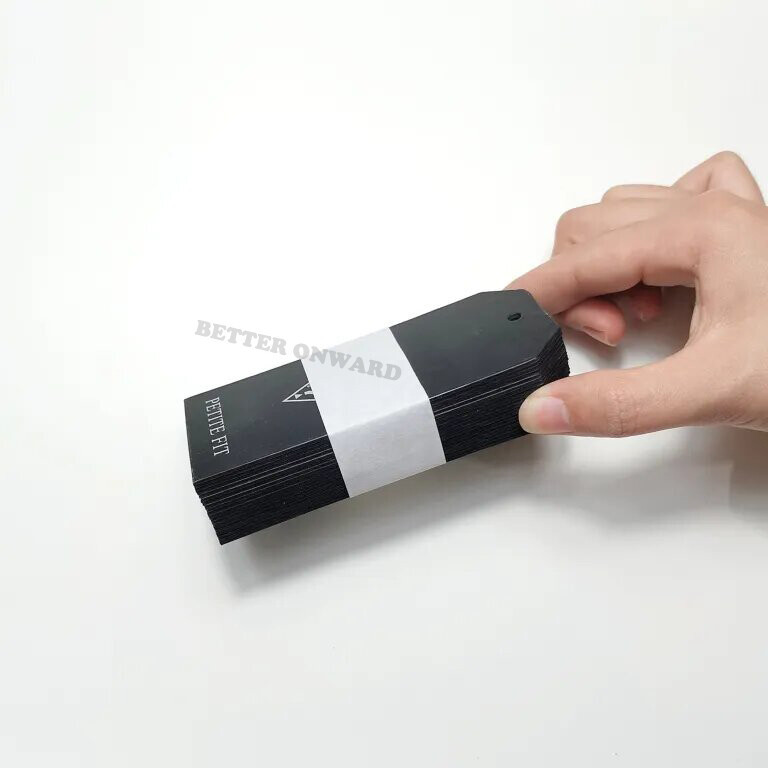

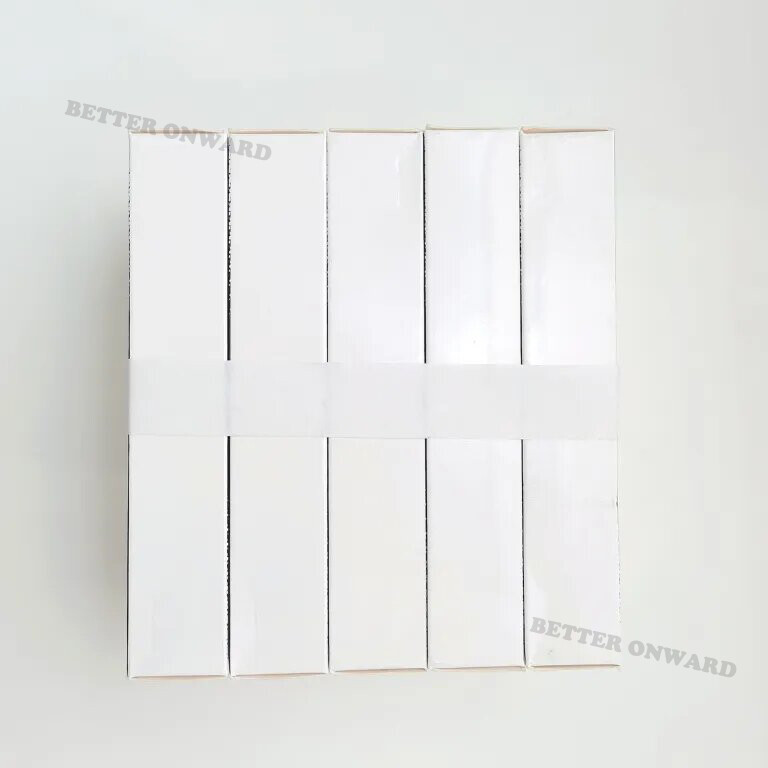

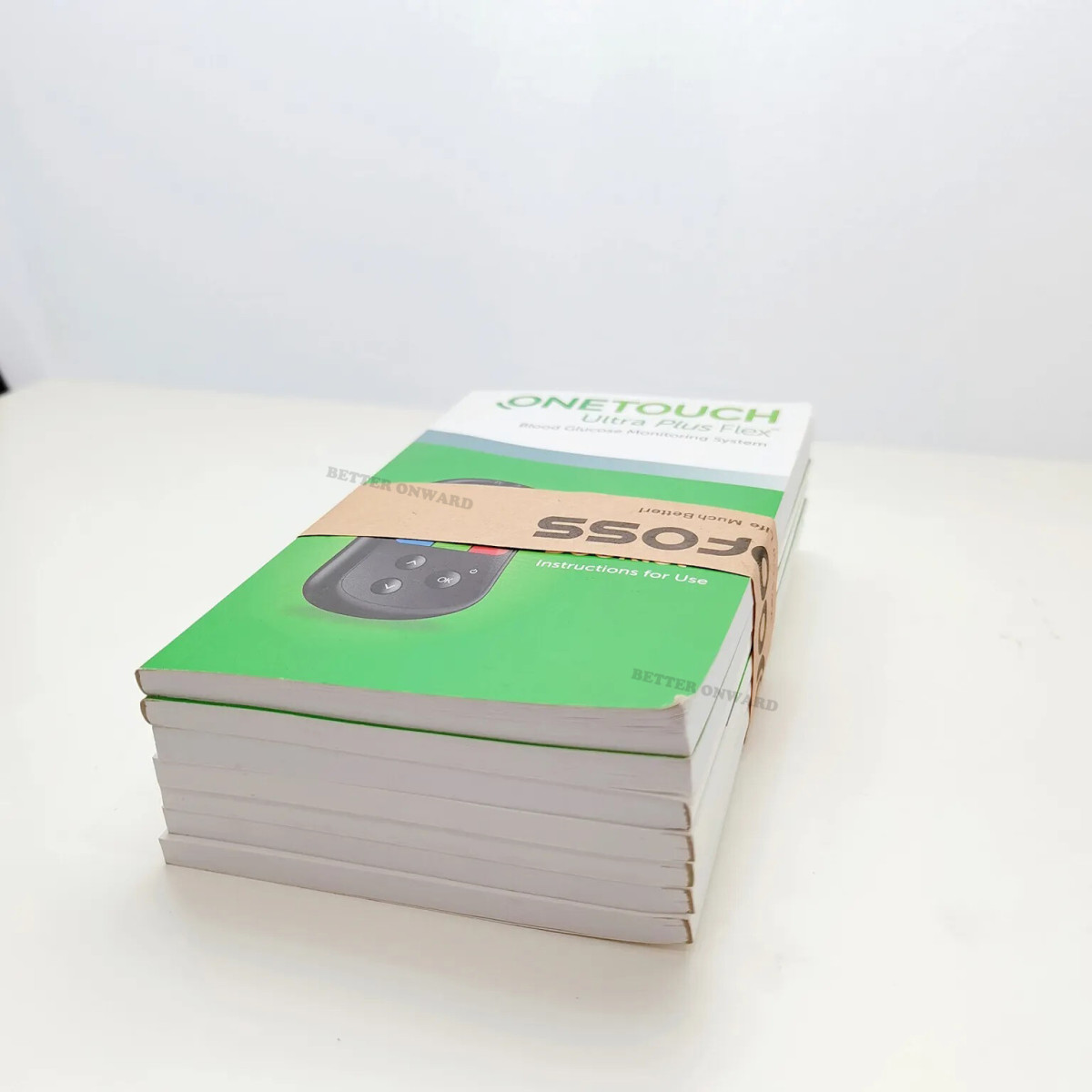

Banding Effect
