WK02-20B WK02-30B High Table OPP Film Kraft Paper Band Heat Sealing Banding Machine

Product Description

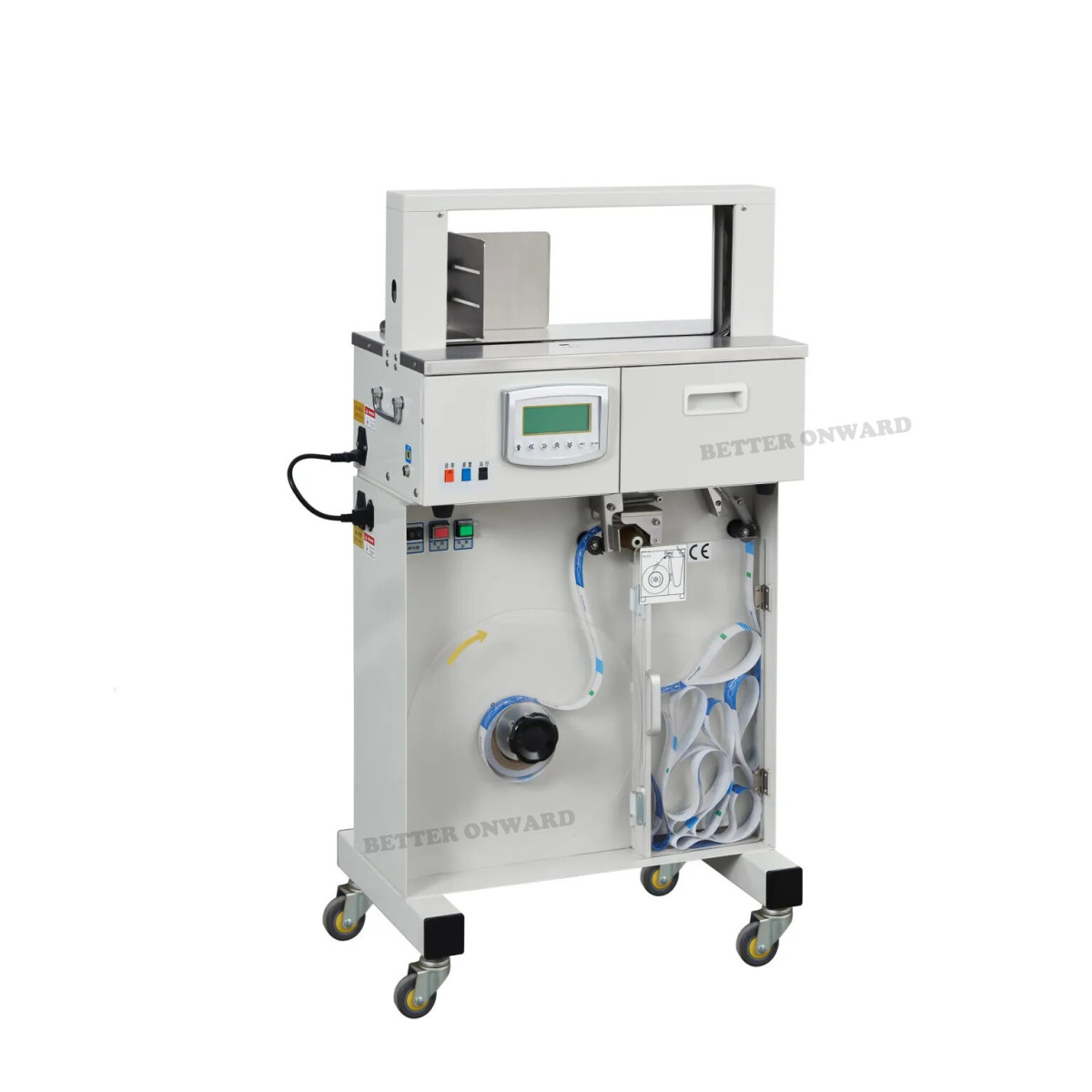

WK02-20B WK02-30B Banding Machine

1. 60 Seconds Pre-Heating time
2. Heat Sealing
3. Applicable for both paper band and OPP film
4. AC motor Power

Application Industry: Food, Bakery, Confectionery, Textile, etc.

Specification

Model	WK02-20B	WK02-30B
Applicable Material	OPP film or Kraft Paper band	OPP film or Kraft Paper band
Material Specification	Width: 19.2-19.6mm Thickness: 120mic Length: 500meters Core: 40mm	Width: 29.2-29.6mm Thickness: 120mic Length: 500meters Core: 40mm
Arch Size	470*200mm	470*200mm
Banding Size	Min.: 3010mm Max.: 460180mm	Min.: 3010mm Max.: 460180mm
Table Height	980mm	980mm
Power Supply	220V 50Hz 1phase or 110V 60Hz 1phase	220V 50Hz 1phase or 110V 60Hz 1phase
Power Rate	160W	160W
Control System	PCB+Key board control panel	PCB+Key board control panel
Banding Speed	25 bands/Minute	25 bands/Minute
Banding Tension	5-40N	5-40N
Welding Method	Heat Sealing	Heat Sealing
Net Weight	72kg	72kg
Machine Dimension	L611 x W364 x H1175mm	L611 x W364 x H1175mm

Banding Effect
