Product Description

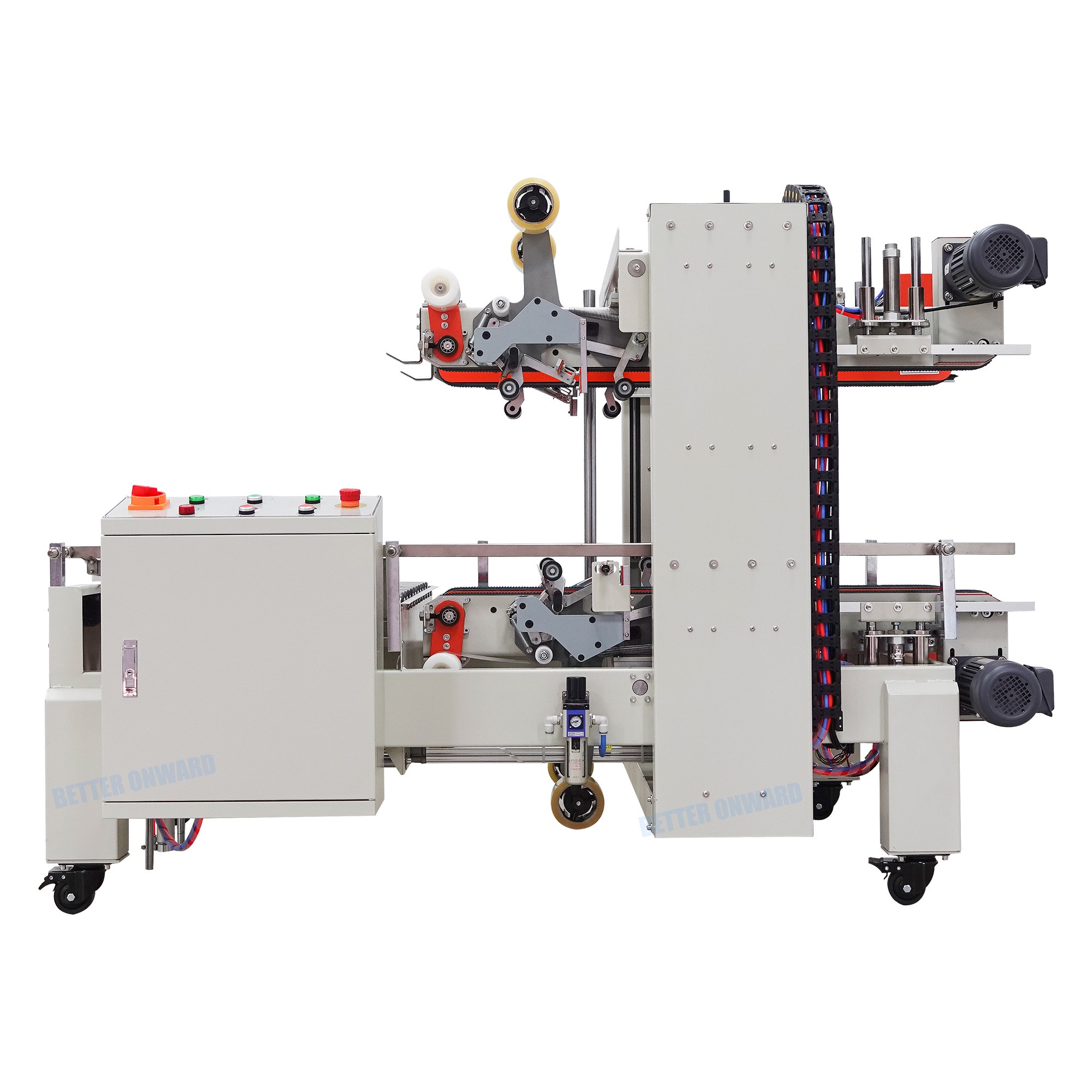

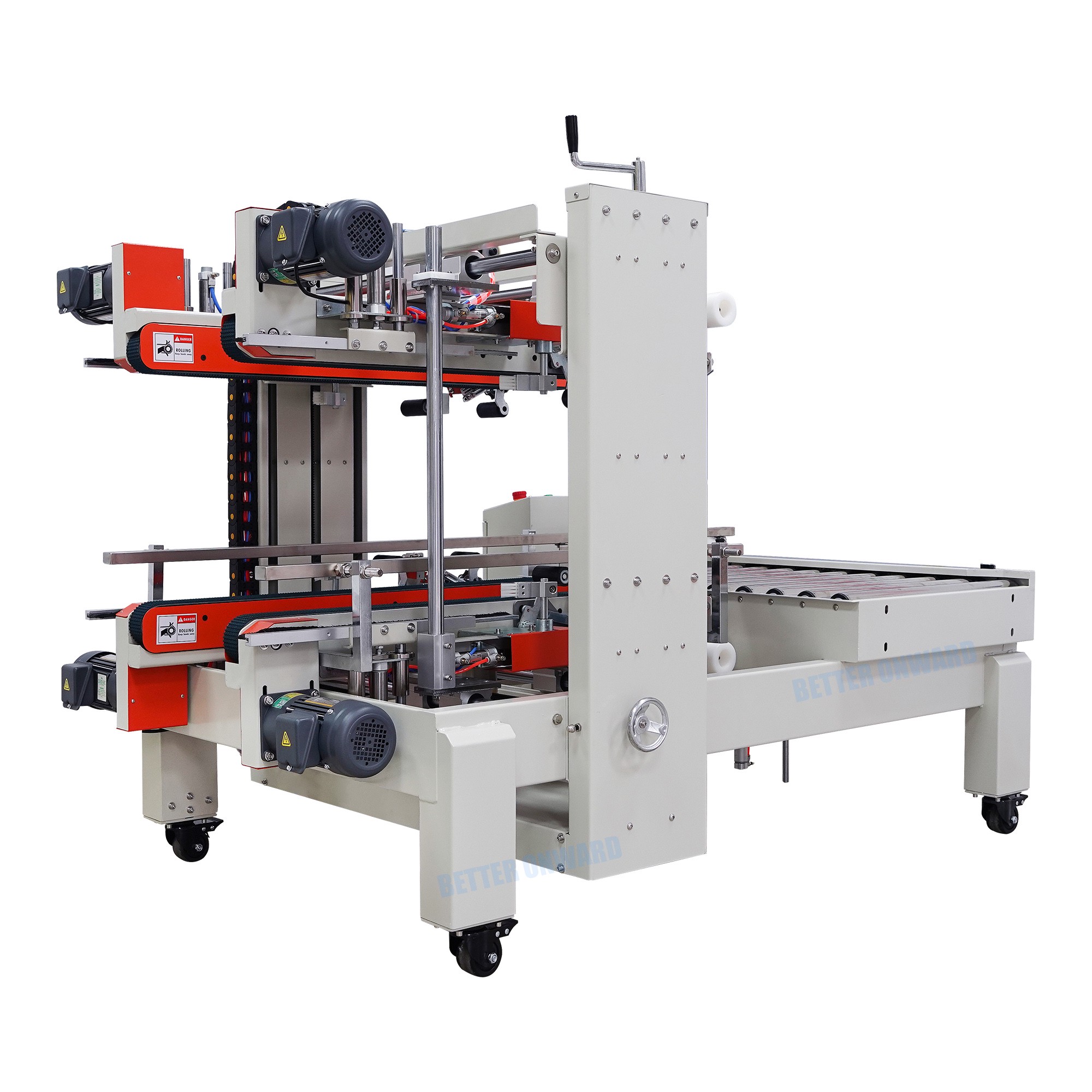

DFXS7050 Automatic Carton Box Edges Sealer Case Sealing and Packing Machine

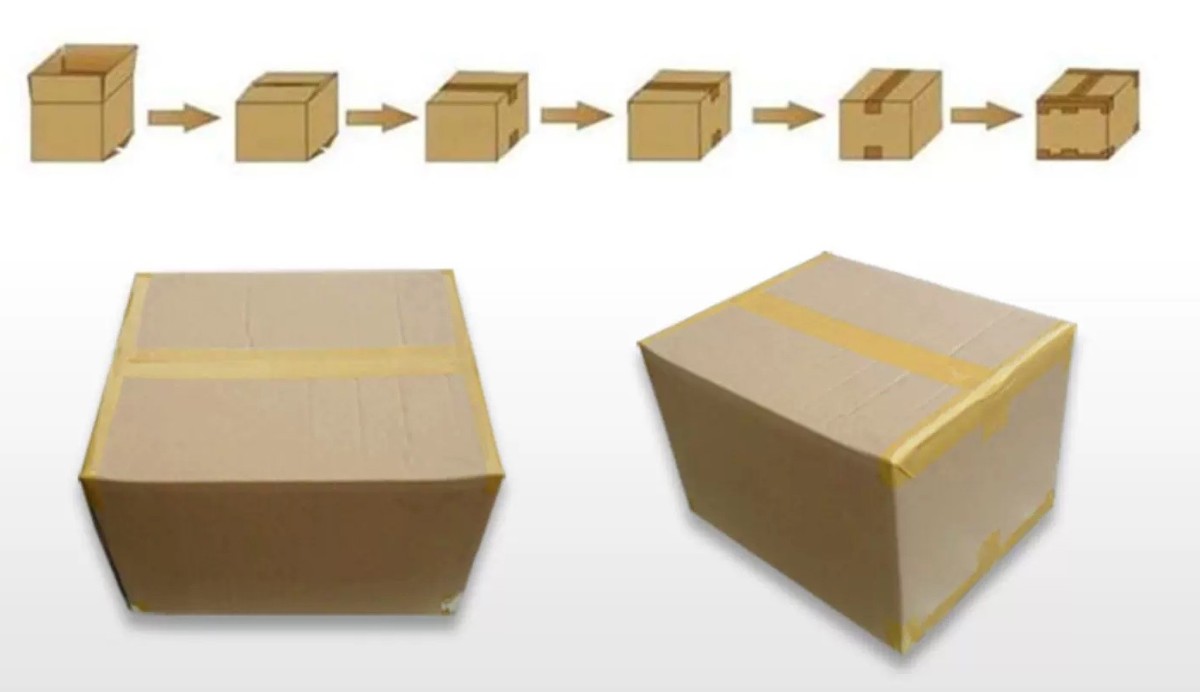

DFXS7050 Carton Sealer use for sealing carton's 4 corner edges.

It could be connected with other carton sealing machine to work,such as: FXC5050, FXJ6050, FXJ5050Z.

It is widely used in food, beverage, cosmetic, printing industries.
Specification



According to the different sizes of carton, our DFXS7050 carton sealing machine could complete sealing by adjusting the height adjustment handle and width adjustment handle.

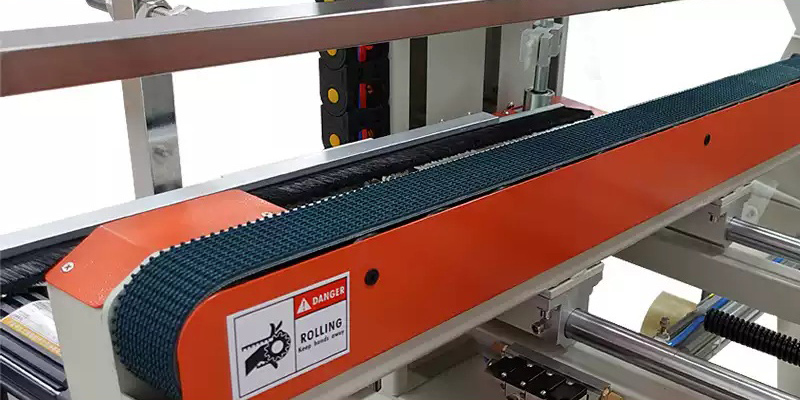

The conveyor belt is durable with enhanced surface friction,enabling more stable conveyance of cartons.

The idler wheel is thickened and enlarged to support heavier loads.

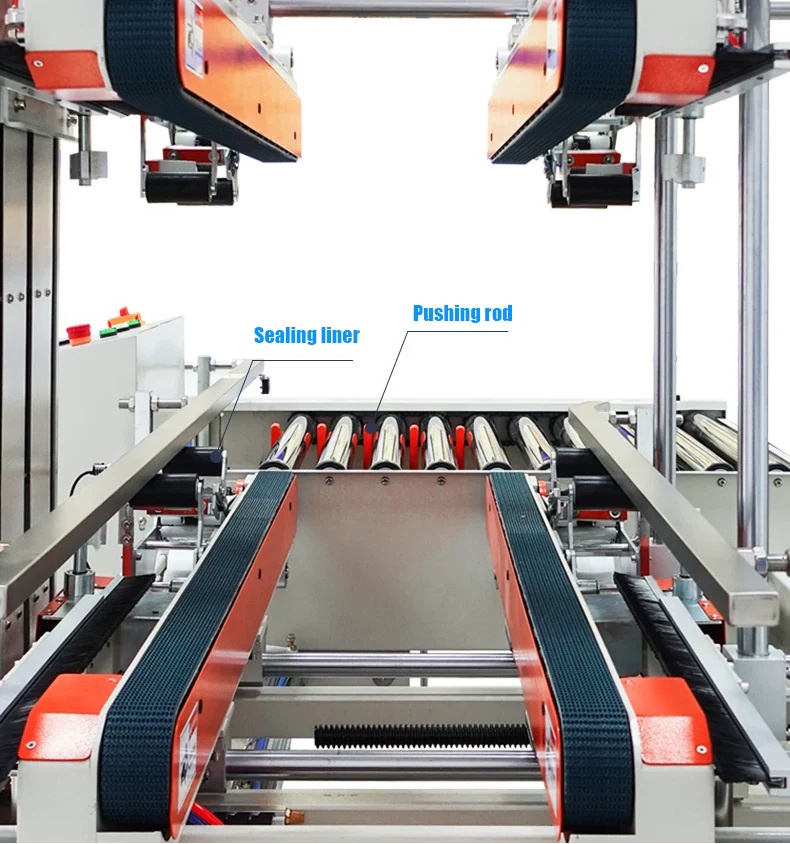

The advanced sealing liner is used to flatten the protruding parts of the carton, so that the adhesive tape attached to the carton surface is flatter.

The cut is smooth and the seal is neat and firm.

Equipped with 4 conveyor motors and durable conveyor belts, the machine achieves higher load capacity and smoother conveying.

Equipped with sensor, it can realize photoelectric detection and automatic alarm functions, to realize unmanned packaging
operation.

The filter pressure reducing valve ensures stable pressure.

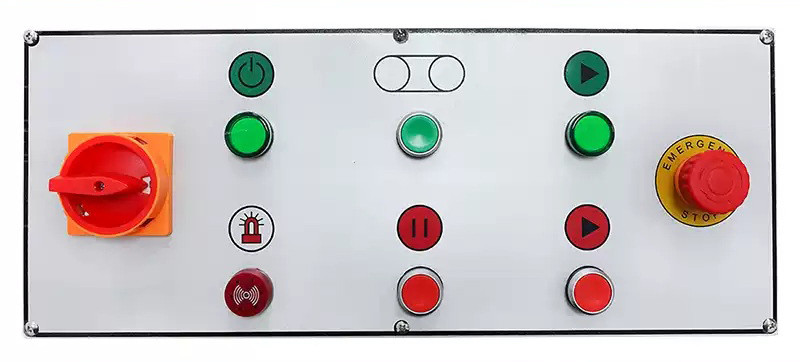

The operation panel is simple.

It match with emergency stop.


The sealing head transmission design is reasonable and the seal is smoother.

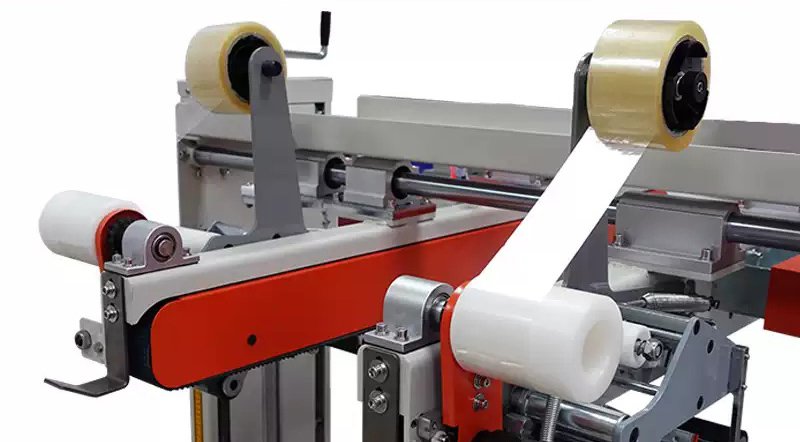

It is easier to replace the adhesive tape.

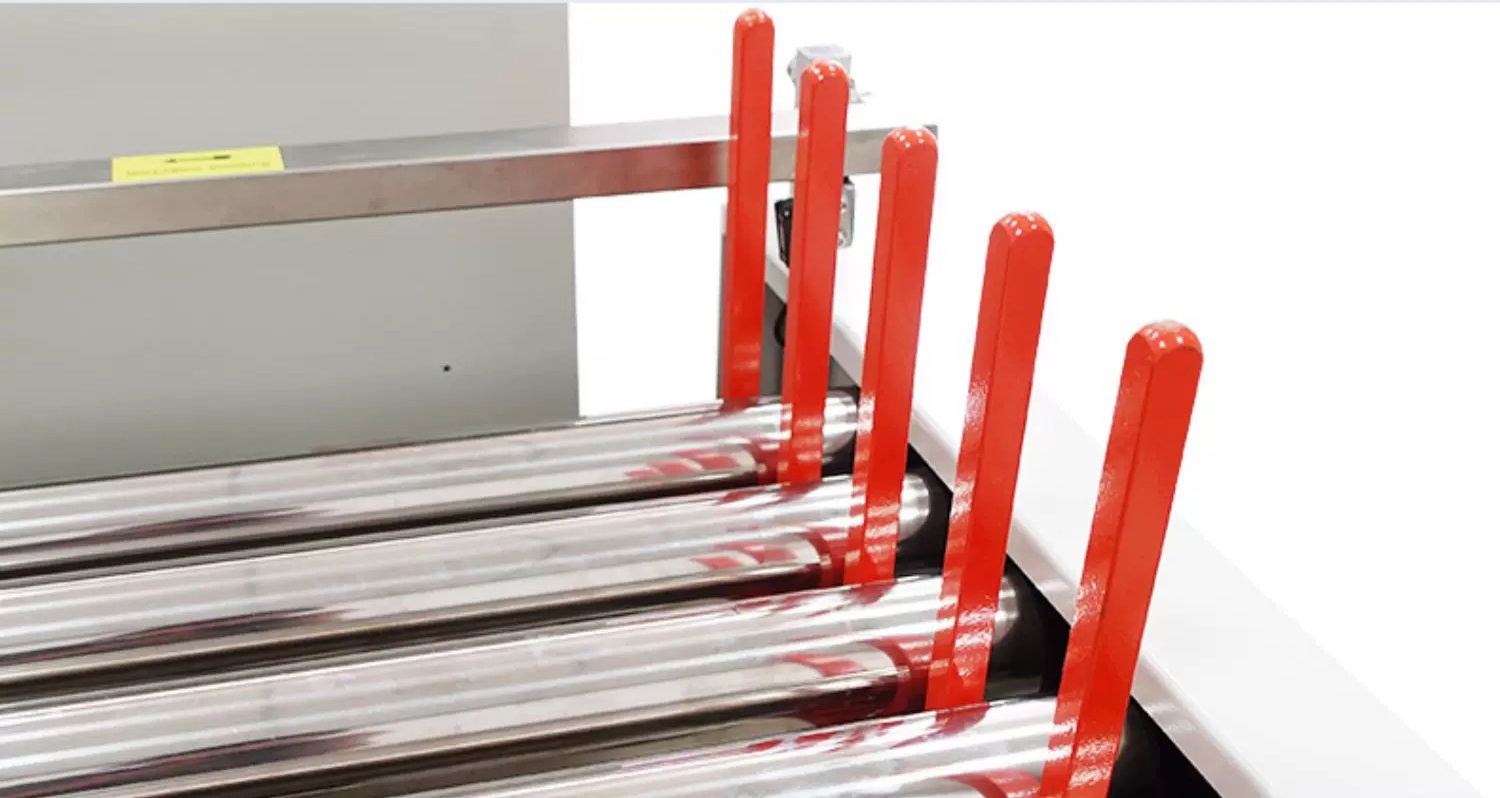

Newly designed of push rod, to improve the packing efficiency.

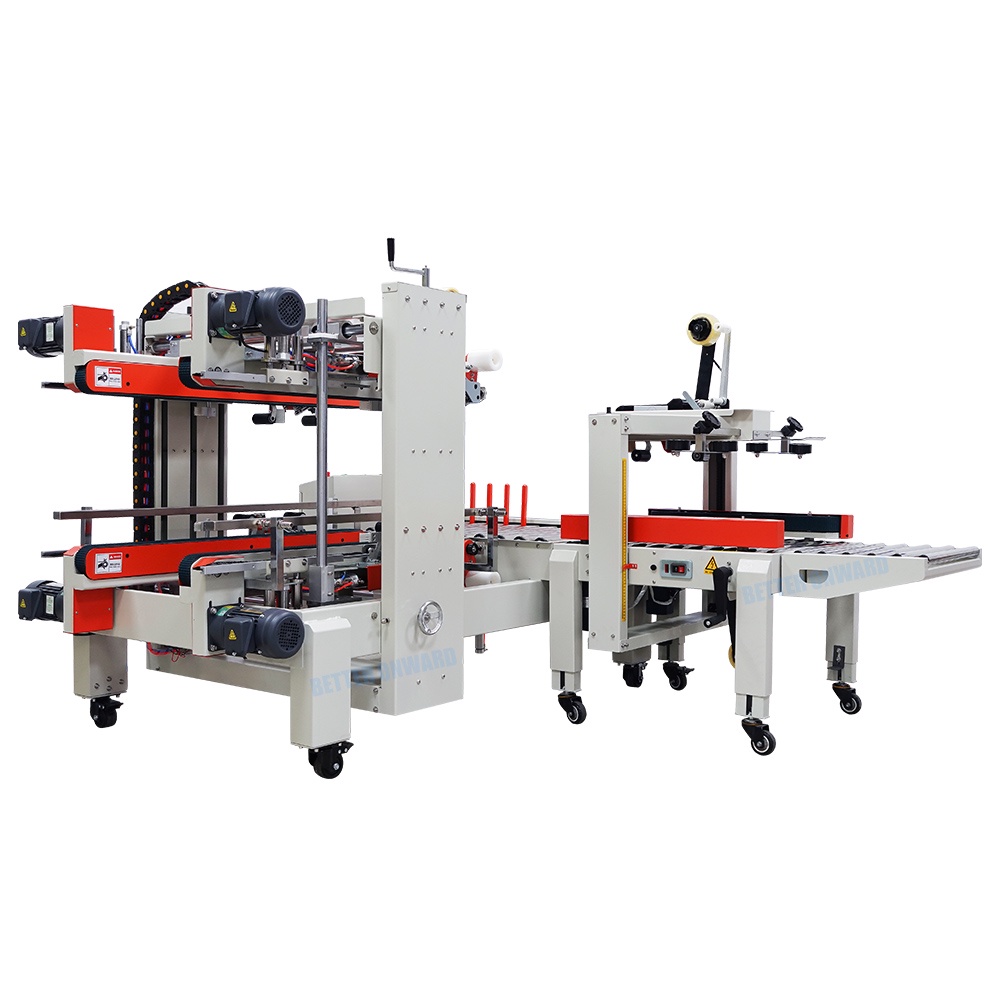

DFXS7050 Automatic Carton Box Edges Sealer could work with FXC5050 Carton Sealer.
Model
DFXS7050
Power supply
AC 220V/380V 50/60Hz
Max. packing dimension
700 (L)*500 (W)* 500 (H) mm
Min. packing dimension
280 (L)*200 (W)*180 (H)mm
speed
20m/min
Air Pressure
5.5-6kg/cm2
Width of adhesive tape
48mm, 60mm, 72mm
Height of working table(MM)
600-700mm
Machine size
1955(L)*1340(W)*1440 (H)mm
Model
FXC5050
Power source
220/110V 50/60HZ 240W
Sealing capacity
1000pcs(standard size) per hour
Width of tape
36, 48, 60mm
Way of transmission
Left-Right Two sides convey belt transmission
Sealing speed
20m/min
Max. size of case
500×500 mm (W×H)
Min. size of case
130×120 mm (W×H)
Overall size
1850×835×1105~1715 mm (L×W×H)
Weight
120Kg
Real Picture
