Product Description

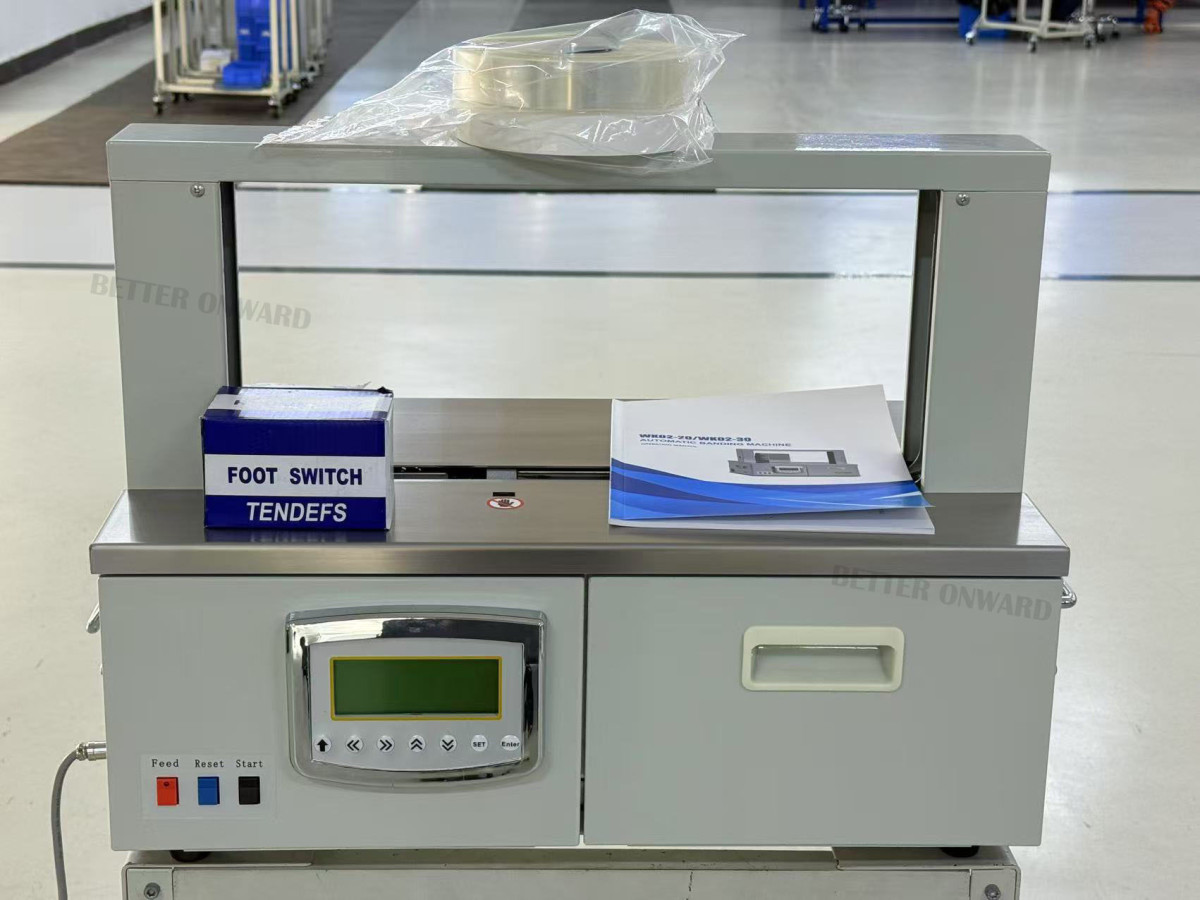

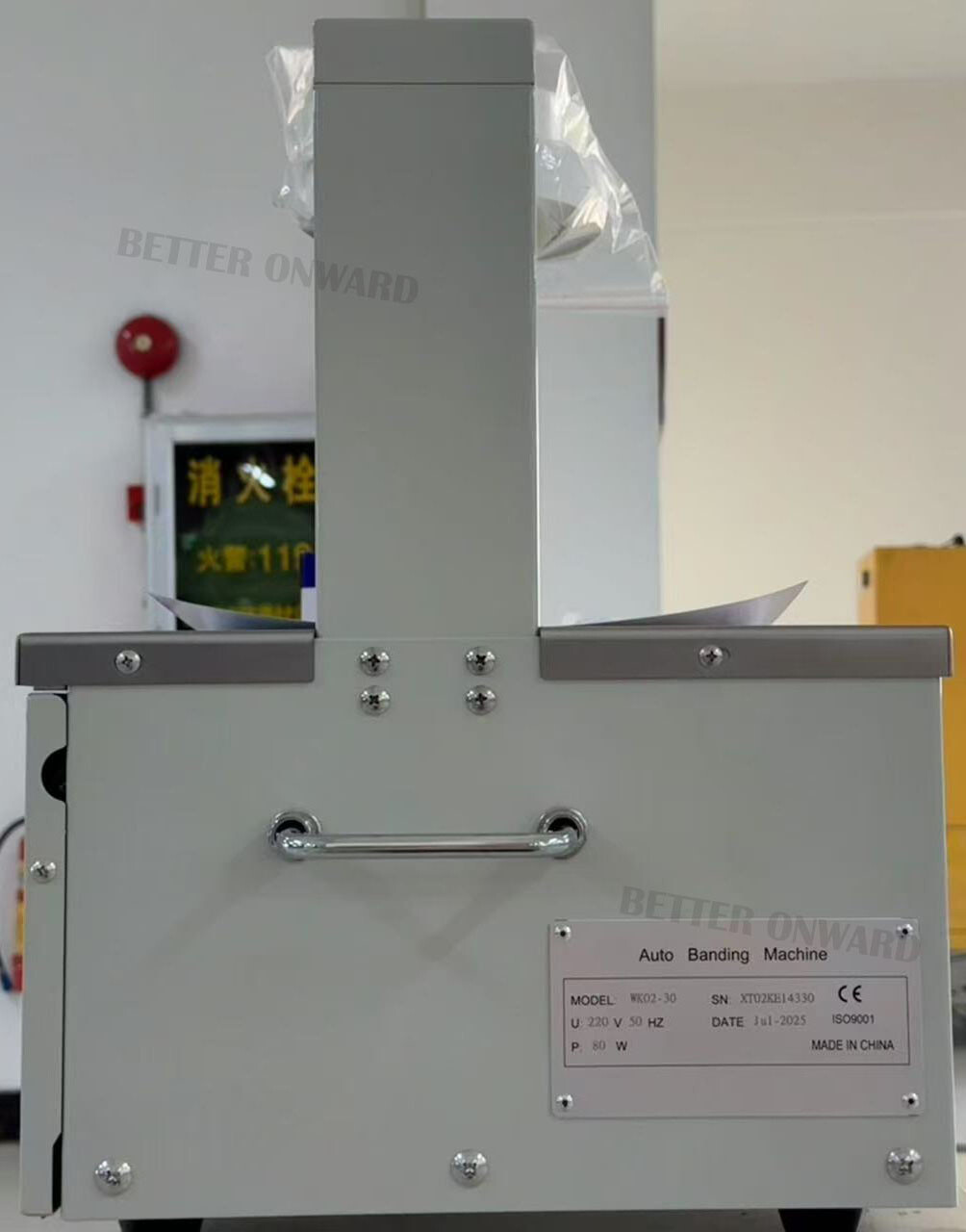

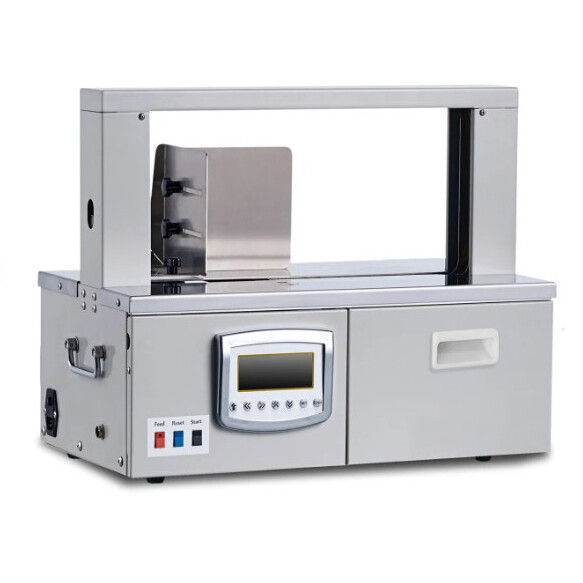

WK02-30 Banding machine

1. 60 Seconds Pre-Heating time
2. Heat Sealing
3. Applicable for both paper band and OPP film
4. Can connect to a jumbo roller dispenser to load 500-800 meters roll
5. AC motor Power
Specification
Model
WK02-20
WK02-30
Applicable Material
OPP film or Paper band
OPP film or Paper band
Material Specification
Width: 19.2-19.6mm
Thickness: 120mic
Length: 150meters
Core: 40mm
Width: 29.2-29.6mm
Thickness: 120mic
Length: 150meters
Core: 40mm
Arch Size
460*200mm
460*200mm
Banding Size
Min.: 30*10mm Max.: 460*180mm
Min.: 30*10mm Max.: 460*180mm
Power Supply
220V 50Hz 1phase or 110V 60Hz 1phase
220V 50Hz 1phase or 110V 60Hz 1phase
Power Rate
80W
80W
Control System
PCB+Key board control panel
PCB+Key board control panel
Banding Speed
25 bands/Minute
25 bands/Minute
Banding Tension
5-40N
5-40N
Welding Method
Heat Sealing
Heat Sealing
Net Weight
32kg
32kg

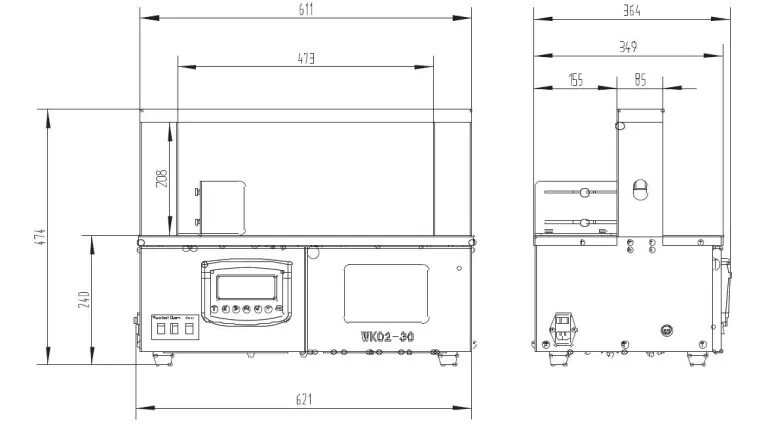

Machine Dimension
L611*W364*H475mm
L611*W364*H475mm

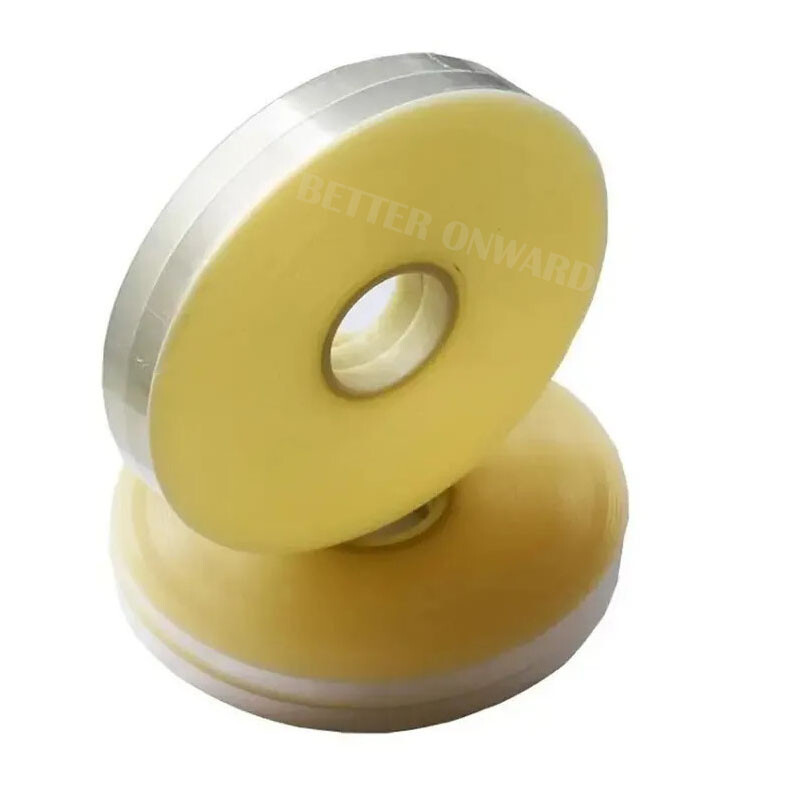

Applicable material

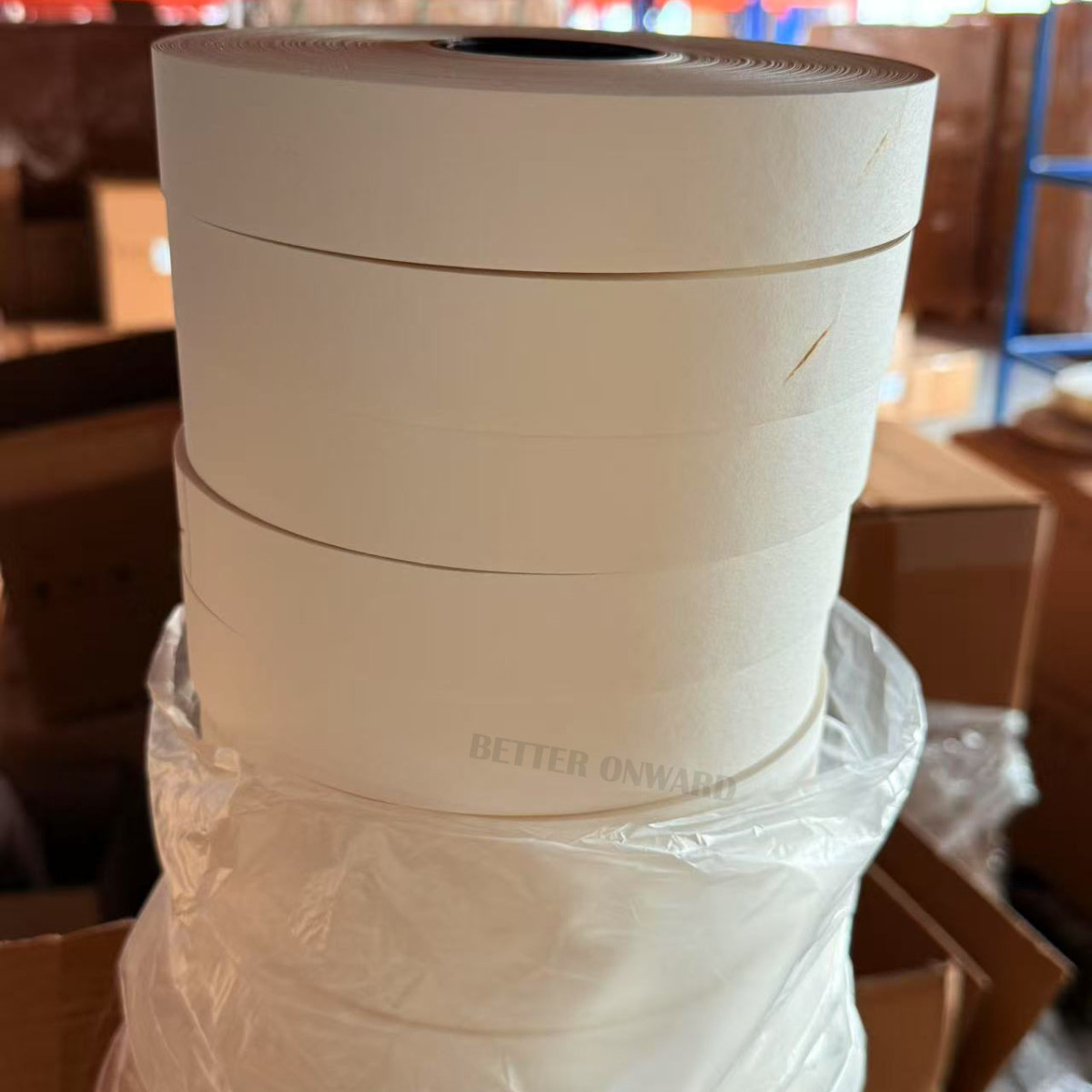

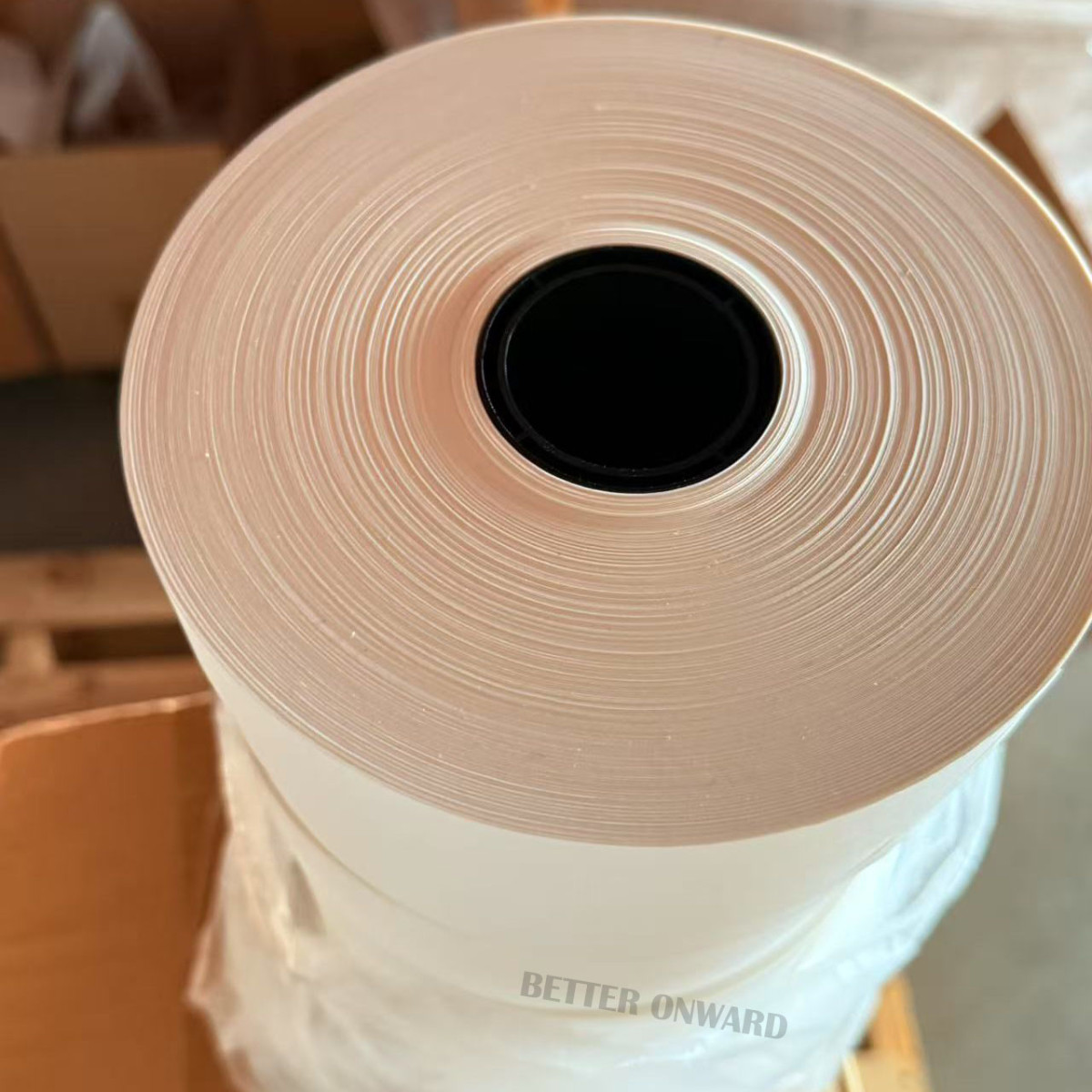

Paper Band

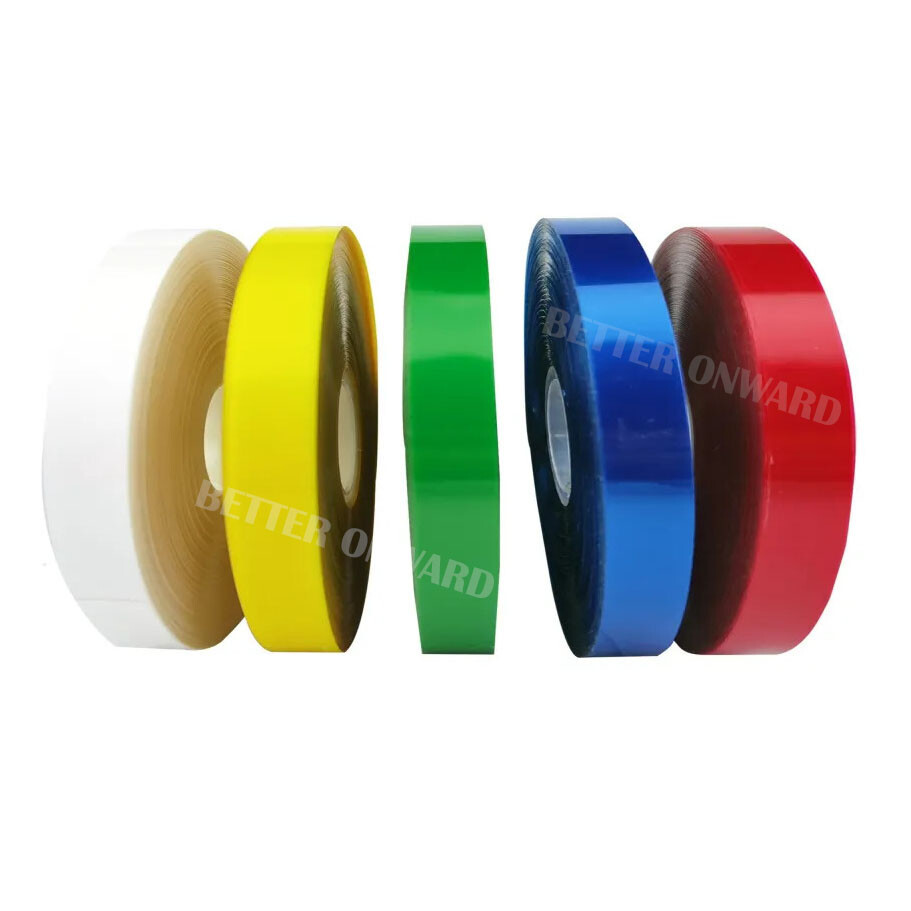

OPP Film

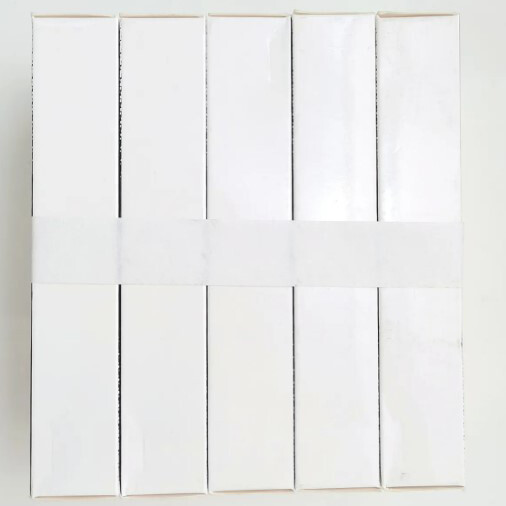

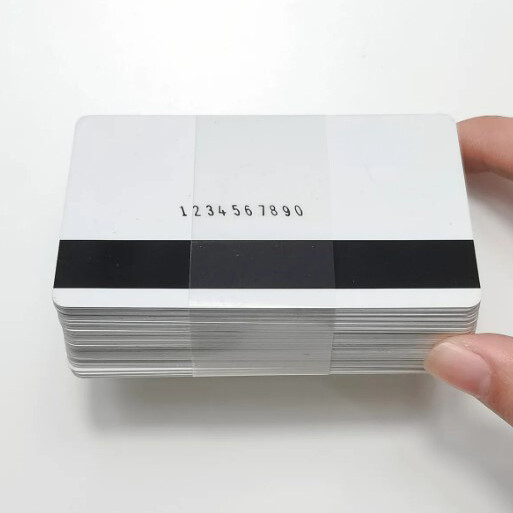

Banding Effect

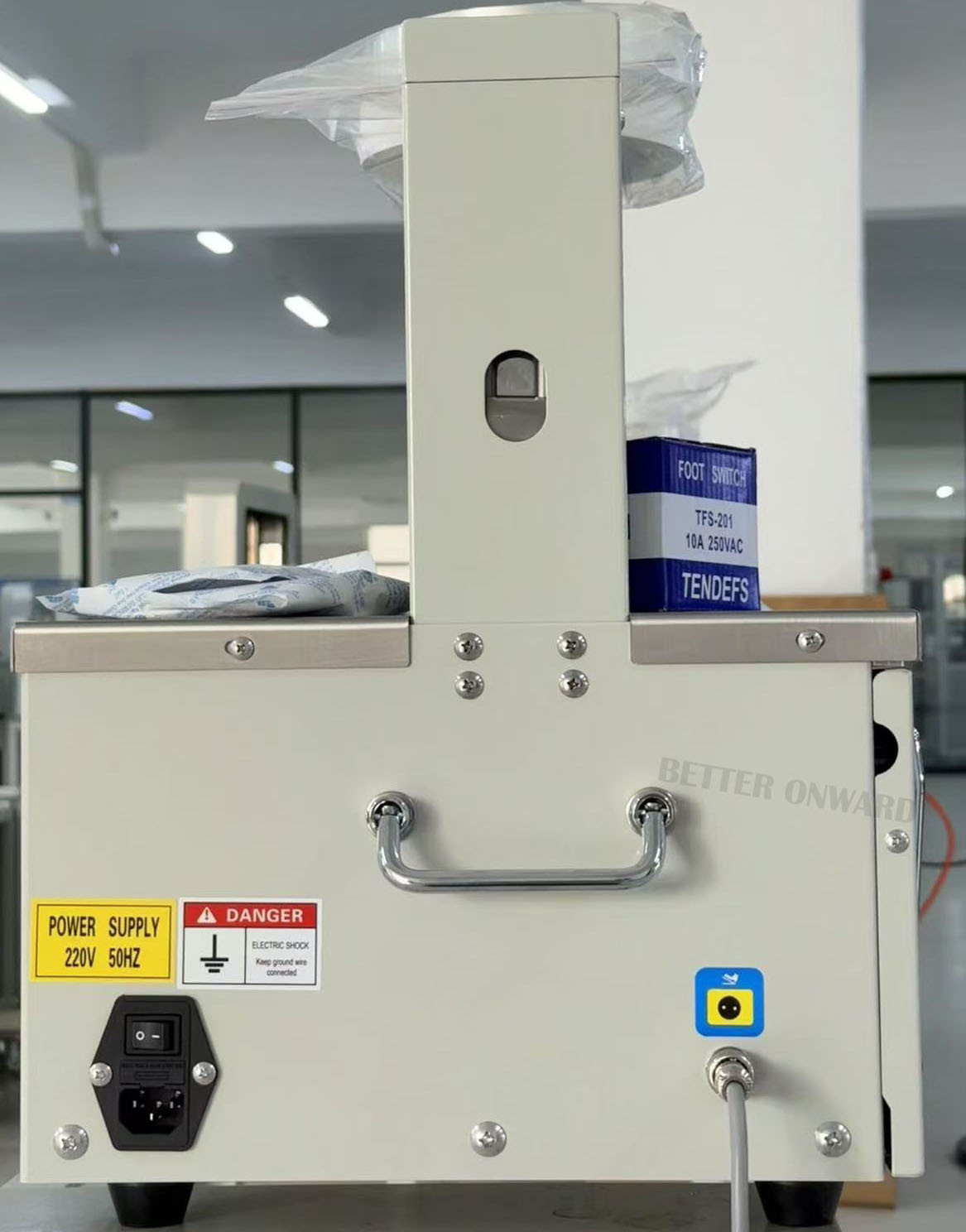

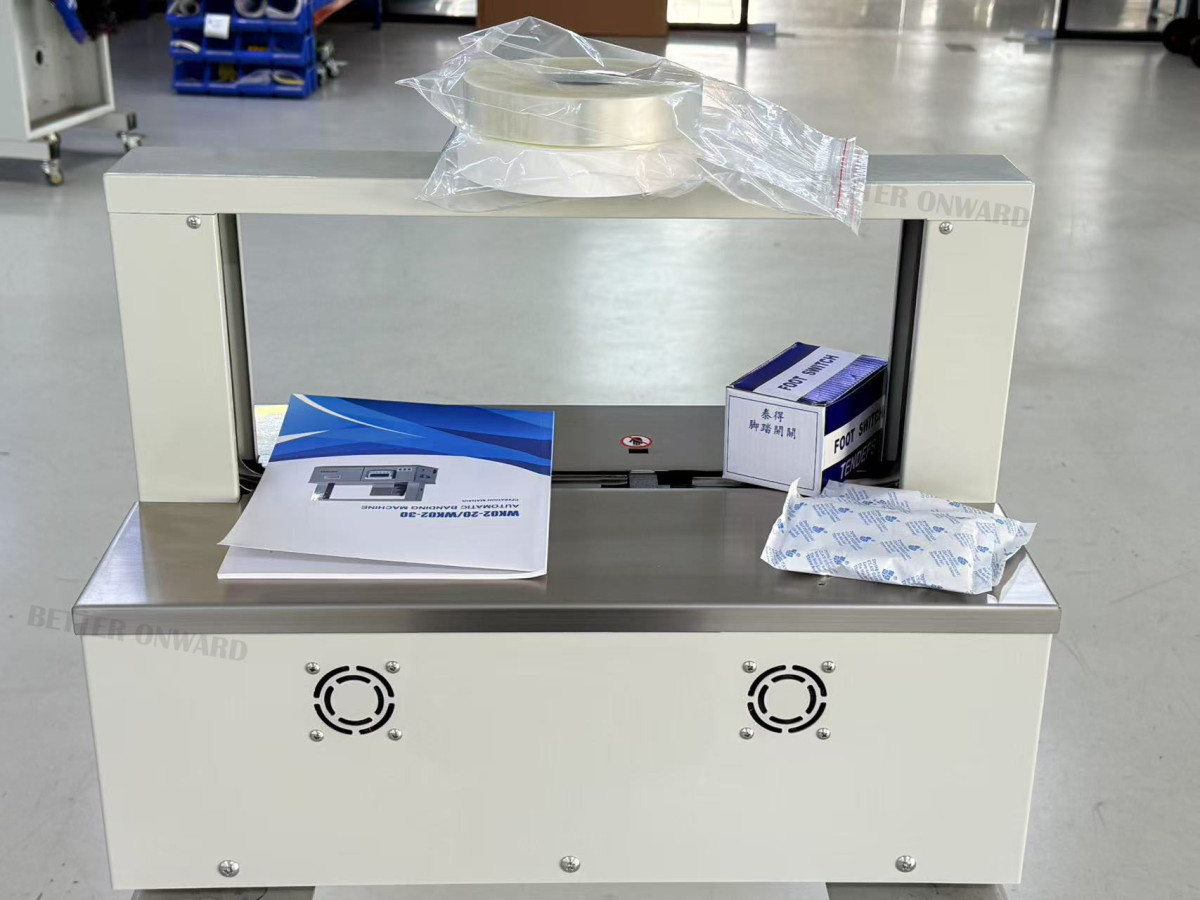

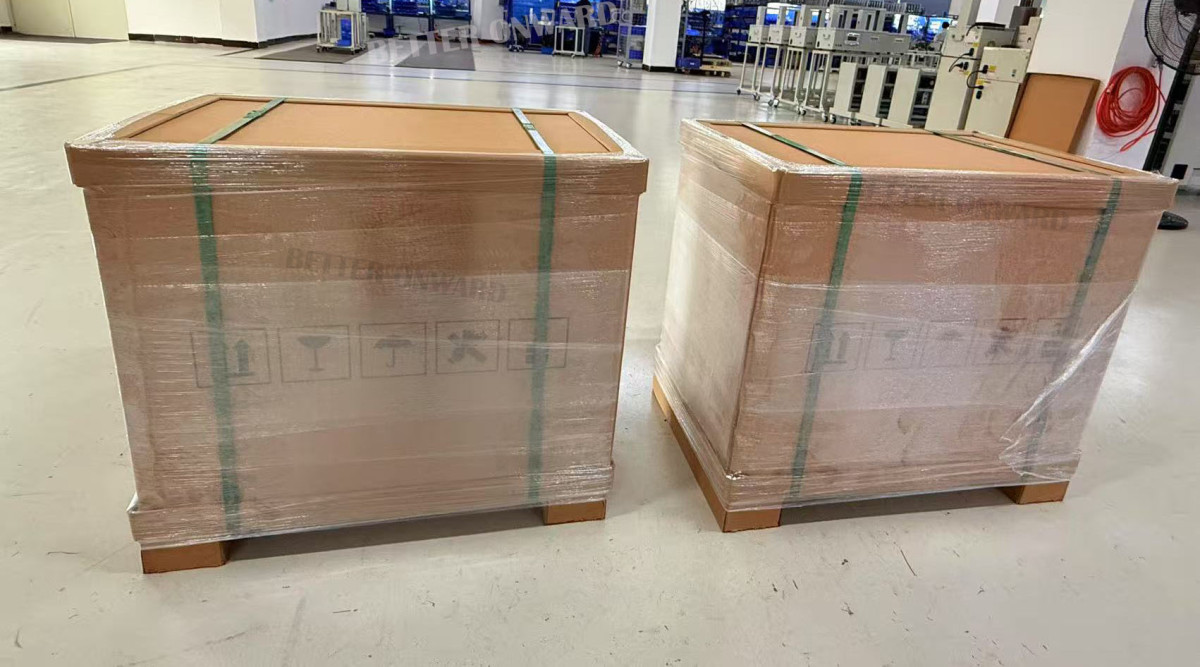

Product packaging
