Product Description

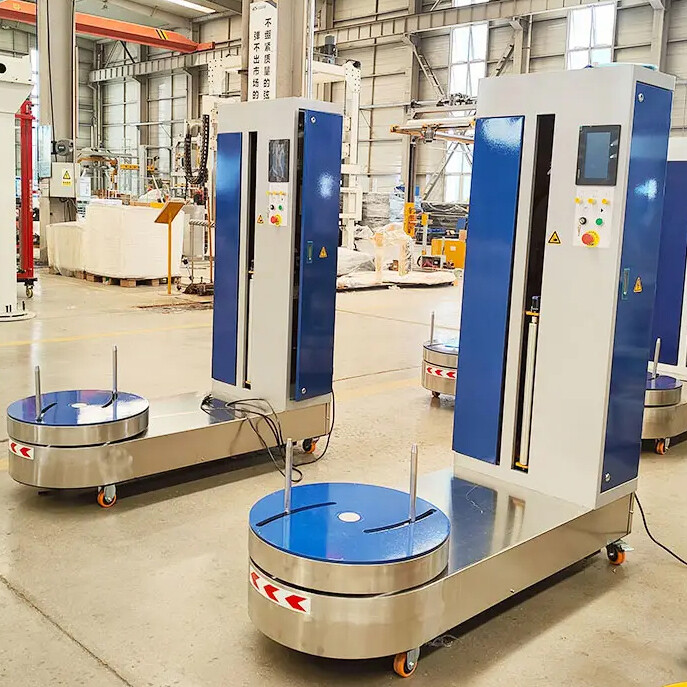

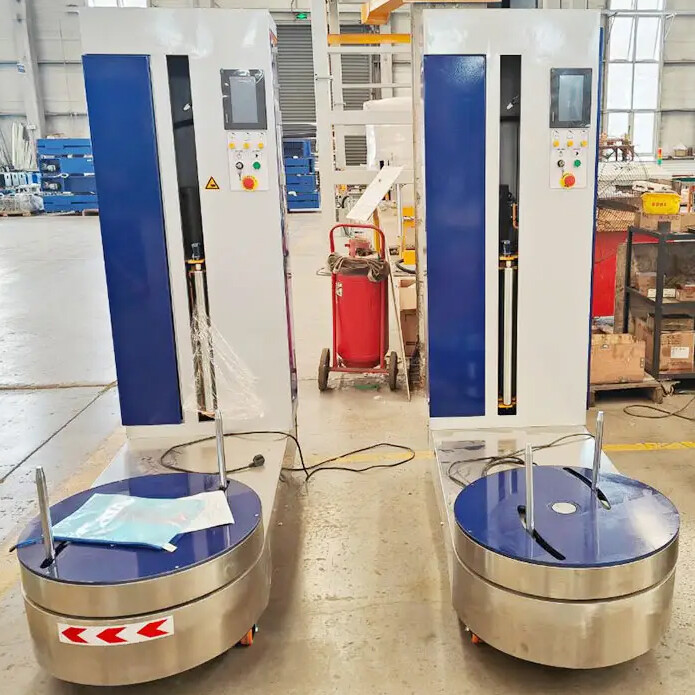

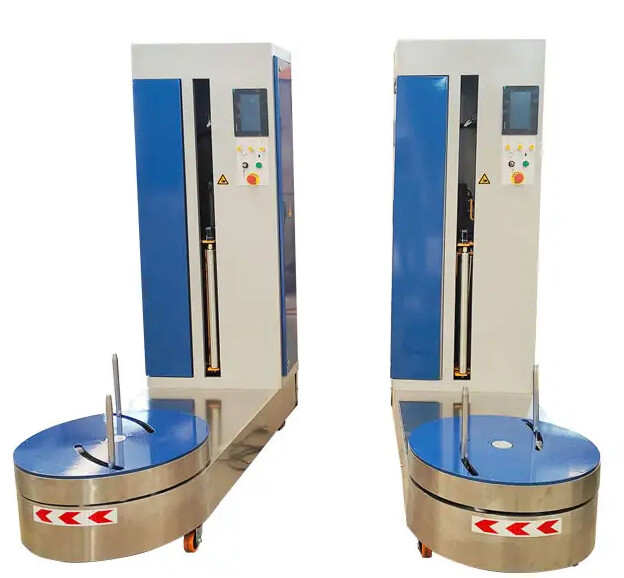

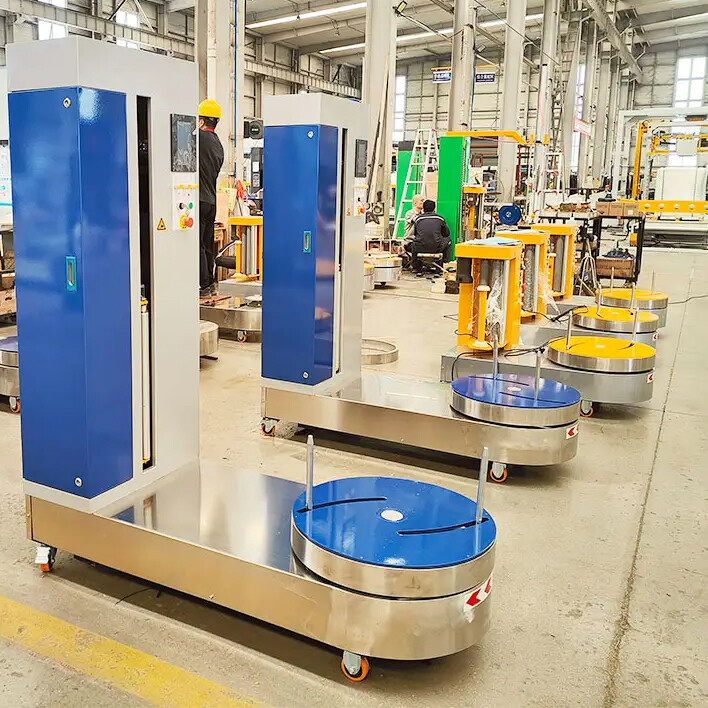

LP600F-L Automatic Airport Luggage Baggage Stretch Film Wrapping Machine

The luggage wrapping machine adopt the stretch film/ wrapping film as the packaging material, use for luggage packaging.

The wrapping machine is used for packing various regular or irregular luggage, and the luggage is wrapped into a whole, play a role in fixing. Therefore, the luggage will not be scattered or collapsed. It can also prevent luggage from dust, moisture and damage.
Specification
Model
LP600F-L
Control system
PLC Programmable control
Turnable diameter
500mm
Turnable speed
0-36r/min
Height of turntable
350mm
Wrapping size
L(300-1100)mm* W(300-470)mm* H(300-900)mm
Load capacity
100kg
Stretch film
15-35μm wrapping film
(Recommended use 25μm)
Wrapping film height: 30-55cm
Voltage
220V/50Hz/1Phase
Power
0.8KW
Machine weight
240kg
Machine size
L1650mm* W600mm* H1900mm

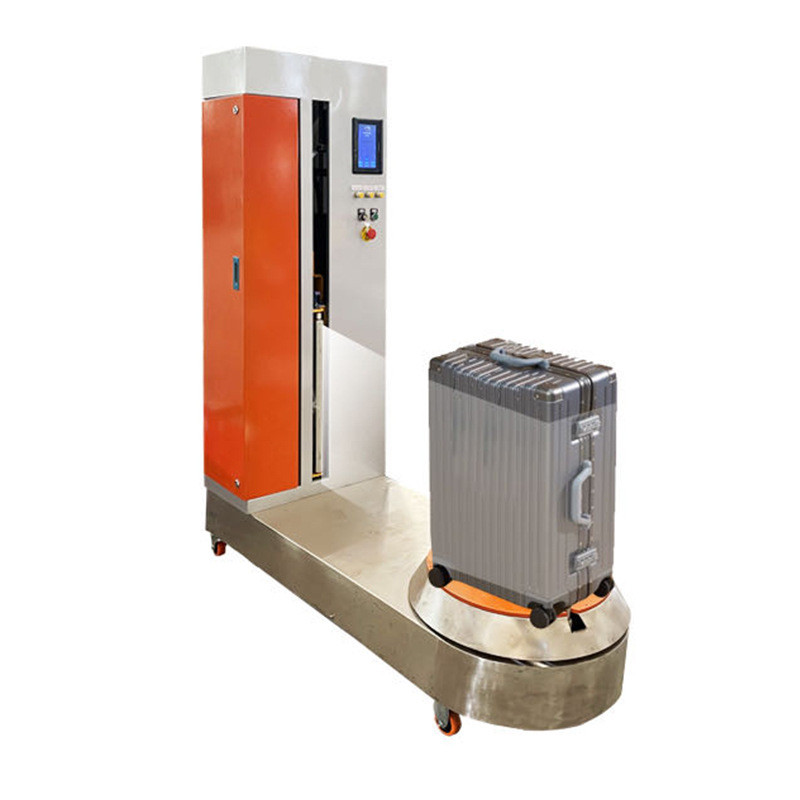

wrapping machine (1)

PLC Programmable control, could set the wrapping layers and the plastic film's tension.


Automatic operation, manual operation (we could set on the operation panel).

We could wrap irregular luggage in the manual operation.


The luggage's upper and lower wrapping layers could adjust separately.

wrapping machine (13)

Photoelectric switch, automatically sensing the height of luggage.

wrapping machine (12)

The speed of film rack rising and falling is adjustable, and the film feeding speed is adjustable.


Chain control, stable and reliable, slow start and slow stop.

Special rubber guide rollers minimize damage to the wrapping film, ensuring the plastic film is flat, smooth, even stretching.

wrapping machine (11)

The machine's display screen could appear the wrapping layers.
