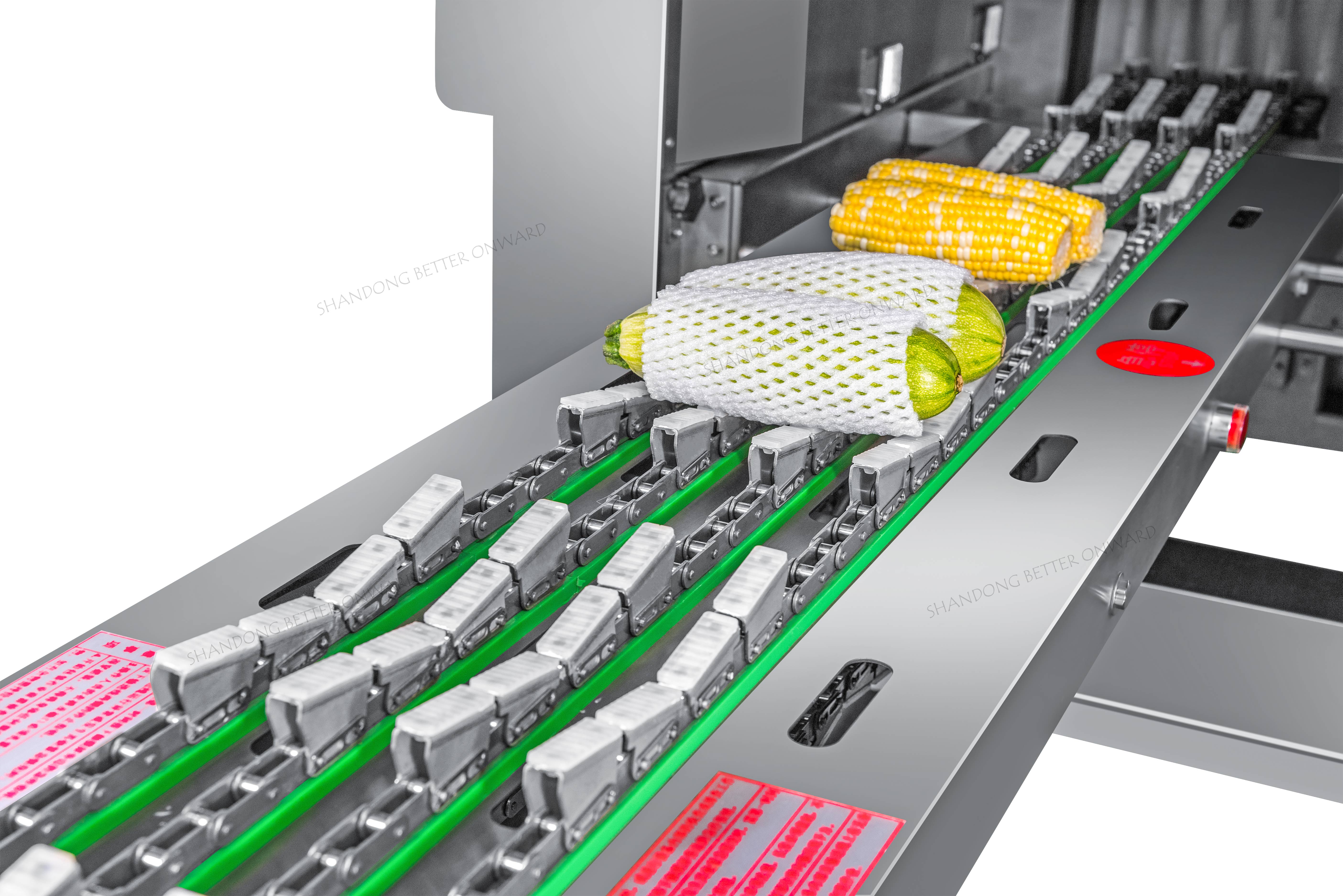

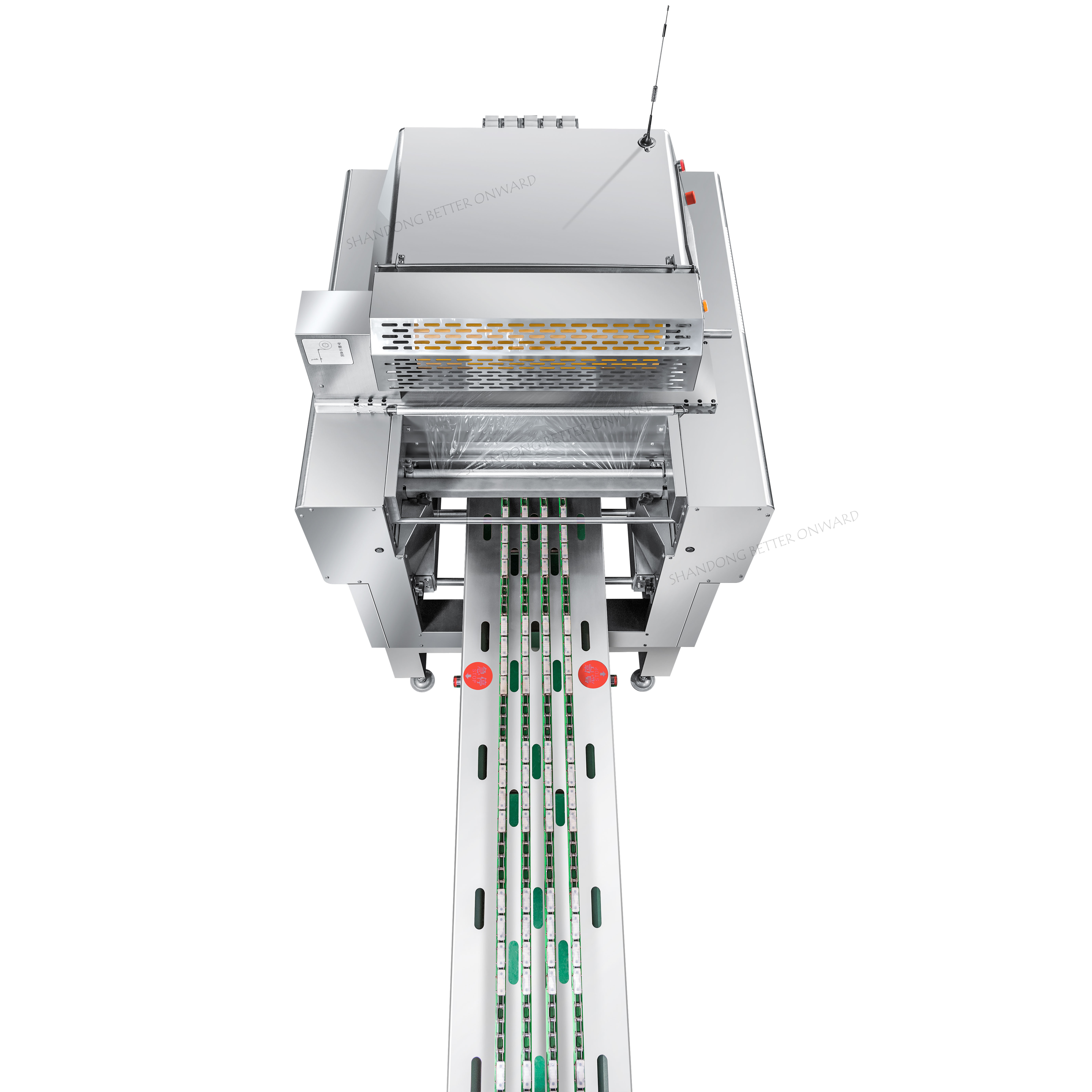

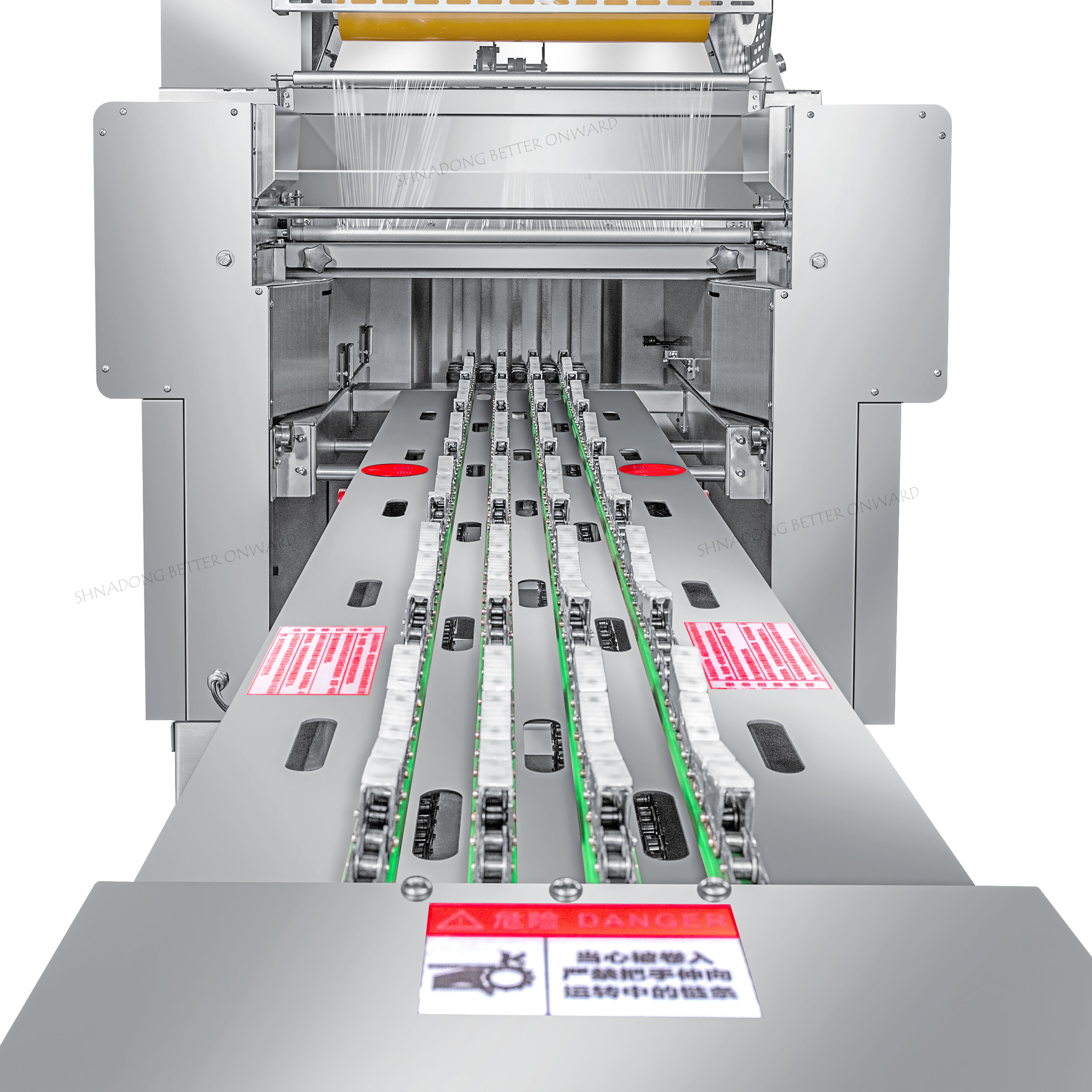

AR25L Continuous Type Fruit Packaging Cling Film Wrapping Machine
Inquiry Now →

Product Description

AR25L Cling film wrapping machine


AR25L full automatic cling film wrapping machine is compatible with the tray packaging and bare packaging. It could further improves functions and helps customers reduce cost as much as
possible, which is also the original intention of the birth of this machine.

It is high performance packaging machine, suitable for warehouse distribution center, fresh processing center.

AR25L full automatic cling film wrapping machine could be flexibly configured in the discharge end of the conveyor line, it completes the transition of products from packaging to weighing and labeling machine.

AR25L full automatic cling film wrapping machine as an industrial product, clearly packaging, weighing and automatic labeling machine function division, greatly increase the stability of the whole line of equipment operation.

Details:
1. Compatible with tray and bare packaging (not full category) function.
2. The average 20-25 packets per minute, the efficiency is about 4-5 times that of manual labor.
3. The back-end can be configured with other machines (automatic labeling, metal detection, disk, etc.) that meet customer requirements.
4. The whole machine is easy to install and maintain.
5. The minimalist operation interface allows the operator to operate easily.
6. 30 seconds film change, minimize operation time, better experience.
7. Suitable for all kinds of plastic wrap film.
8. The whole machine is made of stainless steel, anti corrosive and moisture-proof, to extend the service life of the machine to the greatest extent.
Specification

Model
AR25L
Power supply specifications
AC 220V/50Hz
Power
1500W
Working temperature
5℃-35℃
Working humidity
10%-90%RH(No condensation)
Packing speed
25P/Min
Package size (length)
120-350mm
Package size (width)
95-220mm
Package size (height)
10-130mm
Packing weight
50-4500g
Width of plastic wrap film
350-550mm
Plastic wrap film diameter
≤160mm
Machine size
3250* 1014* 1422mm
Net weight
305kg
Package size
3730* 1700* 2030mm
Gross weight
405kg

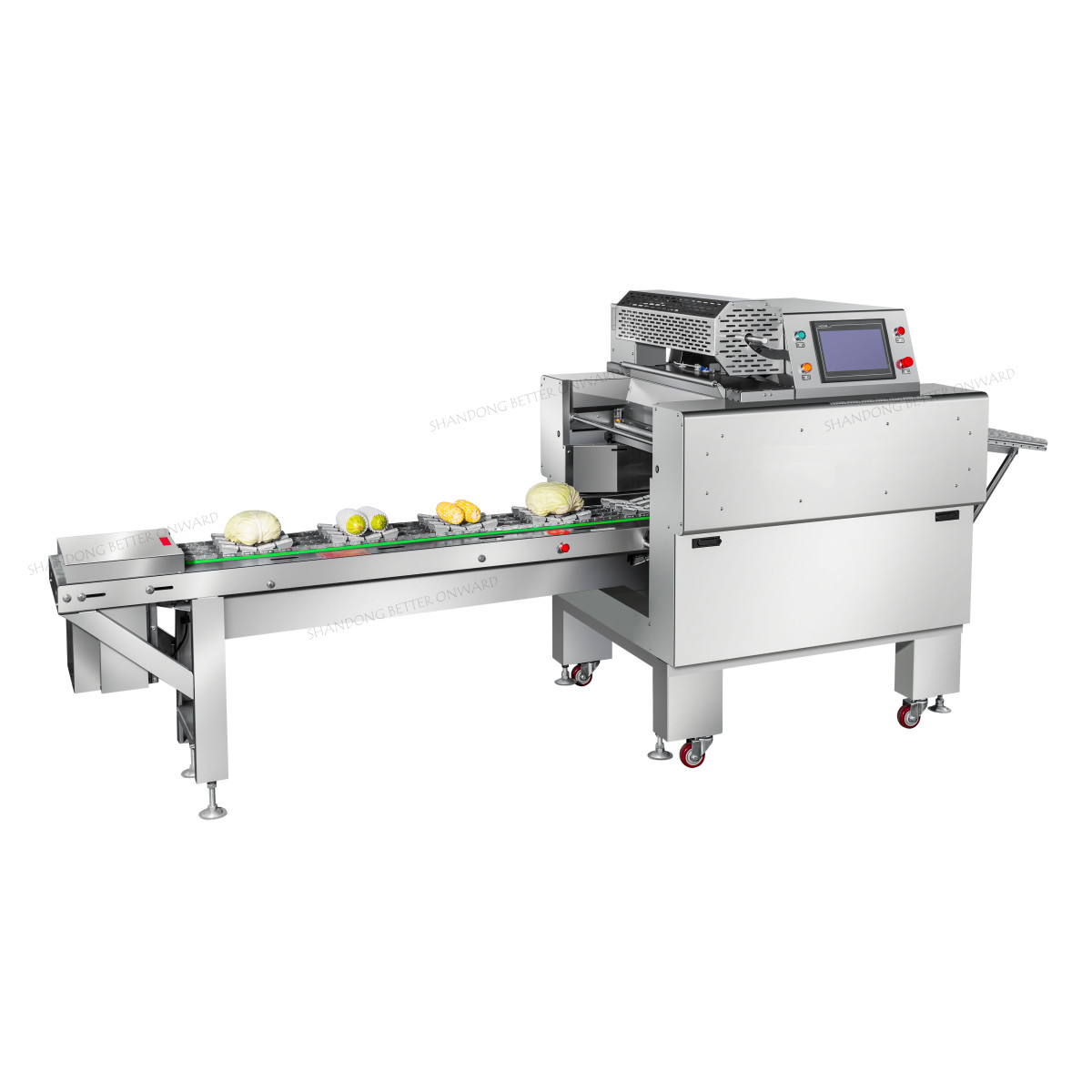

AR25L-wrapper---22

AR25L-wrapper---33

AR25L-wrapper---44

AR25L-wrapper---11
