Product Description

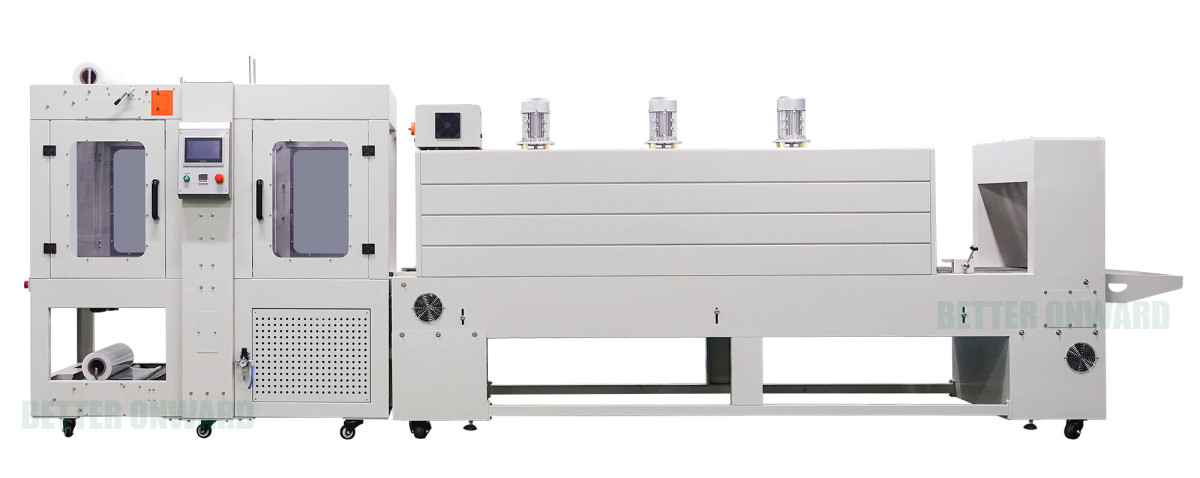

DQX6040SG High Speed Linear Plastic Film Sleeve Wrapping Machine with DSE6040L Shrink Packaging Machine


This machine is fully functional and highly automated, significantly reducing the workload of operators. It is suitable for automated packaging lines to achieve automatic, unmanned packaging of products, and is suitable for packaging in cardboard boxes, individual product packaging, and packaging of items with base trays.
Specification

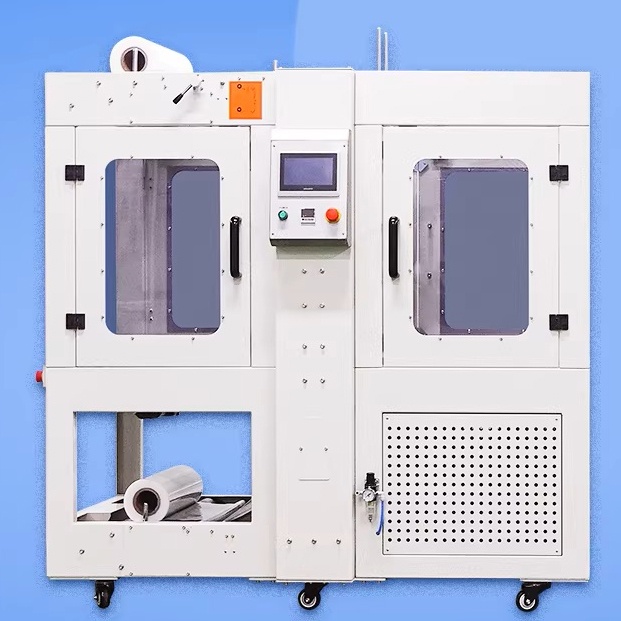

DQX6040SG Sleeve Wrapper
model
DQX6040SG
Film specifications
PE shrink film,
thickness: 0.03~0.12mm
power supply
AC380V 50Hz
Film transverse shrinkage ratio
30-40%
power
3.8KW
Film longitudinal shrinkage ratio
60-70%
Packaging speed
0-20Packages/min
Maximum packaging size
L≥120mm,W≤600mm,
H≤360mm,W+H≤630mm
Air pressure
0.5~0.8MPa
Minimum packaging size
L120×W120×H80mm
Cutting blade width
700mm
Dimensions
L1895×W1205×H1846mm
Sealing temperature
140~180℃
Working table height
800mm

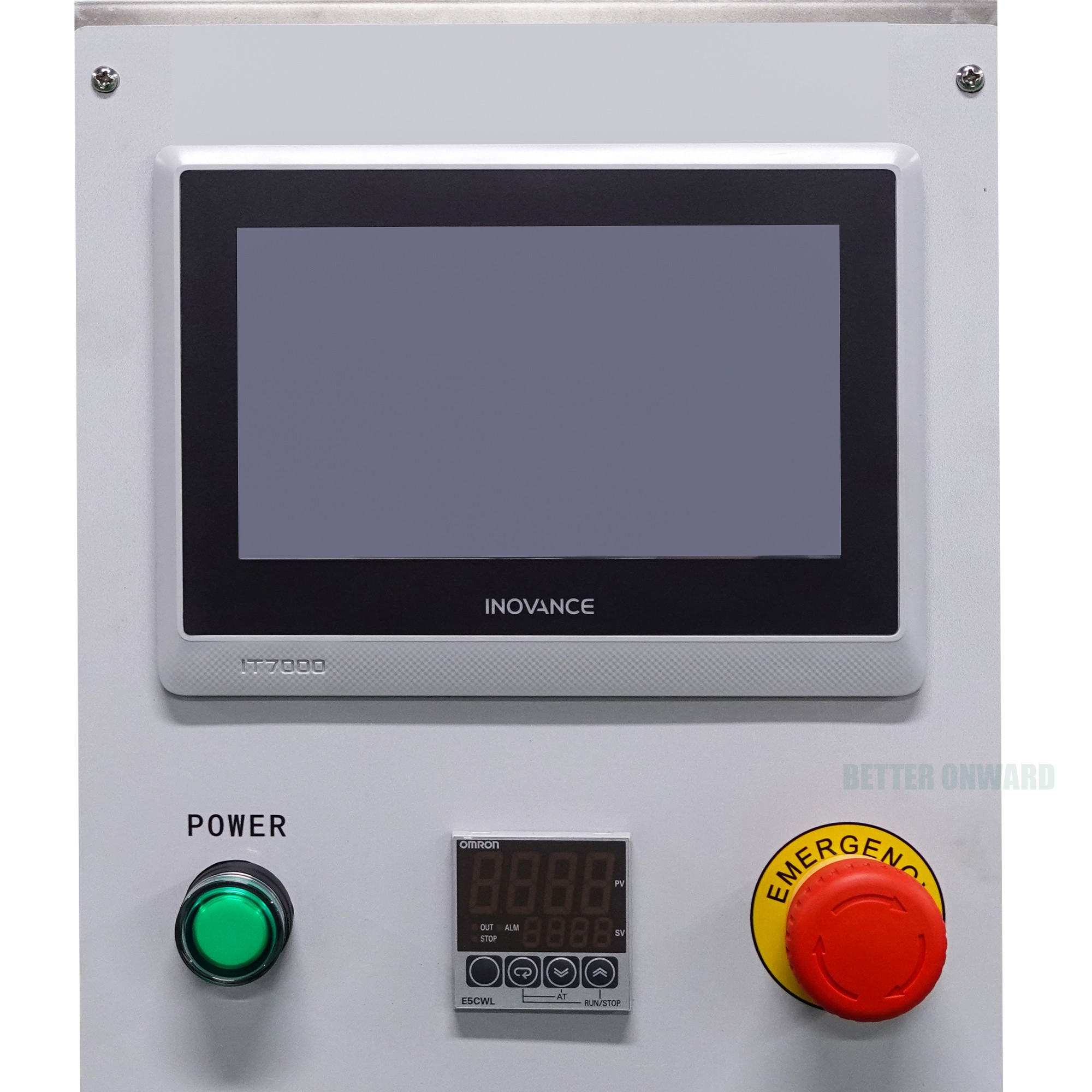

Intelligent touch screen, easy to operate.

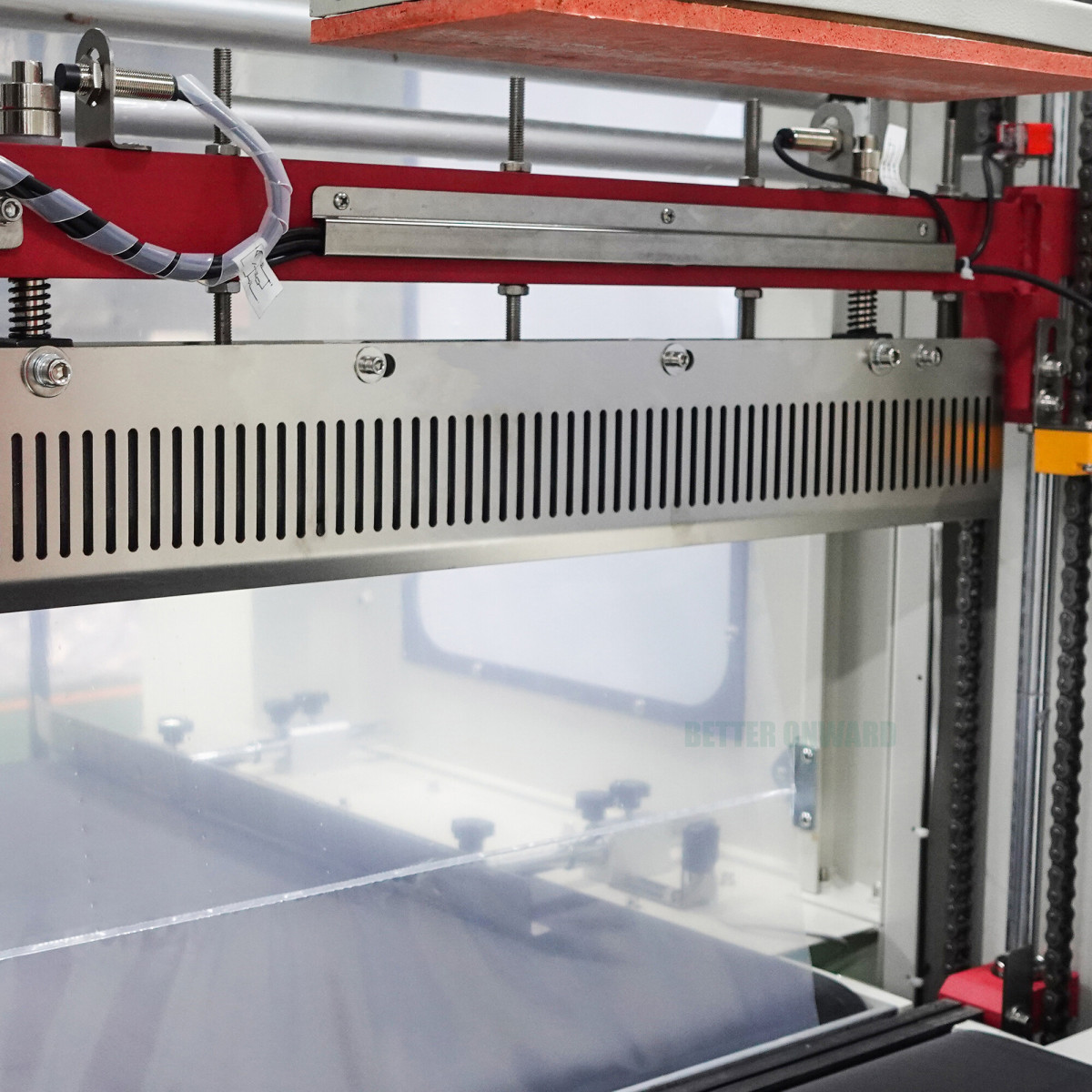

The sealing and cutting blade is coated with Teflon, ensuring the secure sealing and preventing sticking.

The sealing frame is made of high-quality alloy steel, ensuring the frame is not easily deformed.

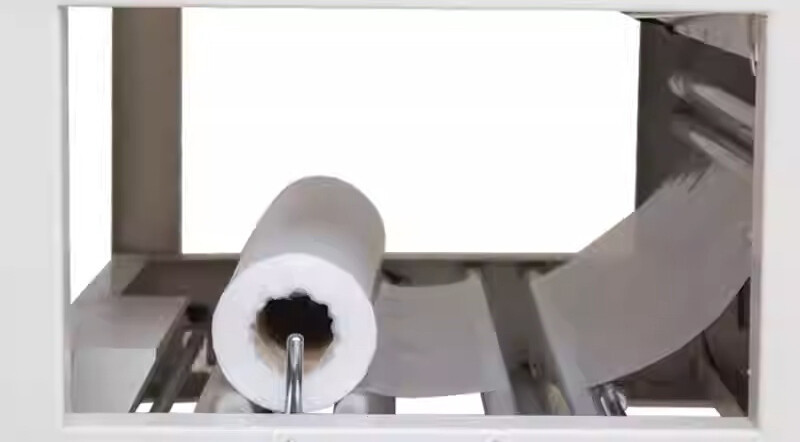

To install film is easy to operate.

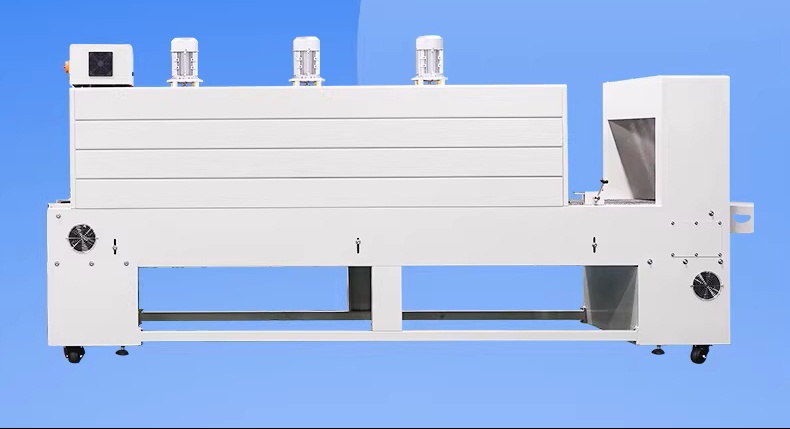

DSE6040L Shrink Packaging Machine
Model
DSE6040L
Power
36KW
Voltage
380V, 50Hz
Shrink tunnel size
L2552*W600*H442mm
Conveying speed
0-10m/min
Conveying load
30kgs
Conveying type
Conveying belt
Applicable shrink film
PE, POF,PVC,PP
Machine size
L3939* W930* H1712mm

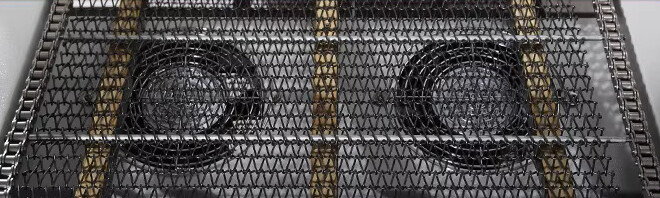

The cold air at the exit accelerates the shaping process, the shrinking effect is more beautiful.
Packing Effect
