QX7540 Pneumatic Linear Plastic Film Sleeve Wrapping Machine with BSE7050A Jet type Shrink Tunnel
Inquiry Now →

Product Description

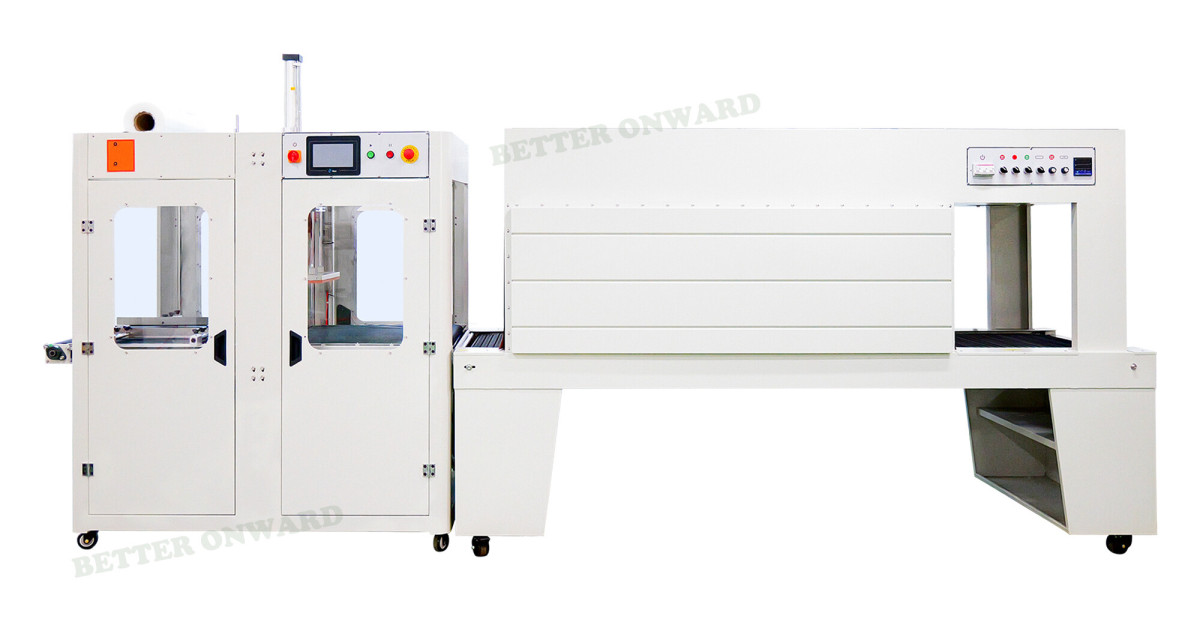

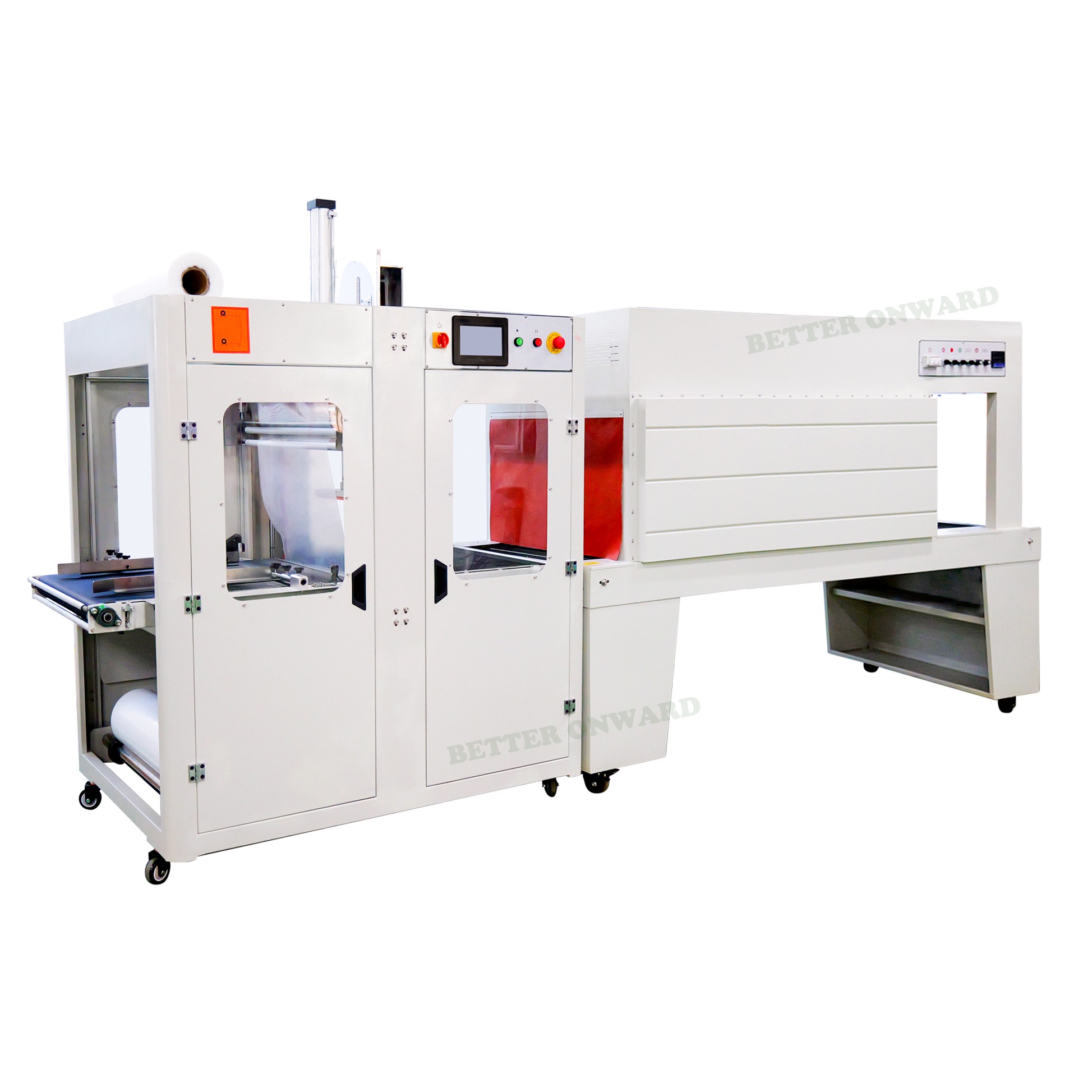

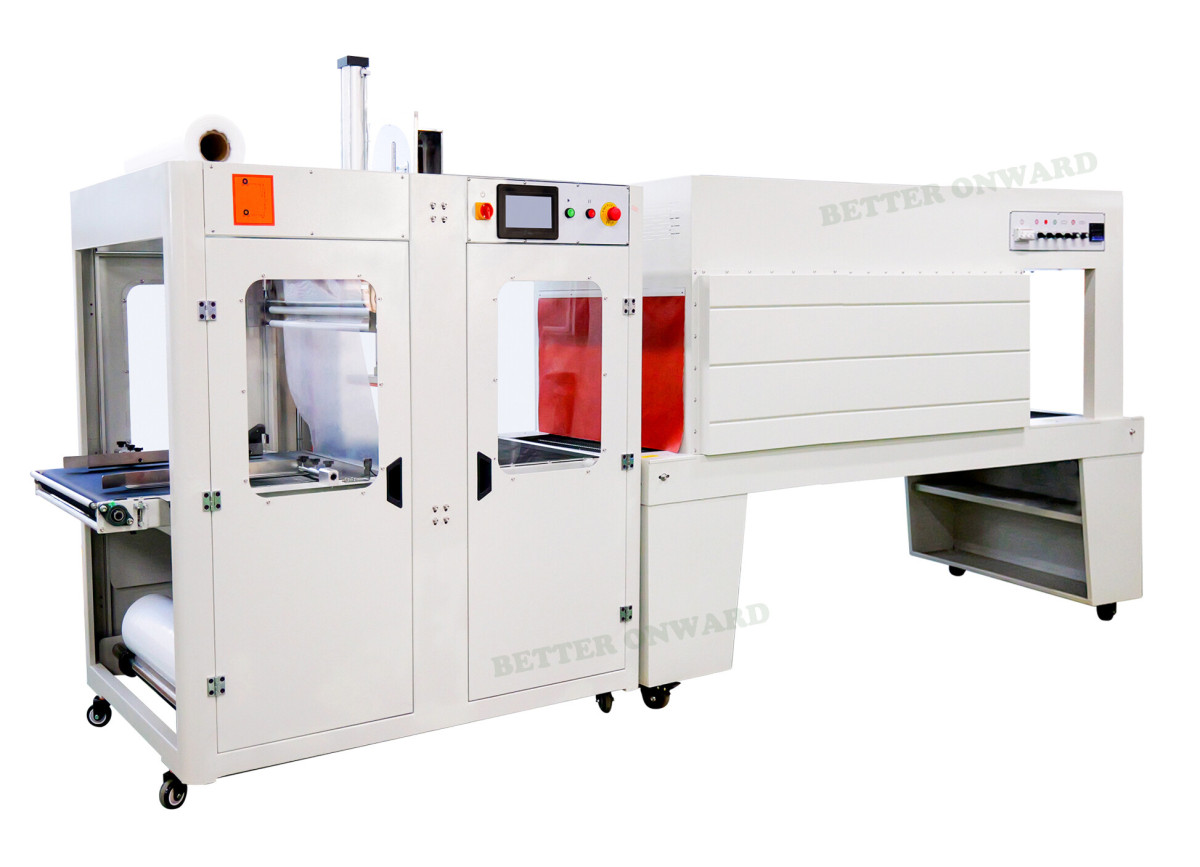

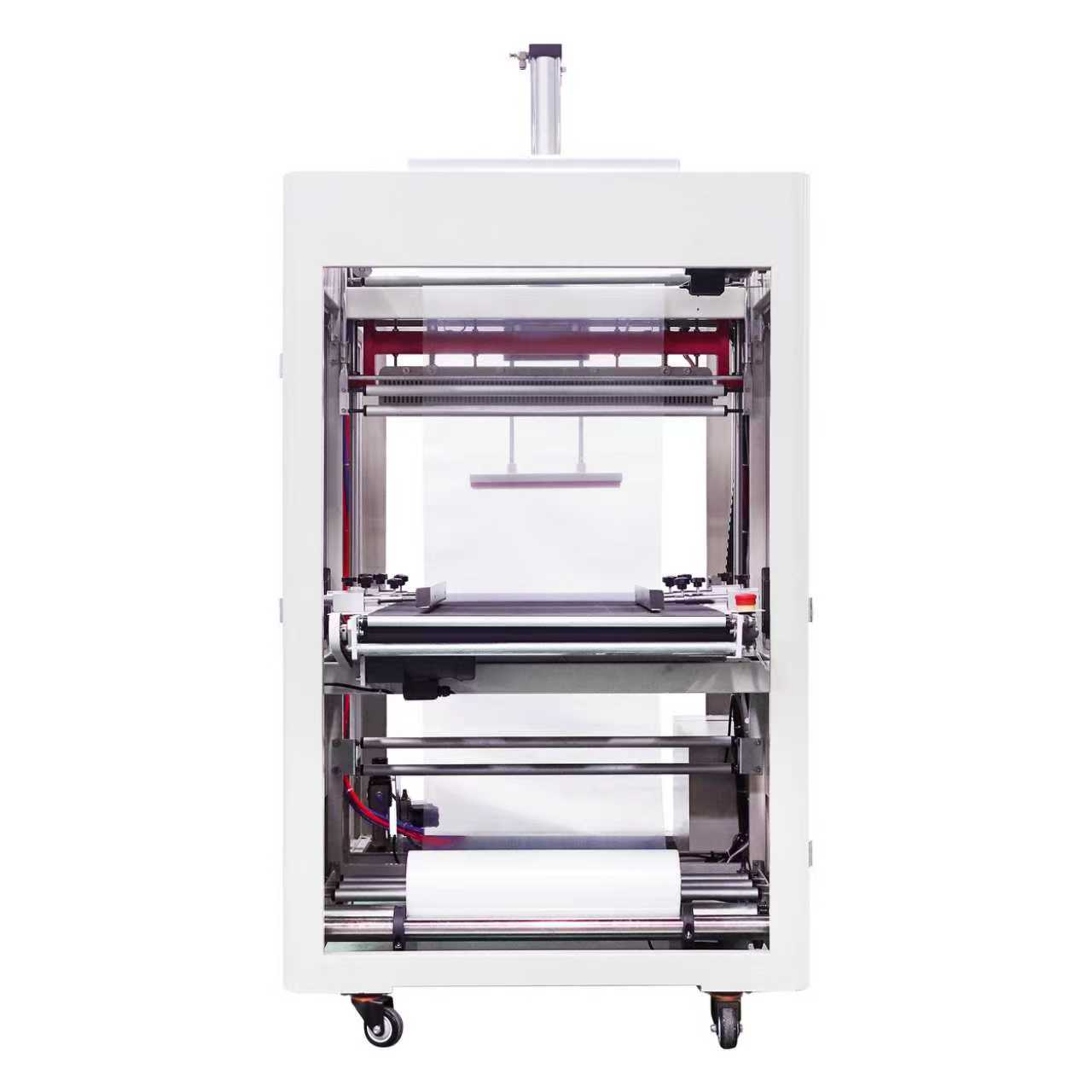

QX7540 Pneumatic Linear Plastic Film Sleeve Wrapping Machine with BSE7050A Jet type Shrink Tunnel


This machine is fully functional and highly automated, significantly reducing the workload of operators. It is suitable for automated packaging lines to achieve automatic, unmanned packaging of products, and is suitable for packaging in cardboard boxes, individual product packaging, and packaging of items with base trays.
Specification
QX7540 Sleeve Wrapper
model
QX7540
Film specifications
PE shrink film,
thickness: 0.03~0.12mm
power supply
AC220V 50Hz
Film transverse shrinkage ratio
30-40%
power
1.82KW
Film longitudinal shrinkage ratio
60-70%
Packaging speed
0-15 times/min
Maximum packaging size
L≥200mm,W≤600mm,
H≤420mm,W+2/3H≤680mm
Air pressure
0.5~0.8MPa
Minimum packaging size
L200×W200×H80mm
Cutter width
750mm
Dimensions
L1658×W1020×H2064mm
Sealing temperature
140~180℃
Work surface height
813mm
Machine weight
478Kg
Transport load
20Kg

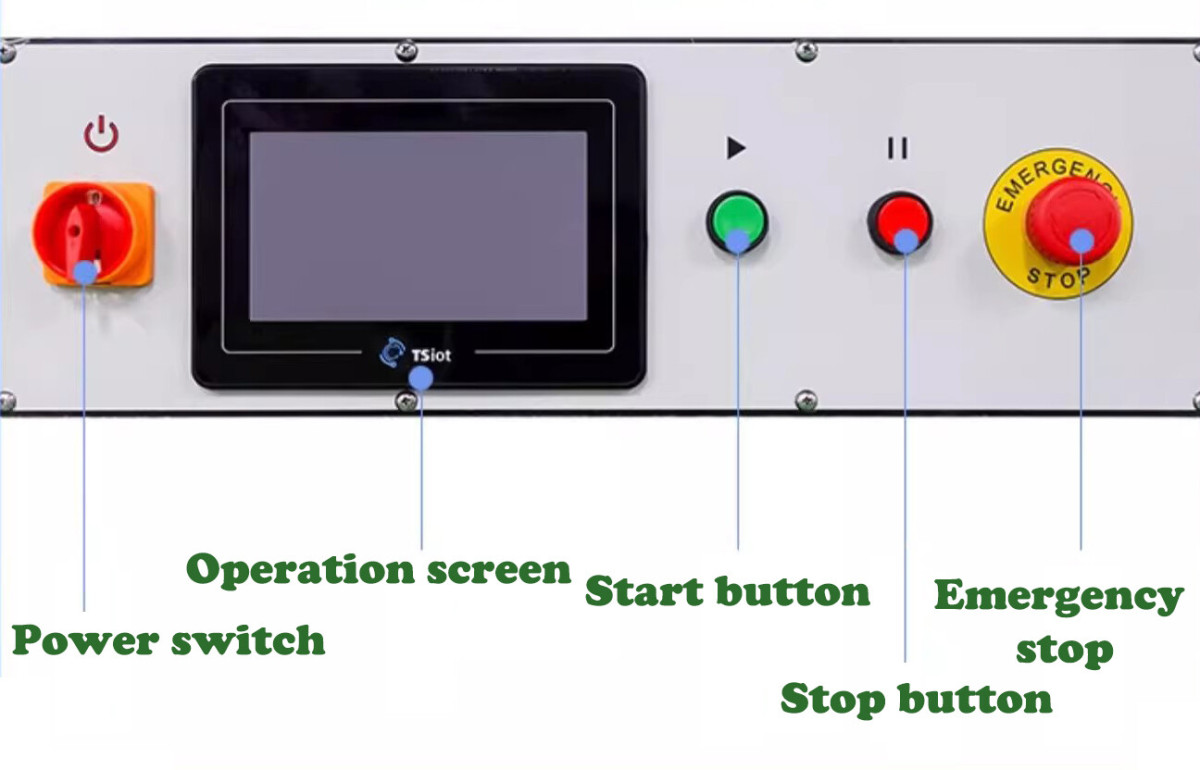

Intelligent touch screen,
easy to operate.

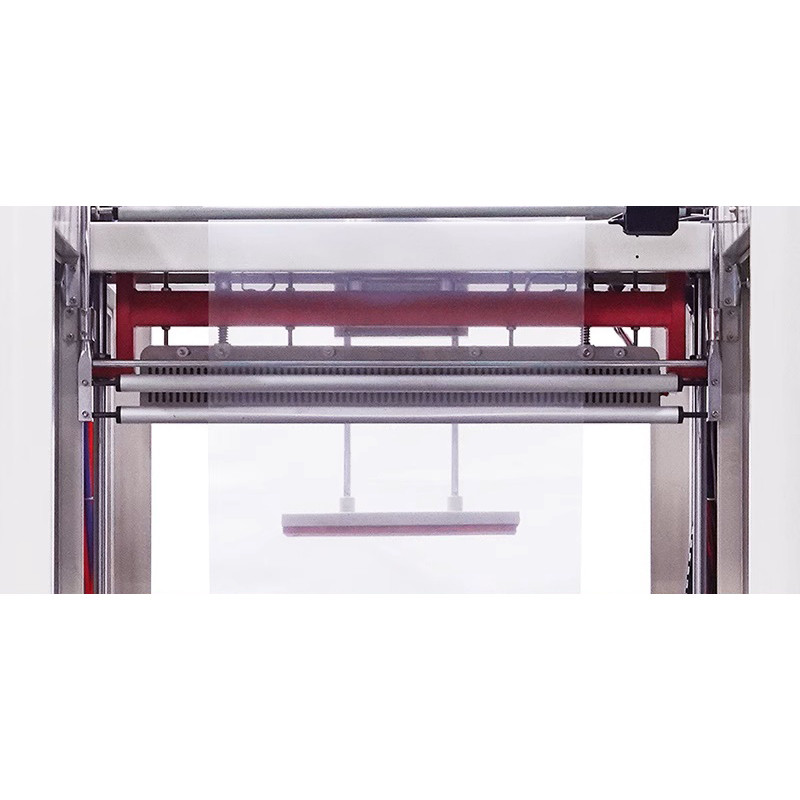

The sealing blade is coated with Teflon, ensuring the secure sealing and preventing sticking.

The sealing frame is made of high-quality alloy steel, ensuring the frame is not easily deformed.

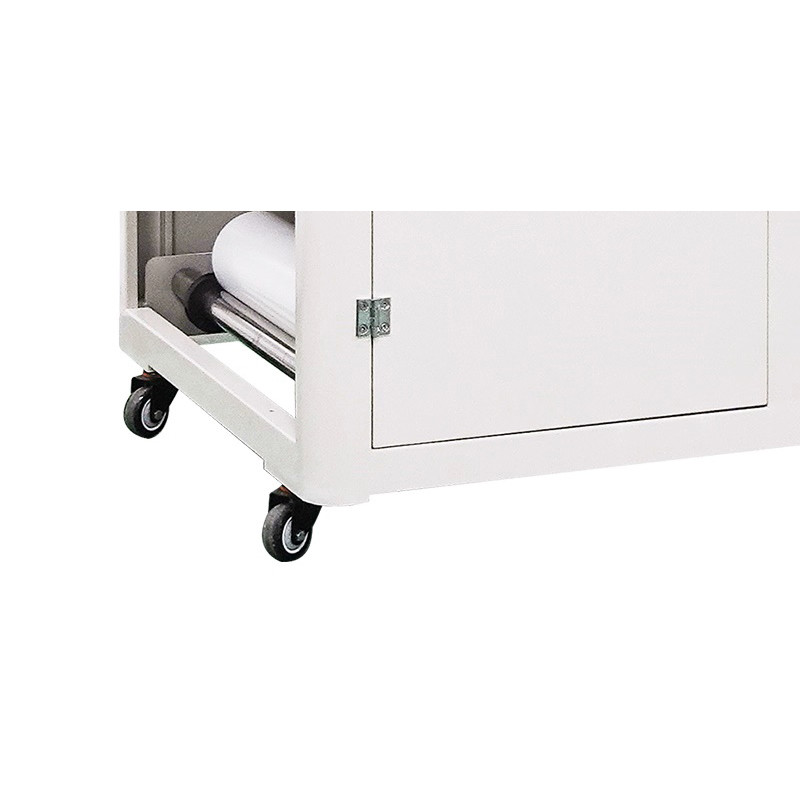

Equipped with movable casters for easy movement.
BSE7050A Shrink Packaging Machine
Model
BSE7050A
Power
37.3KW
Voltage
AC 220V/380V, 50-60Hz
Shrink tunnel size
L1800*W700*H500mm
Conveying speed
0-12m/min
Conveying load
30kgs
Conveying type
Conveying belt
Applicable shrink film
PE, POF,PVC
Max.applicable size
L:No limit, W600mm, H330mm
Machine size
L2804* W956* H1685mm
