Product Description

HP-18 Leaf Packing Machine

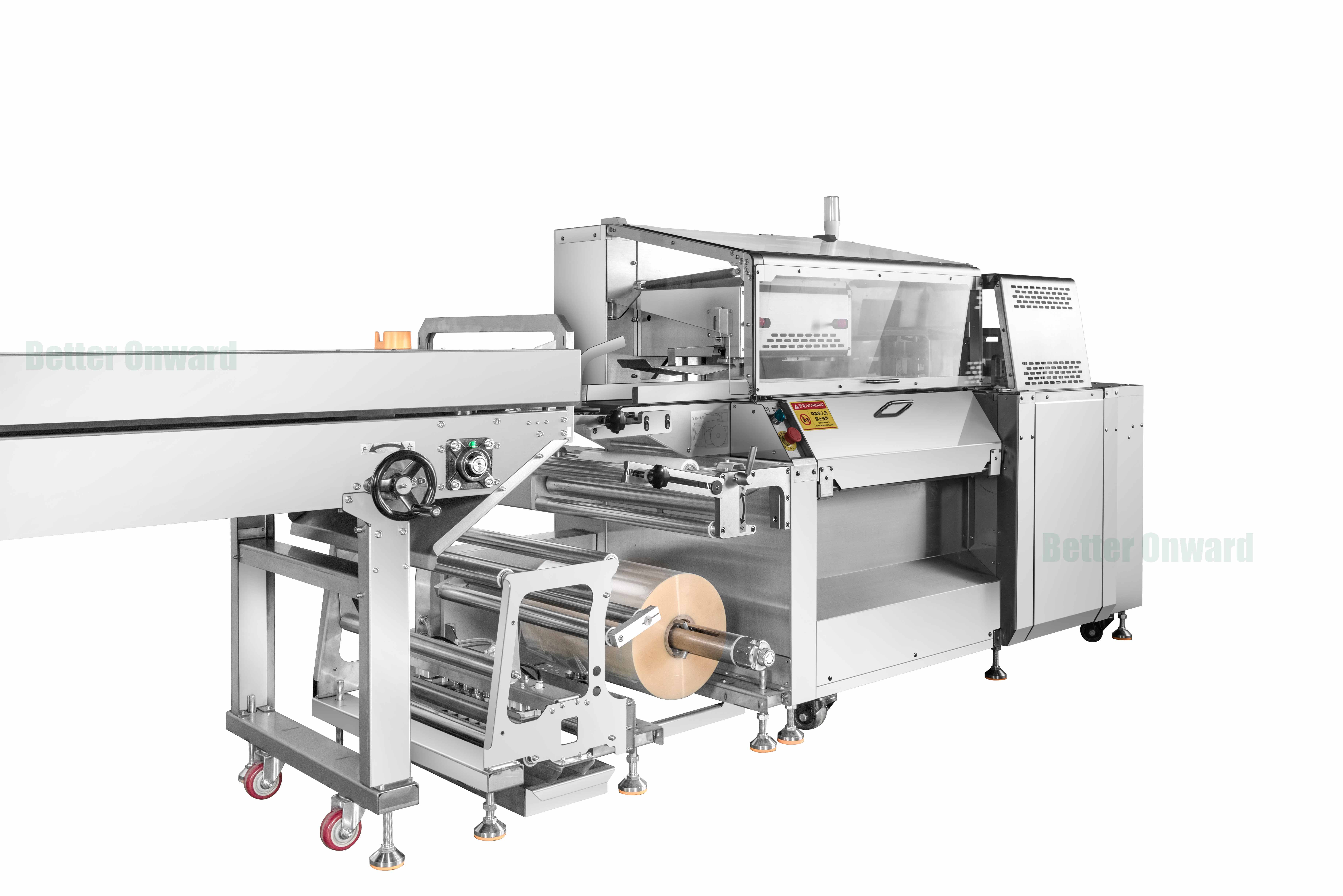

HP-18 Automatic Pillow Type Leafy Vegetables Packing Machine

Specification

Power Supply Specifications
200-240V/50Hz/60Hz
Equipment Power
Start-Up Preheating Power: 2400W
Operating Power: 1150W
Packing Speed
18m/min
(Automatic Recognition Length,40-60 bags per minute)
Package Size
Packaging length: minimum 200mm, maximum 1000mm.
(after the running speed is reduced, the minimum length can be less than 200mm)
Packing height: up to 150mm
Package width: 110-240mm
Display Screen
10 " Color Ethernet Touch Screen
Main Configuration of Machine
SCHNEIDER, INOVANCE
Width of Plastic film
200mm-590mm
Packing Film Thickness(BOPP)
40um, 35um, 30um, 25um
Required Space Dimensions of the Equipment
5397*1627*1845mm
NET.WEIGHT
750KG

HP-18 Automatic Pillow Type Leafy Vegetables Packing Machine


HP-18 Automatic Pillow Type Leafy Vegetables Packing Machine

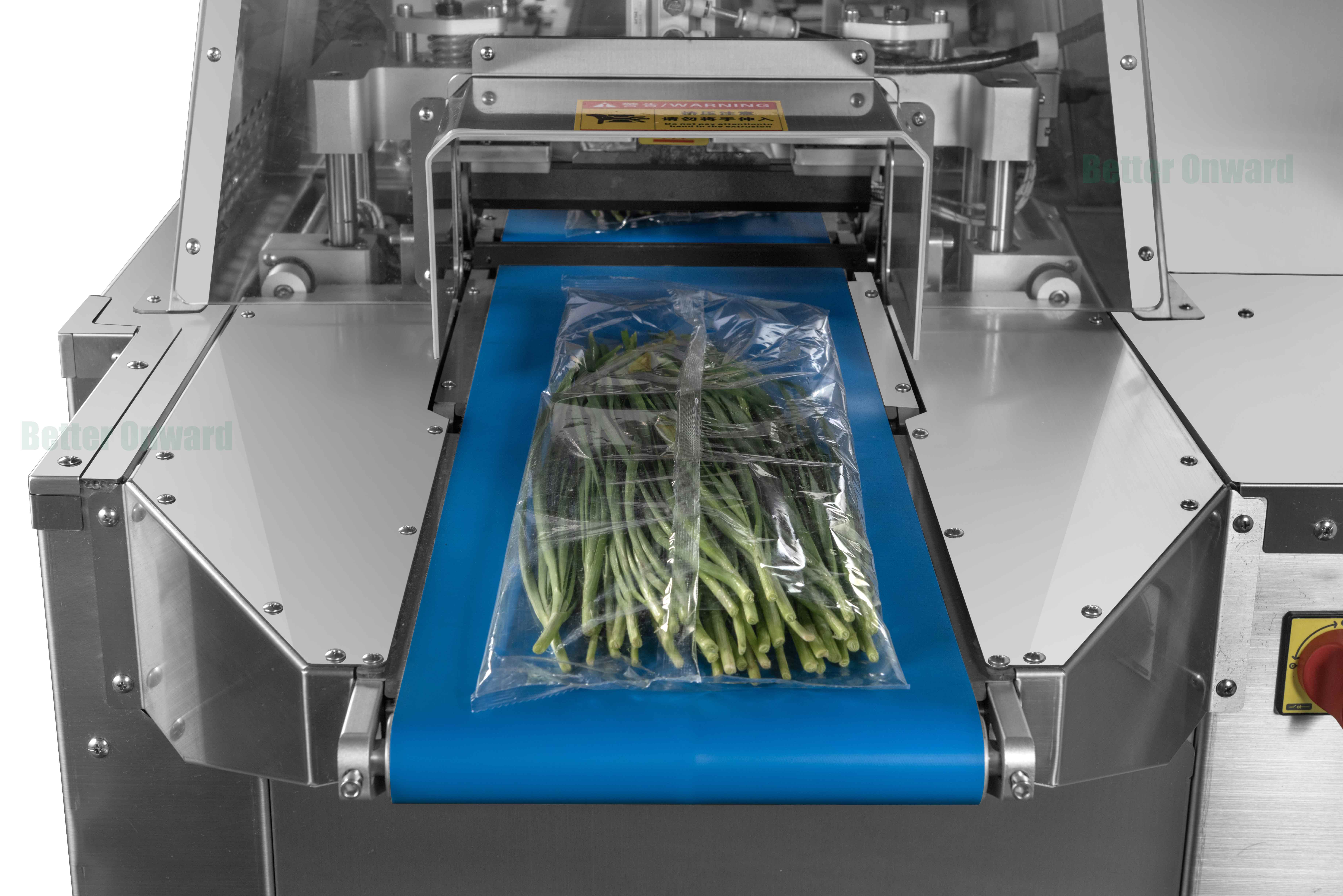

Touch human-machine interface, convenient and fast parameter setting, self-diagnosis function for faults, making fault problems clear at a glance.

HP-18 Automatic Pillow Type Leafy Vegetables Packing Machine

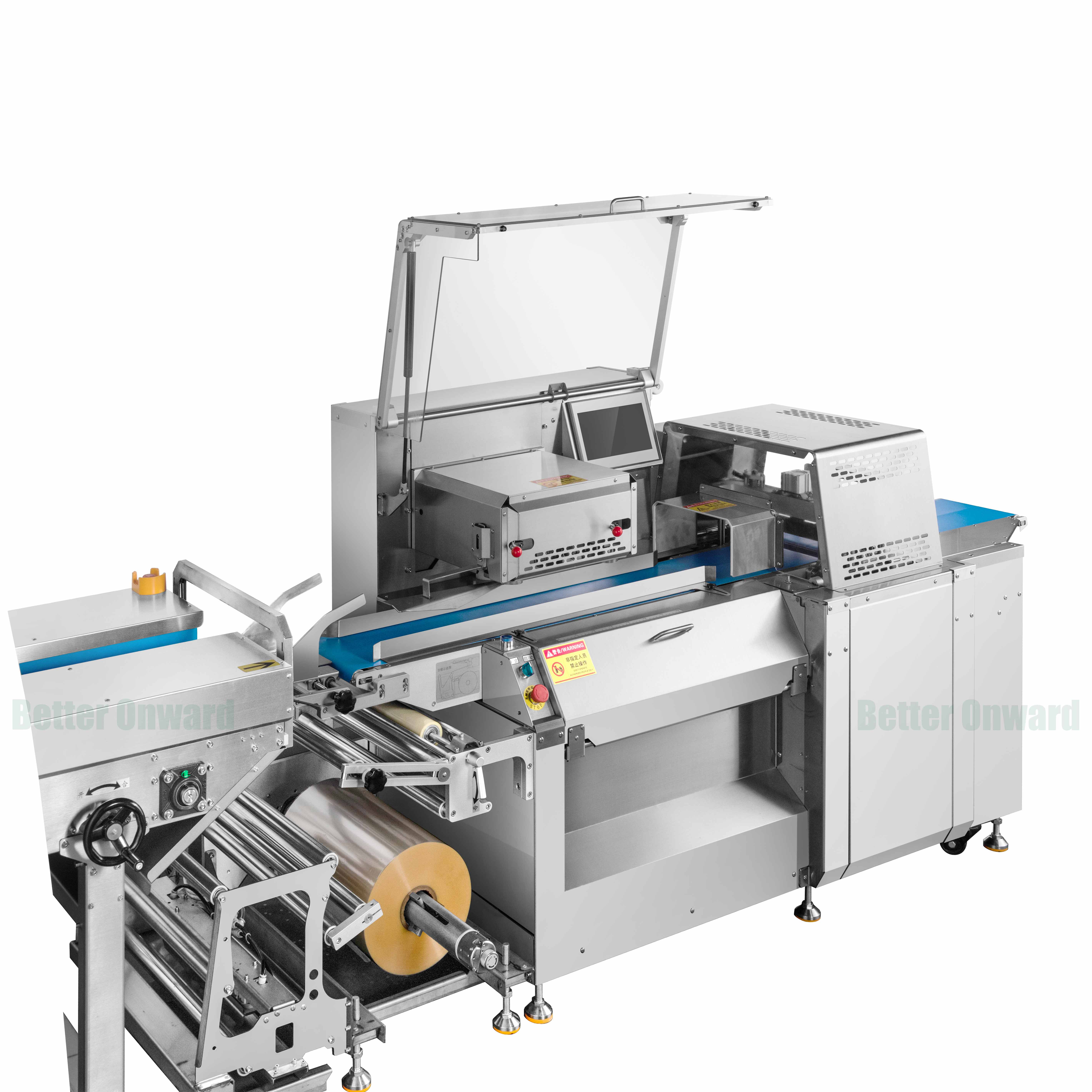

The optical fiber sensor can automatically identify the length of the material, and the length of the material does not need to be fixed.

The high-sensitivity photoelectric eye tracks the bag length, making the sealing and cutting positions more accurate and preventing the vegetables from being cut improperly.

HP-18 Automatic Pillow Type Leafy Vegetables Packing Machine

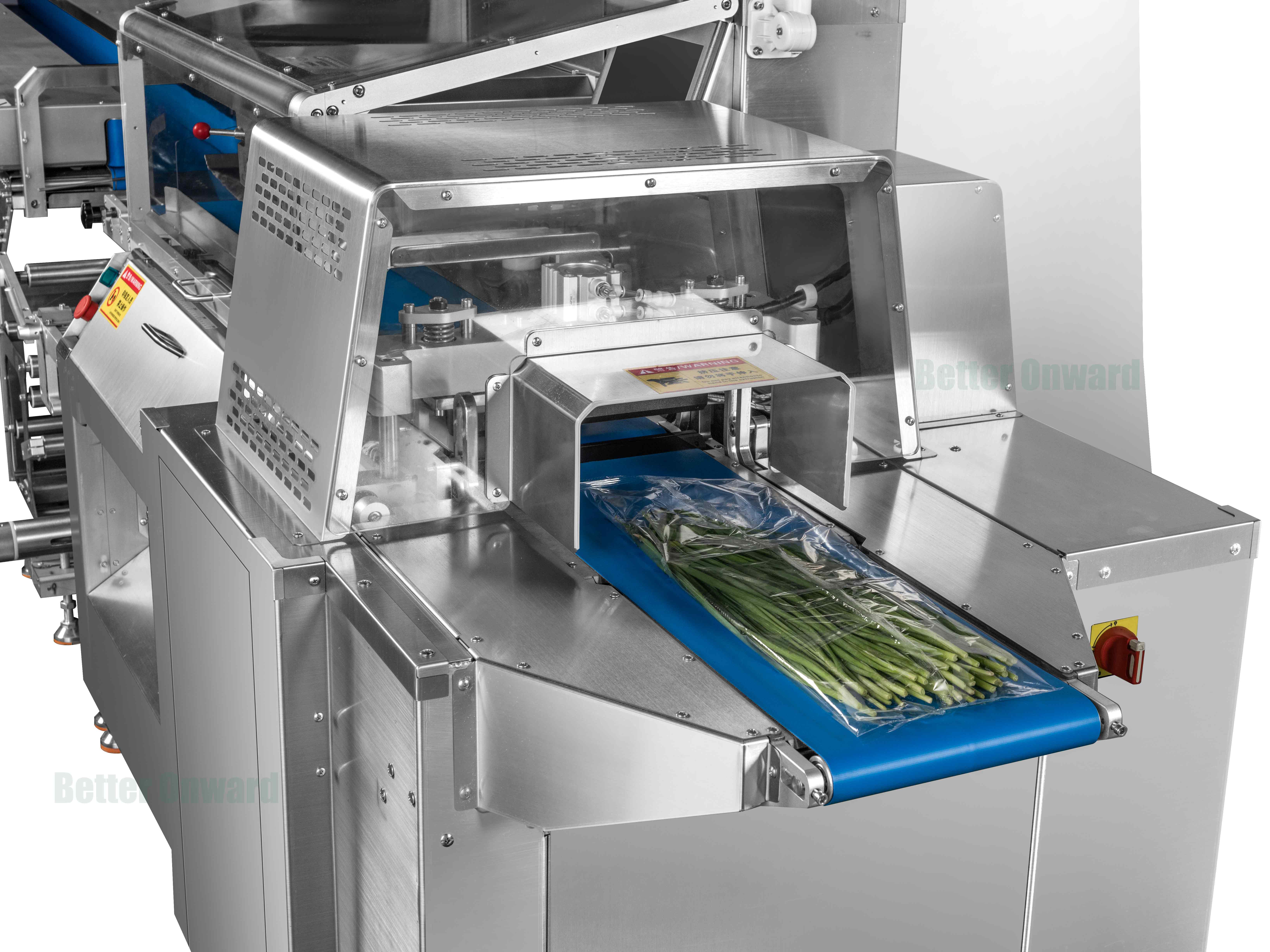

Reciprocating sealing and cutting structure ensures the machine head is stable during the high-speed operation. Electric vertical punching structure is almost noise-free and can meet the punching requirements during high-speed packaging.

HP-18 Automatic Pillow Type Leafy Vegetables Packing Machine

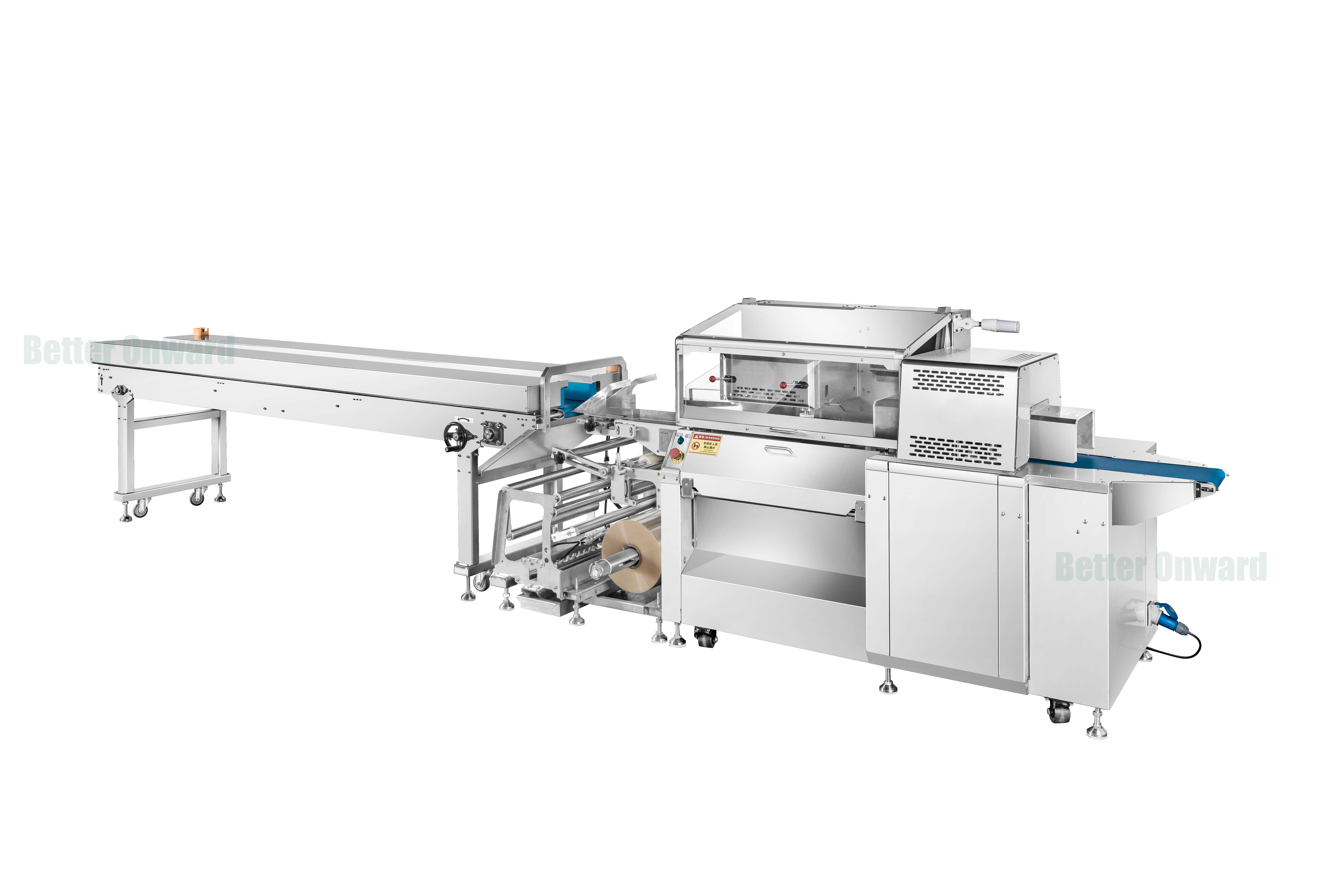

The input conveyor and host machine are made of 304 stainless steel.


Food-grade PU material conveyor belt, no deformation after long-term use, resistant to acid, alkali and oil stains.

HP-18 Automatic Pillow Type Leafy Vegetables Packing Machine

The vertical and horizontal sealing blades have independent temperature controllers, totaling 4 sets, the temperature could be adjusted independently.


Don't need the external air source.
Simply connect it to the standard 220V power supply.
