Product Description

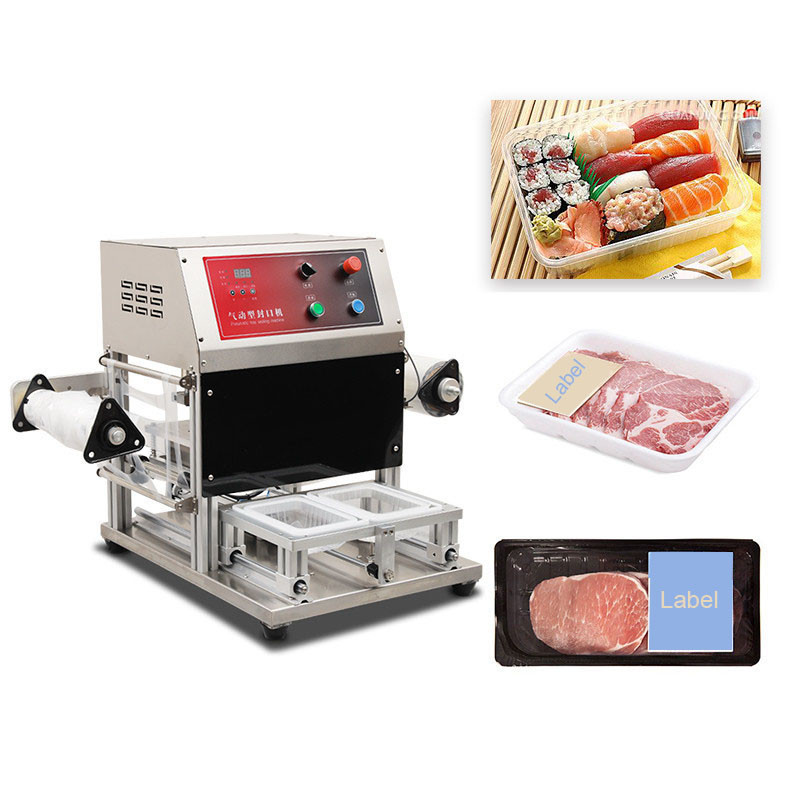

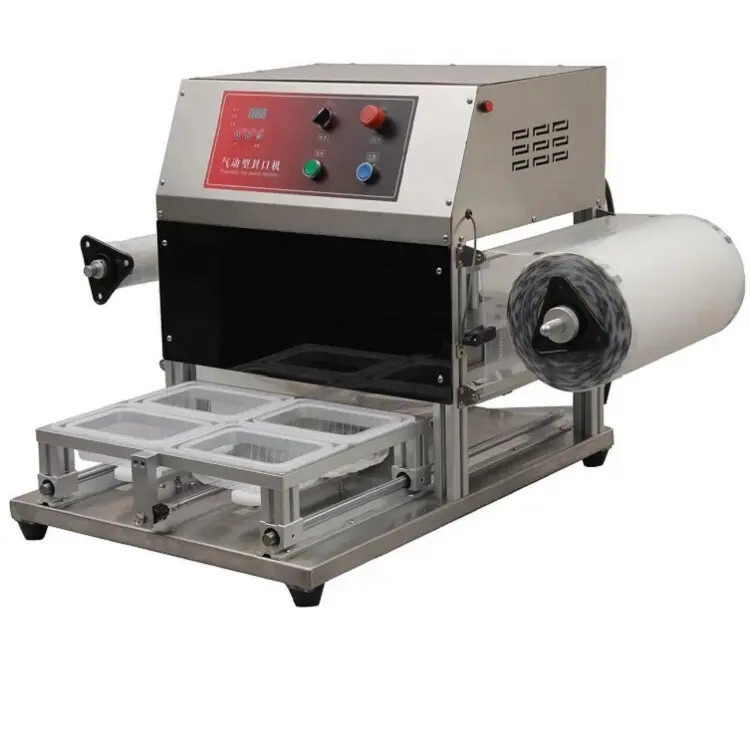

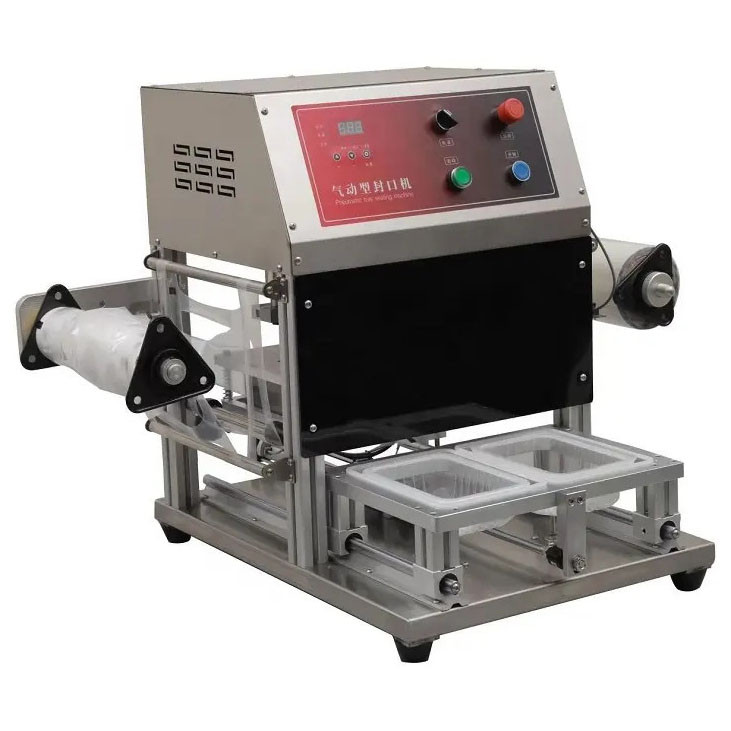

Factory Sale QF430T-S Prepared Meals Cooked Food One Cycle Four Trays Sealing Machine

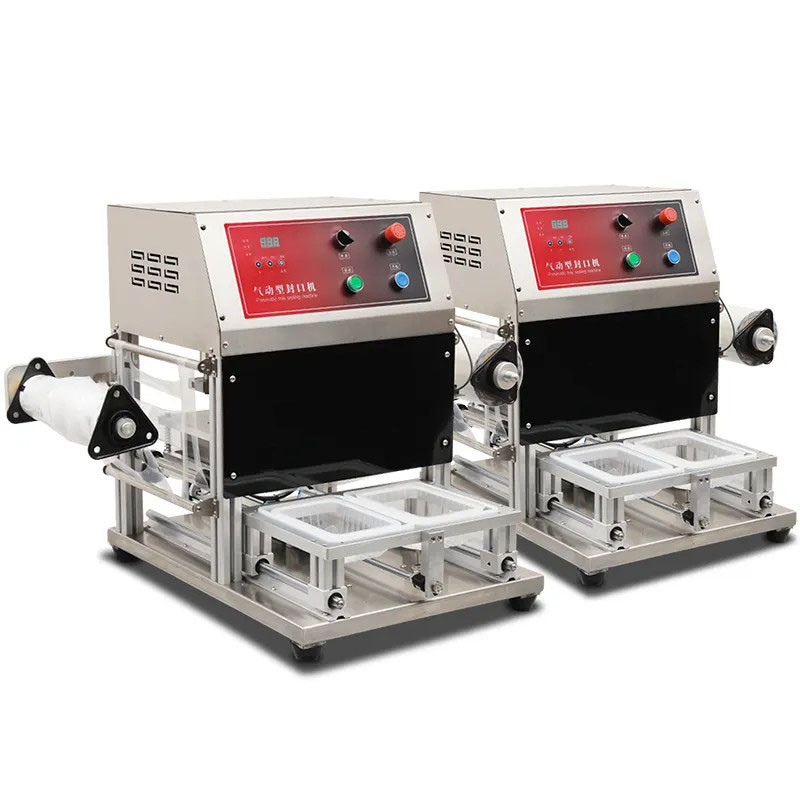

QF430T-S Pneumatic Tray(Cup) Sealer is widely applicable to the package of raw and cooked meat, seafood, dairy product, fruit and vegetable, rice and flour food, etc.


Technical Characters
1. Stainless steel construction.
2. Mold is available to be changed.
3. Electronic temperature controller.
4. Friendly and simply in operation for user.
5. We could customize the mold according to your tray' size.
Model
QF260T-S
QF370T-S
QF430T-S

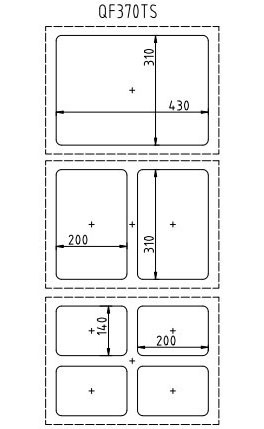

Max. Tray Size (mm)

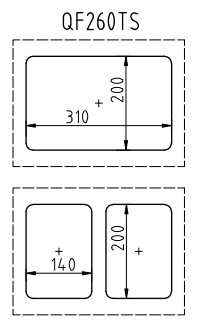

310* 200* 60mm (*1)
200* 140* 60mm (*2)
430* 310* 60mm (*1)
310* 200* 60mm (*2)
200* 140* 60mm (*4)

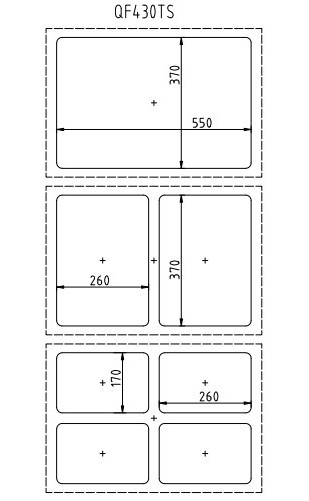

550* 370* 60mm (*1)
370* 260* 60mm (*2)
260* 170* 60mm (*4)
Max. Film Width (mm)
260
370
430
Max. Film Diametr (mm)
200
200
200
Packing Speed (cycle/min)
7-8
5-6
5-6
Vacuum pump replacement (cbm/hour)
0.6-0.8
0.6-0.8
0.6-0.8
Electrical Requirement (V/HZ)
220V/50Hz 110V/60Hz
Power (KW)
1.5
1.8
2.5
Net Weight (kg)
65
100
130
Detailed Images

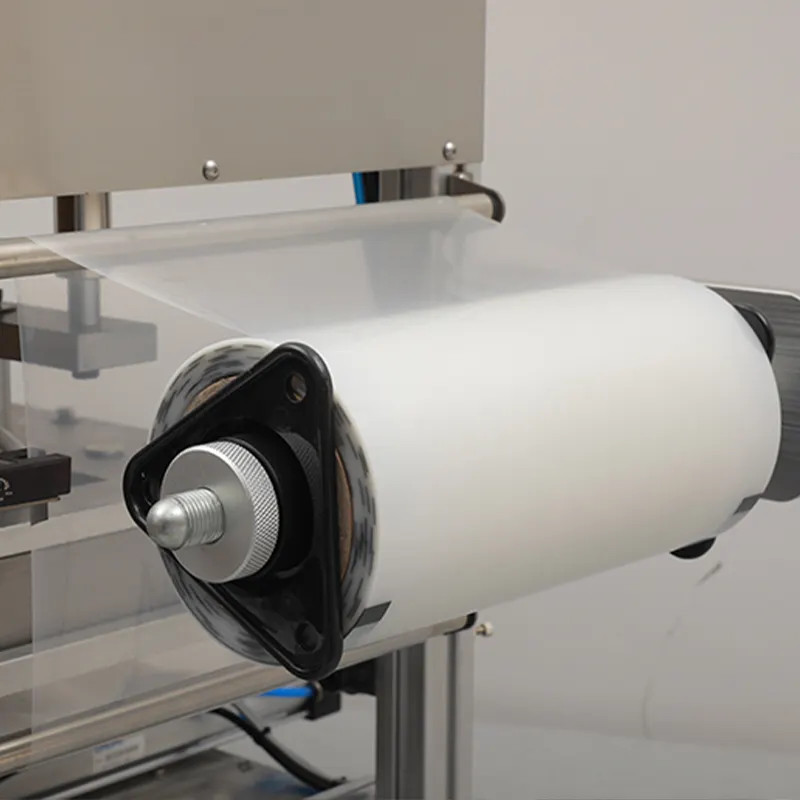

Plastic Film

Plastic Tray

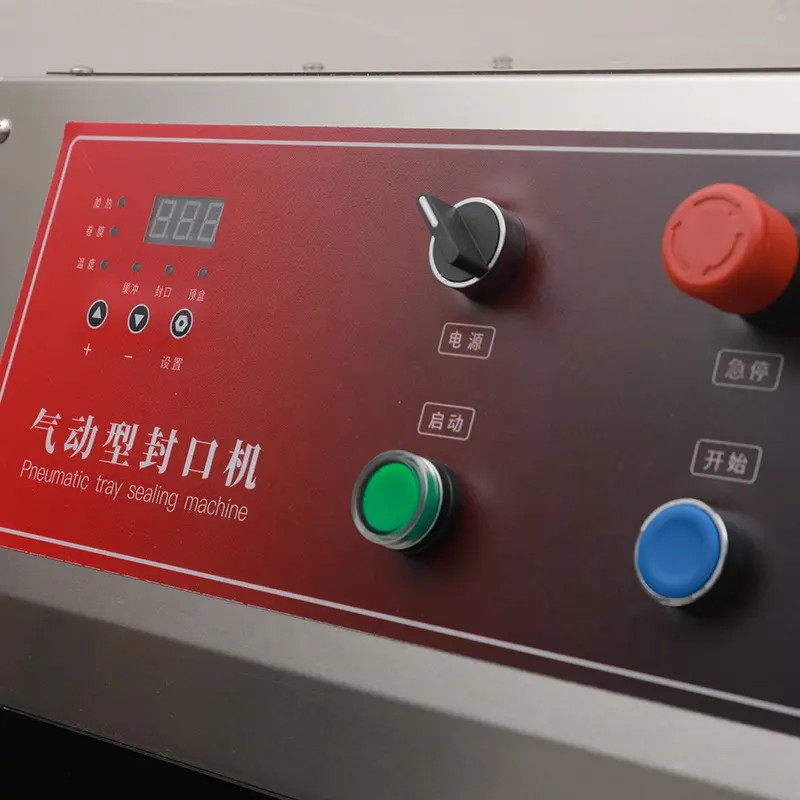

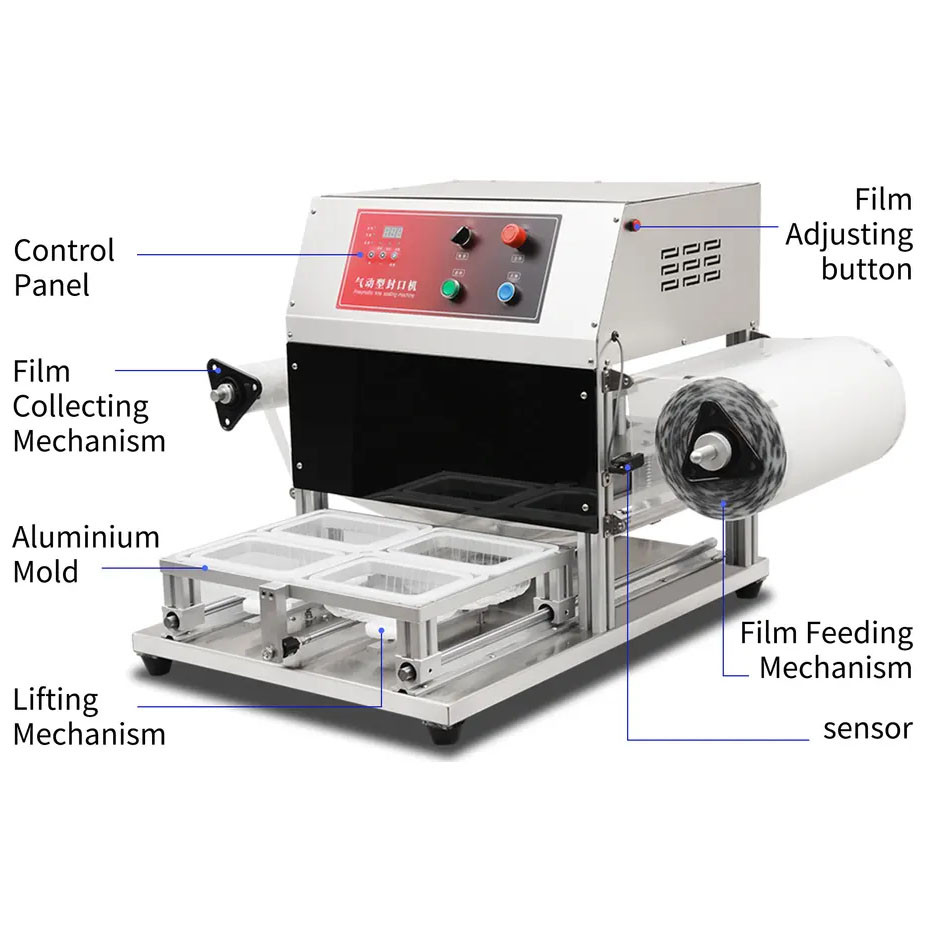

  • Operation Panel

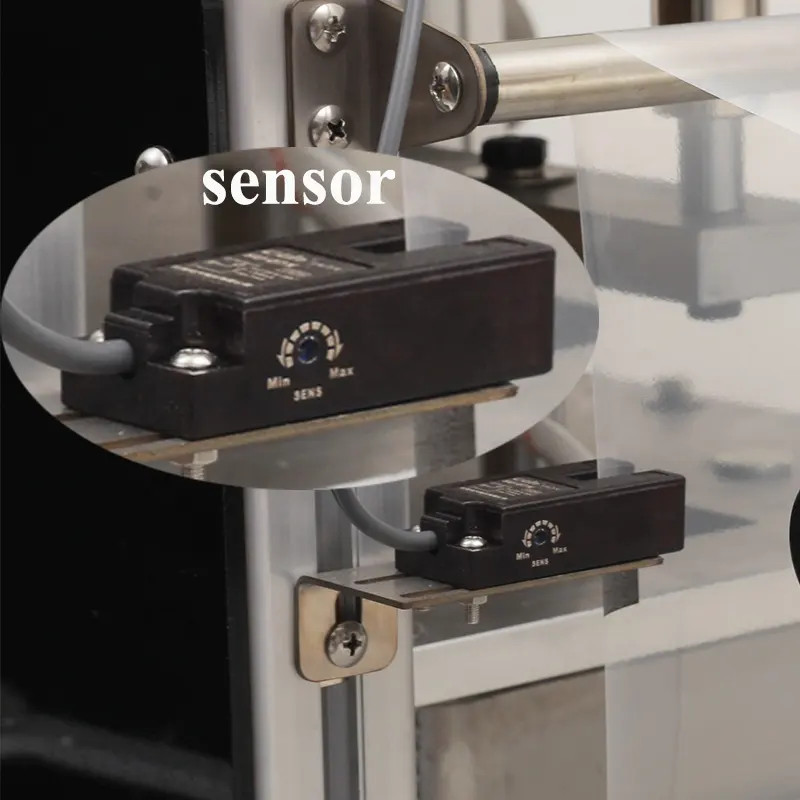

Sensor

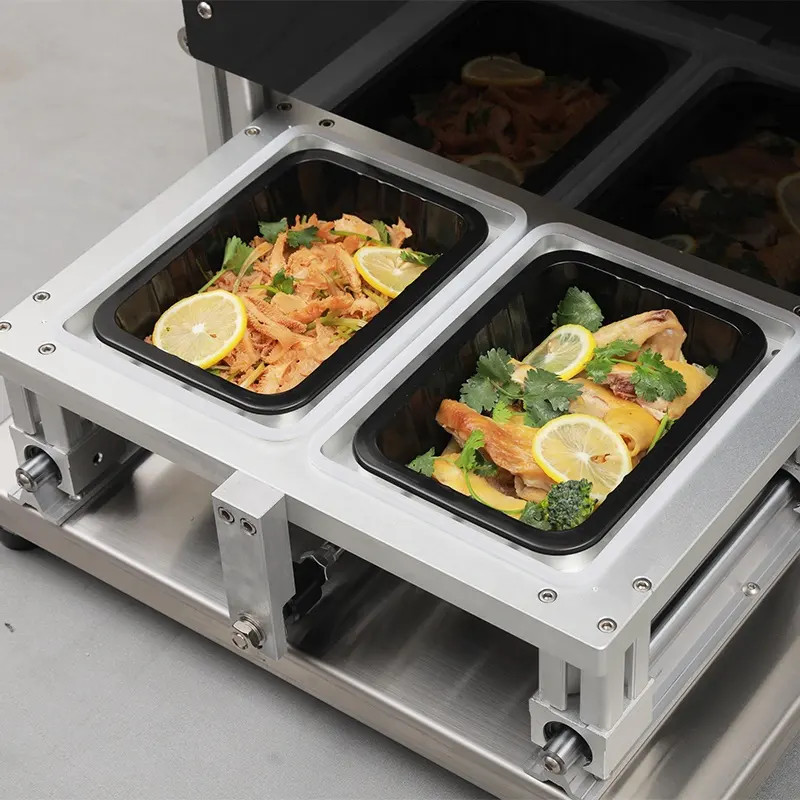

Matched Tray

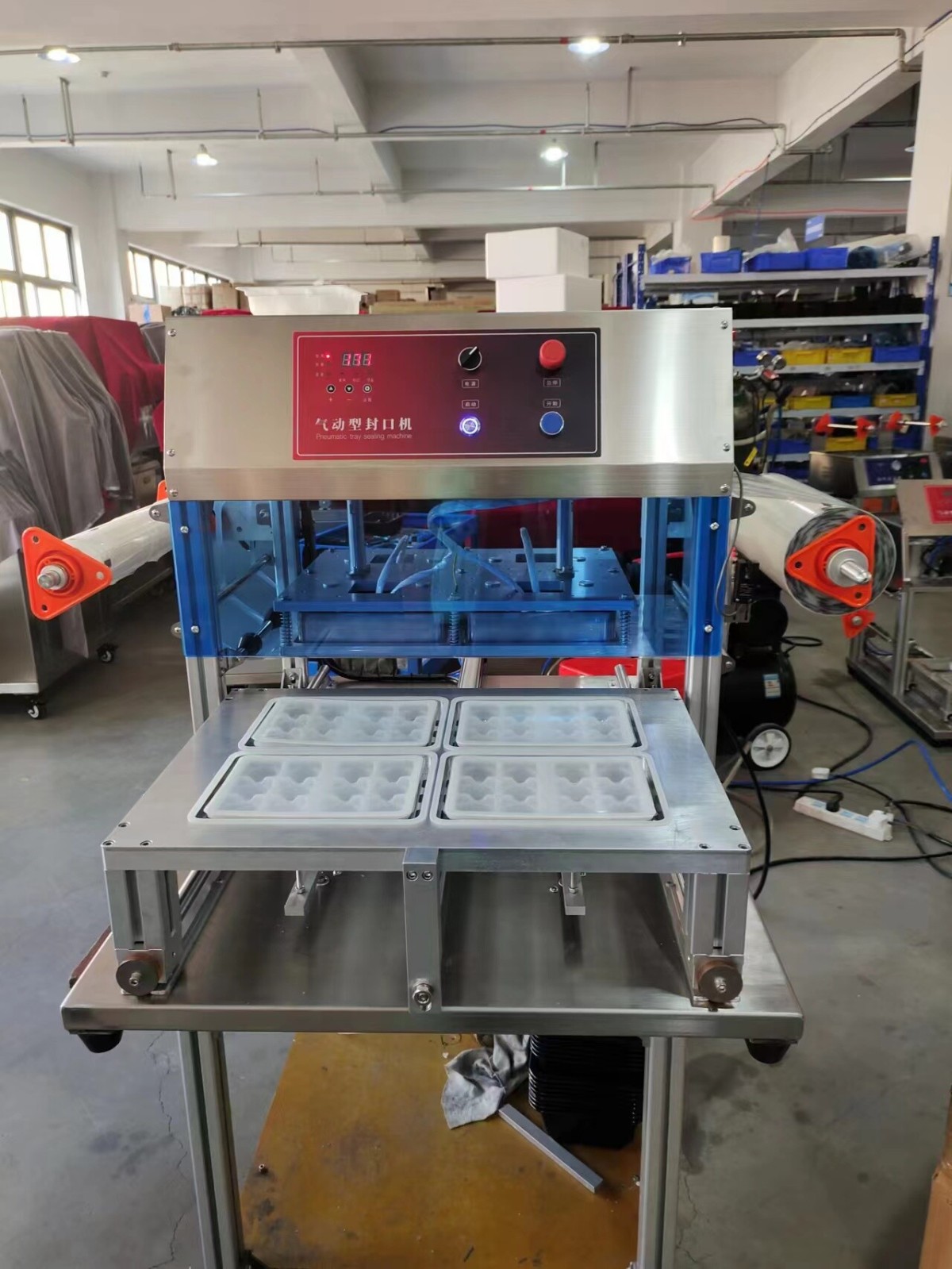

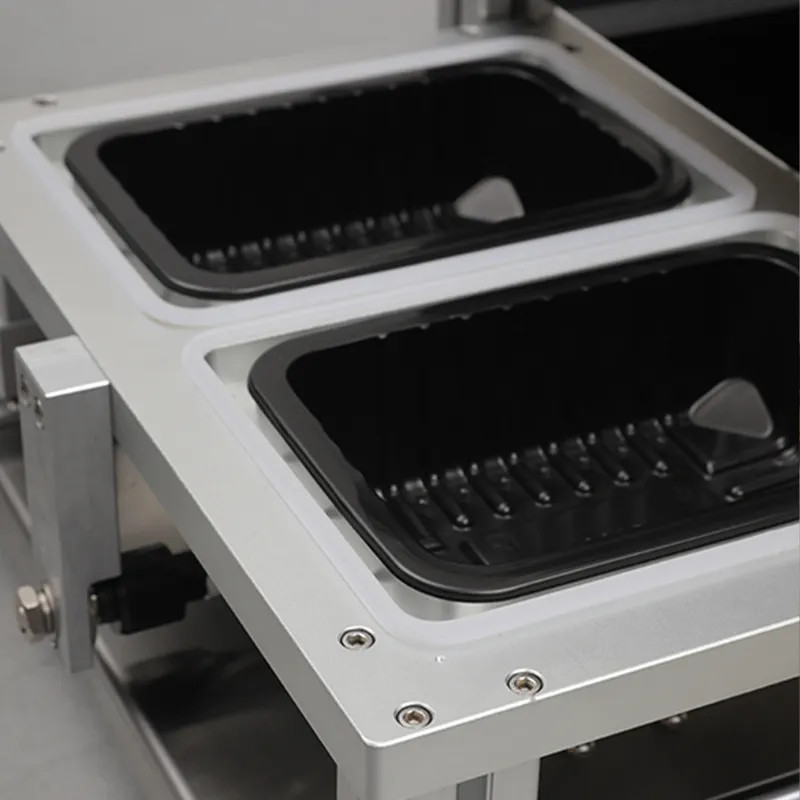

  • Customized Mold
