DJL-440VS Food Meat Fish Vacuum Skin Packaging Machine Tray Sealer
Inquiry Now →

Product Description

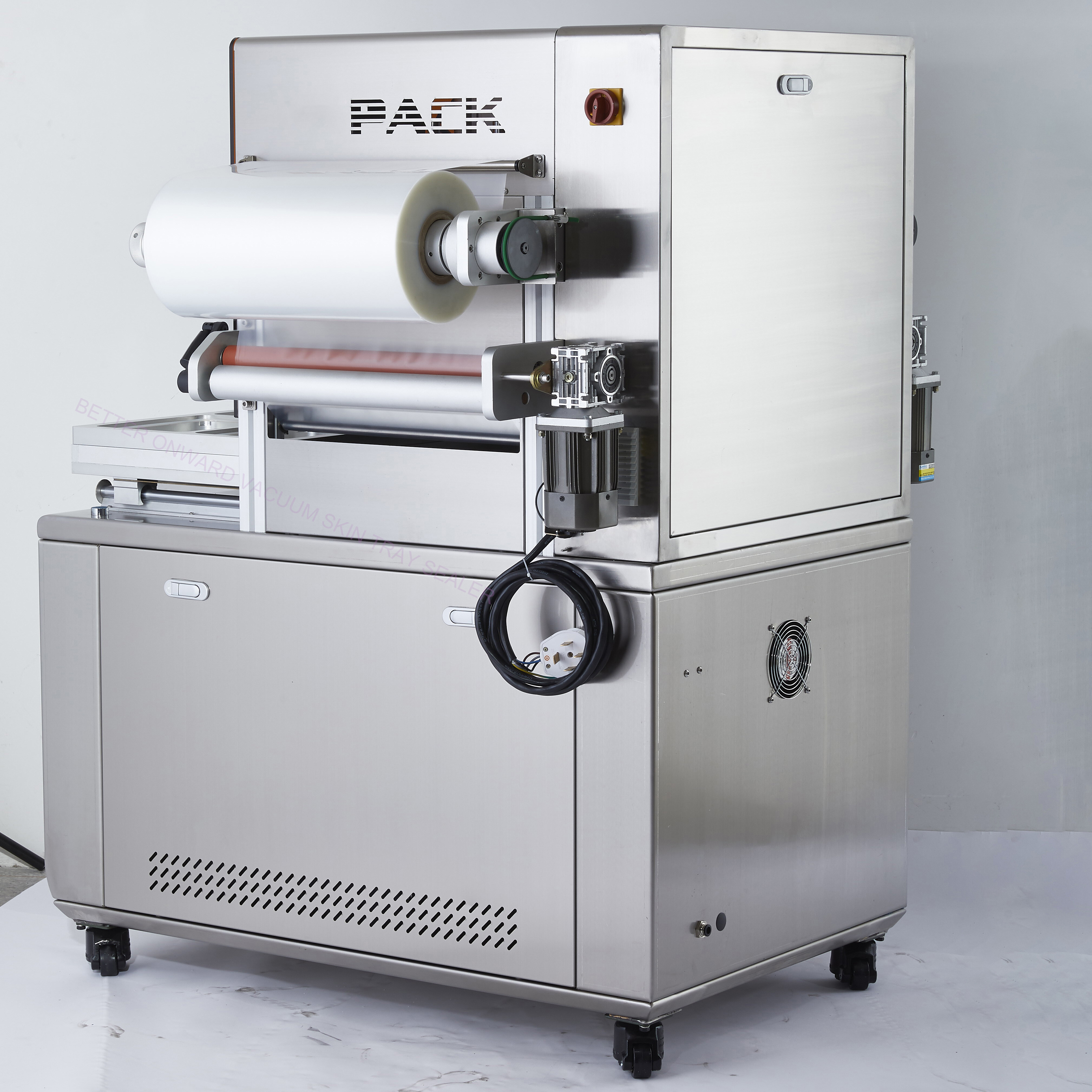

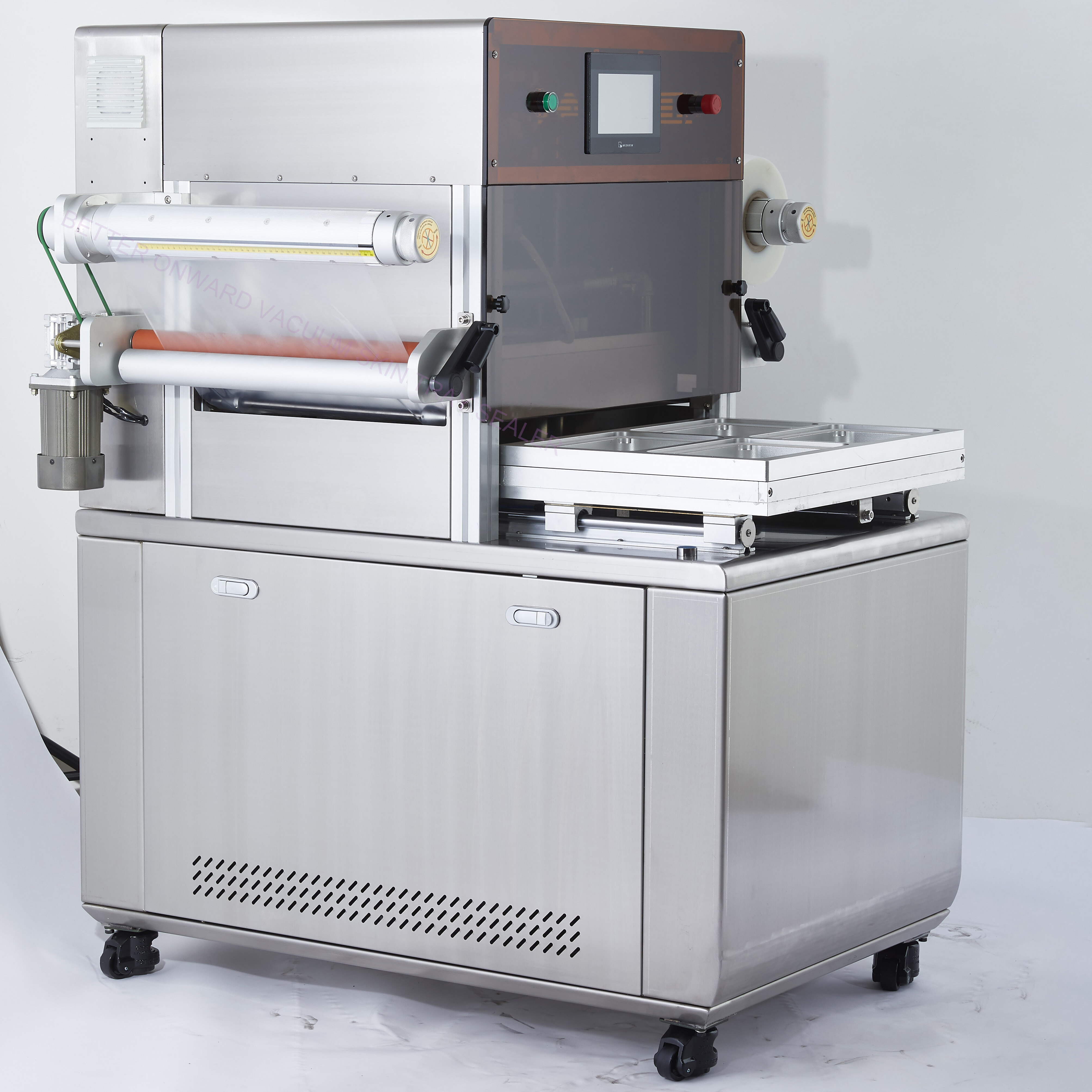

DJL-440VS Food Meat Fish Vacuum Skin Packaging Machine Tray Sealer


Floor type vacuum skin tray sealing packaging machine is suitable for vacuum skin fresh-keeping packaging of cooked food, cold fresh meat, seafood, fast food, etc.


Our vacuum skin tray sealer adopts PLC programmable control system, the working parameter setting and controlling are accurate and stable, the working state is clear at a glance, and the operation is very simple.

Technical features

1. Fault real-time reminder function
2. Having the reminder of when need to replace the vacuum pump oil
3. Packaging counting function
4. Precision film walking system
5. Air pump drain water reminder

6. Tool free also could change molds.

Parameter

Model
DJL-330VS
DJL-440VS
Max. Tray Dimension (mm)
390* 270* 50 ( *1 )
380* 260* 50 ( *2 )
Max. Width of Film (mm)
320
440
Max. Diameter of Film(mm)
220
220
Packing speed (cycle/min)
3
3
Vacuum pump (cbm/hour)
40
100
Electrical Requirements(V/Hz)
380/50
380/50
Consume Power(kw)
2.8
5.5
Working pressure (Mpa)
0.6-0.8
0.6-0.8
N.W(kg)
215
365
G.W(kg)
260
415
Machine Dimension (mm)
1020* 920*1400
1200* 1170* 1480
Shipping Dimension(mm)
1050* 1000* 1600
1290* 1390* 1700

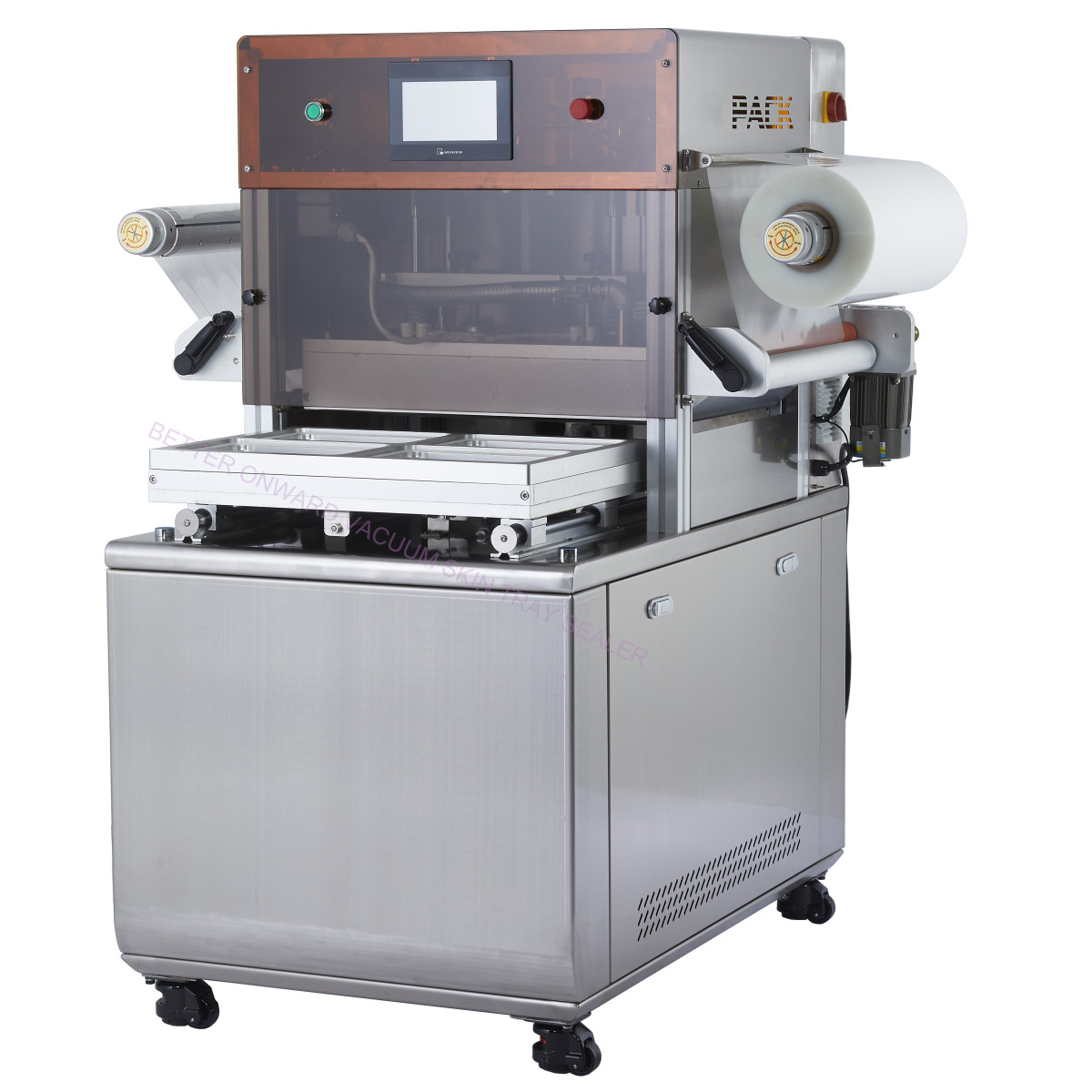

tray sealer 11tray-sealer-55

tray-sealer-66


tray-sealer-3
