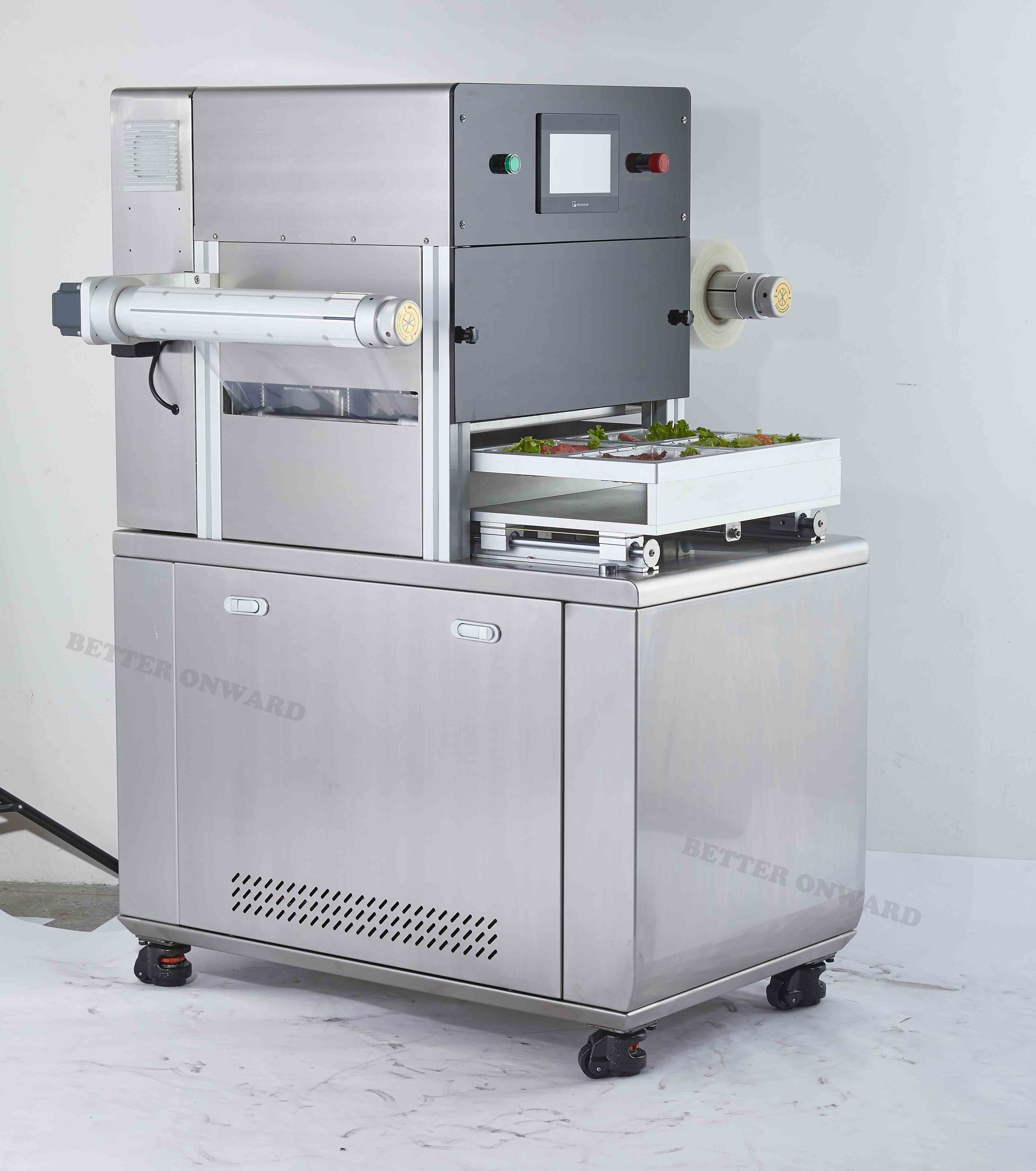

DJL-370V DJL-400V DJL-440V Vacuum Modified Atmosphere Packaging Machine MAP Tray Sealer
Inquiry Now →

Product Description

DJL-370V DJL-400V DJL-440V Vacuum Modified Atmosphere Packaging Machine MAP Tray Sealer


The floor type Vacuum MAP modified atmosphere fresh-keeping packaging machine can be used for the fresh-keeping packaging of all kinds of cooked meat products, fast food, cakes, rice flour, cheese, bean products, aquatic products and poultry.

According to different food properties, our vacuum MAP tray sealer will match with gas mixer with different gas types and mixing ratios.


Usage:
Keep the original flavor, taste and freshness of the food for as long as possible, and to control the reproduction of bacteria and microorganisms to the greatest extent, keep the cooked food fresh and prolong the shelf life of the food.

Technical features:
1. Fault real-time reminder function.
2. The reminder of Replacing the vacuum pump oil.
3. Package counting function.
4. Precision film walking system.
5. 304 Stainless steel casing.
6. Customized mold.

7. Optional fixed or adjustable gas mixer.


Parameter

ModelDJL-370VDJL-400VDJL-440V
Max. Tray Size310* 200*60mm (*2)330* 230*60mm (*2)380* 260*60mm (*2)
Max. width of roll film370mm390mm440mm
Max. diameter of roll film260mm260mm260mm
Gas replacement rate≥99%≥99%≥99%
Vacuum pump displacement63m3/h63m3/h100m3/h
Packing speed3-4times/min3-4times/min3-4times/min
Power3.5kw3.5kw5kw
Voltage380V 50Hz380V 50Hz380V 50Hz
Working air pressure0.6-0.8Mpa0.6-0.8Mpa0.6-0.8Mpa
Machine weight265kg285kg365kg
Machine size1080* 980* 1430mm1200* 1070* 1480mm1200* 1170* 1480mm

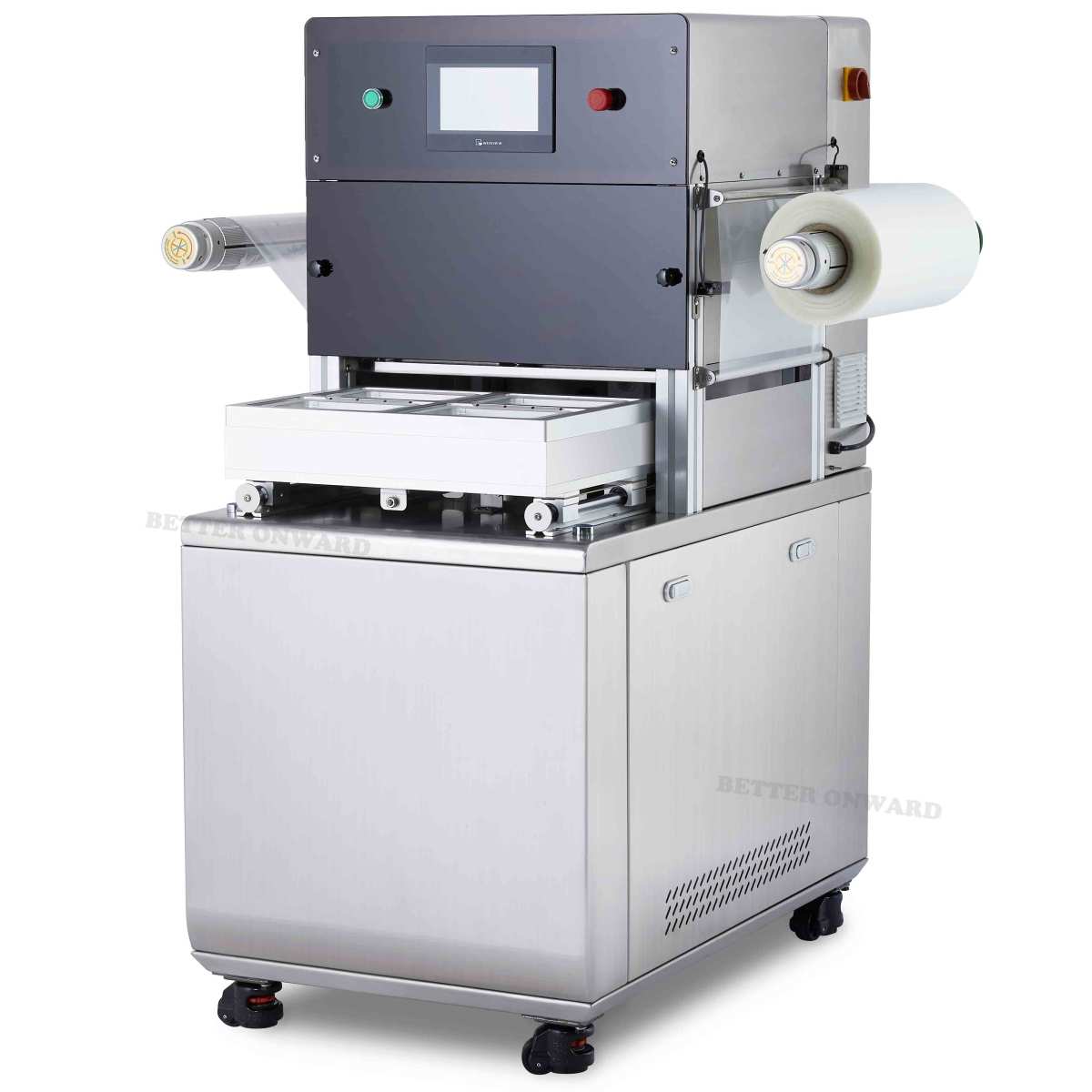

tray-sealer-1

tray-sealer-4

tray-sealer-5

tray-sealer-3

tray-sealer-2
