TD1-VS Electric Skin-Pack Vacuum Packaging Tray Sealing Machine with Customizable Molds
Inquiry Now →

Product Description

Our TD1-VS Vacuum Skin Tray Sealer, suitable for store operation, don't need to match with an air compressor.

The device is compact in design, easy to operate.


Specification
Model
TD1-VS
Tray's max size (mm)
230*180*55 (*1)
Max. Film width (mm)
320
Max. Film diameter (mm)
220
Packing speed (times/min)
2-3
Vacuum pump (m3/h)
10
Voltage (V/Hz)
220/110V 50/60Hz
Power (kw)
1.1
Net weight (kgs)
101
Gross weight (kgs)
140
Machine size (mm)
859* 541* 872
Packing size (mm)
890* 570* 990

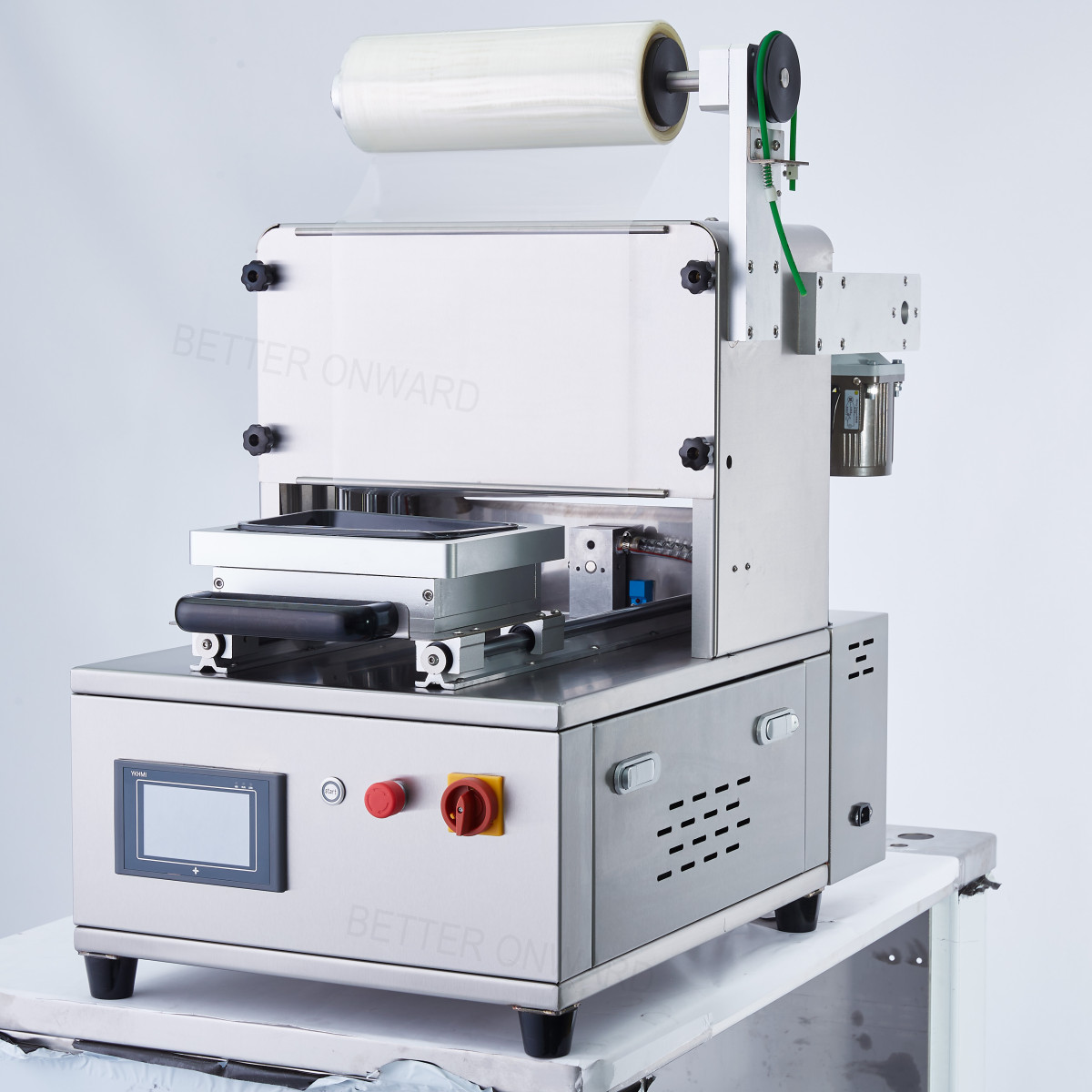

H2fc2937941c44827b549d8f711d6e70de

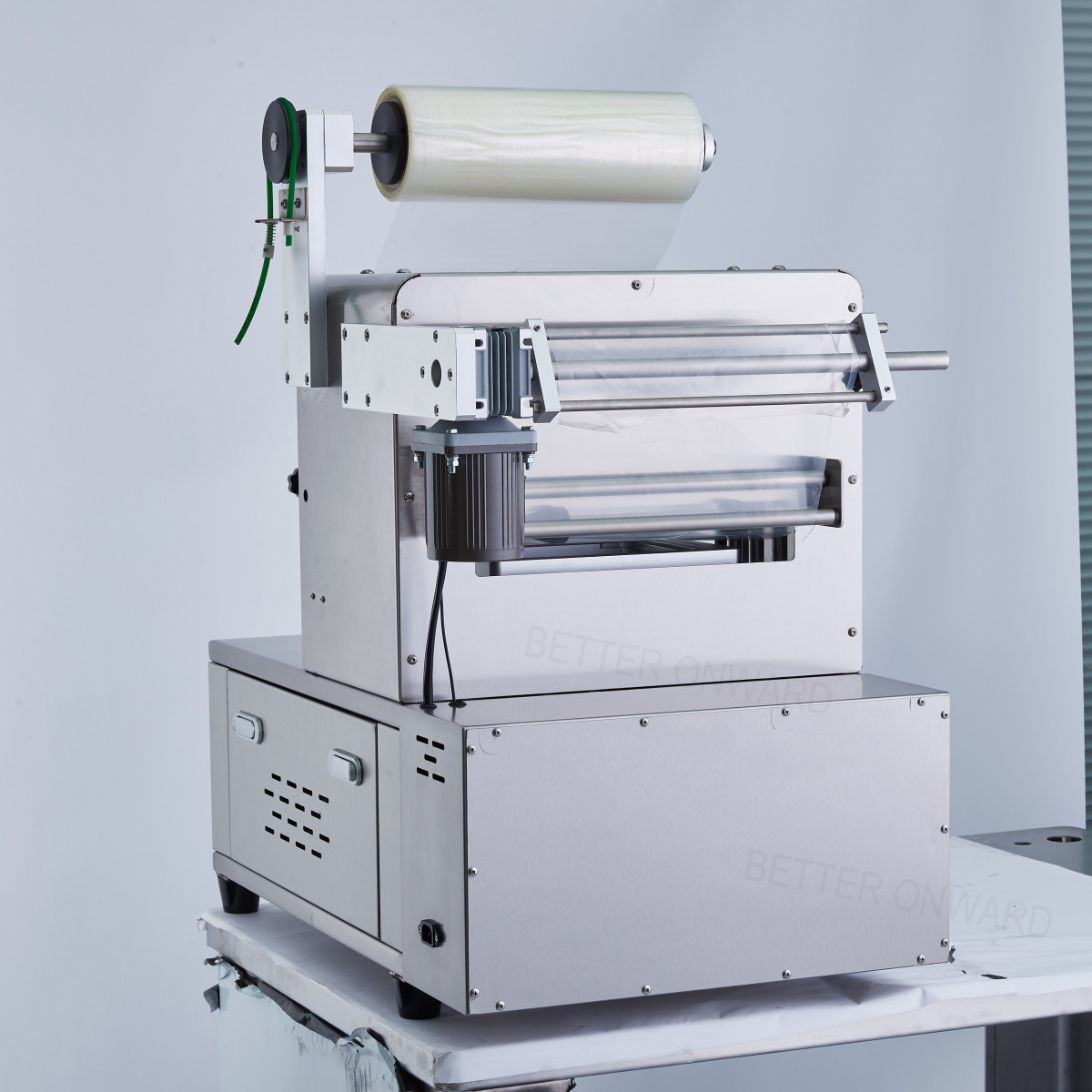

Hfb8ecb3e4b3e4eeb9d25735db2c791b4d

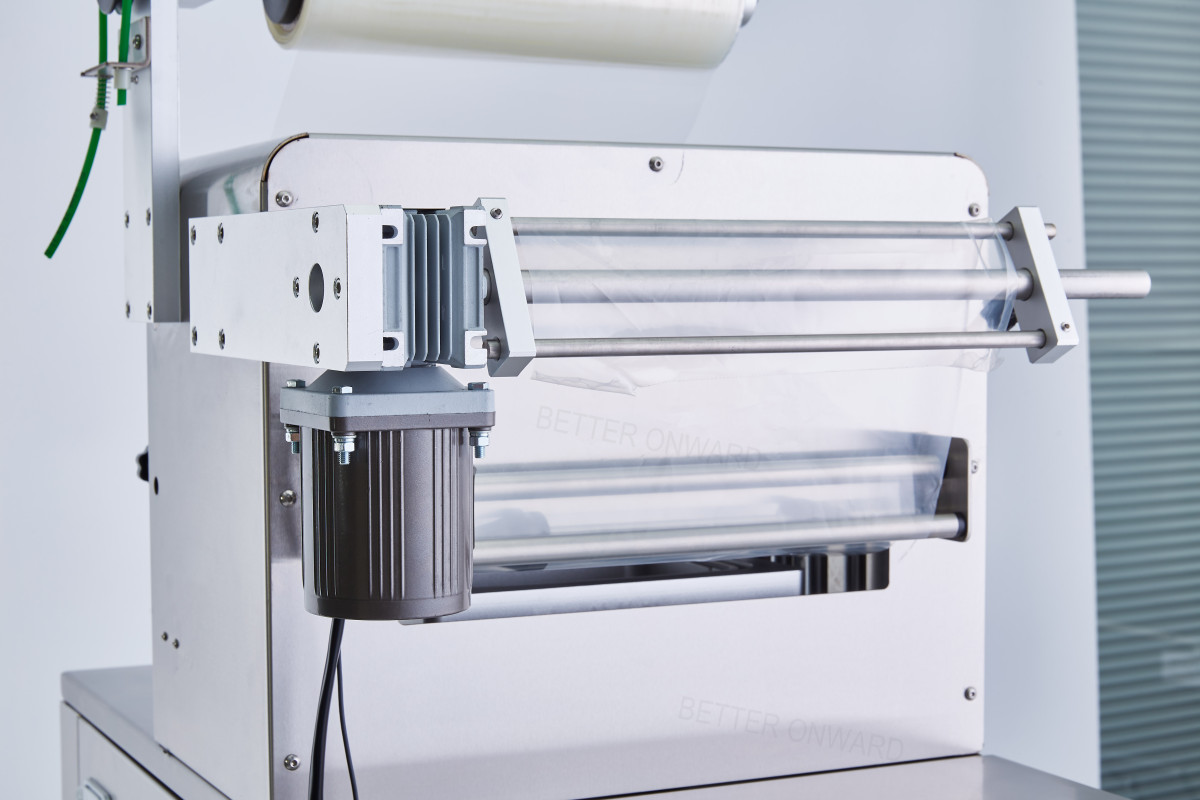

H2e715be3f7c94db1b03b1d74aad7ff618

Hbcc251e2941c4170831fb4aacc3a1136V

Our TD1-VS semi-automatic vacuum skin tray sealer is suitable for packaging cooked food, fresh meat, seafood, fast food, etc.


Our machine adopt PLC programmable control system, with precise and stable setting of working parameters, to achieve simple operation.

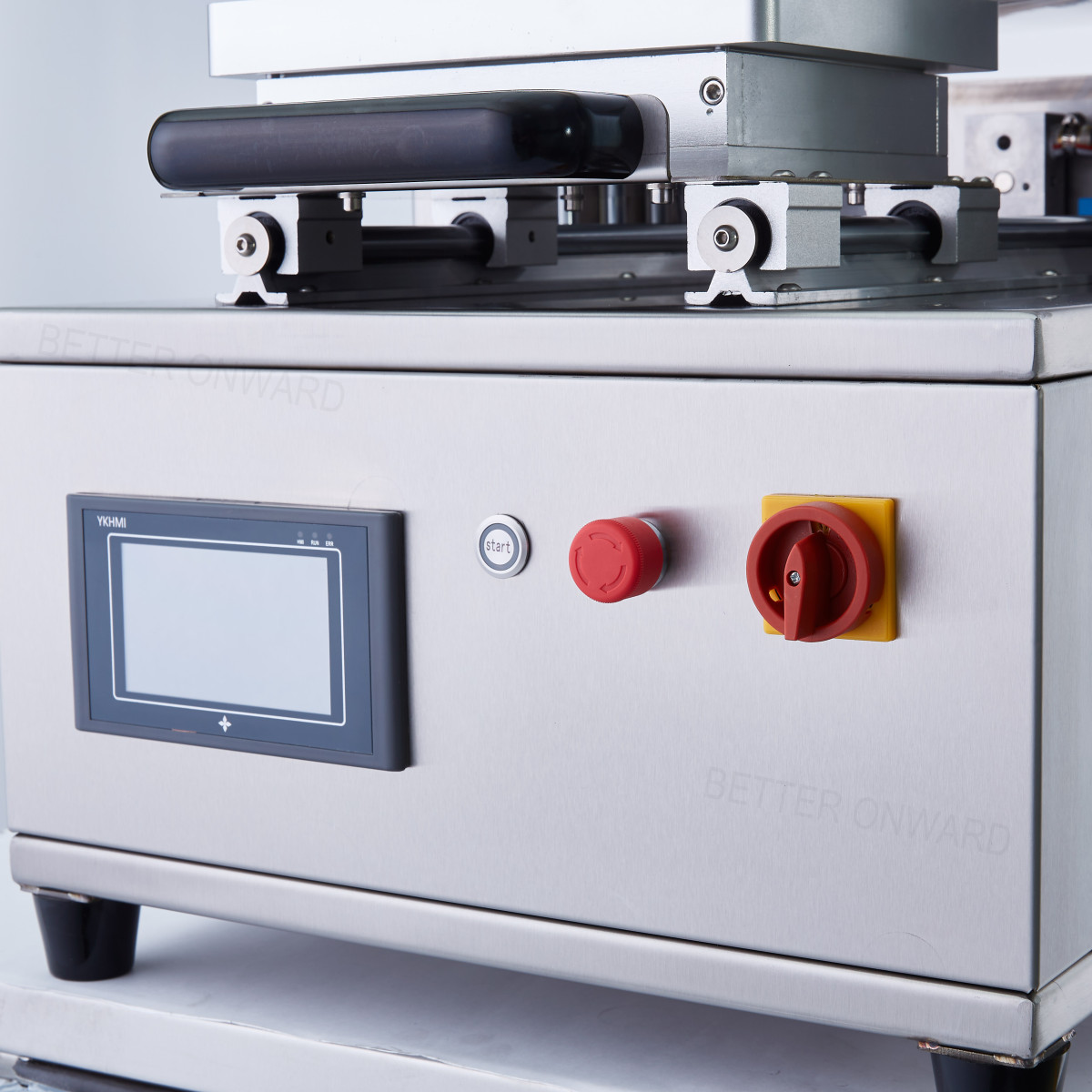

skin pack tray sealer (5)

Technical features

1. Fault real-time reminder function

2. Having the reminder, when need to replace the vacuum pump oil

3. Packaging Counting function

4. Precision film walking system

5. Air pump drain water reminder

6. Tool free also could change molds.

7. The cutting edge is neat
After packaging, the food is clear and visible, effectively enhancing the product's value and grade, protecting product quality, and extending product life.

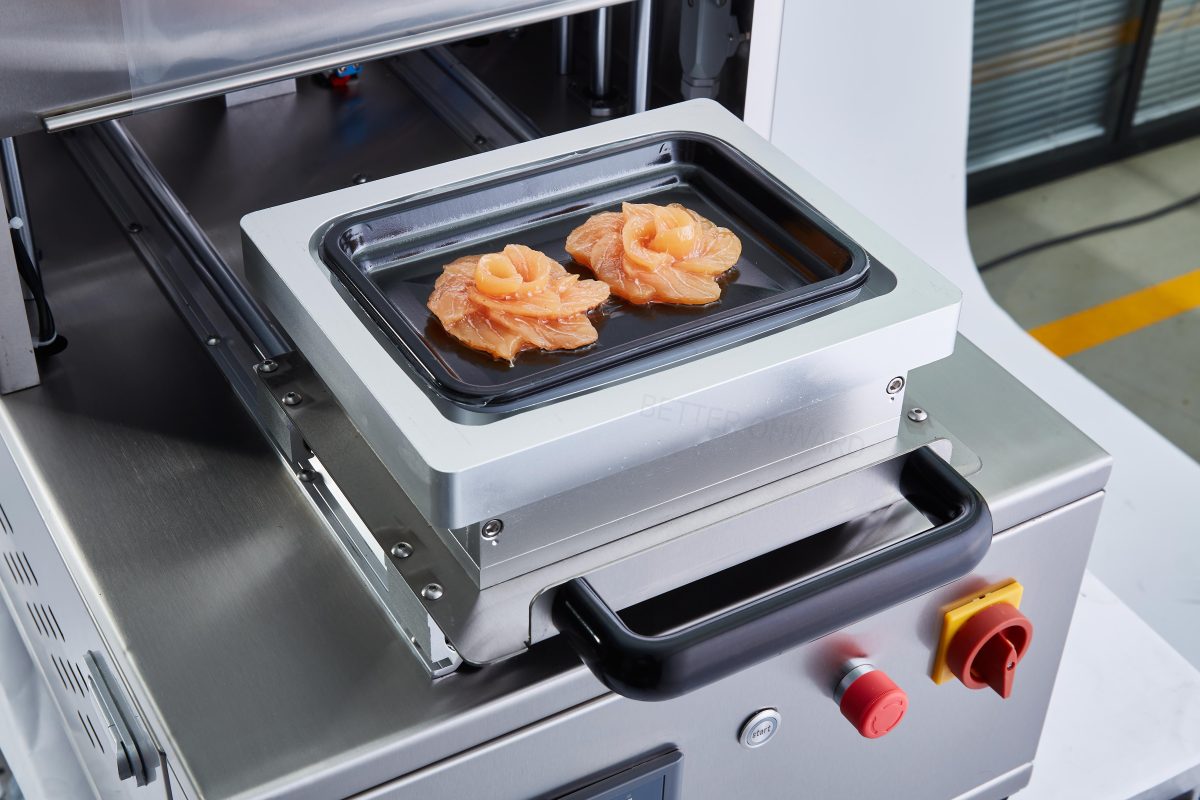

skin-pack-tray-sealer-2

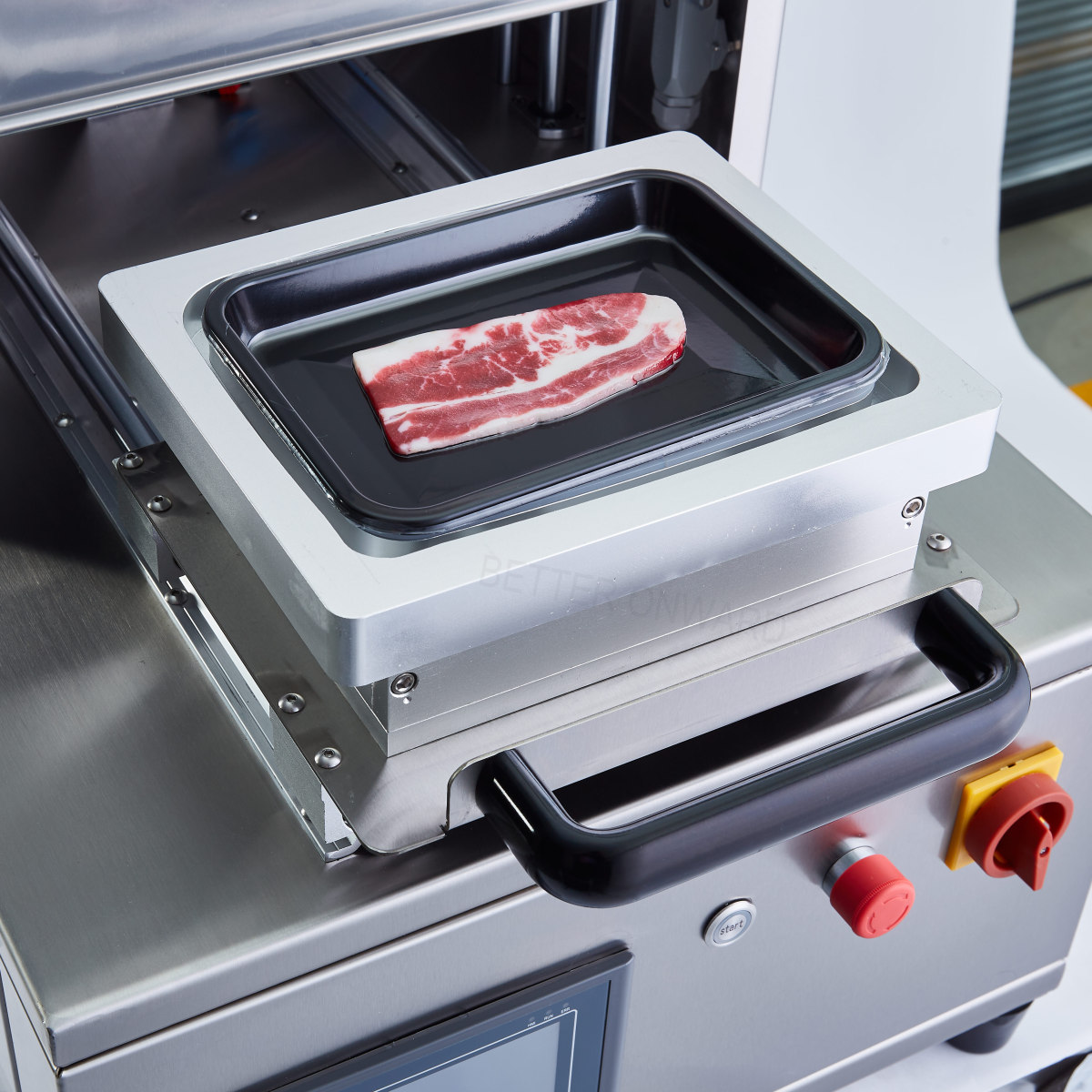

skin pack tray sealer (4)
