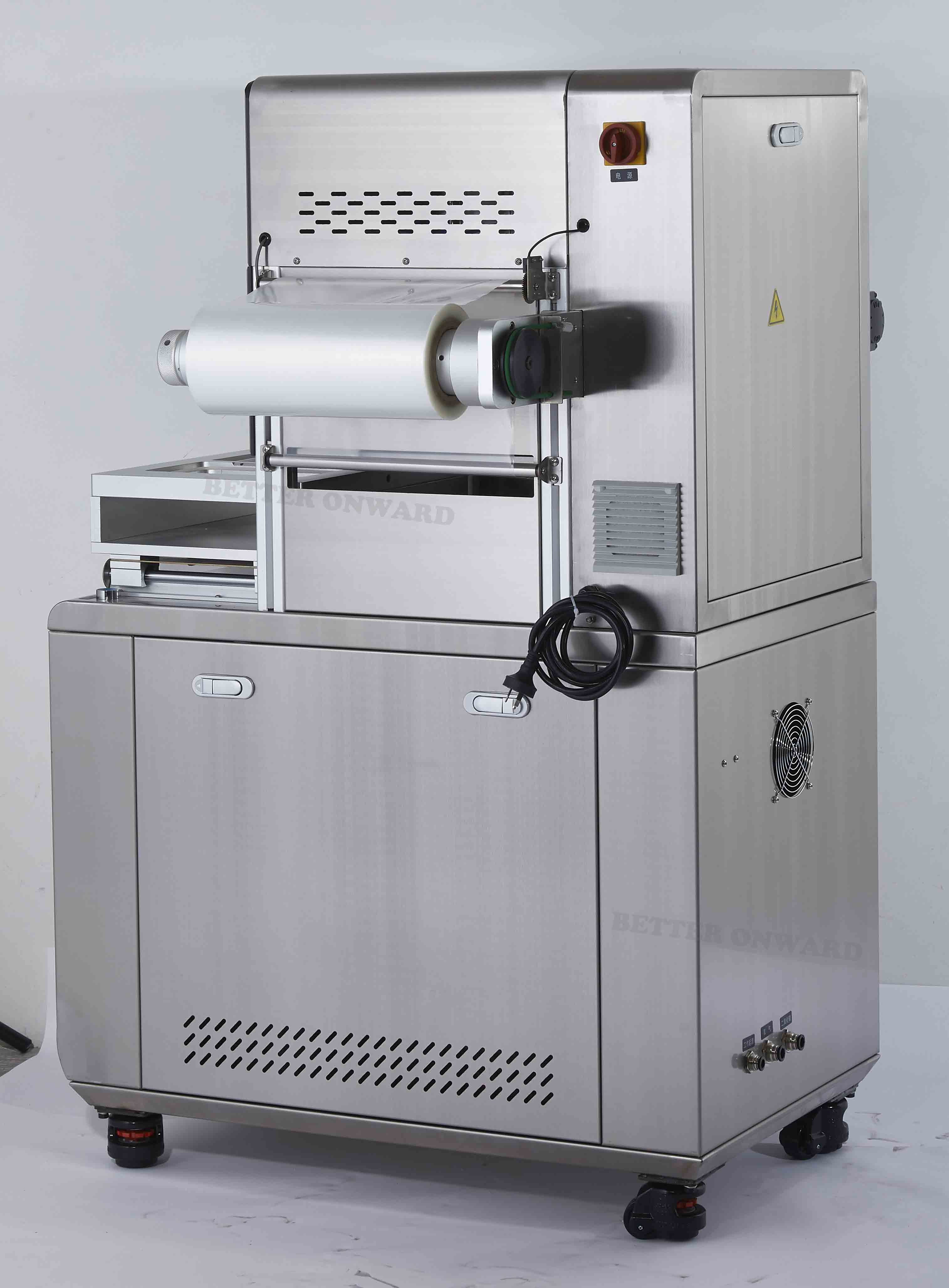

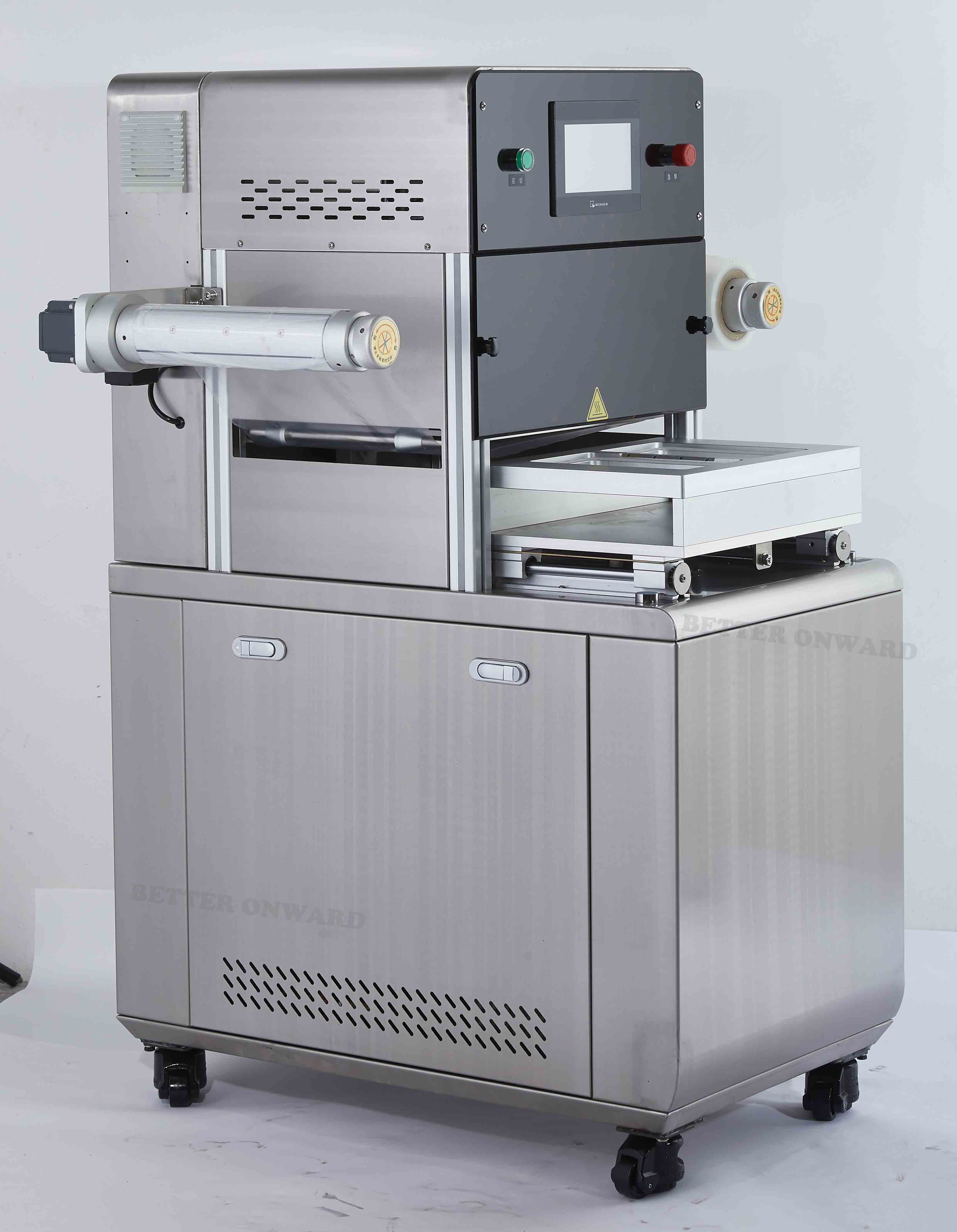

DJL-315V DJL-320V Vacuum MAP Tray Sealer with CE certification
Inquiry Now →

Product Description

DJL-315V DJL-320V Vacuum MAP Tray Sealer


The floor type Vacuum MAP modified atmosphere fresh-keeping packaging machine can be used for the fresh-keeping packaging of all kinds of cooked meat products, fast food, cakes, rice flour, cheese, bean products, aquatic products and poultry.

According to different food properties, our vacuum MAP tray sealer will match with gas mixers with different gas types and mixing ratios.


Usage:

Keep the original flavor, taste and freshness of the food for as long as possible, and to control the reproduction of bacteria and microorganisms to the greatest extent, keep the cooked food fresh and prolong the shelf life of the food.


Technical features:
1. Fault real-time reminder function.
2. The reminder of Replacing the vacuum pump oil.
3. Package counting function.

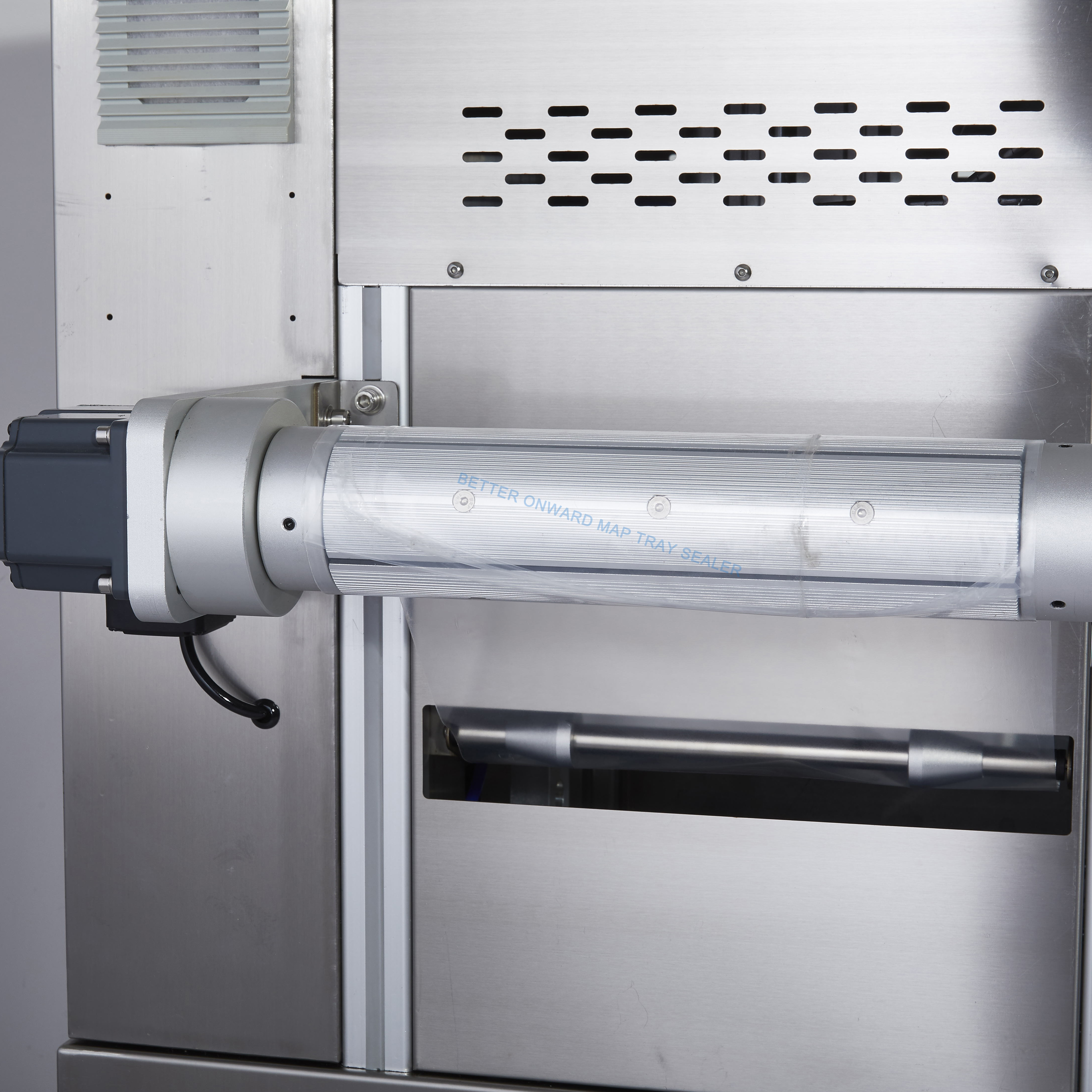

4. Precision film walking system.
5. 304 Stainless steel casing.
6. Customized mold.

7. Gas mixer (Optional).


Parameter

ModelDJL-315VDJL-320V
Max. Tray Size310* 220* 60mm (*1)390* 260* 60mm(*1)
Max. width of roll film280mm320mm
Max. diameter of roll film240mm240mm
Gas replacement rate≥99%≥99%
Vacuum pump displacement20m3/h20m3/h
Packing speed3-4times/min3-4times/min
Power2.4kw2.4kw
Voltage220V 50Hz220V 50Hz
Working air pressure0.6-0.8Mpa0.6-0.8Mpa
Machine weight145kg160kg
Machine size950* 880* 1400mm1020* 920* 1400mm

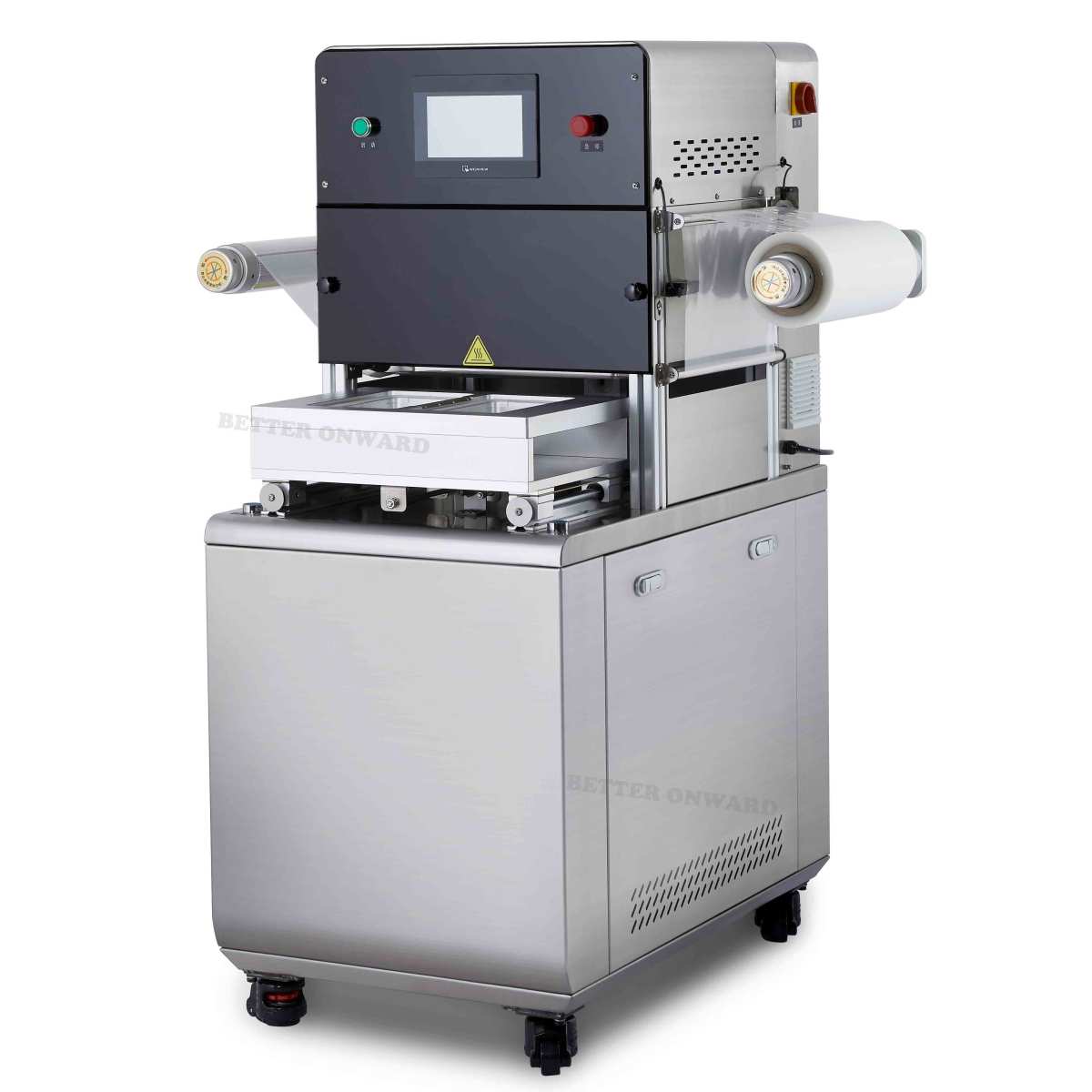

tray-sealer-1

tray-sealer-2

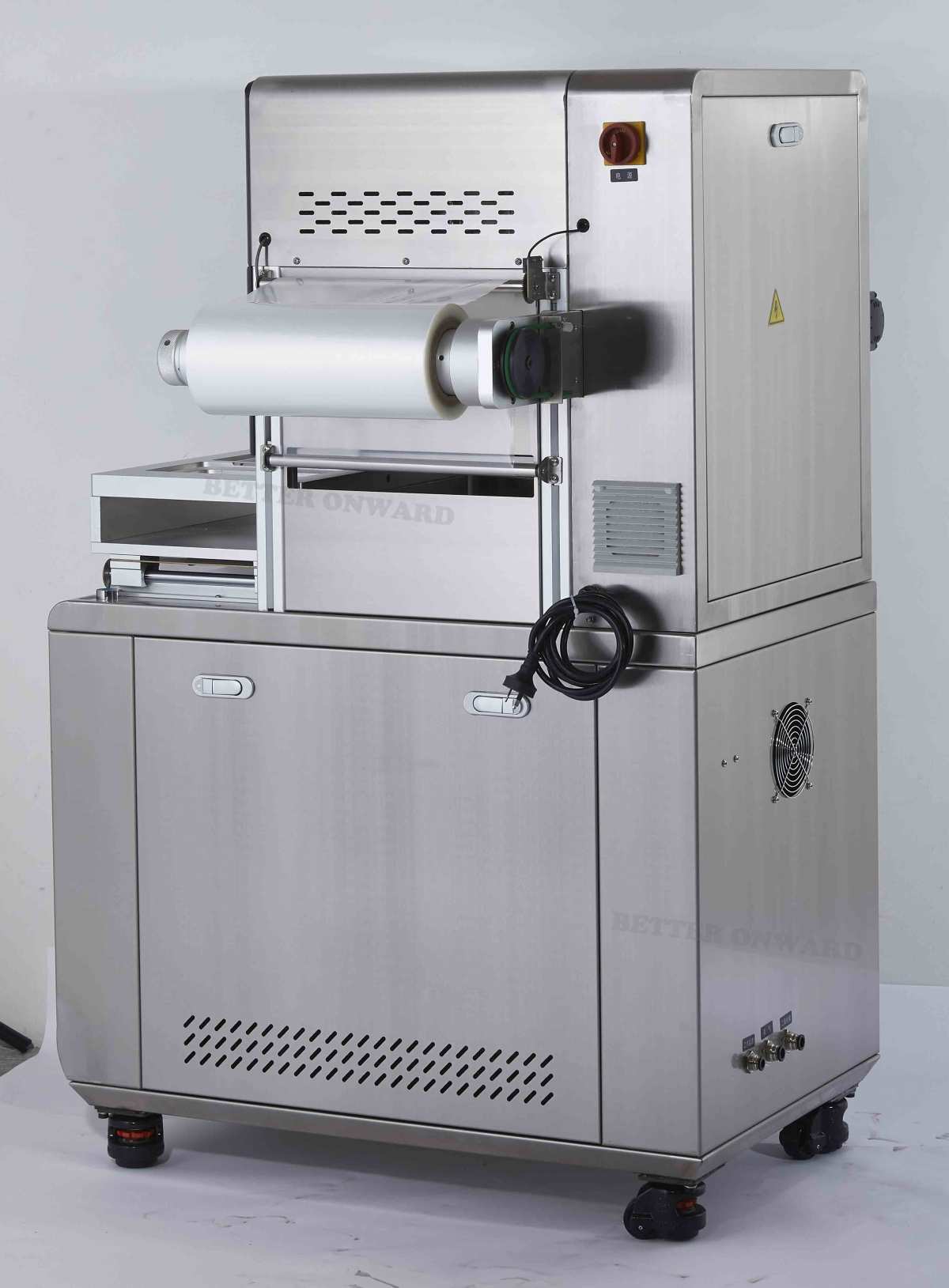

tray-sealer-3
