DQX6040S Automatic Pneumatic Sleeve Wrapper & DSE8060A Jet Type PE Plastic Film Shrink Packaging Machine
Inquiry Now →

Product Description

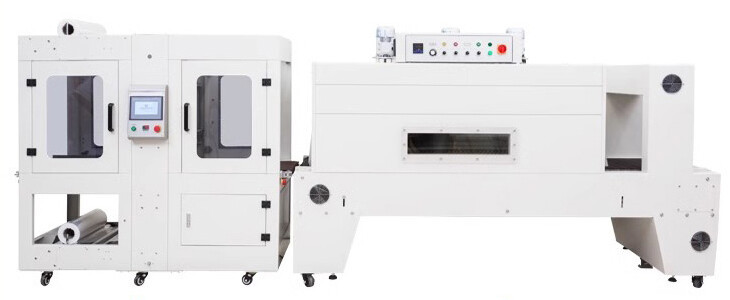

DQX6040S Automatic Pneumatic sleeve wrapper & DSE8060A Jet Type PE Plastic Film shrink packaging machine

DQXS6040S Automatic sleeve wrapper is suitable for wrapping cartons, and also could wrap pop-cans/ bottles with bottom-tray.

It could match with DSE8060A or other model PE shrink tunnels.
Specification
Product name
Automatic sleeve wrapper
Product name
Shrink tunnel
Model
DQX6040S
Model
DSE8060A
Voltage
220V 50/60Hz
Voltage
380V 50Hz
Power
1.5KW
Power
43.6KW
Packing speed
0-12m/min
Conveying speed
0-10m/min
Min. package size
L 120* W120* H80mm
Tunnel size
2000* 800* 600mm
Max. package size
L >120mm,W600mm* H450mm
(Width and height couldn't reach the max.value at the same time)
Conveying way
Net chain
Overall size
L1952* W1155* H1846mm
Overall size
3435* 1138* 1850mm
Conveying load
20kgs
Conveying load
30kgs
Plastic film thickness
0.03-0.25mm
Applicable shrink film
PE POF PVC PP
DQX6040S Automatic Bottle Sleeve Wrapping Machine

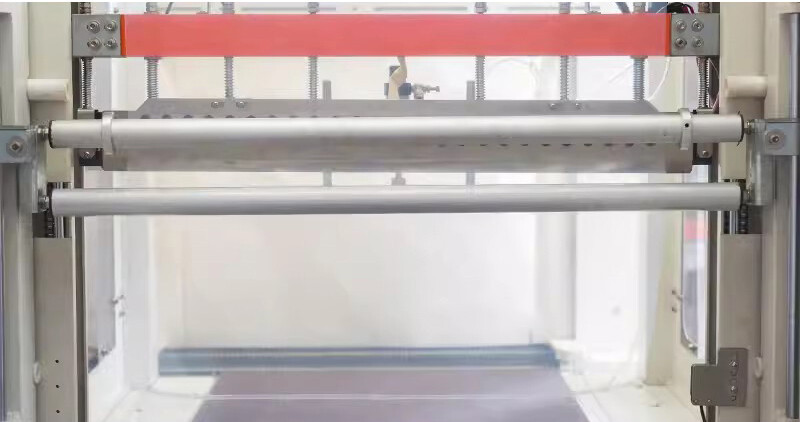

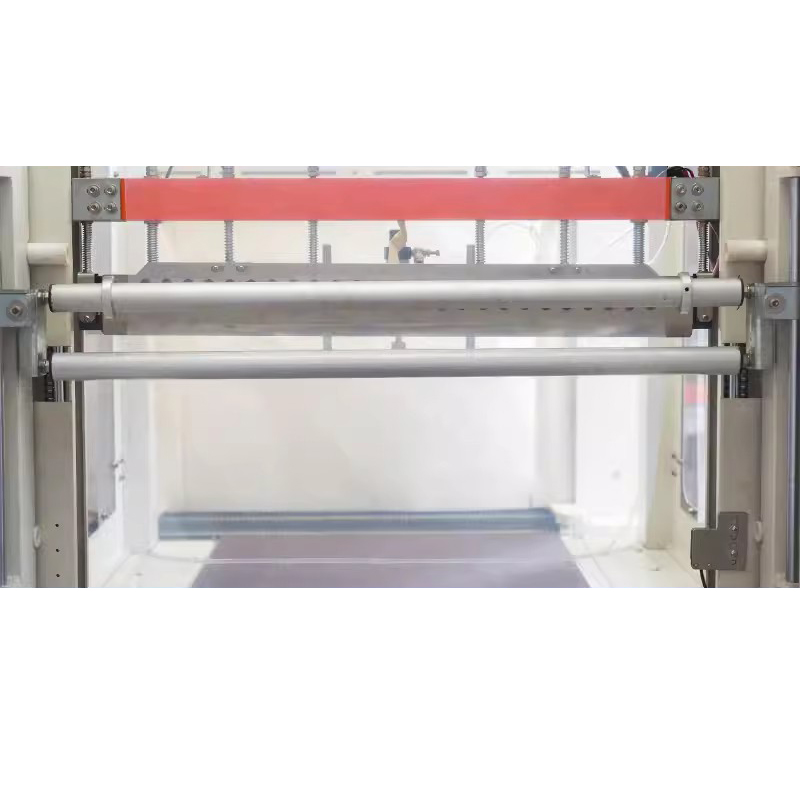

The sealing and cutting blade is coated with Teflon, the sealing is firm. And the blade does not adhere to the plastic film.

The sealing frame is made of high-quality alloy steel, which is not easily deformed.

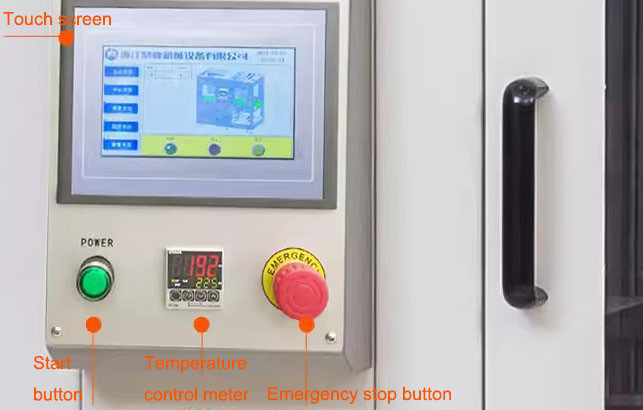

Intelligent touch screen, human-machine interface, just input the length and height of the goods, the system will automatically calculate the packaging length.

It could store multiple solutions and features intelligent design, allowing for quick and easy switching of packaging dimensions.

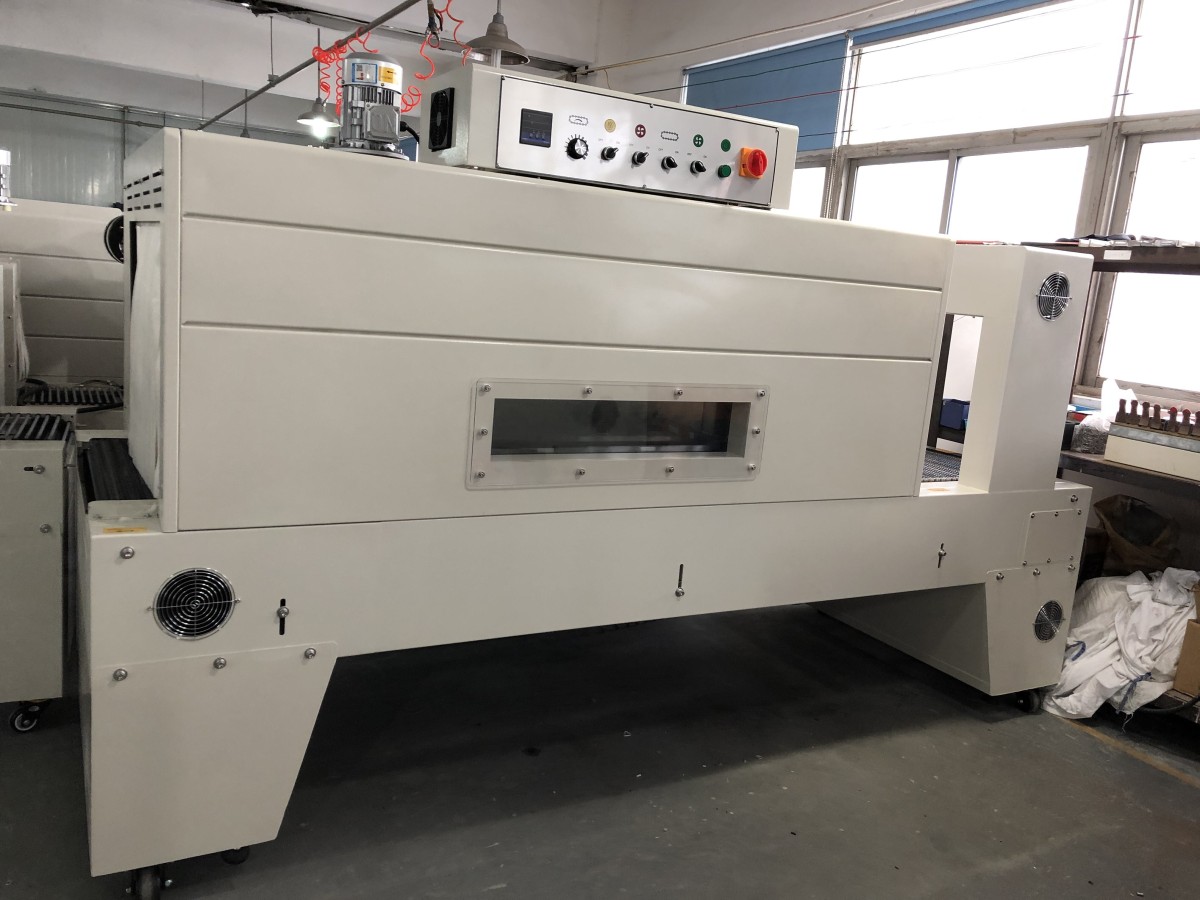

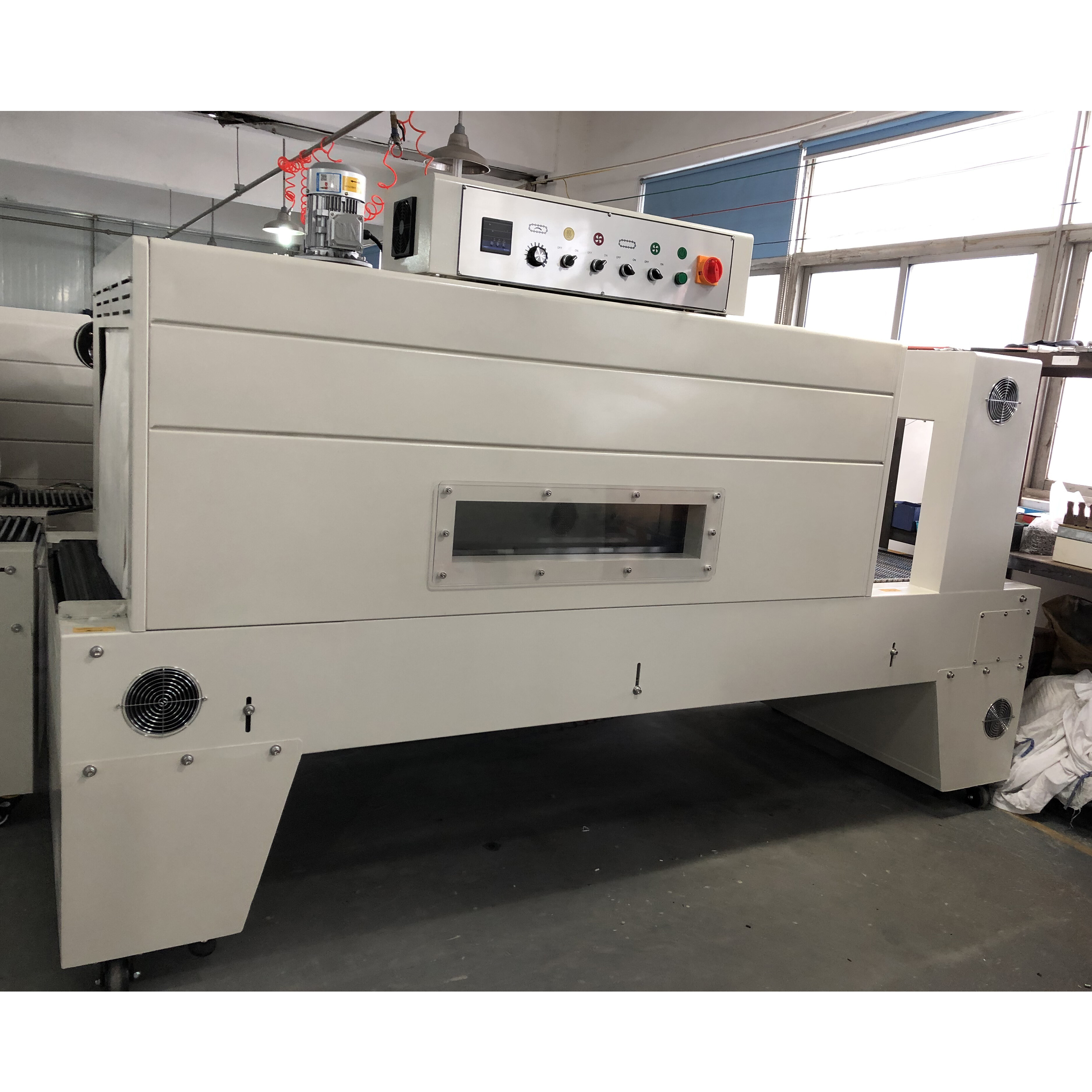

DSE8060A Shrink Packaging Machine


Match with 3pcs high power recirculating hot air fan, the wind power is strong. The plastic film is heated evenly, the shrinking effect is better.

AC motor, has strong power, good performance and long service time.

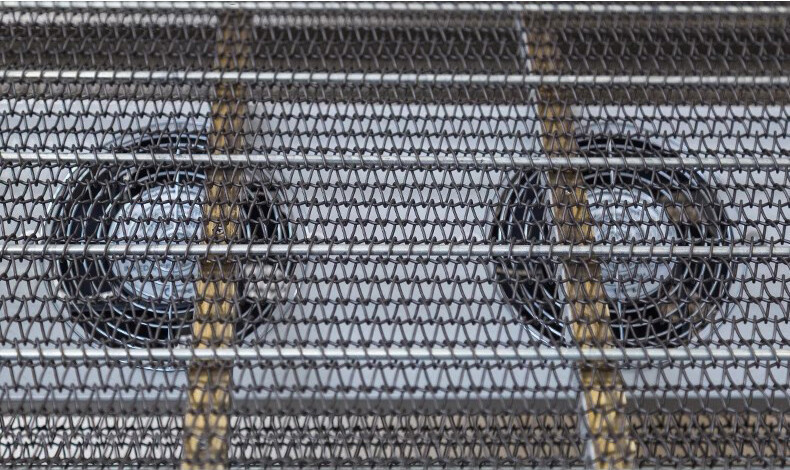

Match with high power cooling fan, the PE plastic film forming effect is good.

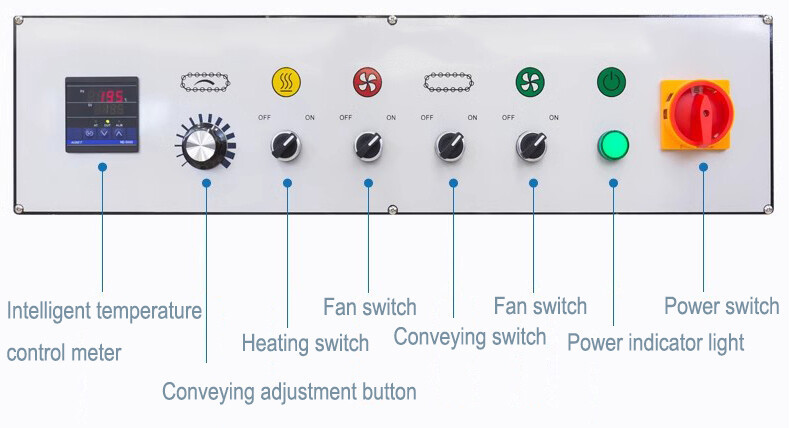

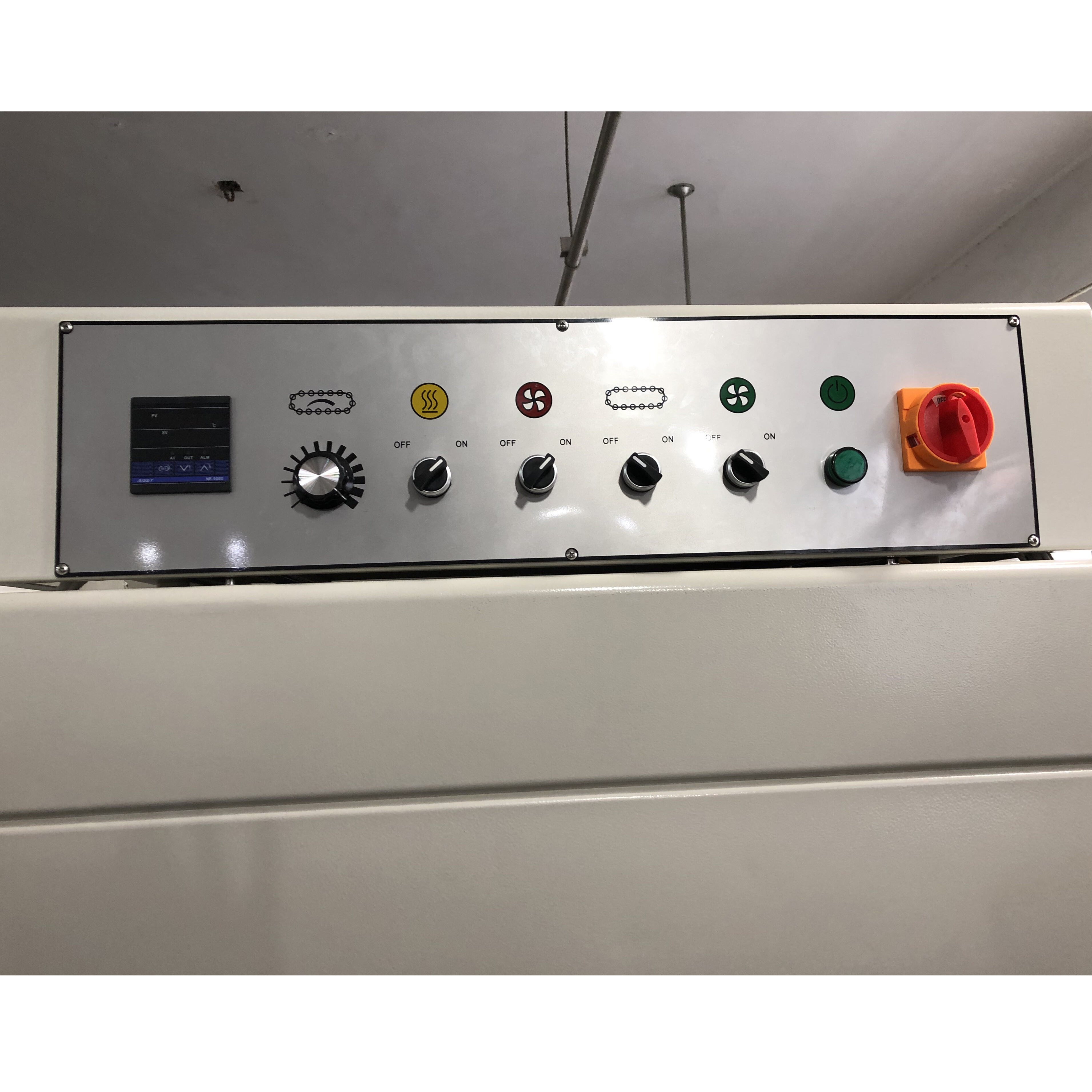

The operation panel is simple and beautiful, the temperature and conveying speed is controllable.

The intelligent temperature controller, could control the temperature more precise, greatly improving the shrink efficiency.
