Product Description

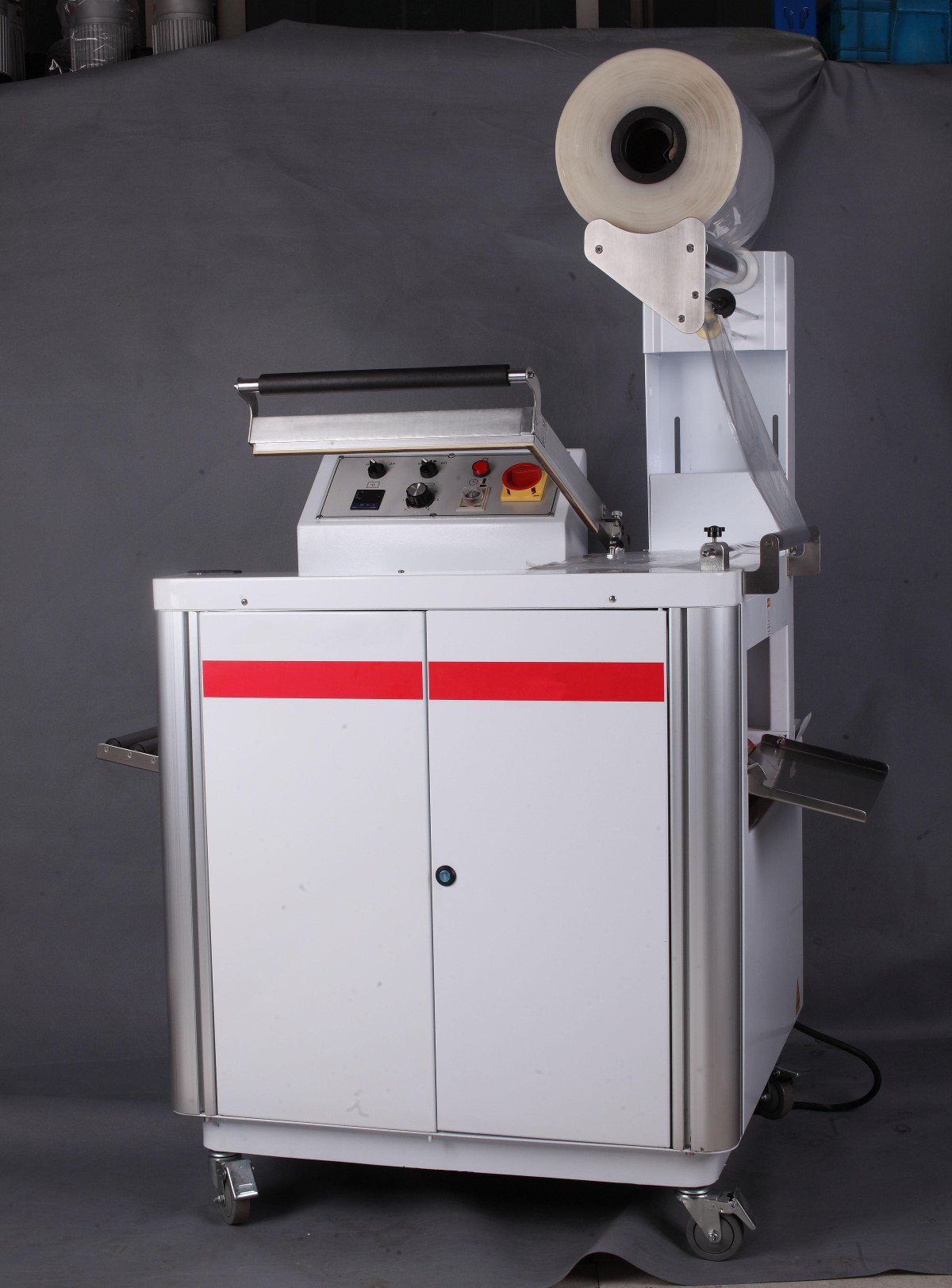

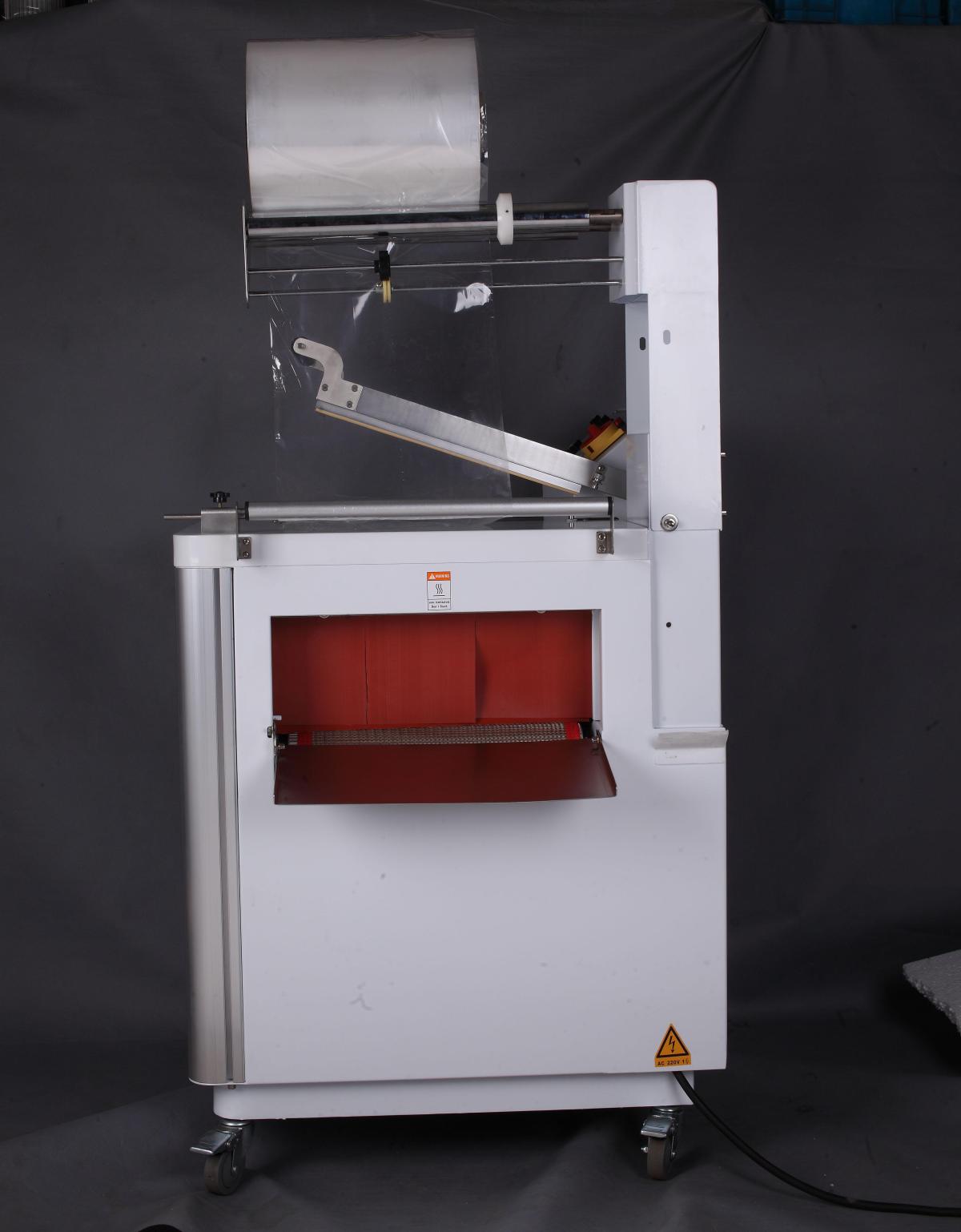

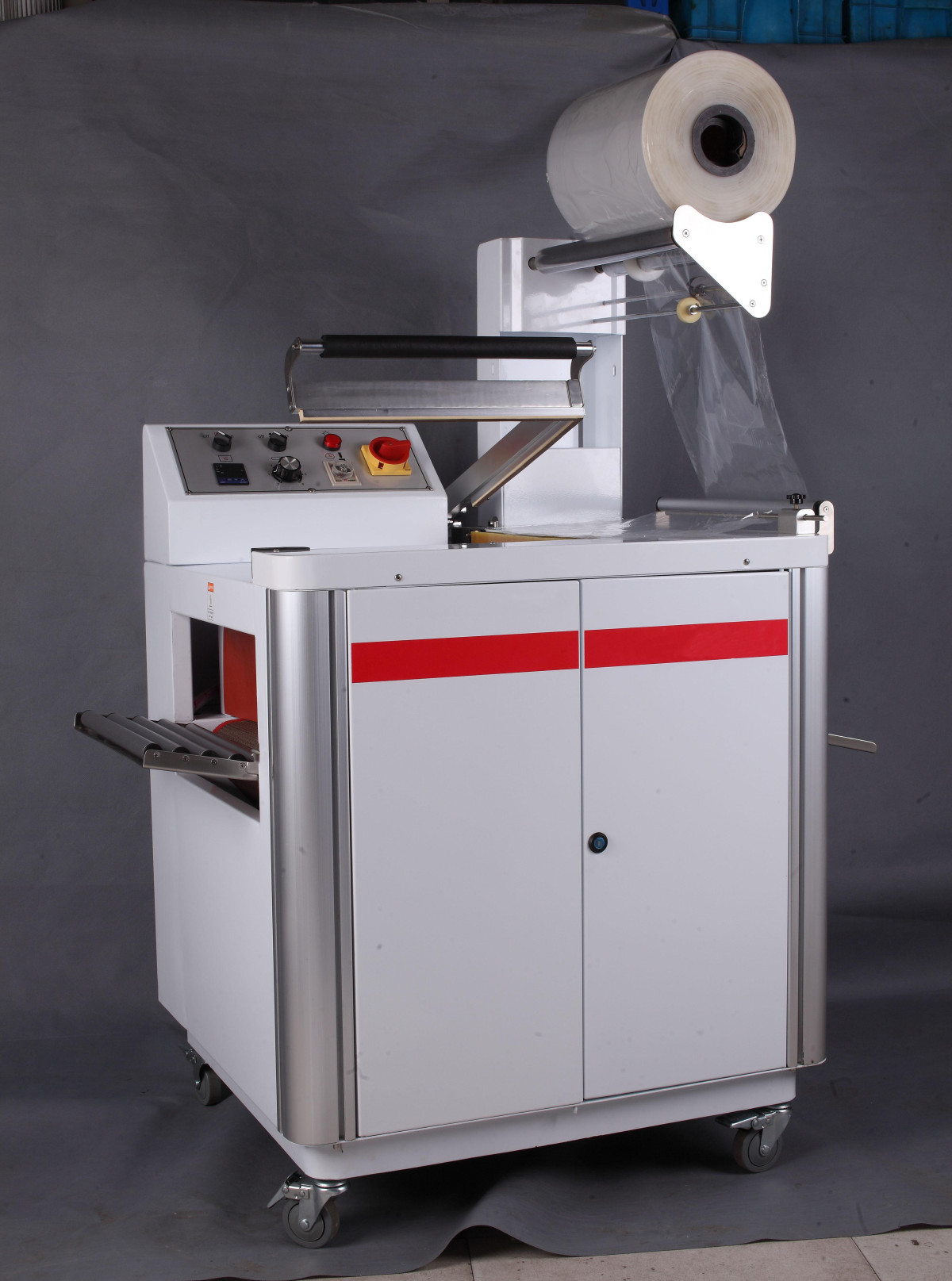

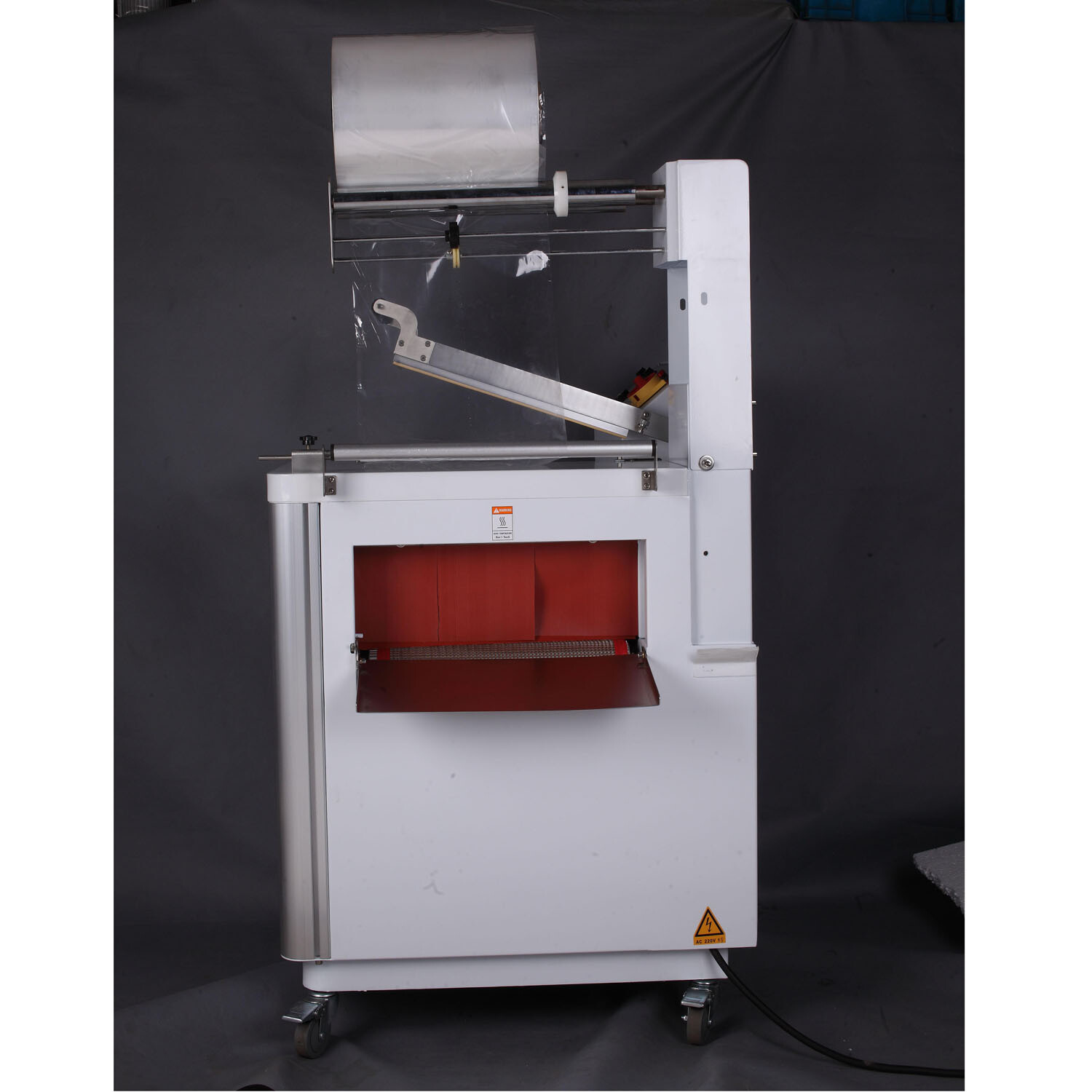

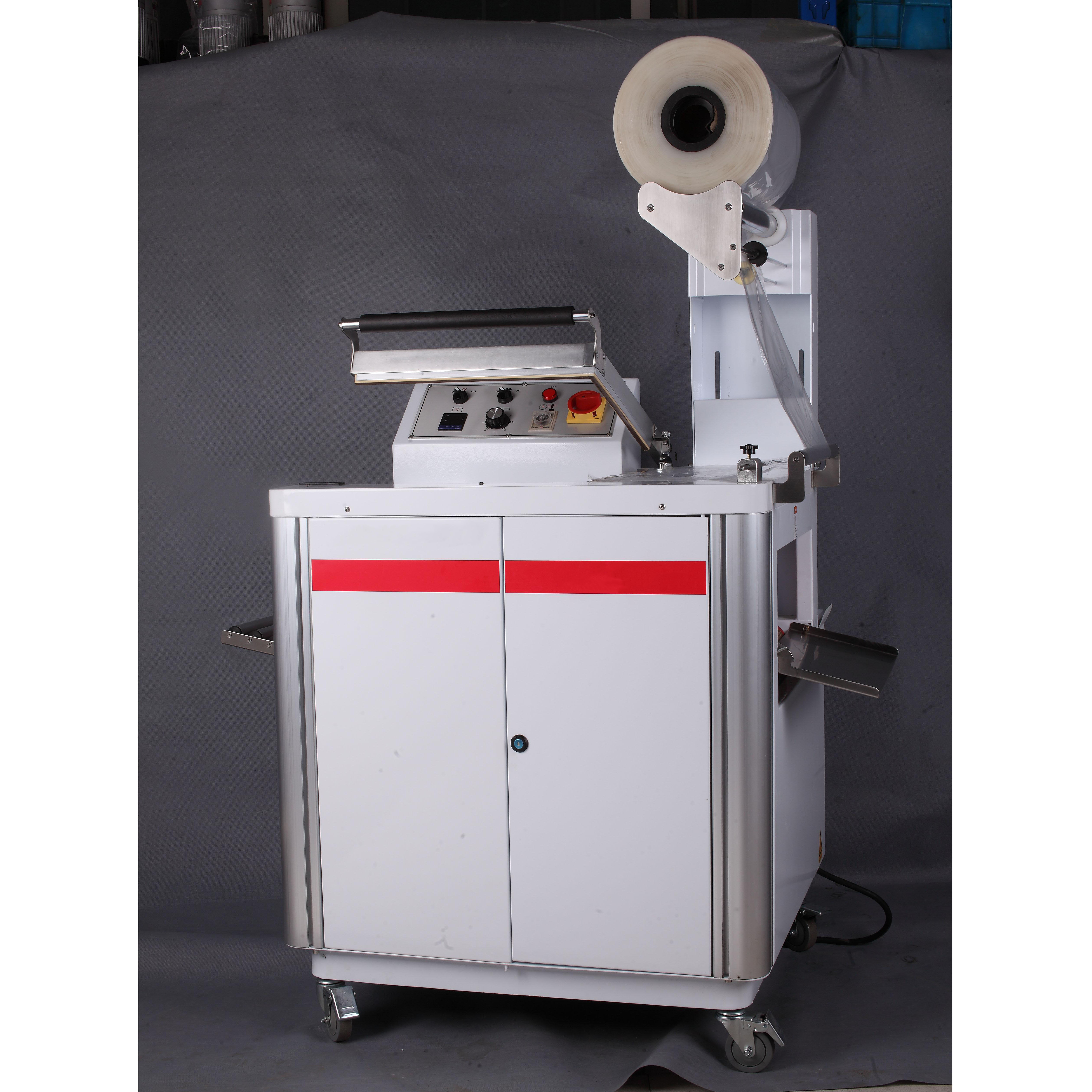

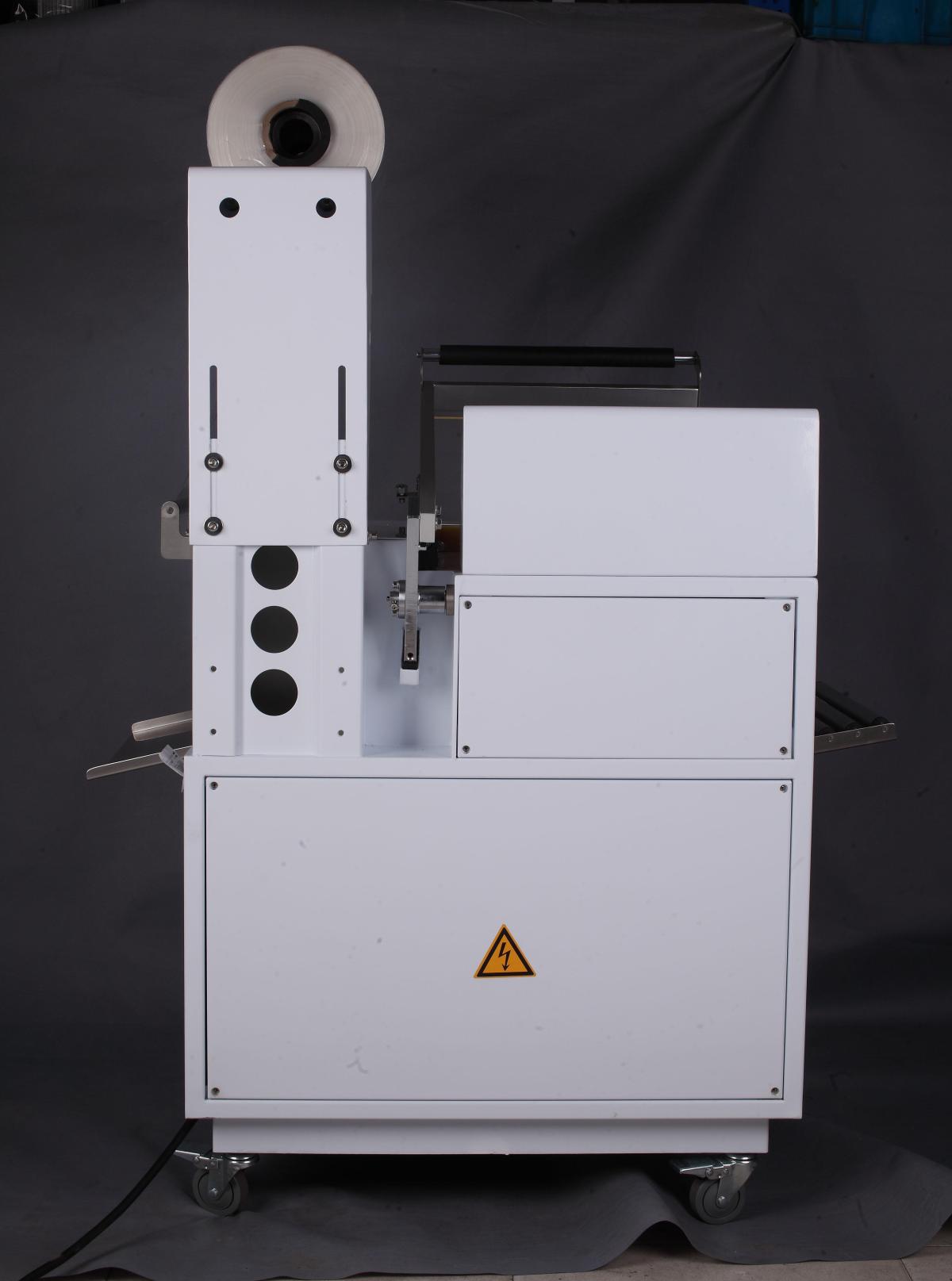

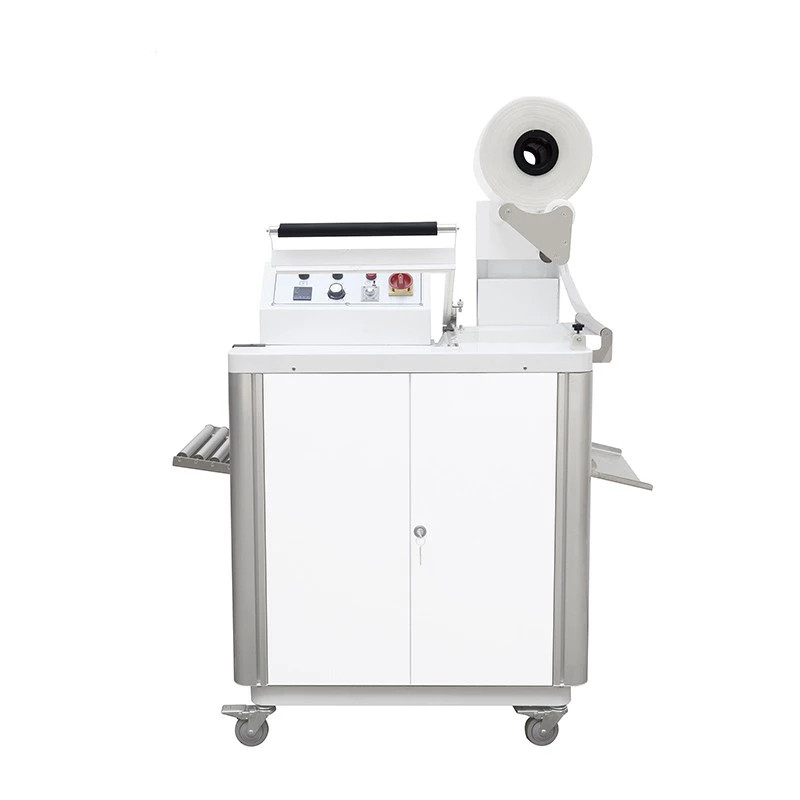

FM400 Plastic Film Seal-Cut-Shrink Packaging Machine

After sealing, heat shrinking is one of the most advanced packing methods in the present market.

We adopt the plastic film to wrap the outside of the goods, after heating, the film will be tightly shrunk on the package, to fully display the appearance.

Specification

Model	FM400
Power supply	AC220-240V/50-60Hz
Seal-cut time	0-3sec
Shrinking time	0-60sec
Packing speed	500-800times/h
Thickness of the film	0.015-0.08mm
Power	3.2KW
Max. packing size	380* 380* 150mm
Machine size	L850mm* W740mm* H(1080-1330)mm
Machine weight	138kgs

FM400 machine absorbs the characteristics of the sealing and cutting machine and the shrinking machine, while improving the various performances of the machine, it also reduces the overall dimensions of the machine.

The machine can continuously convey, combine seal, cut and shrink on one machine.

Operation is simple.

The sealing and cutting function mode and the shrinking function mode could be operated separately, fully meeting various working requirements.

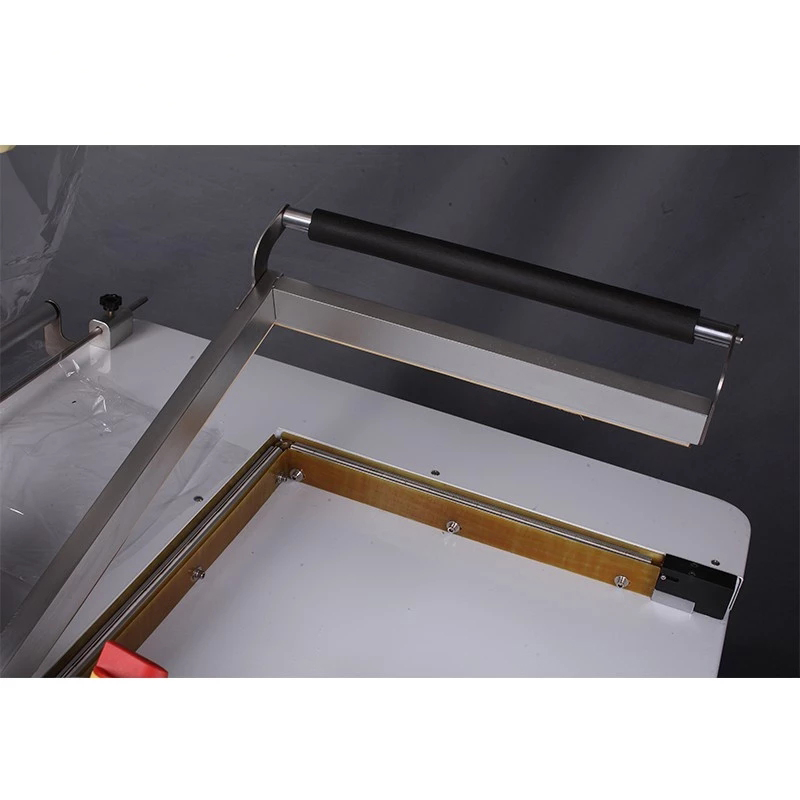

The sealing and cutting part, by heating, to make the shrink film wrap the product and the package tightly, fully displaying the appearance of the goods, improving the product's sales performance, and
increasing its beauty and value.

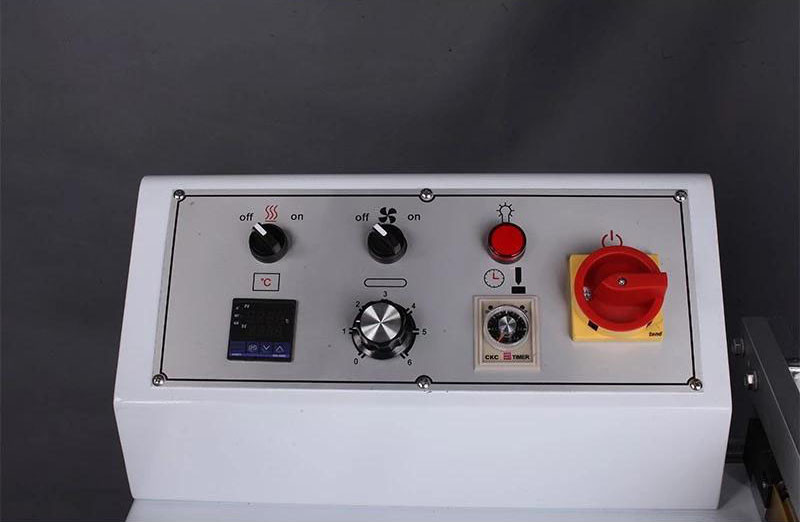

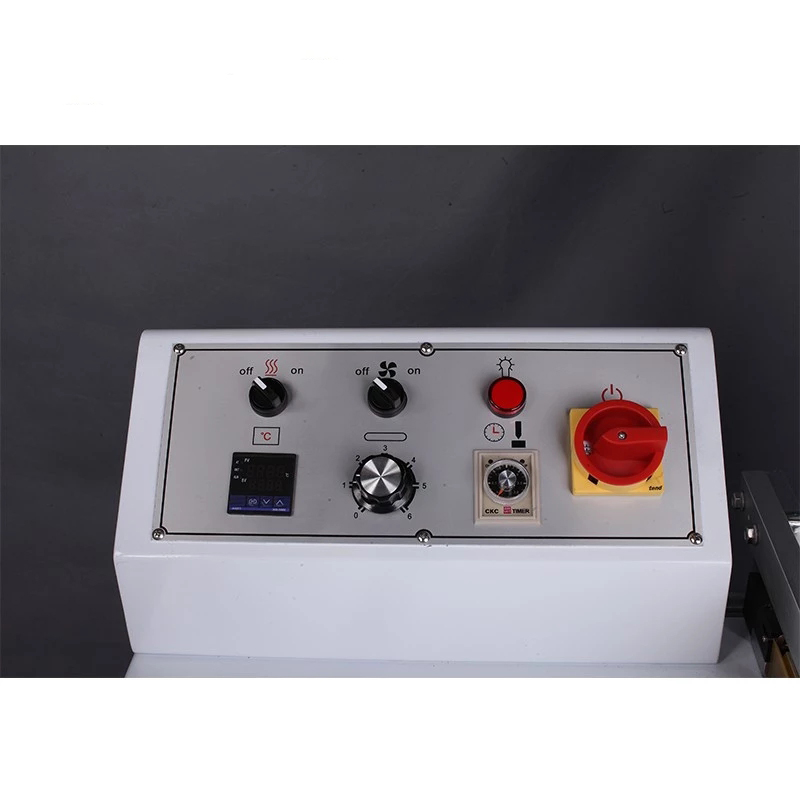

Independent control panel, it could adjust the shrinking temperature of the shrink tunnel and the conveying speed of the conveyor belt.

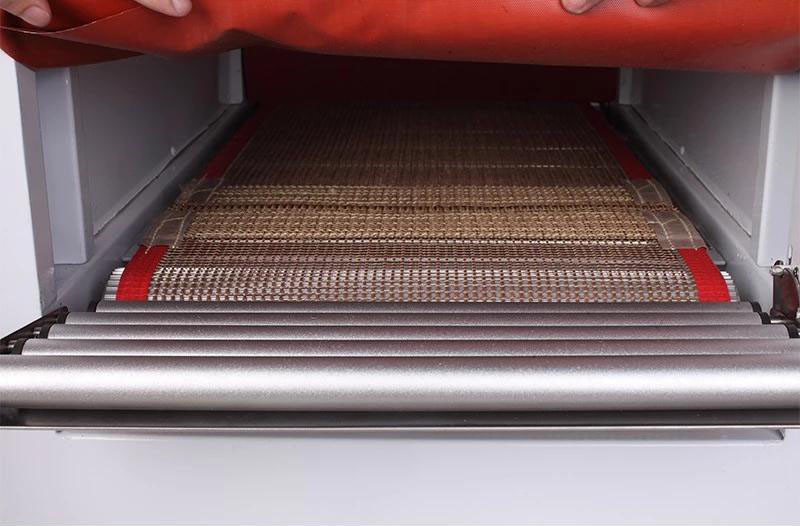

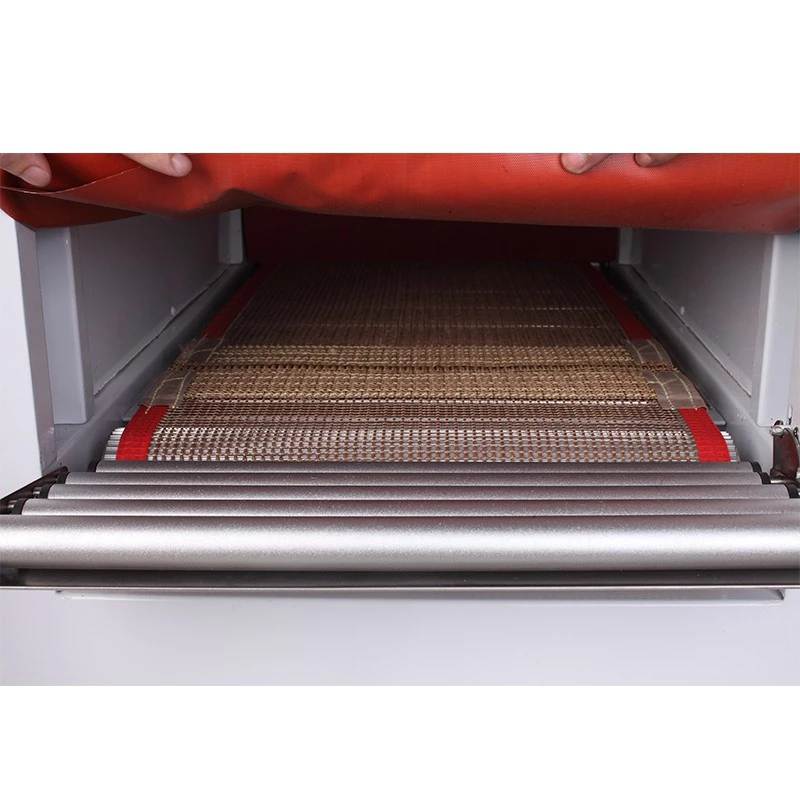

Teflon mesh belt, non-stick film, better shrinking effect.

Jet type shrink tunnel, more uniform shrinking.

Save electricity, low power consumption, AC220V 50Hz, suitable for ordinary households and factories.

The shrinking chamber adopt internal circulation, power is 3.2KW, uniform heating and good shrinking effect.

Application: Suitable for the packaging of glass bottles, paper boxes, electronic
appliances, stationery, books, records, hardware tools, daily necessities, cosmetics, fruits and other multiple items packaging.

The packaged goods are well sealed, moisture-proof and anti-dirty.
With a certain degree of cushioning performance, could protect the goods from external shocks, especially for the some fragile items. It can prevents the fragile items from splashing when the package is crushed. Besides, it can decrease the possibility of being demolished or stolen.
To be simple, the machines pack the products with a layer of plastic film, which makes the package more beautiful and firm.
