Product Description

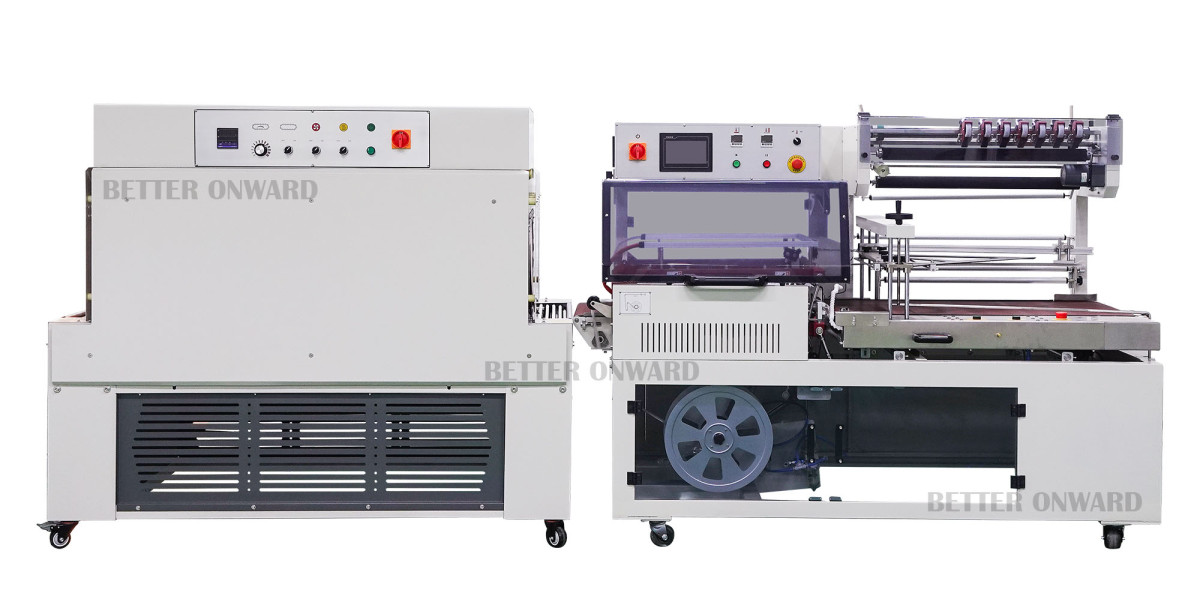

DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine
High automation level, working with shrink tunnel, sealing, cutting and shrinking are completed in one step, and it could achieve high-speed unmanned automatic operation.
DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine
Specification
Model
DQL6560S
DSC6030A
Max. packing size (mm)
H≤140 L+2H≤650 W+2H≤600
W600×H300
Max. sealing size (mm)
L650×W600
/
Power(KW)
2.6KW
26.4KW
Capacity
0-30 pcs/min
0-16 m/min
Voltage
220V 50/60HZ
220V/380V,50~60HZ
Shrink tunnel(mm)
/
L1500xW600XH300
Loading weight
/
20kg
Sealing temperature
180℃—250℃ depends on thickness of film and environment temperature
Thickness of film(mm)
0.012-0.05
Air pressure(Kg/cm2)
4-6
Packing material
POF
Machine weight (kg)
400
*
Machine size (mm)
L2050* W1100* H1650
L1810* W977* H1565

DQL6560S Automatic L-type

DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine

DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine
High automation level, working with shrink tunnel, sealing, cutting and shrinking are completed in one step, and it could achieve high-speed unmanned automatic operation.
DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine
Specification
Model
DQL6560S
DSC6030A
Max. packing size (mm)
H≤140 L+2H≤650 W+2H≤600
W600×H300
Max. sealing size (mm)
L650×W600
/
Power(KW)
2.6KW
26.4KW
Capacity
0-30 pcs/min
0-16 m/min
Voltage
220V 50/60HZ
220V/380V,50~60HZ
Shrink tunnel(mm)
/
L1500xW600XH300
Loading weight
/
20kg
Sealing temperature
180℃—250℃ depends on thickness of film and environment temperature
Thickness of film(mm)
0.012-0.05
Air pressure(Kg/cm2)
4-6
Packing material
POF
Machine weight (kg)
400
*
Machine size (mm)
L2050* W1100* H1650
L1810* W977* H1565

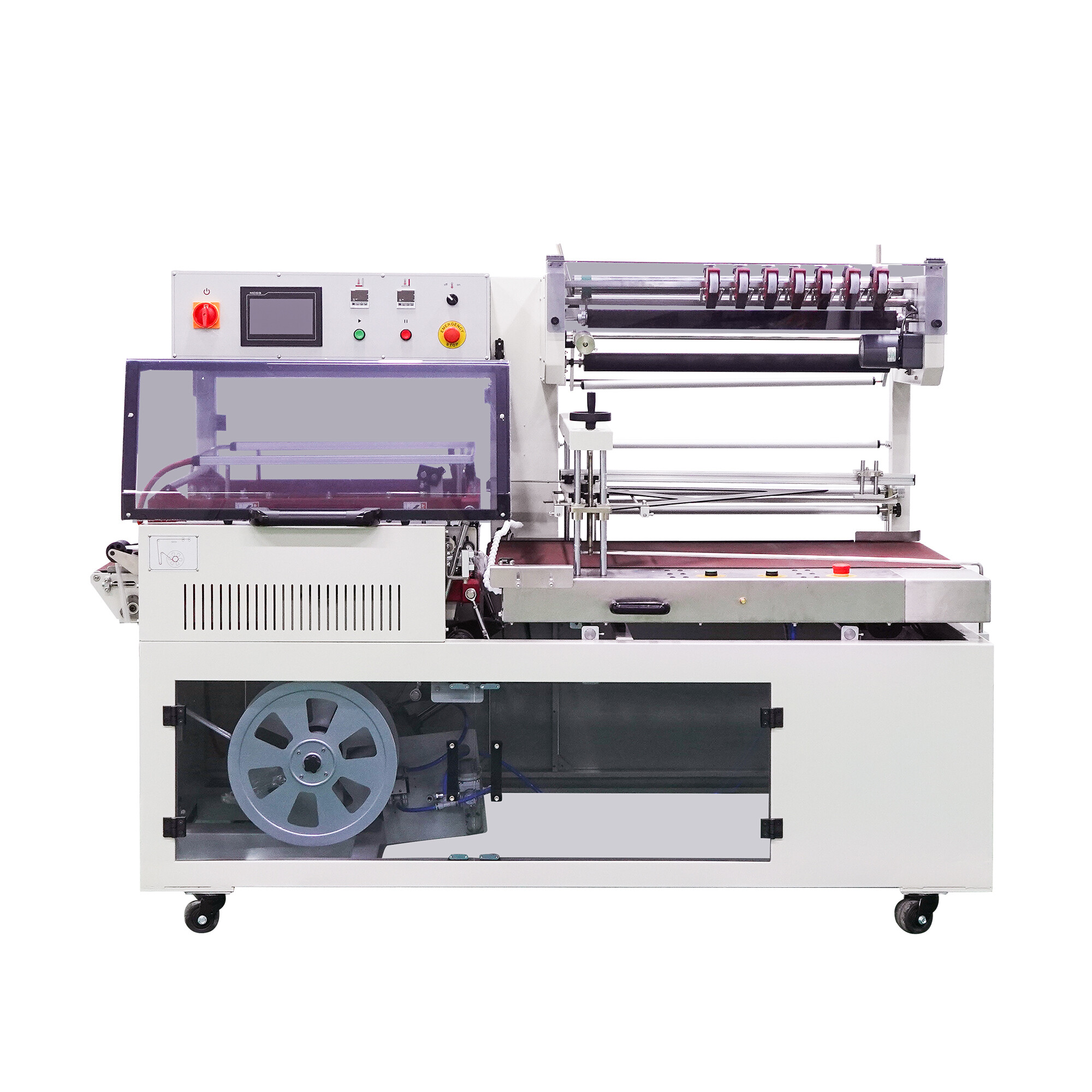

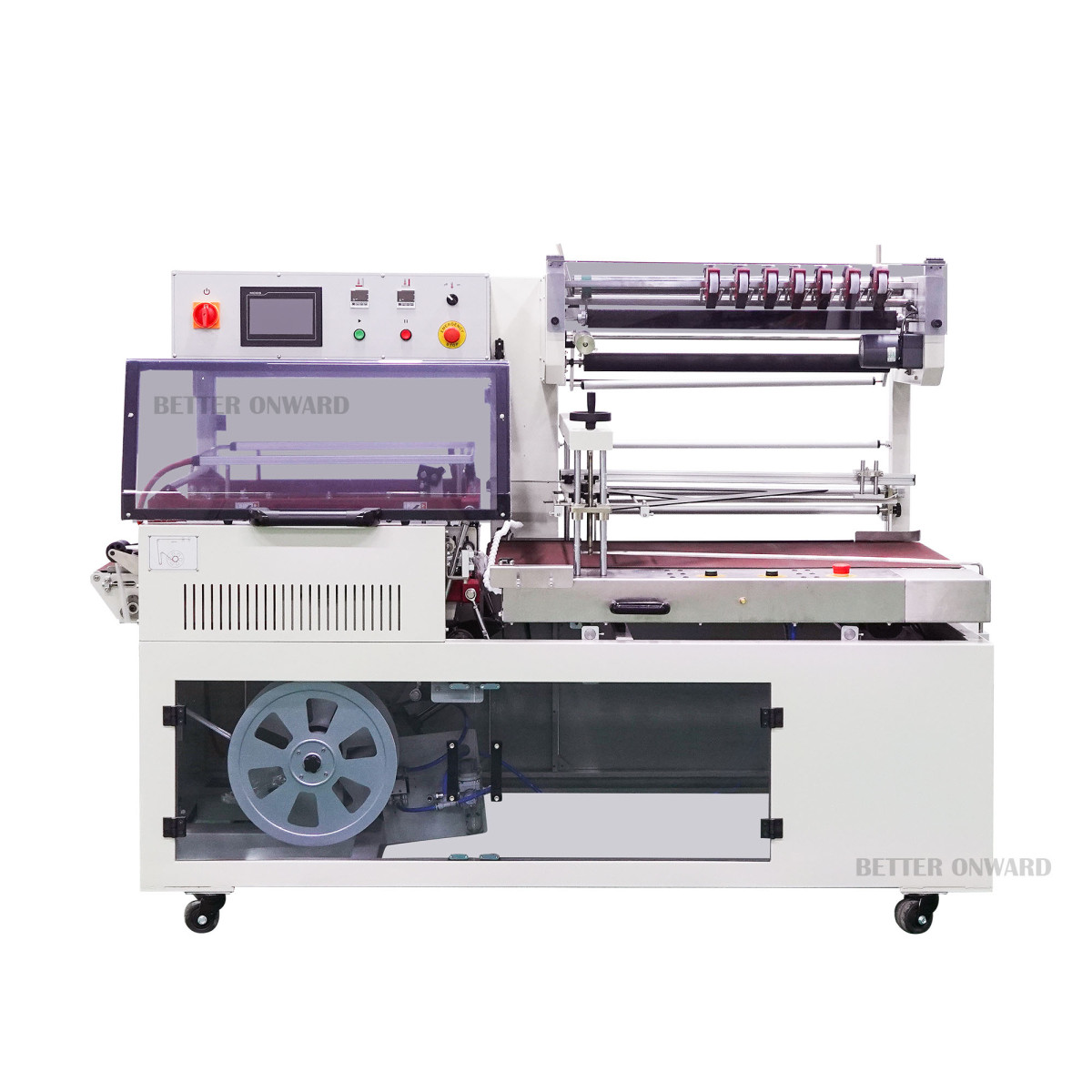

DQL6560S Automatic L-type sealer
DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine

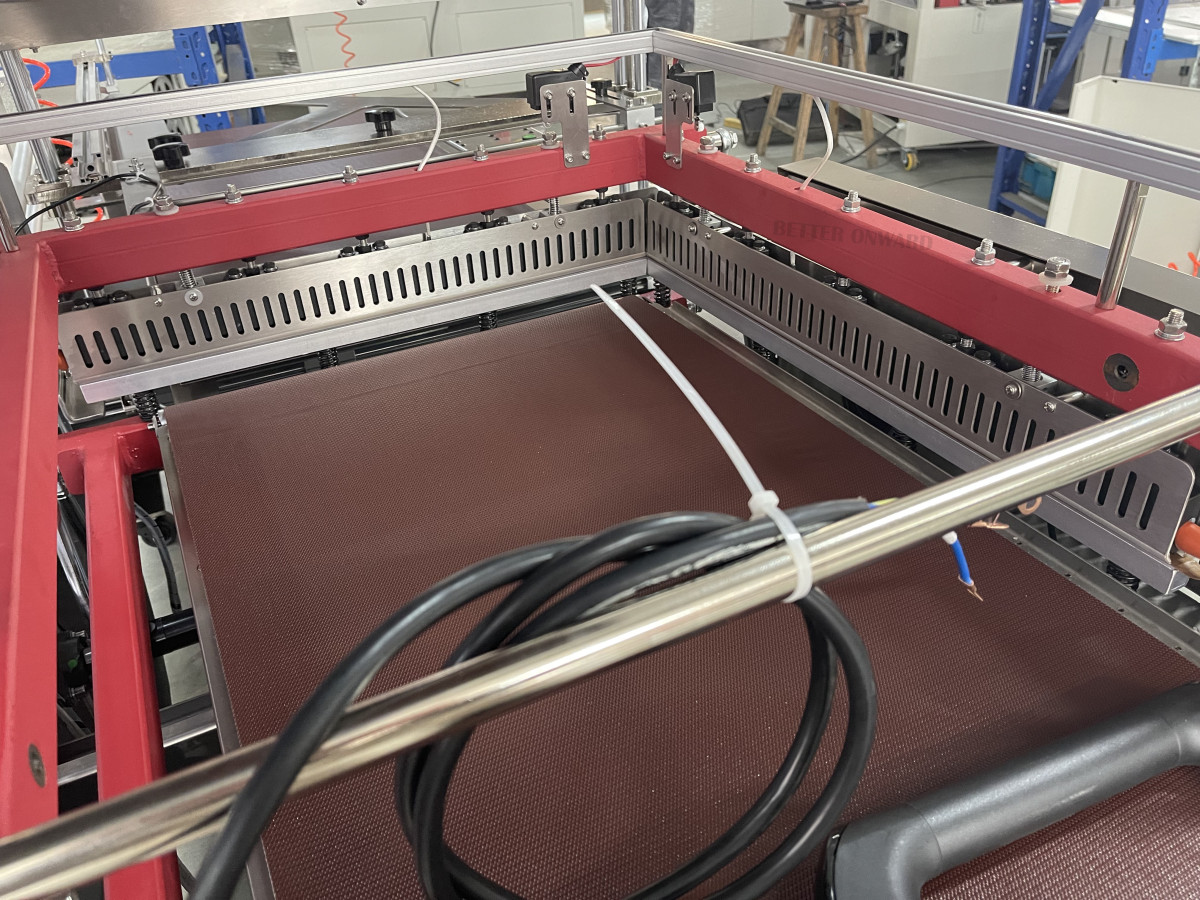

The sealing blades adopt copper alloy sprayed with Teflon, it won't stick film, sealing fastness, without smoke, non-pollution.


Horizontal and vertical sealing blades adopt whole connecting without gap, the film won't break.

Sealing frame adopts high quality
alloy steel, the sealing quality is stable, frame difficult to be damaged.

DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine

The machine has entire automatic system.

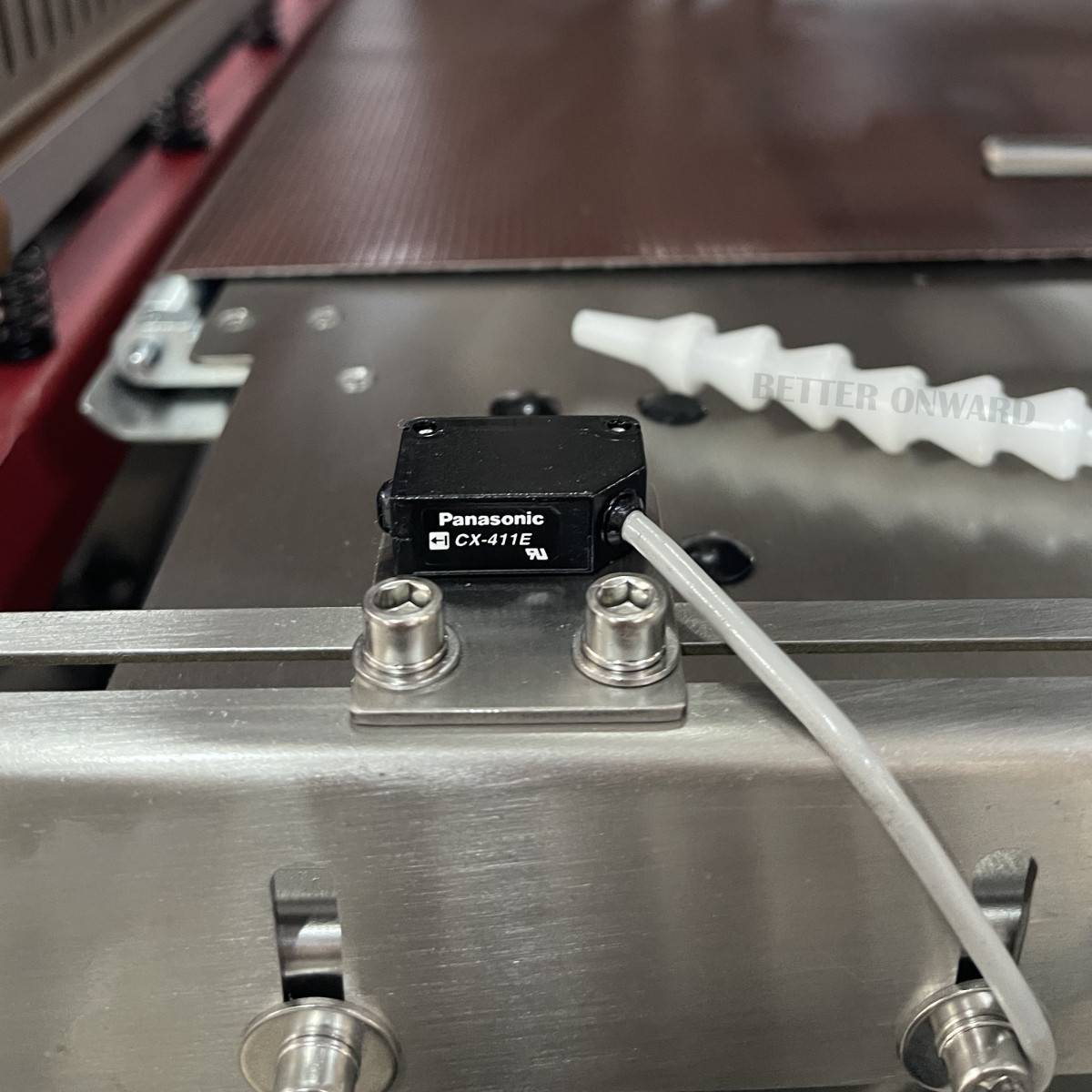

Panasonic photoelectric sensor has high sensitivity and precise response.

DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine

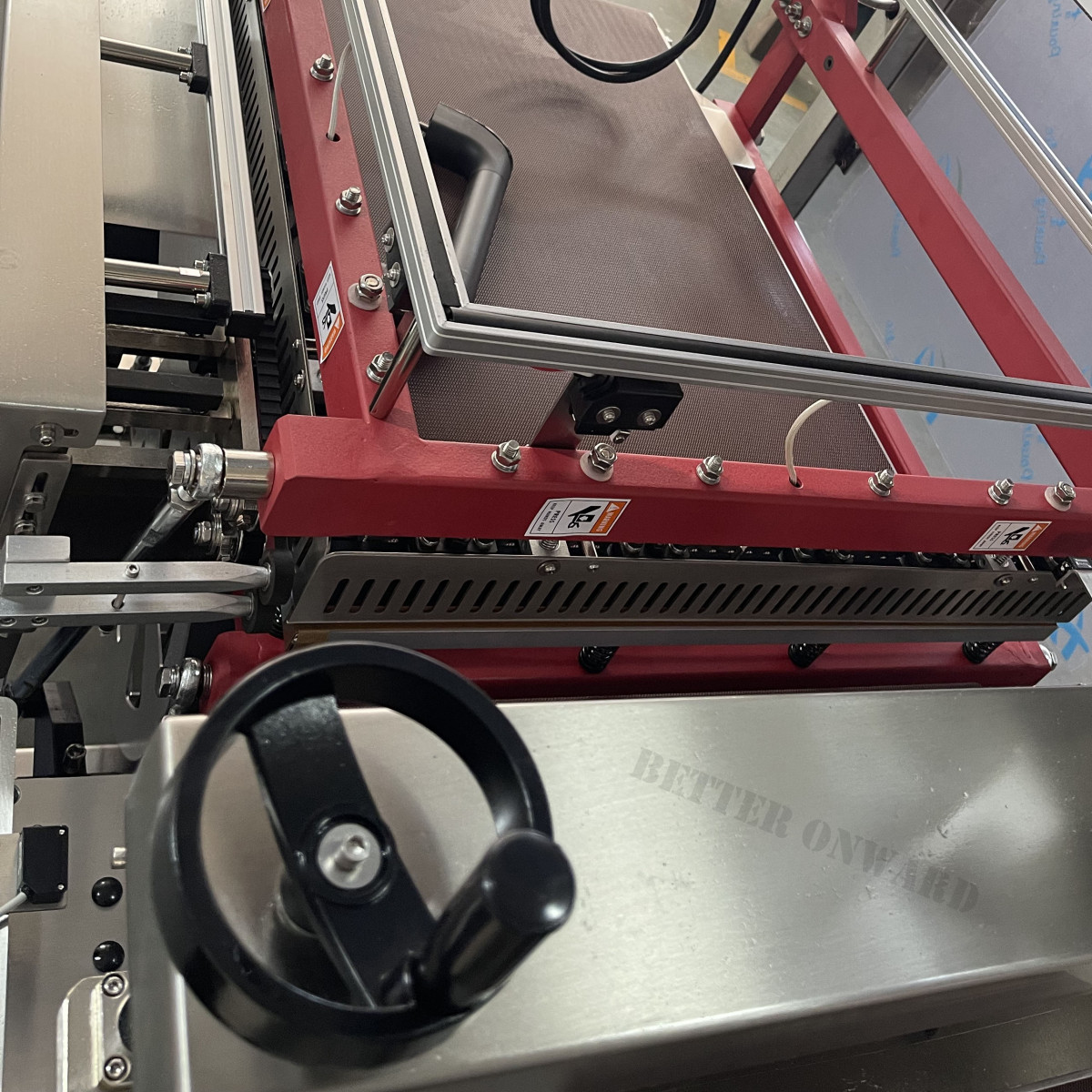

It is convenient to adjust according to different sizes products, just adjust the handle wheel can reach it, operation is easy.

DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine

It can be connected with production line.

DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine

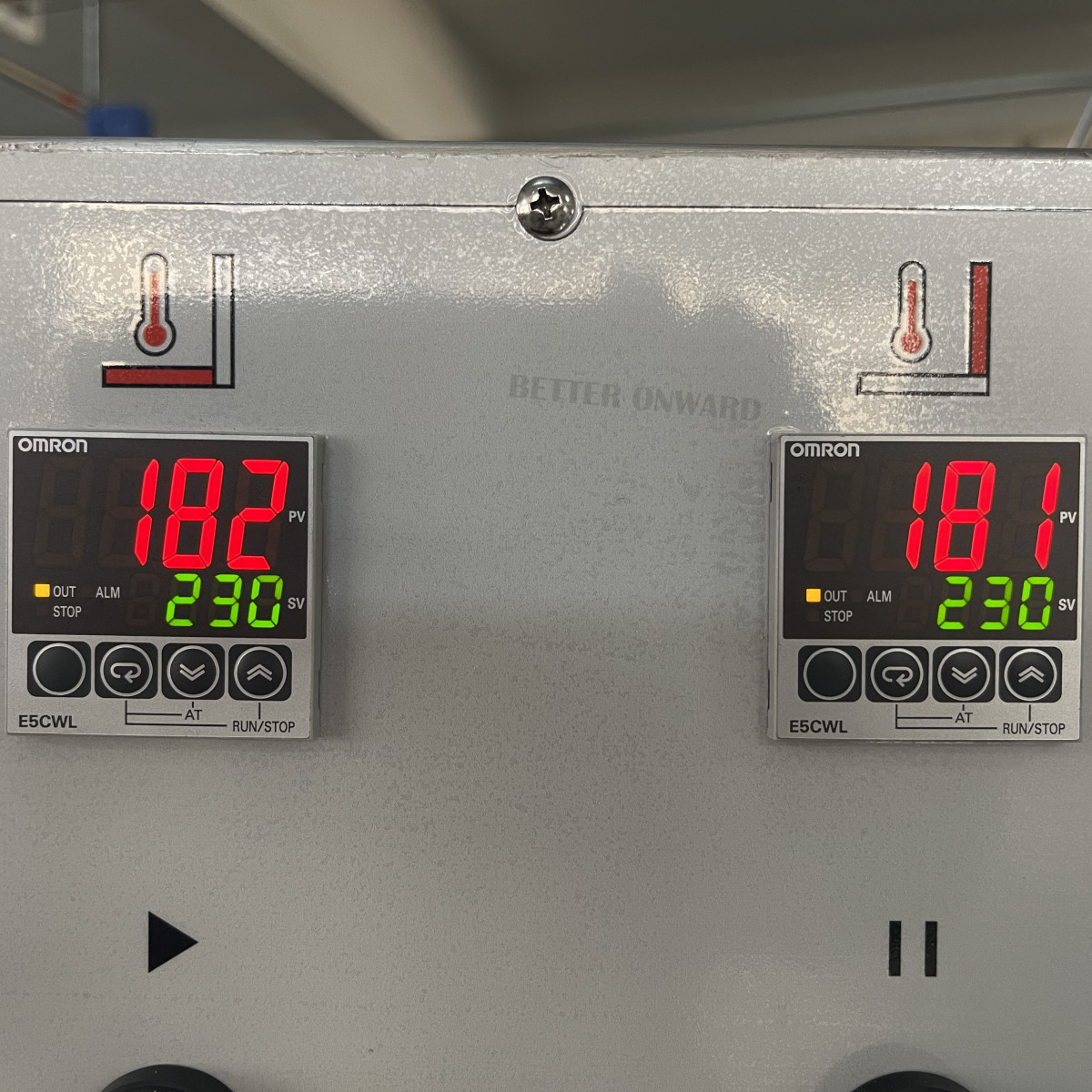

Omron temperature control meter

DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine

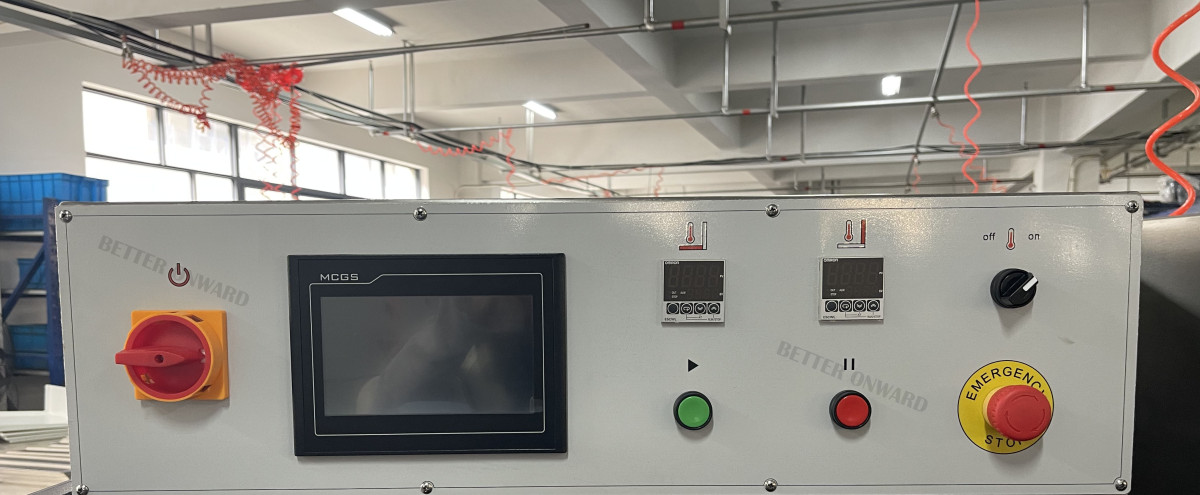

Operation Panel, Easy to Operate.

DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine

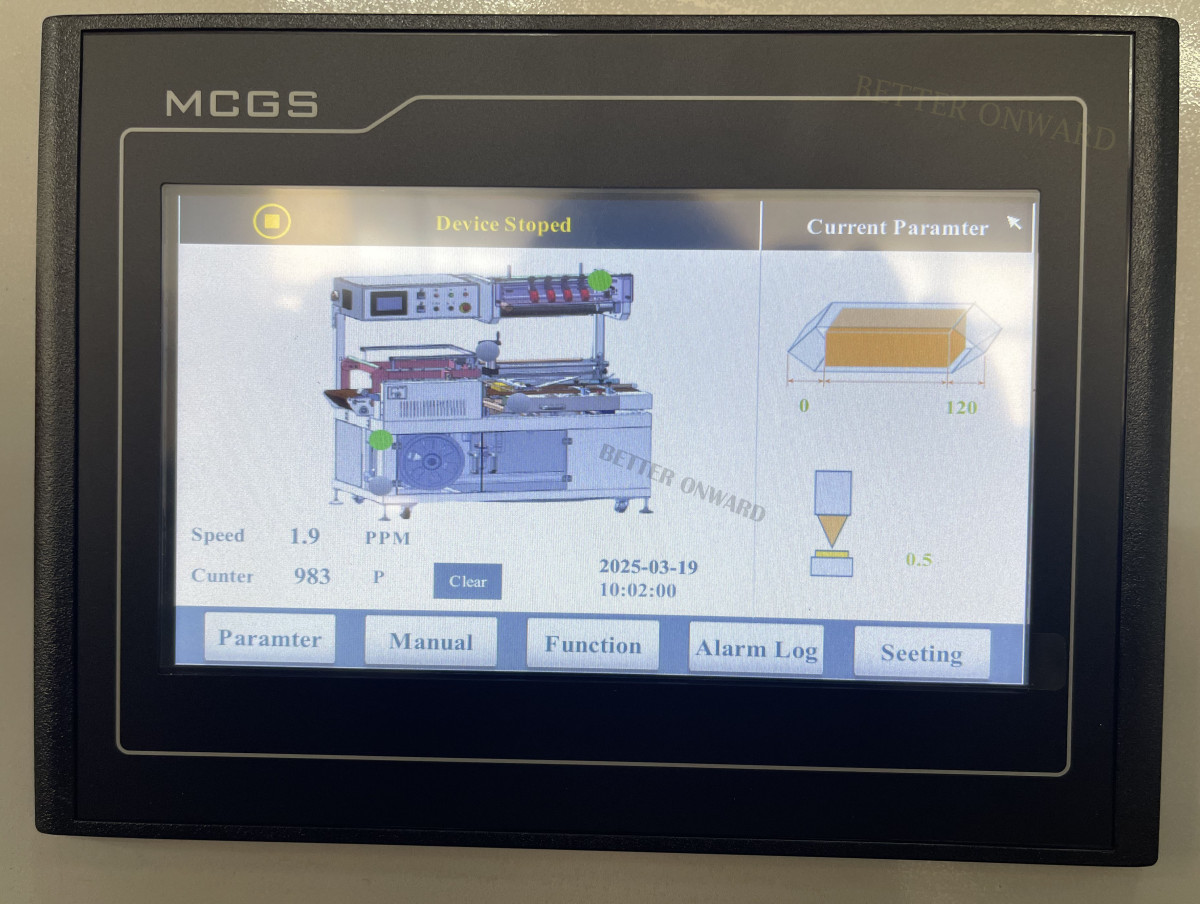

Editable touch screen

DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine

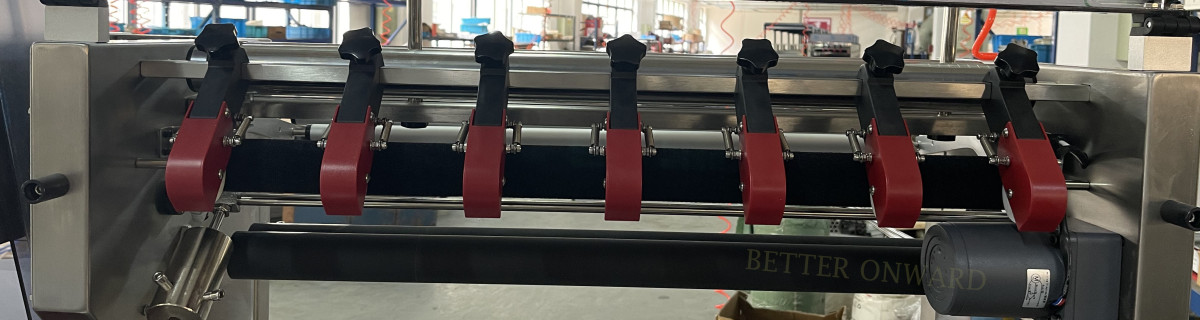

The perforating position is adjustable. According to the size of the film, could adjust the interval.

DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine

It has protection function to avoid sealing product wrong and ensure the safety of operator.

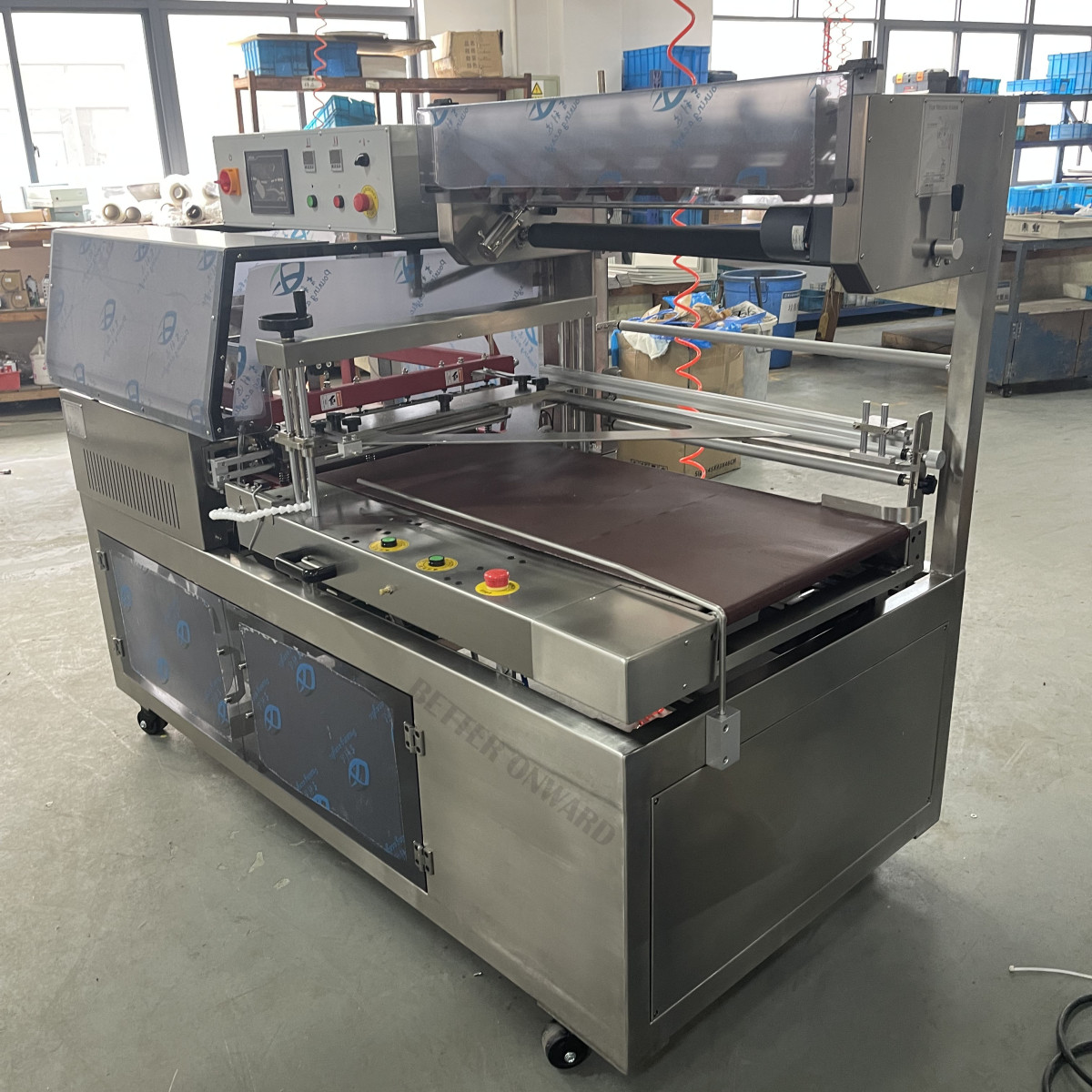

Our machine could customize to 304 stainless steel.

DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine

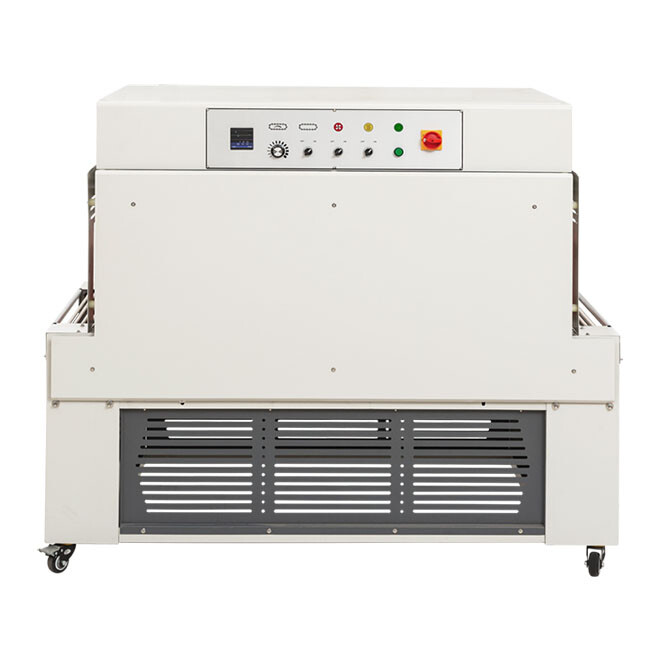

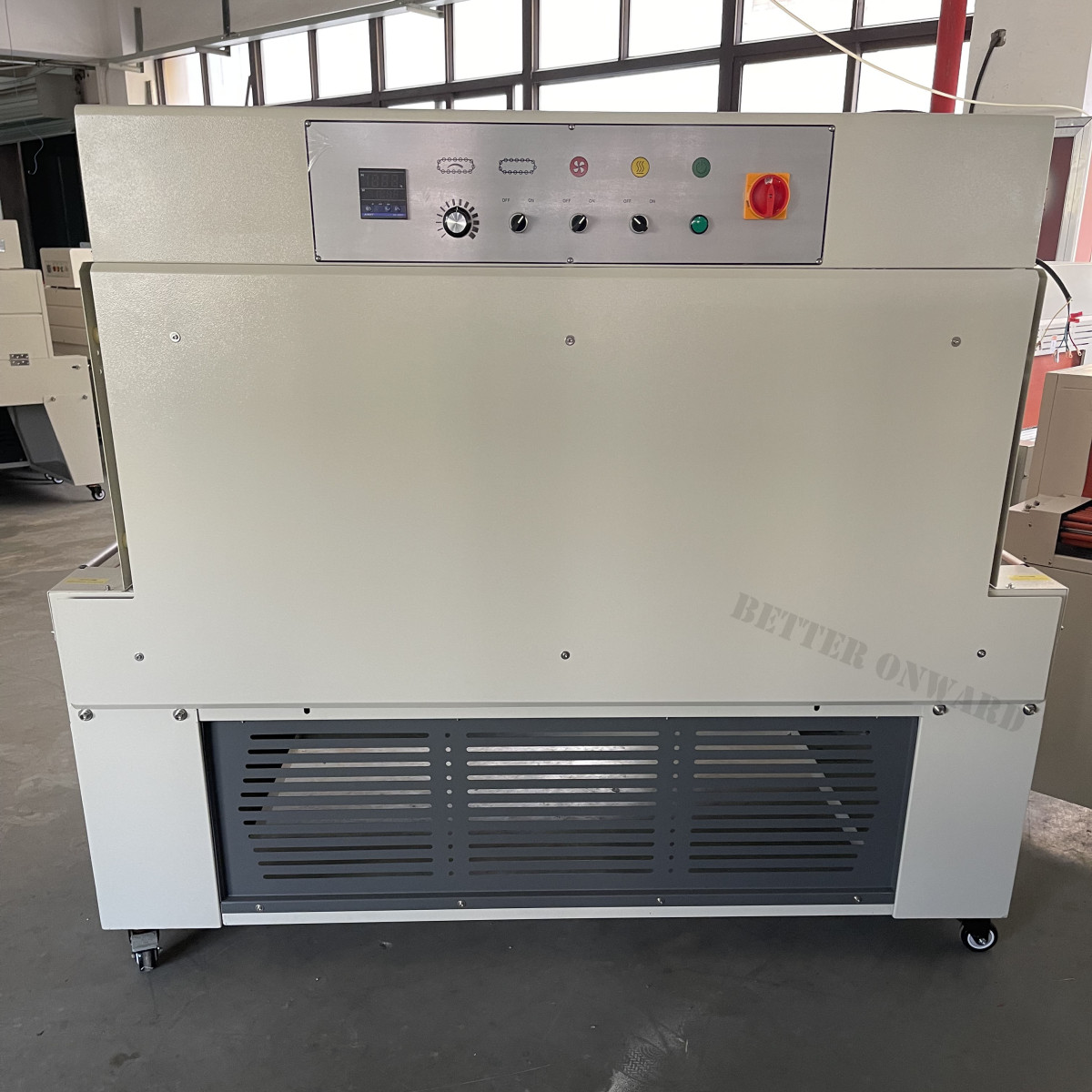

DSC6030A shrink tunnel

It adopts Schneider AC contactor, high-power Solid state booster and intelligent temperature controller to make temperature system more accurate, prolong the working life.
It adopts high-power fan motor to ensure enough strong wind to reach perfect packing effect.

DQL6560S & DSC6030A Automatic L-type Sealer and Shrink Packaging Machine

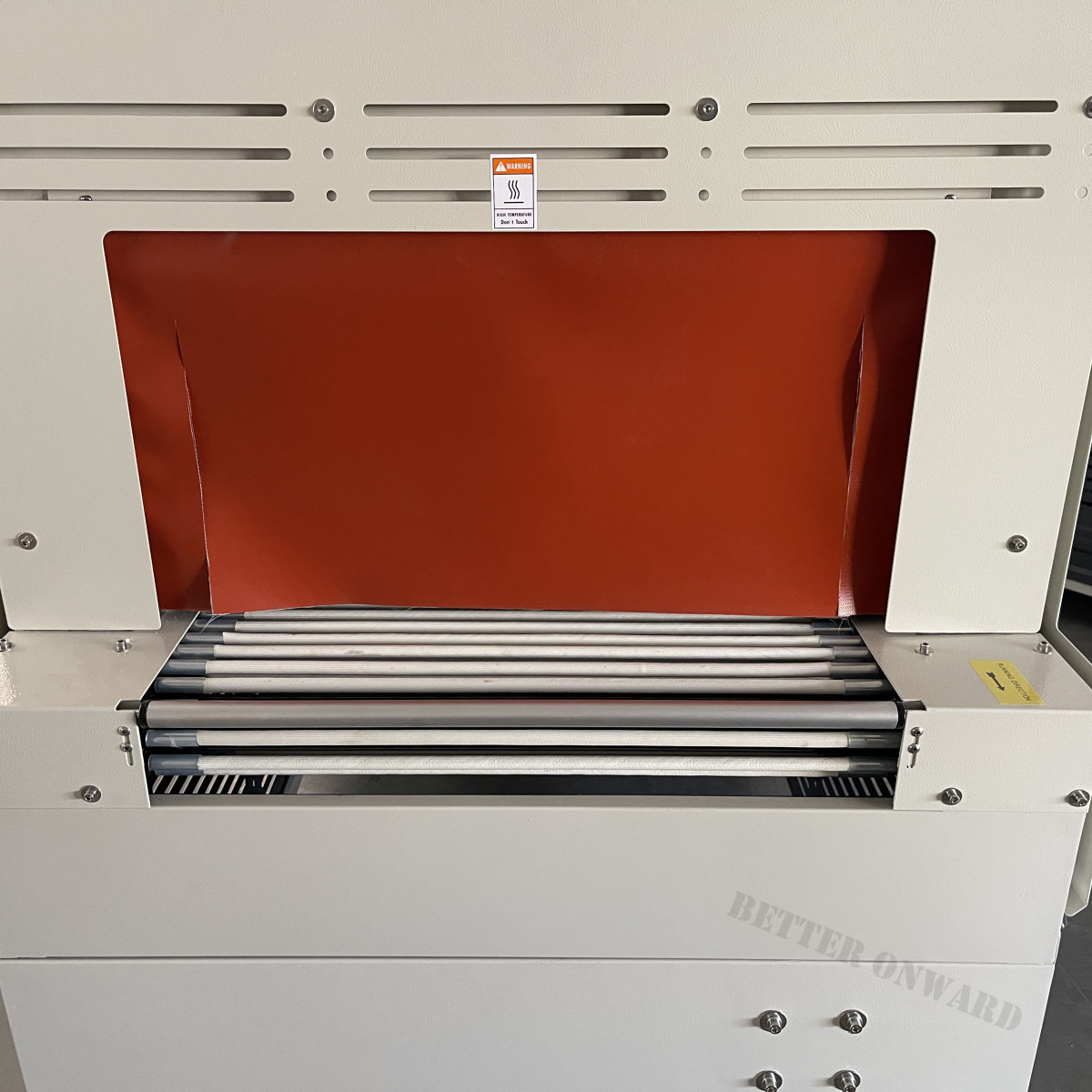

It adopt solid roller conveyor, the rollers wrapped with high temperature silica gel tube.

It can stand heavy product, and is difficult to abraded. (you can choose net type conveyor).

Inside wall adopts stainless steel, it has fast temperature transfer, even heating, low energy consumption, long working life characteristics.
