Product Description

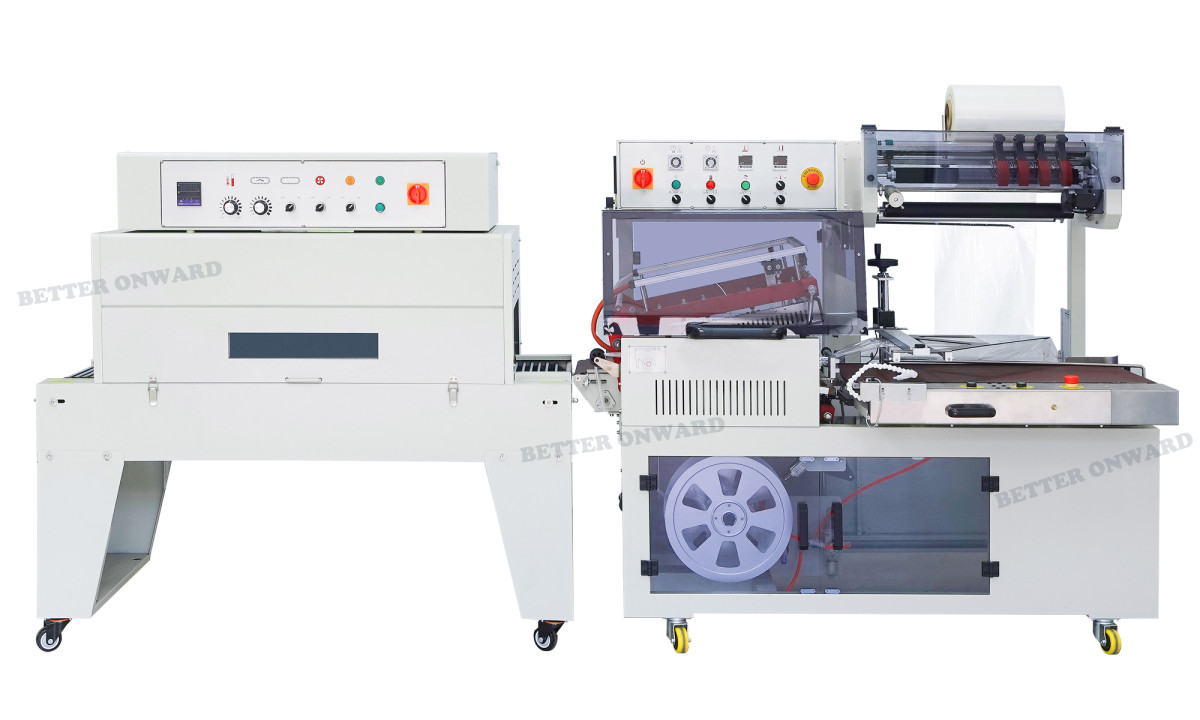

DQL5545S & DSD4520 Plastic Film L Bar Sealer Sealing Shrink Package Wrapping machine For Egg Tray

Our these two combination machines are widely used in the products packaging for food, beverage, printing, flooring, hardware and other industries.

Specification

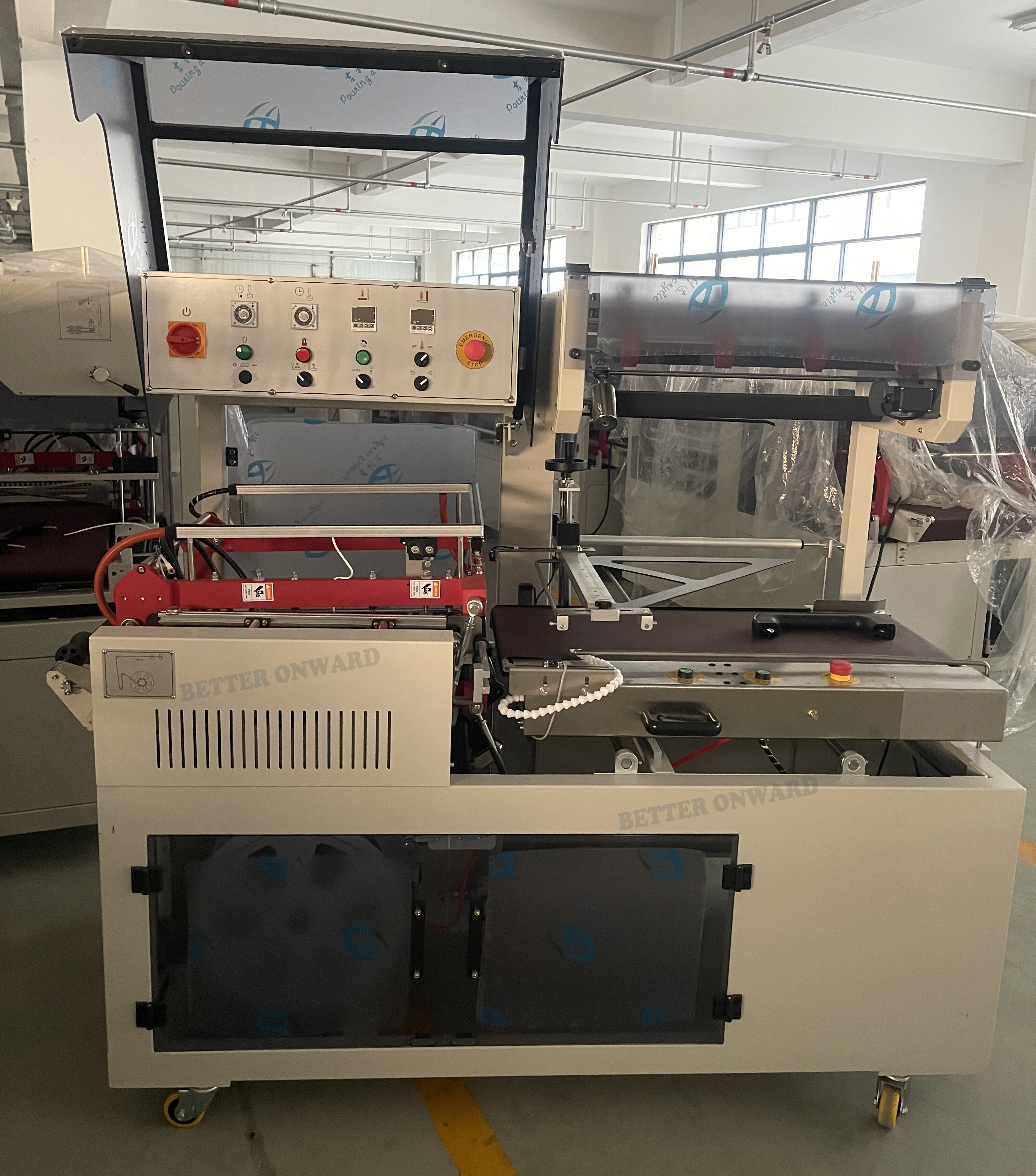

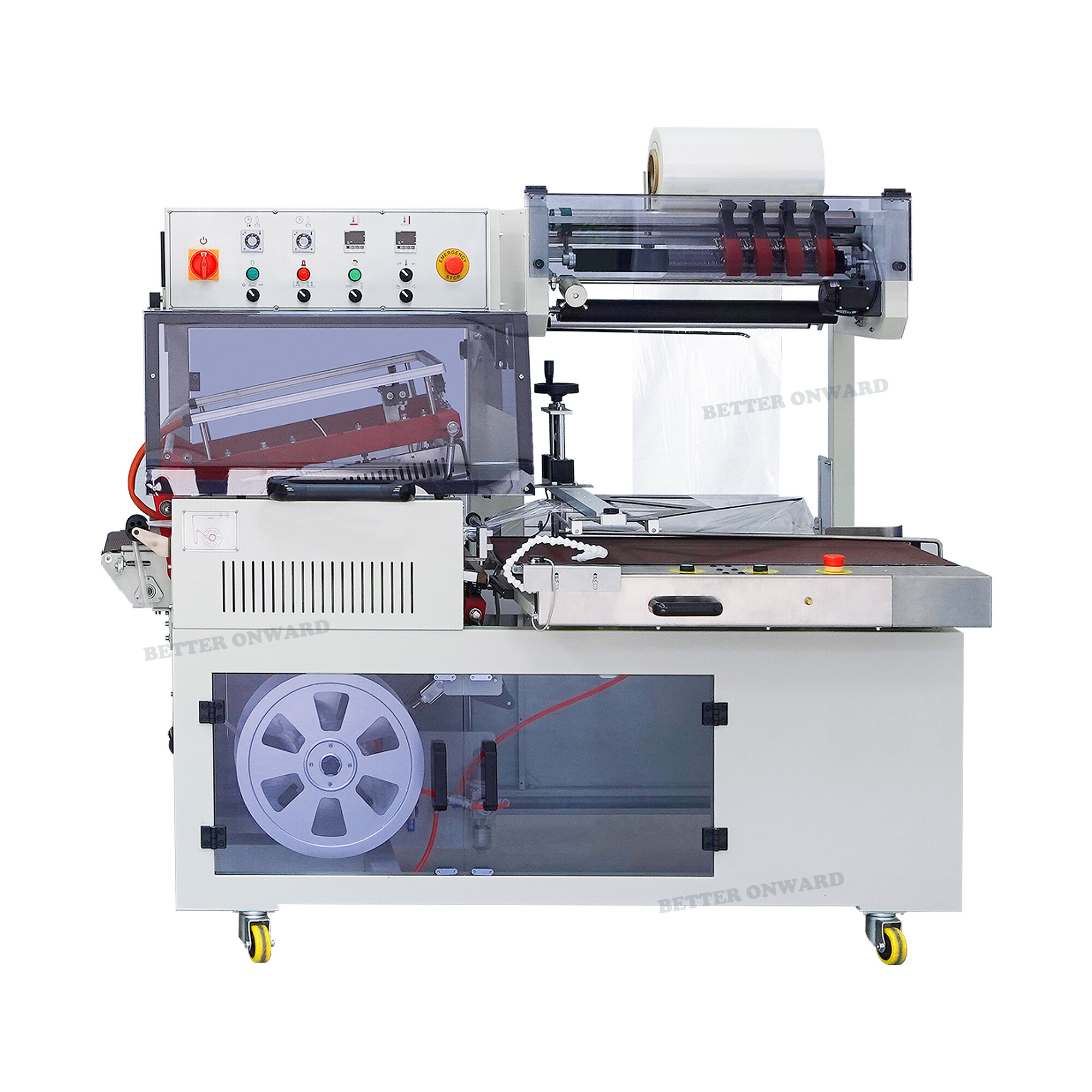

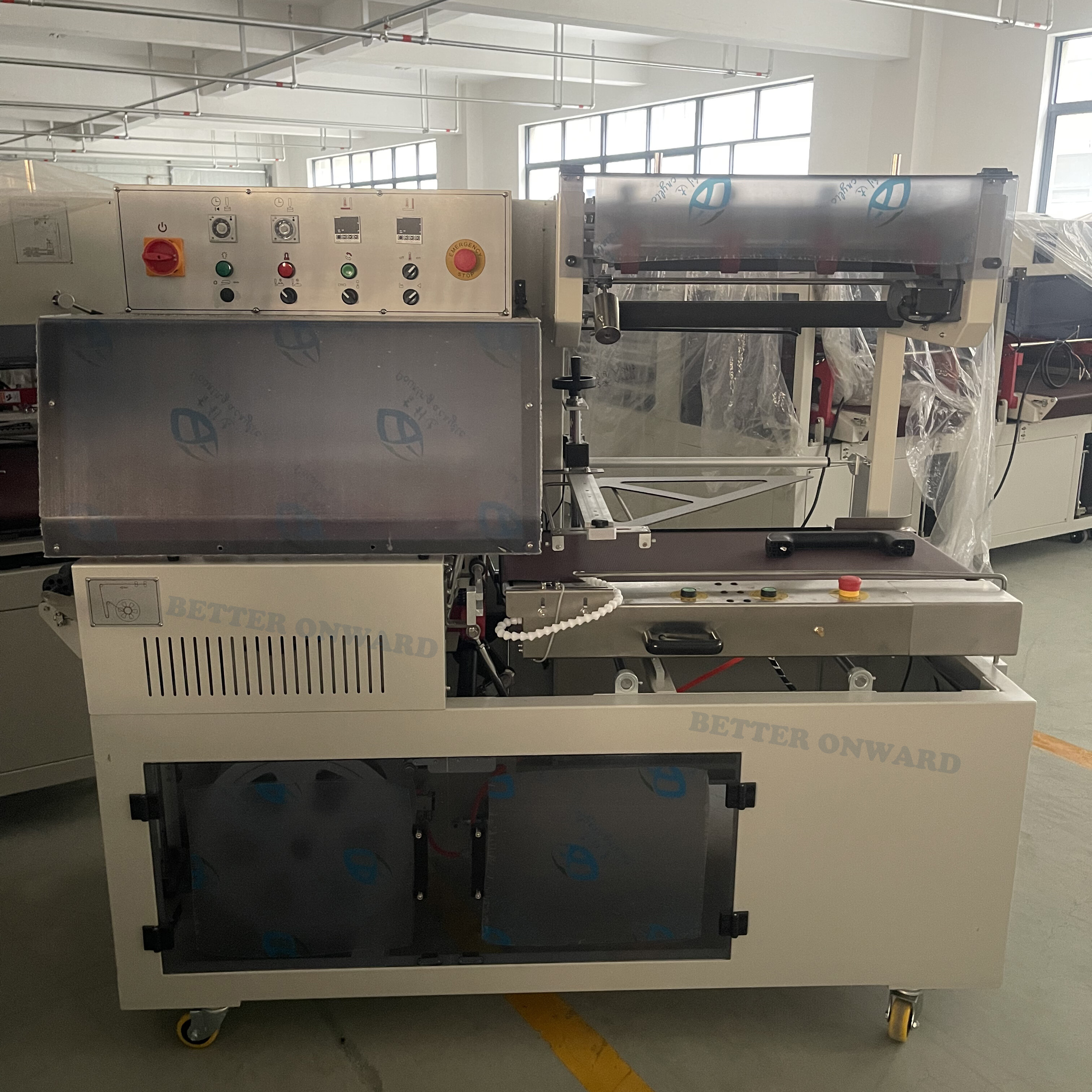

DQL5545S Plastic Film L bar Sealing and Cutting Machine

High automation level, working with shrink tunnel, sealing, cutting and shrinking are completed in one step, and it could achieve high-speed unmanned automatic operation.

The packaging speed can reach 30 packages per minute.

Panasonic photoelectric sensor has high sensitivity and precise response.

Waste film reel, to collect the waste film in the operation of the machine.

The sealing and cutting knife coated with teflon, anti-adhesive and heat-resistant, sealing tightly.

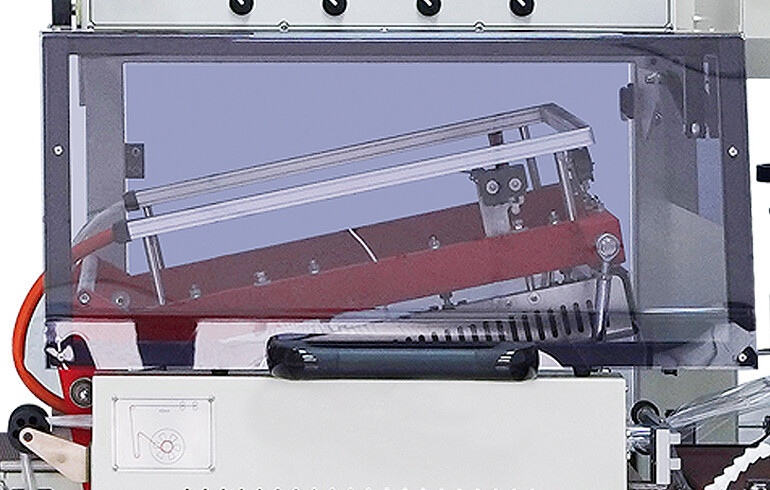

The sealing frame adopt high quality alloy steel, is not easily deformed.

DQL5545S & DSD4520 Plastic Film L Bar Sealer Sealing Shrink Package Wrapping Machine for Egg Tray

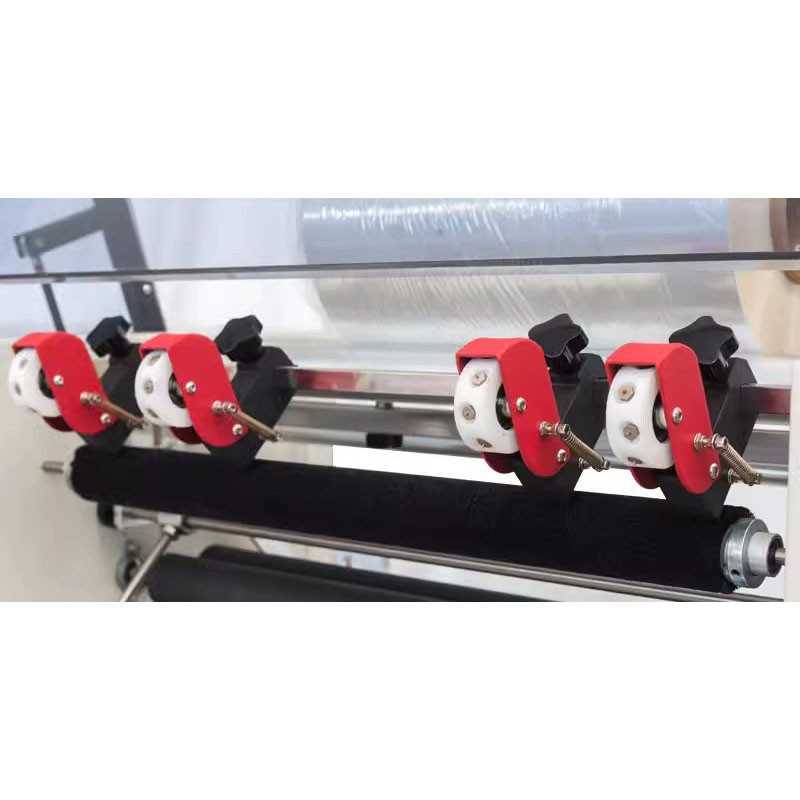

The perforating position is adjustable. According to the size of the film, could adjust the interval.

The film is drawn by the motor, which is efficient and safe.

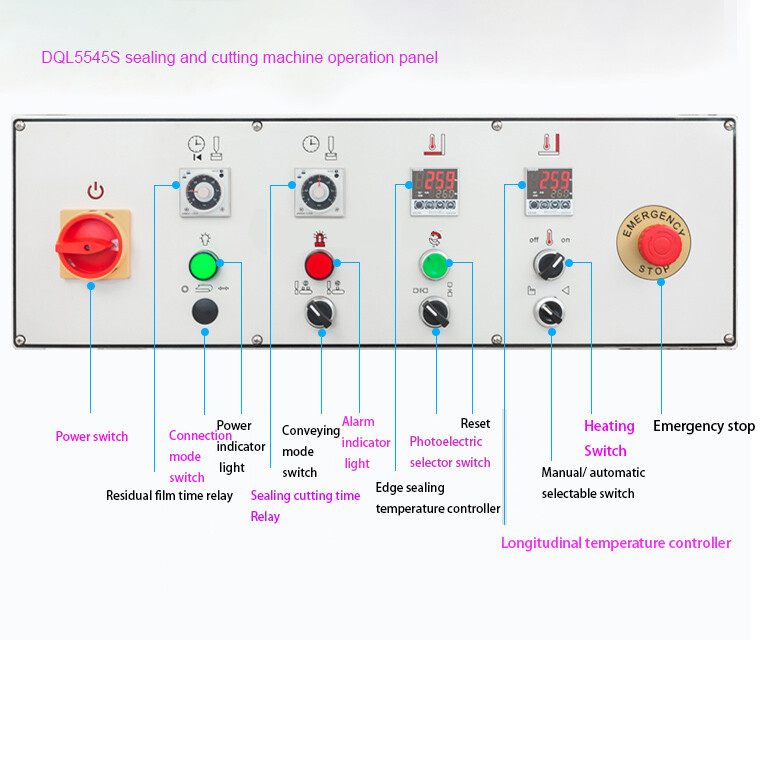

Operation Panel, Easy to Operate.

Model	DQL5545S
Transverse heating power	1100W
Longituginal heating power	800W
Voltage	220V 50/60HZ
Sealing time	0.2-1.0s
Thickness of film	0.012-0.06mm
Compressor of work	5-6kg/cm2
Max. packing size	L+2H≤530mm, W+H≤350mm, H≤140mm.
Max. film width	530mm
Max. sealing size	L: 550mm W: 450mm
Capacity	0-30 pcs/min
Packing material	POF
Machine weight(kg)	320
Machine size(mm)	17609401580

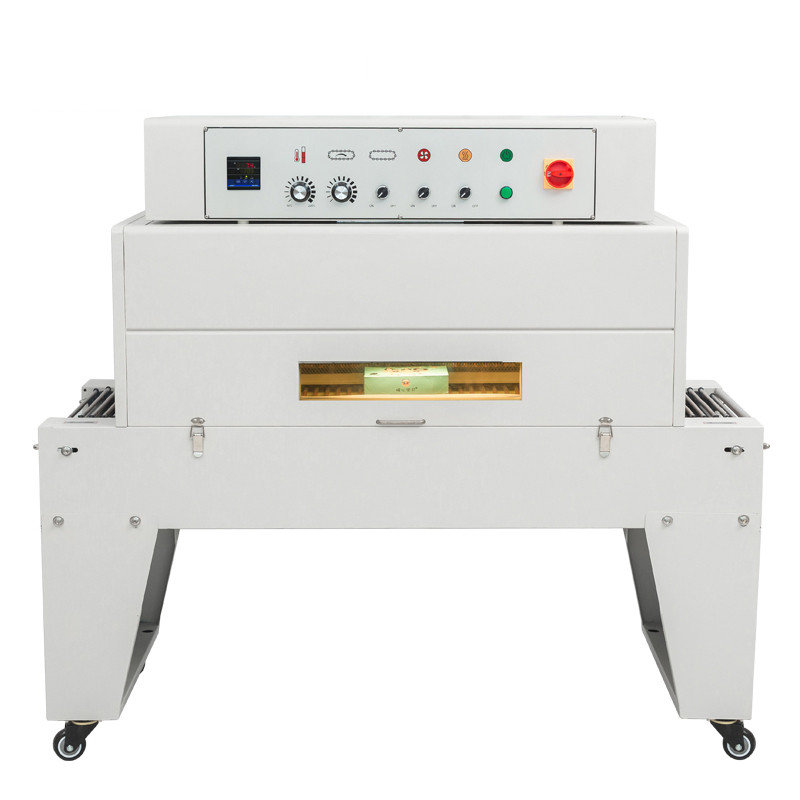

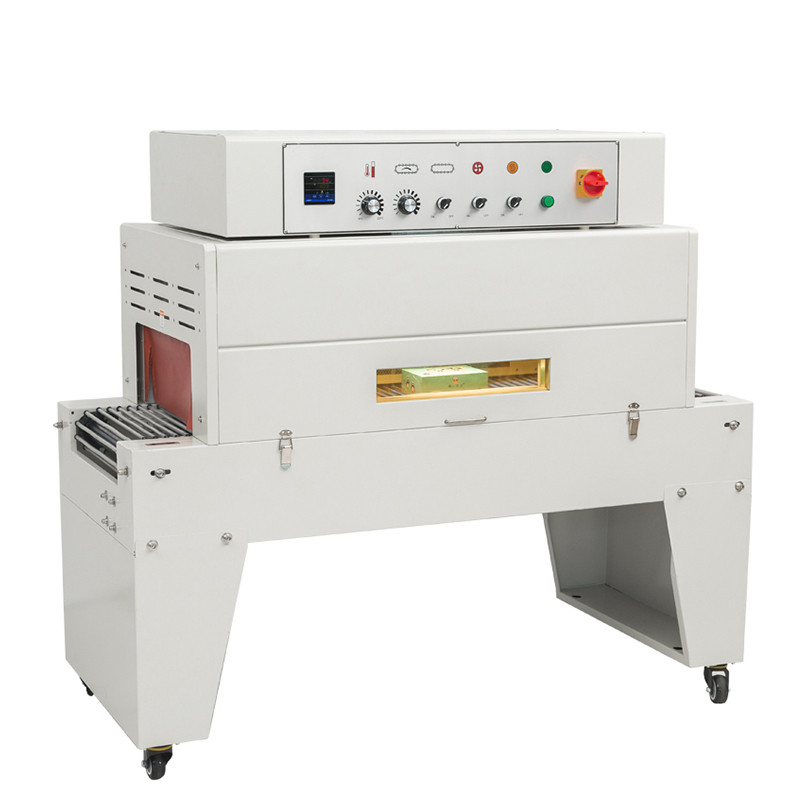

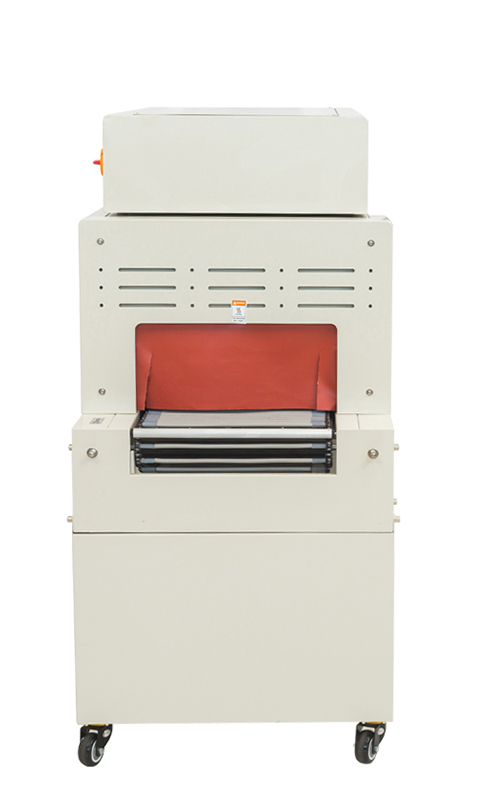

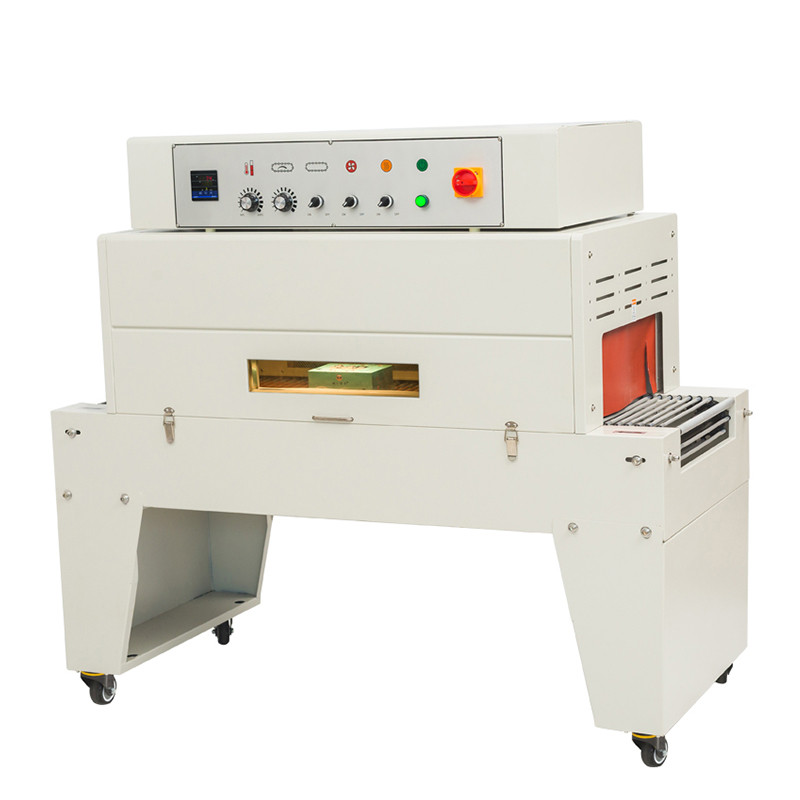

DSD4520 Shrink Packaging Machine

We use shrink film to wrap the outside of the products, after heating, to wrap the products tightly, will fully display the appearance of the products.

The packaged goods after sealing, it is moisture-proof, anti-pollution.And it could prevent splashing when the goods are broken.

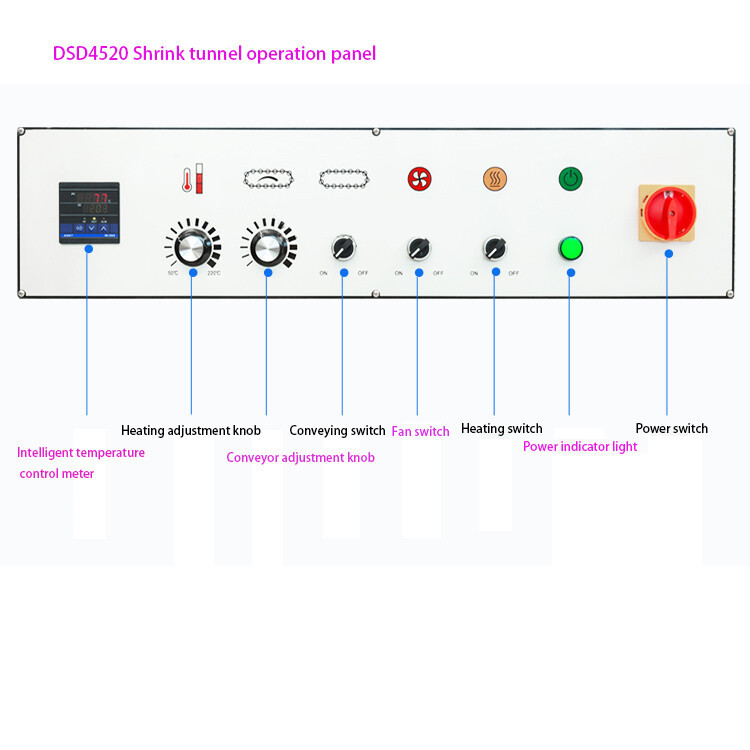

The operation panel is simple and beautiful, it could control the temperature and conveying speed.

The intelligent temperature controller, could control the temperature precisely.

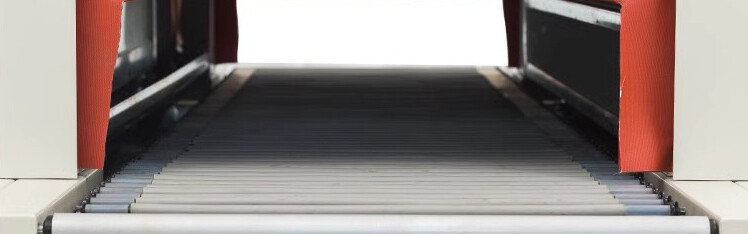

Chain conveying belt, silicone tube and PTFE tube.

It has longer service life, more stable transmission, higher load capacity.

It could shrink well, to protect the products more better.

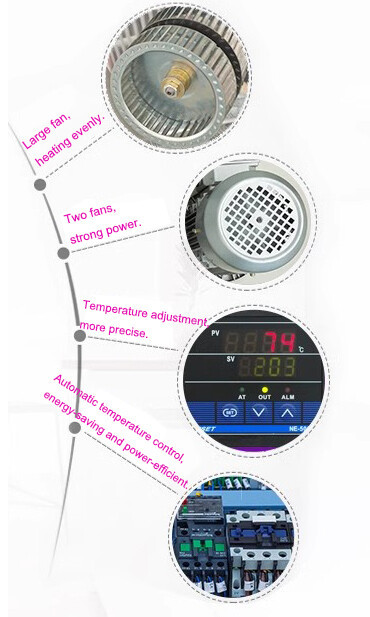

It is heated by round heating tube, which is durable and has long service life.

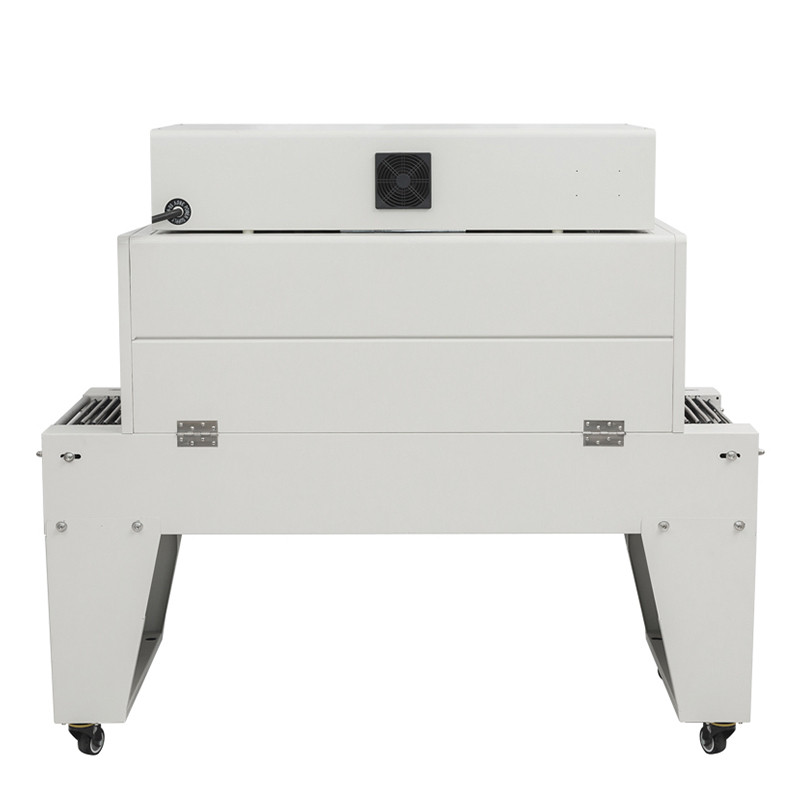

Combined with the fan, the shrink tunnel forms a good air circulation system, making the heating temperature more even and the shrinking effect better.

We design the observation window, it is more convenient to see the shrinking process.

We adopt the high-temperature resistant tempered glass, is more safe.

Solid-state voltage regulation, electronic constant temperature.

Electronic temperature control system, when the shrink tunnel temperature reaches the setting temperature, the machine automatically stops heating.

The shrink tunnel temperature is stable and energy-saving.

AC motor, has strong power, good performance and long service time.

Model	DSD4520
Power source	380V 50-60Hz
Power	12.8 KW
Conveyor speed	0-25m/min
Tunnel size(LWH)	1200450200mm
Conveyor loading	10kg
Machine size (LWH)	16007191444mm
