DQL5545D Automatic Tableware Eggs Packaging Plastic Film Wrapping Machine Continuous Conveying L bar Heat Sealer and Cutter
Inquiry Now →

Product Description

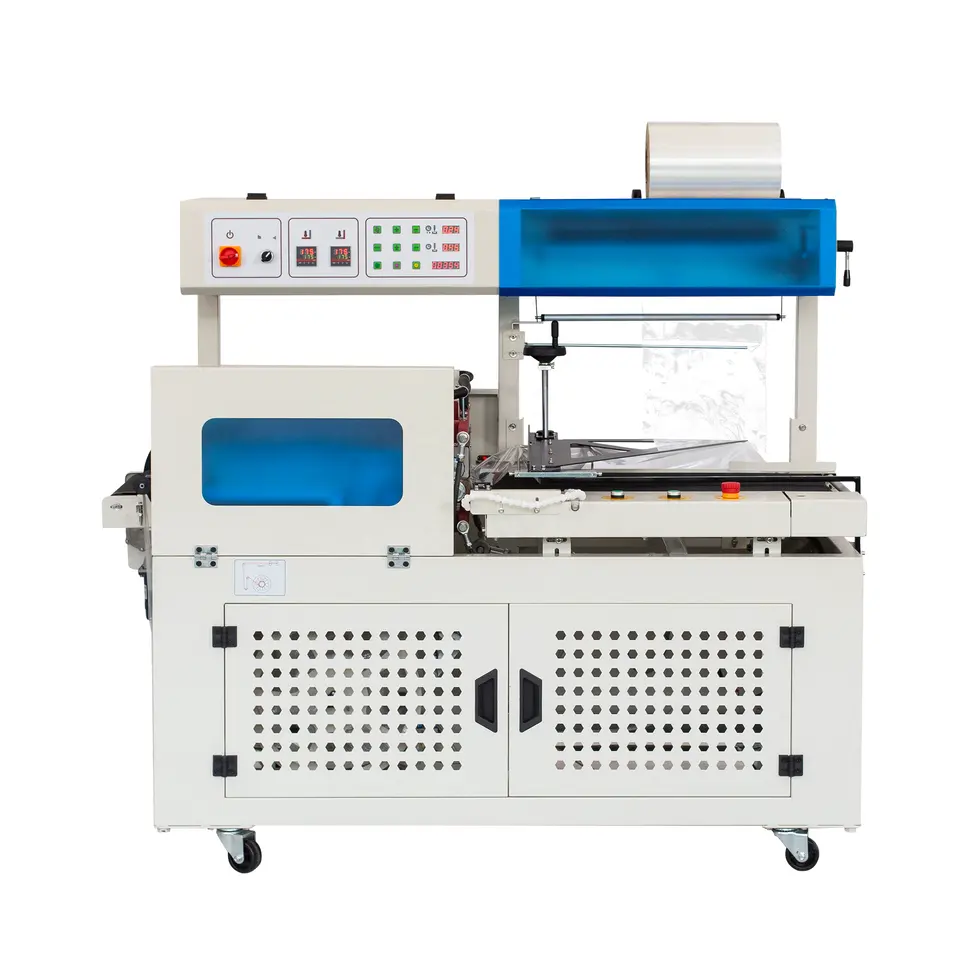

DQL5545D automatic L-type sealing and cutting machine

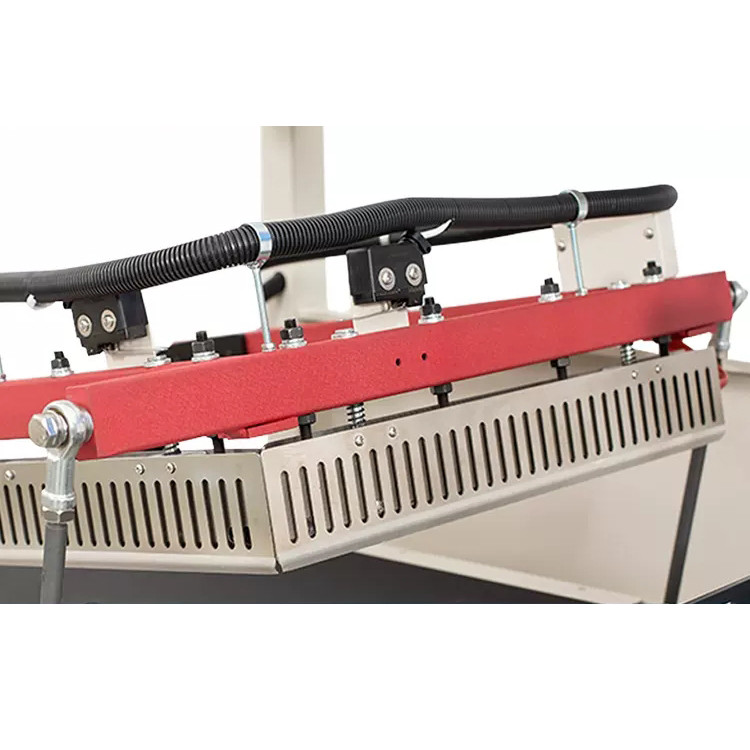

1. The sealing knife adopts copper alloy sprayed with Teflon, it won't stick film, sealing fastness, without smoke, non-pollution.
Horizontal and vertical sealing knife adopt whole connecting without gap, the film won't break. Sealing frame adopts high quality alloy steel, the sealing quality is stable, frame difficult to be damaged.

2. The machine has entire automatic system, it equipped with sensors can reach high speed automatic working.

3. It is convenient to adjust according to different sizes products, just adjust the handle wheel can reach it, operation is easy.

4. It can be connected with production line.

5. It has protection function to avoid sealing product wrong and ensure the safety of operator.
Specification
Product name
L bar Sealing and Cutting Machine
Model
DQL5545D
Horizontal heat power
800W
Vertical heat power
1000W
Voltage
220V 50/60HZ
Sealing time
0.2-1.0s
Thickness of film
0.012-0.06mm
Working air pressure
5-6mpa
Max packing size
L+2H≤550mm;W+H≤330mm;H ≤140mm
Max sealing size
L550* W450
Capacity
0-25 pcs/min
Sealing temperature
180℃—250℃ depends on the thickness of film and environment temperature
Packing material
PE POF PVC
Machine weight(kg)
280
Machine size(mm)
1680*840*1475

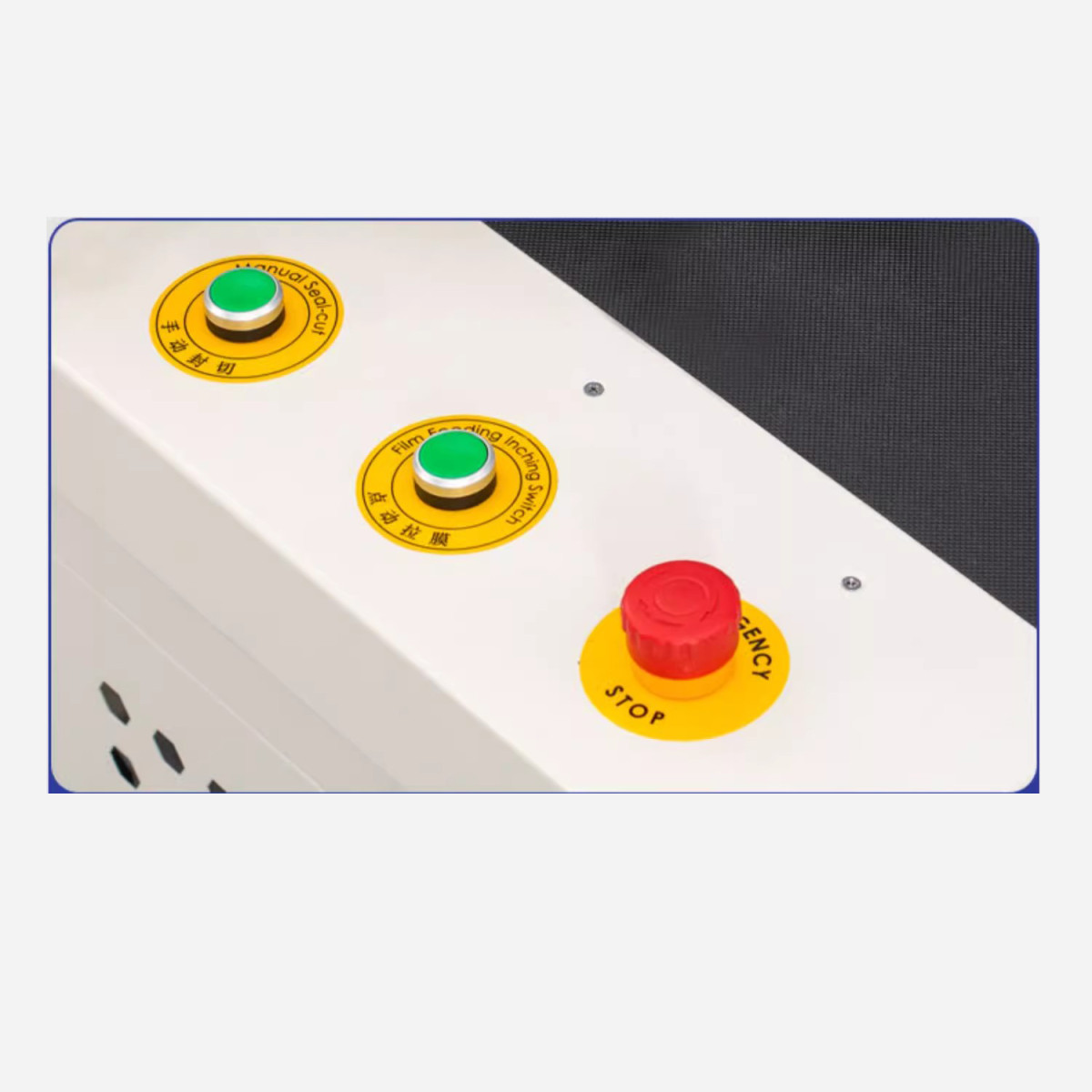

On the feeding conveyor platform, install manual seal- cut switch, film feeding inching switch, Emergency stop switch.

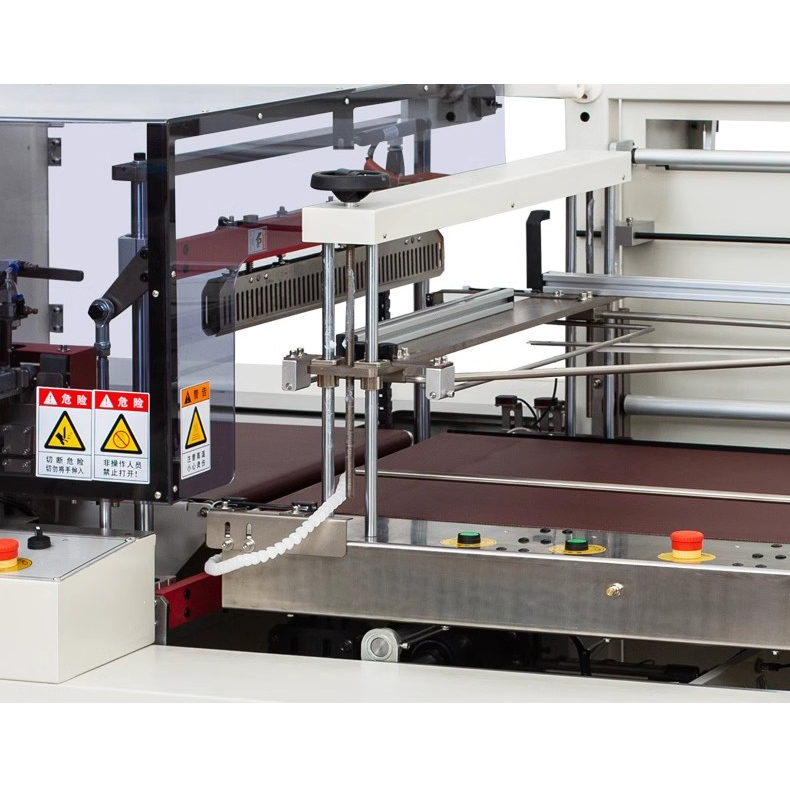

Advanced cutting knife, the sealing is firm, flat and beautiful.

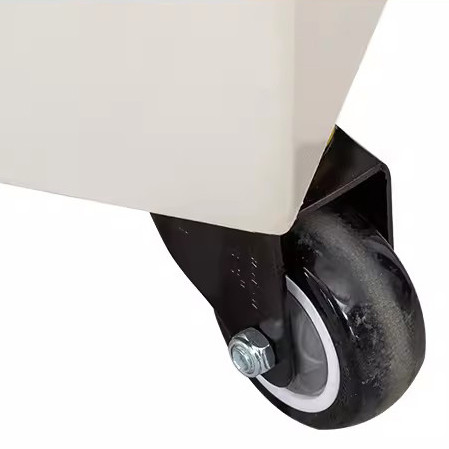

The design of mobile casters, makes the machine is more convenient to move. Equipped with caster brakes,after moving, the machine is fixed, not easy to slide.
