Product Description

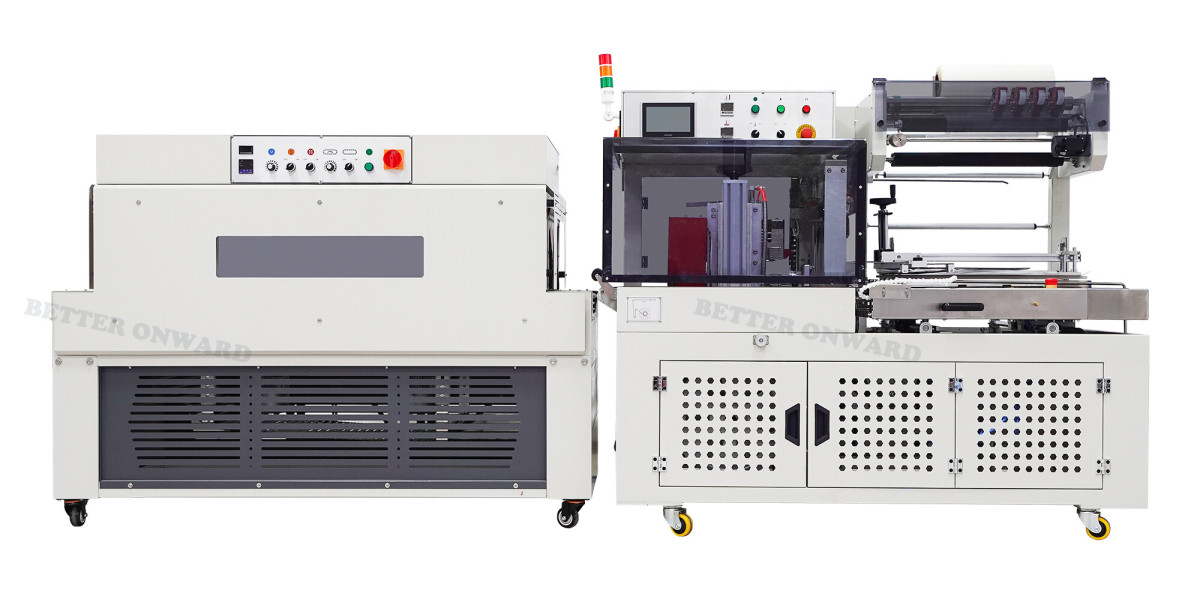

DQL4518S & DSC4525L Automatic Plastic Film Side Sealing and Cutting Machine with Shrink Tunnel

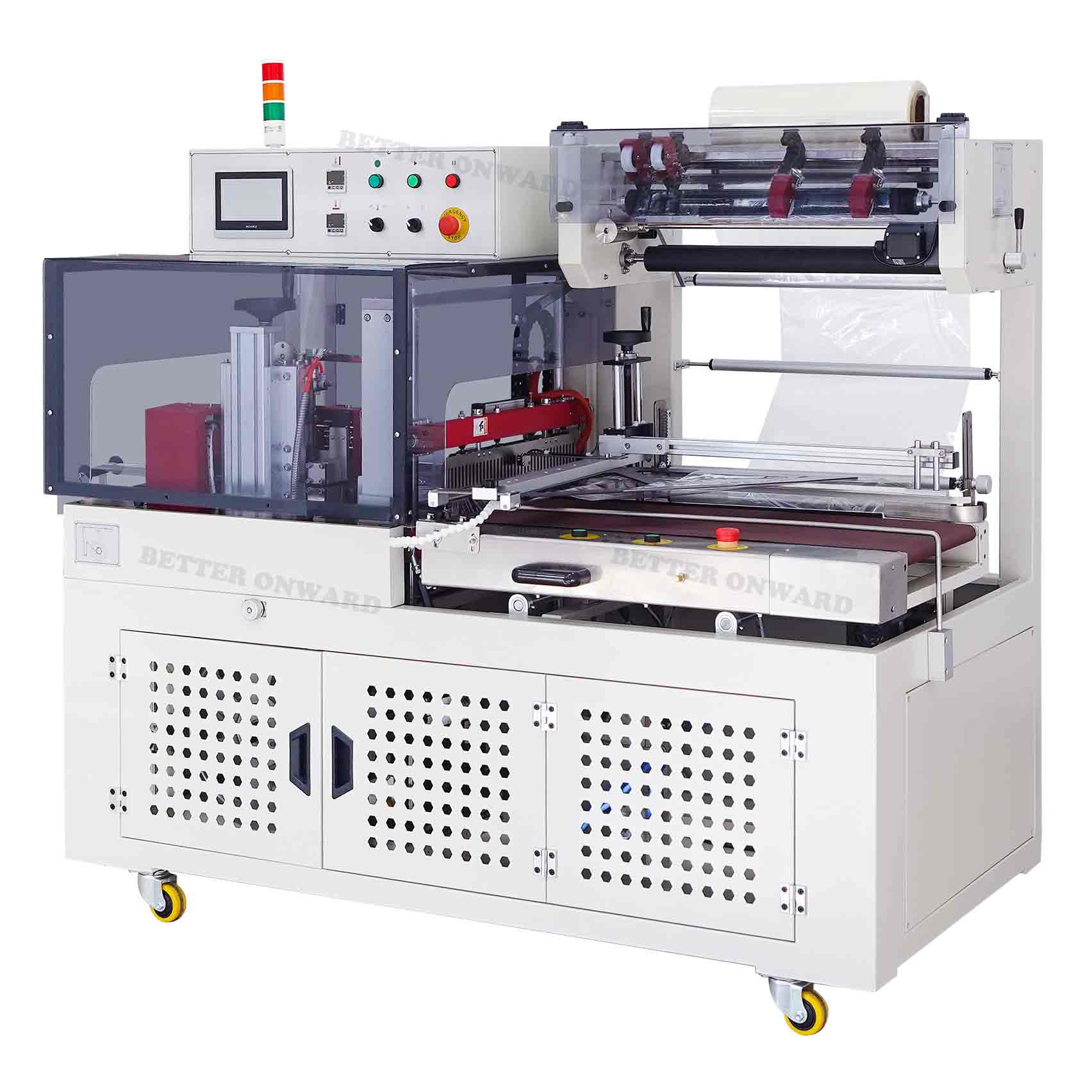

DQL4518S Plastic Film Side Sealing and Cutting Machine

With high automation level, working with shrink packaging machine, sealing, cutting and shrinking are completed in one step, and it could achieve high-speed unmanned automatic operation. The packaging speed can reach 35 packages per minute.

DSC4525L Shrink Packaging Machine

We use shrink film to wrap the outside of the products, after heating, to wrap the products tightly, will fully display the appearance of the products.

The packaged goods after sealing, it is moisture-proof, anti-pollution.

And it could prevent splashing when the goods are broken.

These two machines are widely used in foodstuff, drinks, printing, floor, hardware and other industries shrink packaging.

Specification

Model	DQL4518S	Model	DSC4525L
Voltage	220V 50Hz	Voltage	380V 50Hz
Cross cutting heating power	800W	Power	13.2KW
Longitudinal cutting heating power	400W	Load capacity	10kg
Sealing time	0.3-1s	Conveying speed	0-16m/min
Plastic film thickness	0.015-0.05mm	Shrink Tunnel size	L1500* W450* H250mm
Packaging speed	0-35pcs/min	Overall size	L1800* W703* H1300mm
Air pressure	5-6kg/cm2
Packaging material	POF PVC
Max. packaging size	L∞,W≤380mm, H≤180mm
Overall size	L1800* W950* H1580mm

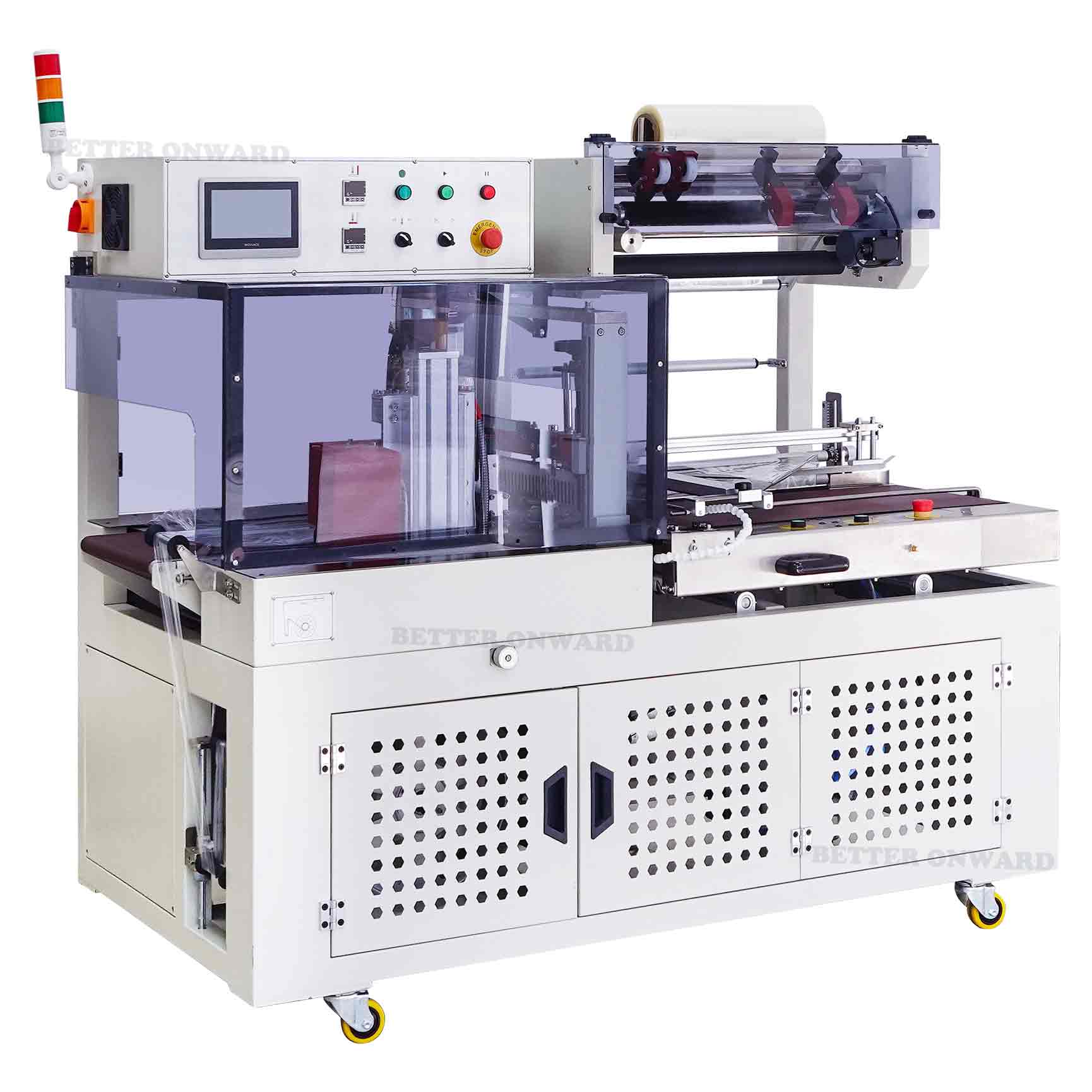

DQL4518S Plastic Film Sealing and Cutting Machine

Omron PLC control, high reliability, strong resistance to interference, powerful and flexible.

Panasonic photoelectric sensor device have high sensitivity and precise response.

Audible and visual alarm system, automatic alarm,provide safety protection in case of improper operation.

The perforating position is adjustable. According to the size of the film, could adjust the interval. The film is drawn by the motor, which is efficient and safe.

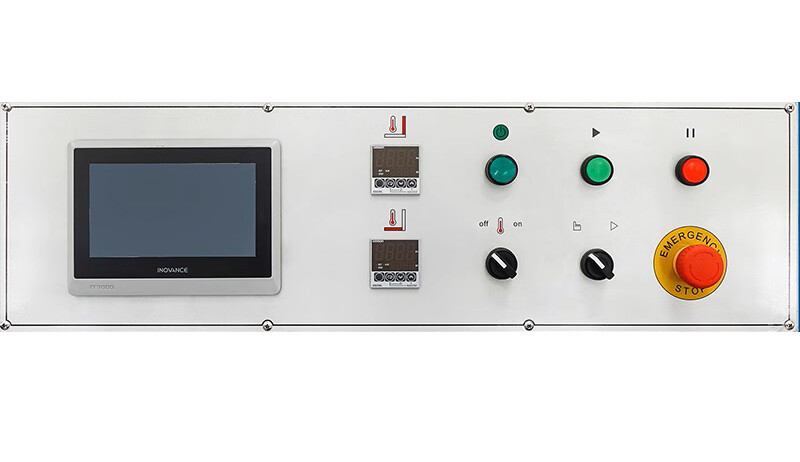

Intelligent touch screen, human-machine interface, just input the length and height of the goods, the system will calculate the packaging length automatically.

It could store multiple solutions and features intelligent design, allowing for quick and easy switching of packaging dimensions.

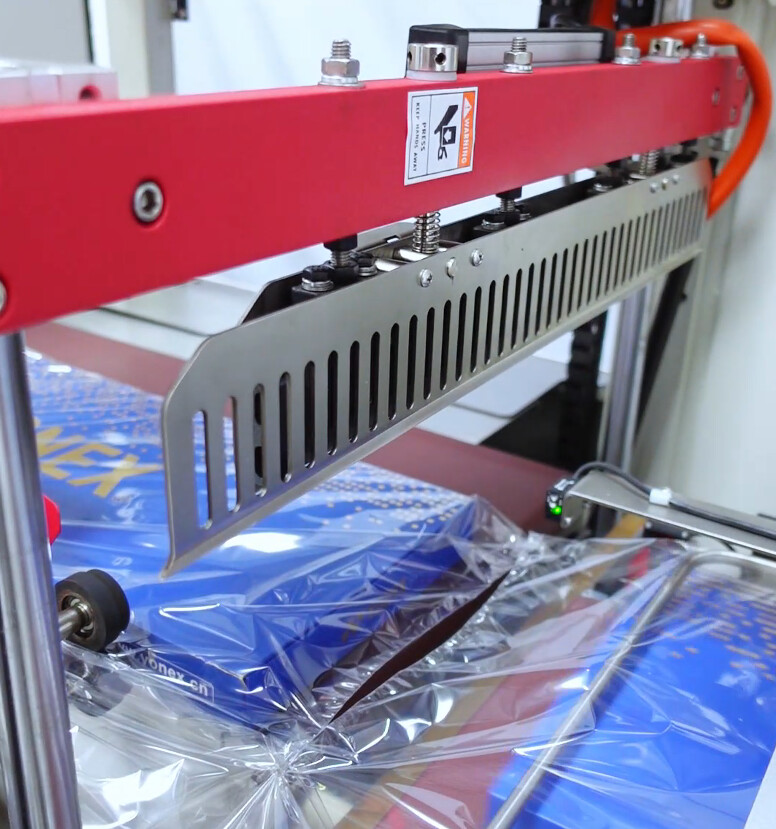

The cross-cutting blade is coated with Teflon, non-stick film, ensuring the firm seal.

The sealing frame is made of high-quality alloy steel, which makes the frame not deformed easily.

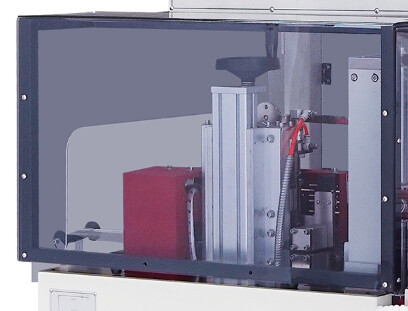

The side sealing blade structure is designed in a novel way, the side sealing height is adjustable, to adjust the side sealing height is close to the sealing height.

Waste film reel, to collect the waste film in the operation of the machine.

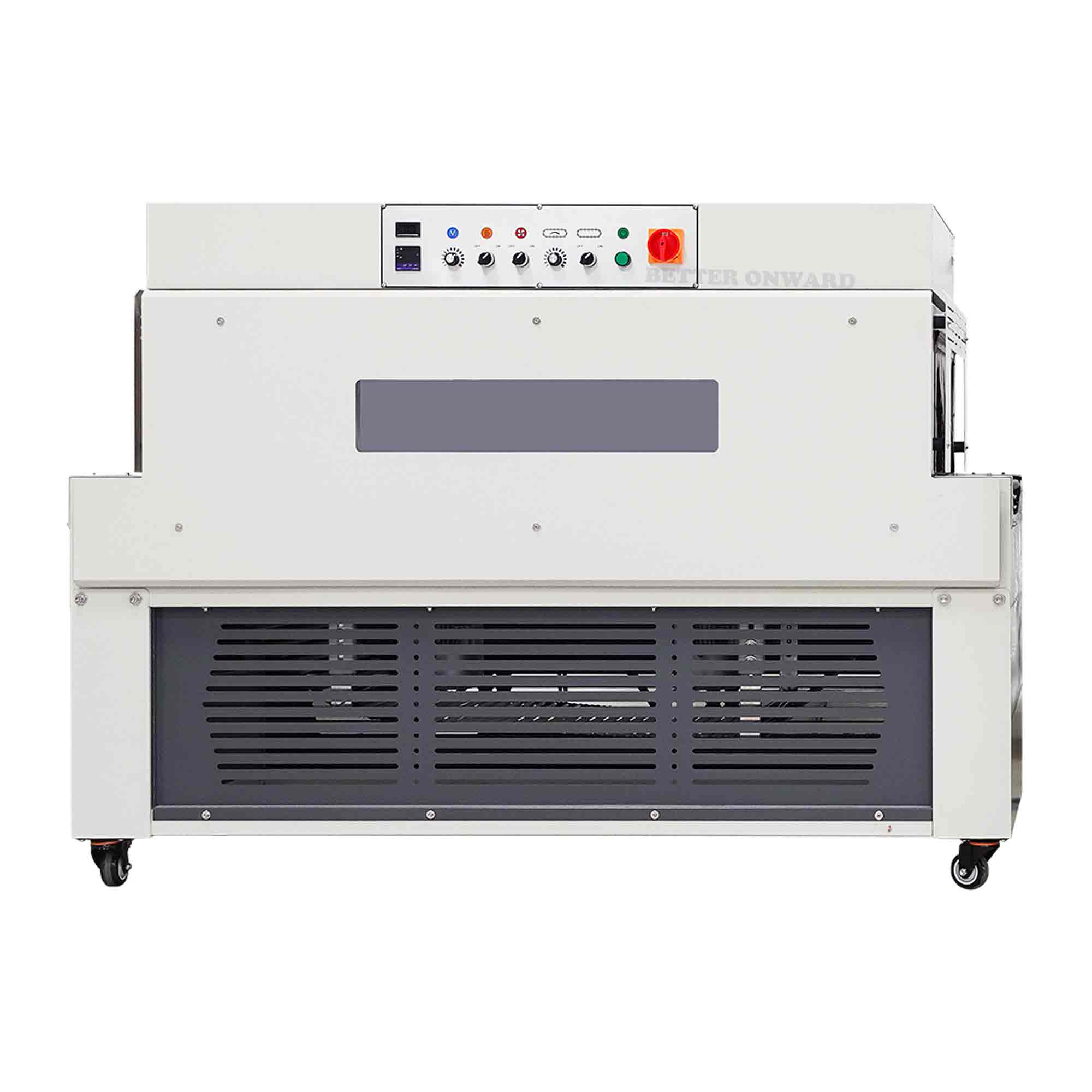

DSC4525L Shrink Packaging Machine

We design the observation window, it is more convenient to see the shrinking process.

We adopt the high-temperature resistant tempered glass, is more safe.

The machine’s appearance is tidy and beautiful.
The casing have the smooth curve.

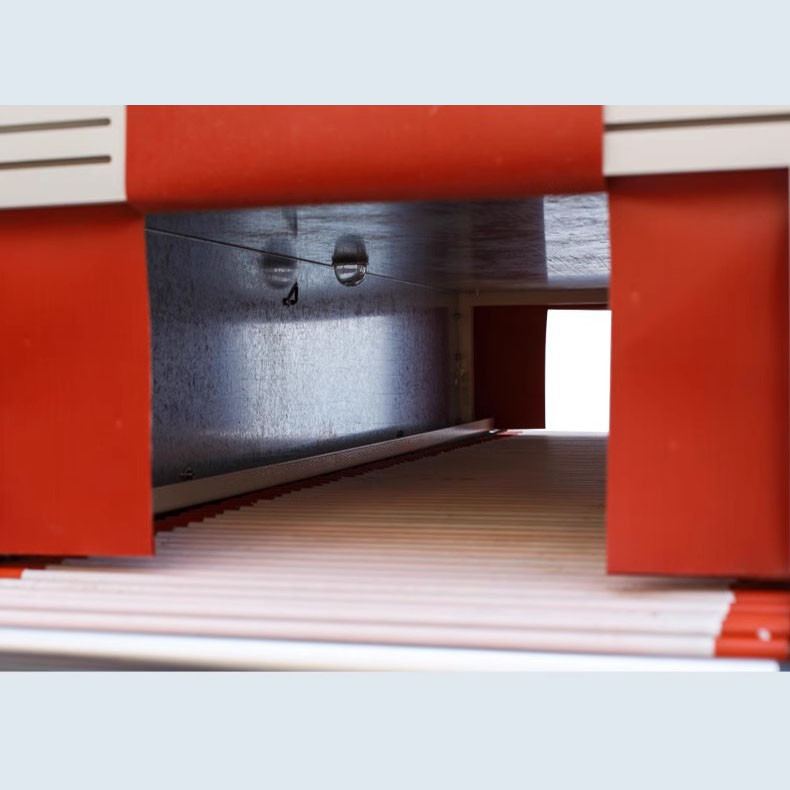

The tunnel length is 1.5m, the shrinking effect is better.

Chain conveying belt,red silicone tube and PTFE tube.
It has the higher load capacity, the longer service life and the more stable transmission.

It could shrink well, protect the products more better.

Electronic temperature control system, when the shrink tunnel temperature reaches the setting temperature, the machine will stop heating automatically .
When the shrink tunnel temperature lower than the setting temperature, the machine will heat automatically.
The shrink tunnel’s temperature is steady and energy saving.

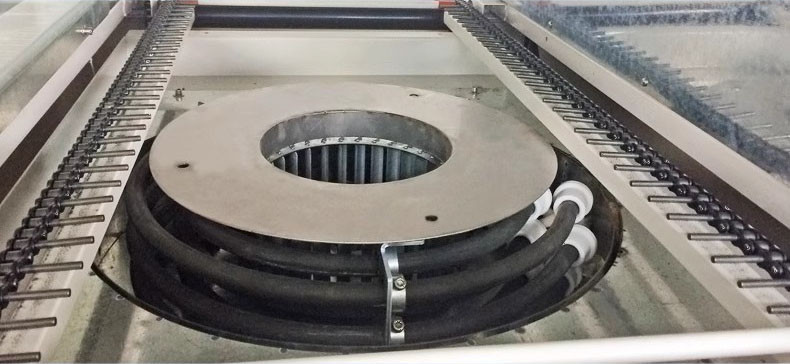

We adopt round heating tube to heat, which is durable and has a long service life.

Combined with the fan, the shrink tunnel forms a good air circulation system, making the heating temperature more even and the shrinking effect better.

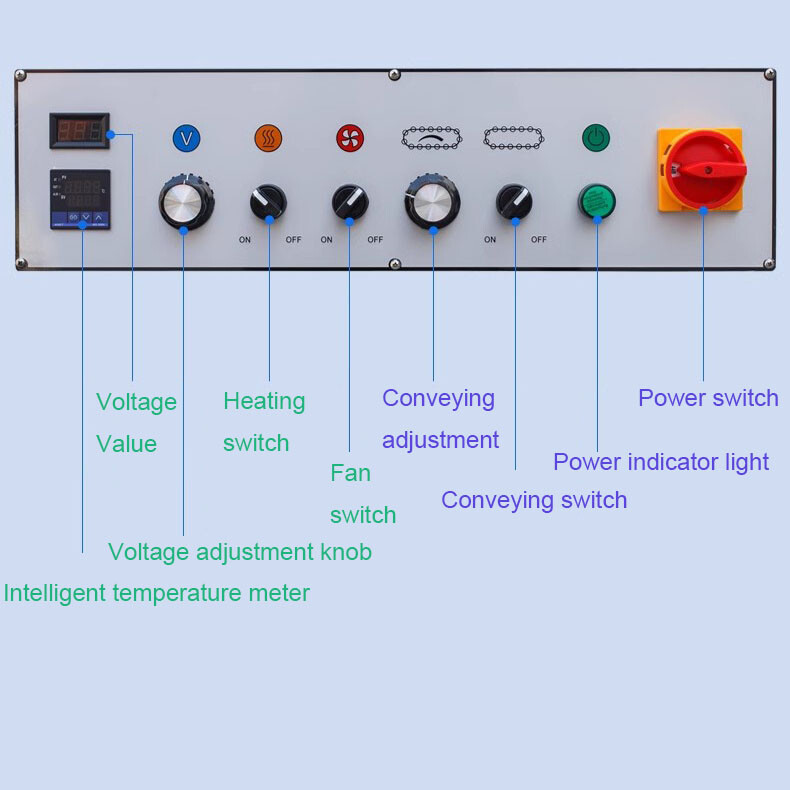

The operation panel is simple and beautiful, it could control the temperature and conveying speed.

The intelligent temperature controller, could control the temperature precisely.

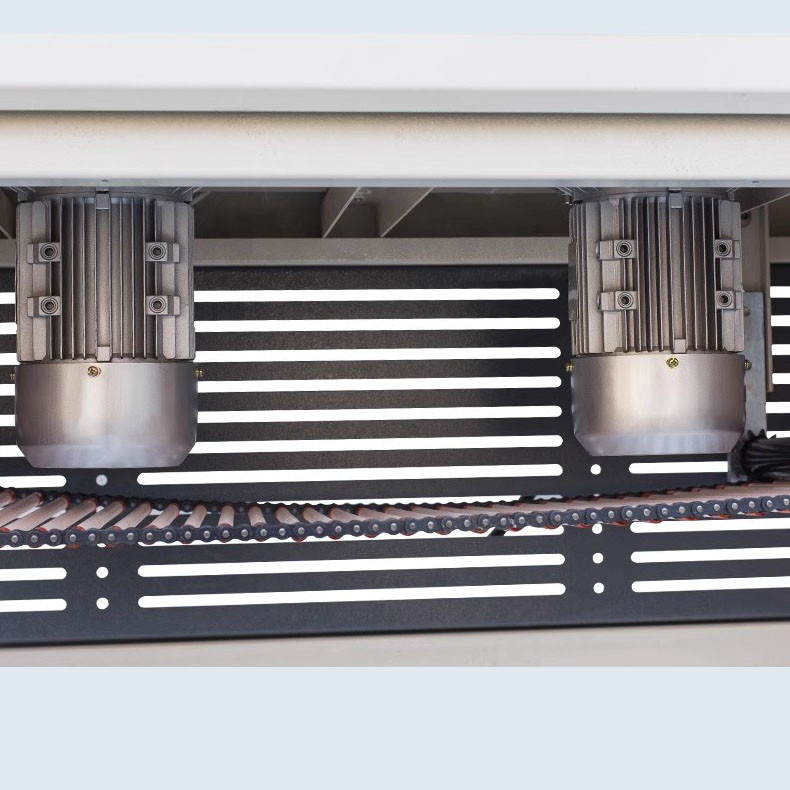

The conveyor motor and fan motor both are AC motors, powerful.

It has heavier load capacity, and could convey steadily.

The front and rear cover plate both are beautiful. And it has a good heat dissipation performance.

It could help to lower the temperature of the fan motor.

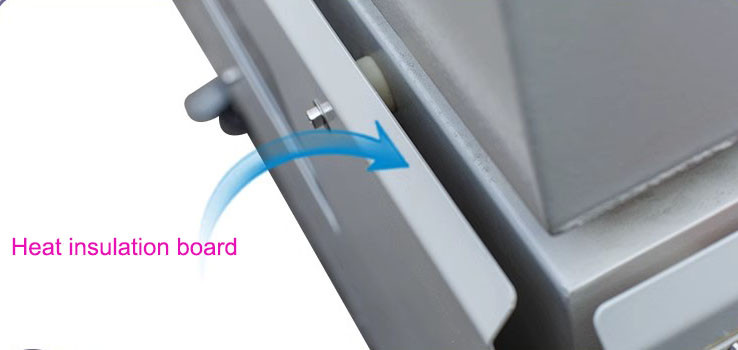

We install the heat insulation board in the two sides of the shrink tunnel, is more safe.
