DFQC450 & DSA4525 Semi-Automatic POF Plastic Film L-bar Sealing Machines L Sealers and Shrink Tunnel
Inquiry Now →

Product Description

DFQC450 & DSA4525 Semi-Automatic POF Plastic Film L-bar Sealing Machines L Sealers and Shrink Tunnel

Sealing and Cutting first, then shrinking.

These two machines can pack the products with the plastic film, after heat shrinking, the plastic film will wrap the products tightly, to fully display the appearance of goods,which makes the packaging more beautiful and firm.

Our these two combination machines are widely used in the products packaging for food, beverage, cosmetics, printing, hardware and other industries.

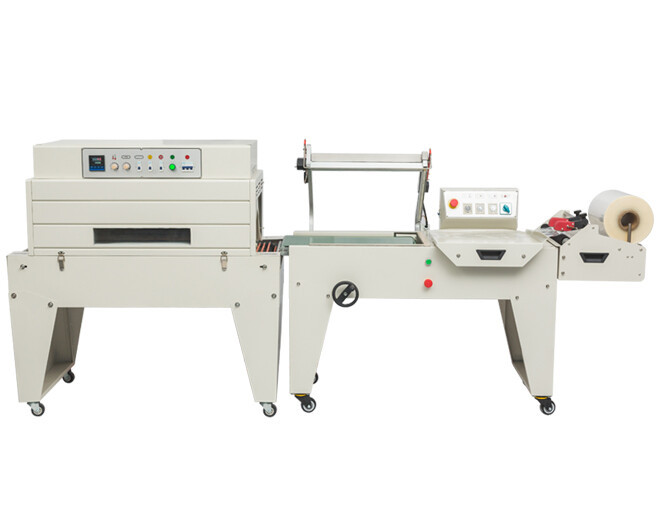

DFQC450 (2)

Specification


Model
DFQC450
Voltage
AC220V 50-60HZ
Power
1KW
Production capacity
400-600packs/hour
Max. sealing size(L*W)
550*450mm
Machine size(L*W*H)
1720*730*1050mm
Machine weight
128kg
Cutting film
POF,PVC

SEALER (1)

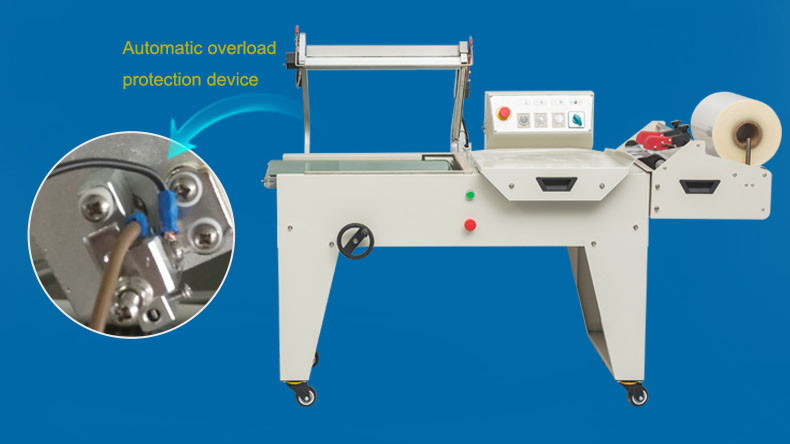

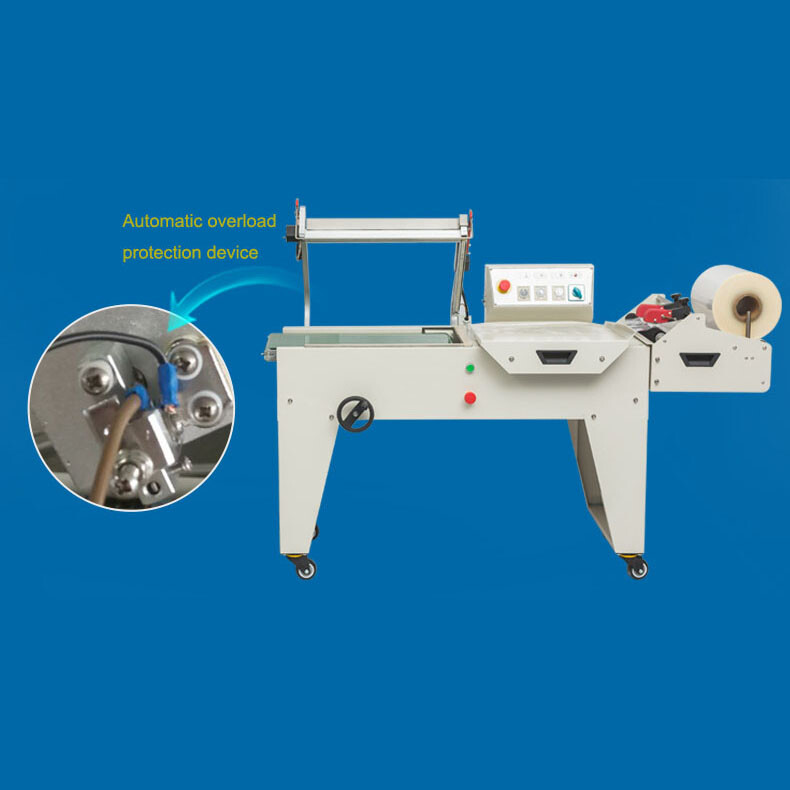

The automatic overload protection device is provided to prevent the heat sealing and cutting components from overheating due to operator errors or other causes, thereby extending the life of the entire machine.

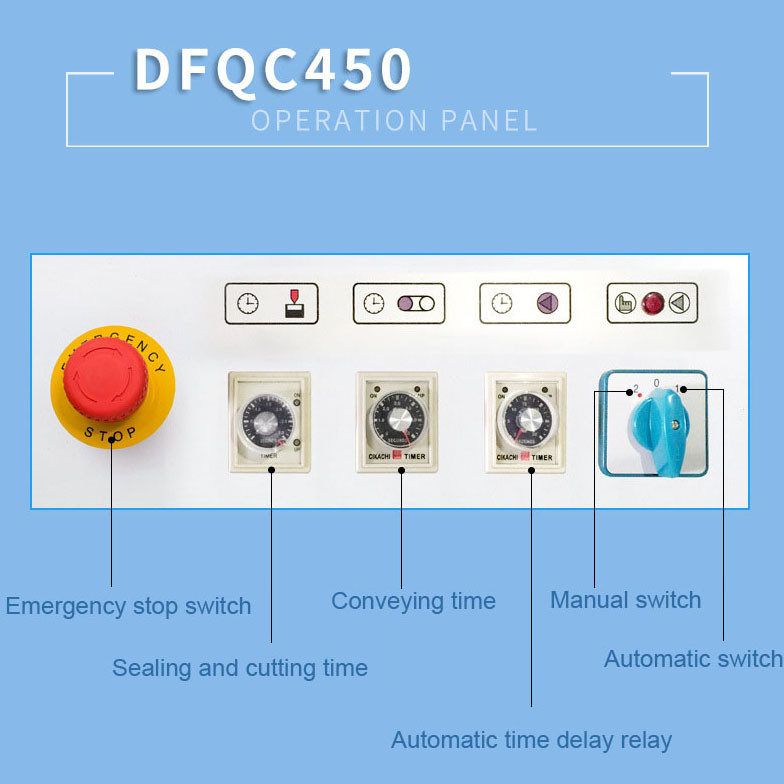

SEALER 6

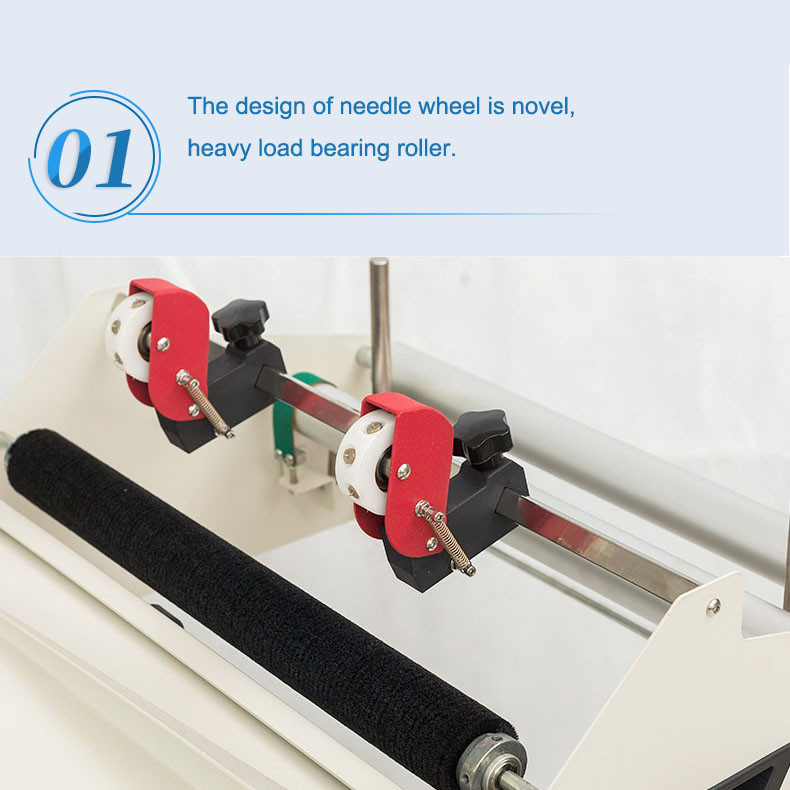

SEALER 1

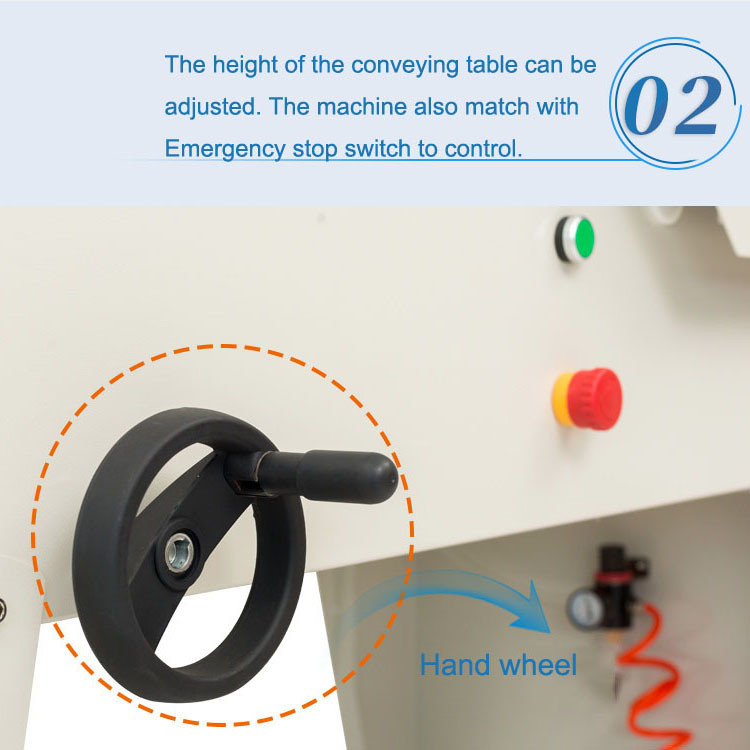

SEALER 2

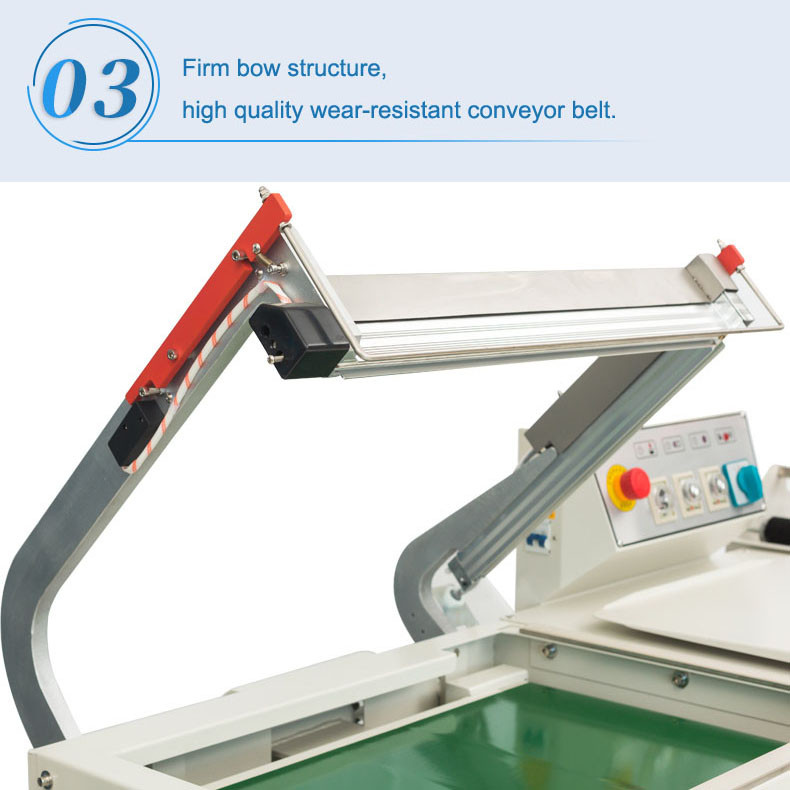

SEALER 3

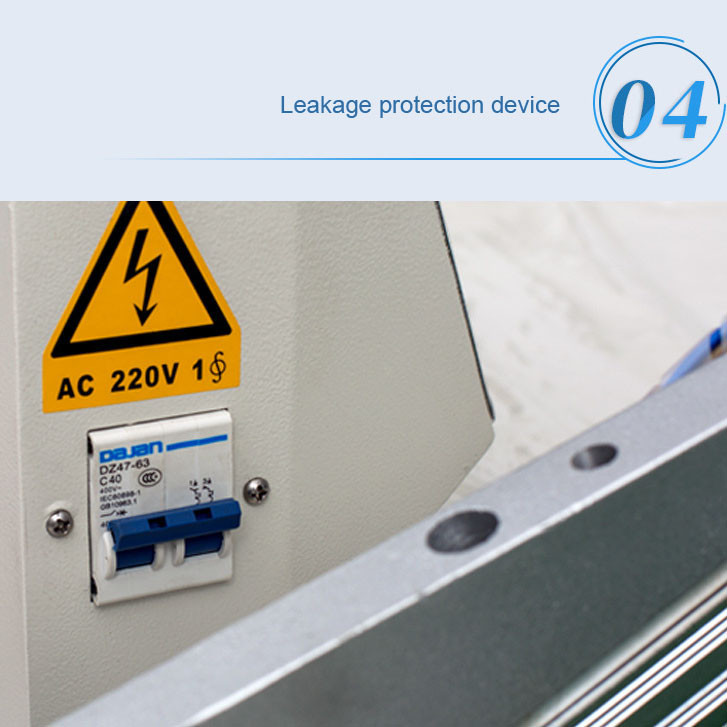

SEALER 4

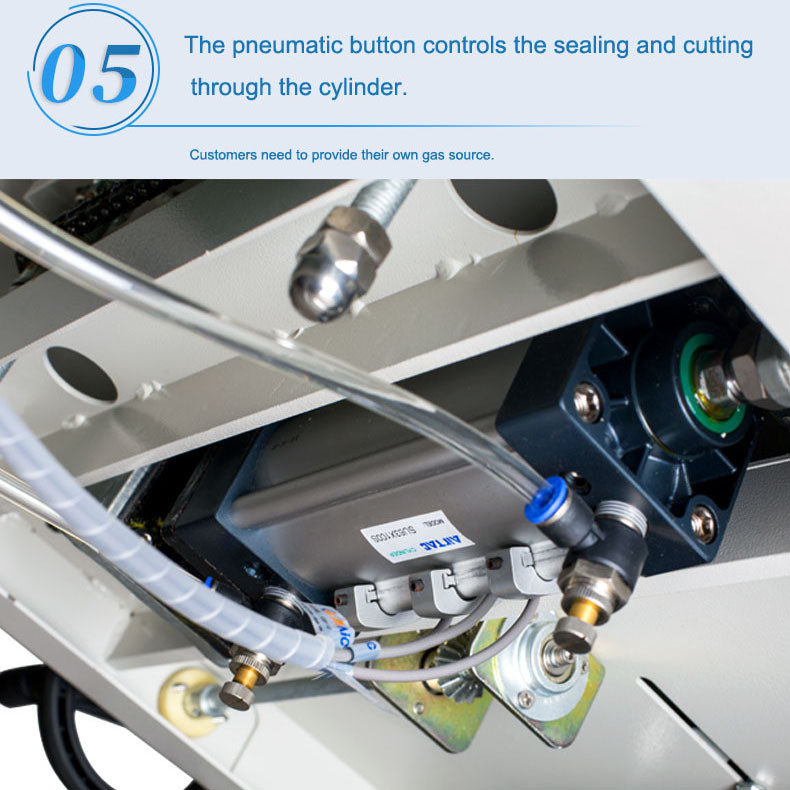

SEALER 5

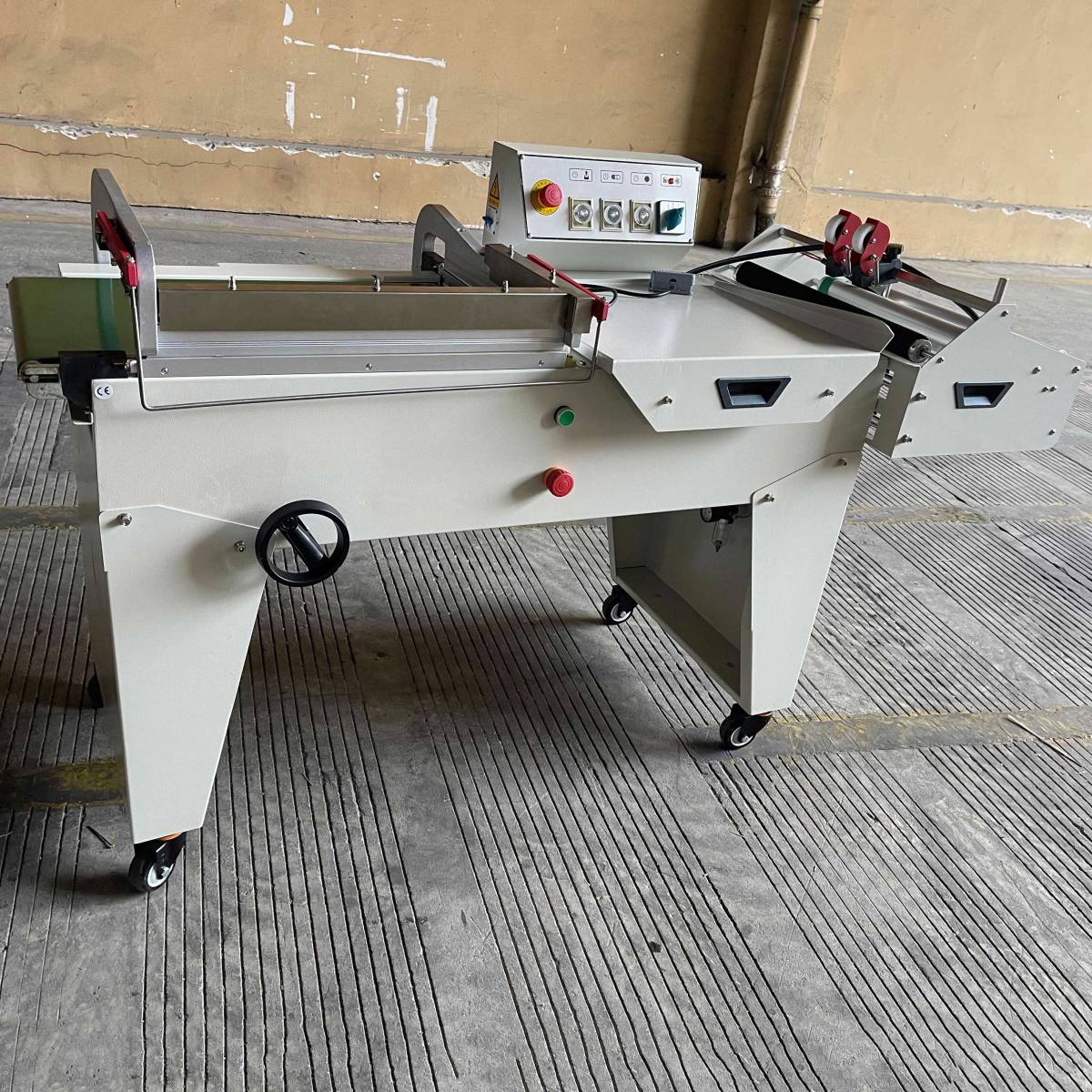

L-bar-sealer-1

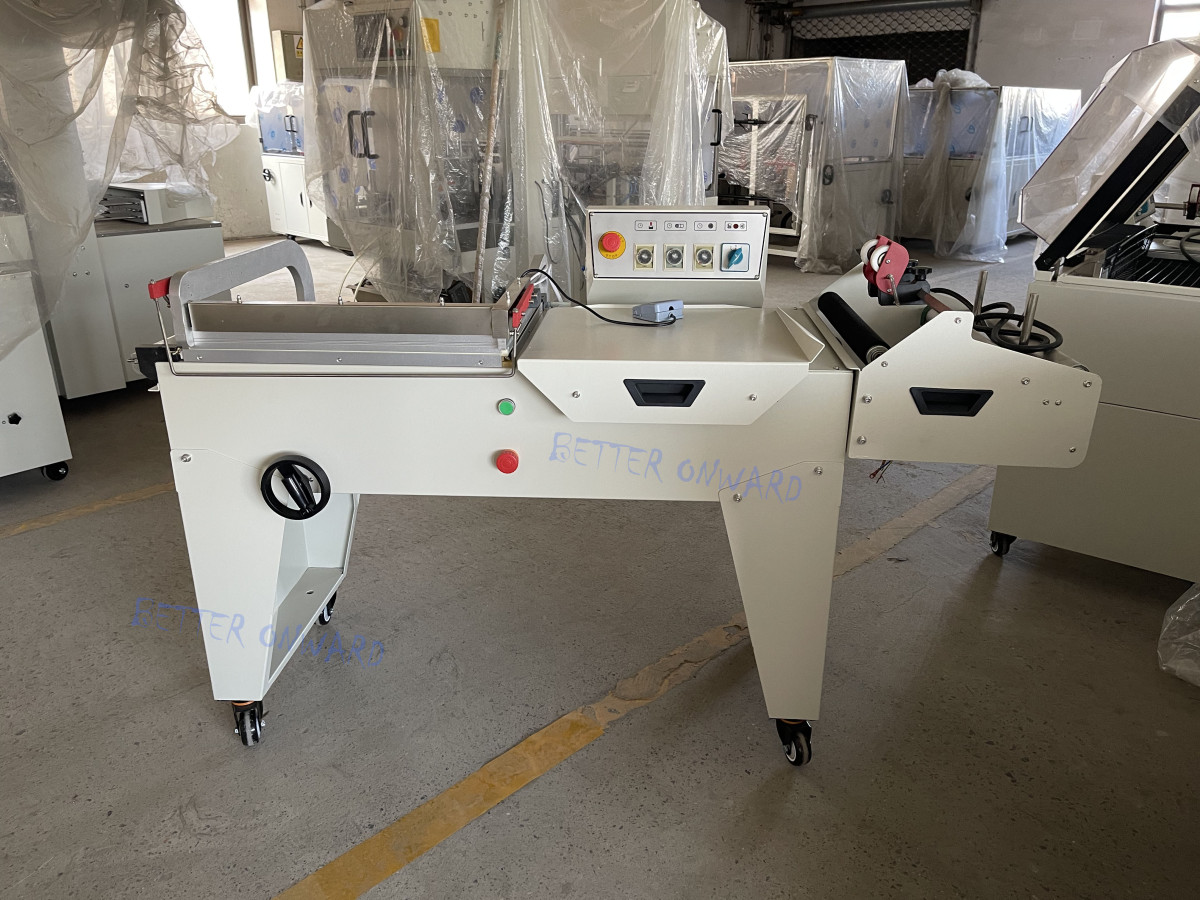

DFQC450 L BAR SEALER

Model
DSA4525
Power source
380V 50Hz
Power
8.65KW
Conveyor speed
0-10m/min
Tunnel size(L*W*H)
1000*450*250mm
Conveyor load capacity
5kg
Machine size (L*W*H)
1260*670*1290mm
Applicable film
POF PVC

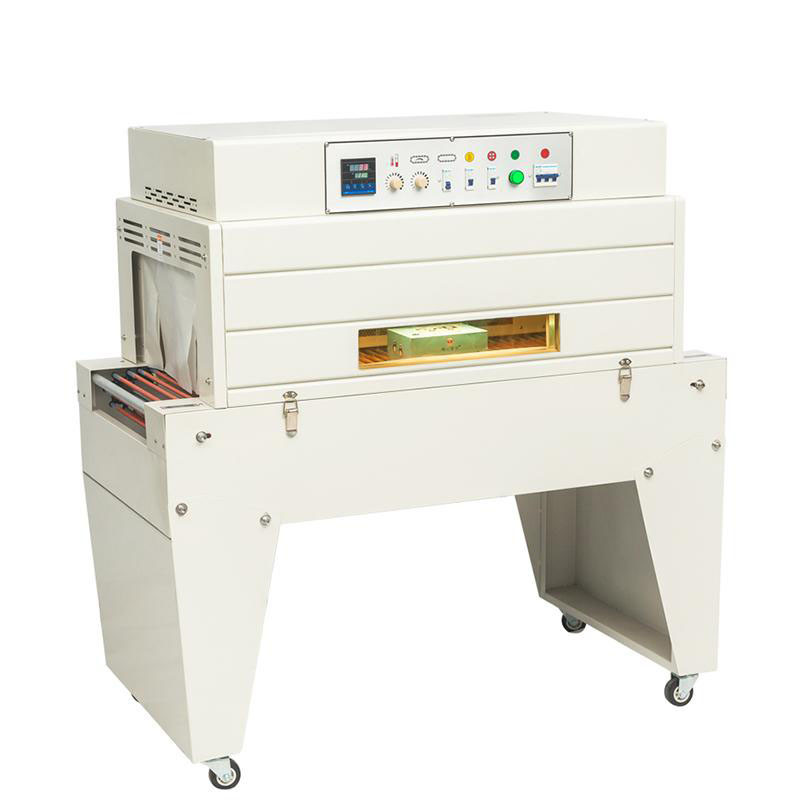

shrink tunnel (1)

After heat shrinking, the plastic film to wrap the products will be tight,  will fully display the appearance of the products.


The packaged goods after sealing, it is moisture-proof, anti-pollution.And it could prevent splashing when the goods are broken.

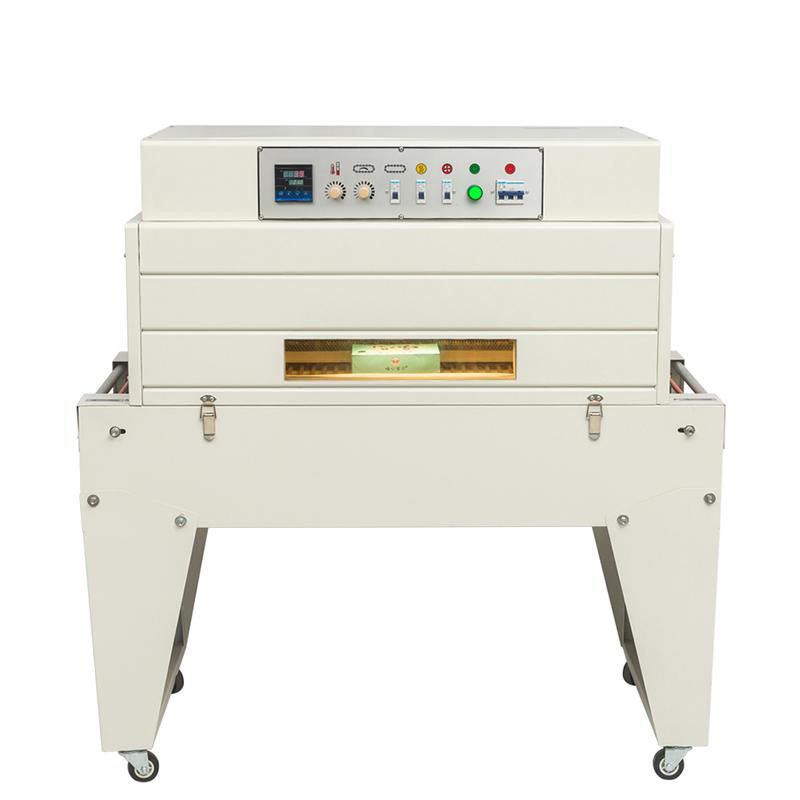

shrink tunnel (5)

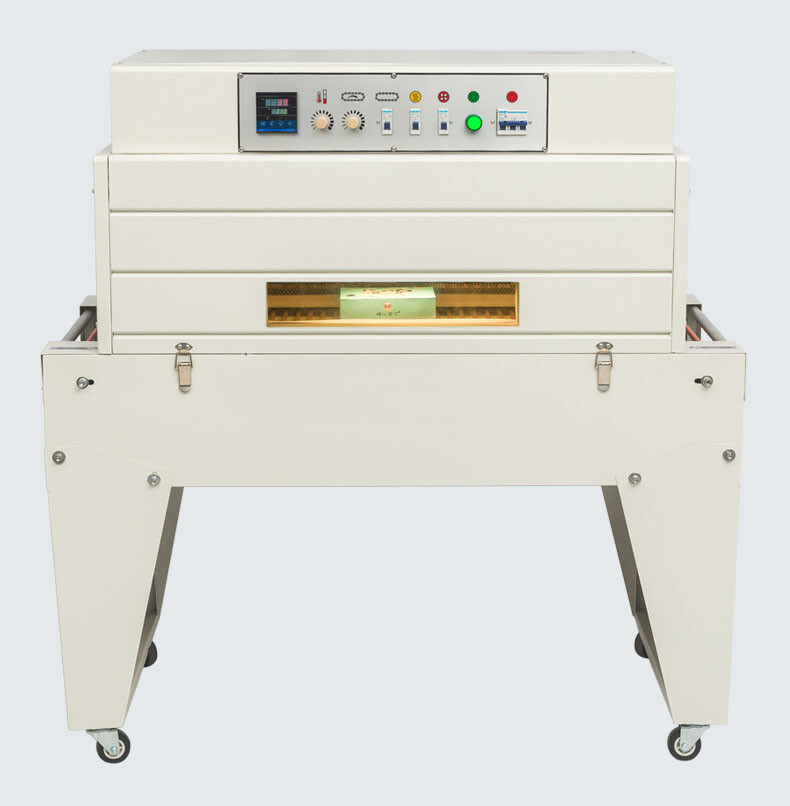

Heating evenly, with good shrinkage effect.

We design the observation window, it is more convenient to see the shrinking process.

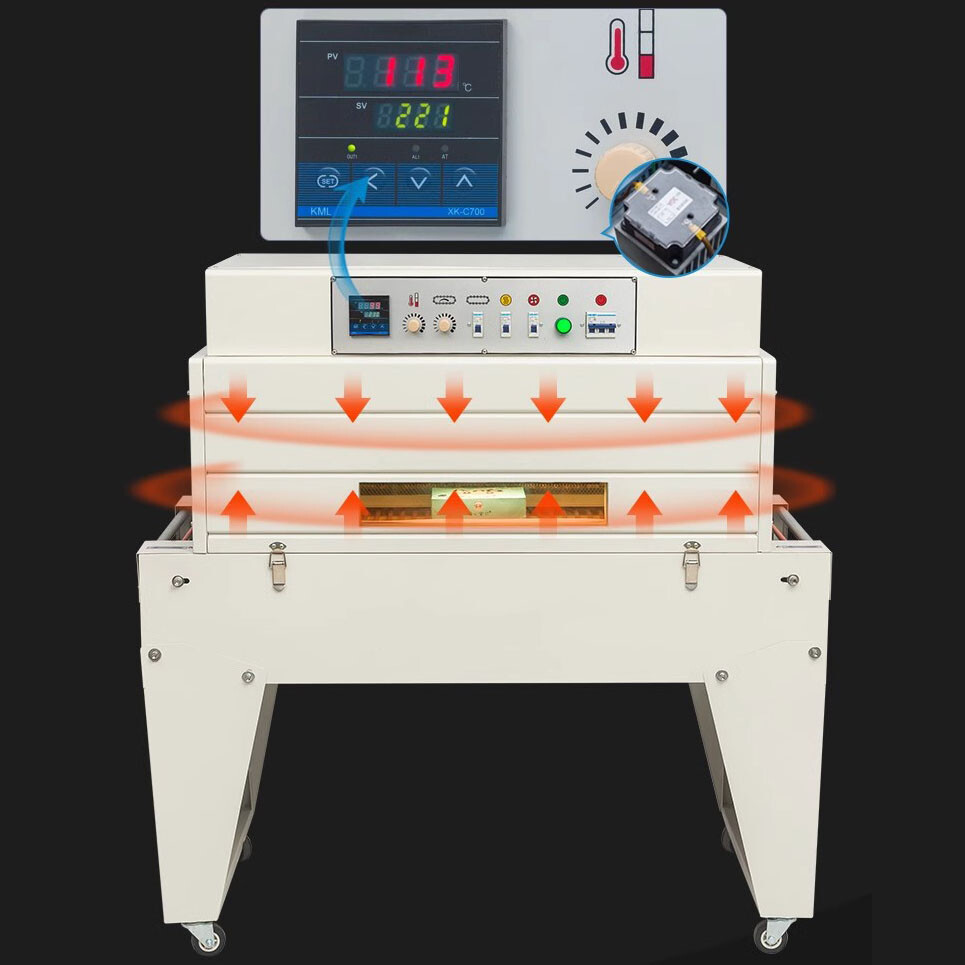

SHRINK TUNNEL 5

The operation panel is simple and beautiful, could control the temperature and conveying speed.

The intelligent digital display temperature controller, could control the temperature precisely.


New solid state voltage regulator, to control the temperature more precise, when the shrink tunnel temperature reaches the setting temperature, the machine will stop heating automatically.

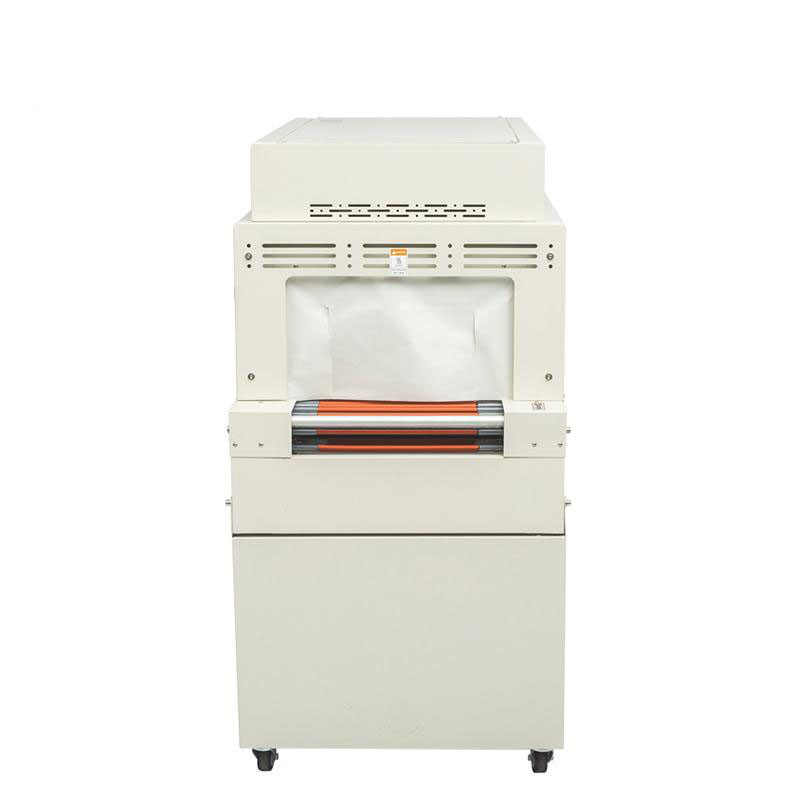

The shrink tunnel temperature is stable and energy-saving, power-saving.shrink tunnel (2)

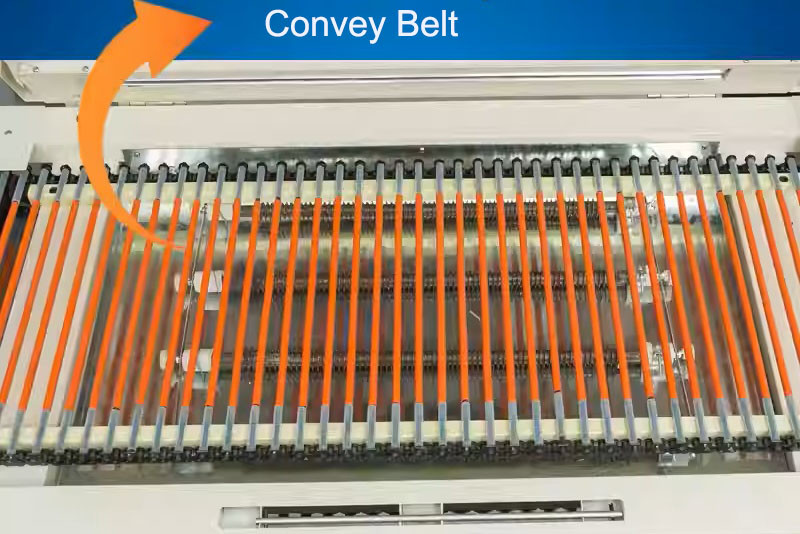

SHRINK TUNNEL 6

Chain conveying belt,red silicone tube and PTFE tube.
It has the higher load capacity, the longer service life and the more stable transmission.It could protect the products more better.
shrink tunnel (4)

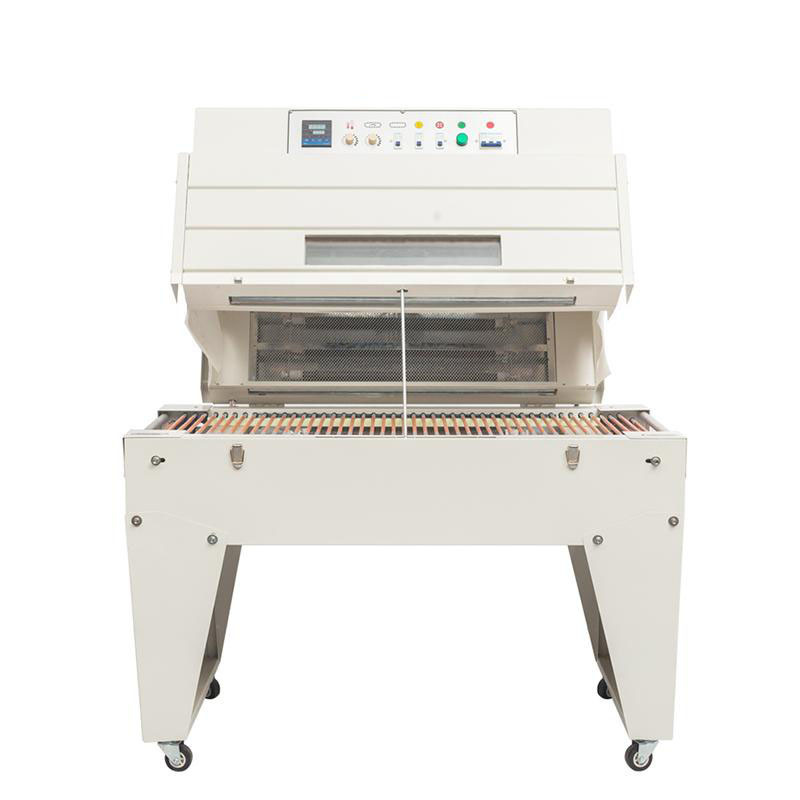

The shrink packaging machine can be lifted up, and supported by a bracing bar, making it easy to replace parts and maintain.

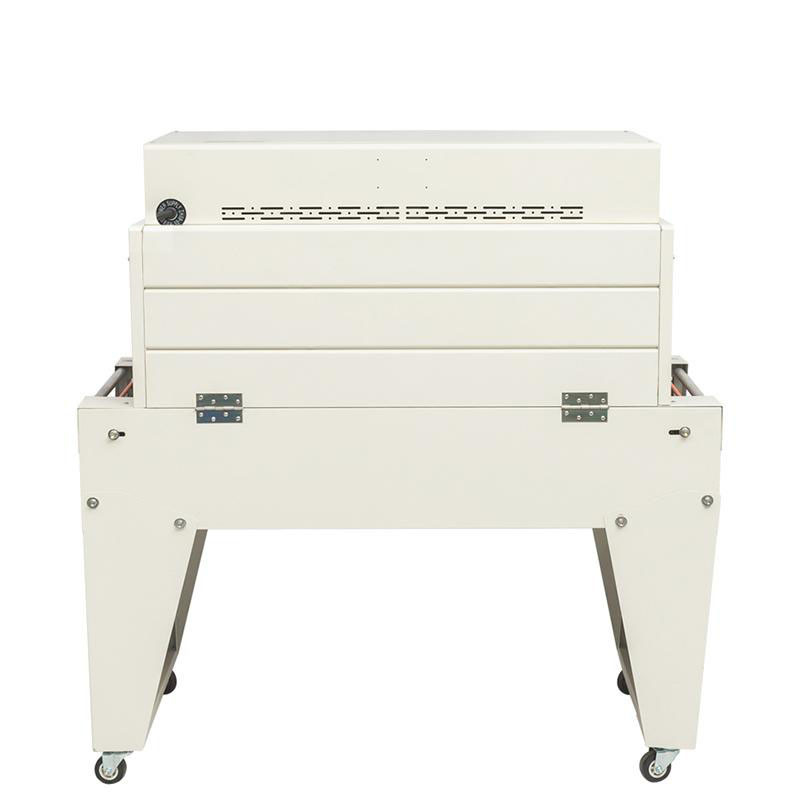

shrink tunnel (3)

Mobile Casters, higher load capacity, more durable, and convenient to move.
