DFQA450 & DSA4525 Semi-Automatic Plastic Film L Bar Sealer Heat Shrink Wrap Packaging Machine
Inquiry Now →

Product Description

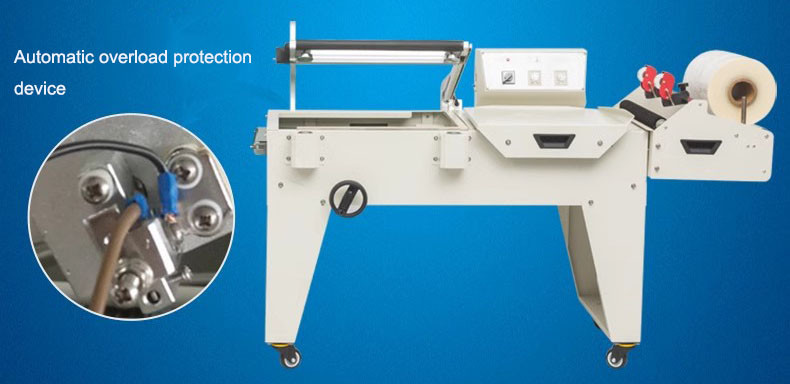

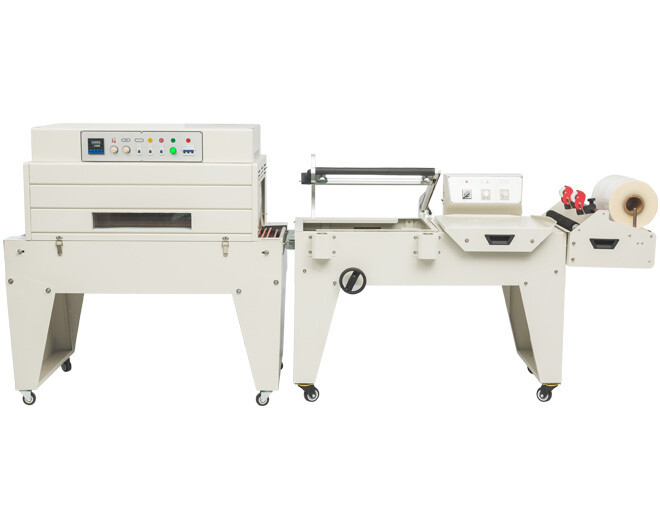

DFQA450 & DSA4525 Semi-Automatic Plastic Film L Bar Sealer Bottle Heat Shrink Wrap Packaging Machine

Sealing and Cutting first, then shrinking.

These two machines can pack the products with the plastic film, after heat shrinking, the plastic film will wrap the products tightly, to fully display the appearance of goods,which makes the packaging more beautiful and firm.

Our these two combination machines are widely used in the products packaging for food, beverage, cosmetics, printing, hardware and other industries.
Specification

Model
DFQA450
Voltage
AC220V 50-60HZ
Power
1KW
Production capacity
400-600packages/hour
Max. sealing size(L*W)
550*450mm
Machine size(L*W*H)
1720*740*1050mm
Machine weight
116kg
Applicable film material
POF,PVC

L BAR SEALER 2

Model
DSA4525
Power source
380V 50Hz
Power
8.65KW
Conveyor speed
0-10m/min
Tunnel size(L*W*H)
1000*450*250mm
Conveyor load capacity
5kg
Machine size (L*W*H)
1260*670*1290mm
Applicable film
POF PVC




After heat shrinking, the plastic film to wrap the products will be tight,  will fully display the appearance of the products.

The packaged goods after sealing, it is moisture-proof, anti-pollution.And it could prevent splashing when the goods are broken.

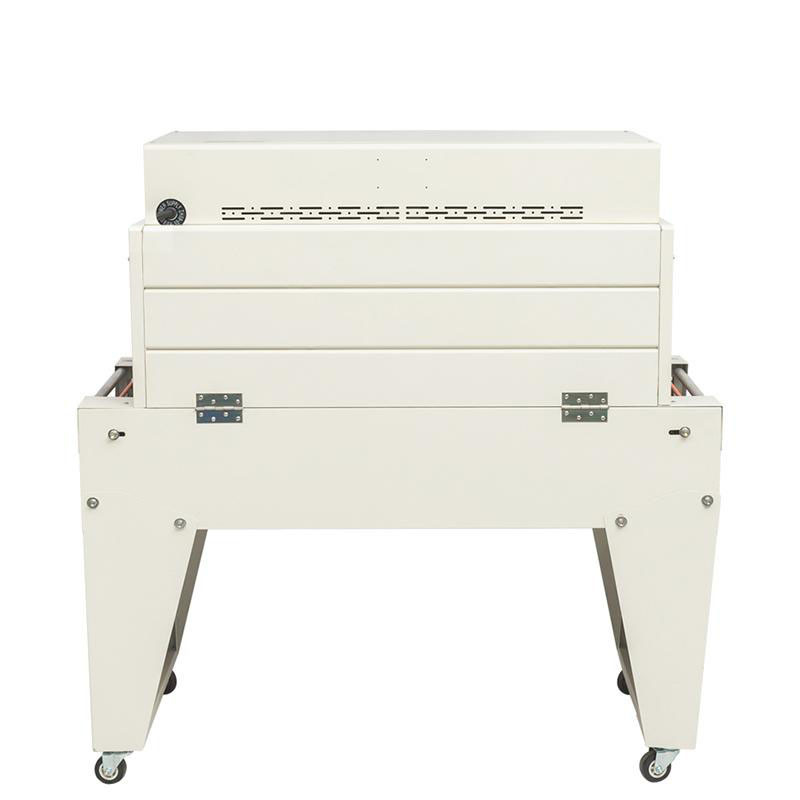

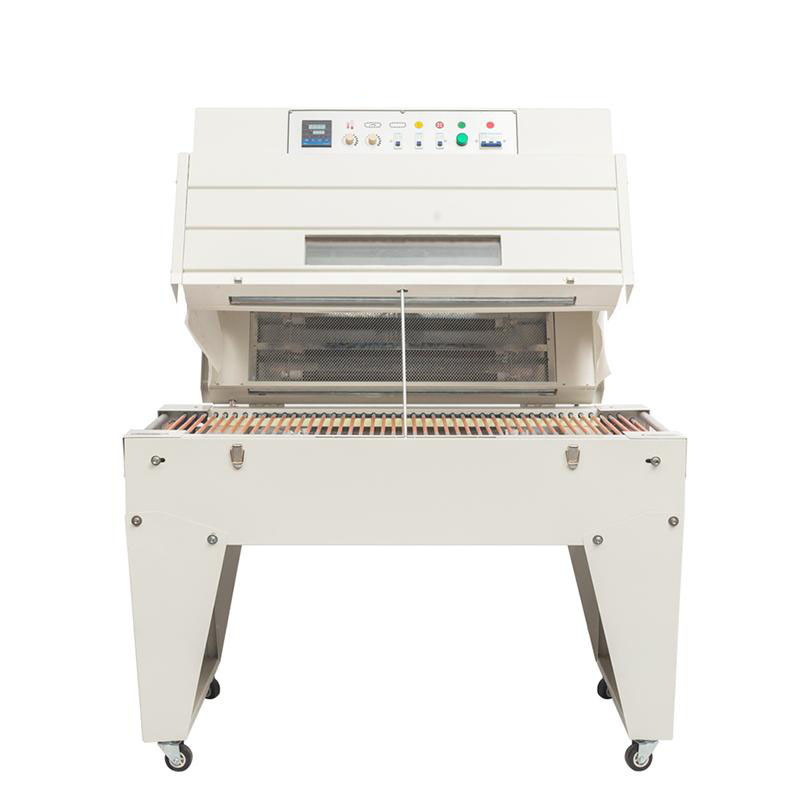

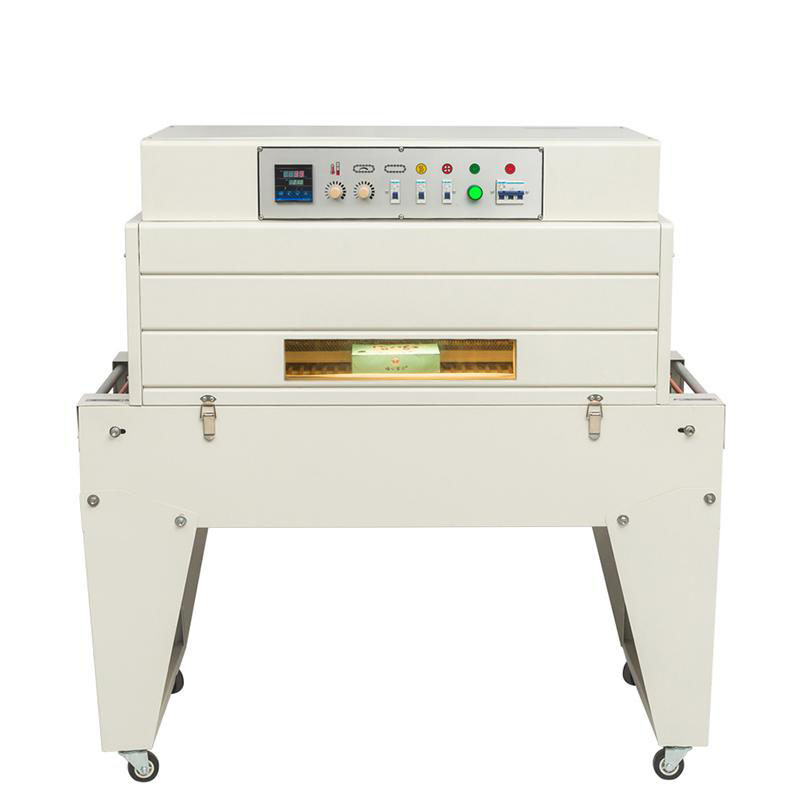

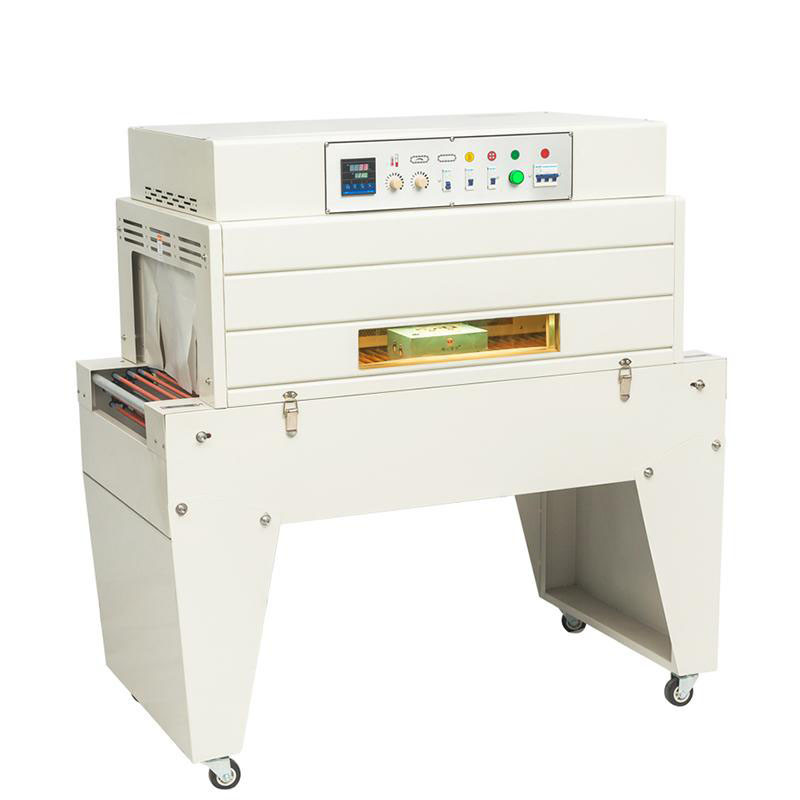

The shrink packaging machine can be lifted up, and supported by a bracing bar, making it easy to replace parts and maintain.



Heating evenly, with good shrinkage effect.

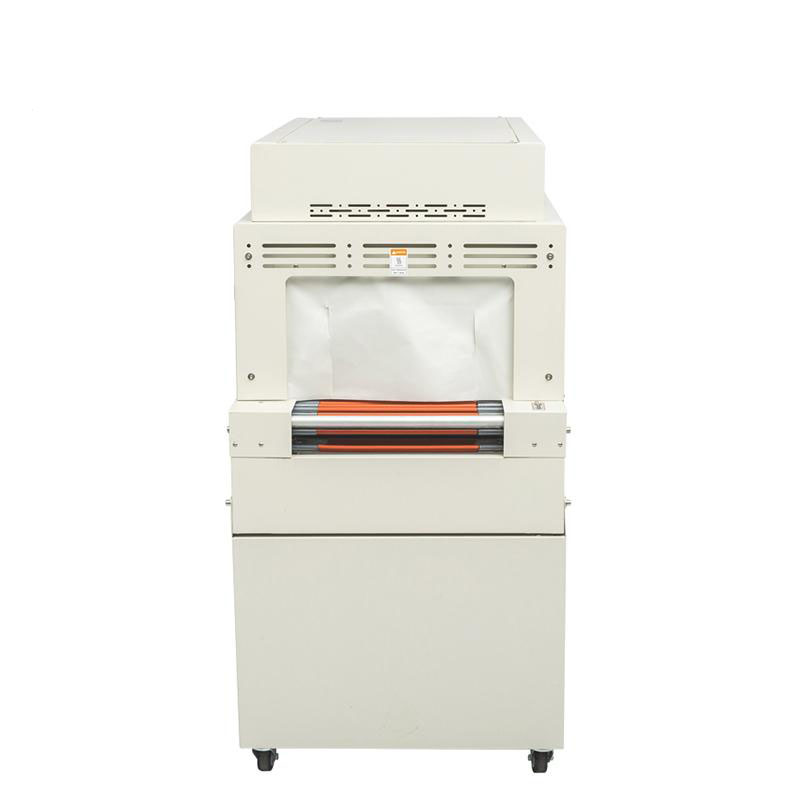

We design the observation window, it is more convenient to see the shrinking process.

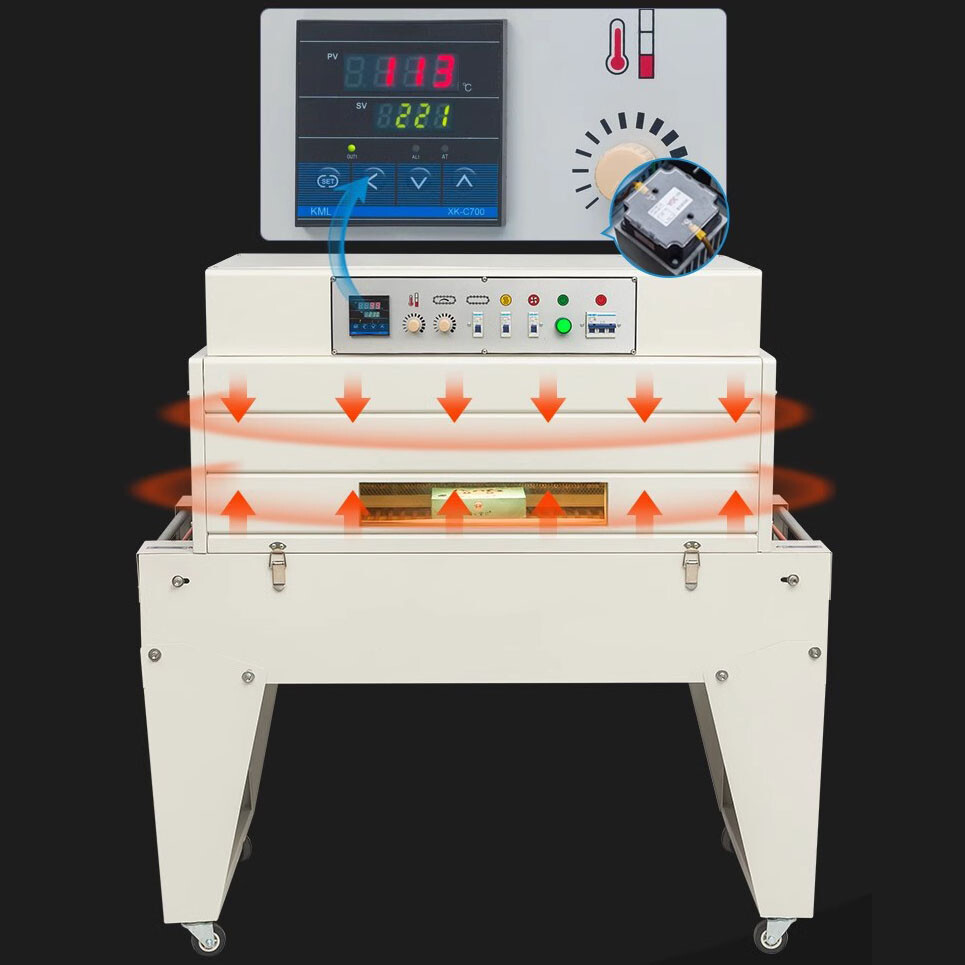

The operation panel is simple and beautiful, could control the temperature and conveying speed.

The intelligent digital display temperature controller, could control the temperature precisely.

New solid state voltage regulator, to control the temperature more precise, when the shrink tunnel temperature reaches the setting temperature, the machine will stop heating automatically.
The shrink tunnel temperature is stable and energy-saving, power-saving.

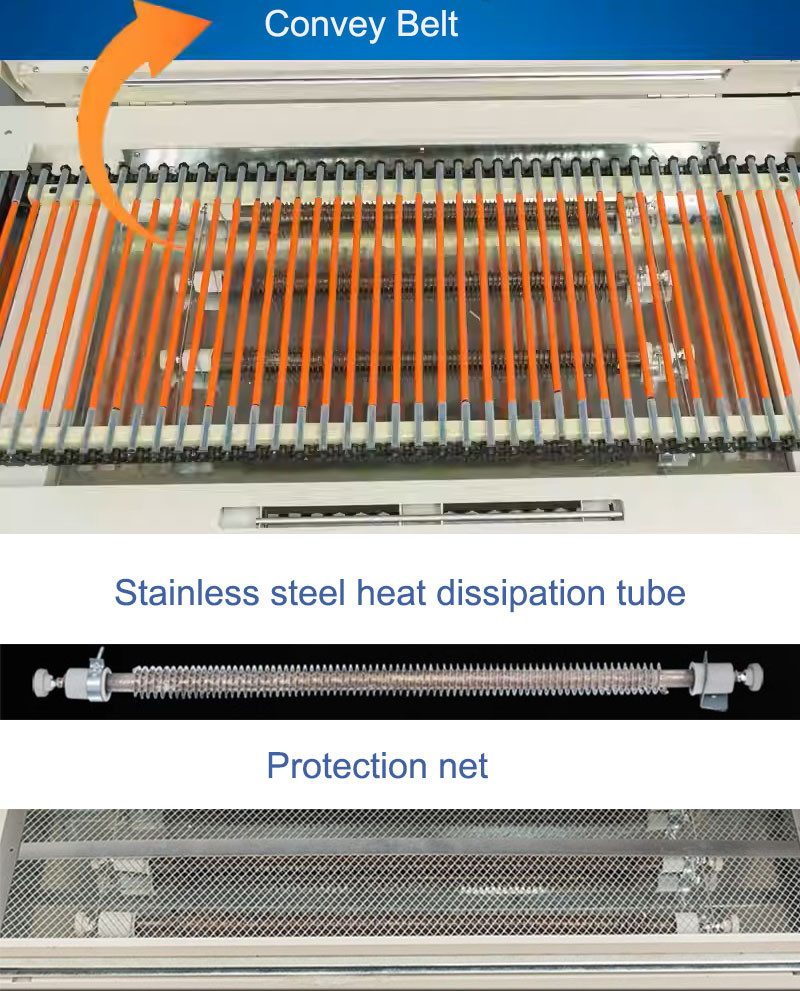

Chain conveying belt,red silicone tube and PTFE tube.
It has the higher load capacity, the longer service life and the more stable transmission.It could protect the products more better.





Stainless steel heat dissipation tubes.
It has large heat dissipation area, can reach the setting temperature faster.


We install the protective net, it could prevent packaged goods to touch the heating tubes when the machine is working, thus avoiding the packaged goods from being burned.

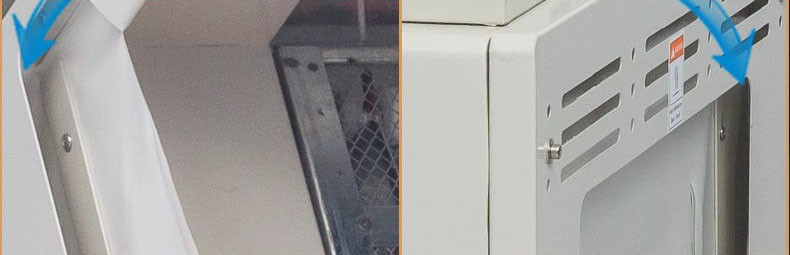

We install the heat insulation board in the two sides of the shrink tunnel, is more safe.






Mobile Casters, higher load capacity, more durable, and convenient to move.
