BZJ5038B & BSE6040A Semi-automatic Beverage Bottle Sleeve Wrapping Machine Plastic Film Thermal Shrink Tunnel Packaging Machine
Inquiry Now →

Product Description

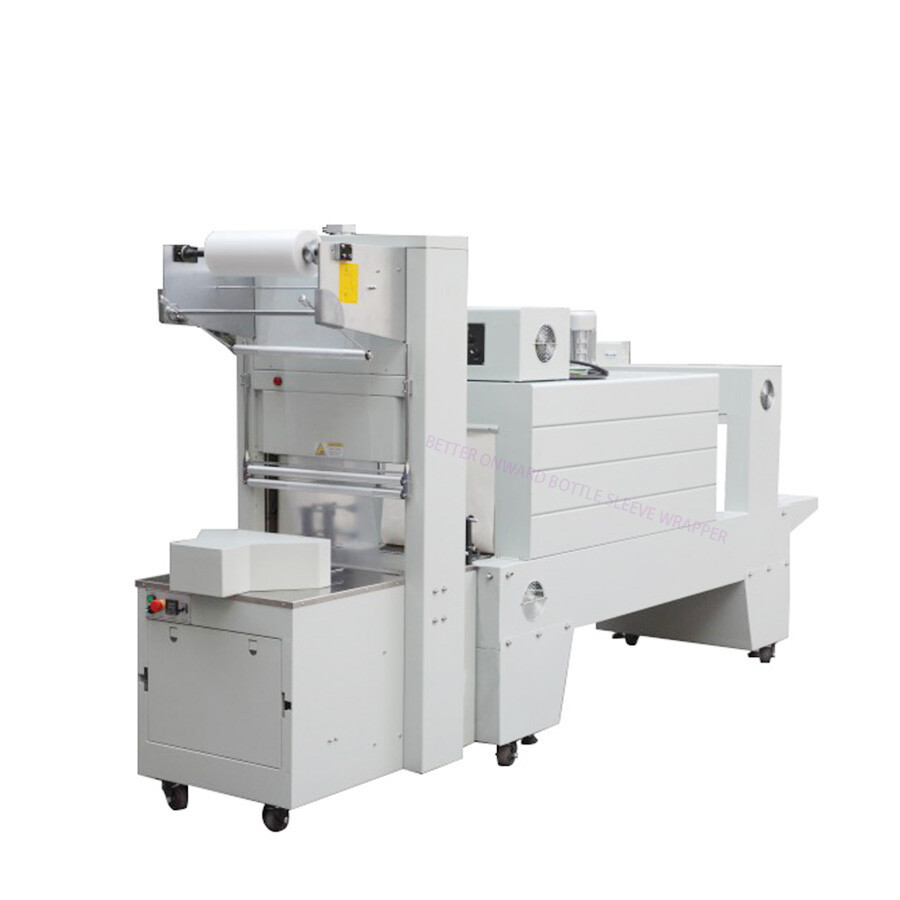

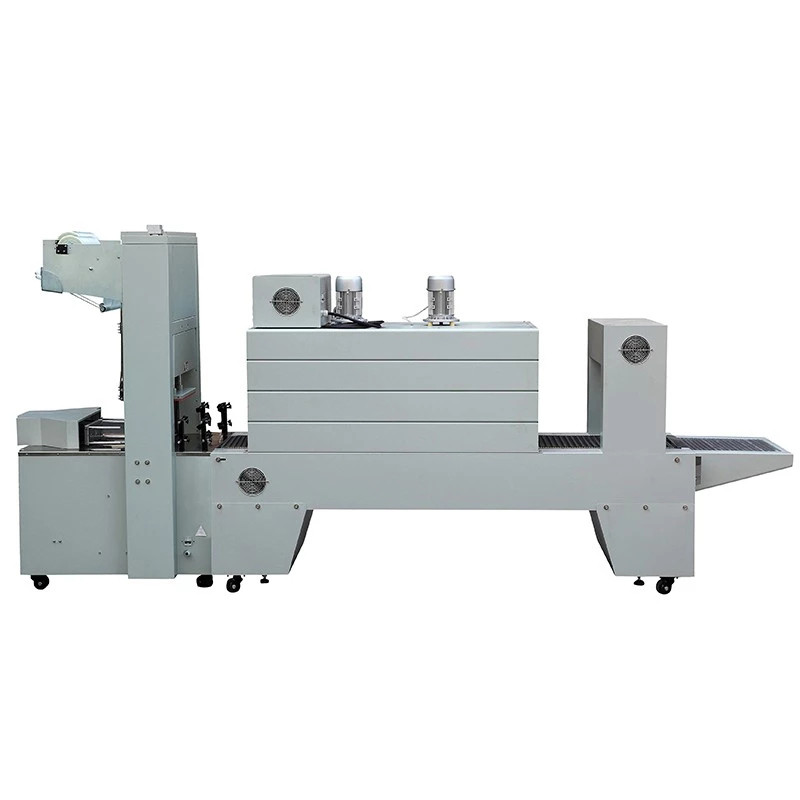

BZJ5038B & BSE6040A Bottle Sleeve Wrapping Machine Plastic Film Thermal Shrink Tunnel Packaging Machine

After being packed by these two machines, the goods is beautiful, tidy, dust proof, moisture
proof, anti-damage. The packaged goods are easy to handle and storage.

It is suitable for the food, beverage, candy, cultural supplies, hardware and tools, daily
necessities, and chemical products industries.

Specification

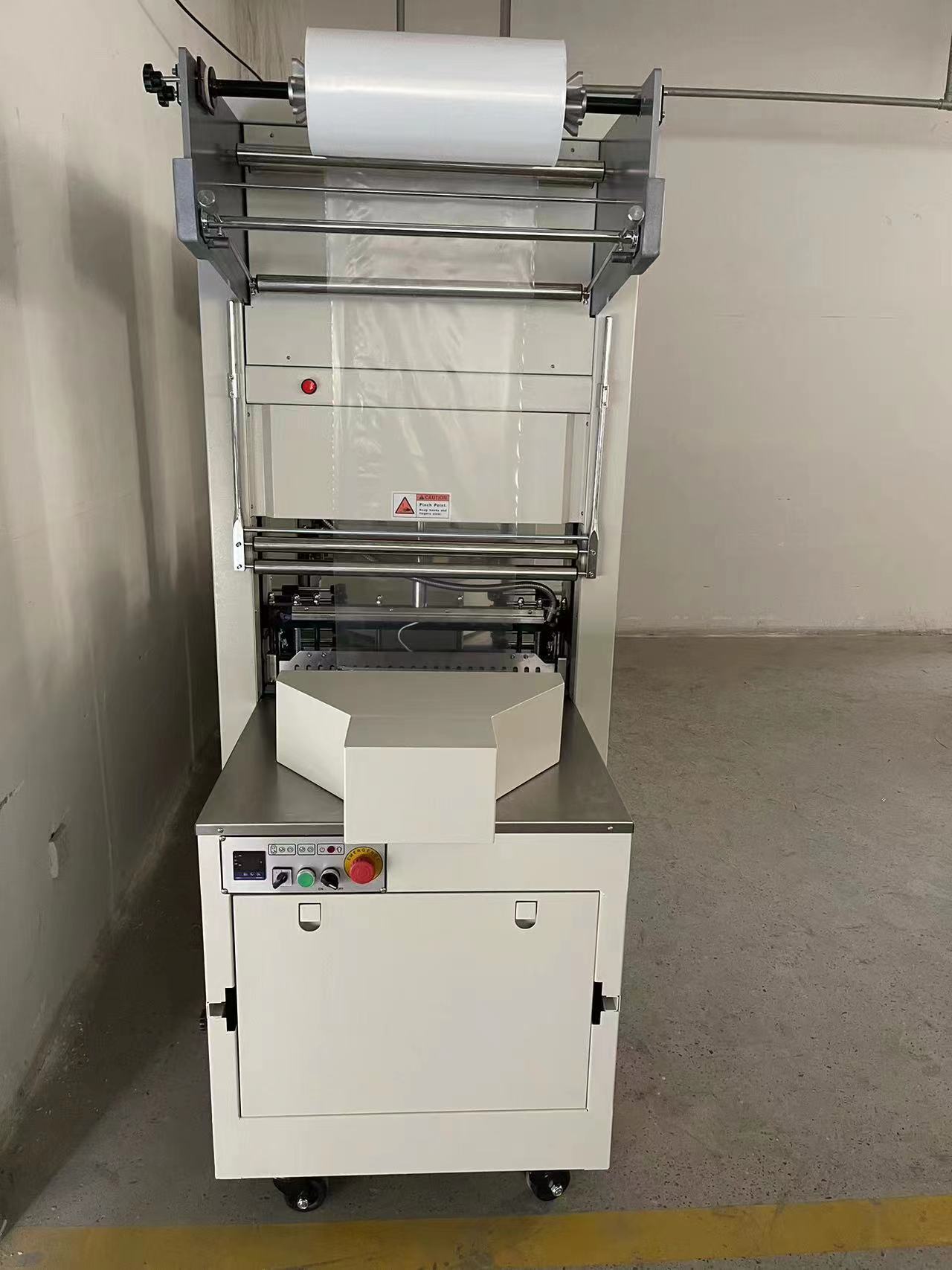

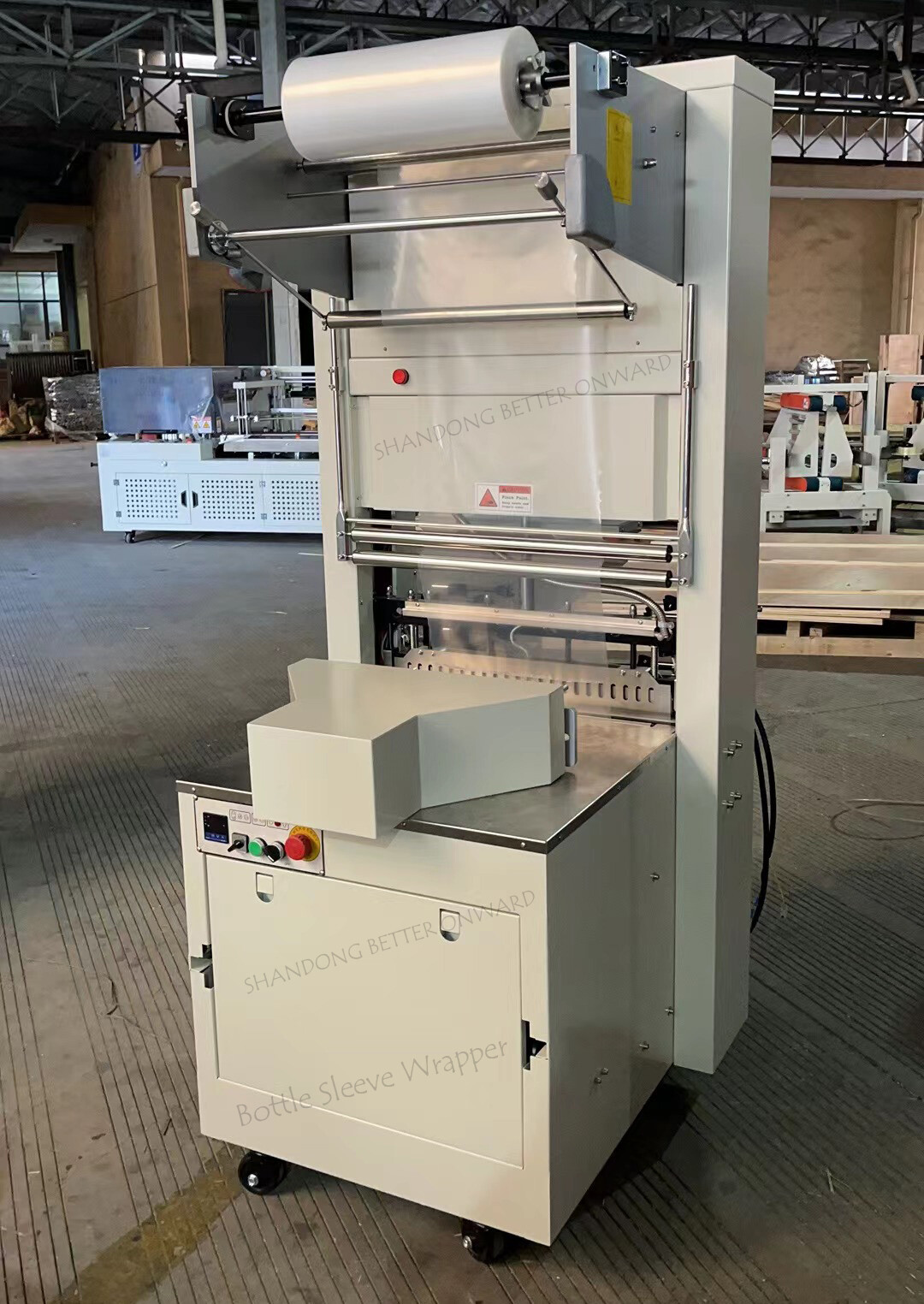

Bottle Sleeve Wrapper
Model
BZJ5038B(Pneumatic)
Power supply
220-240V, 50-60Hz;1.6KW
Capacity
2-8Pacages/minute
Sealing time/shrink time
0.5-1.5s; 0-0.6s
Air source supply
170L/min 0.3-0.5Mpa
Max diameter of film roll
φ30mm
Film width
Max. 550mm
Film thickness
0.03-0.25mm
Max. packing dimension(L*W*H)
450* 270* 330mm
Min. packing dimension(L*W*H)
250* 60* 140mm
Machine weight
225KGS
Machine size(L*W*H)
1090* 830* 1991mm
Shrink film
PE POF PVC PP
Details

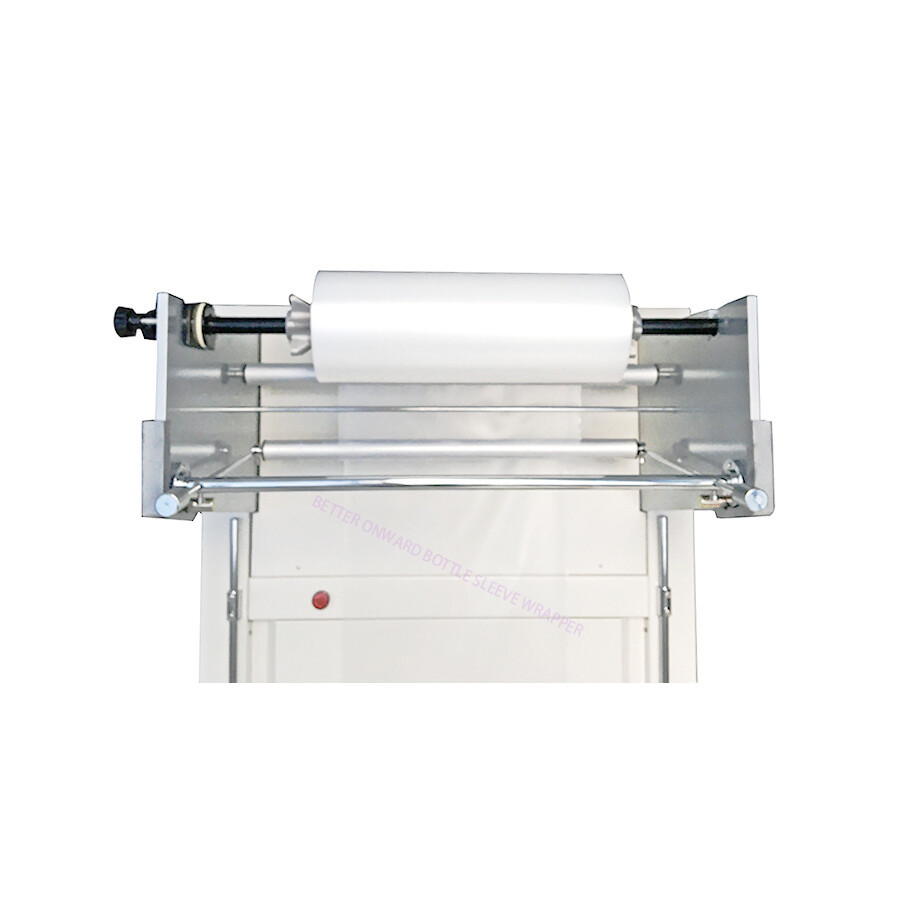

The film structure roller has been thickened, large load capacity. It is easier to change the film.

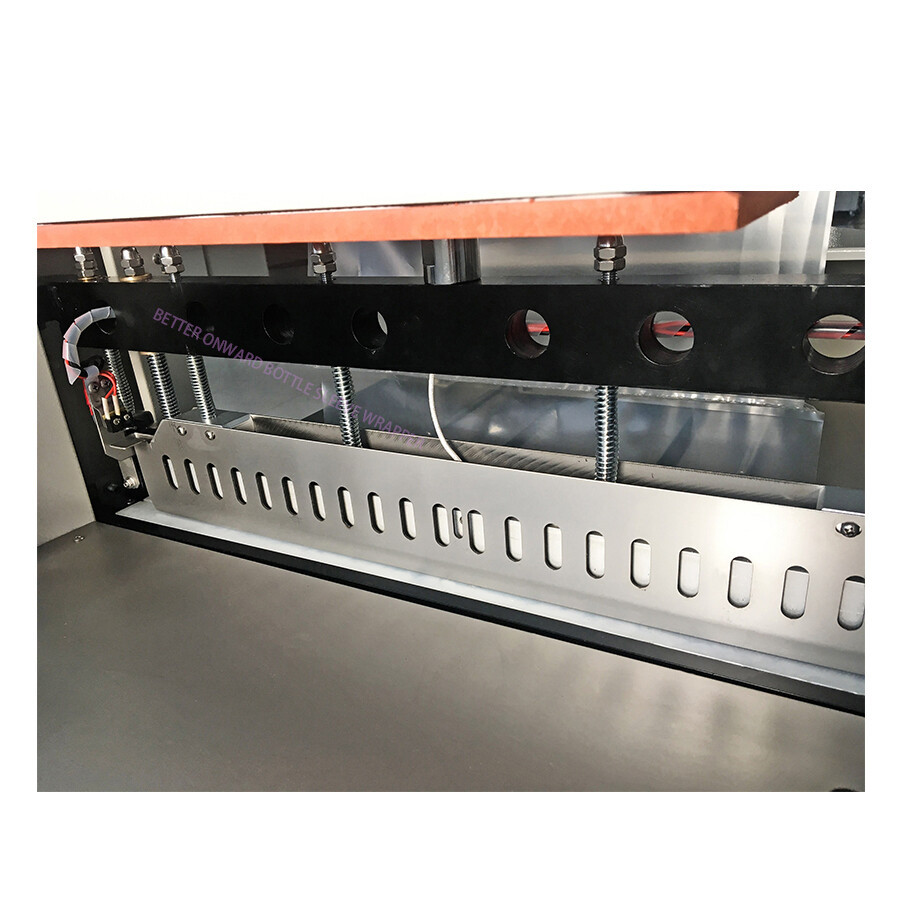

The sealing and cutting blade is coated with Teflon, which is resistant to adhesion and high temperature, and the seal does not crack or smoke.

The sealing frame is made of high-quality alloy steel, and the frame is not easily to deform.

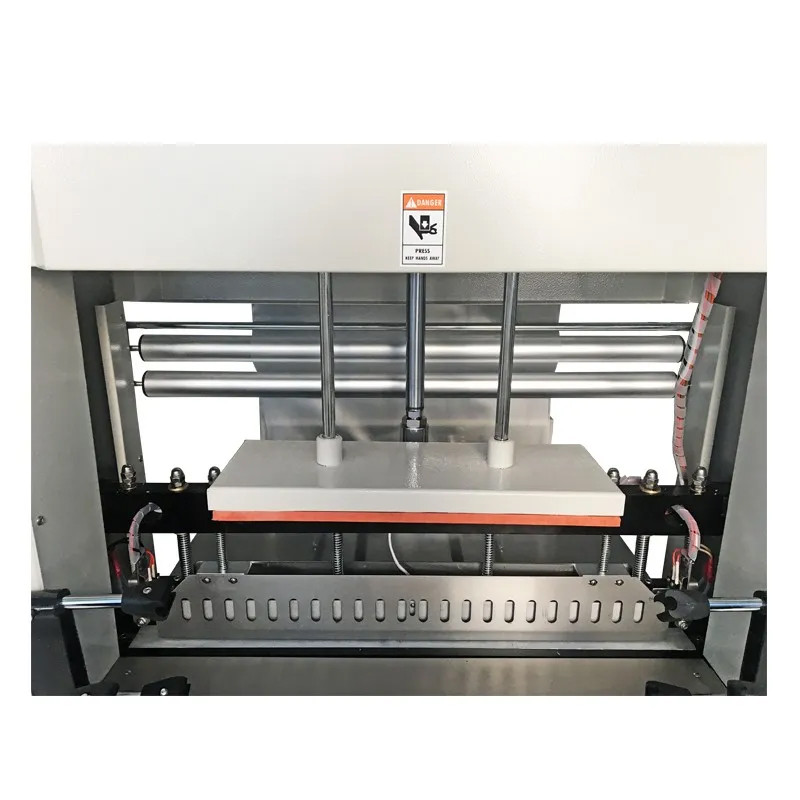

The pressure plate is used to securely hold the packaged object in place, enhancing stability and preventing it from moving, resulting in a more orderly packaging effect.

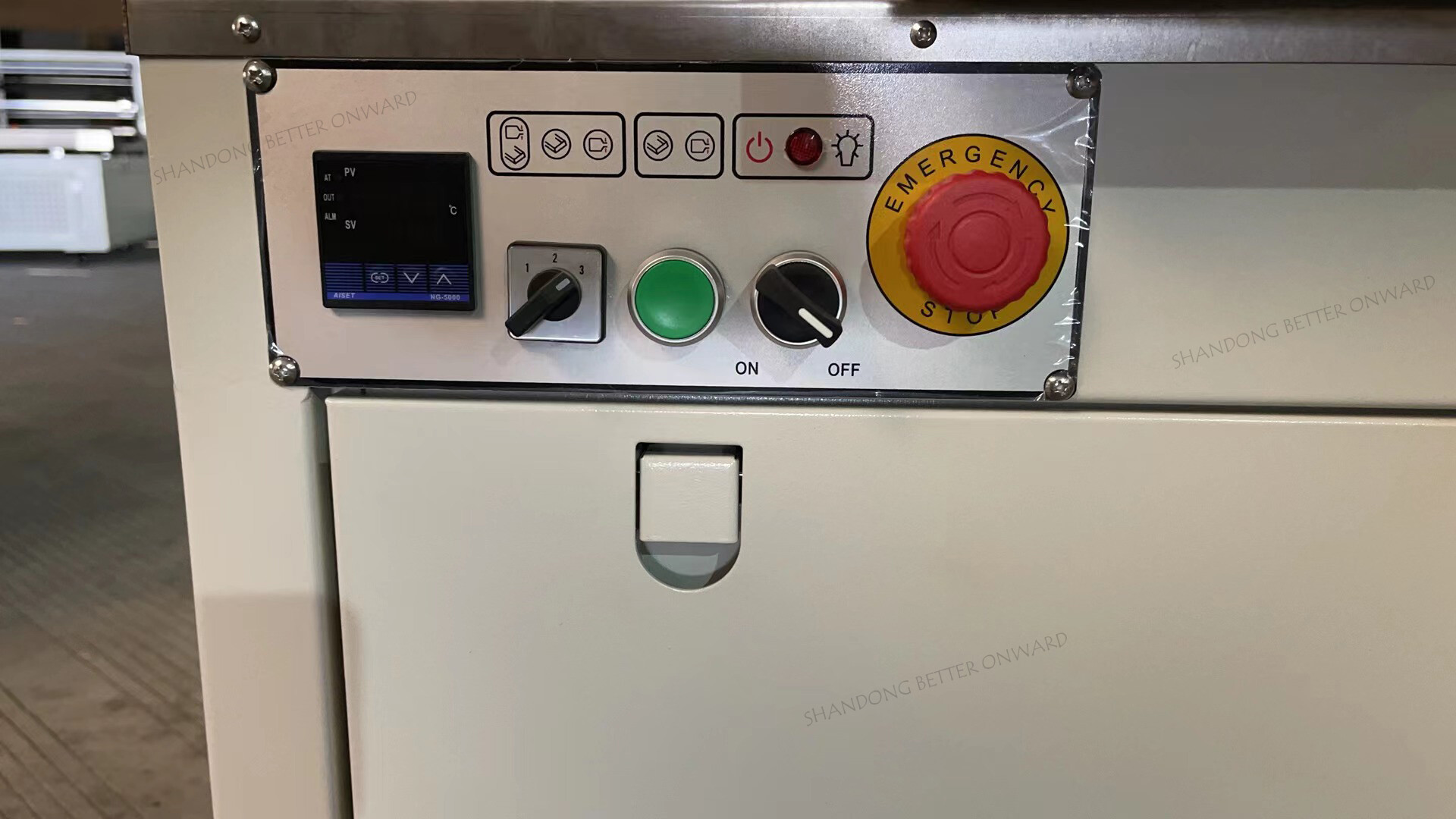

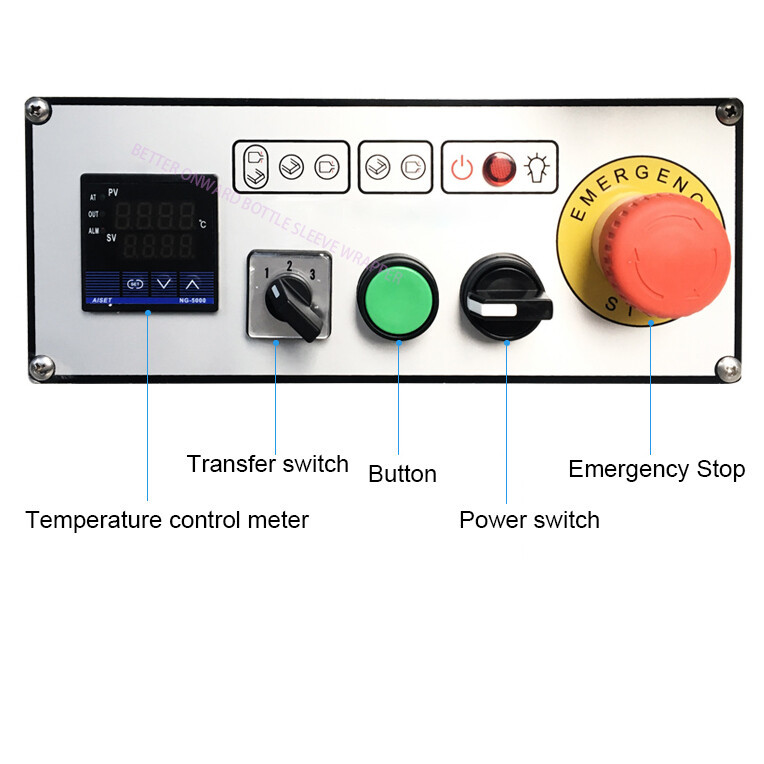

Intelligent control panel, temperature control is more precise, and the shrinking effect is better.

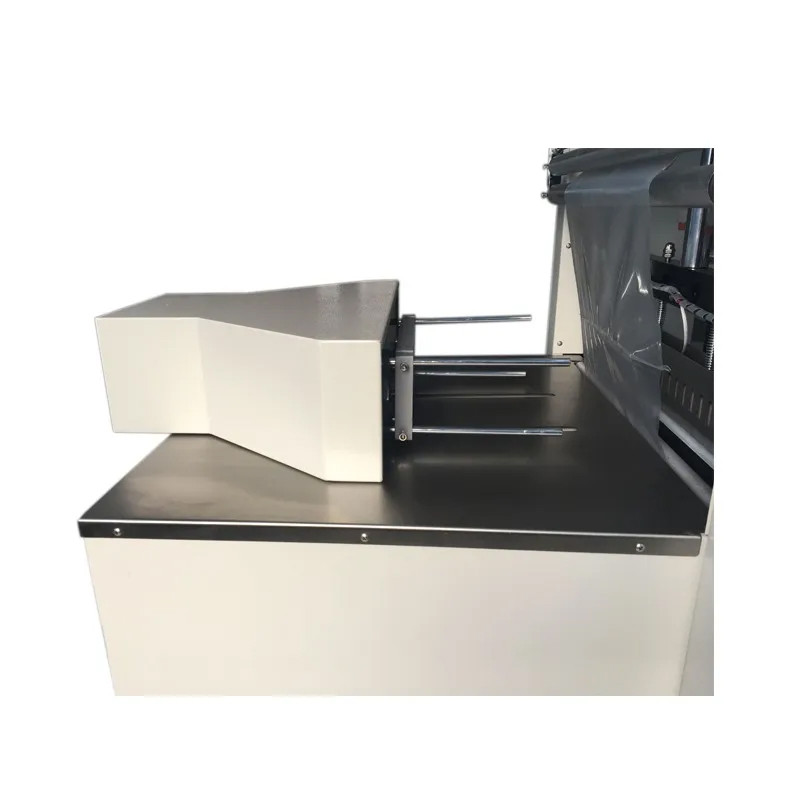

Pusher, which arranges the packaged goods neatly on its rods.
Then the pusher pushing the packaged goods.






Electrical leakage protection device, multiple protections, more safe.

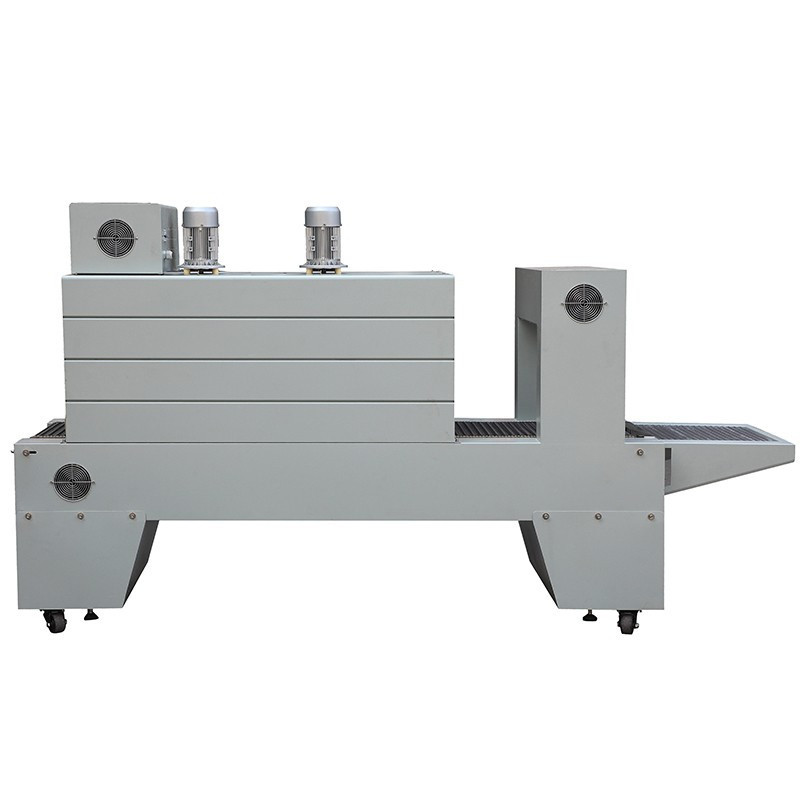

BSE6040A Jet type Shrink Packaging Machine
Model
BSE5040A
BSE6040A
BSE8060A
Power supply
3phase 220V/380V 50-60HZ
Heater Power
20KW
30.9KW
43KW
Conveyor speed
0-10m/min
0-10m/min
0-10m/min
Tunnel size
1500* 500* 460mm
1500*600*460mm
2000*800*600mm
Max. Conveyor loading
30kg
30kg
30kg
Machine weight
470kg
500kg
700
Machine size
3000*830*1680mm
3000* 920*1680mm
3435* 1138* 1850mm
Shrink film
PE, POF,PVC,PP
Details
It applicable to PE, POF, PVC, PP film.

The product is wrapped by shrink film, after heating, the plastic film will shrink and wrap the goods tightly.
It will fully displaying the appearance of the goods. After packaging, the goods is sealed and protected from moisture and contamination.

Larger AC motor, runs more smoothly and has a higher load capacity. The service life is longer and it is more durable.

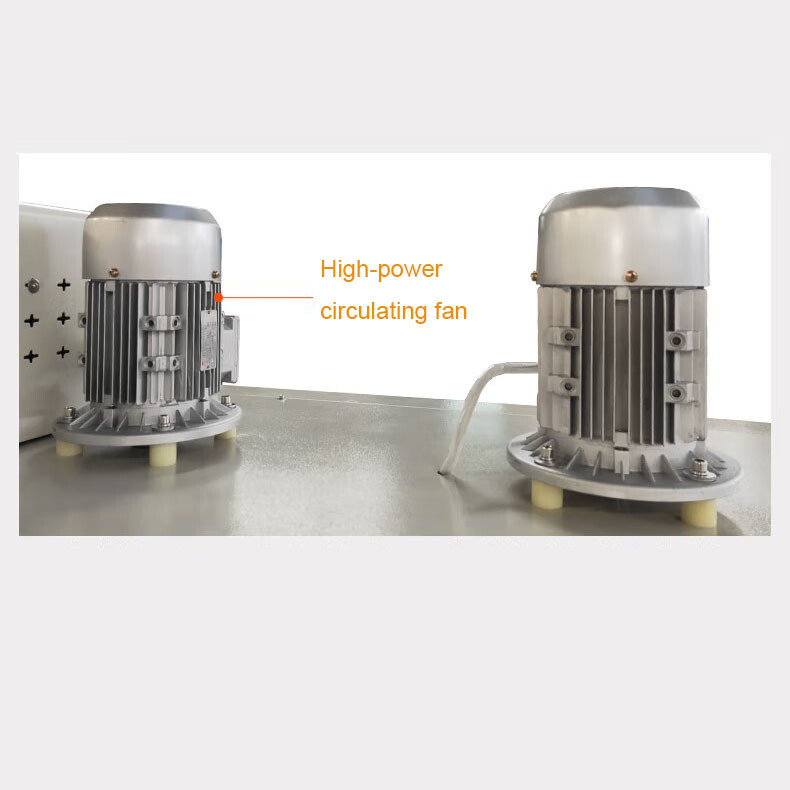

High-power circulating fan, with strong airflow, ensures the shrink film is heated more evenly, resulting in more outstanding shrinkage effects.




The cooling fan installed at the exit, shaping fast.
After shrinking, the package is more beautiful.

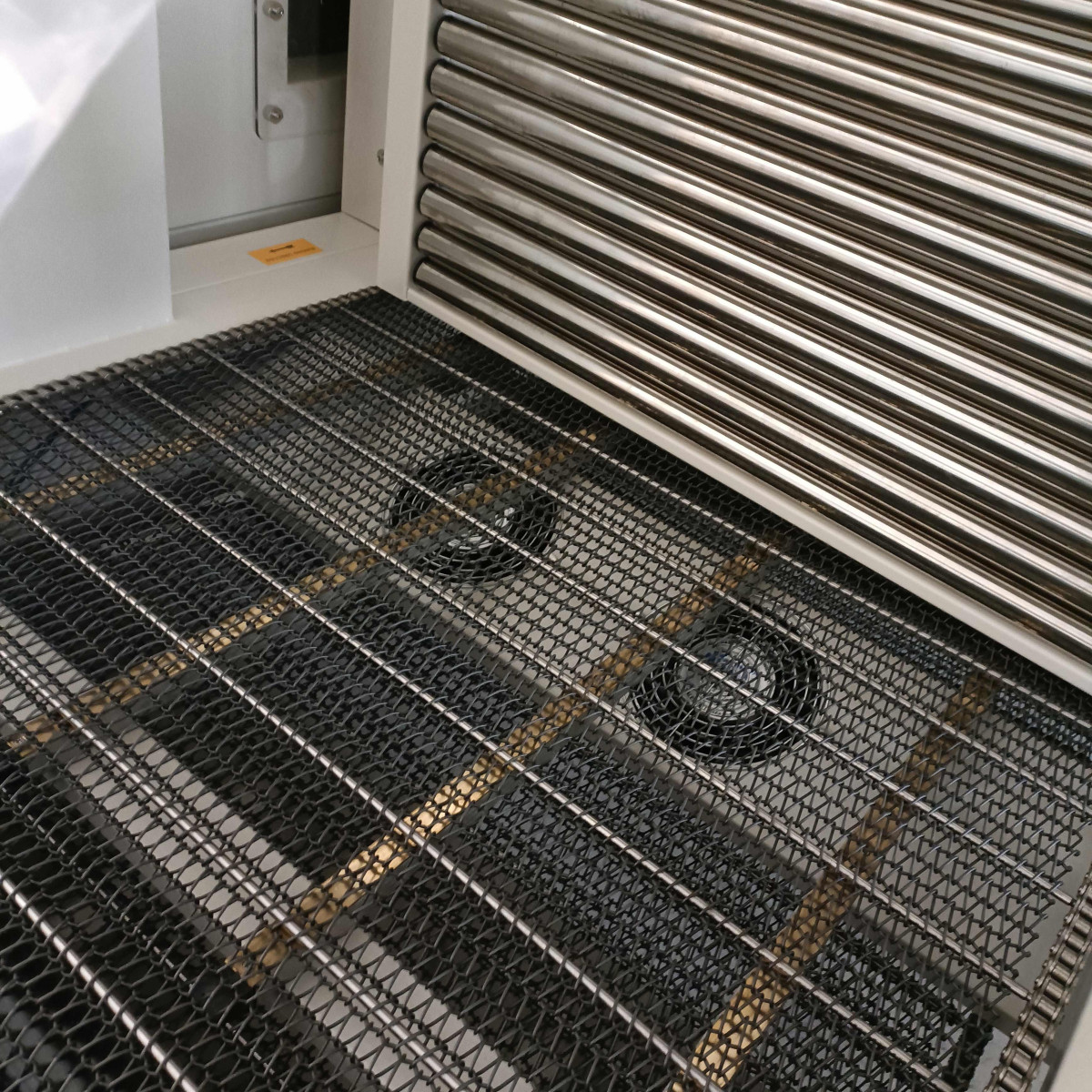

Adopt good quality heating tubes for heating, which can continuously generate heat during operation.
When the temperature of the shrink tunnel reaches the setting temperature, the machine will stop heating
automatically.
When the temperature of the shrink tunnel is lower than the setting temperature, the machine will heat
automatically, is energy-saving and environmentally friendly, saving electricity.

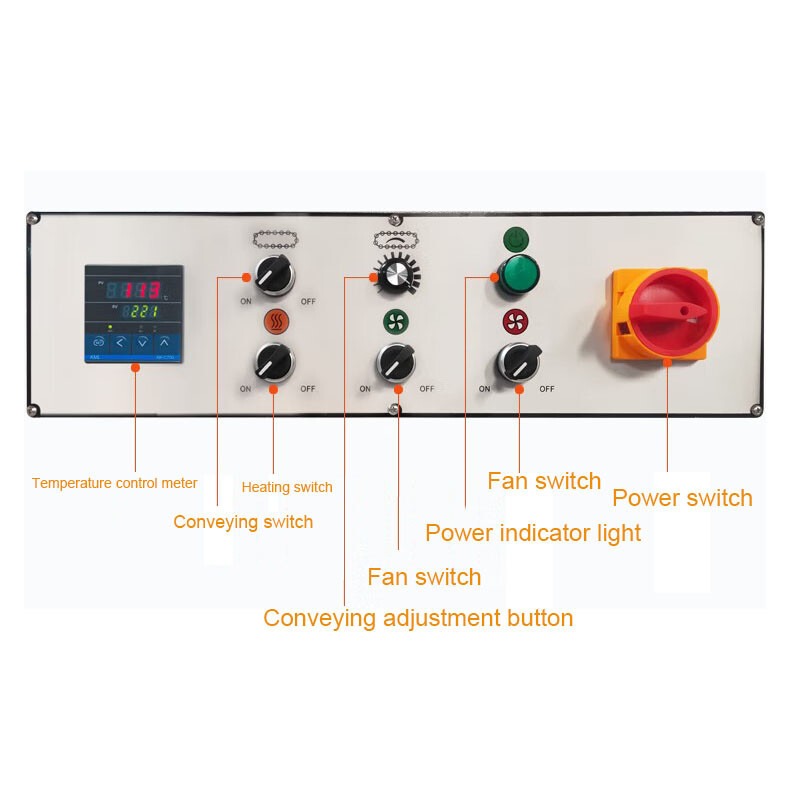

The panel is simple and beautiful, and the operation is easy.







Casters, larger load capacity, more durable, and convenient to move.
