FXW6060 Automatic Carton Adhesive Tape Wrapping and Sealing Machine
Inquiry Now →

Product Description

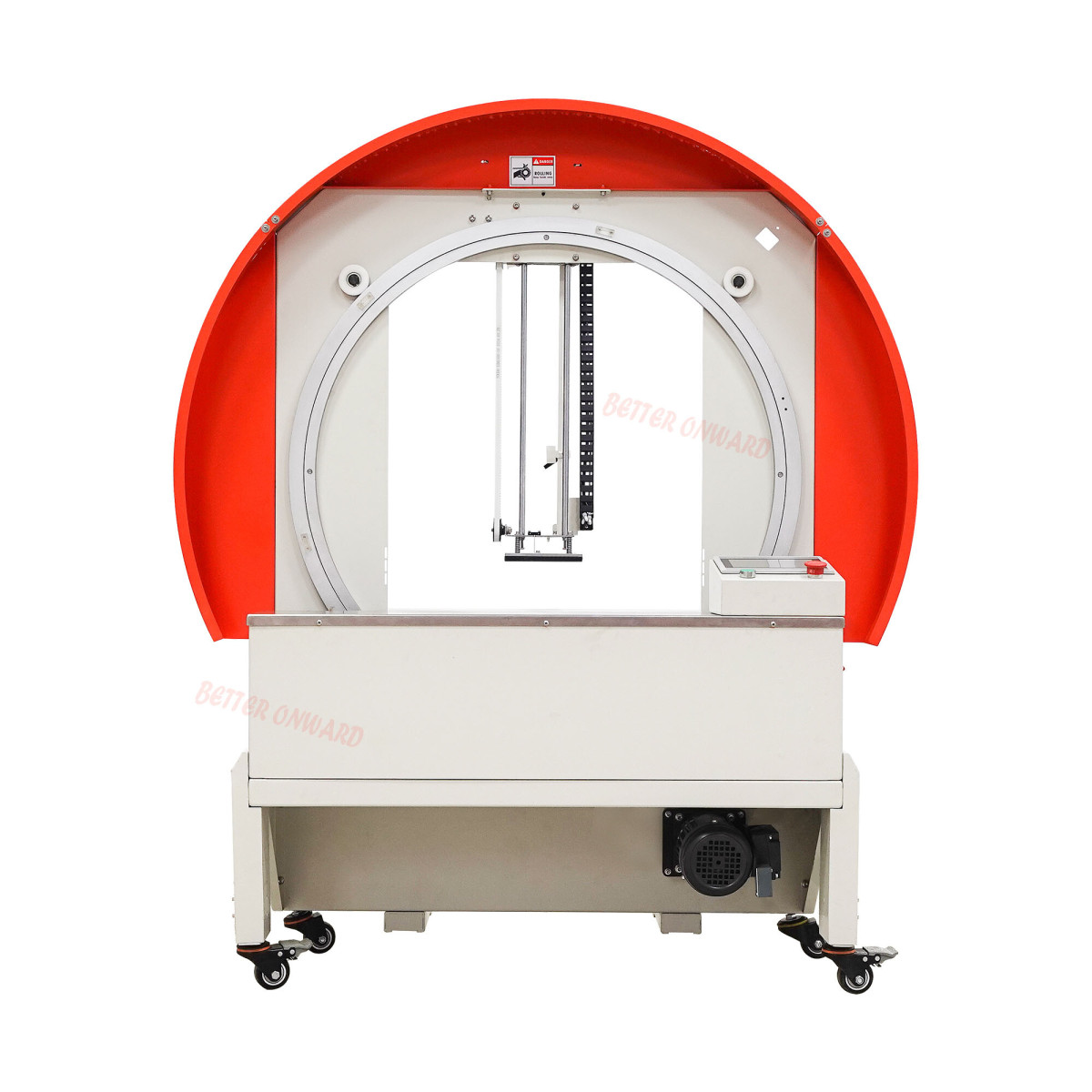

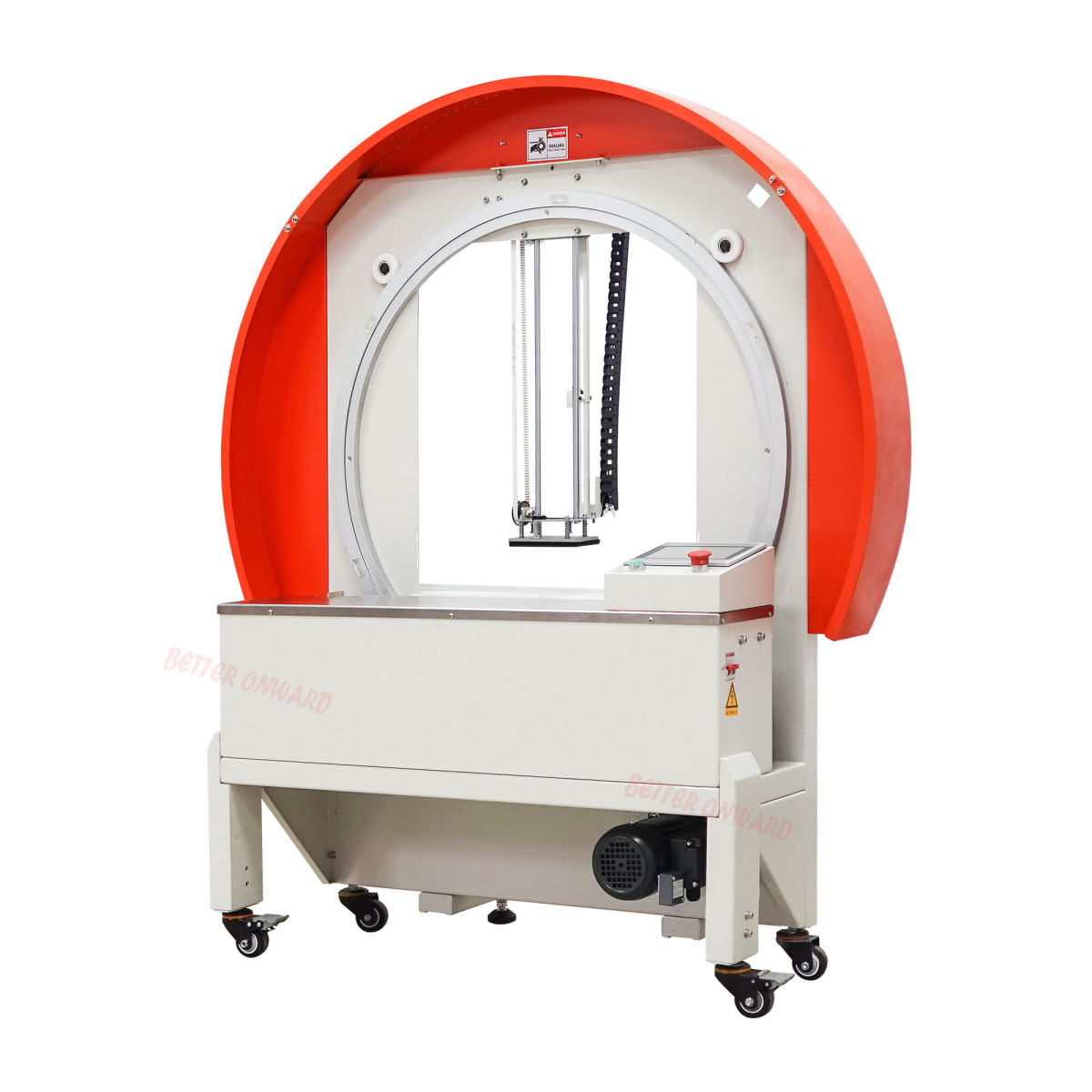

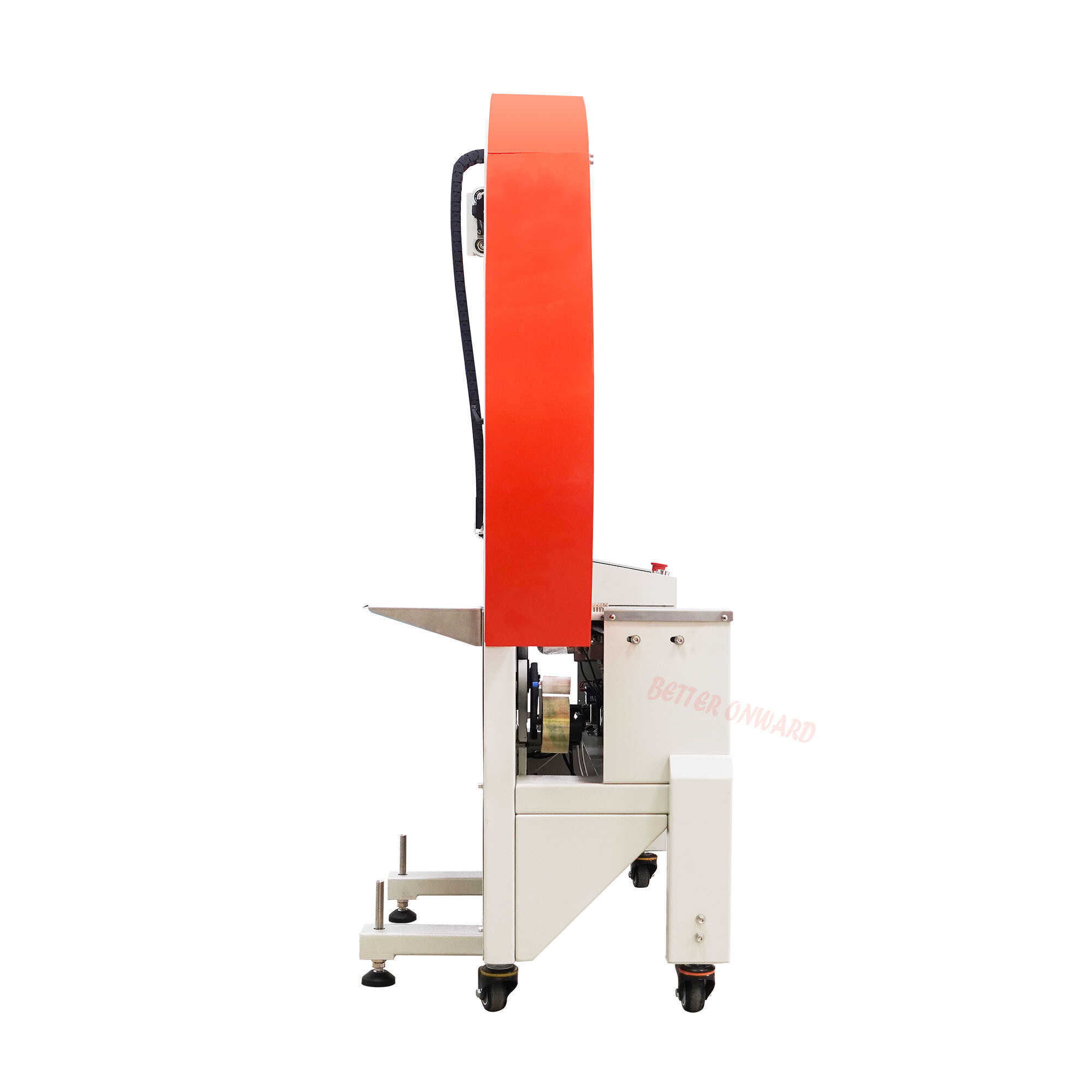

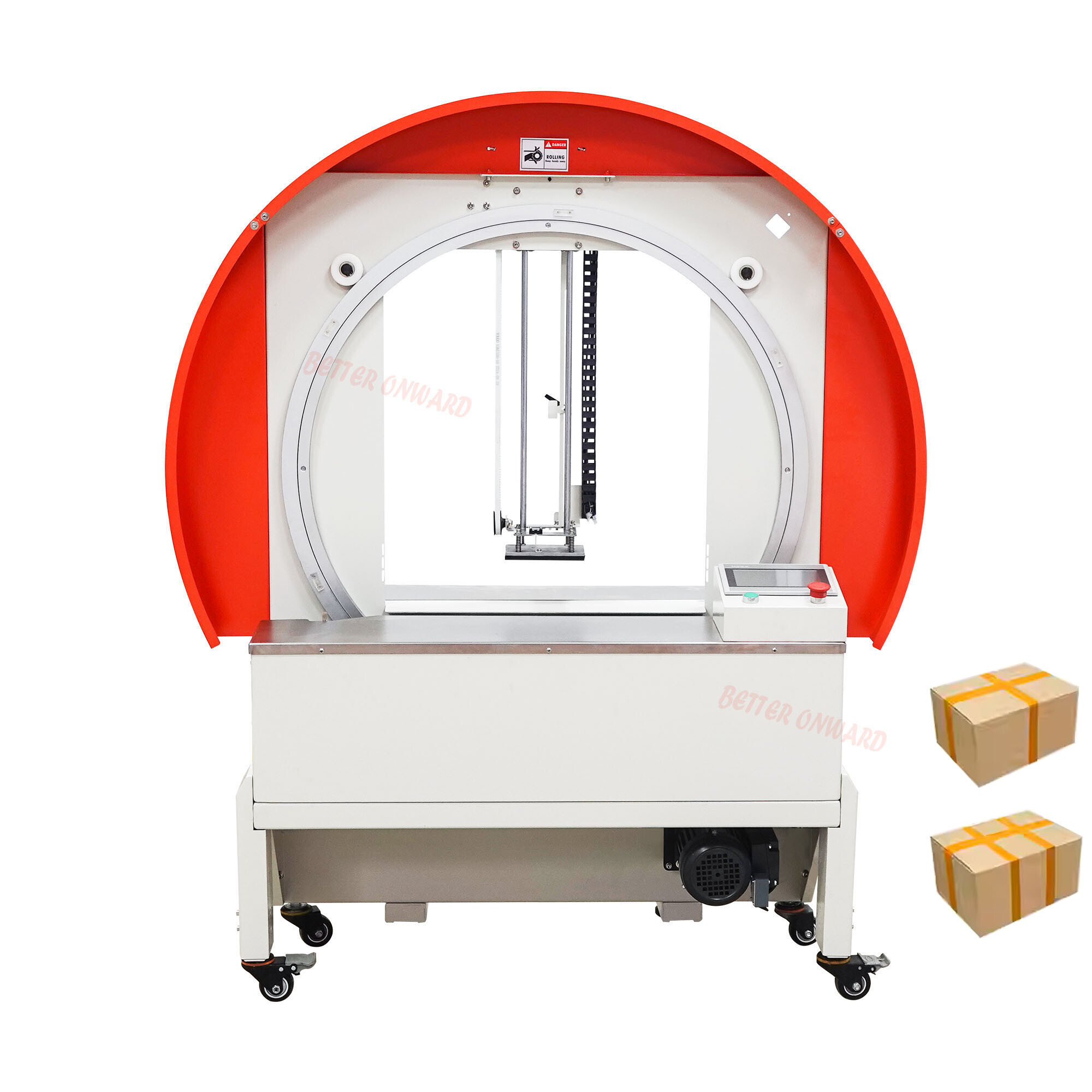

FXW6060 Automatic Carton Wrapping and Sealing Machine

Our FXW6060 automatic carton wrapping and sealing machine could used as single machine, also could work with assembly line.
Specification
Model
FXW6060
Voltage
AC220V 50/60Hz
Power
450W
Sealing speed
0-12packages/min
Adhesive tape width
45mm
Worktable height
700-750mm
Max. Sealing size
L: No limit,
W: 600mm,
H: 600mm.
Match with Conventional carton sealer, the available min. carton's size
L320* W80* H90mm
Match with FXC5050A carton sealer, the available min. carton's sealing size
L150* W130* H120mm
As single machine,
the available min.carton's sealing size
L100* W80* H100mm
Overall size
L718* W1386* H2093mm

Pure Electric
The pure electric tape wrapping and sealing machine adopts the precise control system and mechanical structure, to ensure the uniformity, tightness and consistency of tape wrapping.

This high-quality package can effectively prevent damage to goods caused by collision and friction during transportation, also could enhance the overall appearance and brand image of the products.


The turntable is equipped with carton positioning wheel: to prevent the turntable from excessive wear, can extend the service life of the machine.

Intelligent Touch Screen: English version, easy to operate.


The machine's volume is small, the space occupied is small.




Can be equipped with large roll of adhesive tape, to reduce the tape's replacement frequency.

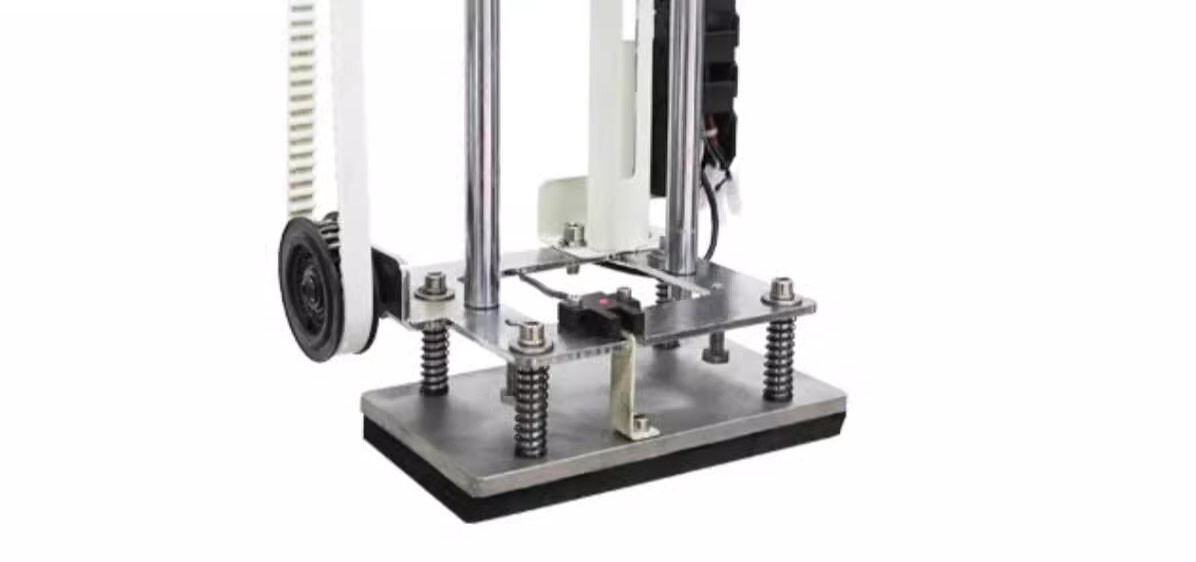

Press Plate

It makes the working more easy and stable.
Stepper Motor

Match with stepper motor, don't need to connect air source.



Power off protection switch

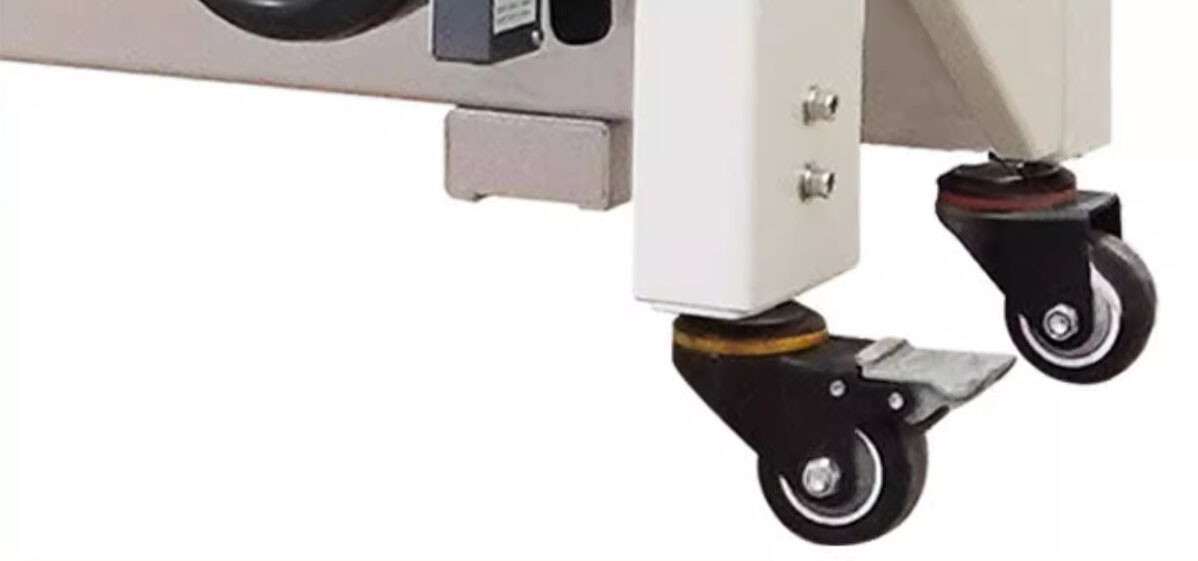

Caster with Brake

The caster is adjustable, the worktable height is adjustable.
