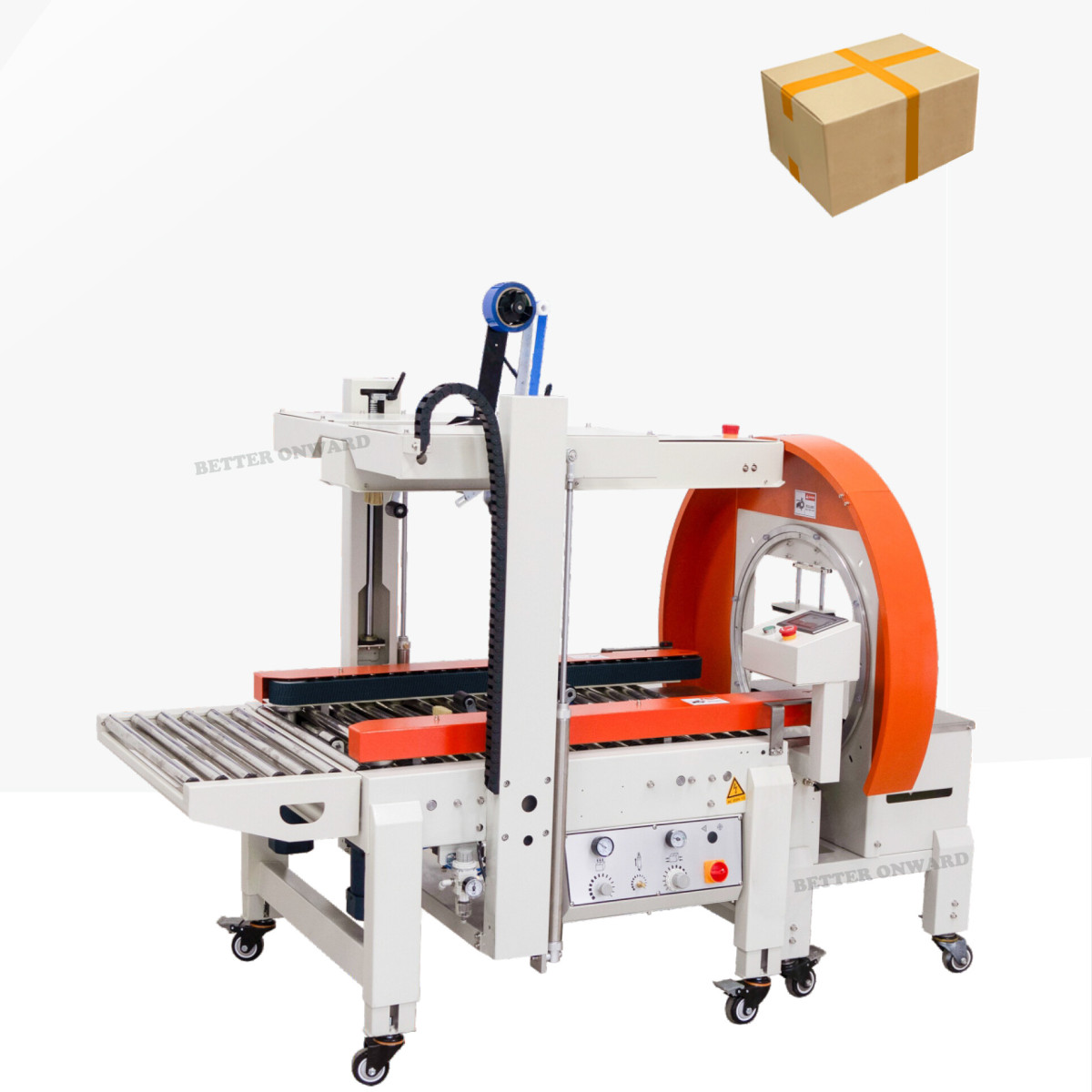

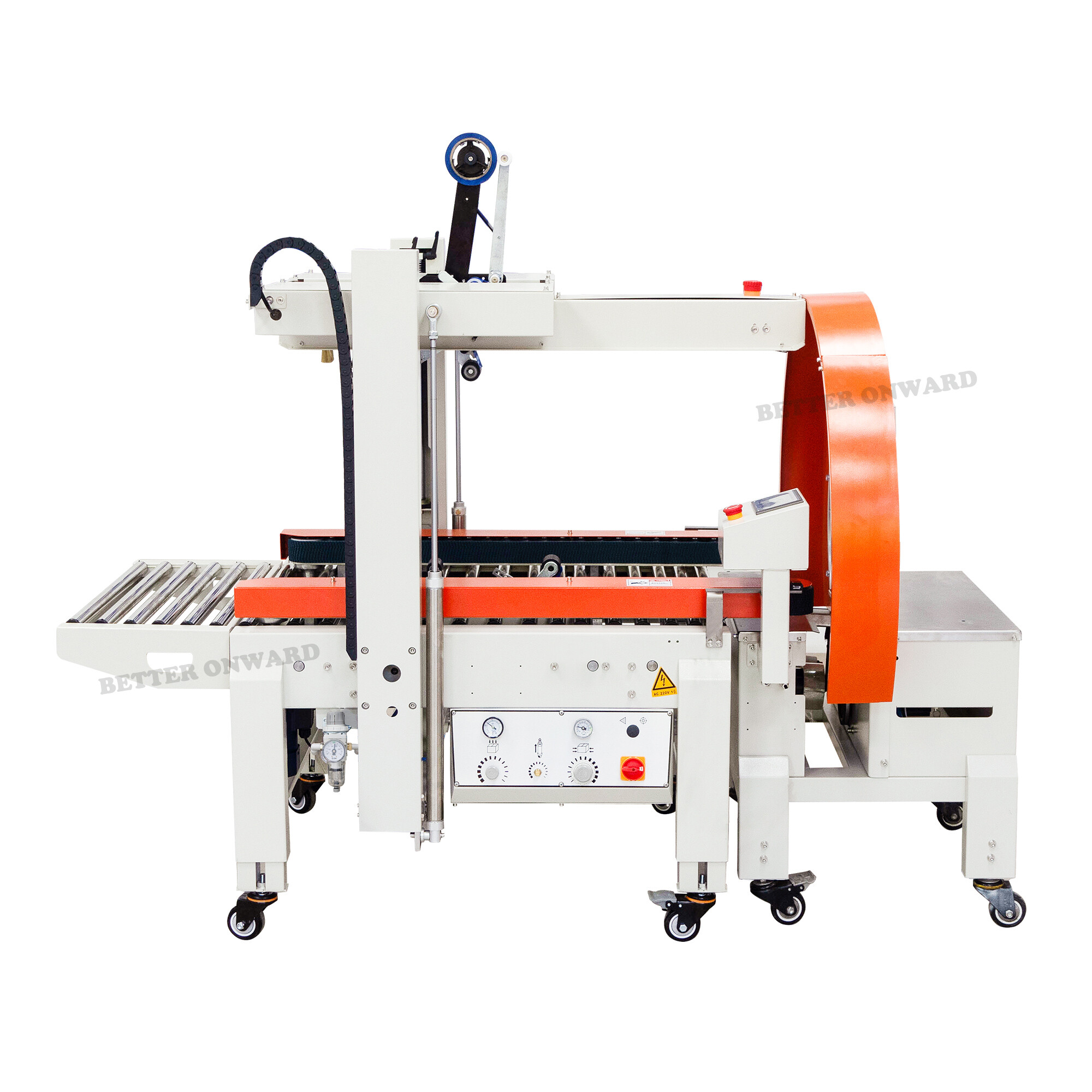

FXW3040 & DQFXC5045XA Automatic Carton Wrapping and Sealing Machine
Inquiry Now →

Product Description

FXW3040 & DQFXC5045XA Automatic Carton Wrapping and Sealing Machine

These two machines are widely used in the electrical, cosmetics, textiles, foodstuffs, general merchandise and chemical industries.
Specification
Model
DQFXC5045XA & FXW3040
FXW3040
DQFXC5045XA
Voltage
AC 220V/50-60Hz
AC 220V/50-60Hz
AC 220V/50Hz
Power
/
120W
240W
Sealing speed
/
0-20pcs/min
20m/min
Adhesive tape width
/
45mm
30mm 45mm
Max. Sealing size
L:No limit,
W: 400mm,
H:300mm.
L:No limit,
W: 400mm, H:300mm.
W:450mm,
H:500mm.
Min. Sealing size
L: 145mm,
W: 80mm,
H: 40mm.
L:145mm,
W: 80mm,
H:80mm.
L:150mm,
W: 80mm,
H:90mm.

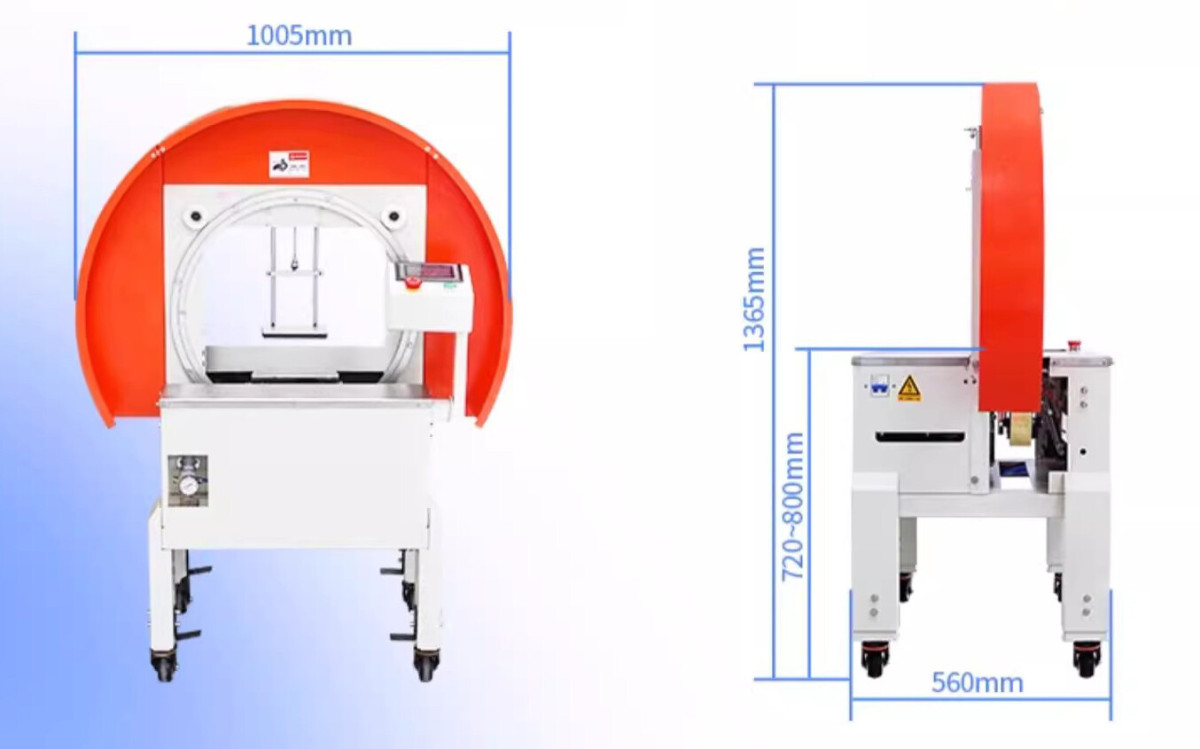

Overall size
/
L600* W1005* H1260mm
L1990* W890*H1310-1470mm

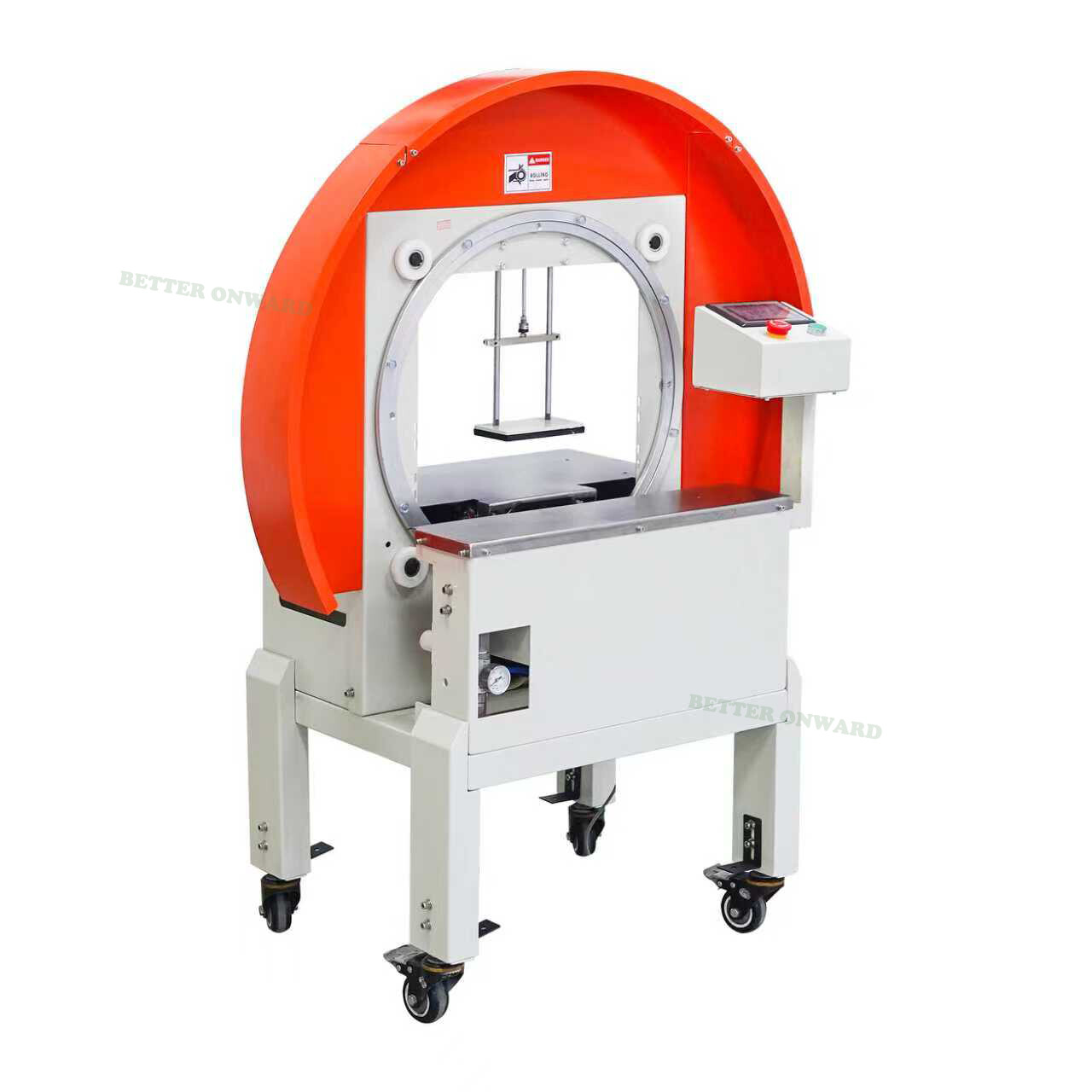

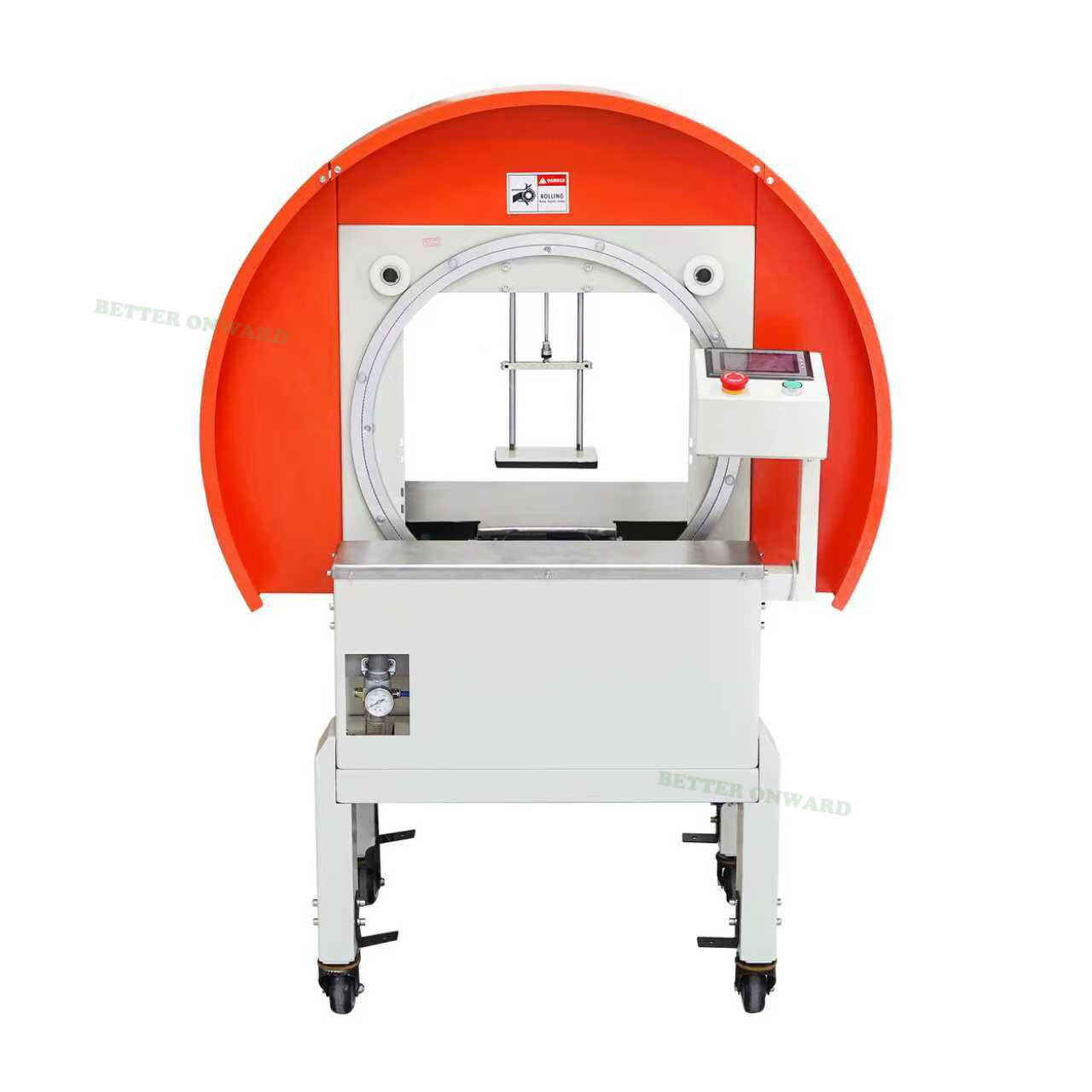

FXW3040 Carton Wrapping and Sealing Machine

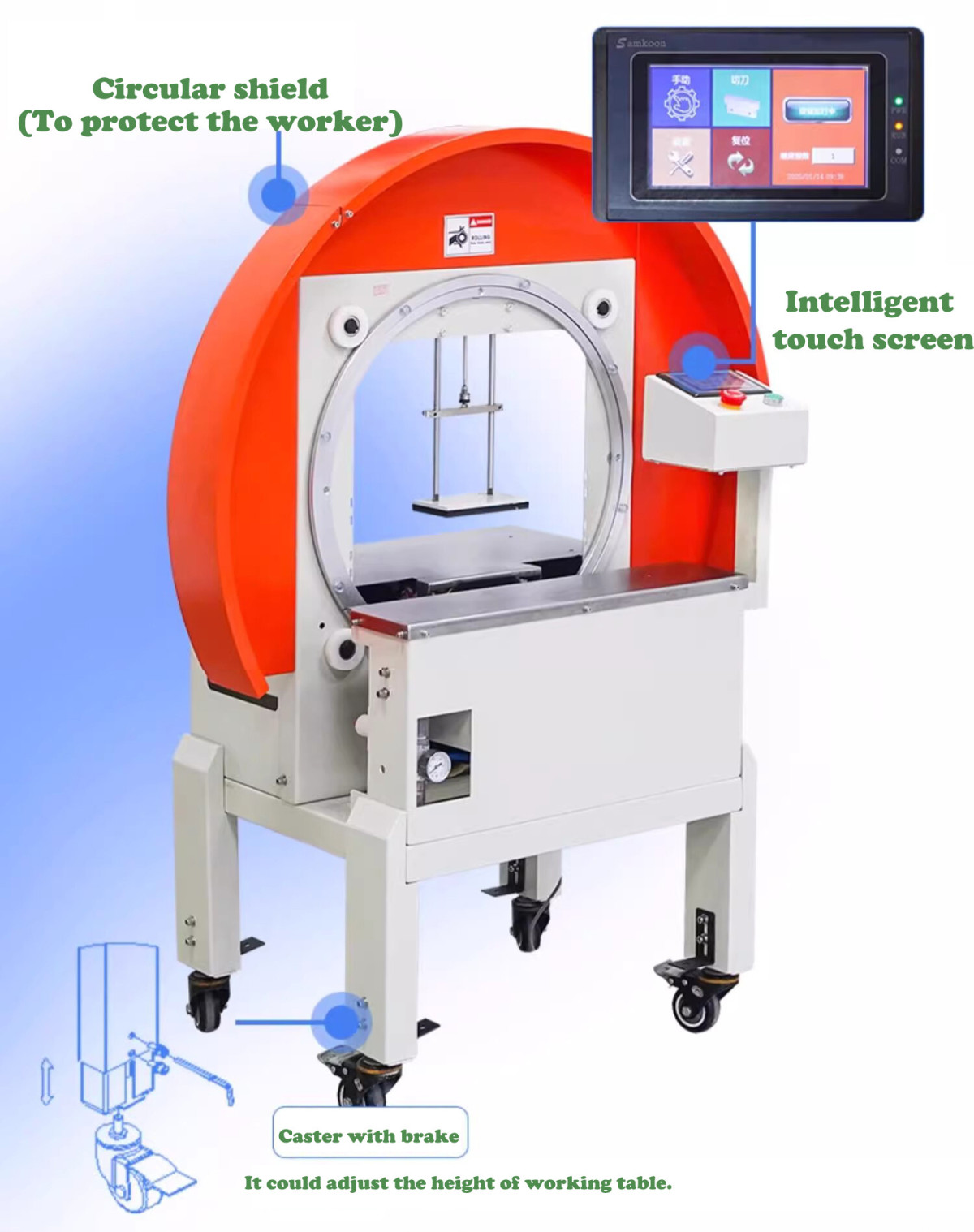

Safe and reliable

The annular shield can effectively protect the operators.

Match with PLC and touch screen, the operation is intelligent and convenient, provide personalized feature.
Customized Wrapping Circles

Our FXW3040 can customize the number of wrapping circles.

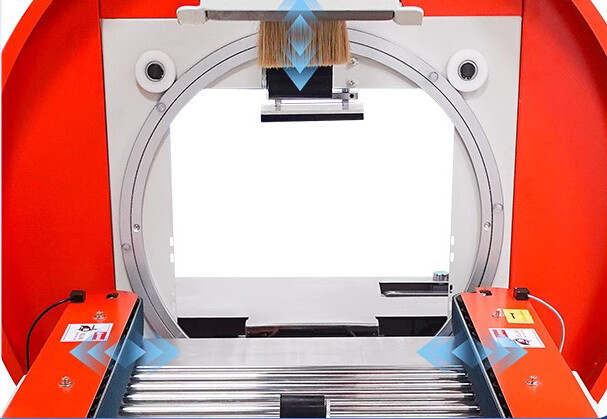

The product is quipped with the pressure plate to make the operation easier and has high stability.
Our this semi-automatic wrapping sealer occupies a small area and can seal the carton with full circle. The speed is 0-20 packages per minute.

Easy to operate
Can be used with large rolls of tape to reduce the frequency of tape changes.

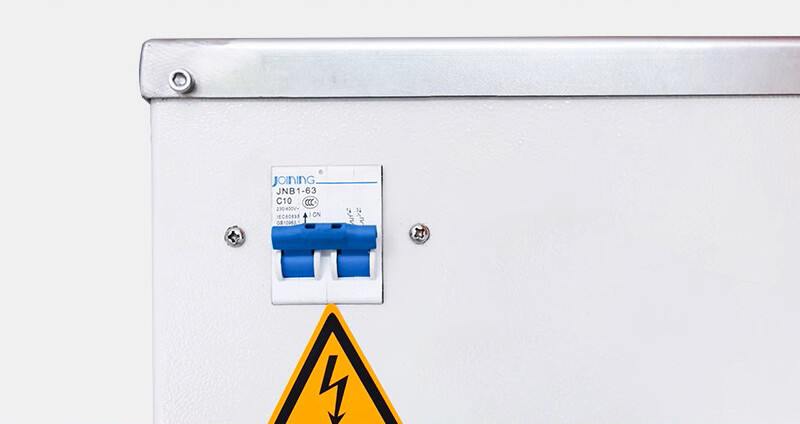

Power off protection switch
DQFXC5045XA Carton Sealing Machine

High-strength grip conveying belt is used to drive the carton on two sides,
ensuring smooth transmission, centered tape sealing, and  the sealing effect is firm and beautiful.

According to different size of cartons, the carton sealer will adjust the sealing width and height automatically, no manual adjustment required.

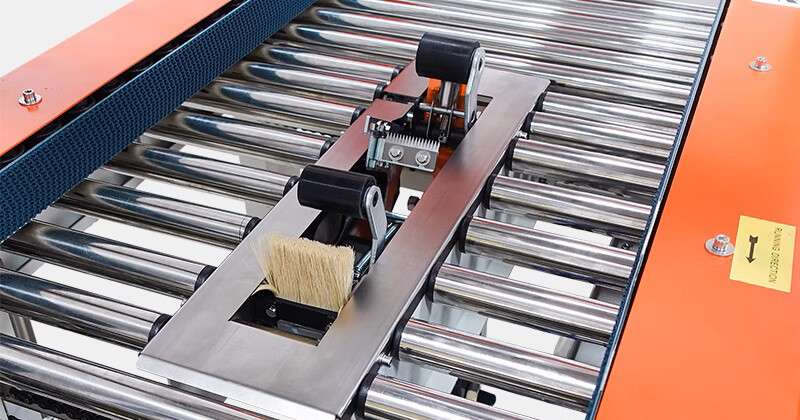

The advanced sealing liner is used to flatten the protruding part of the carton, so that the adhesive tape attached to the surface of the carton more flatly.

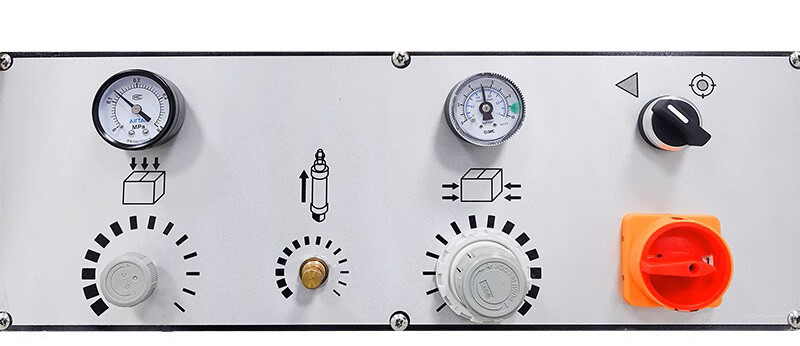

Simple operation panel, easy to operate.

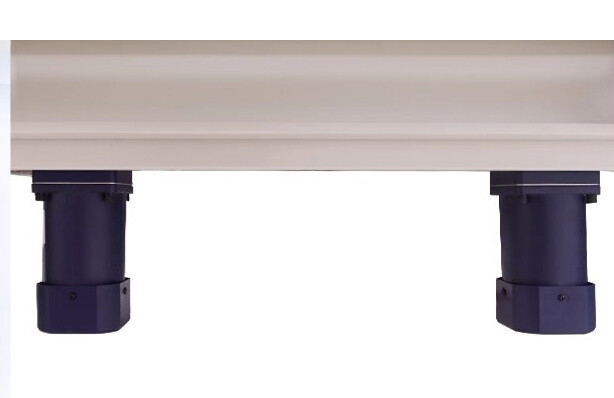

Match with two motors, with strong power.
