Product Description

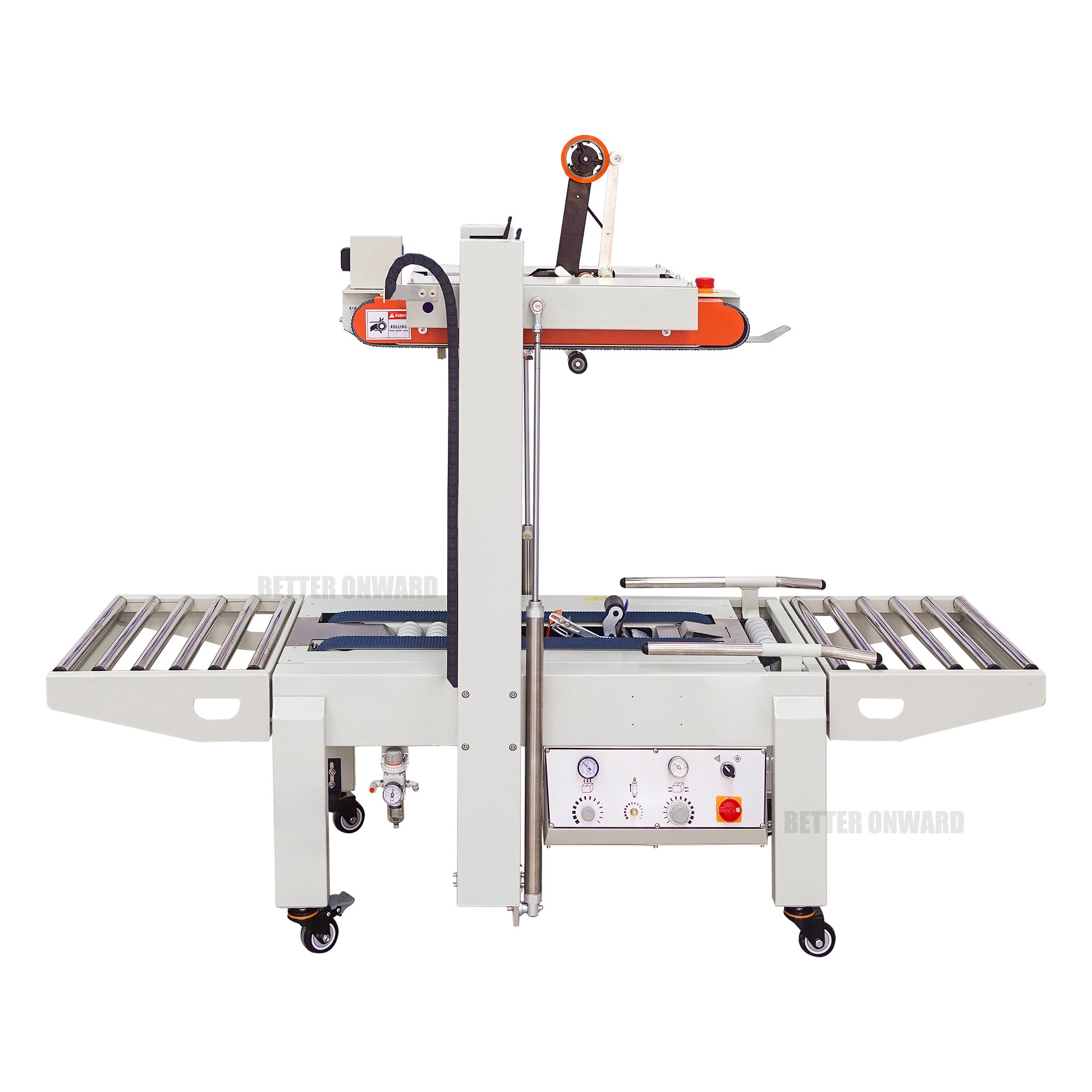

CE Certificated DQFXA6050 Random Carton Sealer Automatic Case Sealing Machine
It is widely used in household appliances, textiles, food, cosmetics, daily provisions, chemical industry and other manufacturing industries.
CE Certificated DQFXA6050 Random Carton Sealer Automatic Case Sealing Machine
CE Certificated DQFXA6050 Random Carton Sealer Automatic Case Sealing Machine
Specification
Model
DQFXA6050
Power source
220V 50Hz
Power
240W
Sealing capacity
1000cases/hour
Tape width
36mm 48mm 60mm
Transmission way
Upper and lower conveying belt transmission
Max. sealing size (Width* Height)
500*600mm
Min. sealing size (Width* Height)
150*120mm
Machine size
1930*720*(1395-1555)mm
Moving way
Caster

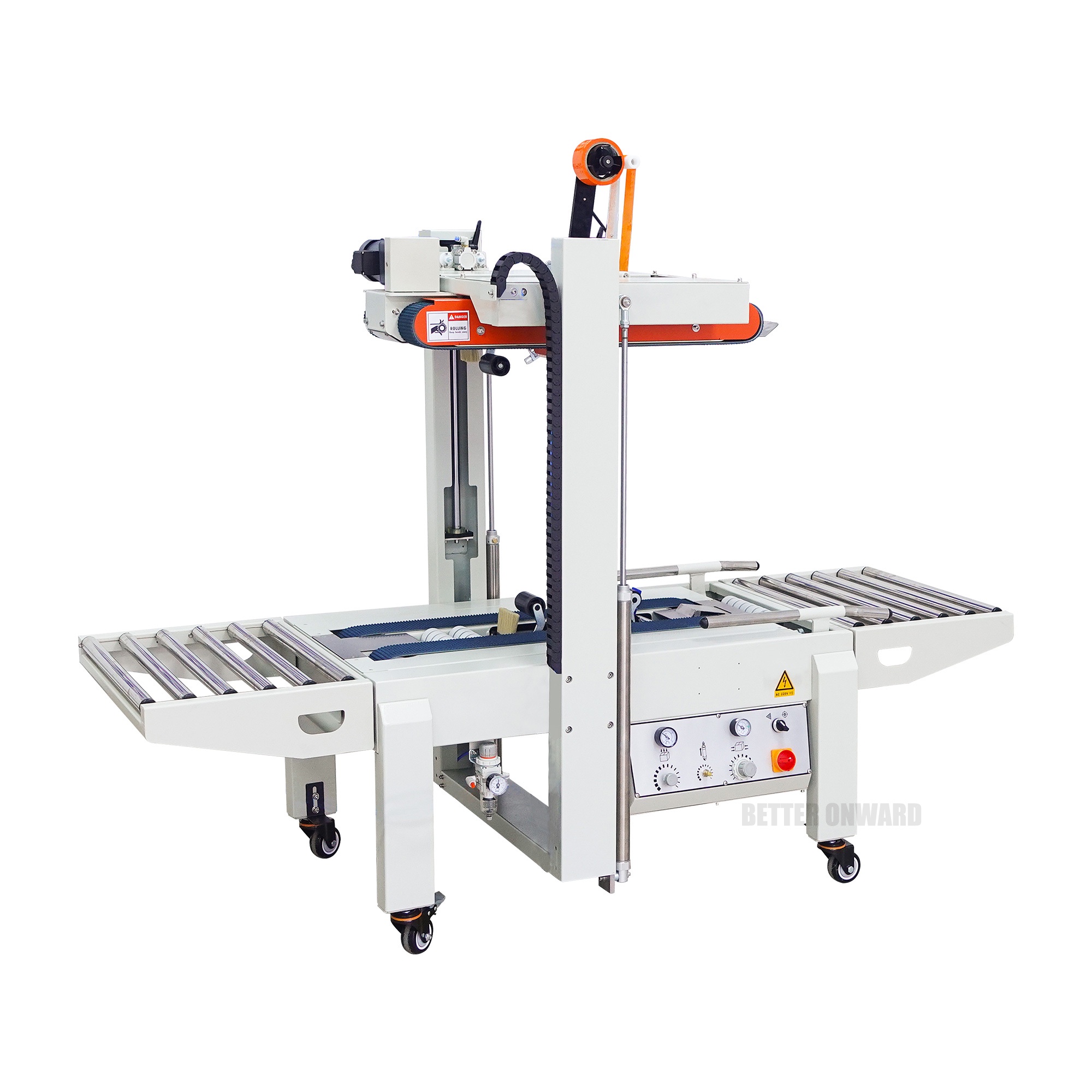

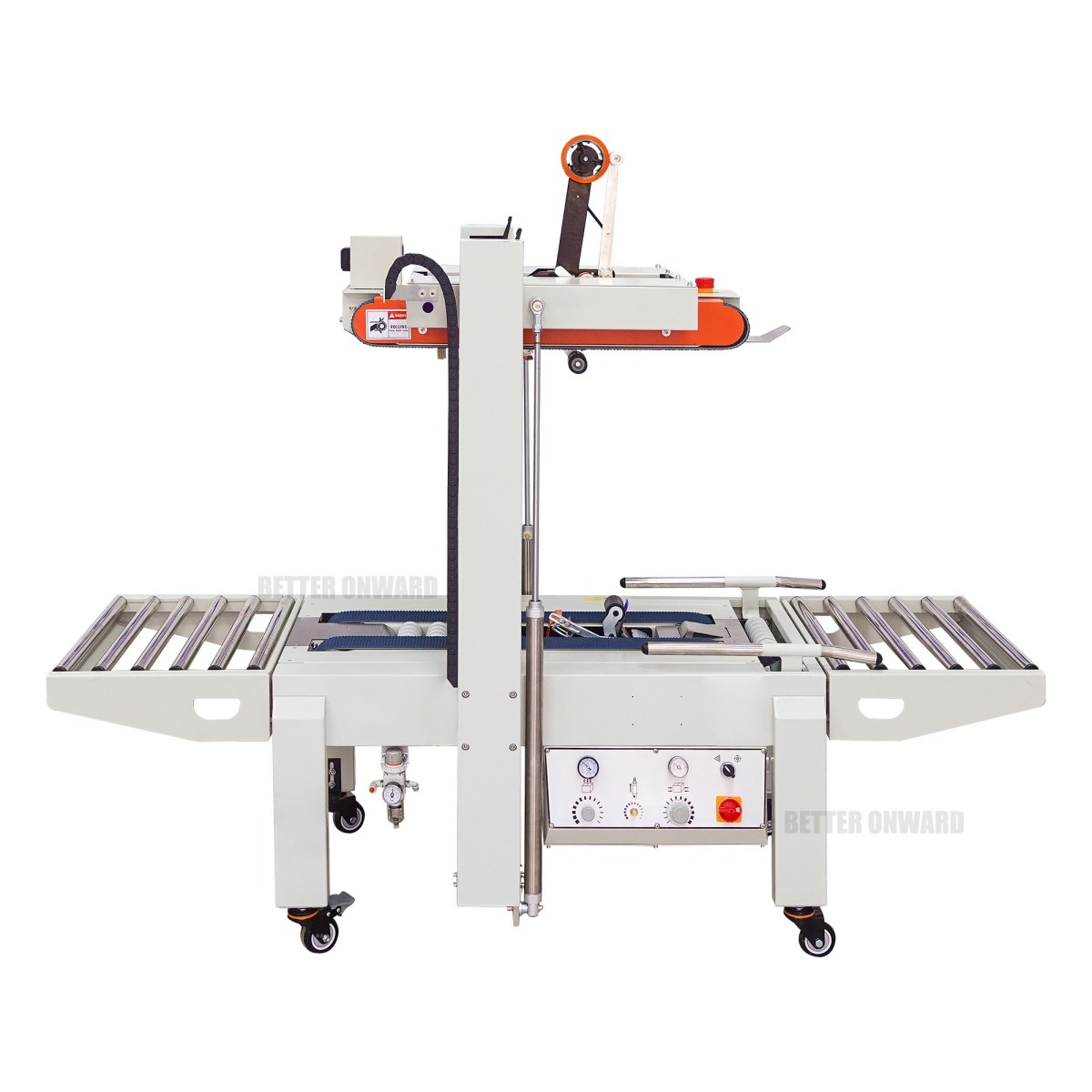

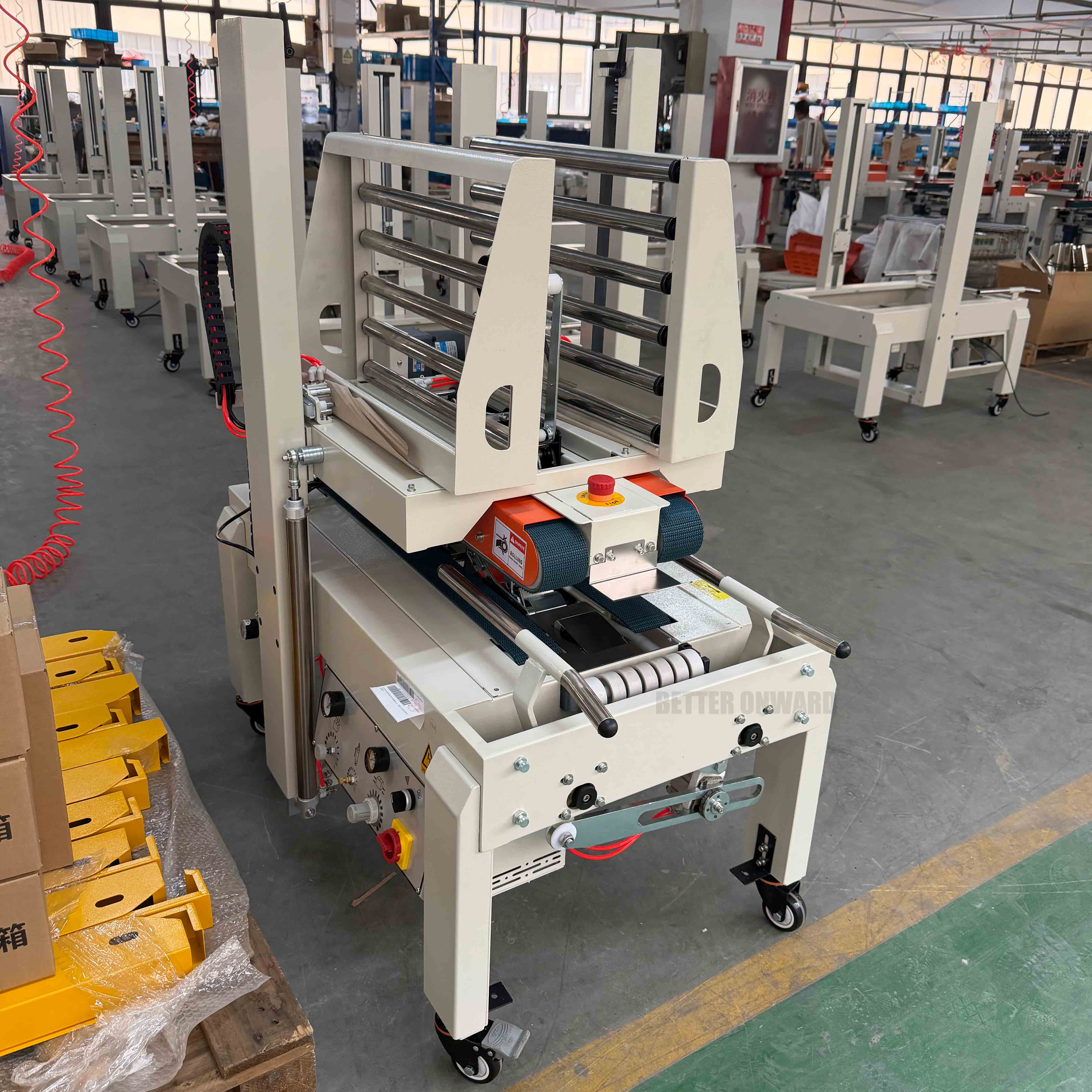

CE Certificated DQFXA6050 Random Carton Sealer Automatic Case Sealing Machine


Automatic Carton Sealing Machine, pneumatic type, need to connect air source.

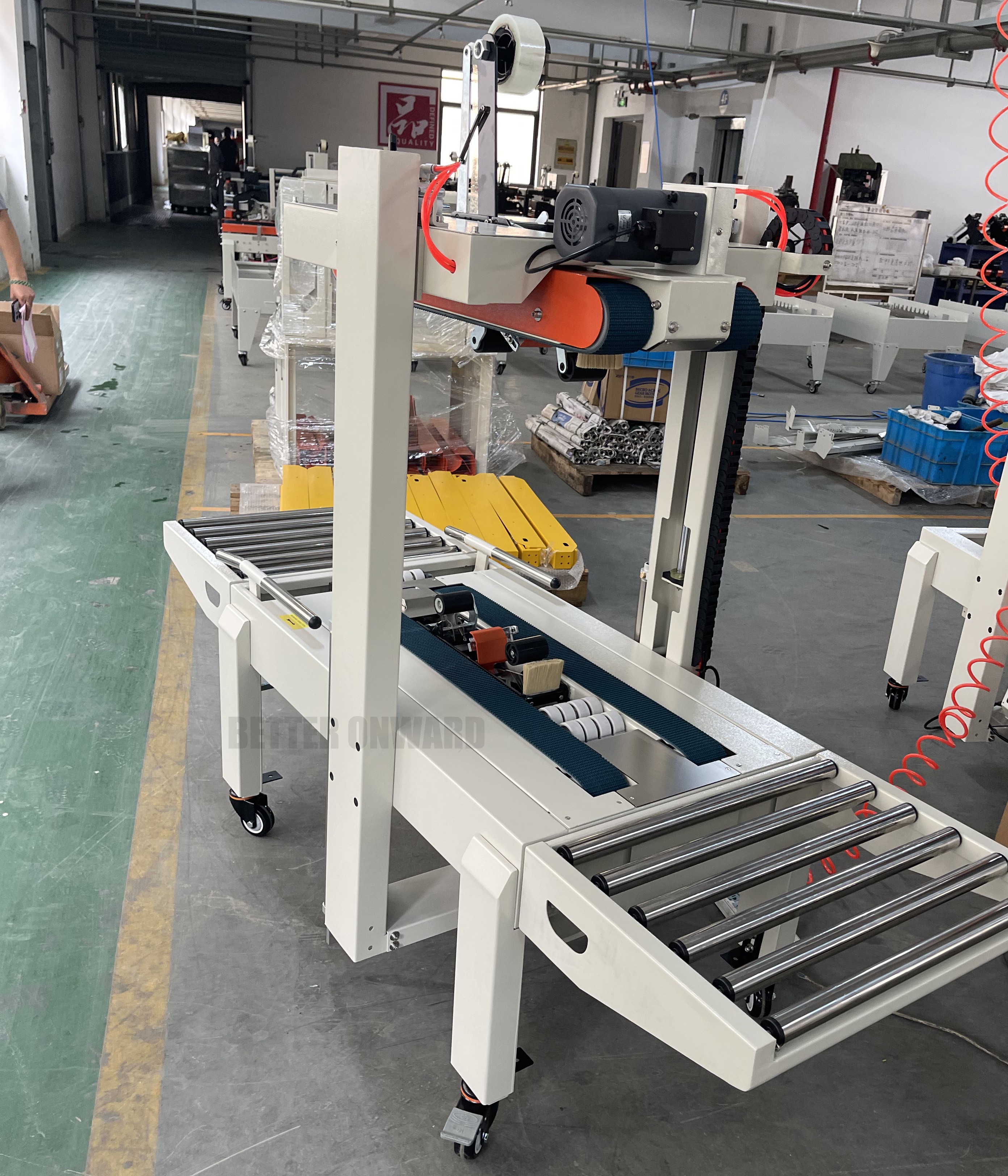

Random carton sealer can automatically to reliably and accurately seal different sizes of cartons.

Our DQFXA6050 fully automatic sealing machine also has the function of fixing the sealing height and width.

The operator can rotate the locking button when the same specification of the cartons need to be sealed continuously, effectively
improving the working efficiency.



CE Certificated DQFXA6050 Random Carton Sealer Automatic Case Sealing Machine
CE Certificated DQFXA6050 Random Carton Sealer Automatic Case Sealing Machine

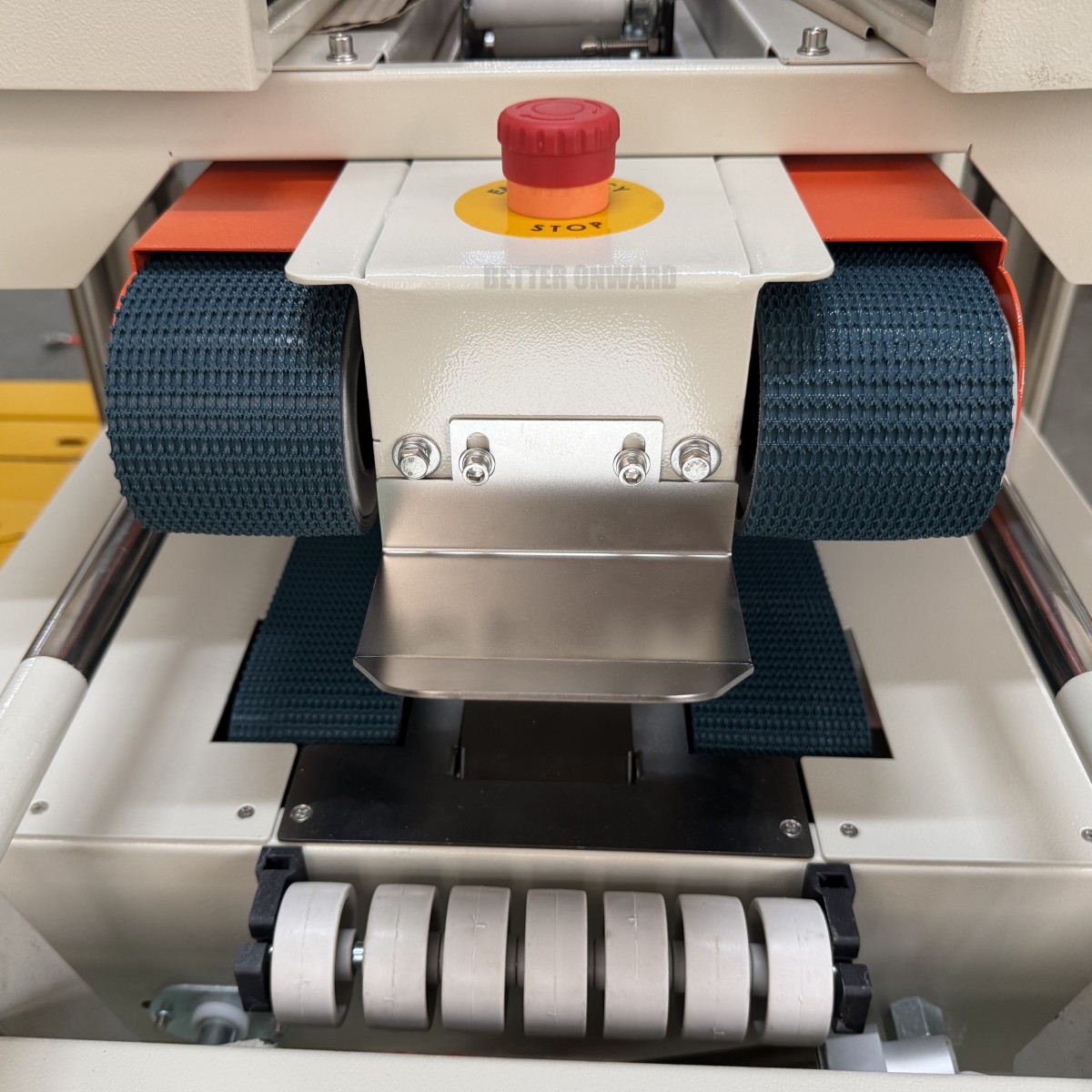

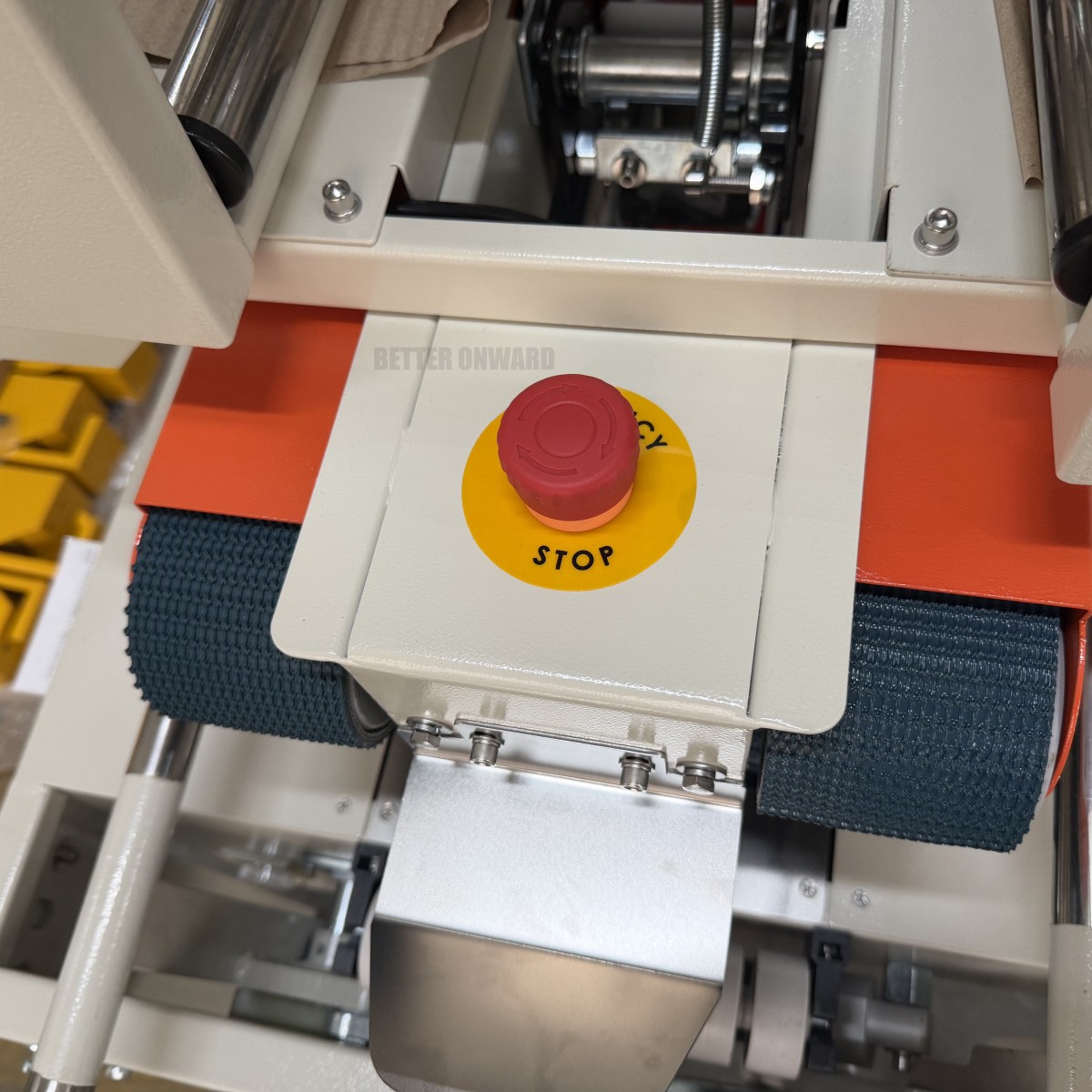

Emergency stop

The machine is equipped with the emergency stop switch. In case of emergency, you can press the emergency stop switch, which is
more safe and reliable.


Conveyor belt

The conveying belt is wear-resistance, the load-bearing capacity is high, can convey cartons more smoothly.
CE Certificated DQFXA6050 Random Carton Sealer Automatic Case Sealing Machine
CE Certificated DQFXA6050 Random Carton Sealer Automatic Case Sealing Machine



Conveyor Roller

The smooth surface could reduce the resistance of the box, make the conveying more labor-saving.

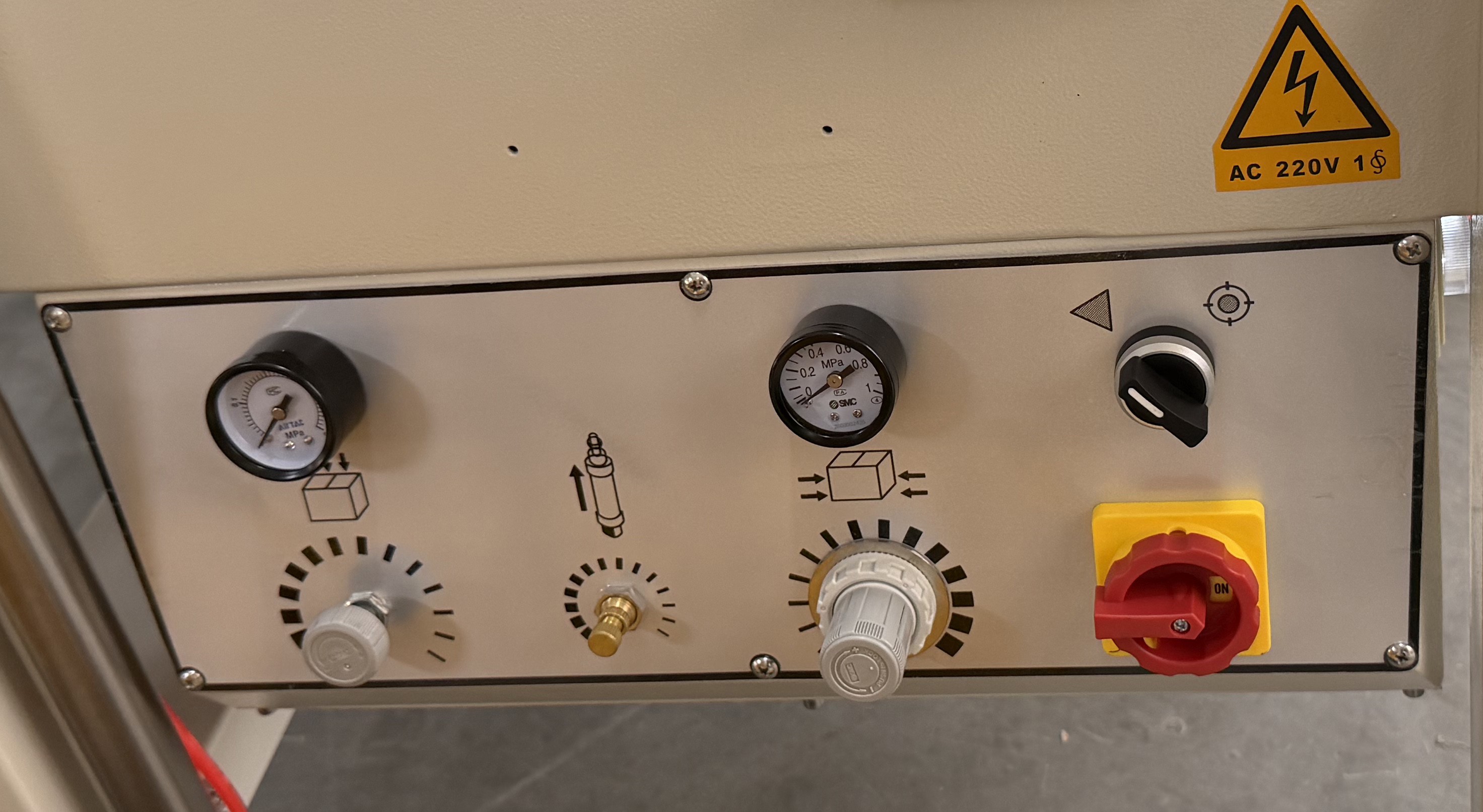

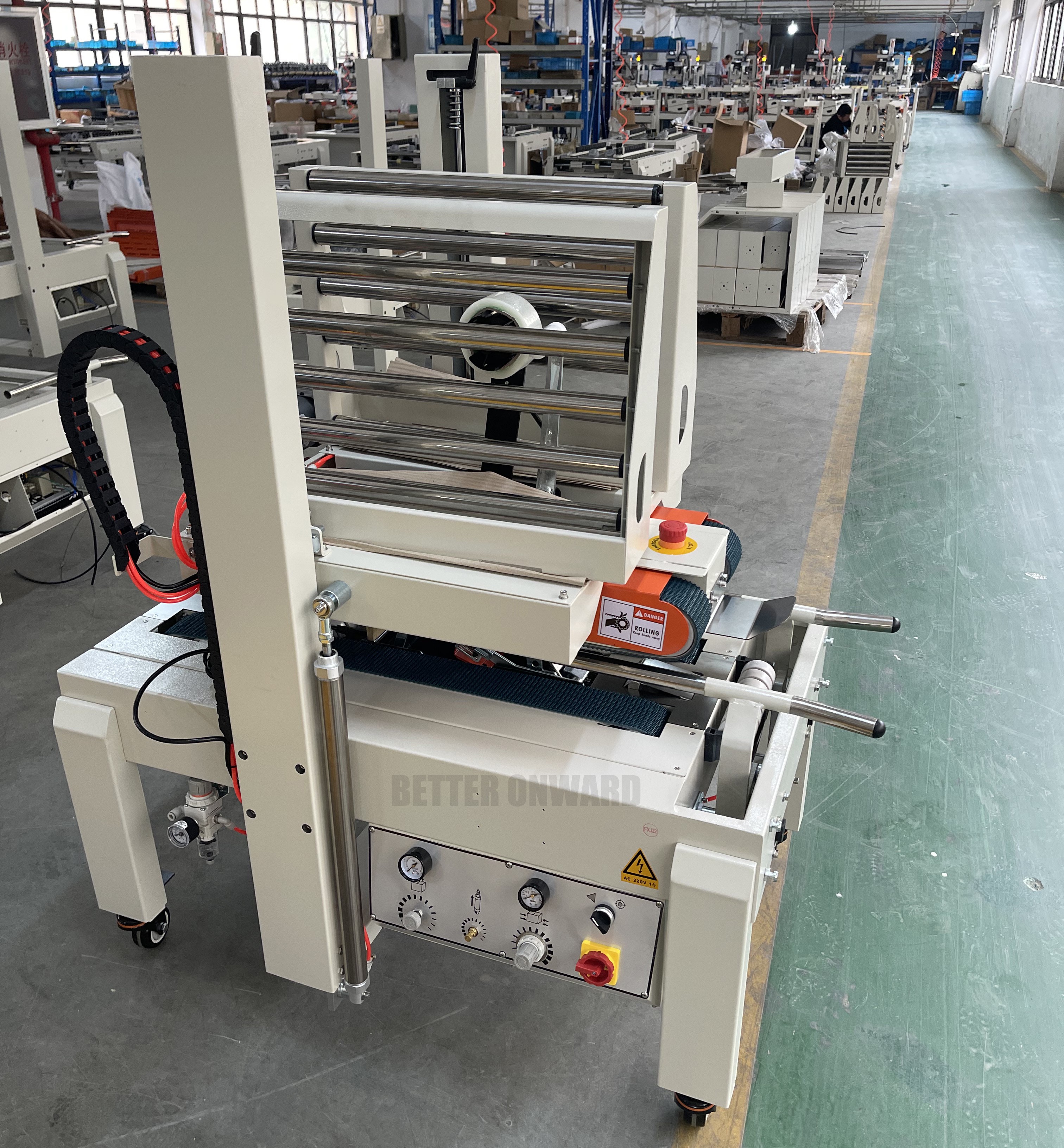

Operation panel

The operation panel is simple and beautiful, and the knob can adjust the air pressure for better sealing effect.
CE Certificated DQFXA6050 Random Carton Sealer Automatic Case Sealing Machine
CE Certificated DQFXA6050 Random Carton Sealer Automatic Case Sealing Machine

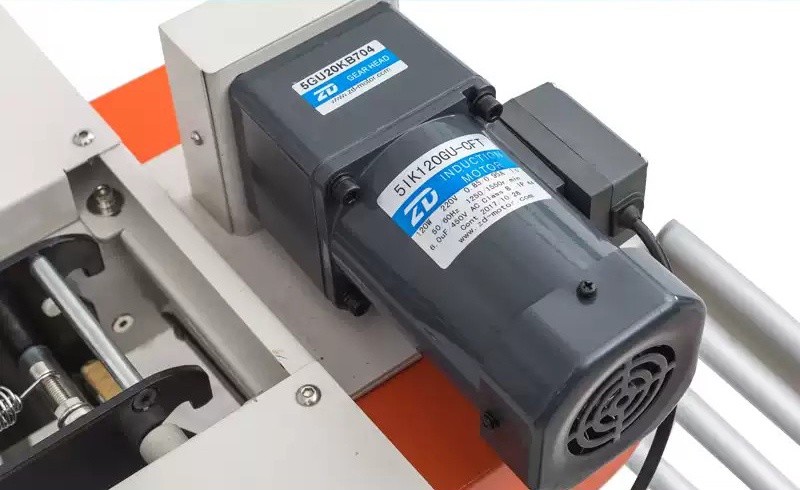

Motor
The motors with strong power.

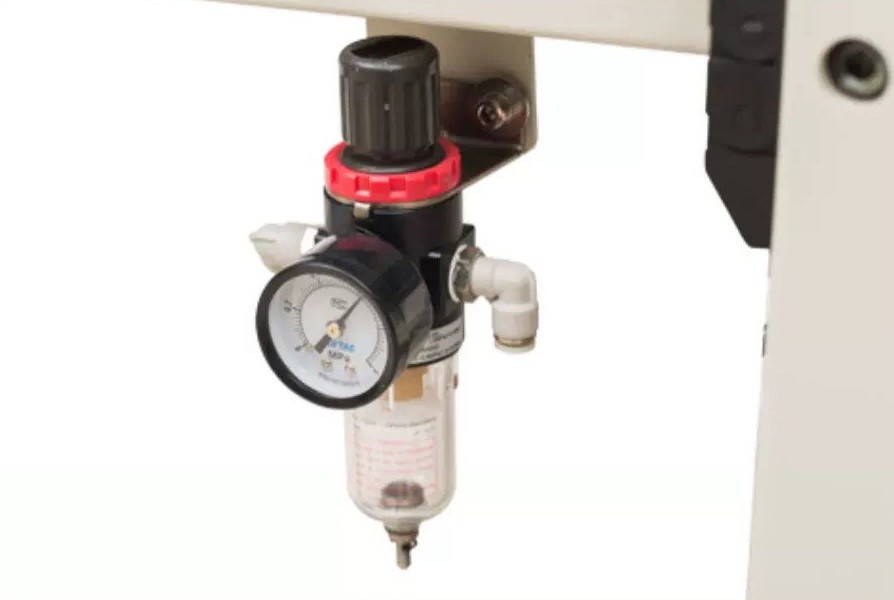

Filter pressure reducing valve

To make the pressure output stable and the folding function more stable.
CE Certificated DQFXA6050 Random Carton Sealer Automatic Case Sealing Machine
CE Certificated DQFXA6050 Random Carton Sealer Automatic Case Sealing Machine





Caster

Carton sealer match with casters, making it easier to move.

The mobile casters are equipped with brakes. After moving, fix firmly.
CE Certificated DQFXA6050 Random Carton Sealer Automatic Case Sealing Machine
