Product Description

FXW3040 Automatic Carton Wrapping and Sealing Machine

The machine can be used as a stand-alone machine or in conjunction with the production line.

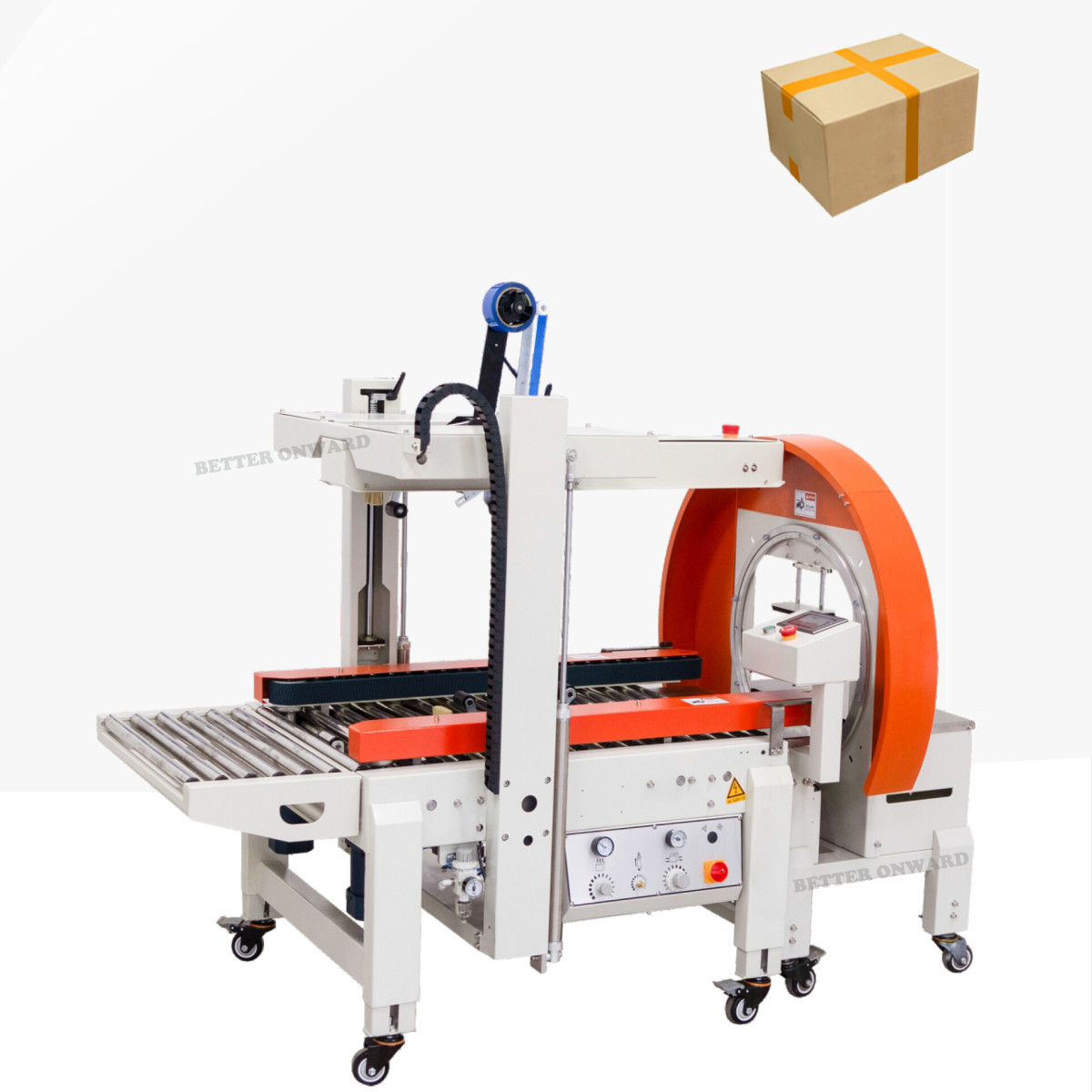

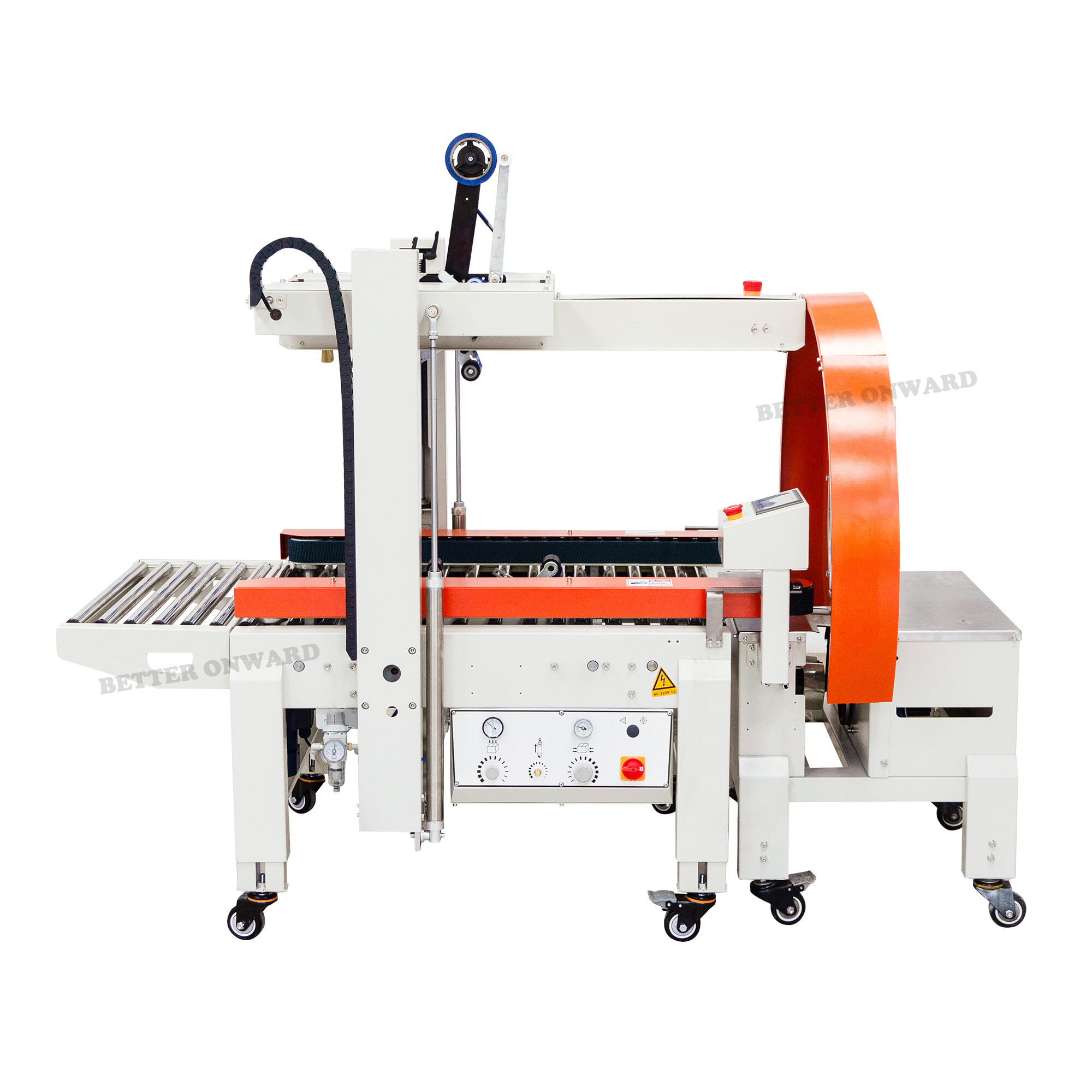

It could work with FXC5050XA Carton Sealer.
Specification
Model
FXW3040
Voltage
AC 220V/50-60Hz
Power
120W
Sealing speed
0-20pcs/min
Adhesive tape width
45mm
Working table height
615-665mm
Max. Sealing size
L:No limit,
W: 400mm, H:300mm.
Min. Sealing size
L:100mm, W: 80mm, H:80mm.

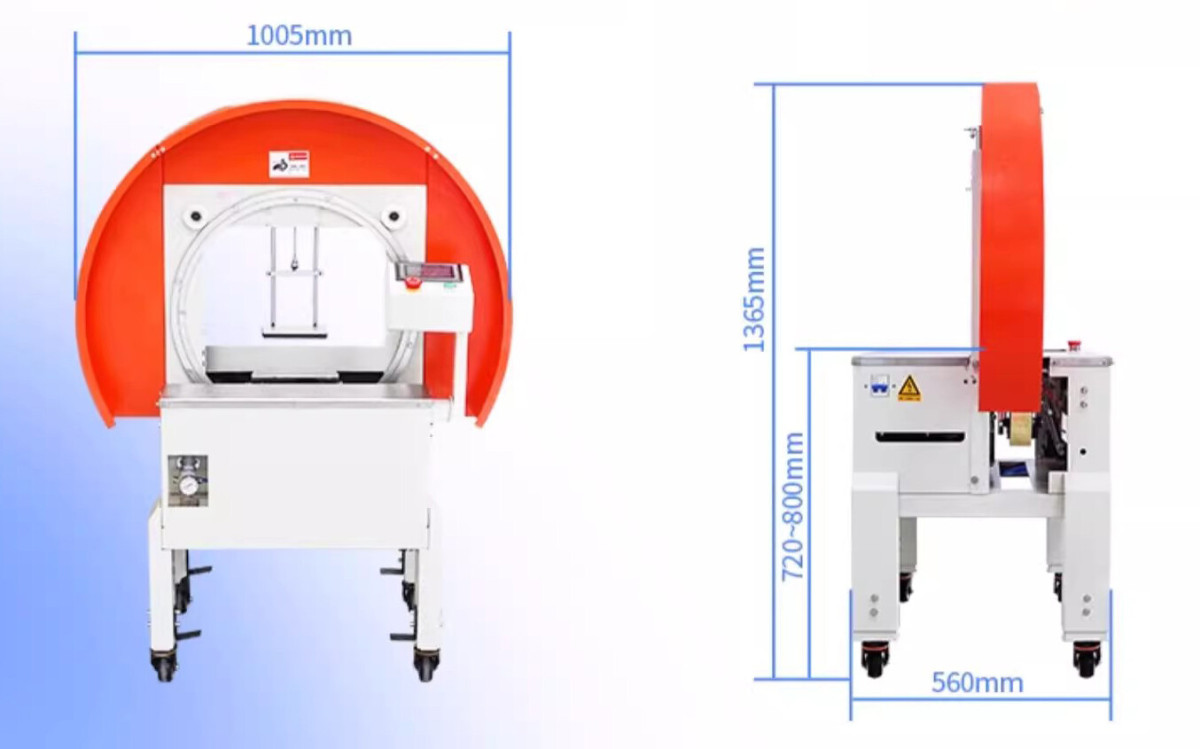

Overall size
600* 1005* 1260mm

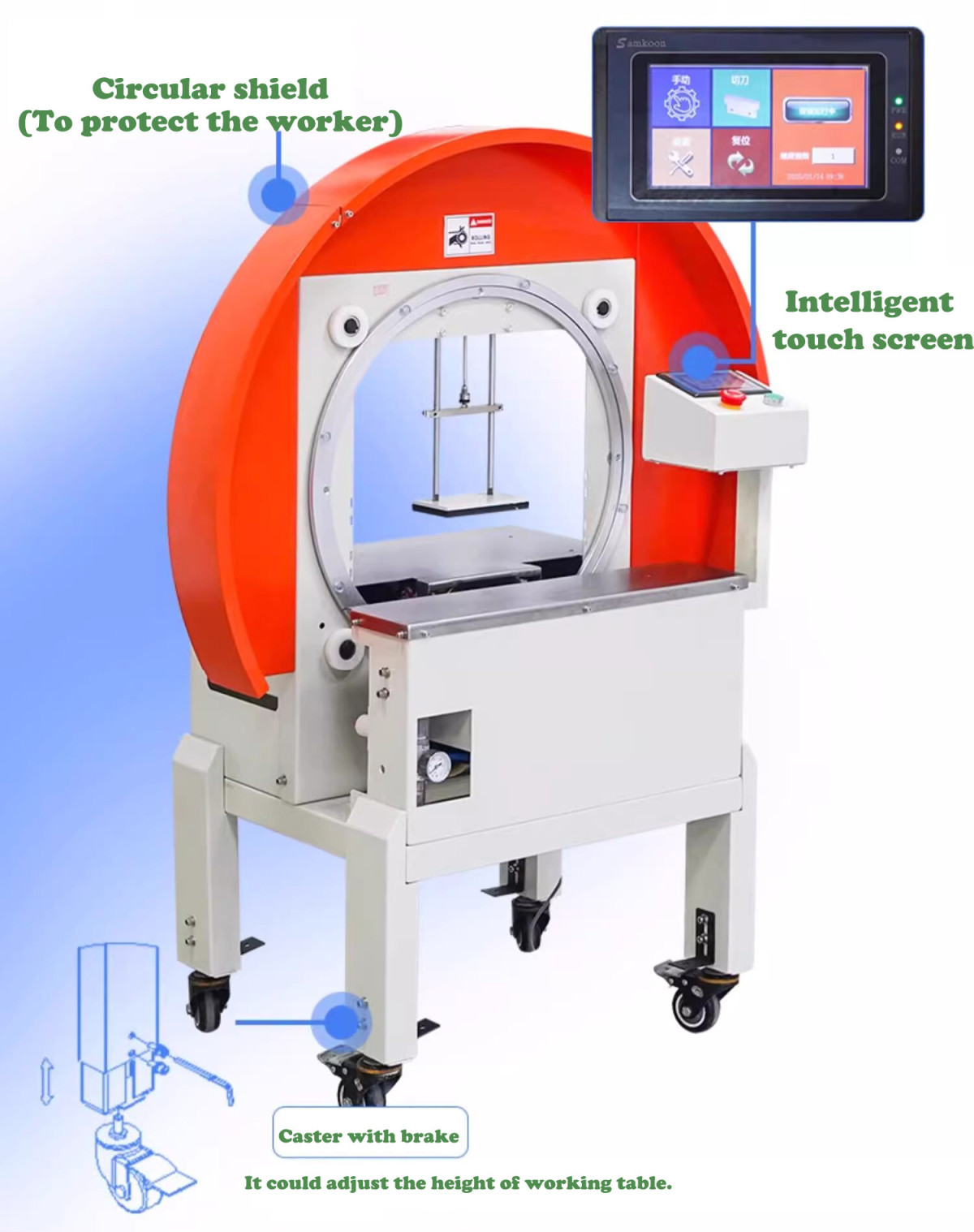

Safe and reliable

The annular shield can effectively protect the operators.

Match with PLC and touch screen, the operation is intelligent and convenient, provide personalized feature.
Customized Wrapping Circles

Our FXW3040 can customize the number of wrapping circles.

The product is quipped with the pressure plate to make the operation easier and has high stability.
Our this semi-automatic wrapping sealer occupies a small area and can seal the carton with full circle. The speed is 0-20 packages per minute.

Easy to operate
Can be used with large rolls of tape to reduce the frequency of tape changes.

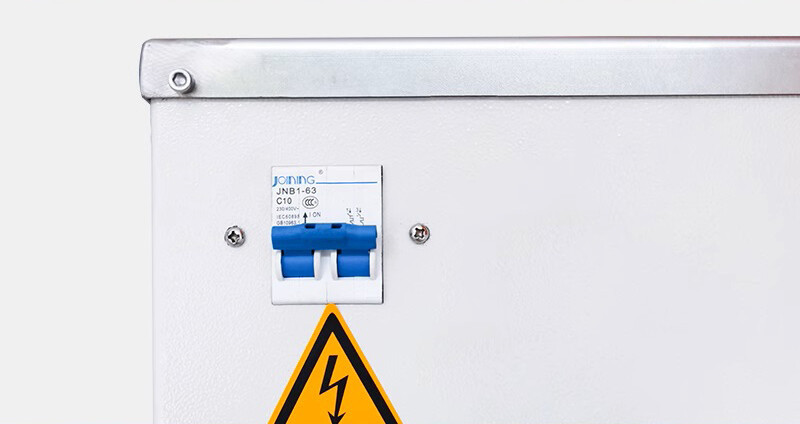

Power off protection switch
