Product Description

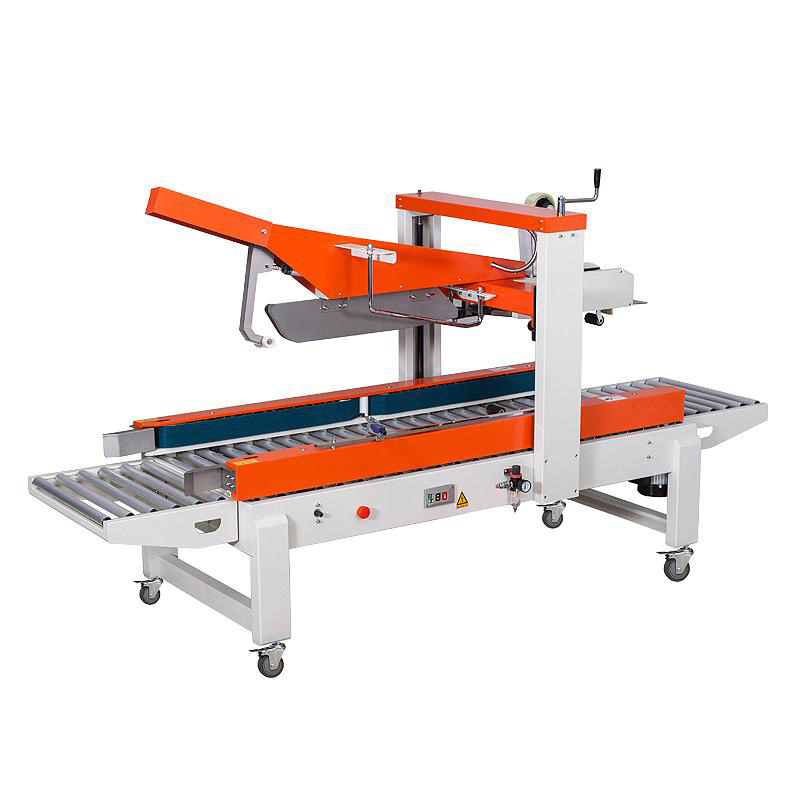

FXJ5050Z Carton Sealer Automatic Continuous Flaps Folding Case Box Sealing Machine

Our FXJ5050Z carton sealer is mainly use for sealing the cartons.
It can be single-unit operation, also could be equipped into production line. It has automatic flaps folding function.

It is widely used in the fields of household electric appliance, foodstuffs, general merchandise, chemical industry.
Specification
Model
FXJ5050Z
Power supply
AC220V/50Hz, AC110V/60Hz, 400W
Max. packing size
600(L)*500(W)* 500(H) mm
Min. packing size
200 (L)*130 (W)*150 (H)mm
speed
18m/min
Width of adhesive tape
48mm 60mm

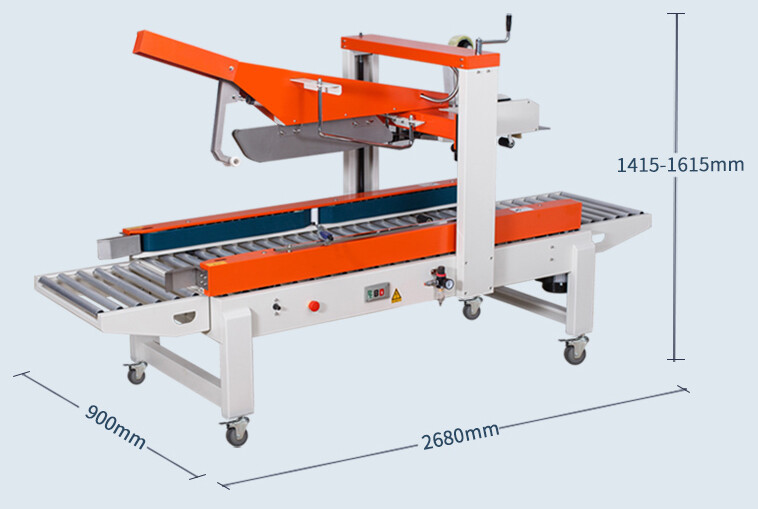

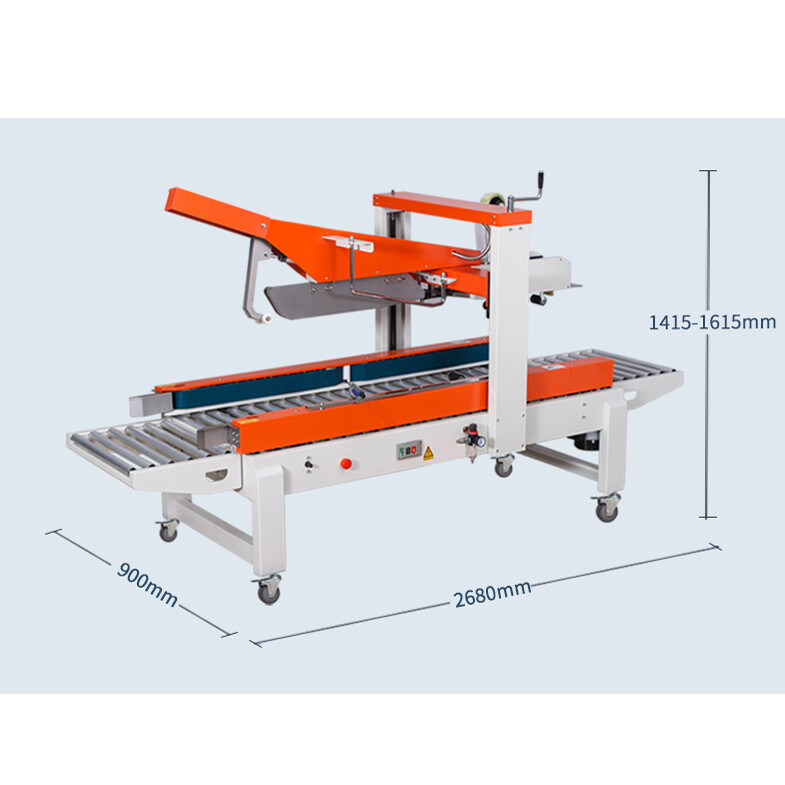

Machine size
2680(L)*900(W)*1415-1615(H)mm
Machine weight
180KG

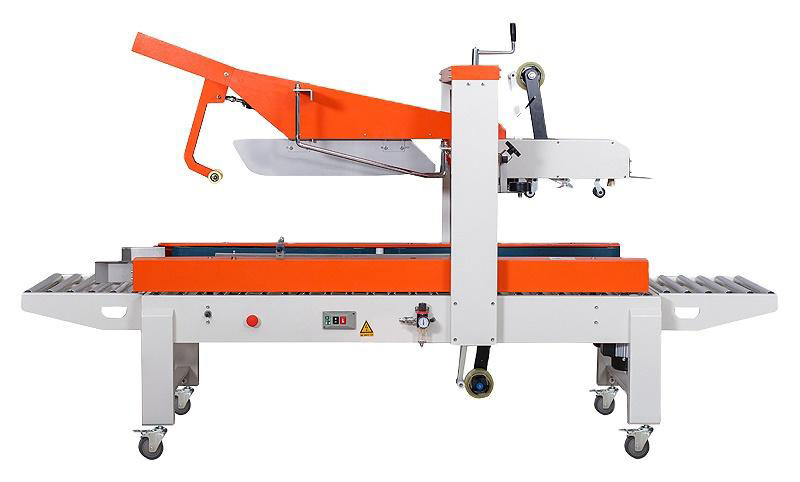

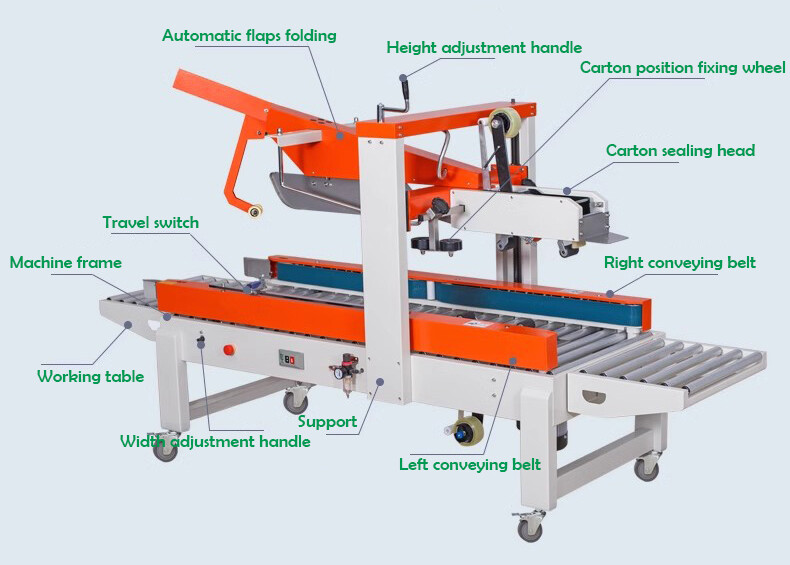

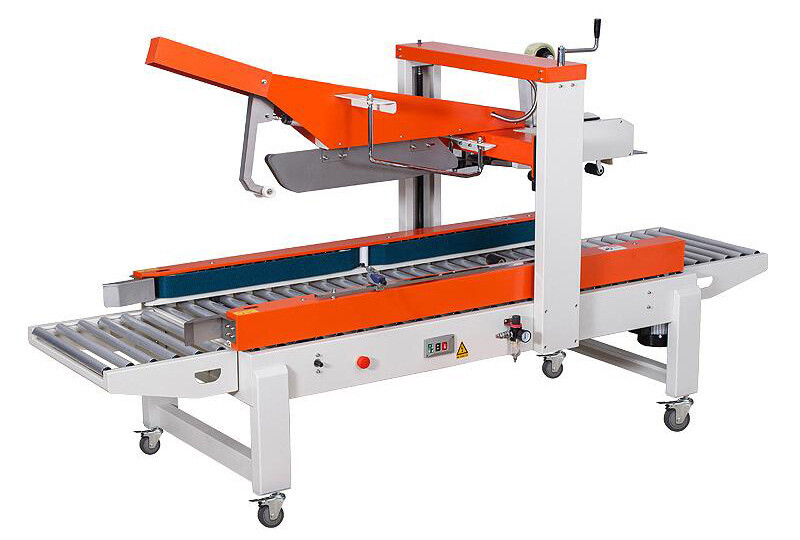

Our FXJ5050Z automatic carton sealer could accomplish automatic flaps folding and sealing.

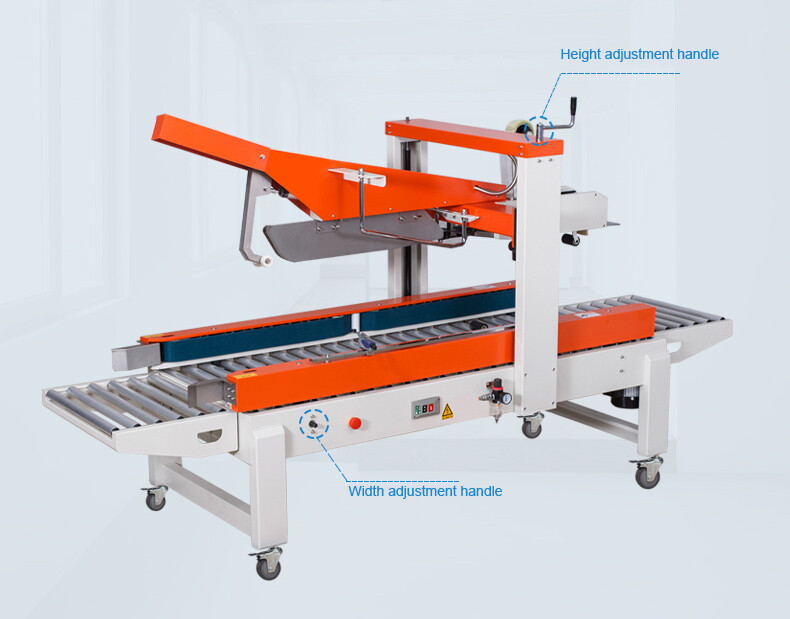

The height of the sealing rack is adjustable.

The height adjustment handle position is ergonomically designed, allowing you to adjust the height of the sealing rack more comfortably.

The width between two convey belts is adjustable, which can fix the position of the box, to center the adhesive tape's position of box when sealing, and make the sealing firm and beautiful.

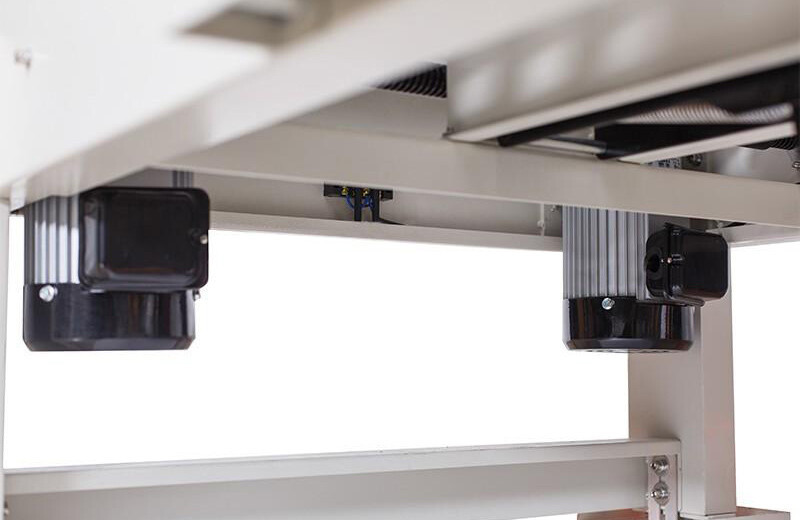

Equipped with large motors, to transport the box more stably.

It has strong power, large load capacity and long service life.

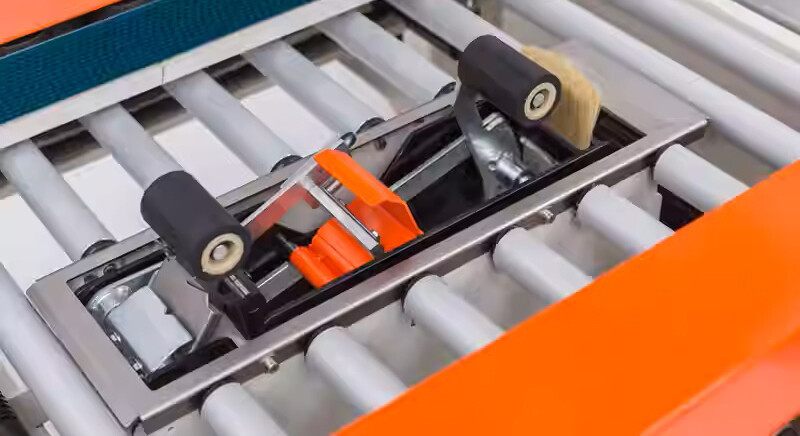

The advanced sealing liner is used to flatten the protruding part of the carton, so that the adhesive tape attached to the surface of the carton more flatly.

The cut is smooth and the sealing is beautiful and firm.

The convey belts have strong grip, to transport the carton box more smoothly.

The driving wheel and driven wheel of the convey belt are thickened, with the larger load-bearing capacity and a good rolling effect.

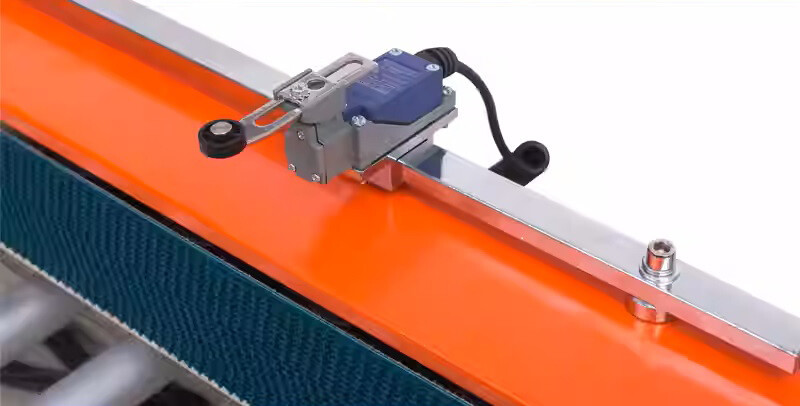

Travel switch control the circuit, to accomplish the sealing function.

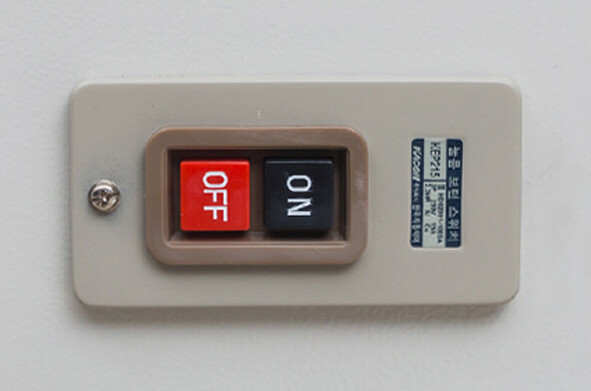

Independent switch: simple operation, humanized design, more convenient to use.
