Product Description

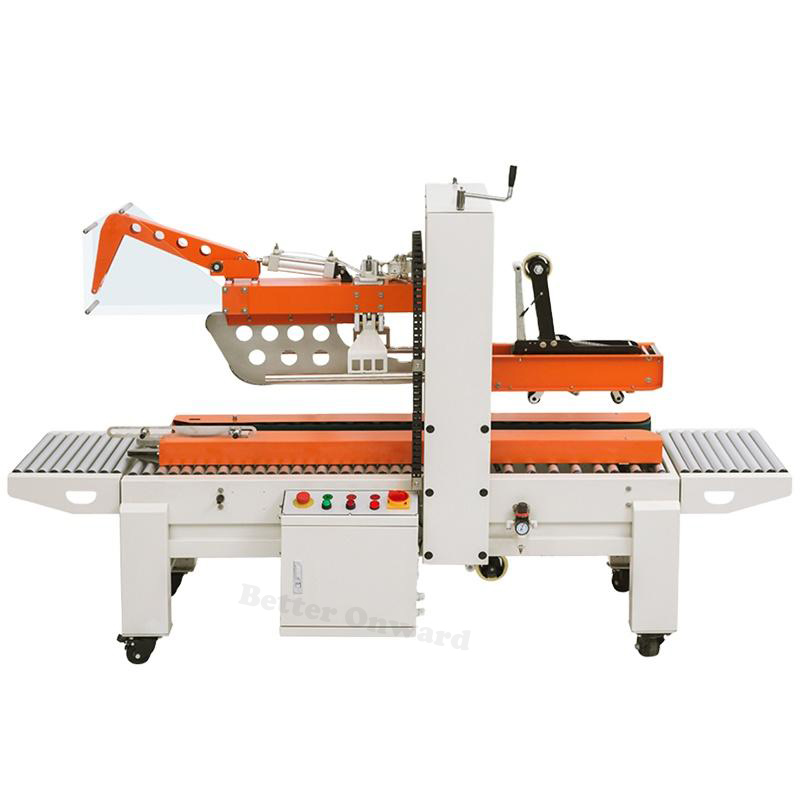

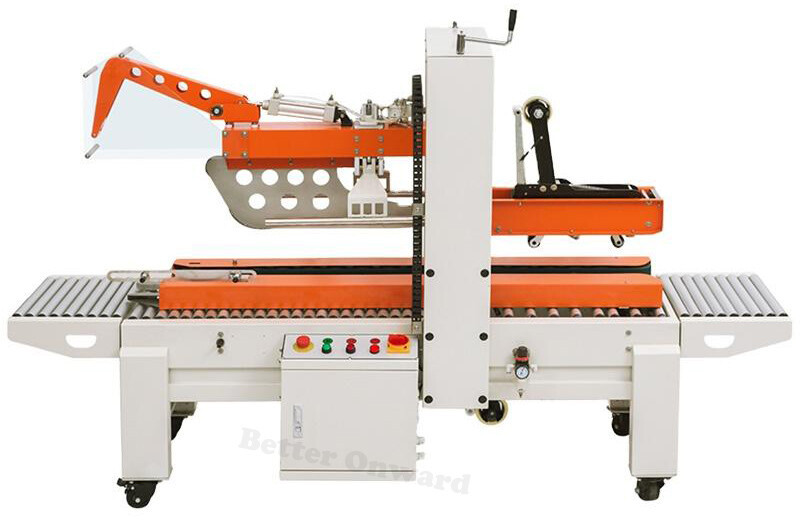

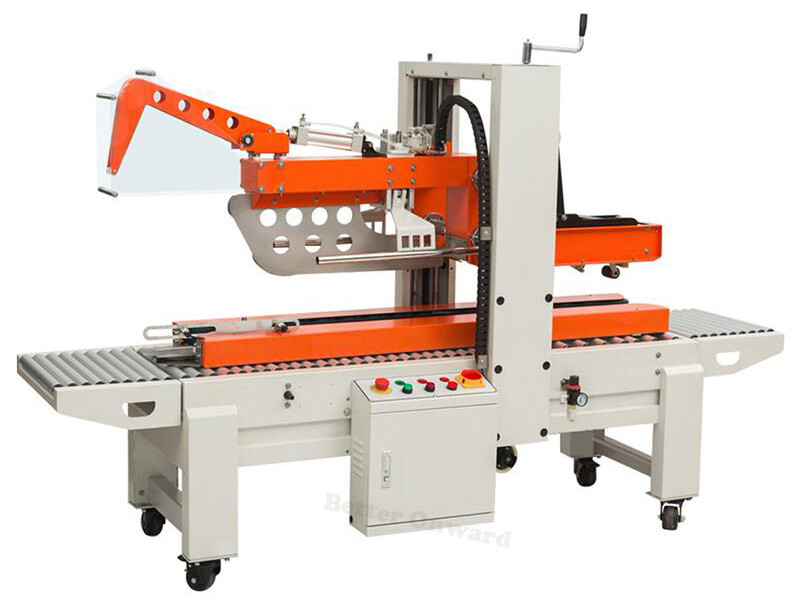

FXJ4030ZX Carton Box Flaps Folding Adhesive Tape Sealing Machine Case Sealer with Automatic Flap Closing

FXJ4030ZX carton sealing machine is use for the sealing and packing of cartons, which can be single-unit operation, also could work with the production line.

It has the function of automatic flaps folding and sealing.

It is widely used in the fields of cosmetics, appliance, foodstuffs, general merchandise, and chemical industry.

Specification

Model	FXJ4030ZX
Power supply	AC220V/50HZ, AC110V/60HZ 240W
Max. packing dimension	500(L) * 300(W) * 400(H) mm
Min. packing dimension	130(L) * 80(W) * 90(H)mm
speed	18m/min
Width of adhesive tape	30, 45mm
Machine size	24084761478mm
Machine weight	170KG

Automatic flaps folding function

The reasonable mechanical structure allows the top cover of the carton to be folded automatically. The pneumatic device is used to realize the automatic folding of the rear cover, which is reliable and easy to operate.

Filter pressure reducing valve, to make the pressure output stable and the folding function more stable.

The sealing rack height could be adjusted. The height adjustment handle position is ergonomically designed, allowing you to adjust the height of the sealing rack more comfortably.

The width between two conveying belts could be adjusted, which can fix the position of the box. When sealing boxes, to center the adhesive tape’s position, and make the sealing firm and beautiful.

Travel switch control the electric circuit, to realize the sealing function.

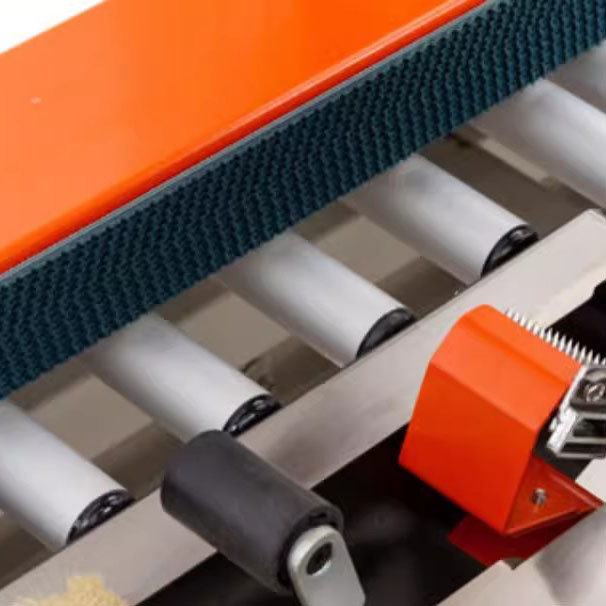

Conveying Roller, the roller is smooth, which reduces the conveying resistance of the boxes and makes conveying easier and more labor-saving.

The conveying belts have strong grip, to convey the carton box more smoothly.

The driving wheel and driven wheel of the conveying belts are thickened, with the larger load-bearing capacity and better rolling effect.

The advanced sealing liner is used to flatten the protruding part of the carton, so that the adhesive tape attached to the surface of the carton more flatly.

Equipped with two motors, it has strong power and large load capacity, to make the conveying of box is more stable.

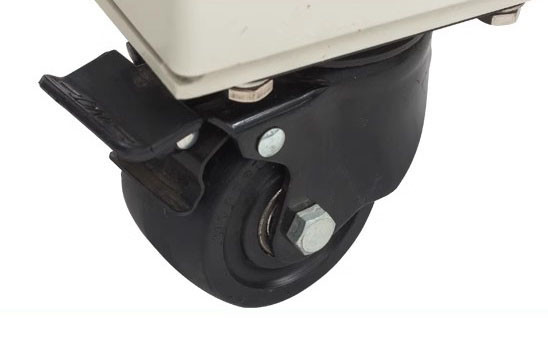

Mobile casters with brakes

Match with mobile casters, to make the move easier.

The casters with brakes, after moving, to fix firmly and not easy to slide.
