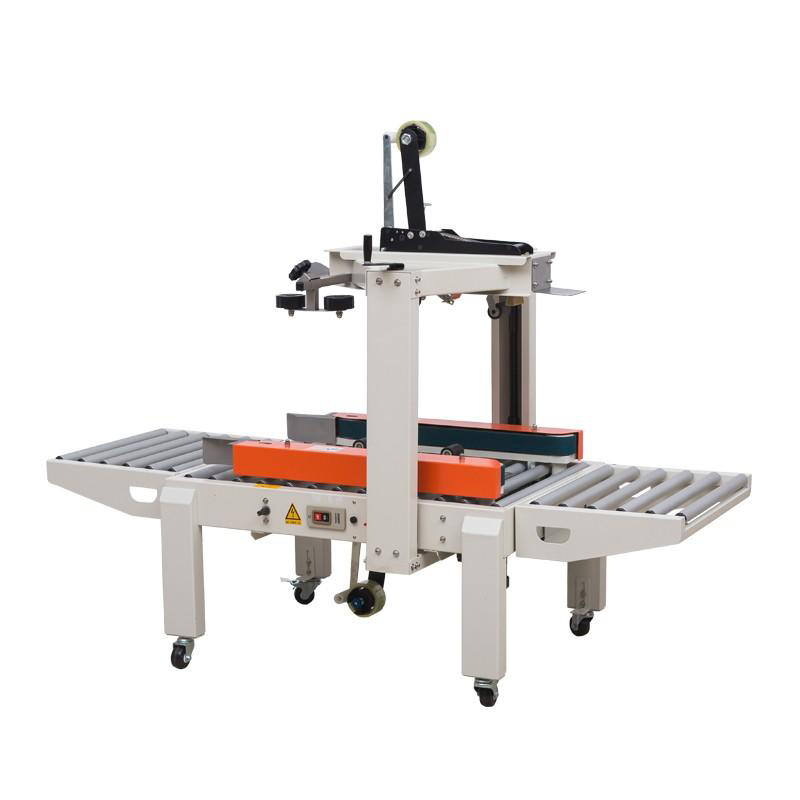

1. FXC5050 carton sealing machine is mainly used for sealing cartons.
It could be used for carton sealing independently, also could work with other machinery for assembly line operation to improve production efficiency.
2.Conveyor belts are installed in the left & right sides.
3.Carton is transmitted by two sides conveying belts.
Specification
Model
FXC5050
Power source
220/110V 50/60HZ 240W
Sealing capacity
1000pcs(standard size) per hour
Width of tape
36, 48, 60mm
Way of transmission
Left-Right Two sides convey belt transmission
Sealing speed
About 1000 carton boxes per hour
Max. size of case
500×500 mm (W×H)
Min. size of case
130×120 mm (W×H)
Overall size
1850×835×1105~1715 mm (L×W×H)
Weight
120Kg

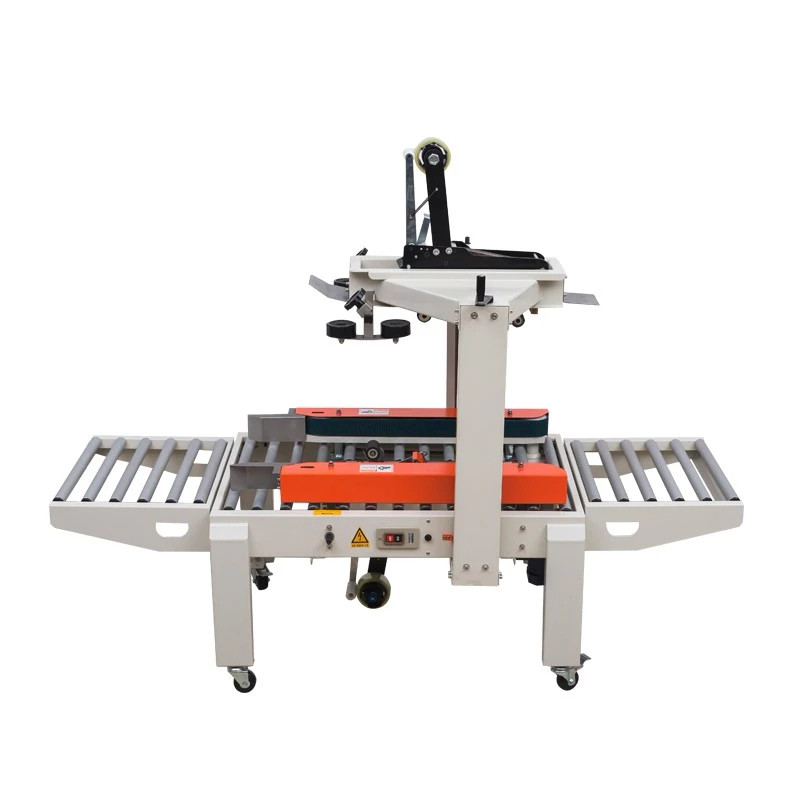

FXC5050 Carton Sealer, we adopt adhesive tape to sealing the cartons.
It could accomplish the sealing of the upper and lower boxes at one time.
The driving wheel and driven wheel of the convey belt are thickened, with the larger load-bearing capacity and a good rolling effect.
The convey belts have strong grip, to transport the carton box more smoothly.
The height of the sealing rack is adjustable.
The height adjustment handle position is ergonomically designed, allowing you to adjust the height of the sealing rack more comfortably.

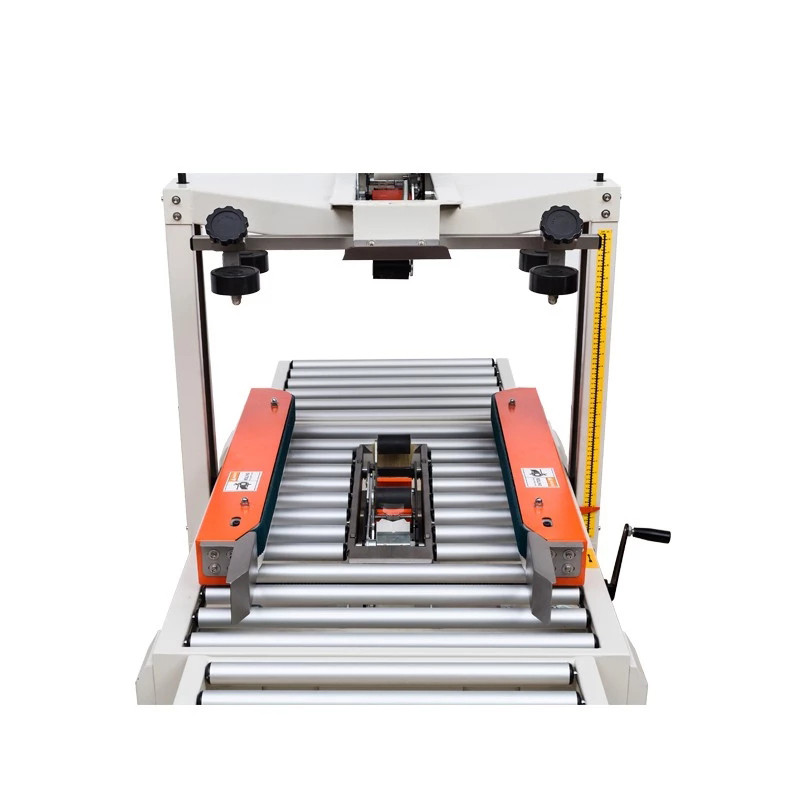

The width between two convey belts is adjustable, which can fix the position of the box, to center the adhesive tape’s position of box when sealing, and make the sealing firm and beautiful.

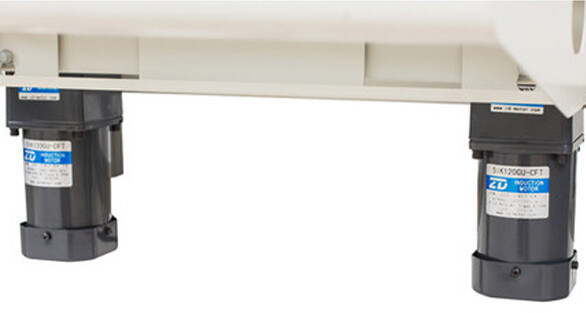

Equipped with large motors, to transport the box more stably. It has strong power, large load capacity and long service life.

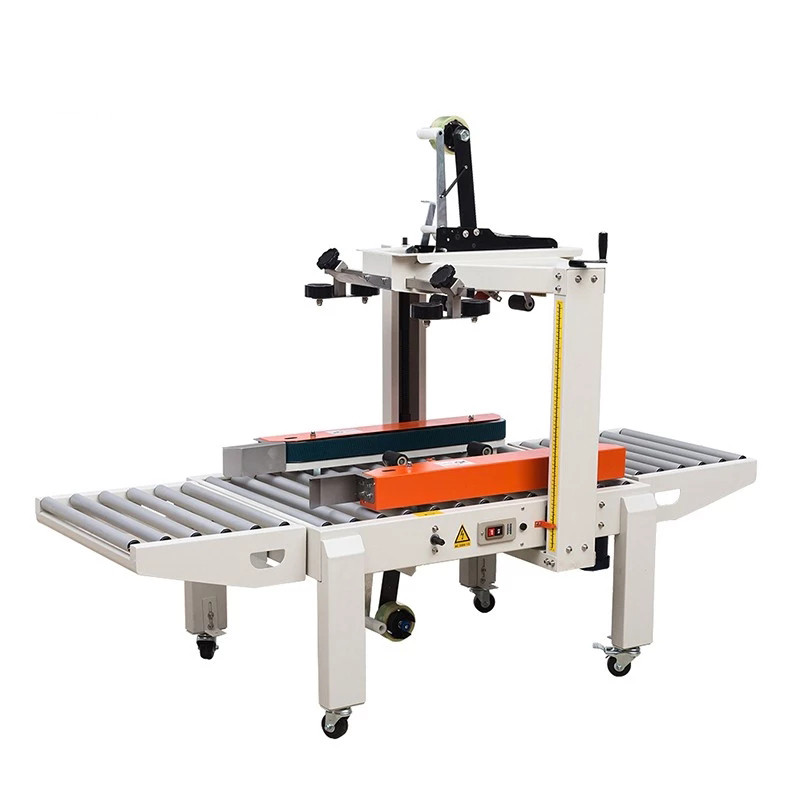

The height scale allows you to adjust the machine to the appropriate height more quickly when using it.
