DQFXS7050 Pneumatic Automatic Carton Box Four Corner Edges Sealing Machine
Inquiry Now →

Product Description

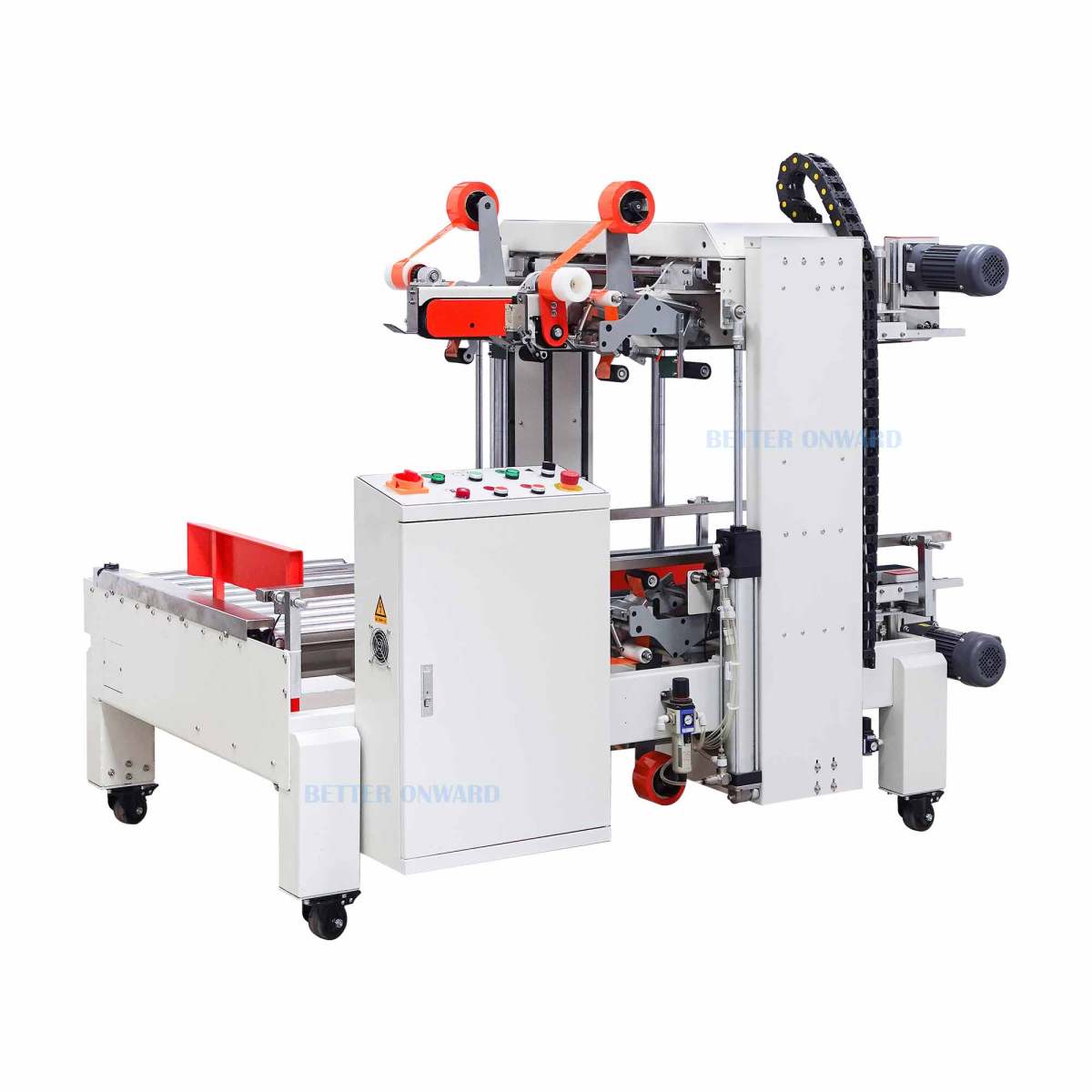

DQFXS7050 Pneumatic Automatic Carton Box Four Corner Edges Sealing Machine
DQFXS7050 carton sealer, require to connect the air source to achieve fully automatic carton sealing. It is beneficial to improve production efficiency.

It is widely used in electrical, cosmetics, textiles, foodstuffs, general merchandise and chemical industries.
Specification
Model
DQFXS7050
Voltage
AC220V/50Hz
Power
1000W
Sealing Speed
20m/min
Conveying load capacity
30kgs
Worktable height
600mm
Width of adhesive tape
48mm, 60mm,75mm
Max. sealing size
700(L)*500(W)* 500(H) mm
Min. sealing size
260 (L)*200 (W)*175 (H)mm
Machine size
2020* 1312* 1510mm

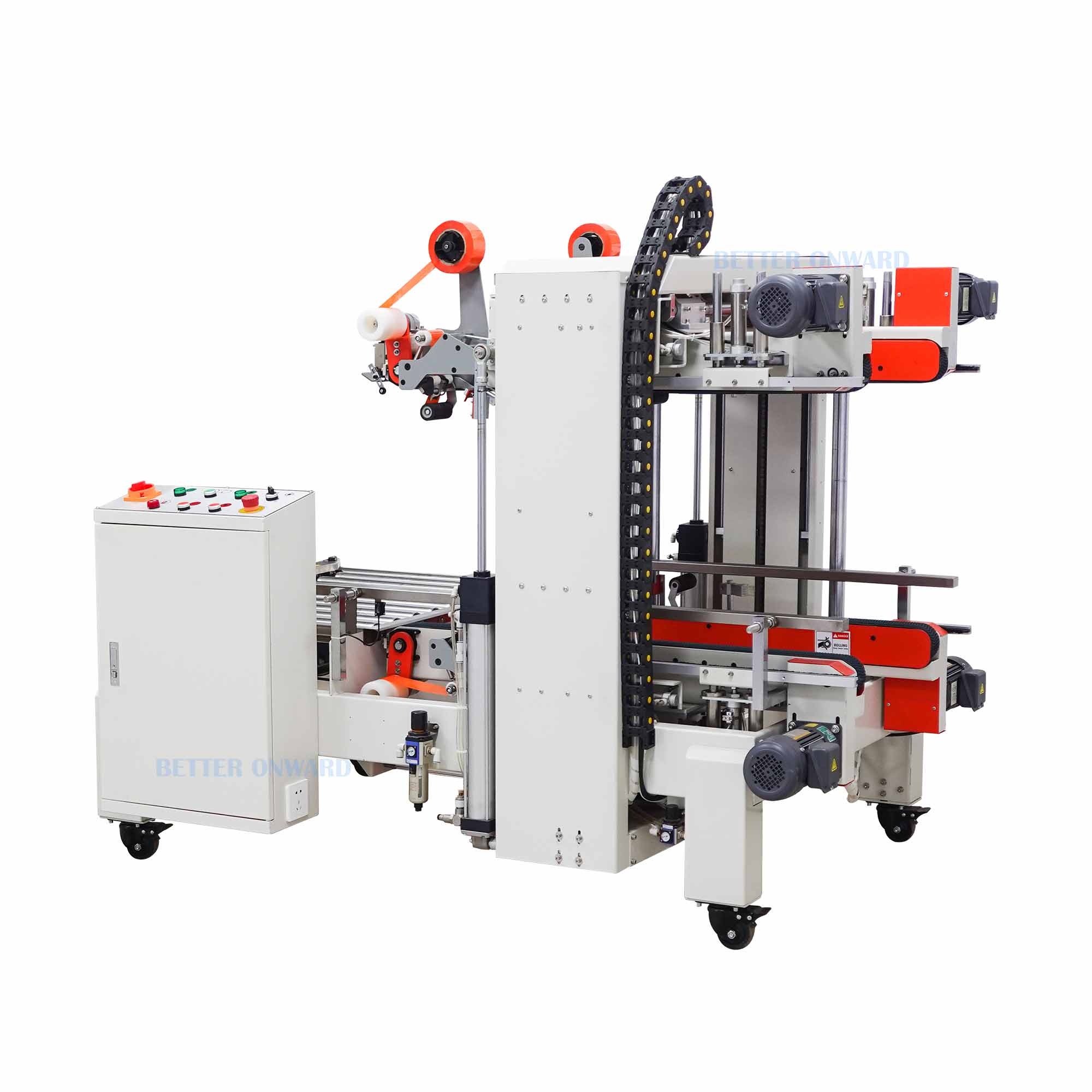

DQFXS7050 Carton sealing machine





DQFXS7050 carton four corner edges sealing machine could meet the needs of continuous sealing of cartons with different sizes.

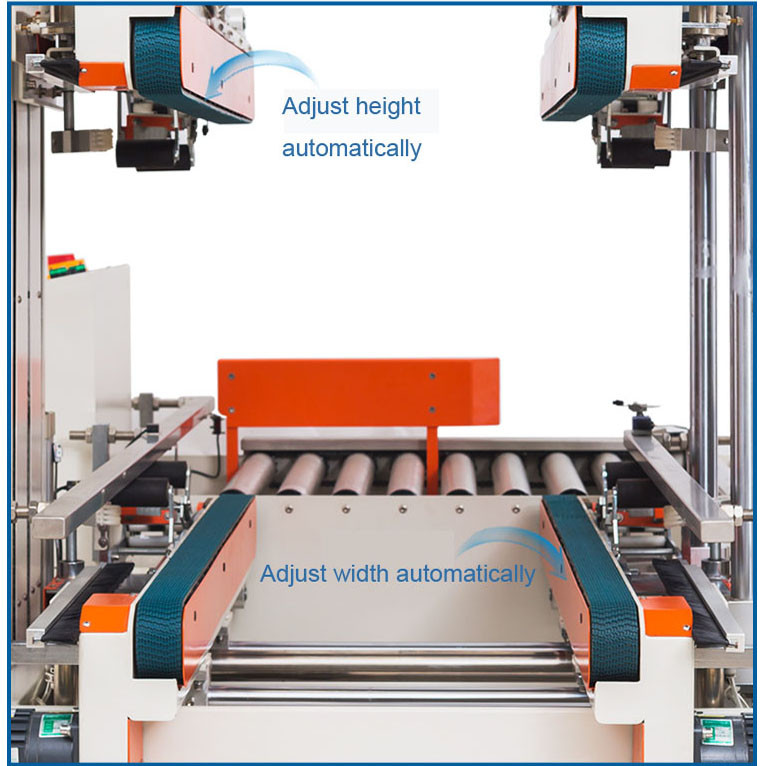

According to different size of cartons, the carton sealer will adjust the sealing width and height automatically, no manual adjustment required.

When cartons of the same specification need to be sealed continuously, rotating the locking button can fix the sealing height and width. Cartons could be sealed quickly, greatly improving efficiency.

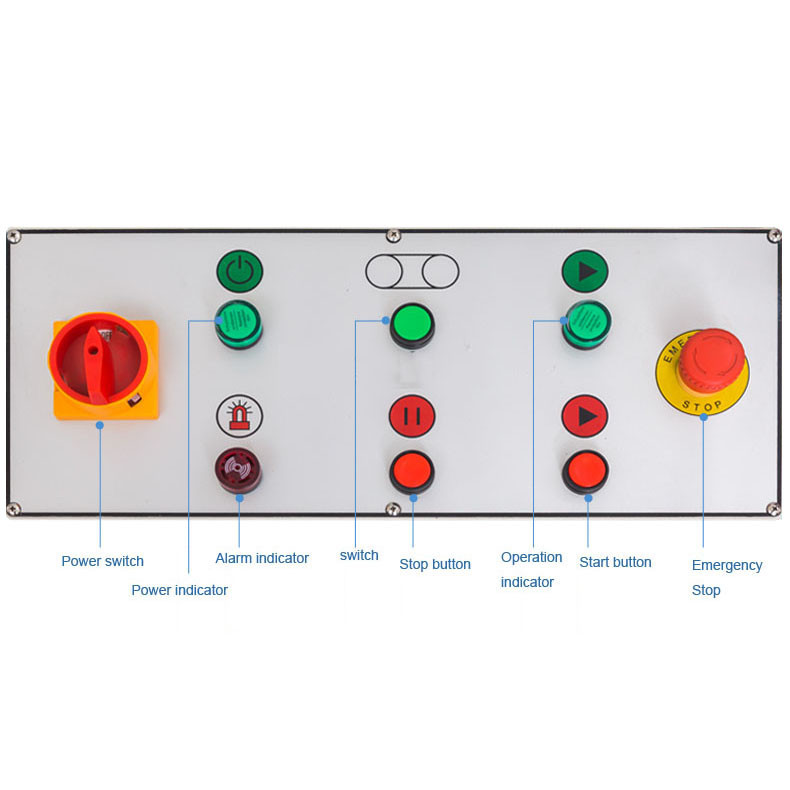

The operation panel is simple and beautiful.

It match with emergency stop, make the operation more safe.

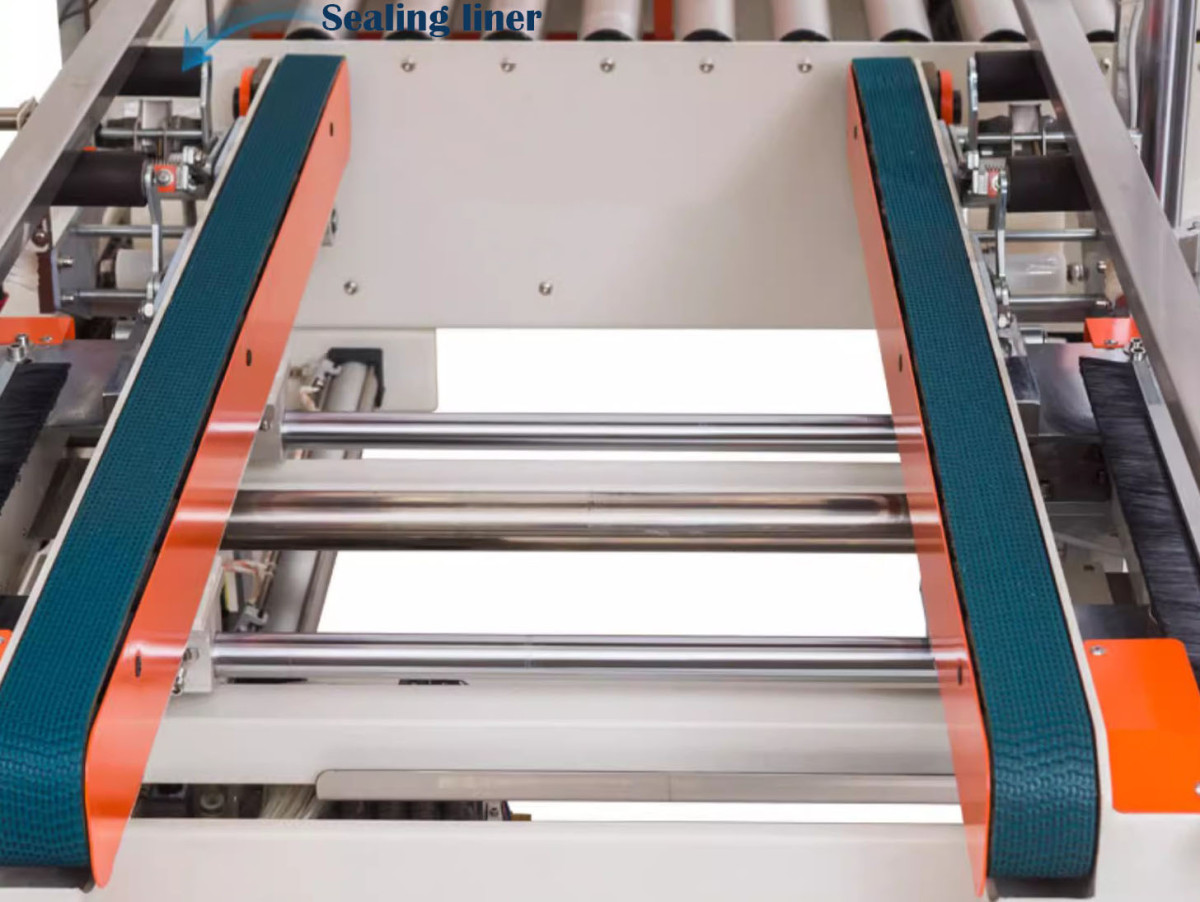

The advanced sealing liner is used to flat the protruding part of the carton, so that the adhesive tape fit to the surface of
cartons more smooth.

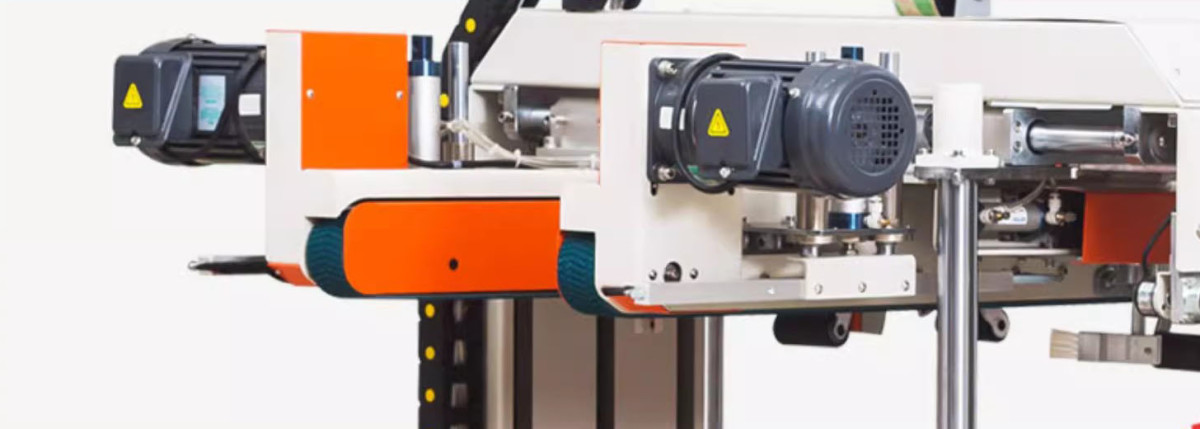

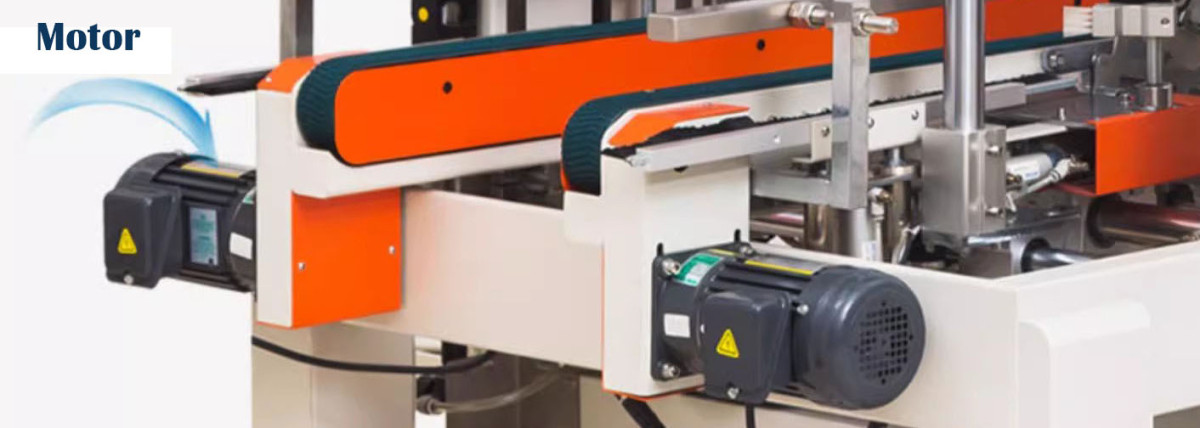

Match with 4sets motors, strong power.
