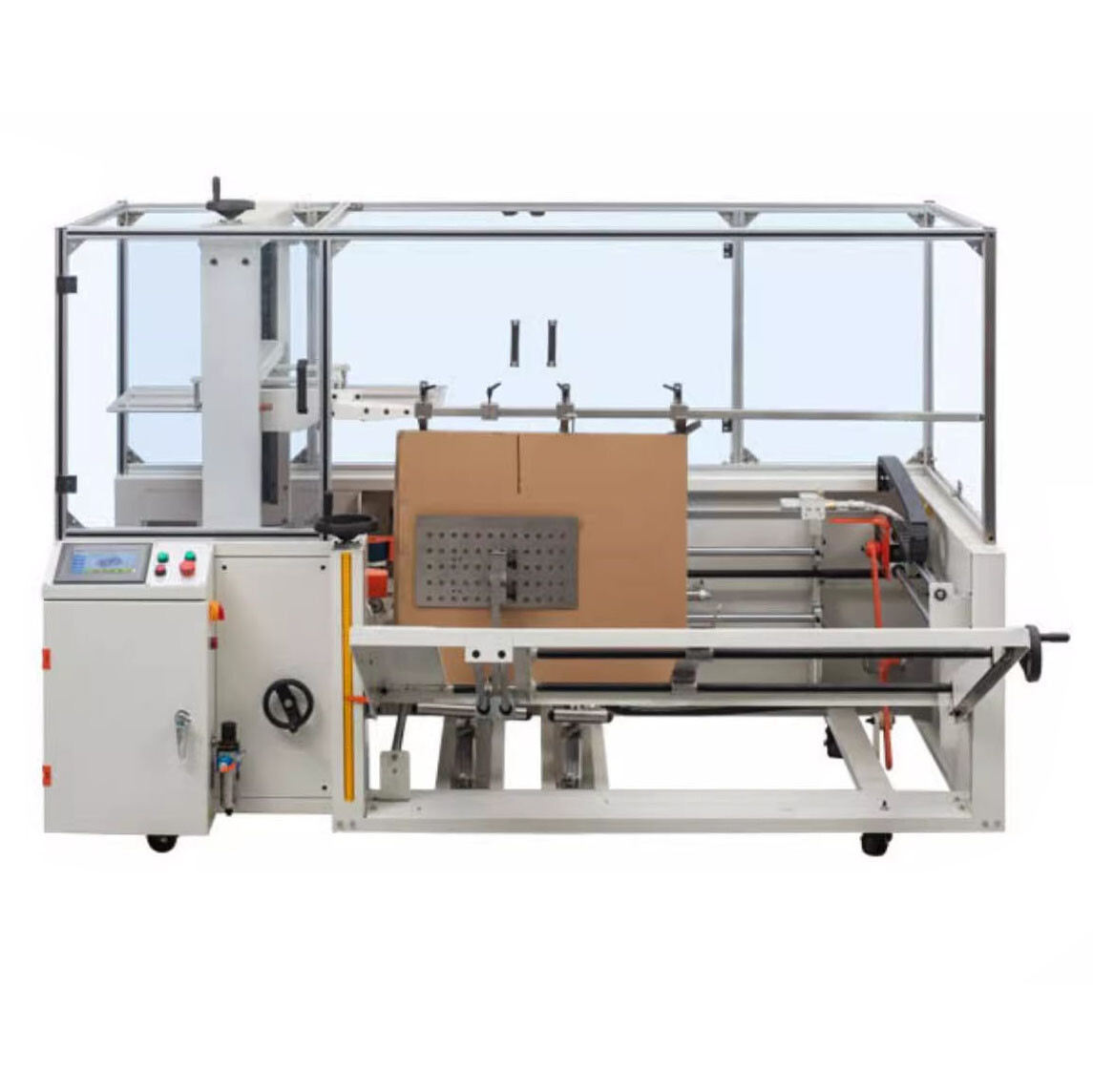

DKX5070 Food Industry Full Automatic Vertical Corrugated Paper Case Carton Box Erector
Inquiry Now →

Product Description

DKX5070 Carton Erector

1. Assembly line automatic conveying.
2. High production efficiency, saving time and labor.
3. PLC+ man-machine interface control.

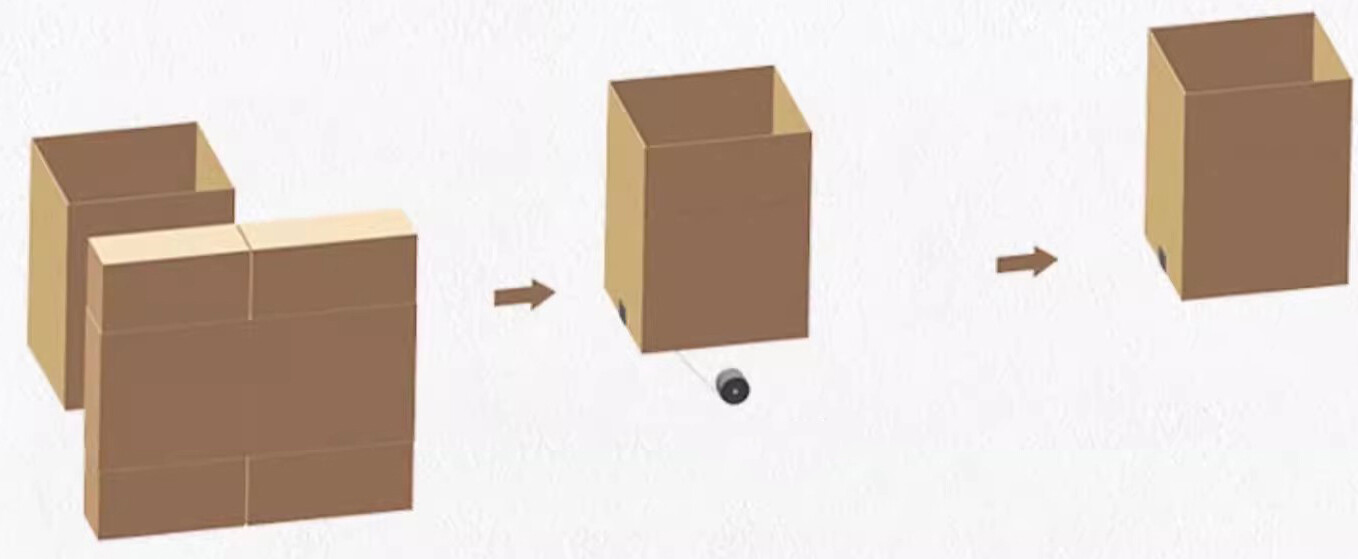

4. Automatic carton erector and bottom sealer.
Specification
Model
DKX5070
Carton size
L350-700mm/W150-500mm/H150-500mm
Table height
600mm
Speed
8-12 box/min
Dimension
L2075*W1270*H1575-1650mm
Power Supply
220V 50-60HZ 240W
Air source
2-3L 5Kgf/cm2
Machine size
2400* 1300* 1665-1750mm



Equipped with air source processing parts, moisture can be discharged through the filter and pressure can be adjusted.
The height scale allows you to adjust the machine to the appropriate height more quickly when using it.

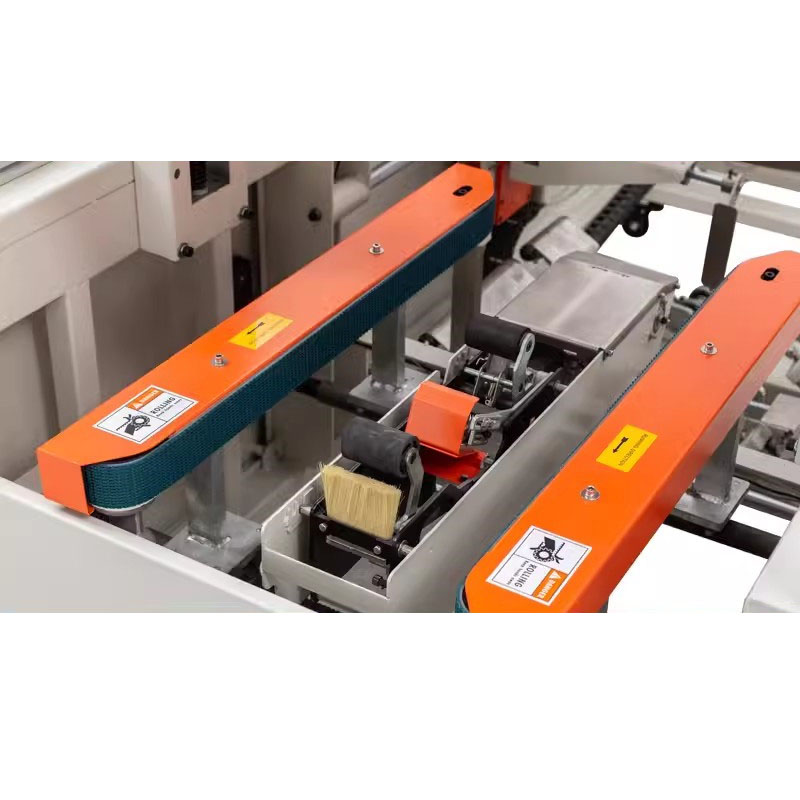

The advanced sealing liner is used to flatten the protruding part of the carton, so that the adhesive tape attached to the surface of the carton more flatly.

The cut is smooth and the sealing is beautiful and firm.

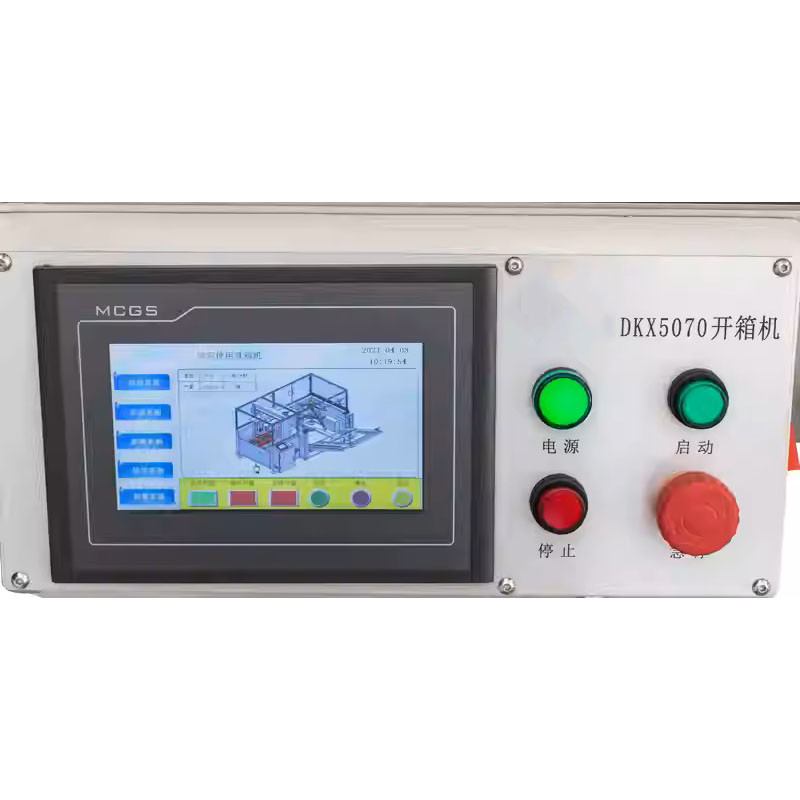

Human-machine interface, intelligent touch screen, simple and beautiful, with emergency stop switch, more safe to use.

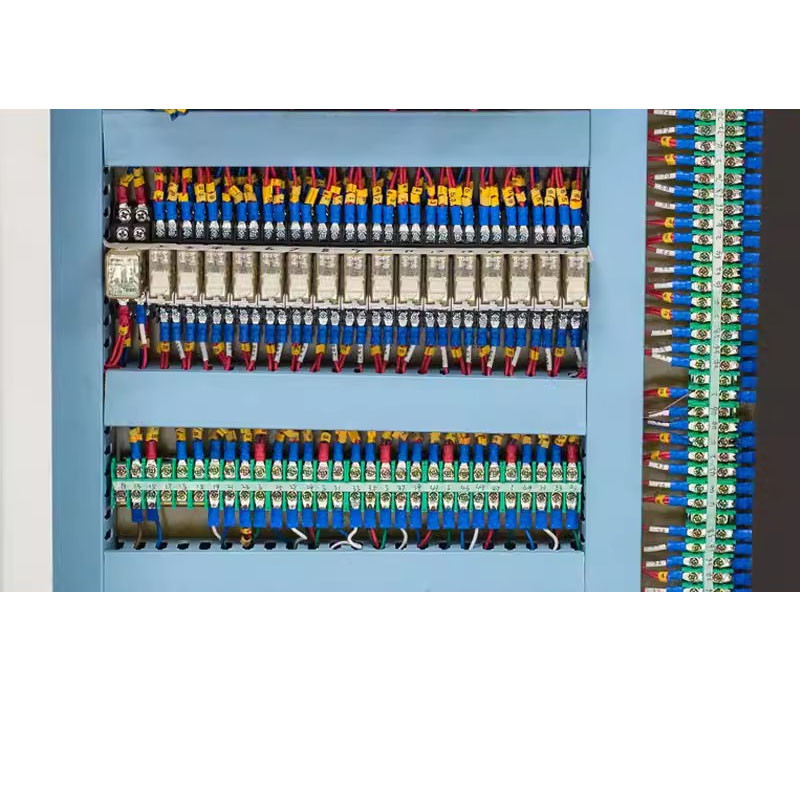

Reasonable electric circuit design and PLC control improve the automation level of the system, with high transmission quality, fast speed and stable use.

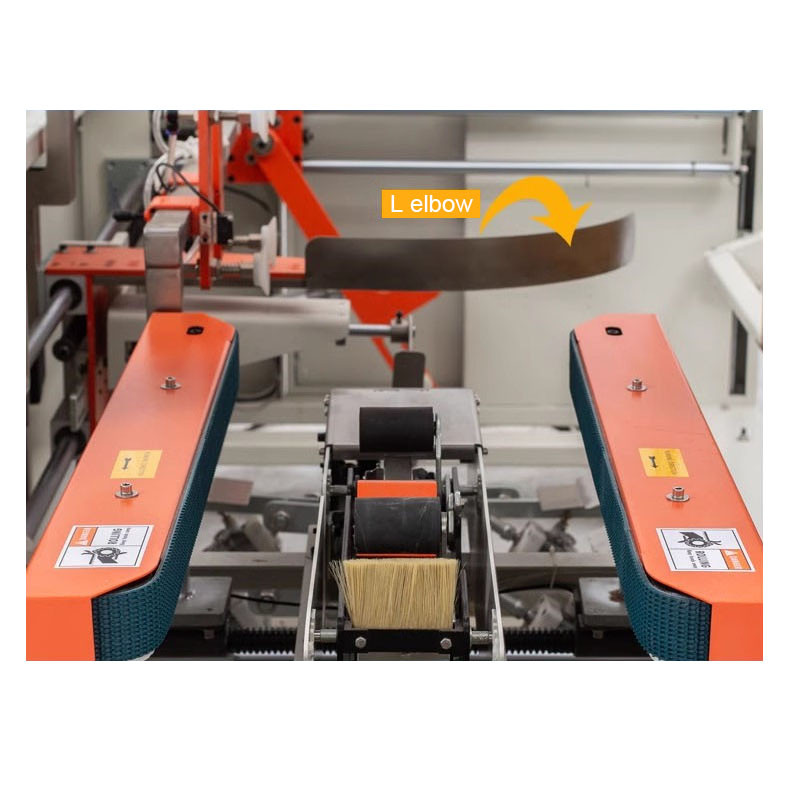

In the suction box process, it is formed through the L-shaped elbow.
