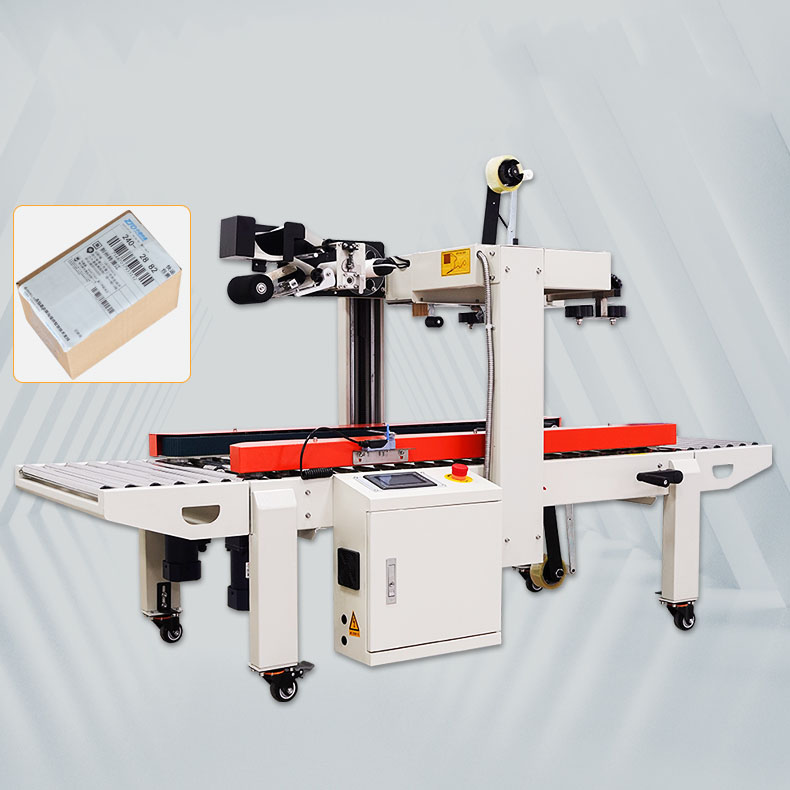

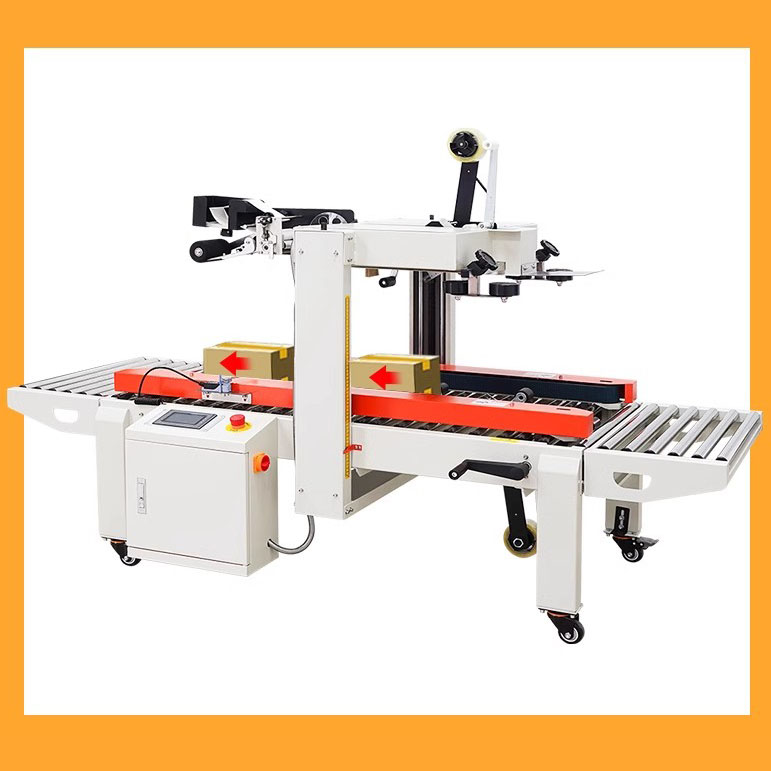

The cartons sealing and labeling all-in-one machine adopt adhesive tape and universal folding courier labels to do sealing and labeling. It can complete the box sealing and top labeling at one time.
It is widely used in e-commerce, logistics and other industries, with firm sealing, accurate labeling and fast speed.
Specification
Model
DFXC5050XI
Max. sealing size
W500* H500mm
Min. sealing size
W80* H90mm
Power
500W
Power source
220V 50Hz
Speed
18m/min
Adhesive Tape width
30mm 45mm
Label Size
Universal Folding label, width 20-100mm

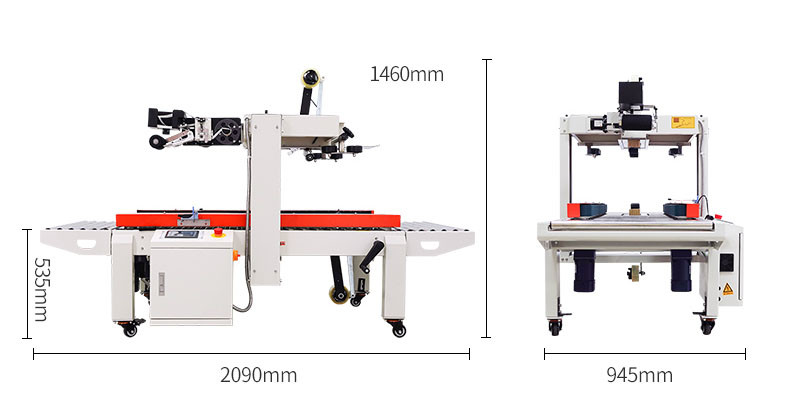

Machine size
L2090* W945* H1460mm
It has two functions:
1. Seal cartons
2. Labeling

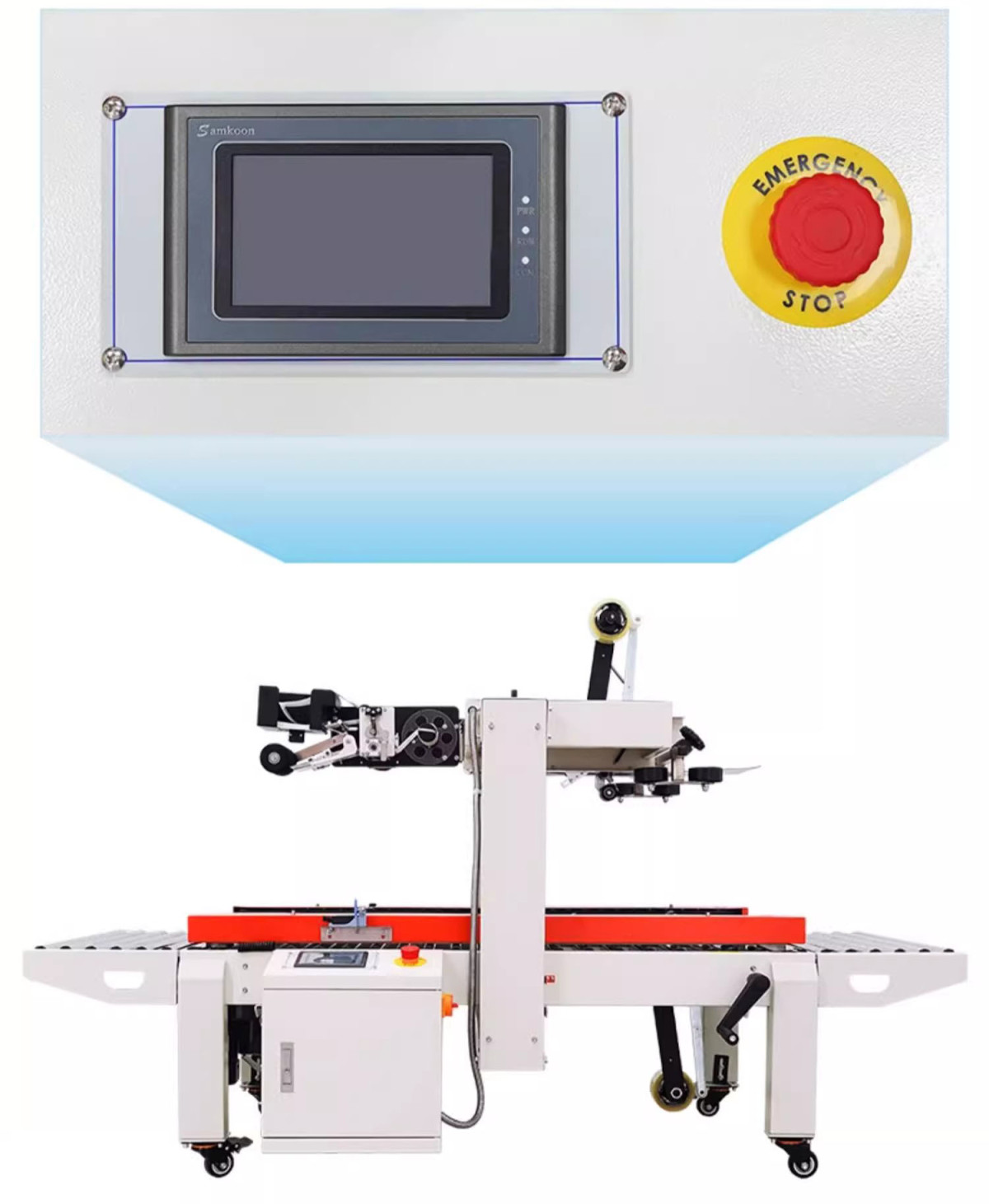

Digital design of labeling position, automatic detection, automatic fault diagnosis and high degree of intelligence.
The travel switch control circuit realizes the labeling function.
