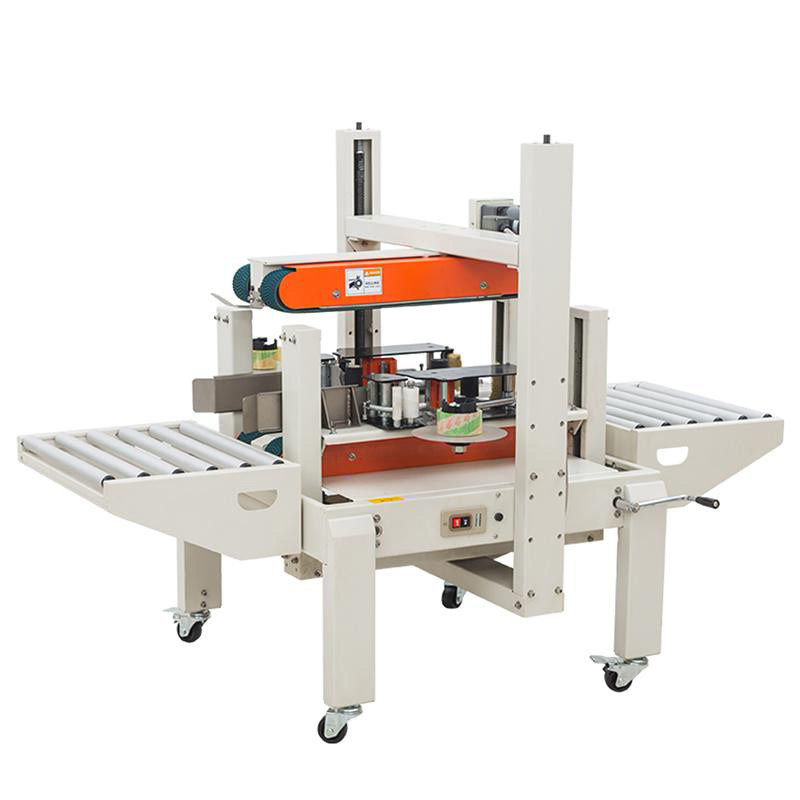

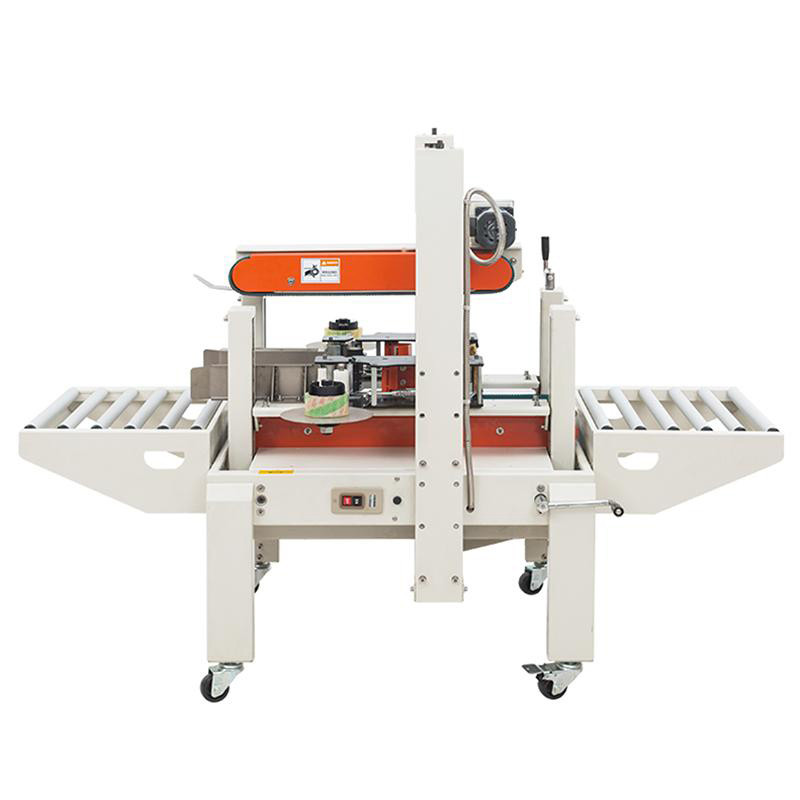

DFXA5050C Semi-Automatic Adhesive Tape Foam Box Side Sealer Cardboard Carton Side Sealing Machine
DFXA5050C carton sealing machine is mainly used in sealing and packing carton boxes.
The machine is widely used in electrical, cosmetics, textiles, foodstuffs, general merchandise and chemical industries.
This type can be installed the printer.
Specification
Model
DFXA5050C
Power source
AC 220V50HZ, 250W
Sealing capacity
18m/min
Width of tape
48, 60 mm
Way of transmission
upper and bottom transmission mechanism
Max. size of case
500* 500 mm (W*H)
Min. size of case
220* 110 mm (W*H)
Overall size
1703*1177*1426 mm
Weight
130Kg
Adjusting the sealing height and width by hand according to the size of carton, then put the carton on the worktable, the carton will be conveyed by upper and under conveying belts. And the carton's left and right sides will be sealed with adhesive tape automatically.

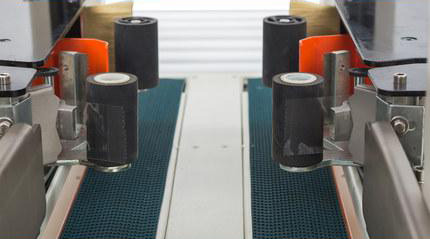

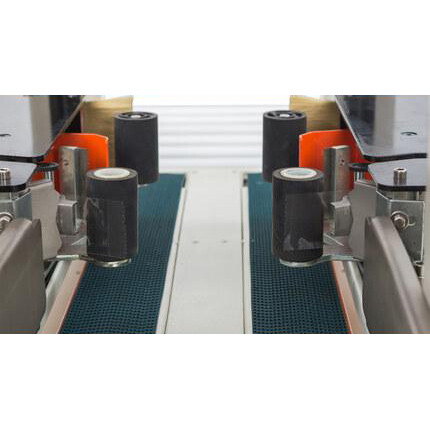

The conveyor belts have good wear resistance, large load capacity, better rolling effect. Conveying the carton box is more stable.
Adopt advanced sealing liner, to seal carton box more beautiful.
