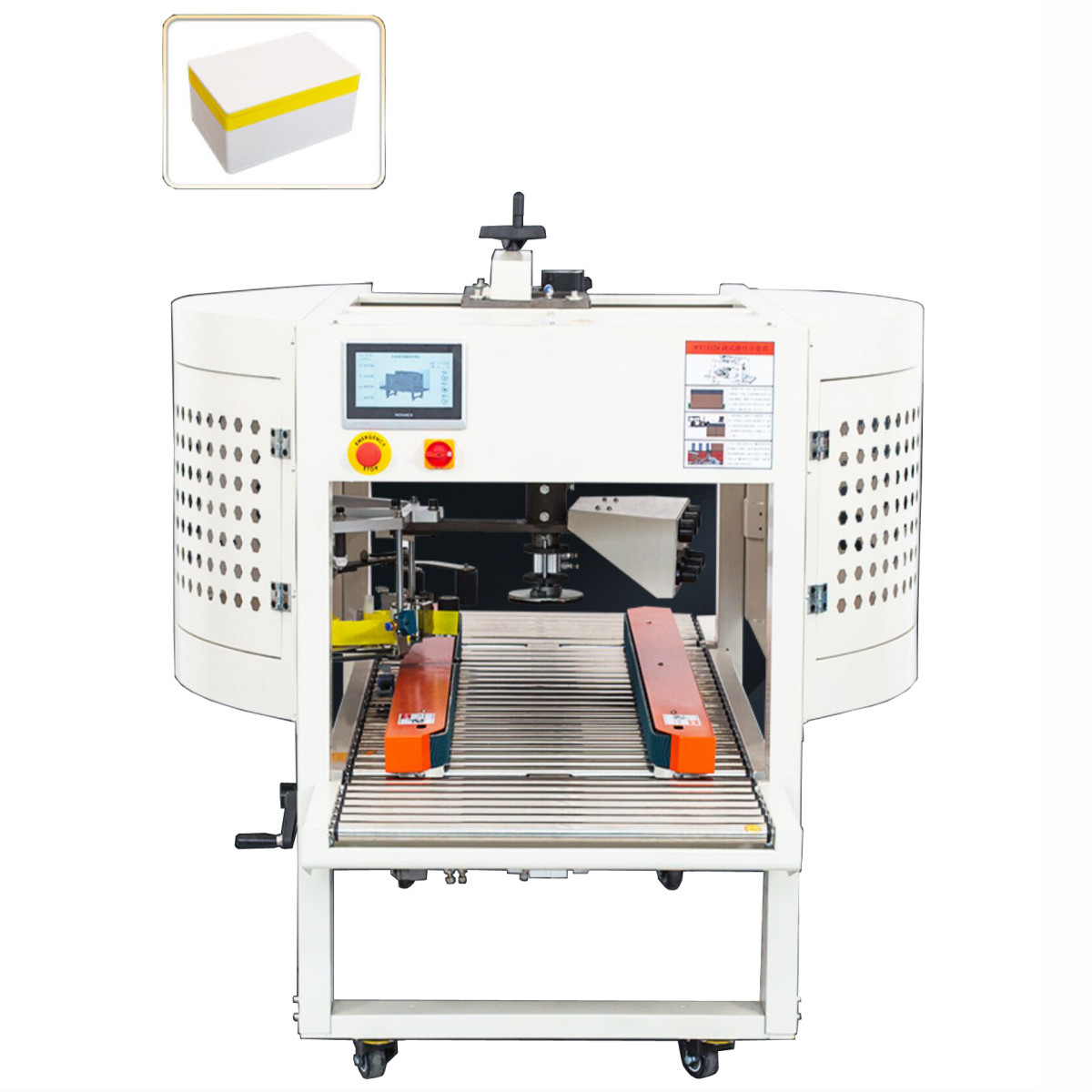

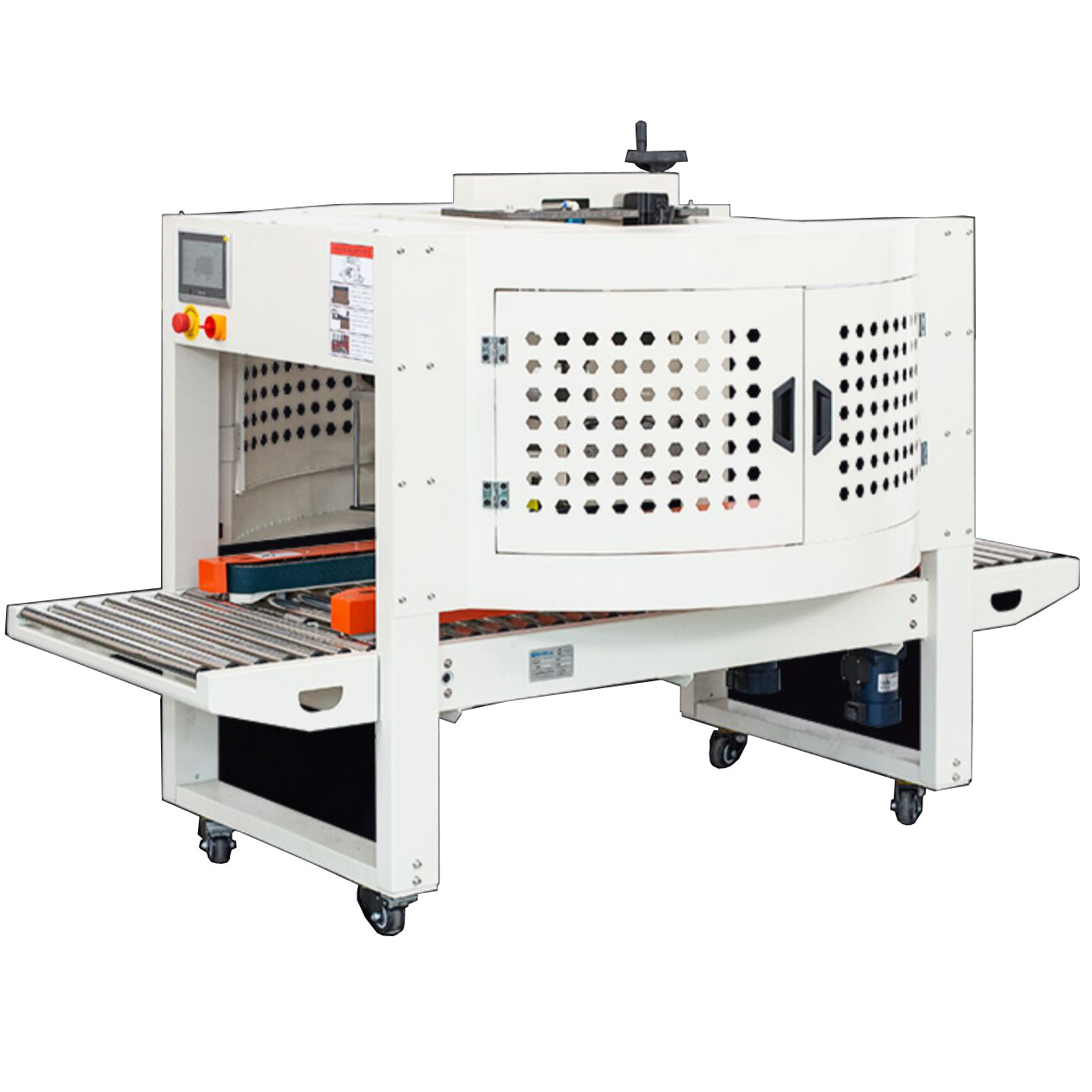

DFX5032M Foam Box Adhesive Tape Wrapping and Sealing Machine
DFX5032M sealing machine is specially designed for foam box packaging, suitable for wrapping and sealing foam boxes of fresh fruits and other products.
Specification
Model
DFX5032M
Voltage
AC110V 220V 50/60Hz
Power
1000W
Sealing tape width
48mm, 60mm
Sealing speed
10 foam boxes/min
Transmission type
Left and Right Conveyor belt transmission
Max. sealing size
L 490mm* W310mm* H245mm
Min. sealing size
L 225mm* W125mm* H150mm

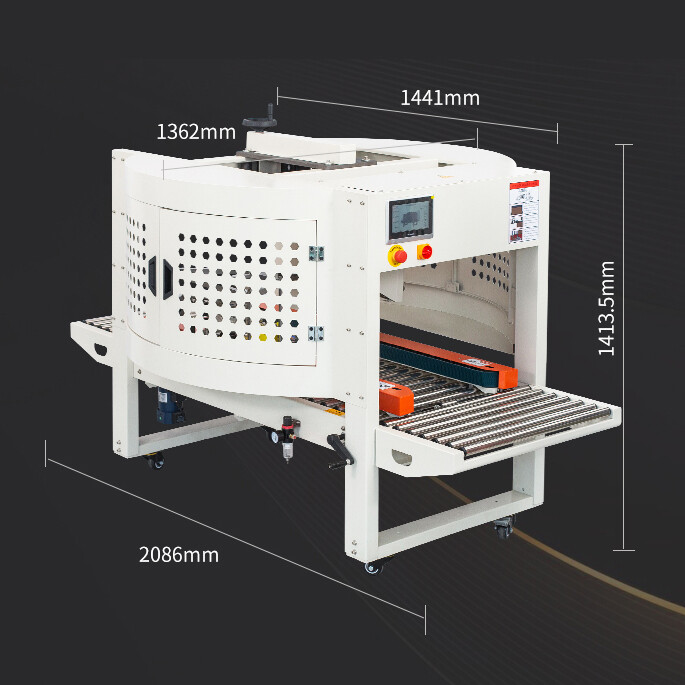

Overall size
L2086* W1362* H1420mm
Adopting PLC, touch screen and servo, with high positioning accuracy and strong adjustability.
It occupies a small space, and only one device could complete the whole product sealing operation.

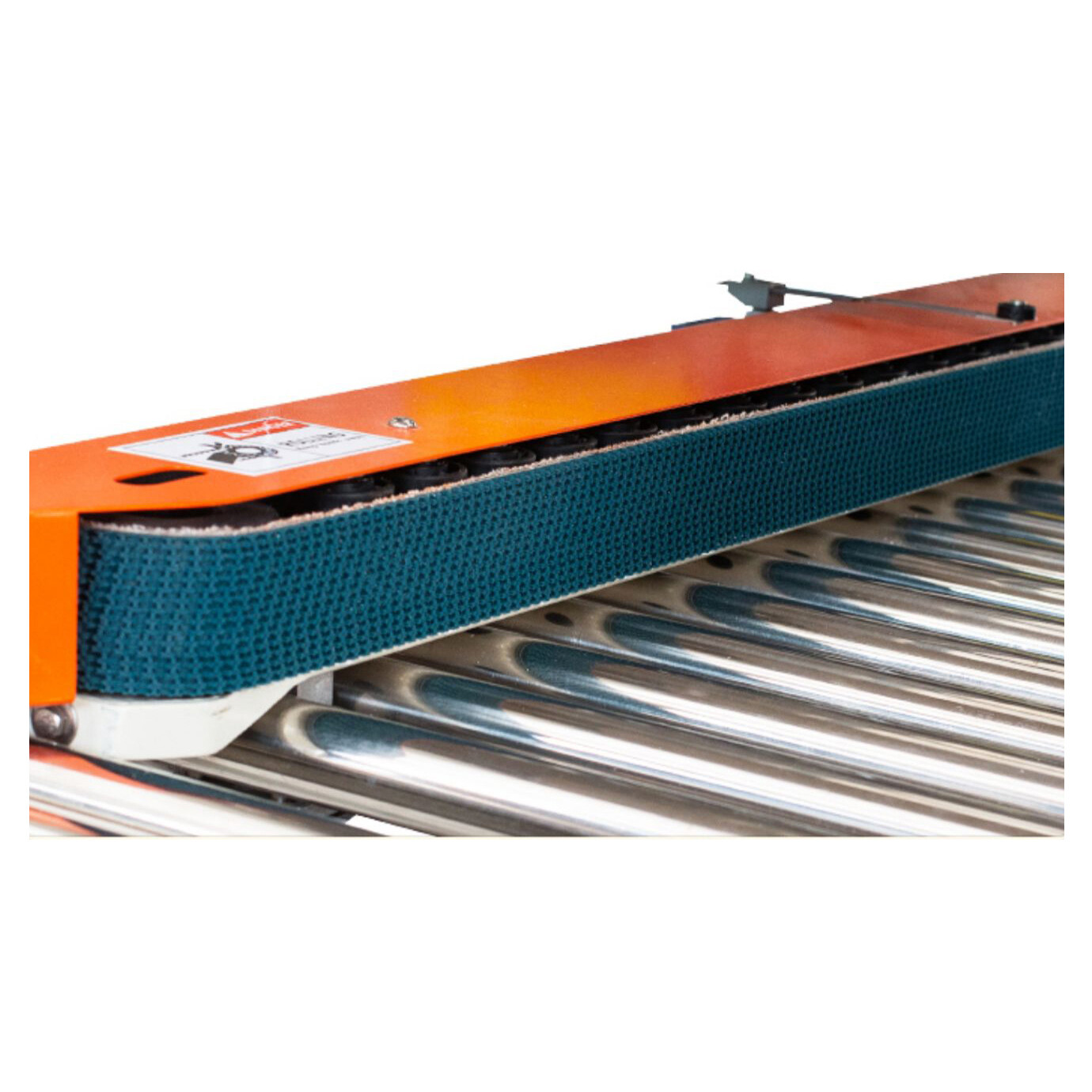

Adopt PVC conveyor belt with strong grip , the conveying is stable, and the goods don’t need to be rotated, which can effectively protect the sealed goods, especially beneficial for the packaging of fresh products.

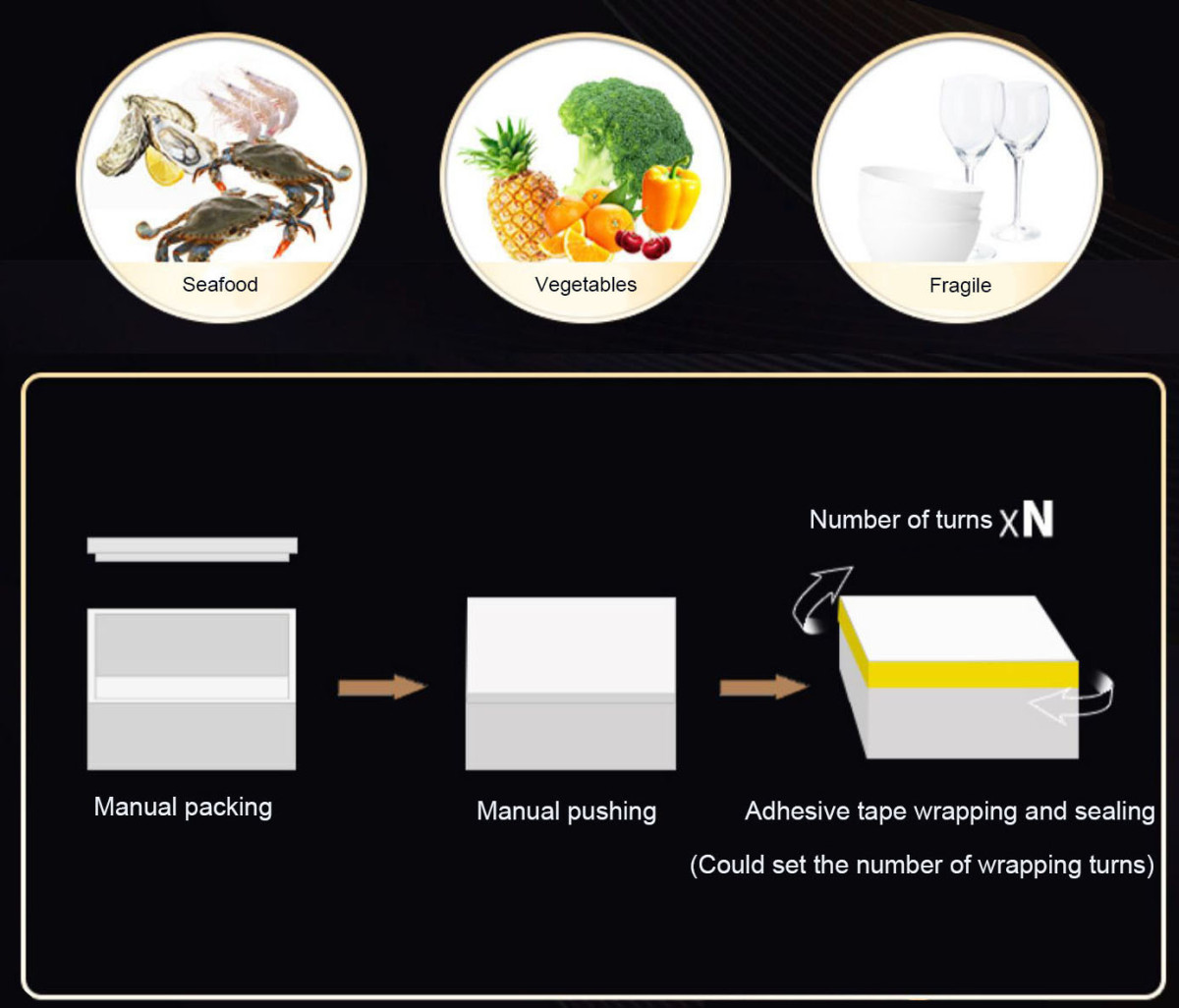

We could set the tape wrapping number according to the actual requirements.

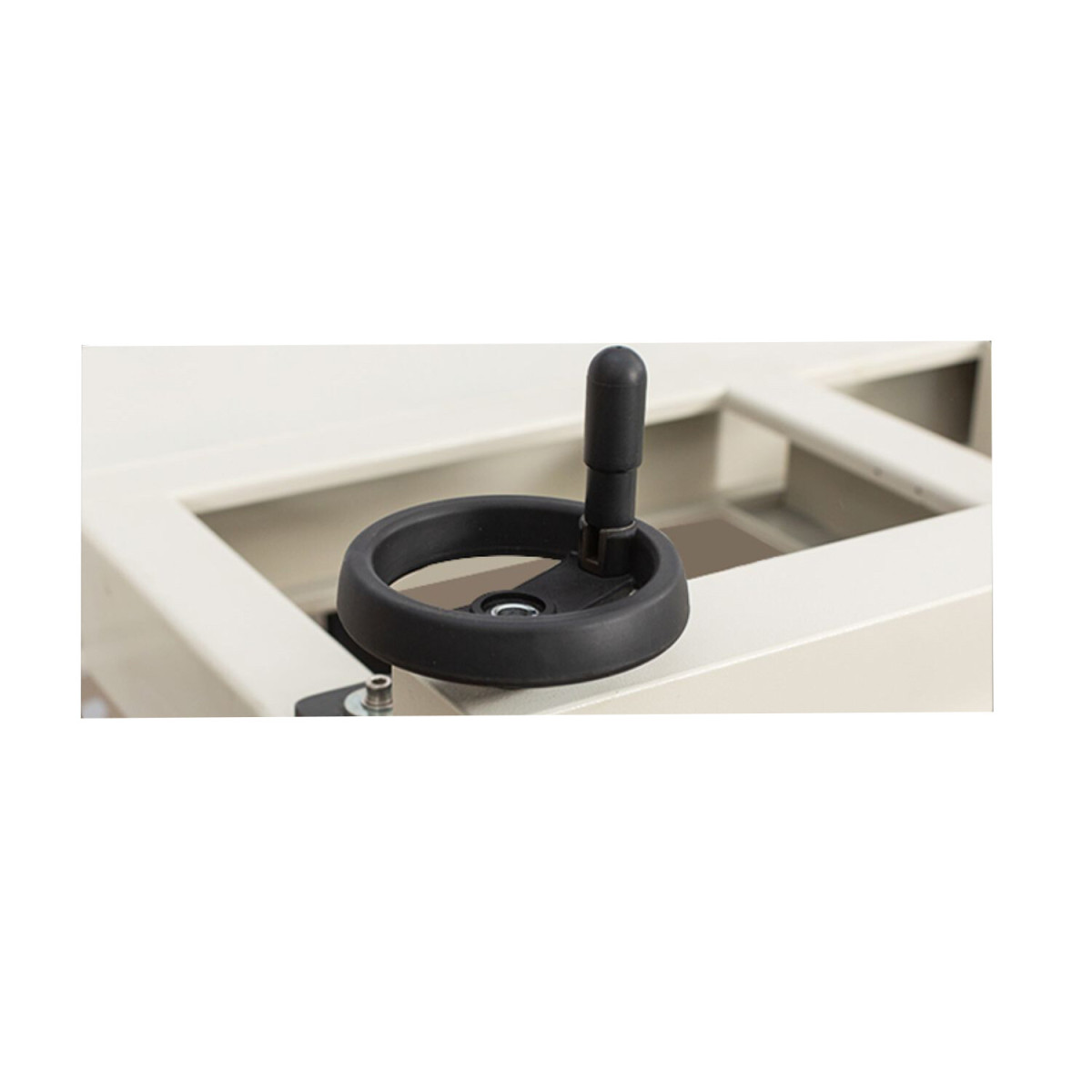

Equipped with the adjustable hand wheel, the height of the working table could be adjusted according to the carton's height.

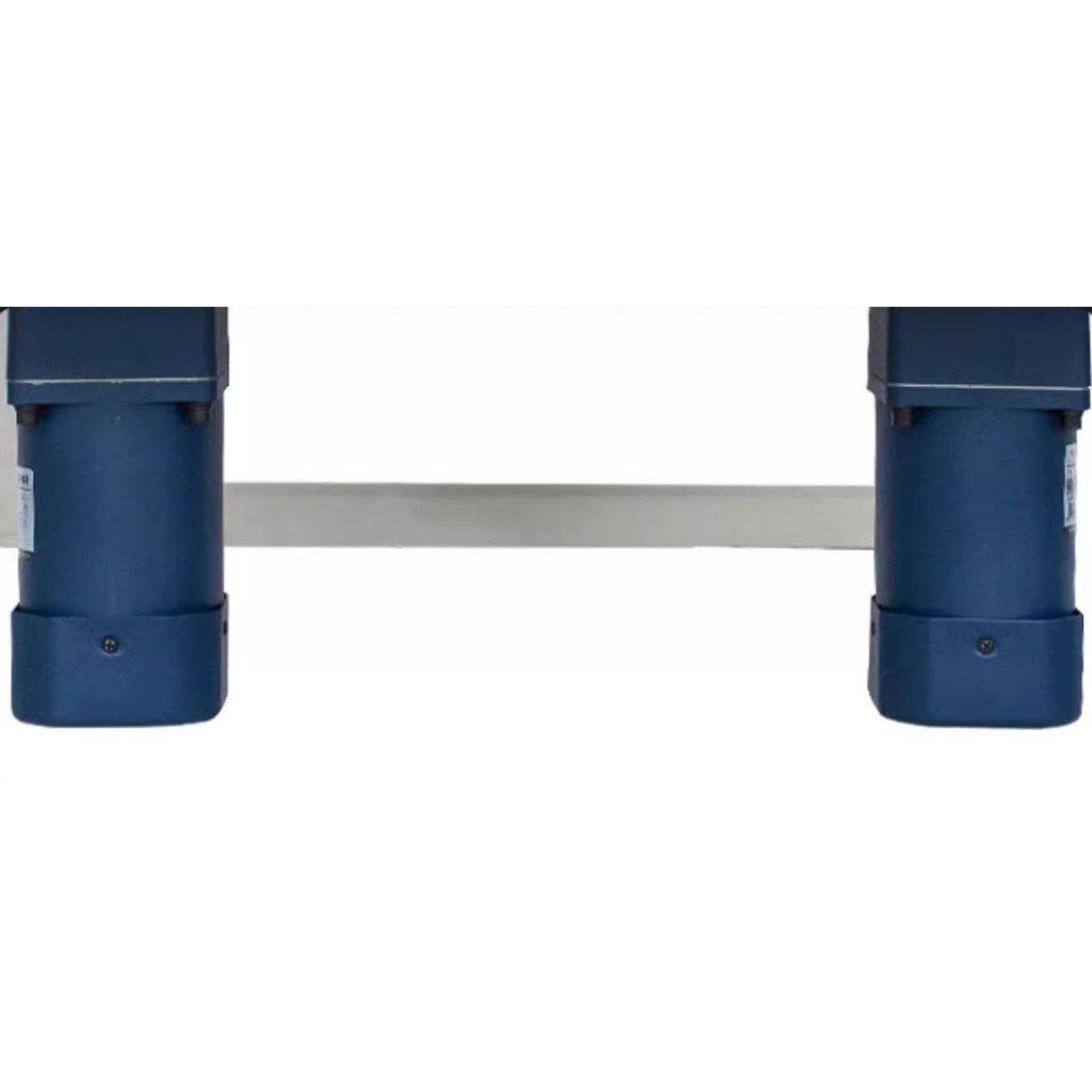

Famous brand dual motor, with stronger power.

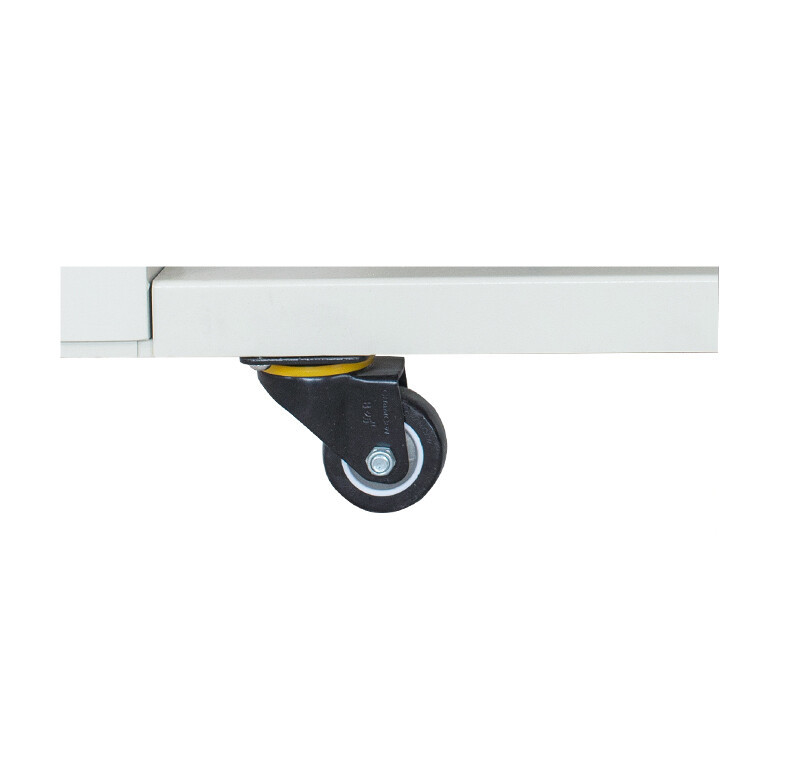

Movable casters,could move the machine effortlessly.
