CE Certified DFXC6050A Electric 110V 220V Heavy Duty Corrugated Case Carton Box Sealer
Inquiry Now →

Product Description

CE Certified DFXC6050A Electric 110V 220V Heavy Duty Corrugated Case Carton Box Sealer

DFXC6050A carton sealing machine is mainly used in sealing and packing cartons, it could be used independently, also could as a necessary part of the production line.

The machine is widely used in the fields of electrical, cosmetics, textiles, food, drink, general merchandise, chemical industries.
Specification
Model
DFXC6050A
Sealing capacity
about 1,000 standard cases per hour
Adhesive tape used
BOPP, water-free adhesive Tape, PVC adhesive tape
Way of transmission
Side (left and right)+ top belt driving
Width of adhesive tape
48, 60mm
Power sources
220V/50Hz, 360W
Max. sealing dimensions (W*H)
500* 600mm (W* H)
Min. sealing dimensions (W*H)
150*120mm (W* H)
Machine size
1850*810*1330~1530mm
Adjust sealing height and width by hand according to the different sizes of carton, then put carton on worktable, the carton will be conveyed and sealed with adhesive tape automatically at the same time.
Match with 4 conveying belt.
Transmission way: Side (left and right)+ top belt driving
It could seal the heavier carton box.

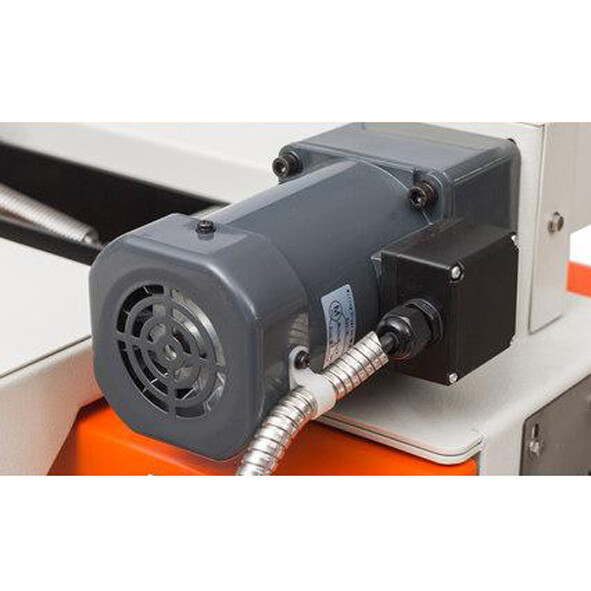

Our DFXC6050A Carton Sealing machine match with 3 motors, strong power, the load capacity is bigger.
