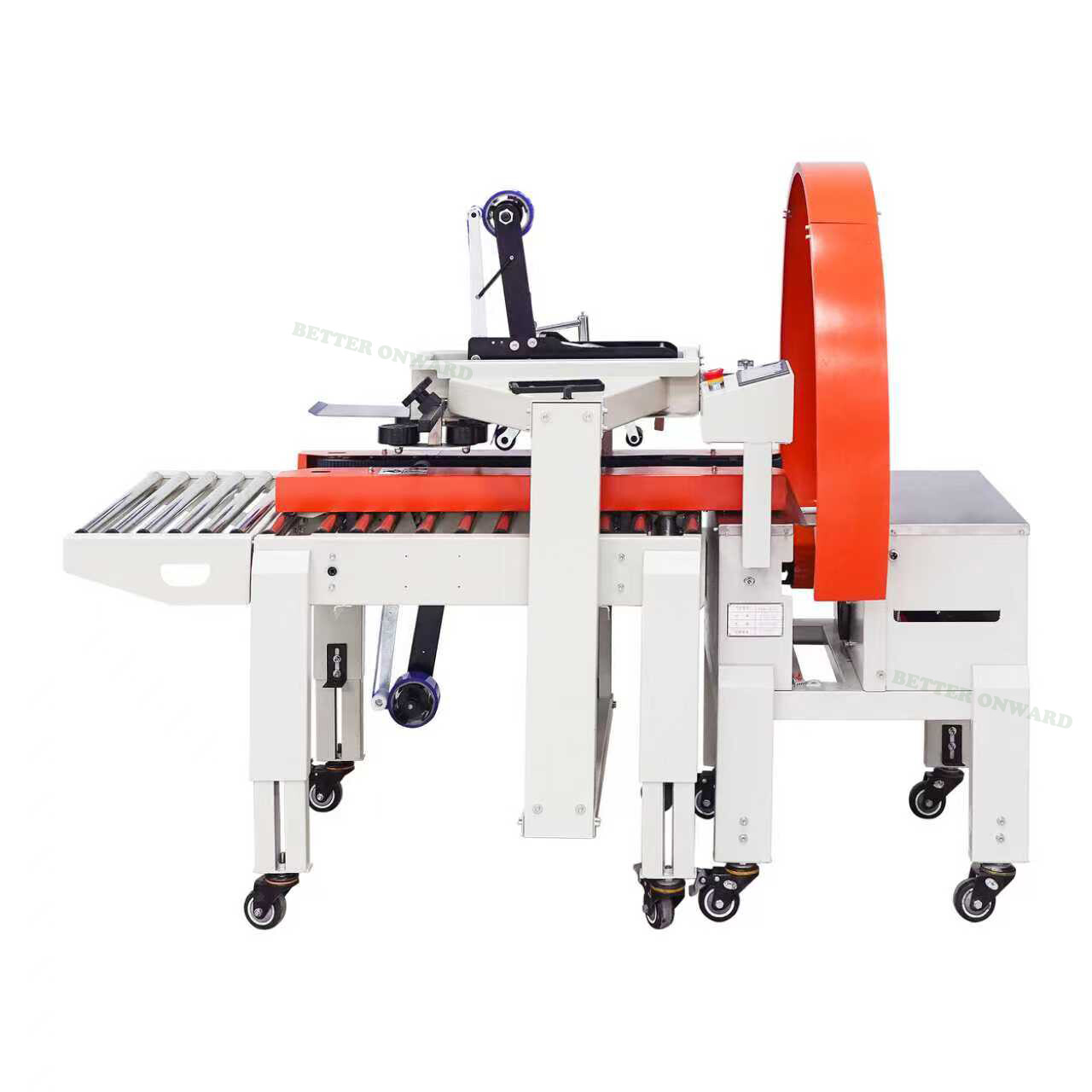

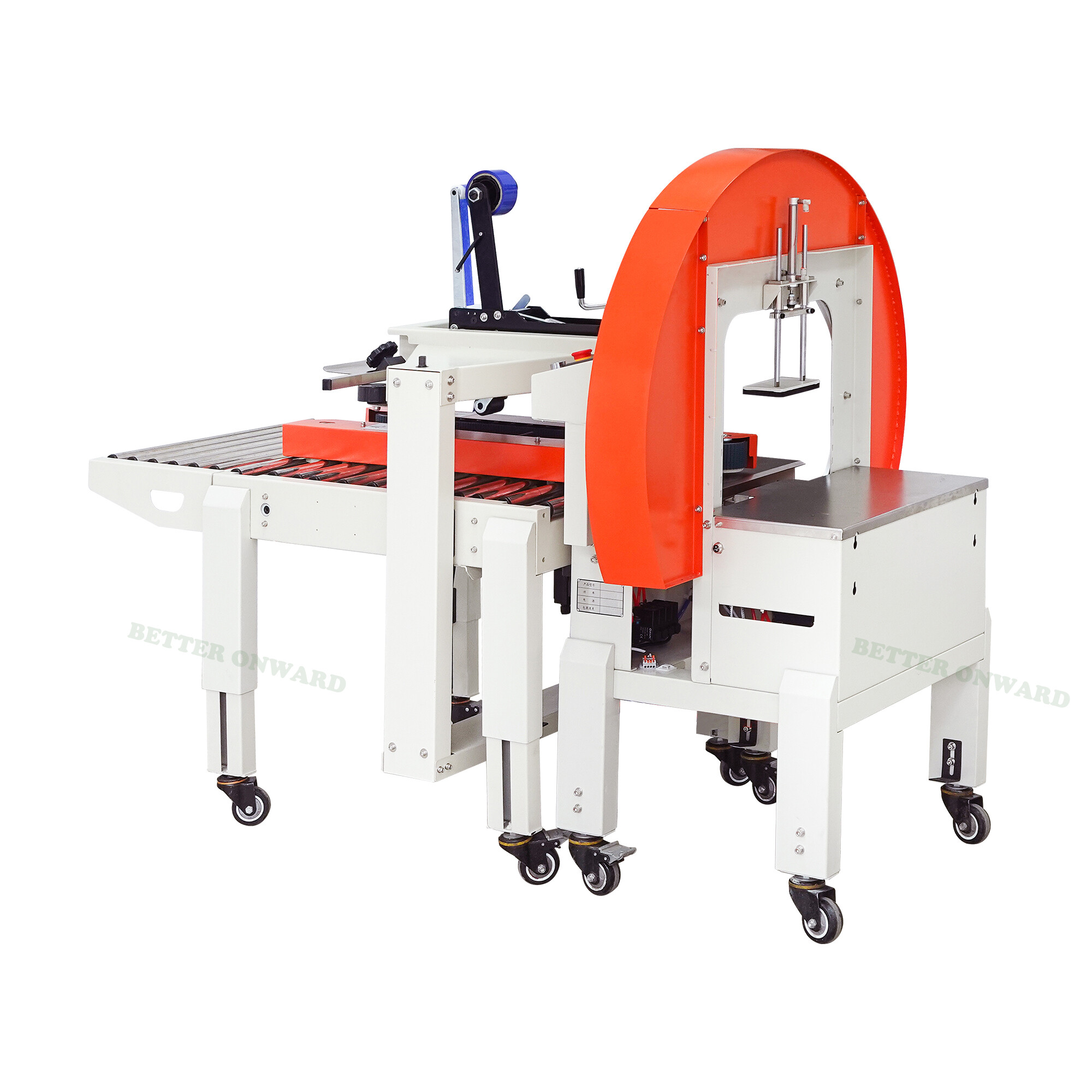

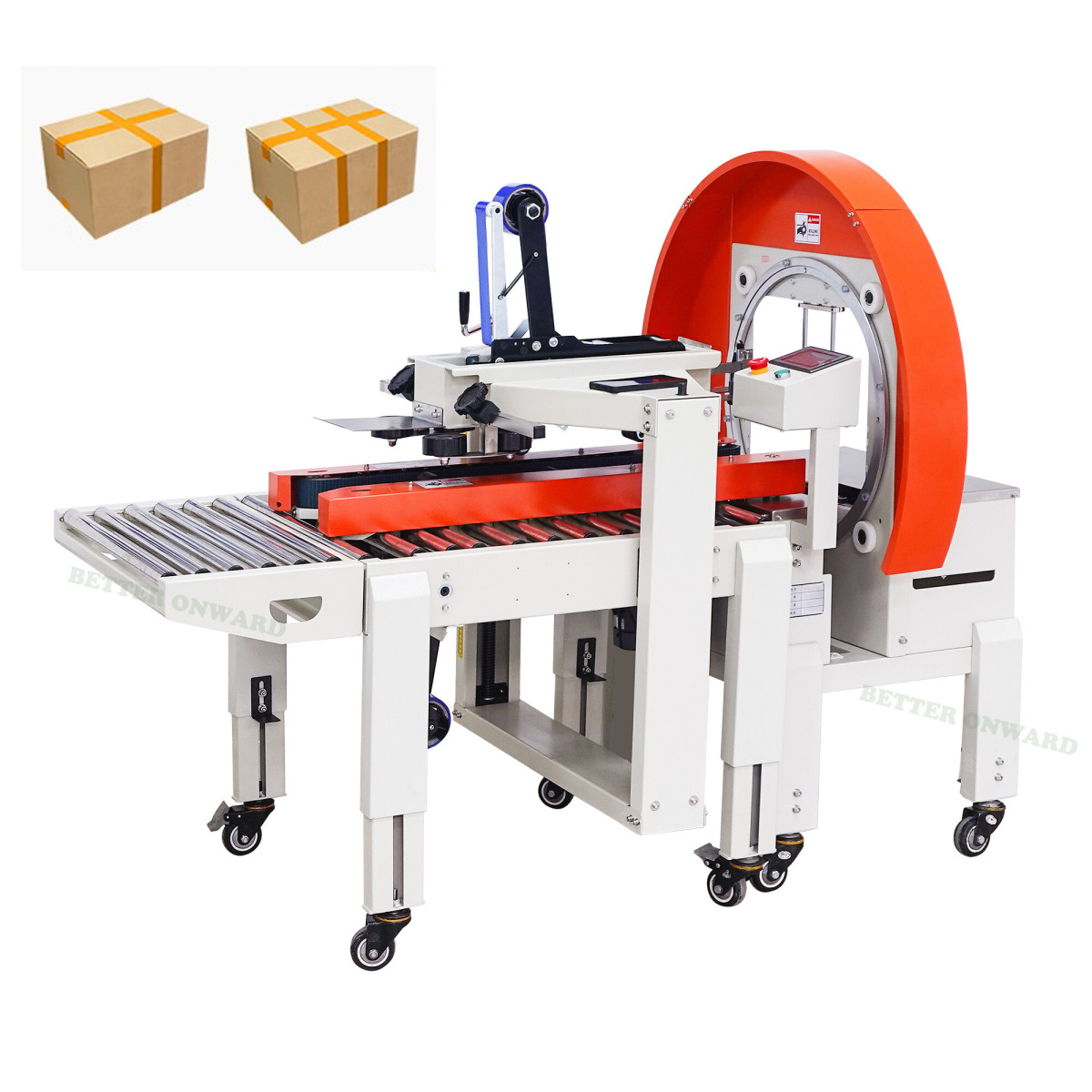

FXW3040 & FXC5050XA Automatic Carton Wrapping and Sealing Machine
These two machines are widely used in the electrical, cosmetics, textiles, foodstuffs, general merchandise and chemical industries.
Specification
Model
FXW3040
FXC5050XA
FXC5050XA & FXW3040
Voltage
AC 220V/50-60Hz
AC 220V/50Hz
AC 220V/50-60Hz
Power
120W
240W
/
Sealing speed
15-20pcs/min
20m/min
/
Adhesive tape width
45mm
30mm 45mm
45mm
Working table height
600-650mm
/
Max. Sealing size
L:No limit,
W: 400mm, H:300mm.
W:500mm, H:500mm
/
Min. Sealing size
L:100mm, W: 80mm, H:40mm.
W:80mm, H:90mm
/

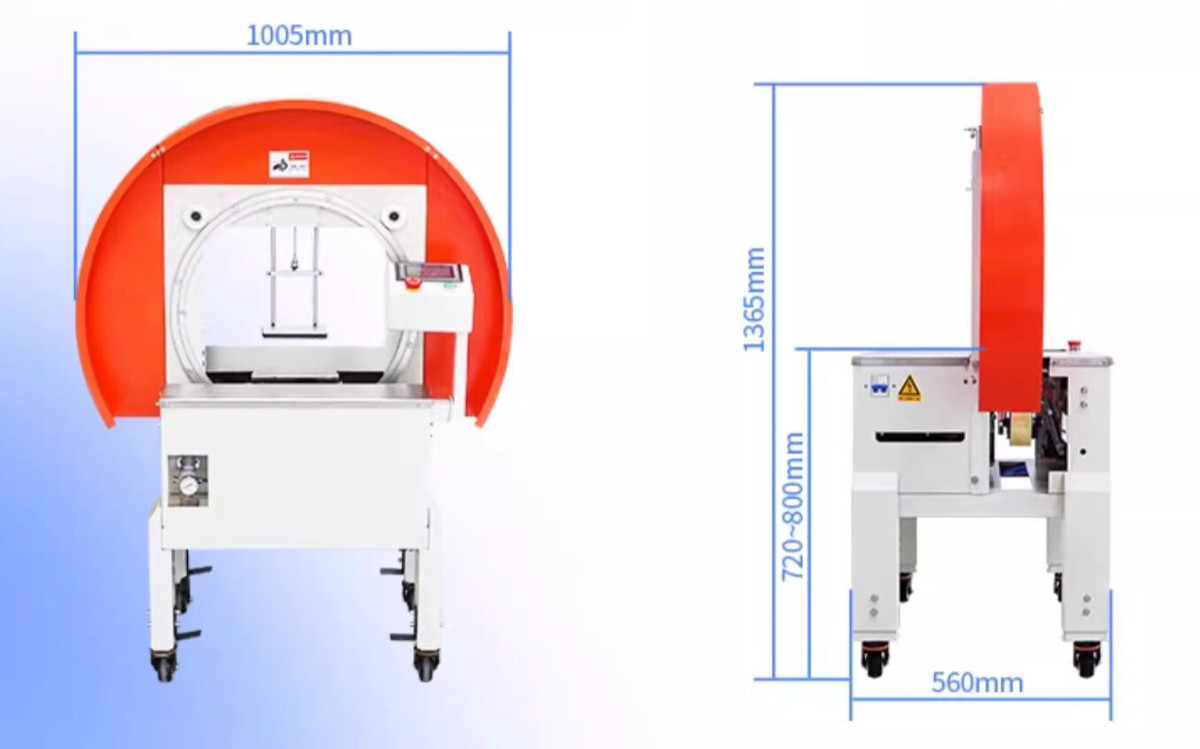

Overall size
560* 1005* 1365mm
1470*835*1450mm
/
Combination max. range
/
L: No limit, W:400mm, H:300mm
Combination min. range
/
The carton centered:
L195* W80* H90mm
Not centered:
L150* W80* H90mm

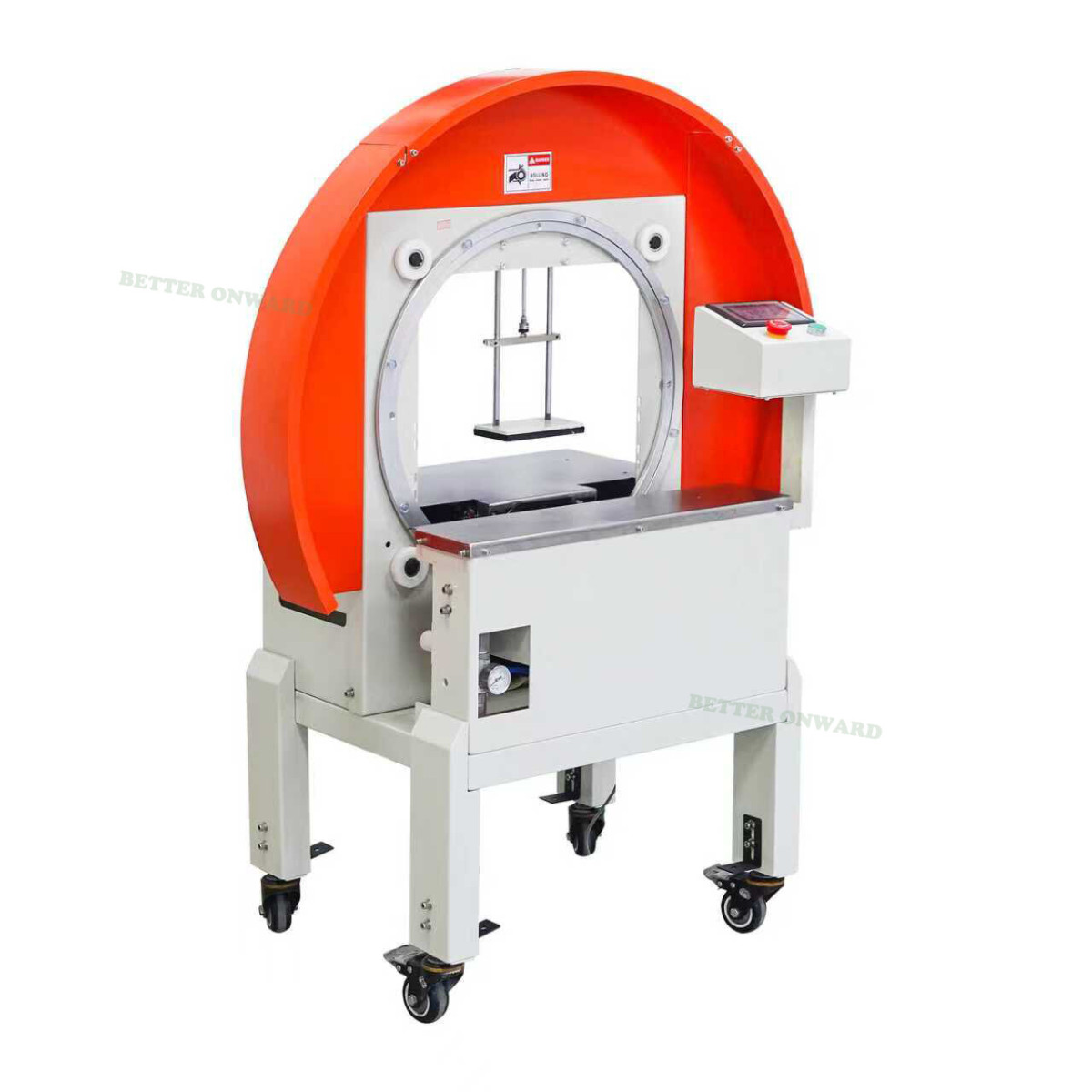

FXW3040 Carton Wrapping and Sealing Machine

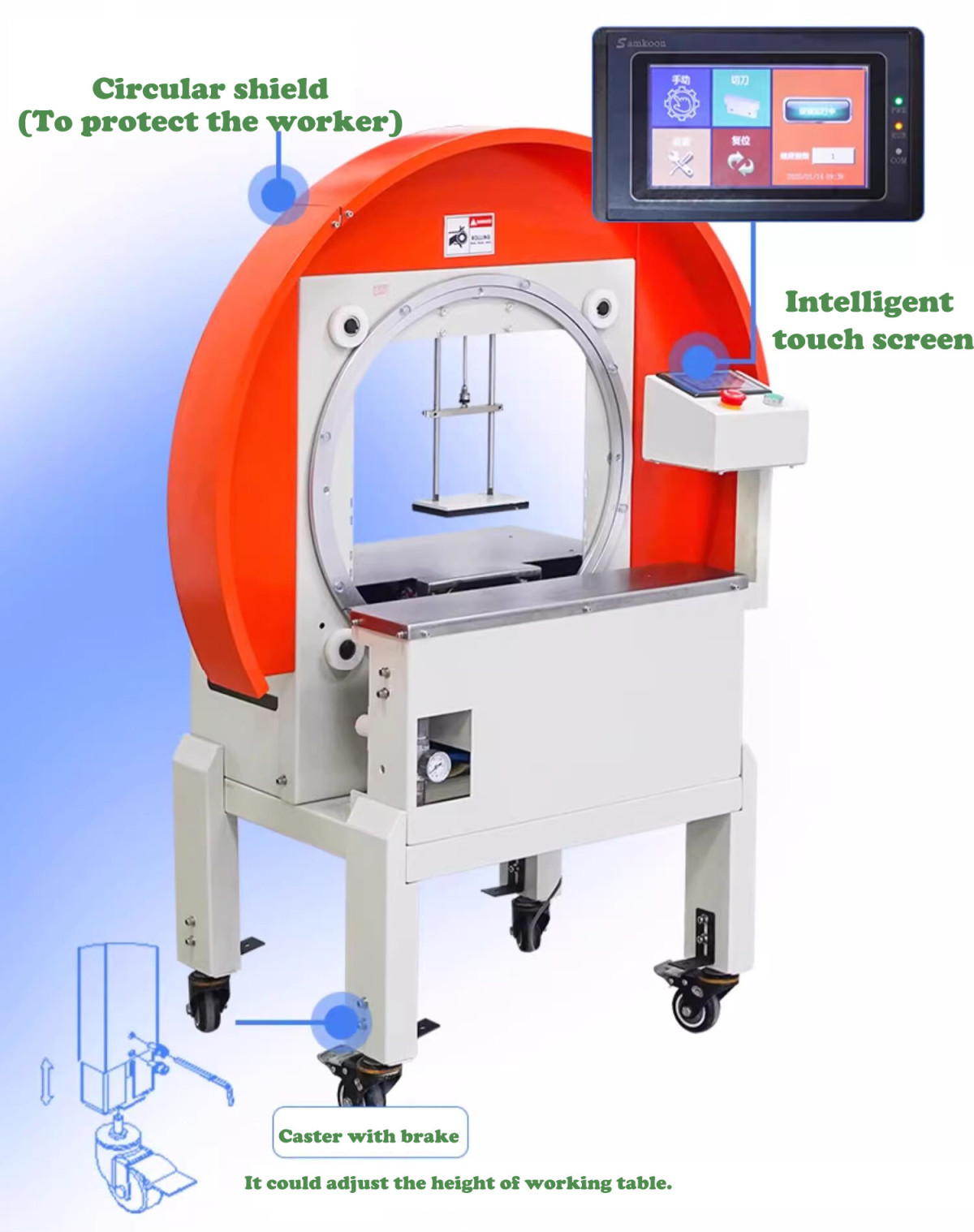

Safe and reliable
The annular shield can effectively protect the operators.
Match with PLC and touch screen, the operation is intelligent and convenient, provide personalized feature.
Customized Wrapping Circles
Our FXW3040 can customize the number of wrapping circles.
The product is quipped with the pressure plate to make the operation easier and has high stability.
Our this semi-automatic wrapping sealer occupies a small area and can seal the carton with full circle. The speed is 0-20 packages per minute.
Easy to operate
Can be used with large rolls of tape to reduce the frequency of tape changes.

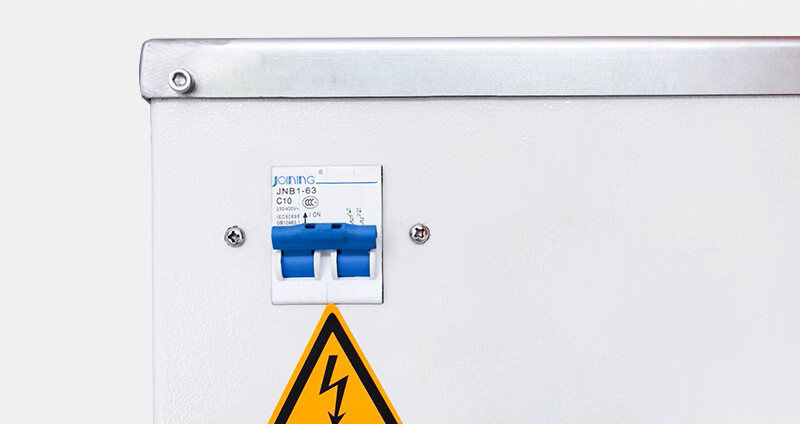

Power off protection switch
FXC5050XA Carton Sealing Machine

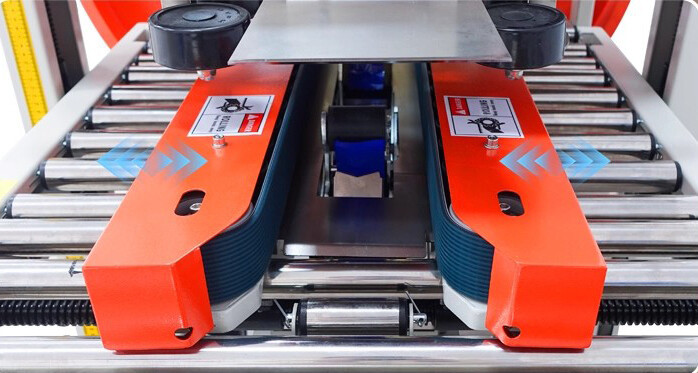

High-strength grip conveying belt is used to drive the carton on two sides,ensuring smooth transmission, centered tape sealing, and the sealing effect is firm and beautiful.
