Product Description

YS-A2H Electric Semi Automatic Feed/Tension/Seal/Cut Polypropylene Straps Strapping Machine


Our YS-A2H semi-automatic strapping machine use for strapping products with polypropylene (PP) strap.

It applies to strapping cartons, wooden boxes, paper-wrapped items and cloth-wrapped items in food, hardware, clothing, postal services, railway, publishing and other industries.
YS-A2H Electric Semi Automatic Polypropylene Straps Strapping Machine with Feed/Tension/Seal/Cut function
Specification

Model
YS-A2H
Power Supply
AC 110V/ 220V 50/60Hz, 0.25KW
Strapping Speed
≤3s/strap
Tension
3kg-45kg
Worktable height
750mm
Strap Specification
Material: PP
Strap width: 5-15mm (+/-1mm)
Thickness: 0.5-0.8mm (+/-0.1mm)
Strap coil width: 160-190mm
Coil inner diameter: 200-210mm
External diameter: 400-500mm
Overall dimension
L750* W550* H750mm
Machine weight
70kg
Adhesion mode
Hot melt
Working noise
≤75dB(A)

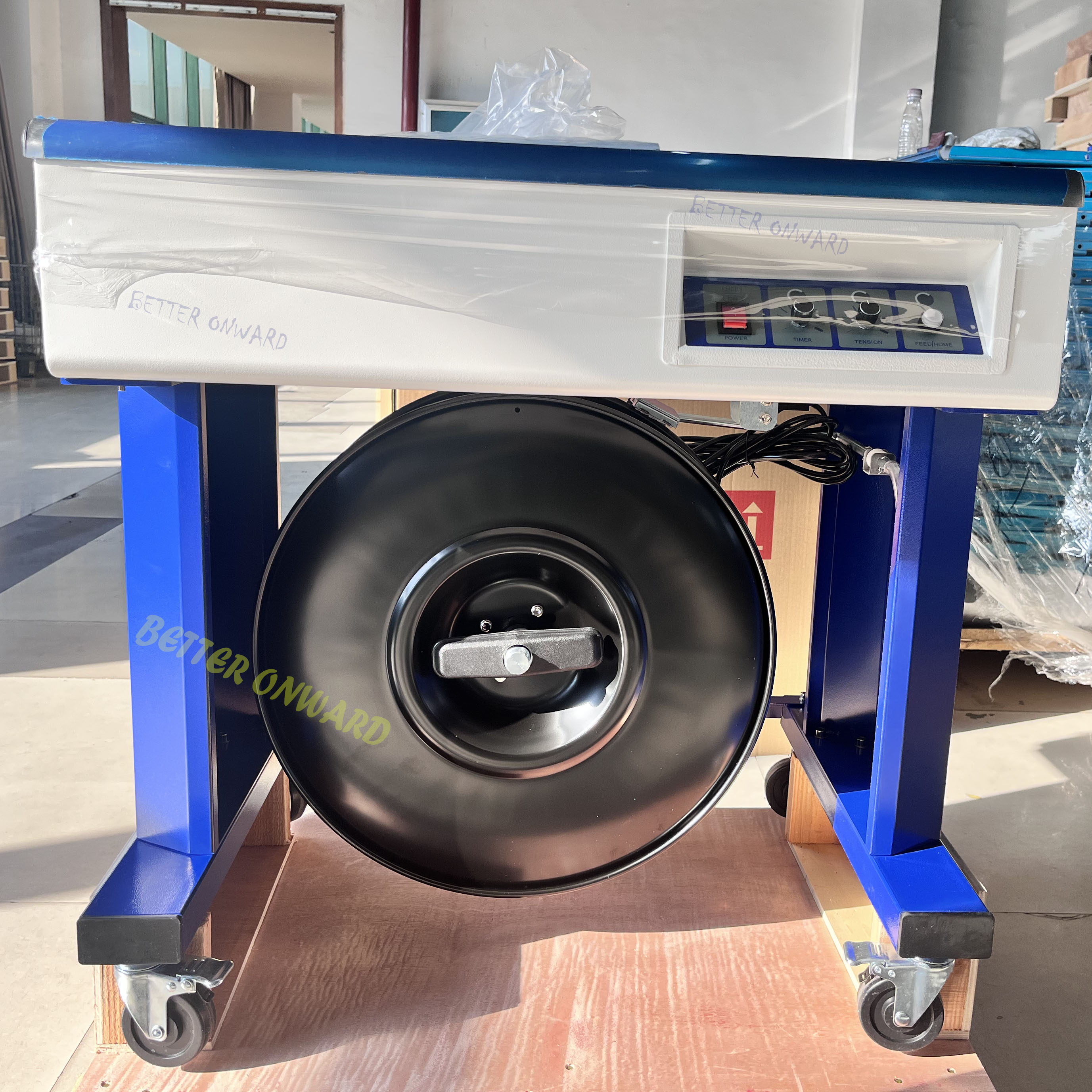

High worktable

YS-A2H Electric Semi Automatic Polypropylene Straps Strapping Machine with Feed/Tension/Seal/Cut function

H type Strapping Machine

YS-A2H Electric Semi Automatic Polypropylene Straps Strapping Machine with Feed/Tension/Seal/Cut function

Working Process
1) The object to be placed in the worktable of the machine. 2) To tension the object. 3) Two layers of strap is heated. 4) Cutting off the strap.

YS-A2H Electric Semi Automatic Polypropylene Straps Strapping Machine with Feed/Tension/Seal/Cut function

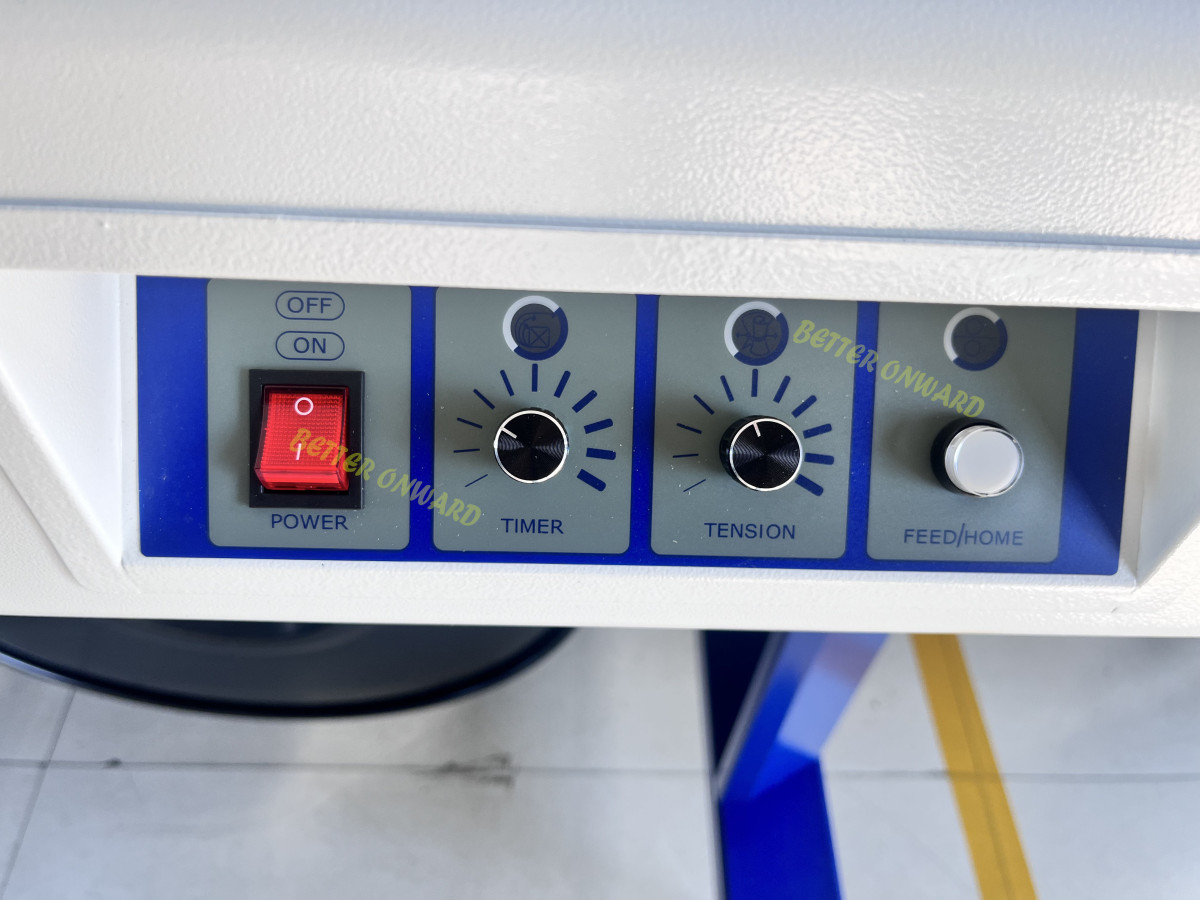

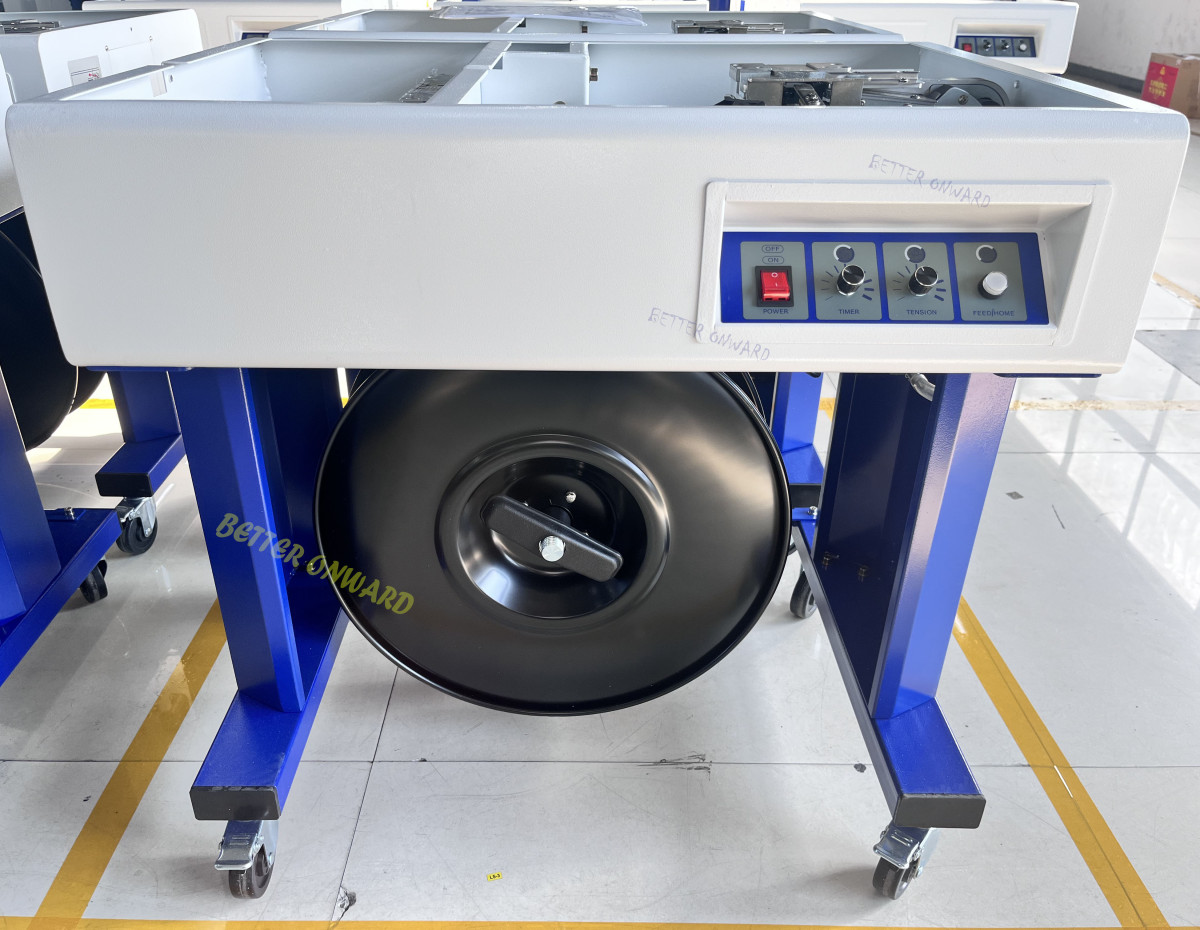

Operation Panel

1) Power switch (ON/ OFF)

2) Timer (length adjustment for strap feeding)

3) Strap tension button

4) Feed/ Home (Manual feeding/ Reset button)

YS-A2H Electric Semi Automatic Polypropylene Straps Strapping Machine with Feed/Tension/Seal/Cut function

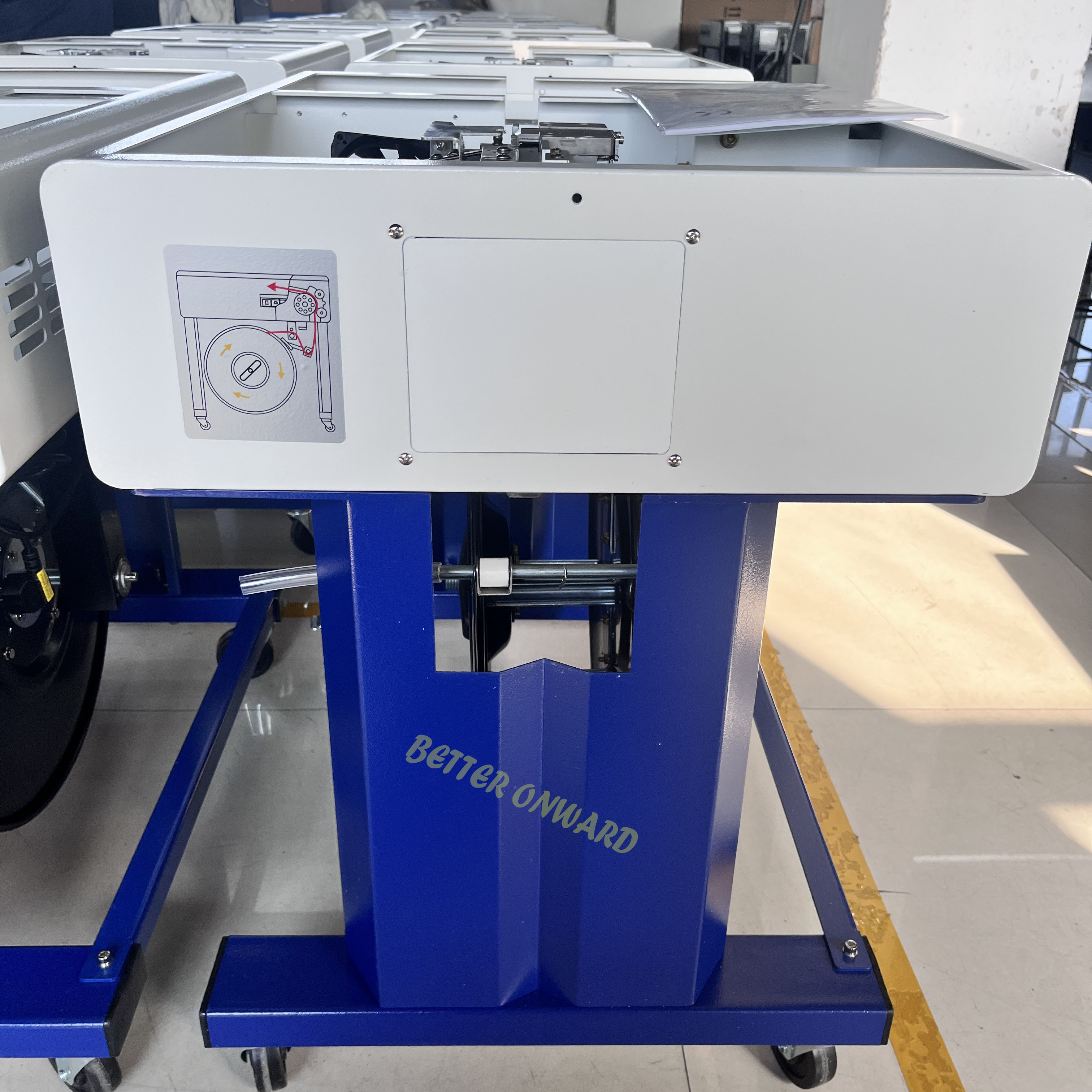

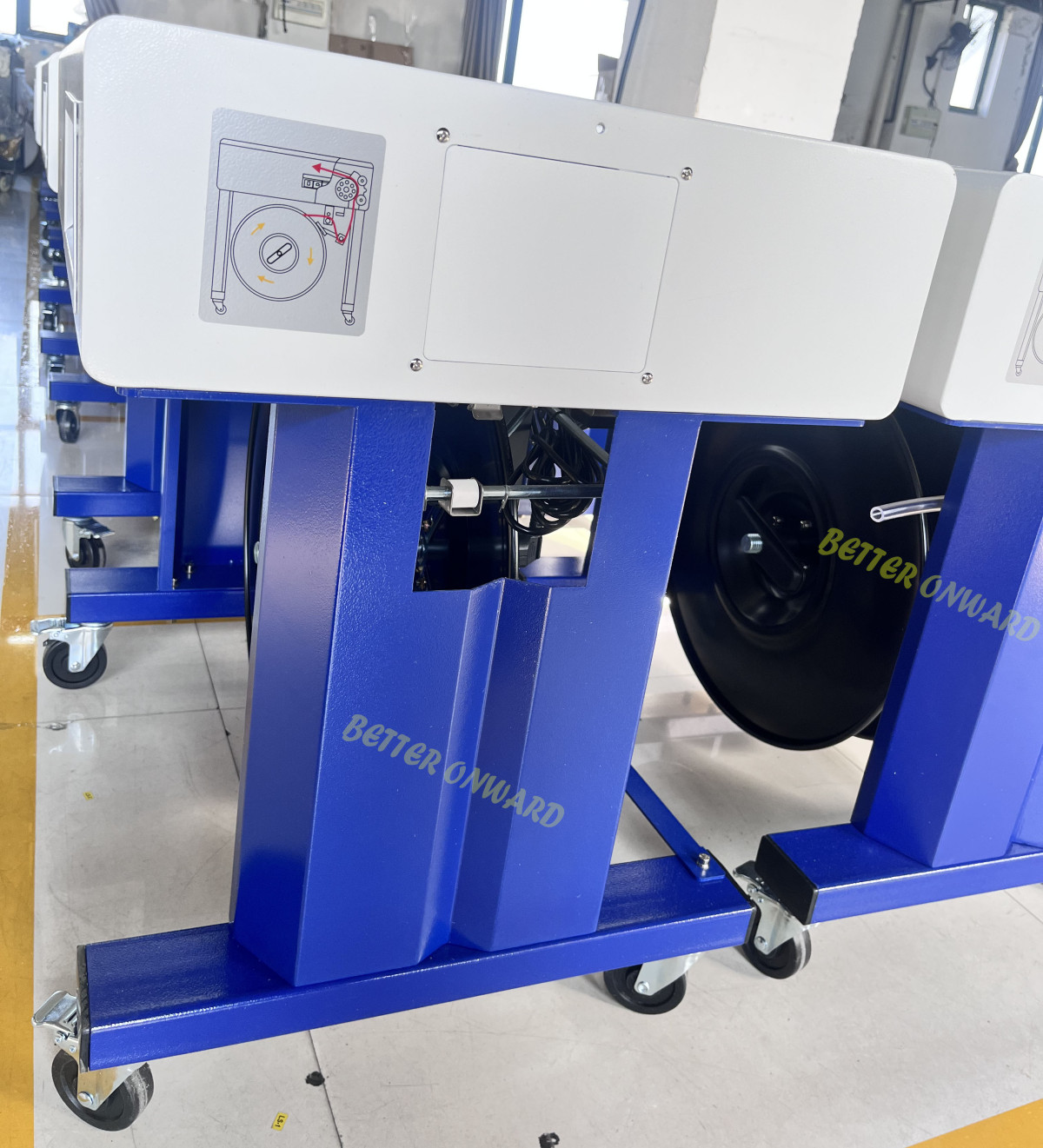

Strap Threading method

YS-A2H Electric Semi Automatic Polypropylene Straps Strapping Machine with Feed/Tension/Seal/Cut function

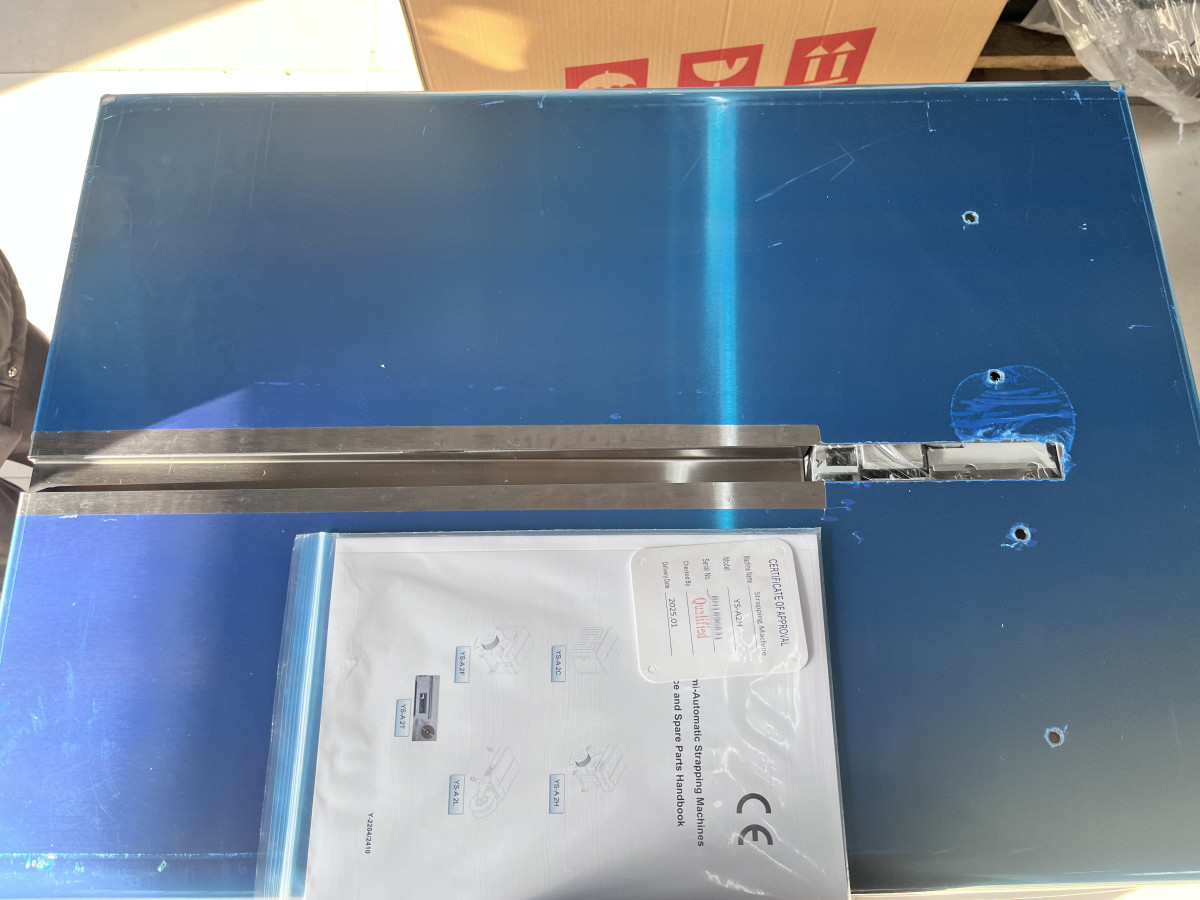

When make delivery, we will provide English manual and the certificate of approval.

YS-A2H Electric Semi Automatic Polypropylene Straps Strapping Machine with Feed/Tension/Seal/Cut function

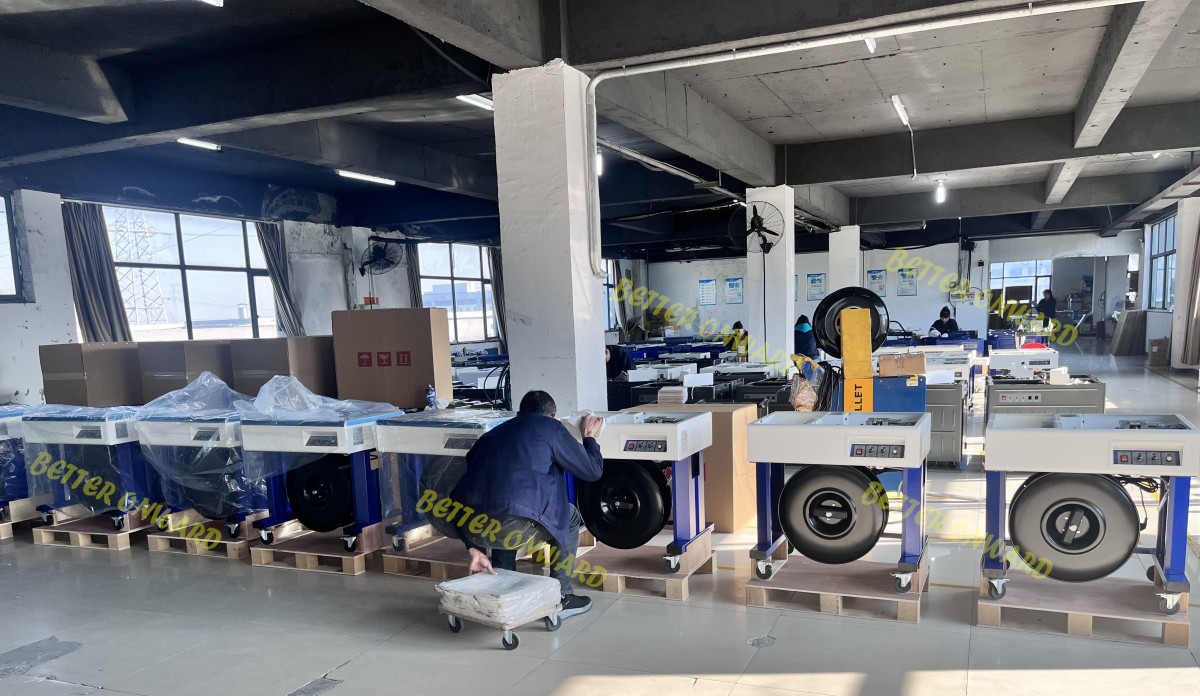

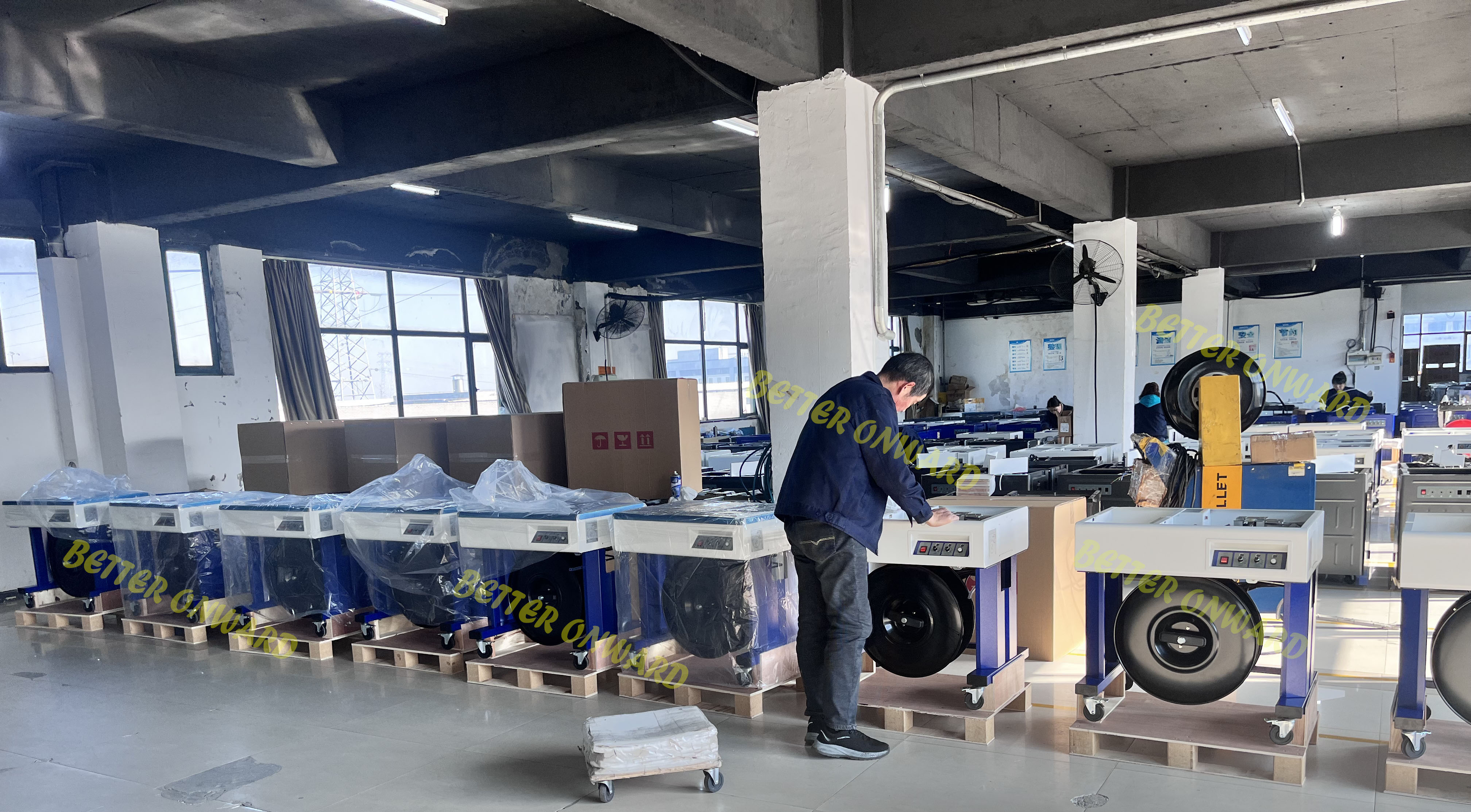

Workshop

YS-A2H Electric Semi Automatic Polypropylene Straps Strapping Machine with Feed/Tension/Seal/Cut function

YS-A2H Electric Semi Automatic Polypropylene Straps Strapping Machine with Feed/Tension/Seal/Cut function

Package

YS-A2H Electric Semi Automatic Polypropylene Straps Strapping Machine with Feed/Tension/Seal/Cut function

YS-A2H Electric Semi Automatic Polypropylene Straps Strapping Machine with Feed/Tension/Seal/Cut function

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
