YS-612 Automatic 11mm 12mm PP Packing Band Strapping Machine
Inquiry Now →

Product Description

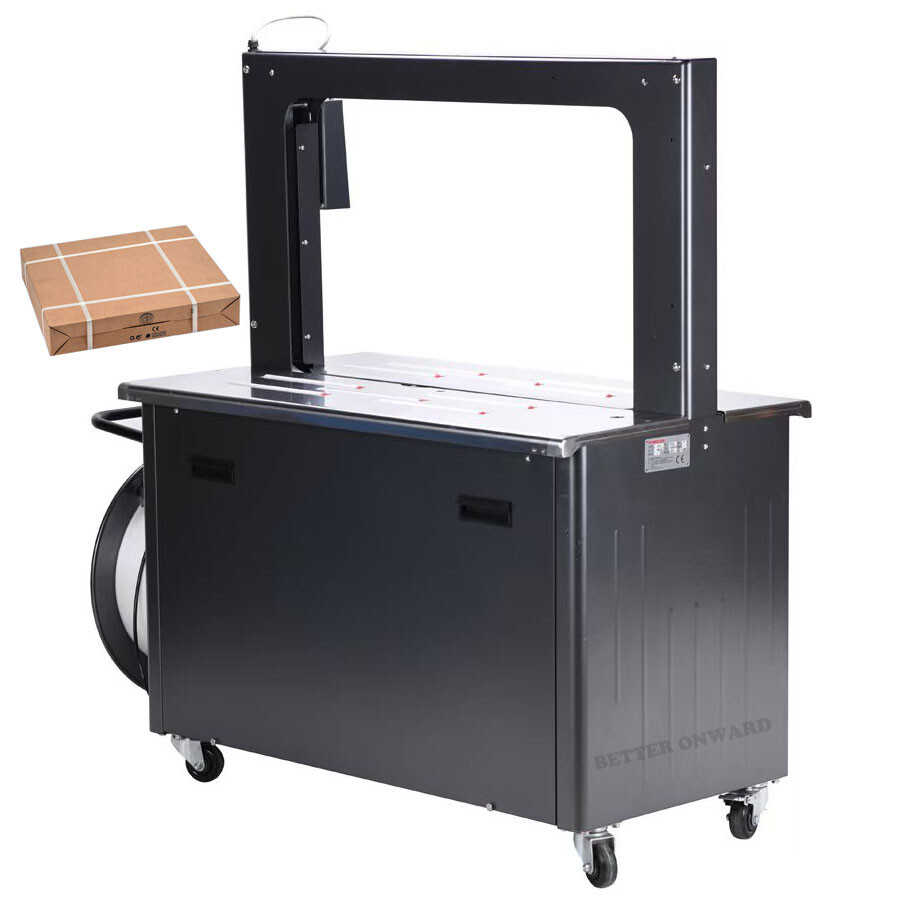

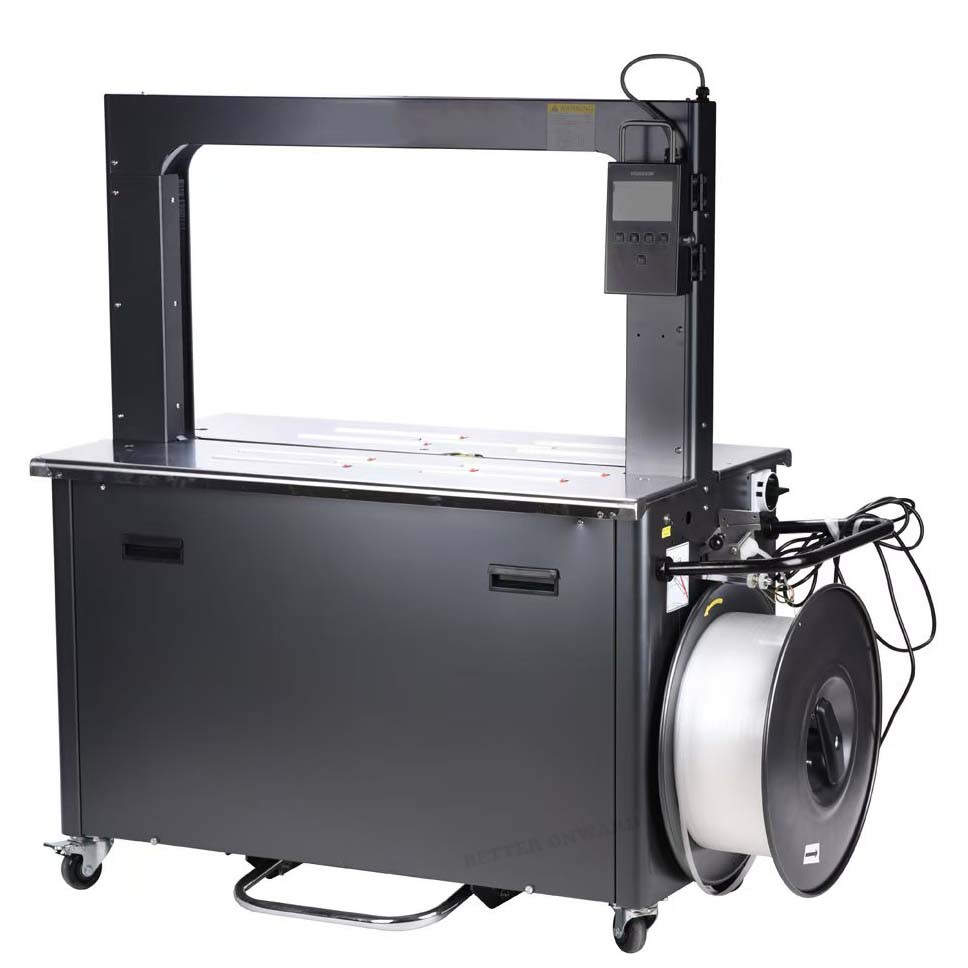

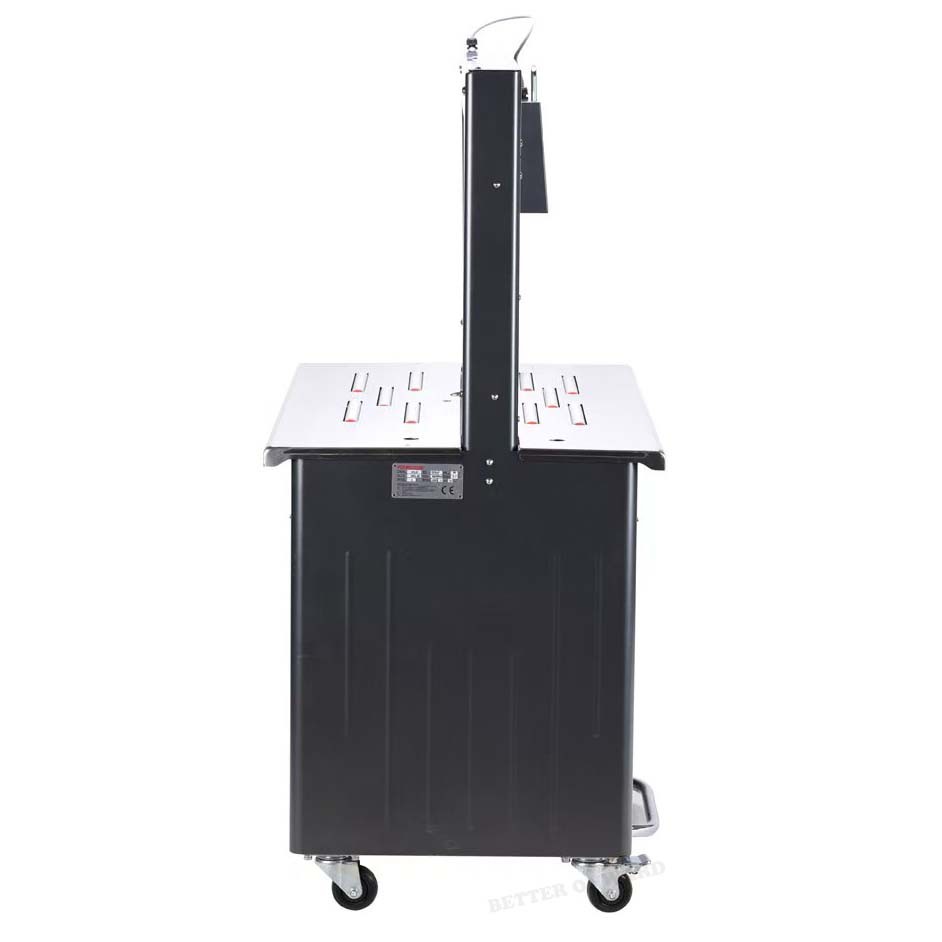

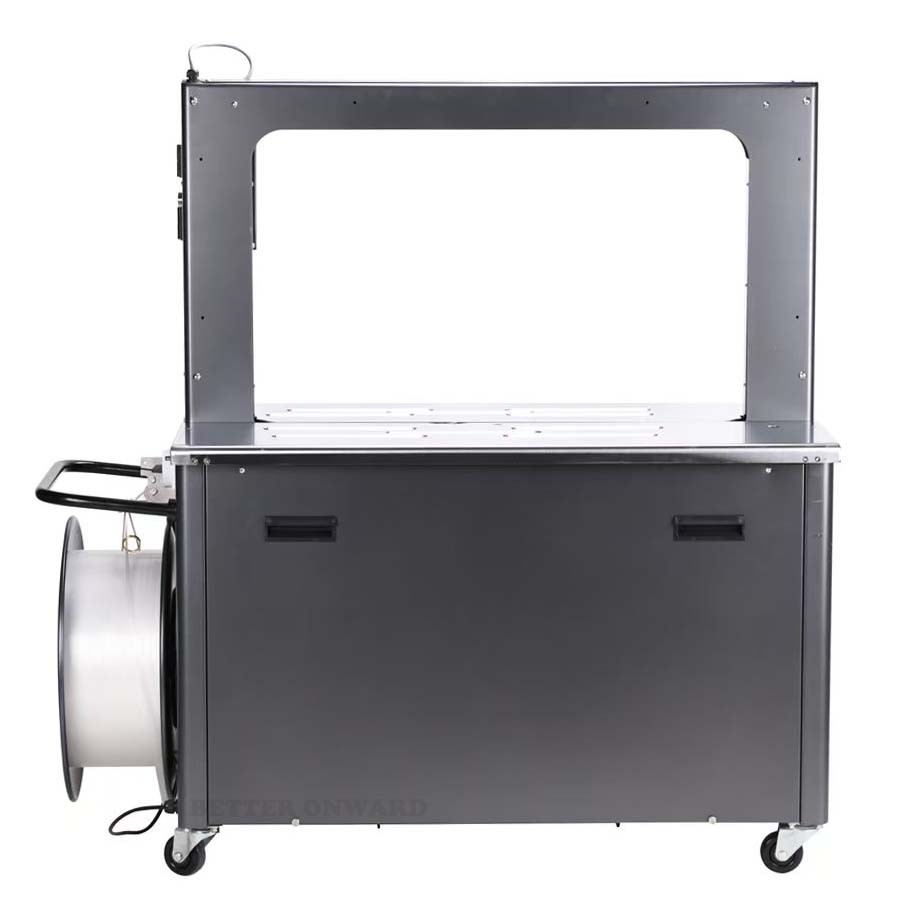

YS-612 Automatic Strapping Machine

Our YS-612 automatic strapping machine use for strapping objects with PP packing belt.
Specification
      Model
YS-605
YS-609
YS-612
Product Name
Automatic strapping machine
Power Supply
220V 50/60hz 500W
Bearing Weight
60kgs
Standard Frame Size
W650*H500mm(can be customized)
Strapping specification
Min. W100* H60mm
PP strap
width: 5mm, 6mm
Thickness: 0.5-0.6mm
width: 8mm, 9mm
Thickness: 0.5-0.6mm
width: 11mm, 12mm
Thickness: 0.5-0.6mm
Working table height
    750mm (can be customized)
Roll Size
Roll width: 170-190mm
Inner Diameter of roll: 200-210mm
Outer diameter of roll: 400-450mm
Packing Speed
≤52 strap/min
Net Weight
150kg
Gross Weight
180kg
Machine size
1148*620*1465mm
Package Size
1300*700*1600mm

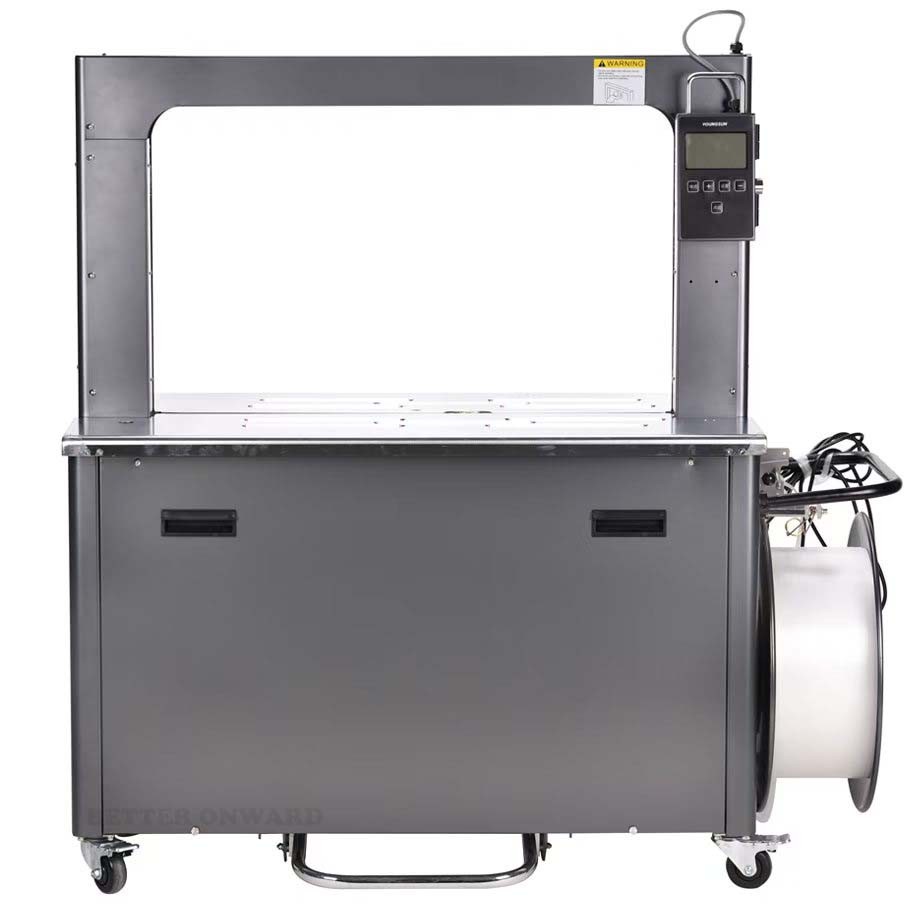

Intelligent Control Panel
We could adjust the parameter by ourselves.

Pedal Strapping

To strap more convenient.




Automatic Feed

Match with automatic strap feed button, easy to operate.



Standard Frame size: W650* H500mm
(could be customized)

Min. strapping size: W100* H60mm

Sealing strap way: Heat fusion





Worktable height: 750mm (Could be customized)

We could customize the nameplate according to your requirements.
Application
