Product Description

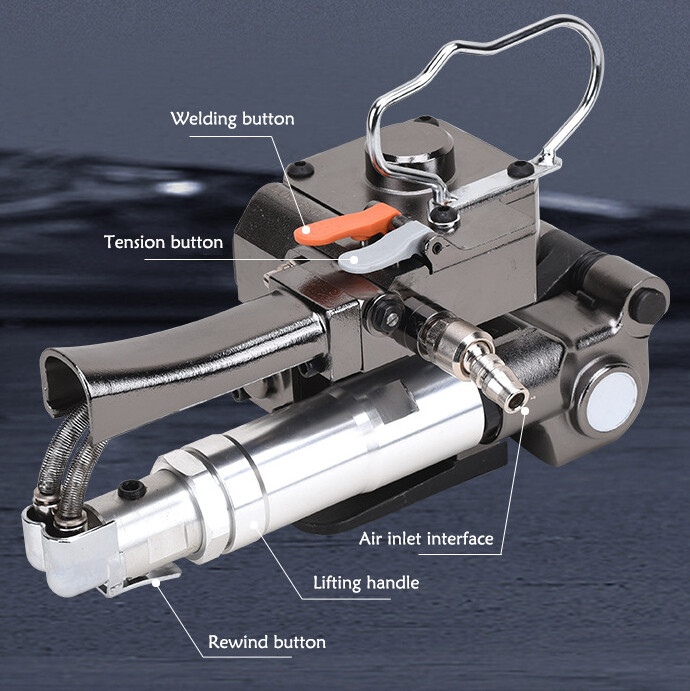

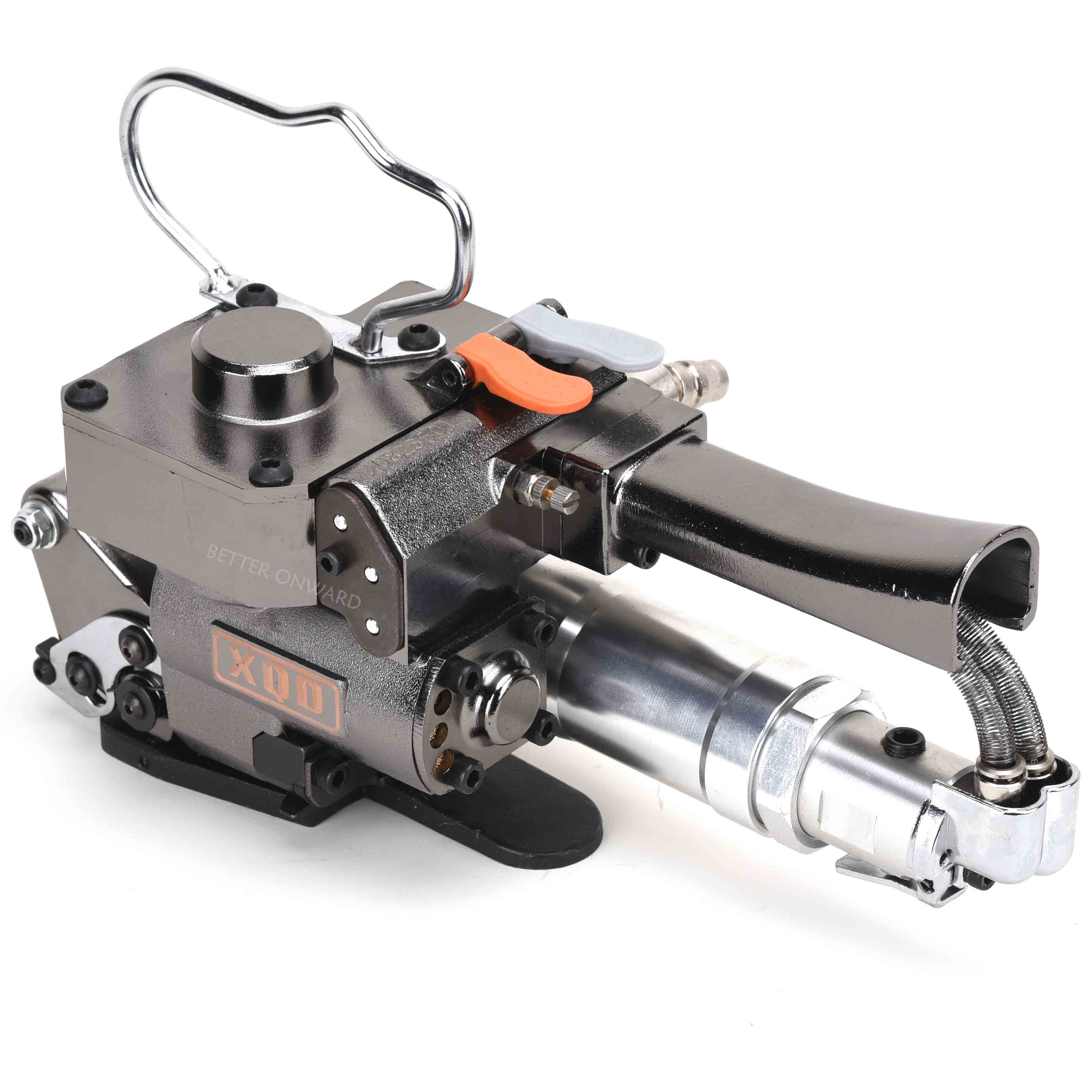

XQD-19 Handheld Pneumatic Plastic PP PET Strapping Machine


Our XQD-19 and XQD-25 Strapping Tool is a kind of friction fusion packaging machine.

This tool is specially designed for binding articles with PET and PP packaging belt.
Specification
Model
                  XQD-19
                  XQD-25
Product Name
                             Pneumatic Strapping Tool
Color
                                       Metalic grey
Packing belt Material
                                       PET & PP
Packing Belt width (mm)
                    13-19
                    19-25
Packing Belt thickness (mm)
                   0.4-1.2
                    0.5-1.5
Seal Strap form
                               Friction and Hot Welding
Machine Weight (kg)
3.82
Machine size (mm)
L280*H160*W180
Pull (N)
3500 (when 0.63Mpa)
Using air pressure (Mpa)
0.5-0.8
Splicing time (s)
1-5 adjustable
