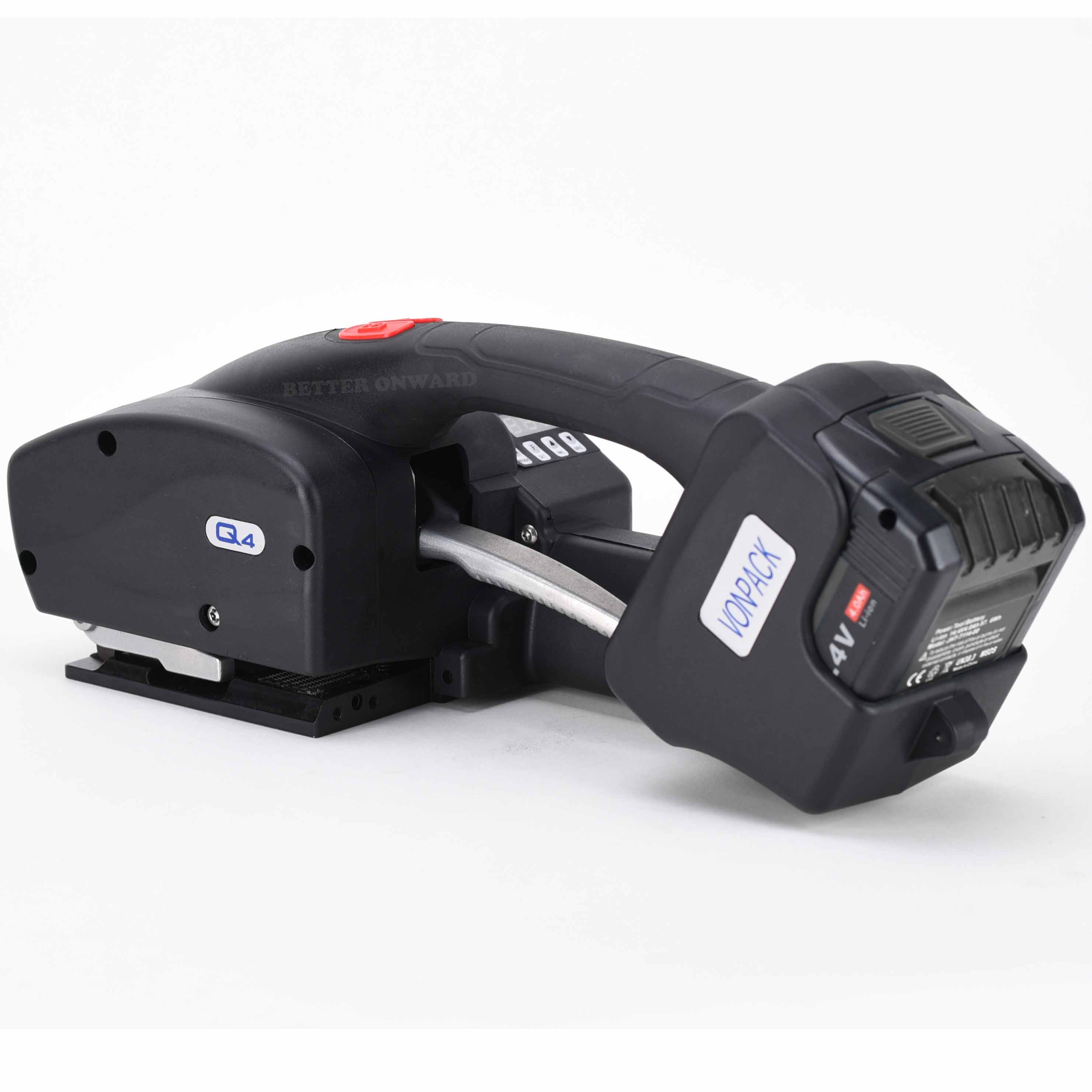

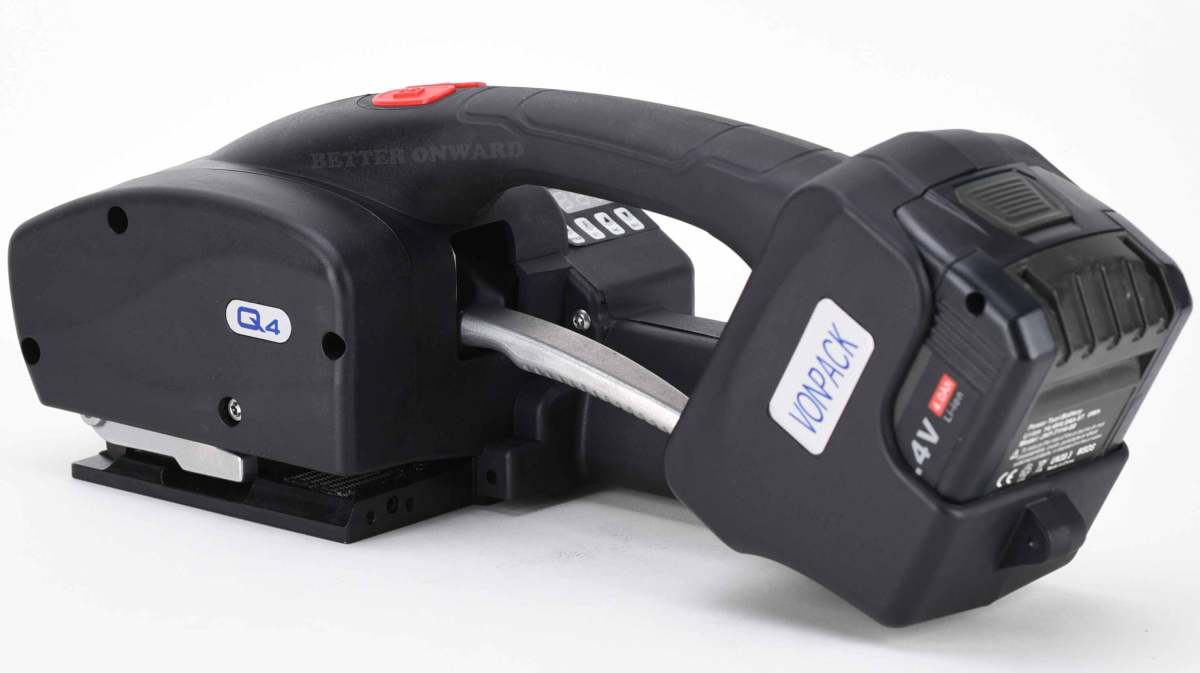

Q4 Handheld Automatic Battery Powered PP PET Plastic Strapping Machine

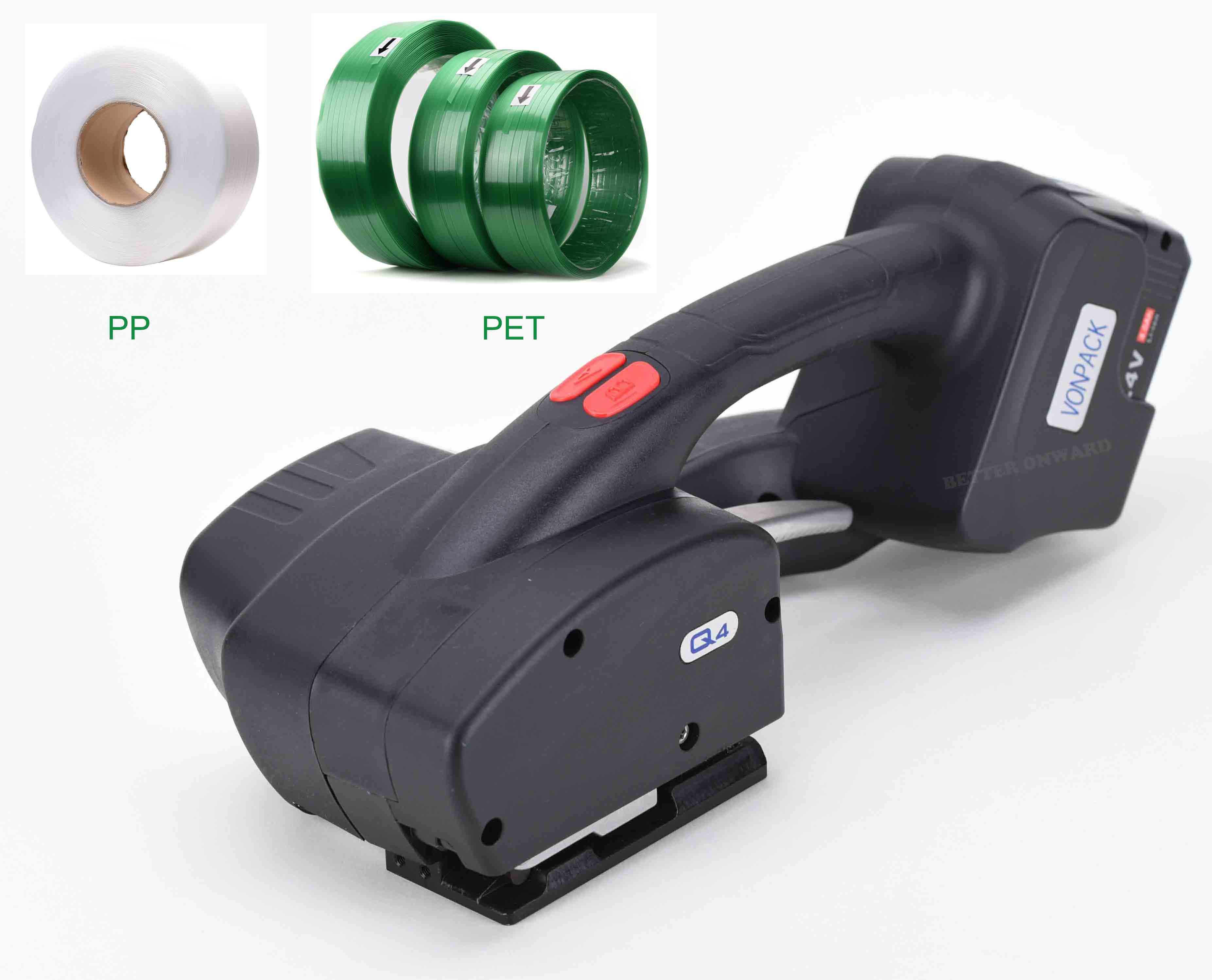

Q4 strapping machine is applicable to PP and PET strap material.
Strap width is 13-16mm, strap thickness is 0.4-1.2mm.
Model | Q4 |
Product Name | Electric Strapping Machine |
Packing belt Material | PET PP |
Packing Belt width (mm) | 13-16 |
Packing Belt thickness (mm) | 0.4-1.2 |
Battery Specification | 14.4V 4.0Ah |
Charging Time (min) | 100 |
Machine Weight (kg) | 2.9kg (machine) and 0.5kg (battery) |
Machine size (mm) | 360* 140* 130 |
Tension Force (N) | 400-3200 adjustable |
Sealing type | Friction Welding |
Tightening Speed(mm/s) | 100-200 |
Operating mode | Full Automatic |
Semi-Automatic |
Manual |
Lithium BatteryVoltage: 14.4V
Capacity: 4.0Ah
Charging time is approximately 100min.
Fully charged, could pack 600 straps.
Machine's weight is 2.9kg, battery weight is 0.5kg.Operation mode:1. Automatic
2. Semi-automatic
3. Manual

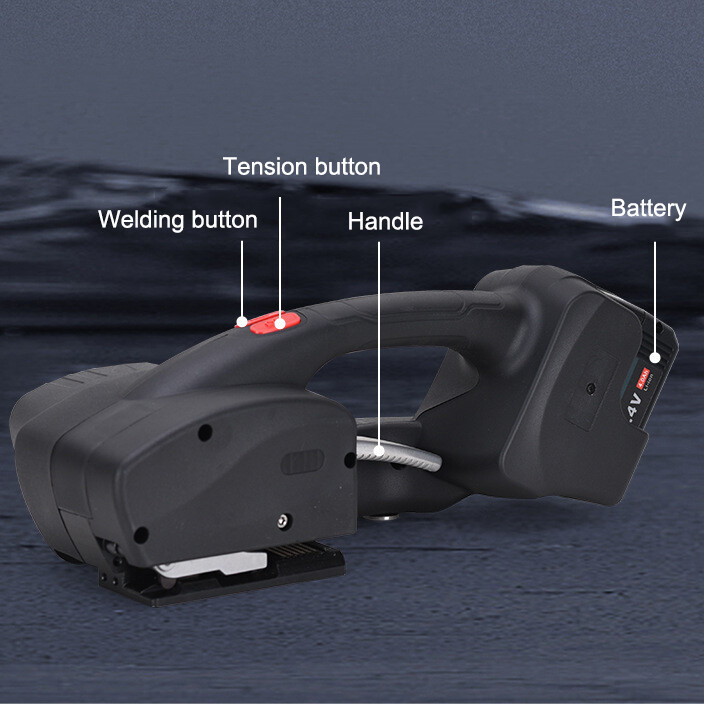

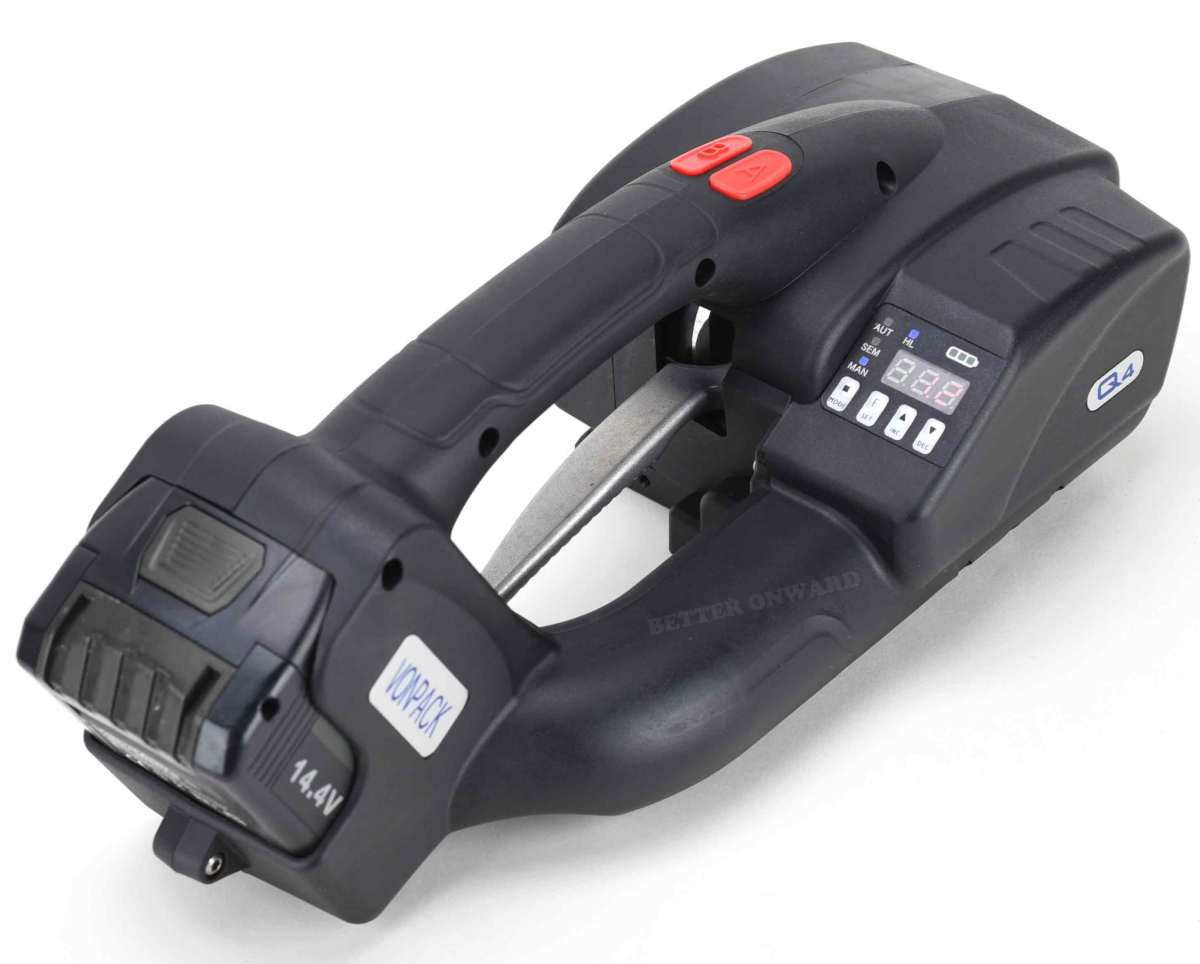

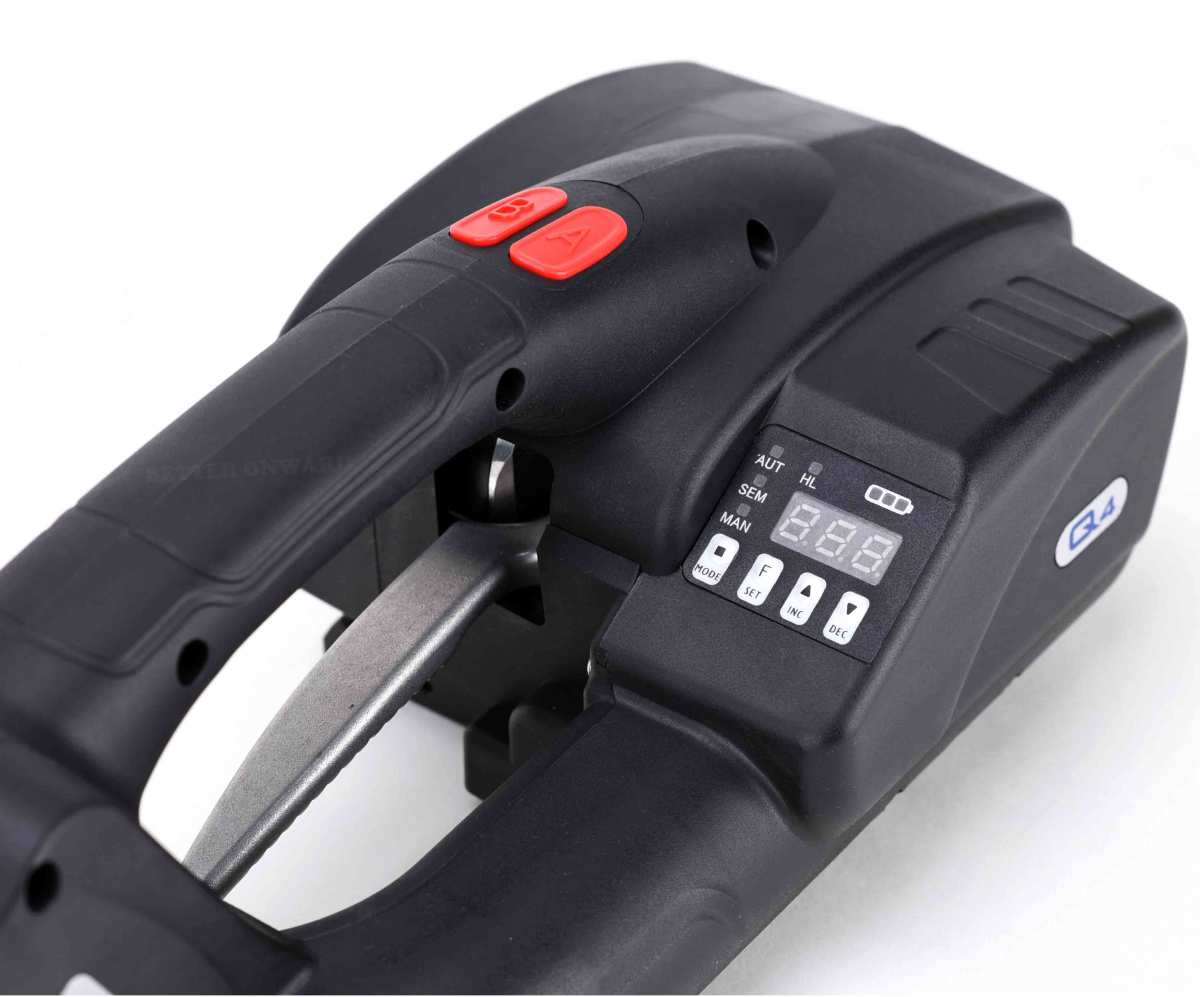

Tension adjustment: press SET key briefly to adjust the tension gear ( totally 9 gears. The tension in the first gear is the minimum and the tension in the ninth gear is the maximum.)Tension force:400-3200N adjustable
Welding time adjustment: Press INC key for a short time, the welding time will be longer.
Press DEC key for a short time to reduce the welding time.
The value display interval is 0.3-3.5s.
Application

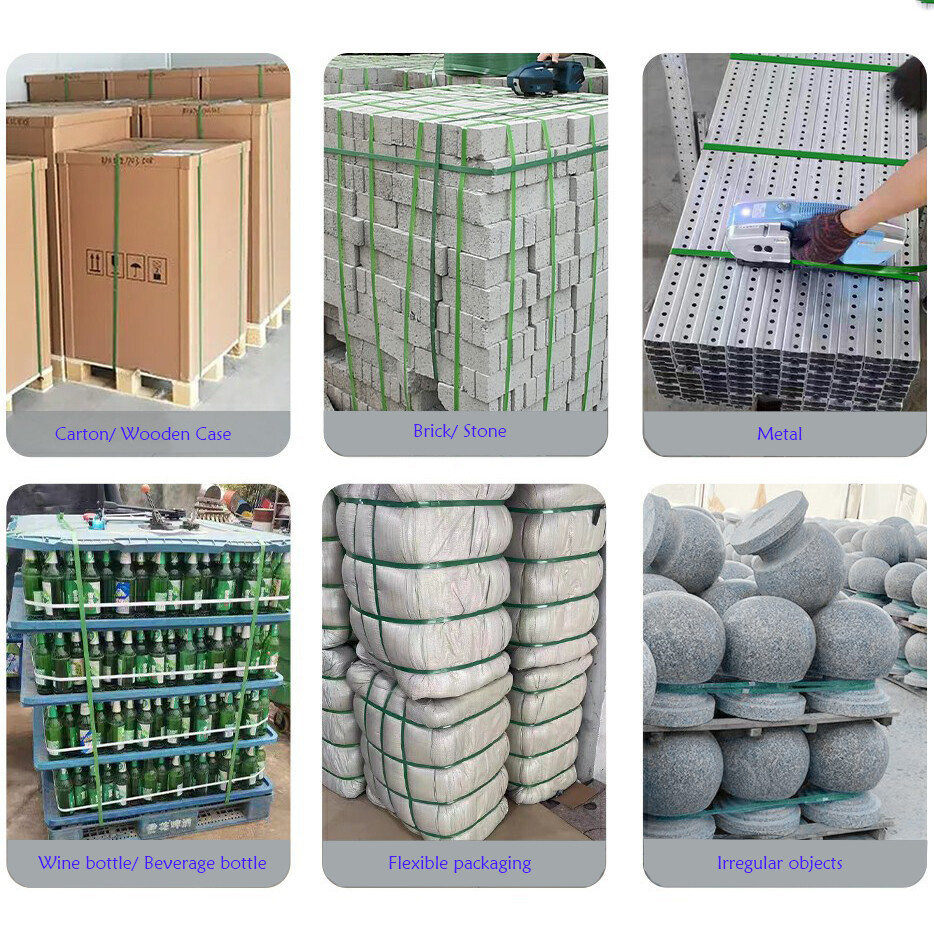

Our Q4 strapping machine is applicable to pack cartons, wooden cases, bricks, stones, metals, bottle pallets, flexible bags, irregular objects,etc.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
