CE Certified MH-101A Fully-automatic PP Strap Bottom Seal Box Strapping Machine
Inquiry Now →

Product Description

CE Certified MH-101A Fully-automatic PP Strap Bottom Seal Box Strapping Machine

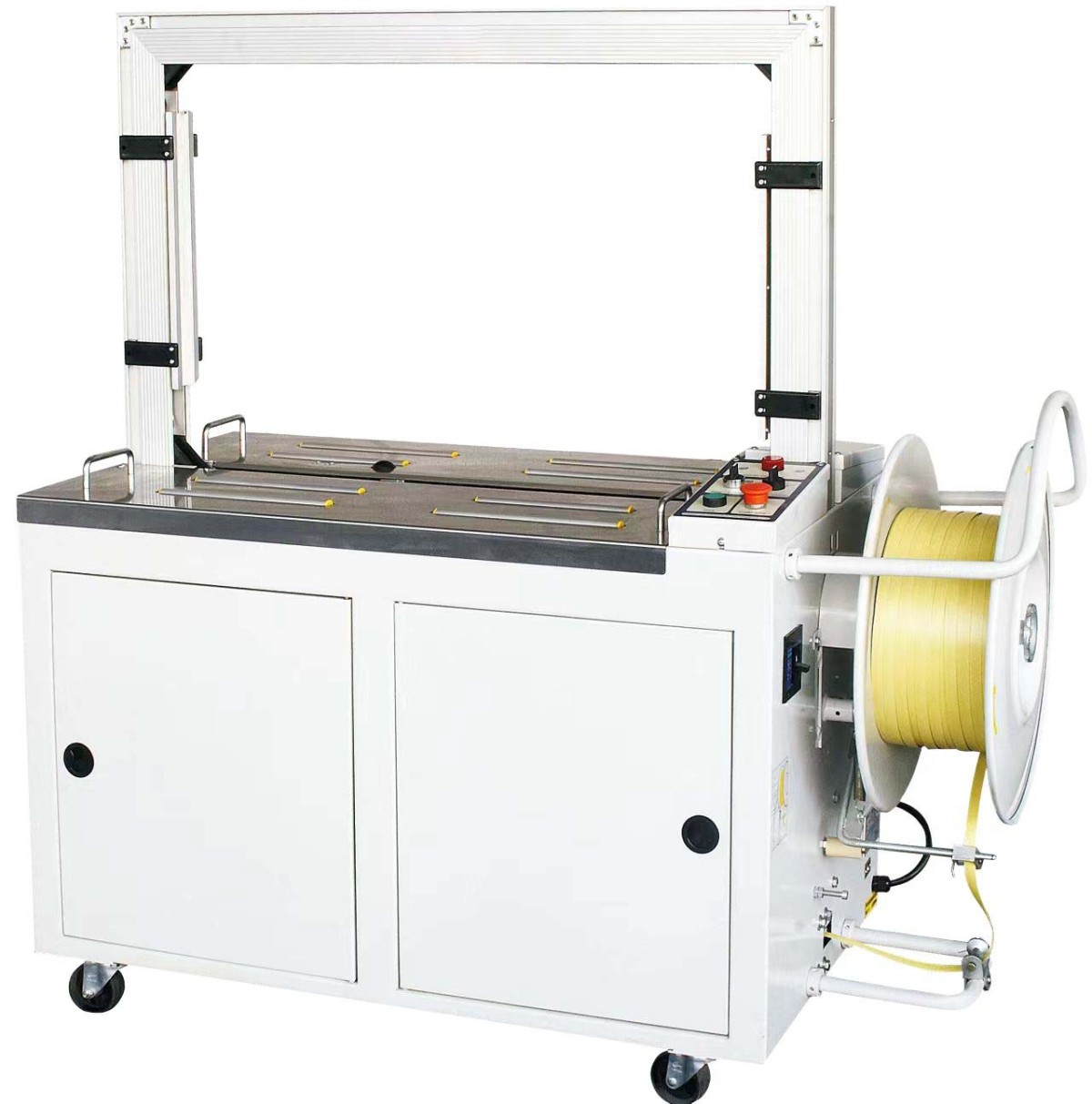

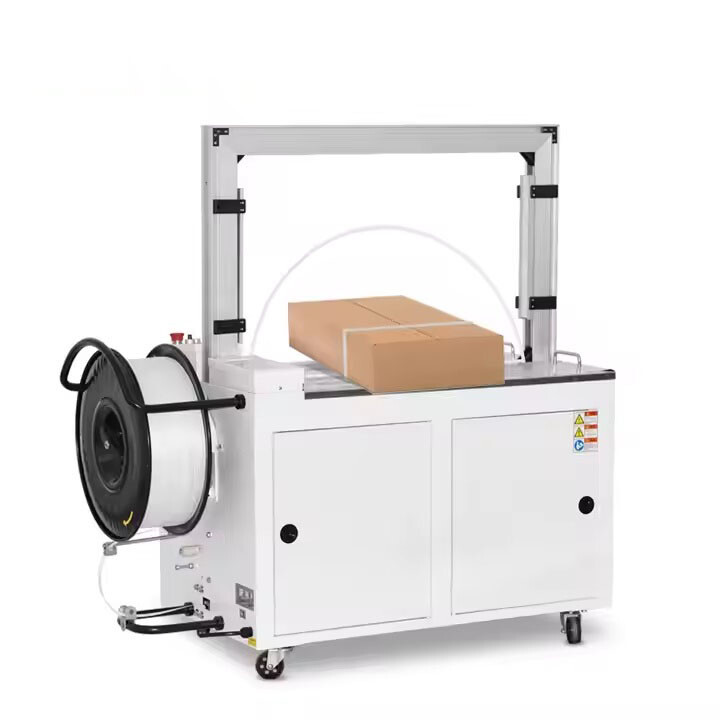

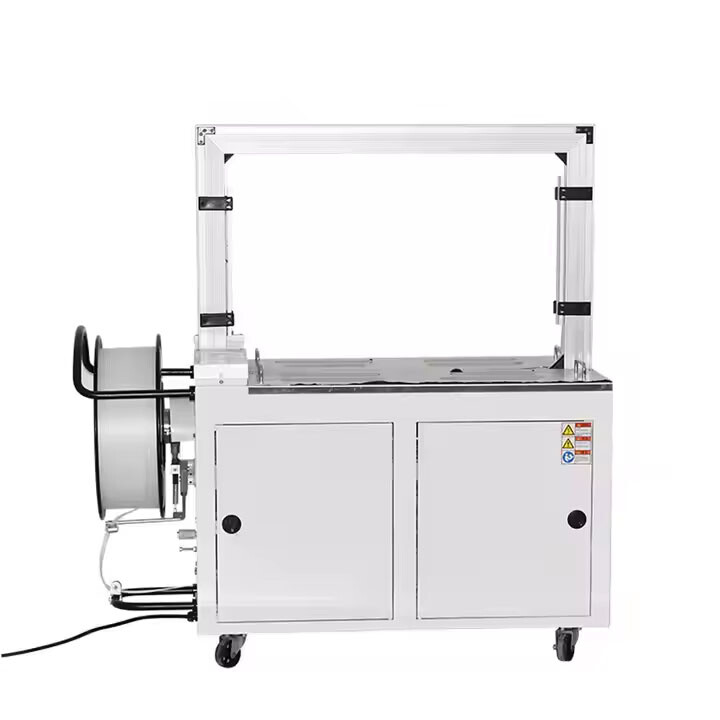

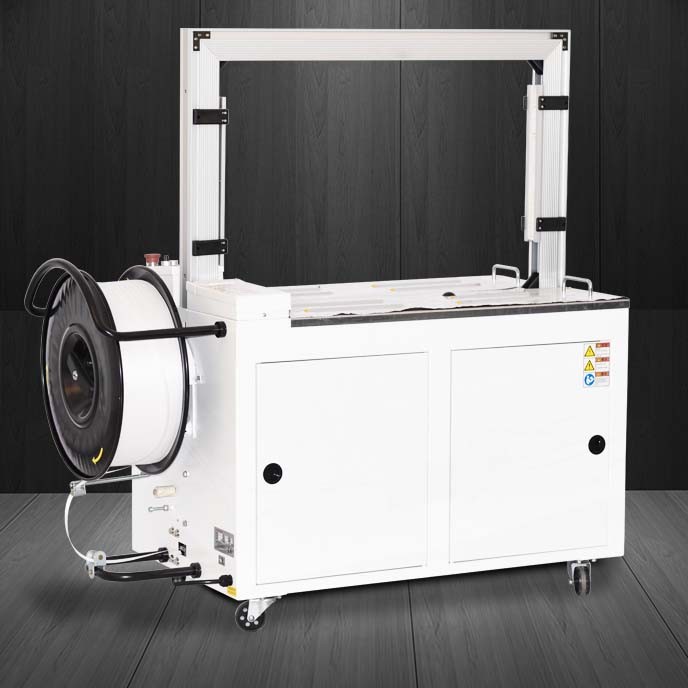

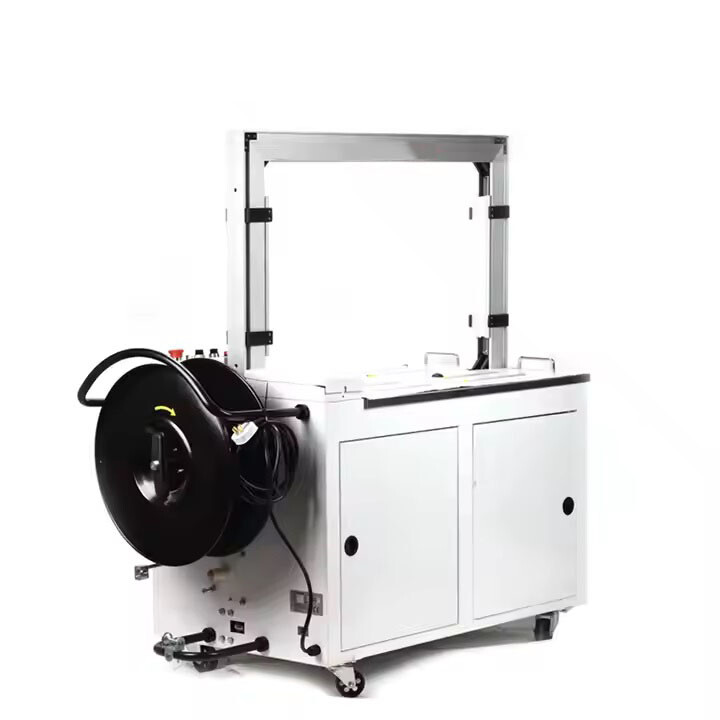

Our MH-101A automatic strapping machine is the productive solution to the PP (polypropylene) strapping tasks.

This automatic Arch Strapping Machine features the "Auto-Feeding" function that automatically feeds polypropylene straps to arch and is ready for each application.
Specification
Model
MH-101A
Voltage
380V 50/60Hz
Power supply
1.0KW
Machine size
L1400* W628* H1418mm
Packing specification
Min. package size
W100* H80mm
Standard frame size
W800* H600mm
Working table height
750mm
Load capacity
80kg
Packing speed
≤2.5s/cycle
Tension
0-60kg (adjustable)
Strap Specification
Width
9-15 (+/-1)mm
Thickness
0.55-1.0 (+/-0.1)mm
Straps Coil Specifcation
width
160-180mm
Inner diameter
200-210mm
Outer diameter
400-500mm
Machine weight
220kg


Our MH-101A strapping machine is used to strap products using the PP strap.

The products to be strapped are limited within the arch inner size: W800* H600mm.






Strap Requirements
Strap Material: PP

Width: 9-15 (+/-1)mm
Thickness: 0.55-1.0 (+/-0.1)mm




Load capacity: 80kgs


Tension: 0-60kg (Adjustment)

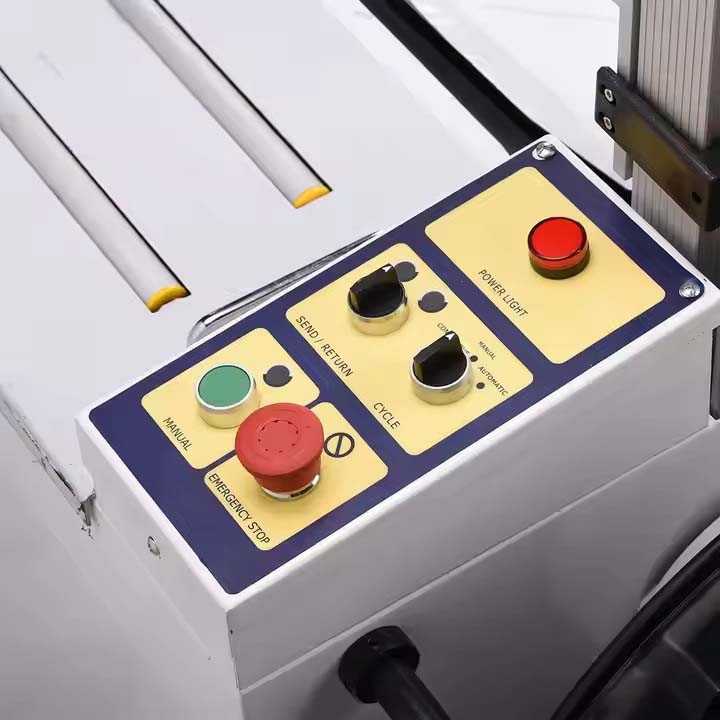

Control Panel
In the control panel, install the power light, send/ return strap button,  working mode selection, strapping button and emergency stop.
Application
